SAJ AS1-3KS-5.1 User manual

- 1 -

- 2 -
Content
CHAPTER 1 SAFETY PRECAUTIONS........................................ - 4 -
1.1 SAFETY TIPS..............................................................................................- 4 -
1.2 SYMBOLS INSTRUCTIONS.......................................................................... - 6 -
1.3 EMERGENCY SITUATION........................................................................... - 7 -
CHAPTER 2 PRODUCT INTRODUCTION.................................. - 8 -
2.1 SCOPE OF APPLICATION............................................................................ - 8 -
2.2 PRODUCT MODEL DESCRIPTION............................................................... - 9 -
2.3 DATASHEET.............................................................................................- 10 -
CHAPTER 3 INSTALLATION INSTRUCTIONS....................... - 11 -
3.1 SAFETY TIPS............................................................................................- 11 -
3.2 DETERMINE THE INSTALLATION METHOD AND LOCATION.....................- 12 -
3.3 INSTALLATION STEPS.............................................................................. - 14 -
CHAPTER 4 ELECTRICAL CONNECTIONS............................- 20 -
4.1 ELECTRICAL INTERFACE DESCRIPTION................................................... - 20 -
4.2 SYSTEM WIRING SCHEMATIC..................................................................- 21 -
4.3 MASTER DEVICE WIRING........................................................................ - 21 -
4.4 SLAVE DEVICE WIRING........................................................................... - 22 -
4.5 COMMUNICATION INTERFACE DESCRIPTION...........................................- 23 -
4.6 CT INSTALLATION...................................................................................- 25 -
4.7 GROUND CONNECTION........................................................................... - 26 -
4.8 EXTERNAL AC CIRCUIT BREAKER AND RESIDUAL CURRENT DEVICE... - 26 -
CHAPTER 5 DEBUGGING INSTRUCTIONS............................ - 27 -
5.1 HUMAN-COMPUTER INTERFACE INTRODUCTION..................................... - 27 -

- 3 -
5.2 SYSTEM COMMISSIONING....................................................................... - 28 -
5.3 START UP THE INVERTER.........................................................................- 28 -
5.4 SHUT DOWN THE INVERTER.................................................................... - 29 -
5.5 REMOTE MONITORING............................................................................ - 29 -
CHAPTER 6 FAULT CODES AND COMMON
TROUBLESHOOTING...................................................................- 32 -
CHAPTER 7 INVERTER & BATTERY MAINTENANCE.........- 34 -
7.1 TRANSPORTATION................................................................................... - 34 -
7.2 STORAGE................................................................................................. - 35 -
7.3 CLEANLINESS..........................................................................................- 36 -

- 4 -
Chapter 1 Safety Precautions
This user manual describes the instructions and procedures for the installation of
the AS1 AC Retrofit Battery System. Please read the user manual before operating
it.
Keep this user manual properly and operate strictly according to all safety tips and
operation instructions in this manual.
1.1 Safety Tips
Danger
•Electric shock and high voltage.
•Do not expose the inverter to temperatures in excess of 45°C.
•Do not subject the inverter to any strong force.
•Do not place the inverter near a heat source, such as direct sunlight, a fireplace.
•Keep inflammable and explosive dangerous items or flames away from the
inverter.
•Do not soak the inverter in water or expose it to moisture or liquids.
•Do not charge or discharge damaged inverter.
Warning
•Installation, repair, recycling, and disposal of AS1 must be performed by
qualified personnel in accordance with national and local standards and
regulations.
•Any behavior to change the functionality of the product without permission will

- 5 -
cause fatal injury to the operator, third parties, and equipment. The manufacturer
is not responsible for these losses and warranty claims.
•To ensure property and personal safety, the battery modules and inverter shall
be well grounded.
Caution
•Do not modify or tamper with AS1 and other components of the system.
•Please pay attention to the risks caused by improper modification.
Notice
•This device has a built-in lithium battery and a dedicated extended battery. Do
not extend other brands of batteries at the battery port.
•AS1 outputs AC power directly to the utility grid side and the backup loads
side. Do not reverse output of the two AC terminals of the inverter.

- 6 -

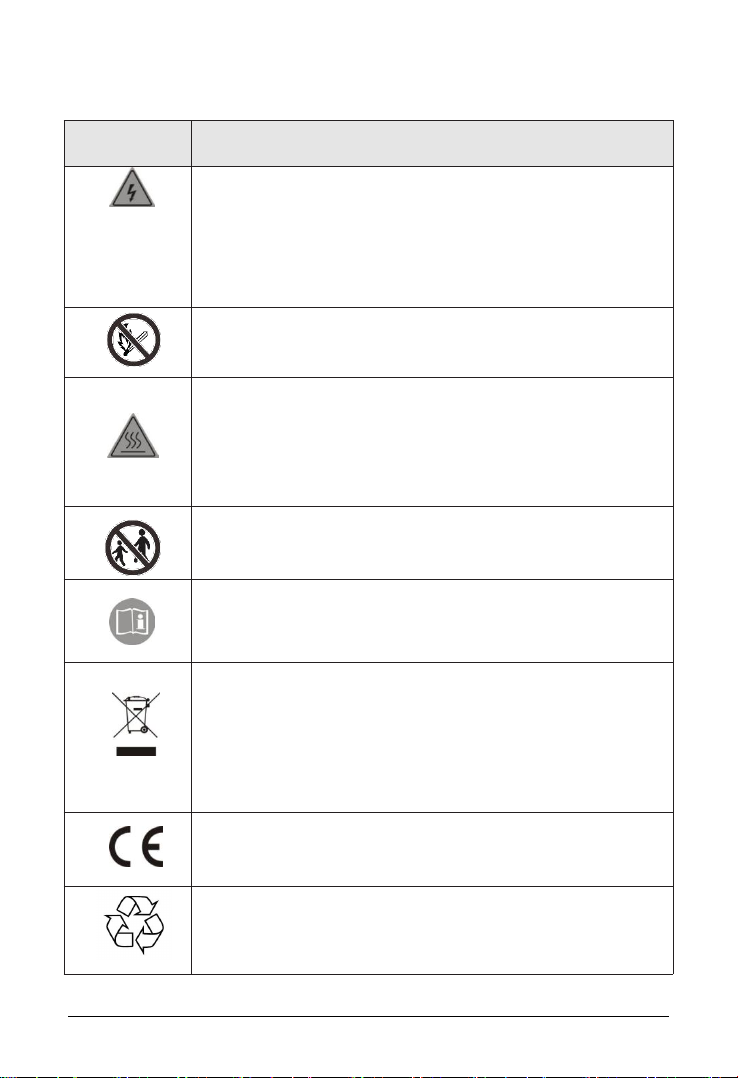

1.2 Symbols Instructions
Symbol
Description
Dangerous electrical voltage
The device is directly connected to public grid, thus all work to
the battery shall only be carried out by qualified personnel.
No open flames
Do not place or install near flammable or explosive materials.
Danger of hot surface
The components inside the device will release a lot of heat
during operation. Do not touch metal plate housing of the
inverter during operating.
Attention
Install the product out of reach of children
An error occurred
Read the usage manual to troubleshoot problems
This device SHALL NOT be disposed of in residential waste
Please go to Chapter 8 “Recycling and Disposal” for proper
treatment.
CE Mark
The device is in compliance with Low Voltage Detective and
Electromagnetic Compatibility.
Recyclable

- 7 -
1.3 Emergency Situation
Despite of its careful and professional protection design against any hazard results,
damage of the battery may still occur. If a small amount of battery electrolyte is
released due to a serious damage of the outer casing; or if the battery explodes due
to not being treated timely after a fire breaks out nearby, and leaks out poisonous
gases such as carbon monoxide, carbon dioxide and etc., the following actions are
recommended:
1）Eye contact: Rinse eyes with a large amount of running water and seek
medical advice.
2）Contact with skin: Wash the contacted area with soap thoroughly and seek
medical advice.
3）Inhalation: If you feel discomfort, dizziness or vomiting, seek medical
advice immediately.
4）Use a FM-200 or Carbon Dioxide (CO2) fire extinguishers to extinguish
the fire if there is a fire in the area where the battery pack is installed. Wear a gas
mask and avoid inhaling toxic gases and harmful substances produced by the fire.
5）Use an ABC fire extinguisher, if the fire is not caused by battery and not
spread to it yet.
Warning
•If a fire has just occurred, try to disconnect the battery circuit breaker and cut
off the power supply first, but only if you can do so without endangering
yourself.
•If the battery is on fire, do not attempt to extinguish the fire and evacuate the
crowd immediately.
Potential danger of damaged battery:
Chemical Hazard: Despite of its careful and professional protection design

- 8 -
against any hazard results, rupture of battery shall may still occur due to
mechanical damage, internal pressure and etc., and may result in a leakage of
battery electrolyte. The electrolyte is corrosive and flammable. When there is fire,
the toxic gases produced will cause skin and eyes irritation, and discomfort after
inhalation. Therefore:
1) Do not open damaged batteries;
2) Do not damage the battery again (shock, fall, trample, etc.);
3) Keep damaged batteries away from water (except to prevent an energy
storage system from catching fire);
4) Do not expose the damaged battery to the sun to prevent internal heating
of the battery.
Electrical hazard: The reason of fire and explosion accidents in lithium
batteries is battery explosion. Here are the main factors of battery explosion:
1) Short circuit of battery. Short circuit will generate high heat inside battery,
resulting in partial electrolyte gasification, which will stretches the battery shell.
The temperature reaching ignition point of internal material will lead to explosive
combustion.
2) Overcharge of battery. Overcharge of battery may precipitate lithium
metal. If the shell is broken, it will come into direct contact with the air, resulting
in combustion. The electrolyte will be ignited at the same time, resulting in strong
flame, rapid expansion of gas and explosion.
Chapter 2 Product Introduction
2.1 Scope of Application
AS1 series is used in energy storage retrofits and is a new type of AC coupled

- 9 -
energy storage system. The built-in lithium battery inside AS1 can be expanded in
capacity according to user demands, and the modular design of the slave device
makes it easy to install wiring.
In daytime, solar power supports the loads first while the surplus power will be
stored by AS1, to improve self-consumption rate.
In peak power price hours, power from AS1 supports the loads; while in valley
power price hours, AS1 is charged by the grid. Finally a balance could be realized.
In case of grid fault, AS1 will make sure no outage in the loads, achieving UPS
function
Fig. 2.1 System composition diagram
2.2 Product Model Description
AS1 – XKS – XX
1② ③ ④
1AS1 represents the product series.
2XK indicates the rated power of the product XkW, such as 3K for 3kW.
3S represents single phase; T represents three phase.

- 10 -
4Indicates the built-in battery capacity, such as 5.1 for 5.1kWh.
2.3 Datasheet
AS1-3KS-5.1
Type
AS1-3KS-5.1
Battery Data
Battery Type
Lithium ion
Total Energy Capacity[Wh]
5120
Battery Capacity [Ah]
100
Rated Voltage [V]
51.2
Voltage range [V]
42~58.4
Depth Of Discharge[DOD]
≤90%
Cycle Life
≥6000
Max.Charge Current [A]
60
Max.Discharge Current [A]
60
Scalability
Yes（up to 20kWh）
Grid Data
Max. Continuable Output Power [VA]
3000
Max.Output Current [A]@230Vac
13.1
Max.Output Fault Current [A]
28
Inrush Current [A]
50
Max.Output Overcurrent Protection [A]
28
Rated Grid/Backup Voltage/Range [V]
220, 230, 240/180-280
Rated Grid/Backup Frequency/Range
[Hz]
50, 60/±5
Power factor [cos φ]
0.8 leading~0.8lagging
Feed-in
L+N+PE
AC Output [Back-up Mode]
Max. Continuable Output Power [VA]
3000
Output Voltage [V]
220/230/240
Max.Output Current [A]@230Vac
13.1
Output Frequency [Hz]
50/60
Max.Output Power [VA]
3600 ,10sec
General Data

- 11 -
Chapter 3 Installation Instructions
3.1 Safety Tips
Danger
•Potential fires and electric shocks that are life threatening.
• Do not place any flammable or explosive materials beside AS1.
• Equipment connected to high-voltage power generation equipment must be
performed by qualified personnel in compliance with national and local standards
and regulations.
Communication Mode
Wi-Fi/4G/Ethernet(Optional)
Operating Temperature Range
0°C~50°C (>45℃derating)
Cooling Method
Natural Convection
Ambient Humidity
0-95% Non-condensing
Noise[dBA]
<29
Ingress Protection
IP65
Dimensions [H*W*D][mm]
738*650*186
Weight [kg]
64
Standard Warranty [Year]
5
Applicable Standard
AS 4777.2, VDE 4105, G98, C10/C11, CEI0-21,
IEC 62619, IEC 62040

- 12 -
Notice
•The pollution level applicable to AS1 is Class II.
•Inappropriate or inconsistent installation environment can shorten the life of AS1.
•Do not install AS1 directly by exposing it under strong sunlight.
•Please do not install in damp places.
•The installation location must be well ventilated.
•AS1-3KS-5.1 (hereinafter also referred to as the master device) can be used
independently. If the battery capacity needs to be expanded, please use B1-5.1-48
(slave device), and maximum 3 slave devices can be accessed.
3.2 Determine the Installation Method and Location
AS1 series product dimension
Fig. 3.1 AS1-3KS-5.1 appearance and dimension diagram
AS1-3KS-5.1 is cooled by natural wind convection. It is recommended to install in
indoors or sheltered areas to avoid direct sunlight, rain and snow.

- 13 -

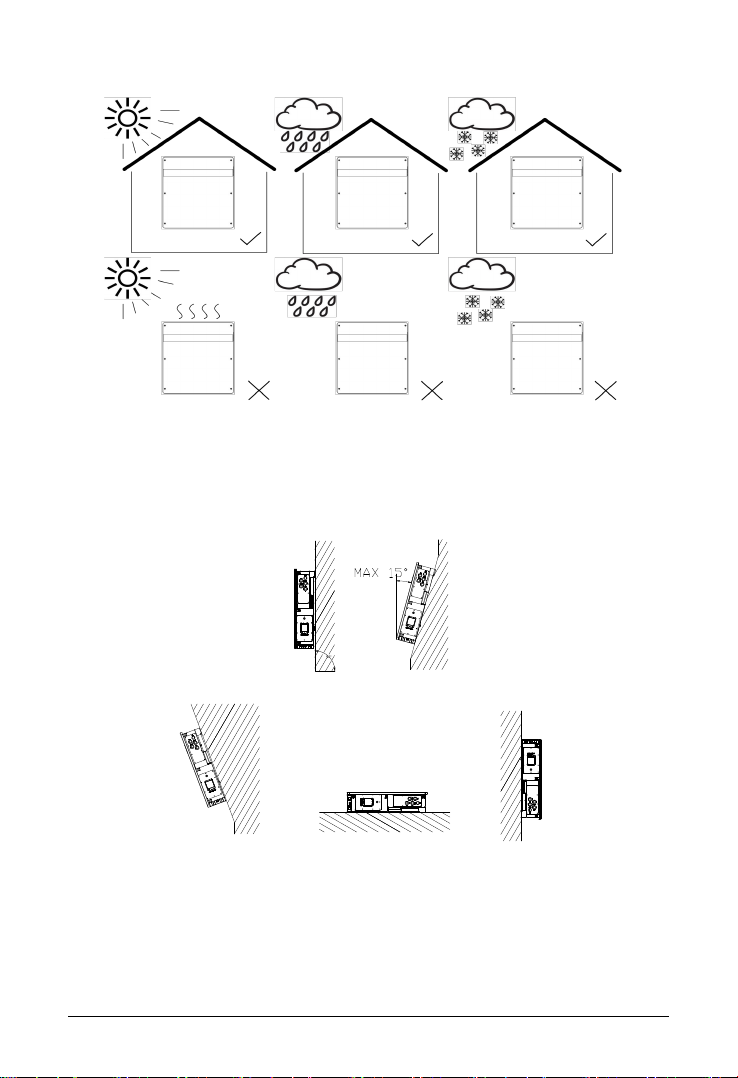

Fig. 3.2 Installation tips
Vertical ground mounting method is recommended and it’s allowed to be installed
by maximum tilting 15° backward. Do not install it horizontally or reversely.
√ √
× × ×
Fig. 3.3 Installation angle

- 14 -
Please ensure that the air at the installation point is circulated. Bad air ventilation
will affect the working performance of internal electronic components and shorten
the service life of AS1.
30CM
30CM
50CM
50CM 50CM
Fig. 3.4 Installation distance
3.3 Installation Steps
3.3.1 Determine the mounting hole position of the hanging panel
The AS1 series is mounted on a hanging panel. The mounting position is
determined according to the position of the hanging hole on the hanging panel.
Choose either 239mm holes (away from center) or 300mm holes (away from
center) to install. Unit: mm.

- 15 -
Fig. 3.5 AS1- 3KS-5.1 hanging panel size (master device)
Fig. 3.6 B1-5.1-48 hanging panel dimension (slave device)
Before installation, please make sure that the wall has sufficient strength to fix
the screws and bear the weight of AS1. Mark the hanging hole position of the
hanging panel on the wall and drill the corresponding hole position; then use a
rubber hammer to drive the screw fixing seat into the hole.

- 16 -
∅

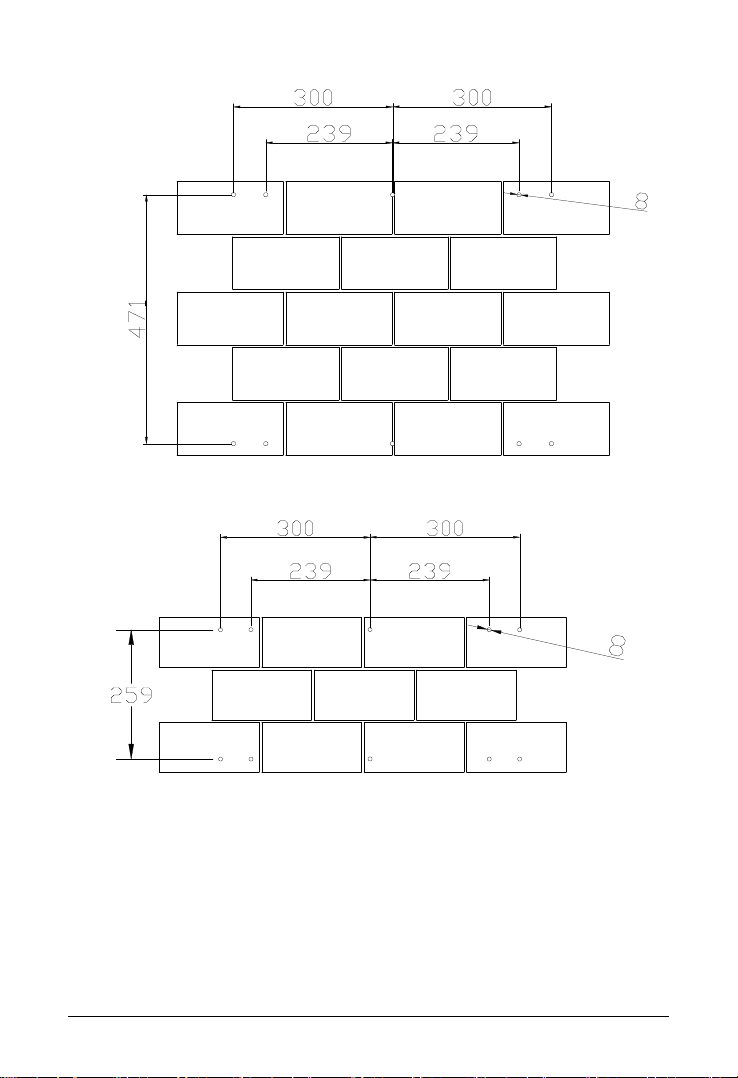

Fig. 3.7 AS1-3KS-5.1 (master device)
∅
Fig. 3.8 B1-5.1-48 hanging panel dimension (slave device)
AS1-3KS-5.1 is the master device and B1-5.1-48 is the slave device. In order
to ensure normal installation of both, the installation distance between the master
and the slave panel, while that between the slave panels shall at least meet
requirements as follows:

- 17 -
Master
Slave 1
Slave 2
Slave 3
≥
≥
≥

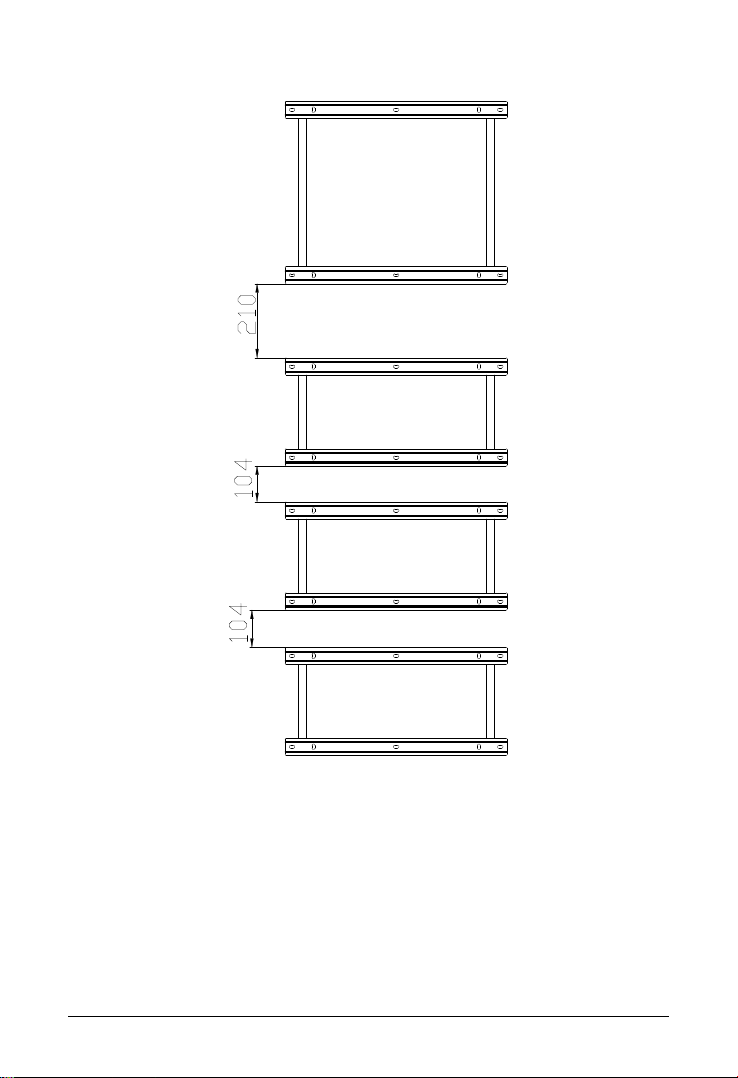

Fig. 3.9 Distance between hanging panels

- 18 -
Fix the hanging panel with hex head screw on the installation
position.
Fig. 3.10 Fixing the hanging panel
Please be careful when installing the device. Please install the slave device first
and then install the master device. In case the distance between the master device
and the slave device is not enough, installation can’t be done. Carefully attach the
device to the hanging panel and make sure the bottom of the device fits snugly
with the panel.

- 19 -

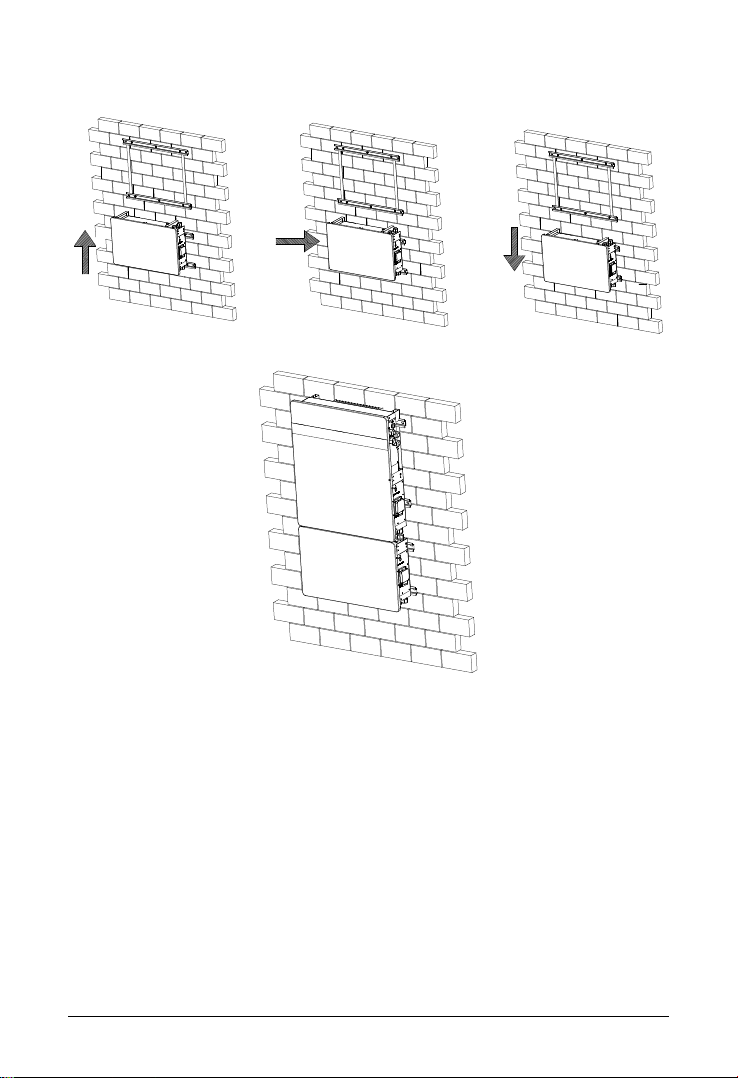

Fig. 3.11 Install AS1-3KS-5.1

- 20 -
Chapter 4 Electrical Connections
4.1 Electrical Interface Description

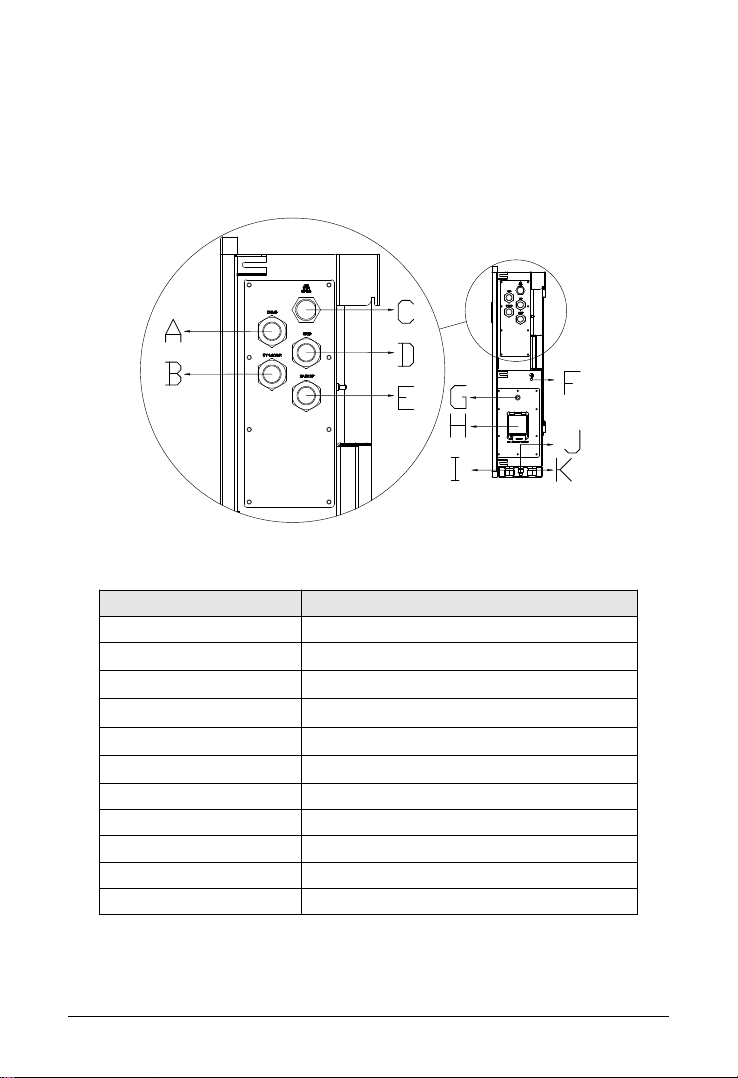

Fig. 4.1 AS1-3KS-5.1 electrical interfaces
Code
Name
A
DRMS Port
B
CT connection
C
RS232 communication
D
Grid connection
E
Backup connection
F
Ground
G
BMS switches
H
Battery switches
I
BAT+
J
BMS LINK
K
BAT-
Table 4.1 Interface description
