SAled Australia BYG-60B-12 User manual

BT 2A11
Item Code Output Voltage(V)
12V
24V
Output Power(W)
60W
60W
Output Current(A)
5A
2.5A
BT 2A21
BYG-60B-12
Model
BYG-60B-24
Specification
Warranty
Warranty
1 year
Features
· Constant voltage output
· Indoor use only
· Life time : >10,000h
· Australian input voltage of range 220~240VAC
· Short circuit / Over temperature / Over voltage / Over load protection
· Operating Temperature: -10°C ~ +40°C
· 1 Year Warranty.
Application
· Suitable for Industrial LED lighting.
POWER SUPPLIES
BYG-60B-12
www.SA-LED.com
For more information please contact
Tel : [phone]
E-mail : [email protected]
1
IP20
USE ONLY
Certification
IP20 RoHS
SELV
1 / 4

*All parameters NOT specially mentioned are measured at rated input or max rated input, and 25°C of ambient temperature.
Input voltage(V)
Voltage range(Vac)
Input frequency(Hz)
Efficiency
Standby consumpton(W)
Power factor
230
220-240
50
≥85.75%
< 0.5
< 0.9
230
220-240
50
≥85.75%
< 0.5
< 0.9
Output voltage(V)
Output current(A)
Output power(W)
Over voltage protection
Short circuit protection
Over temperature protection
Over load protection
Approval
Safety stands
EMI
EMS
105%-150% Protection type : Auto restore
Protection type : Auto restore
Protection type : Auto restore
Protection type : Auto restore
Operating Temperature(°C)
Tc max.(°C)
Storage Temperature(°C)
Ambient humidity range
Life-time(hrs)
IP grade
Casing material
AC input
DC input
IP20
Plastic
3*0.75mm2
UL2468, 18/2C
-20°C • • • +50°C
85
-20°C • • • +50°C
85
>10,000h >10,000h
-30°C • • • +60°C
20% • • • 90%RH
12
5
60
24
2.5
60
Electrical Specifications
www.SA-LED.com
For more information please contact
Tel : [phone]
E-mail : [email protected]
POWER SUPPLIES
BYG-60B-12
BYG-60B-12 BYG-60B-24 Model
Input
Output
Protection
Environment
Life
Safety & EMC
Other
TUV mark,TUV, EMC, ENEC, UL
IEC61347-1, IEC61347-2-13
IEC55015
IEC61547
OFFICIAL DISTRIBUTOR
Item Dimension (L x W x H)
Dimensions(L* W * H) mm
Weight
186 * 64 * 22
884g
Physical Charactericstics
Input Output
2 / 4

www.SA-LED.com
For more information please contact
Tel : [phone]
E-mail : [email protected]
POWER SUPPLIES
BYG-60B-12
OFFICIAL DISTRIBUTOR
Warnings :
1. Keep out of reach of children.
2. Keep away from flammable materials and heat sources.
3. Only use as a power supply for 12V LED products.
4. Risk of electric shock : Do not attempt to open or touch internal components.
5. Do not expose to rain or moisture - Dry location use only.
6. Fixture and converter become hot during use, Do not cover.
Warnings & instructions
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning the use of the appliance by
a person responsible for their safety. Children should be supervised to ensure that
they do not play with the appliance.
Instructions :
This driver is designed to provide a constant supply of voltage for LED products.
A protective switch cuts power when a short circuit issue occurs, as well as in
the case of overloading & overheating. After correcting faults, the driver should
work again.
Procedure :
1. Ensure all power switches are turned off.
2. Connect LED product to the driver, ensuring correct polarity.
3. Turn power on.

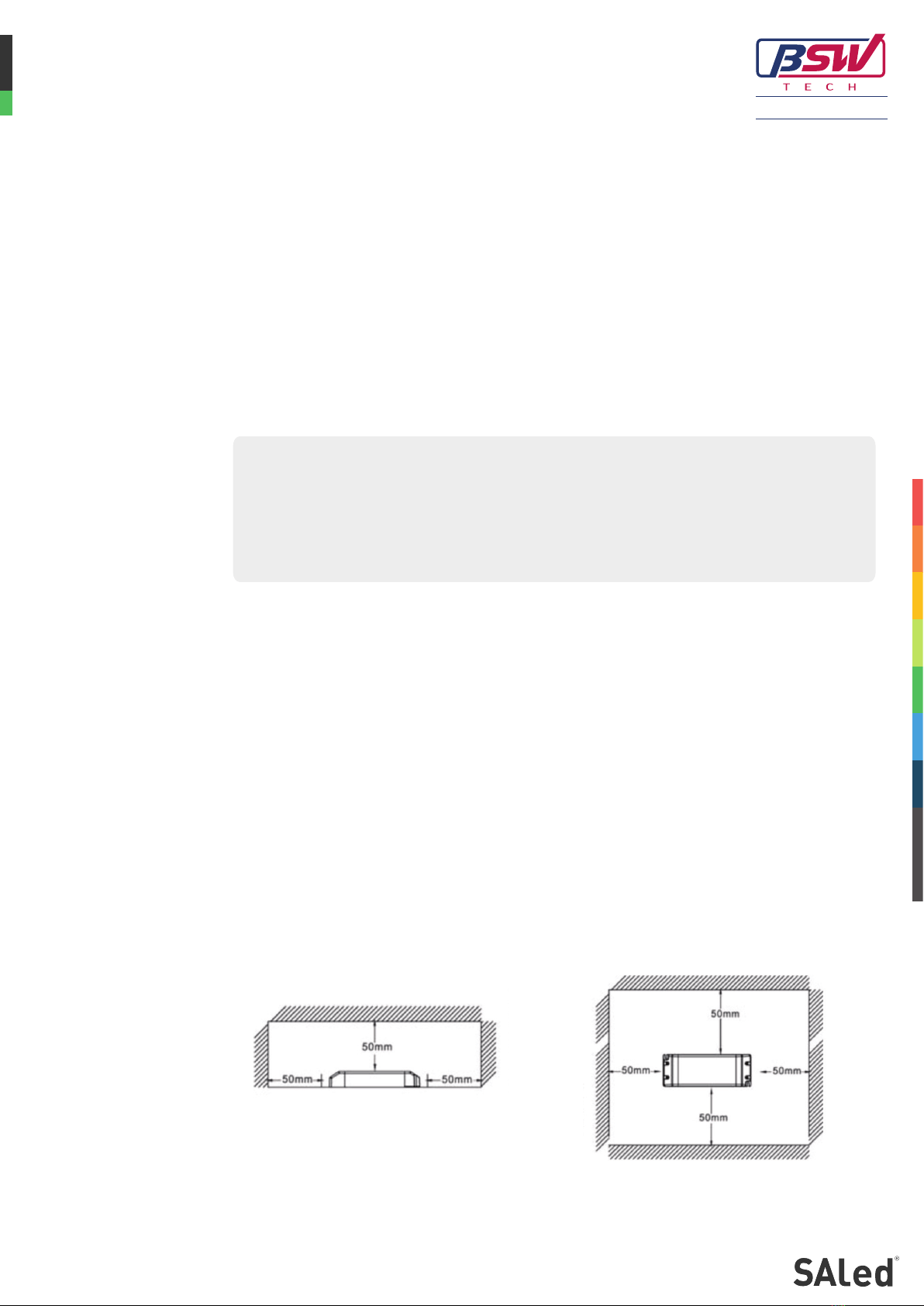

The distance between the power supplies and the surfaces around must be min.50mm.
Safety clearance for installation purposes :
Must be installed by a licensed electrician
3 / 4

www.SA-LED.com
For more information please contact
Tel : [phone]
E-mail : [email protected]
POWER SUPPLIES
BYG-60B-12
OFFICIAL DISTRIBUTOR
