Salora 20LED1600 User manual

MODEL NR.:20LED1600
20” HD LED TV

1

2

3

4

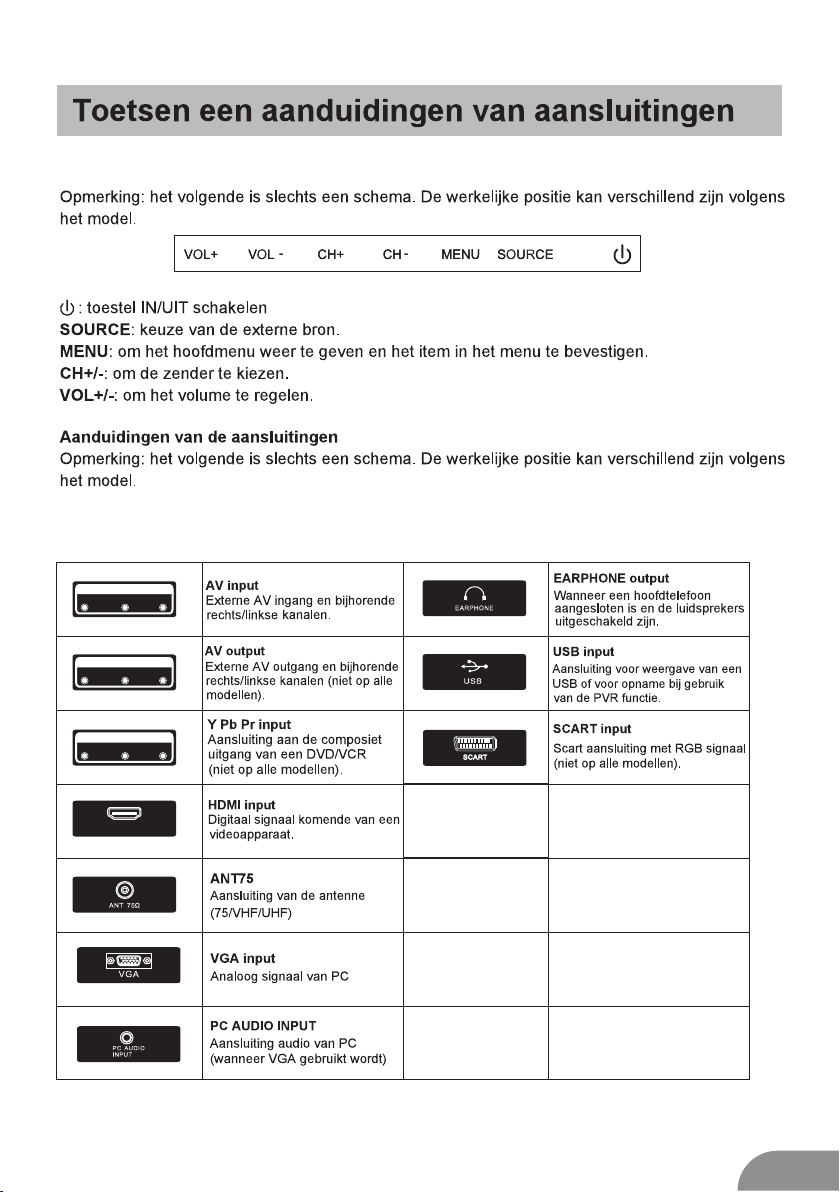

SOURCEMENUCH+ -
CH
-
VOLVOL+
1 2
34

TV Buttons
VIDEO R L
INPUT
VIDEO R L
OUTPUT
Y Pb Pr
INPUT
HDMI
5

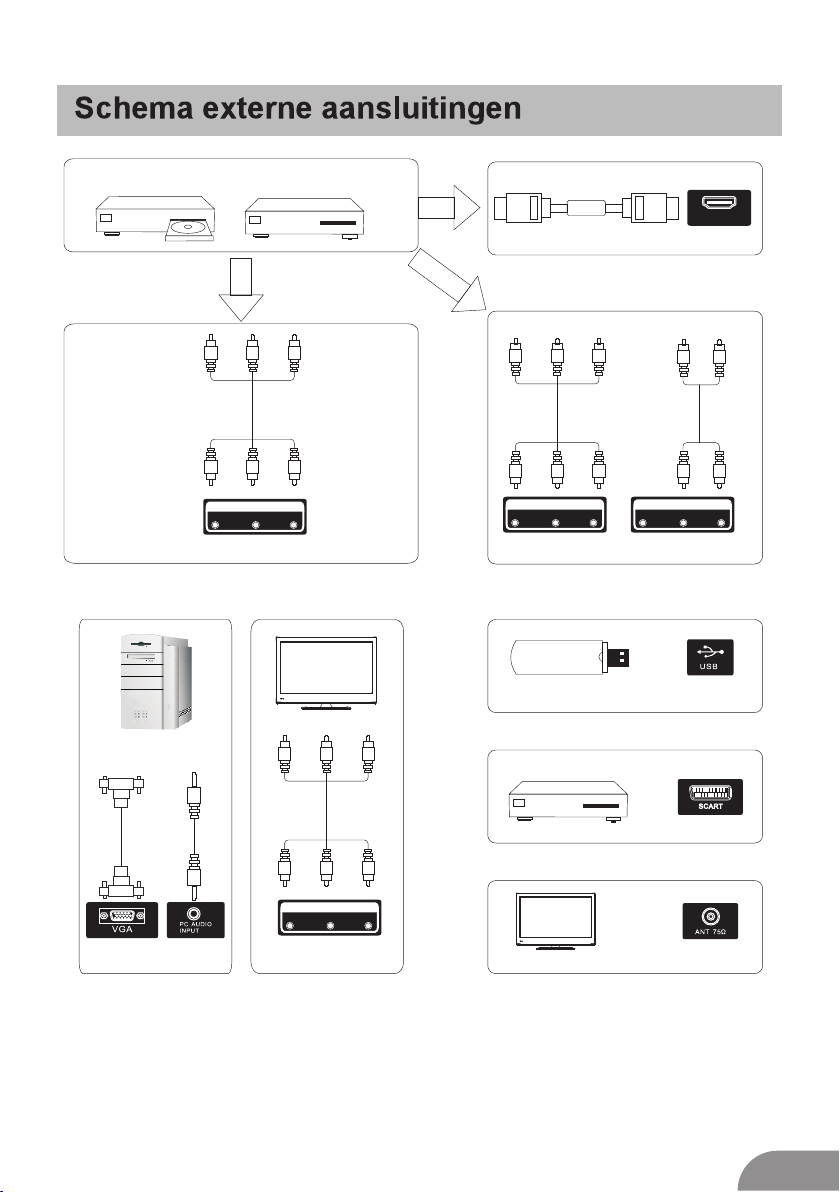

DVD Set top boxen
HDMI
HDMI
VIDEO R L
OUTPUT
HDMI ingang aansluiting
VIDEO R L
INPUT
AV ingang aansluiting
AV uitgang aansluiting
VIDEO R L
INPUT
Y Pb Pr
INPUT
AV ingang aansluiting
USB aansluiting
TV aansluiting
Set top boxes
SCART aansluiting
6
AV ingang aansluiting

1
3
2
4

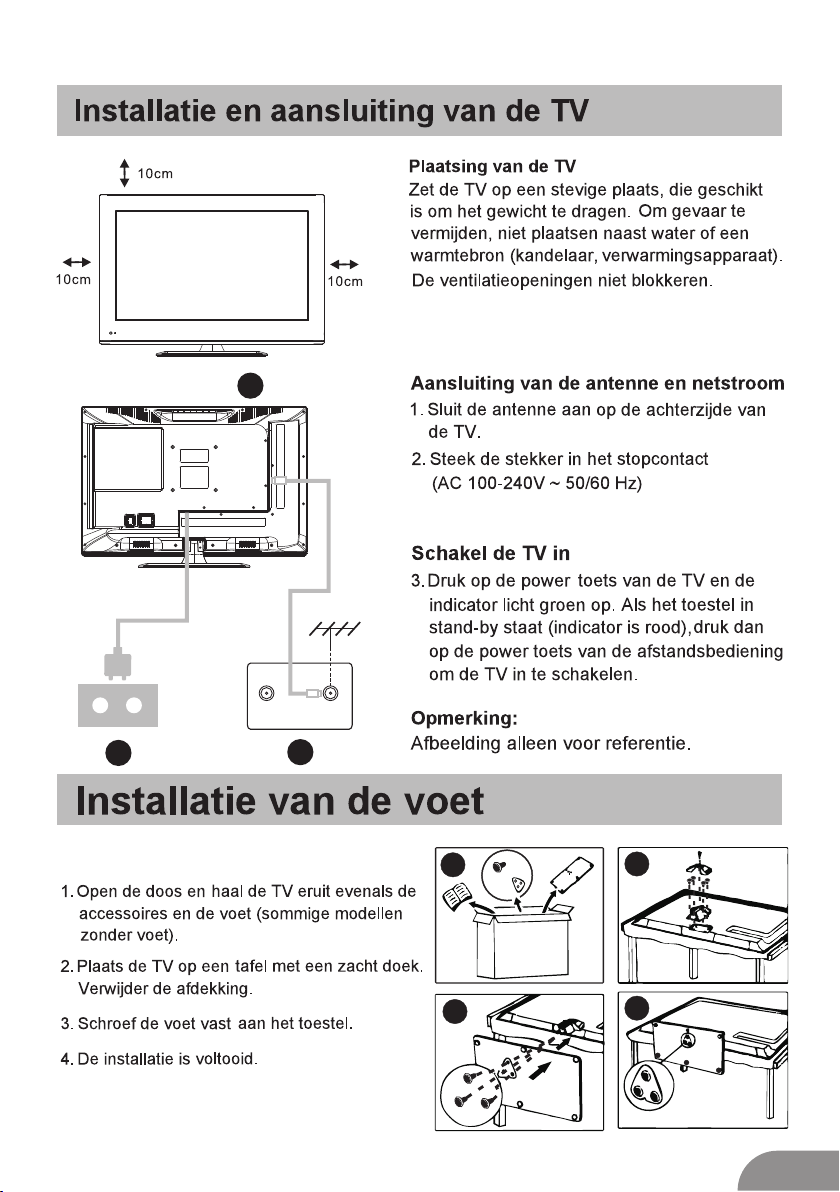

7
TV ANT
FM ANT
TV signal output
1
3
2

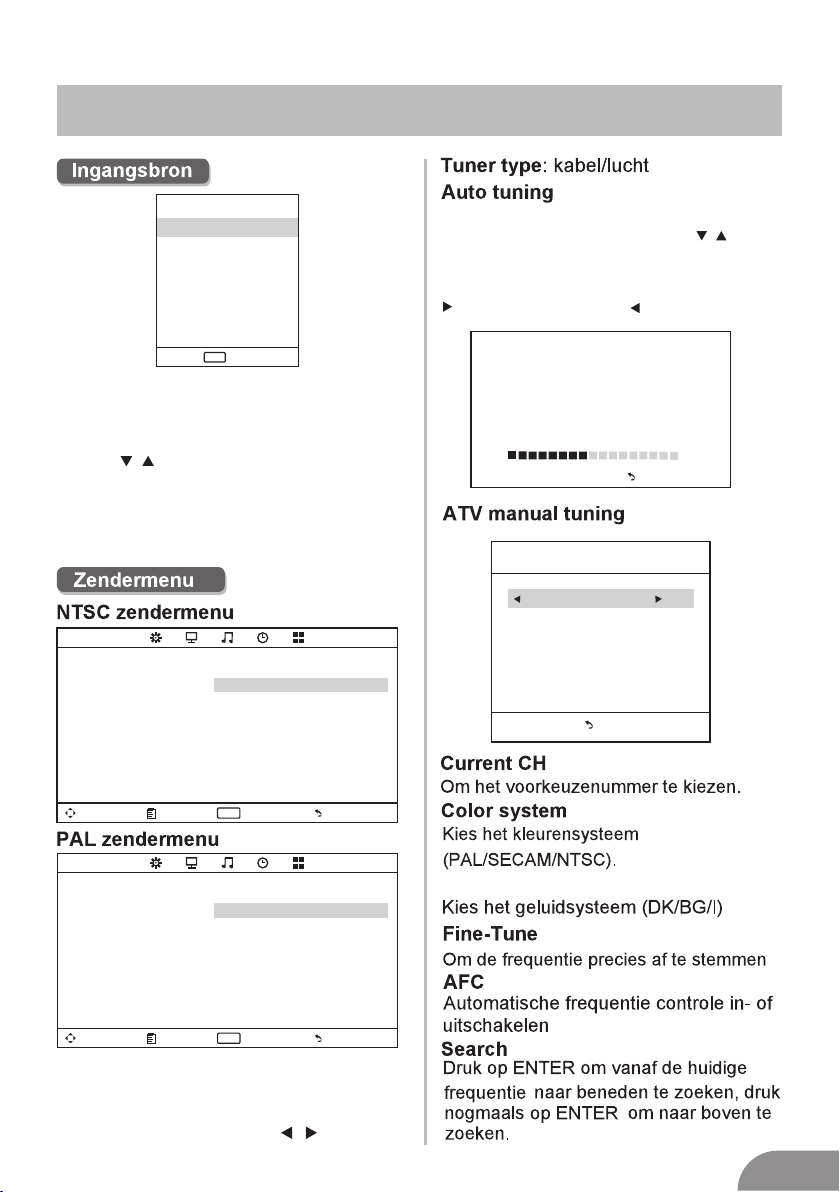

TV Menu
8
PC
AV
Media
Input Source
TV
YPbPr
Enter
Enter
ENTER
HDMI
Move Menu Enter Exit
ENTER
CHANNEL Tune Type Air
Auto Tuning
Move Menu Enter Exit
ENTER
CHANNEL Auto Tuning
ATV Manual Tuning
Programme Edit
ATV Manual Tuning
-
Color System PAL
Sound System DK
Fine-Tune 49.75MHZ
AFC Off
Search
+
Current CH 1
Menu
Sound System
Channel Tuning
TV : 5 Programme(s)
44%... 433.75MHZ (TV)
Menu
Opmerking: afbeelding hierboven alleen
als referentie.
Druk op SOURCE om de ingangslijst weer
te geven.
Gebruik / om de gewenste bron te kiezen
en druk op ENTER om te bevestigen.
Druk op EXIT om het menu te sluiten,
of het gaat automatisch na een bepaalde
tijd uit (om de tijd in te stellen:
MENU – Tijdmenu – OSD timer).
Opmerking: het zendermenu is alleen
beschikbaarin TV-modus en is het
standaardmenu wanneerop MENU gedrukt
wordt. Om andere menu's(beeld/geluid/tijd/
opties) op te roepen: gebruik / .
Met auto tuning worden de zenders
automatisch opgezocht. Gebruik / om
Auto Tuning aan te duiden en druk op OK om
het zoeken te starten. Als u het zoeken wil
stoppen, druk op MENU of EXIT en druk op
om te bevestigen of op om te annuleren.

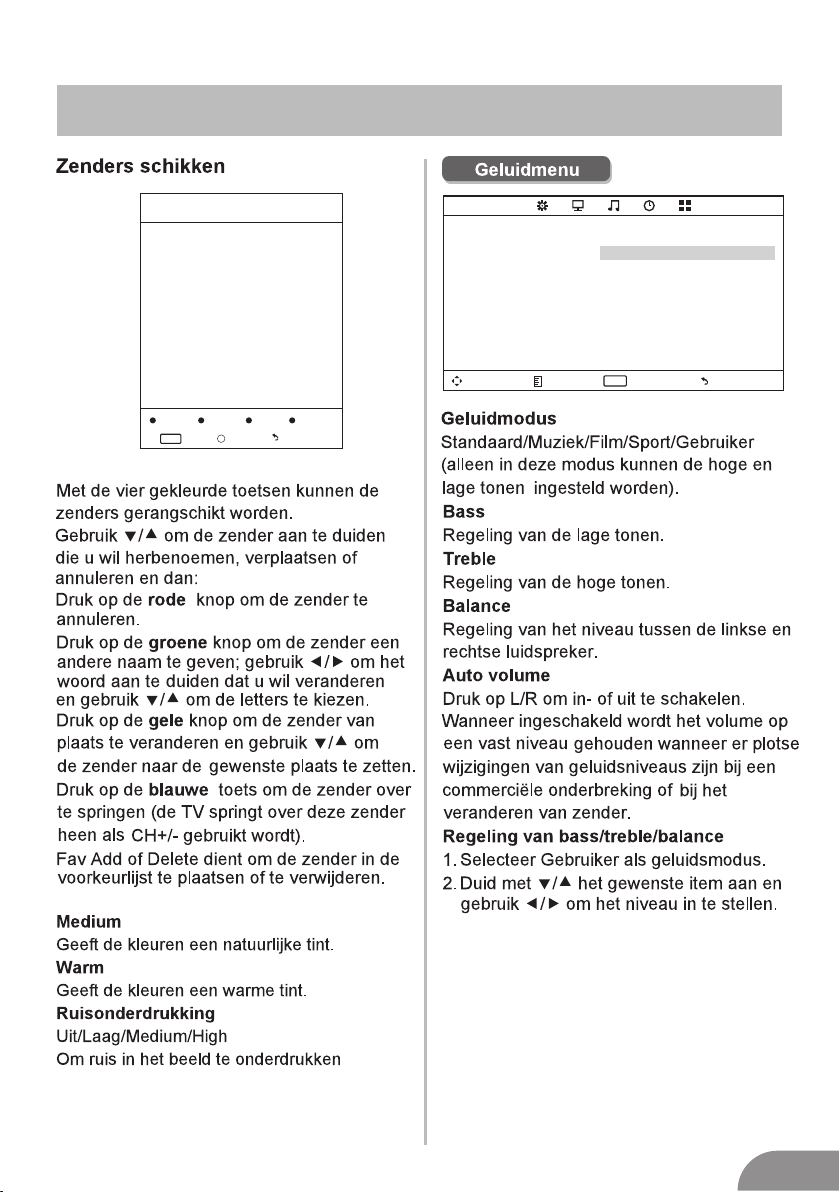

TV Menu
9
Move Menu Enter Exit
ENTER
SOUND Sound Mode Standard
Treble 50
Bass 50
Balance 0
Auto Volume Off
Dele te Rename Move Skip
FAV
Fav Menu
Programm Edit
Enter Menu
Enter
ENTER FAV Fav

TV Menu
10
Move Me nu Enter Exit
ENTER
OPTION OS D La nguage English
Aspect Ra tio 16 :9
Blue Sc reen Off
Key Lo ck Off
Caption Off
Parent Co ntrol
Reset
Software Update(USB)
Move Me nu Enter Exit
ENTER
TIME
Slee p Timer Off
OSD Timer 10 s
Auto Slee p Off
Move Menu Enter
ENTER
Picture Mode Standard
Contrast 50
Brightness 50
Color 50
Tint 50
Sharpness 50
Color Temperature Medium
Noise Reduction Middle
ECO Mode Off
Exit

TV Menu
11
Menu
Set Password
Lock System ON
TV
MPAA R
Canada English PG
Canada French G

TV Menu
12
Move Menu Enter Exit
ENTER
HOTEL Hotel Mode On
Source Lock
Default Source Off
Default Prog 1
Max Volume 100
Channel lock Off
Default Volume 20
Clear Lock
Set Password
Move Menu Enter Exit
ENTER
OPTION OSD Language English
Aspect Ratio 16:9
Blue Screen Off
Key Lock Off
Caption Off
Parent Control
Hotel Mode
Reset
Software Update(USB)
Menu
S
TV rating
TV-Y
TV-Y7
TV-G
TV-PG
TV-14
TV-MA
ALL
ALL
ALL
ALL
ALL
ALL
VLD
VSLD
VSL
FV

PC Menu
Move Menu Enter Exit
ENTER
SCREEN Aut o Adj ust
Hor izont al Pos . 50
Vertical Pos . 50
Cloc k 50
Pha se 99
Media Menu
13

Hulp
14

Screen Size
16”
19”/20”
22”
24”
32”
39”/40”
39”/40”
42”
46”
50”
TV System
PAL/NTSC
Preset Channel s
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
Speaker Output
power Con sump tion
(LED)
PAL/NTSC
PAL/NTSC
PAL/NTSC
PAL/NTSC
PAL/NTSC
PAL/NTSC
PAL/NTSC
PAL/NTSC
5W+5W
5W+5W
5W+5W
5W+5W
10W+10W
10W+10W
10W+10W
10W+10W
10W+10W
24W
36W
36W/48W
56W/65W/100W
70W/75W
70W
110W
135W
36W
36W
48W
60W
100W/135W
135W
175W
280W
48W
Screen Size
16”
19”/20”
22”
24”
32”
42”
46”
50”
power Con sump tion
(LCD)
100W
26”
Main accessories
User's manual x1
Remote controller x1
AAA Batteries x2
15
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199 NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
PAL:0-199,NTSC:AIR 2-69
CABLE1-125
LIFE TIME 60.000 Hrs

16
15
MENU SOURCE
ENTER
EXIT
SLEEP
P.MODE S.MODE
INFO
MTS
INDEX
REVEAL SIZE
CANCEL
ASPECT
MIX
FAV FAV- FAV+
GOTO
HOLD
SUB .PG ON/OFF
ROOT REPEAT
RED GREEN YELLOW CYAN
FREEZE

17
MENU SOURCE
ENTER
EXIT
SLEEP
P.MODE S.MODE
INFO
MTS
INDEX
REVEAL SIZE
CANCEL
ASPECT
MIX
FAV FAV- FAV+
GOTO
HOLD
SUB .PG ON/OFF
ROOT REPEAT
RED GREEN YELLOW CYAN
FREEZE
27
28
29
30
16
17
18
22
19
23
20
24
21
26
33
34
31
32
35
36
25

MODEL NO.:20LED1600
IMPORTANT
Please read this manual carefully before installing
and operating the TV.
Keep this manual handy for further reference
USER MANUAL
20” HD LED TV

Table Of Contents
Safety Information.................................................................................................................2
Preparations Guide

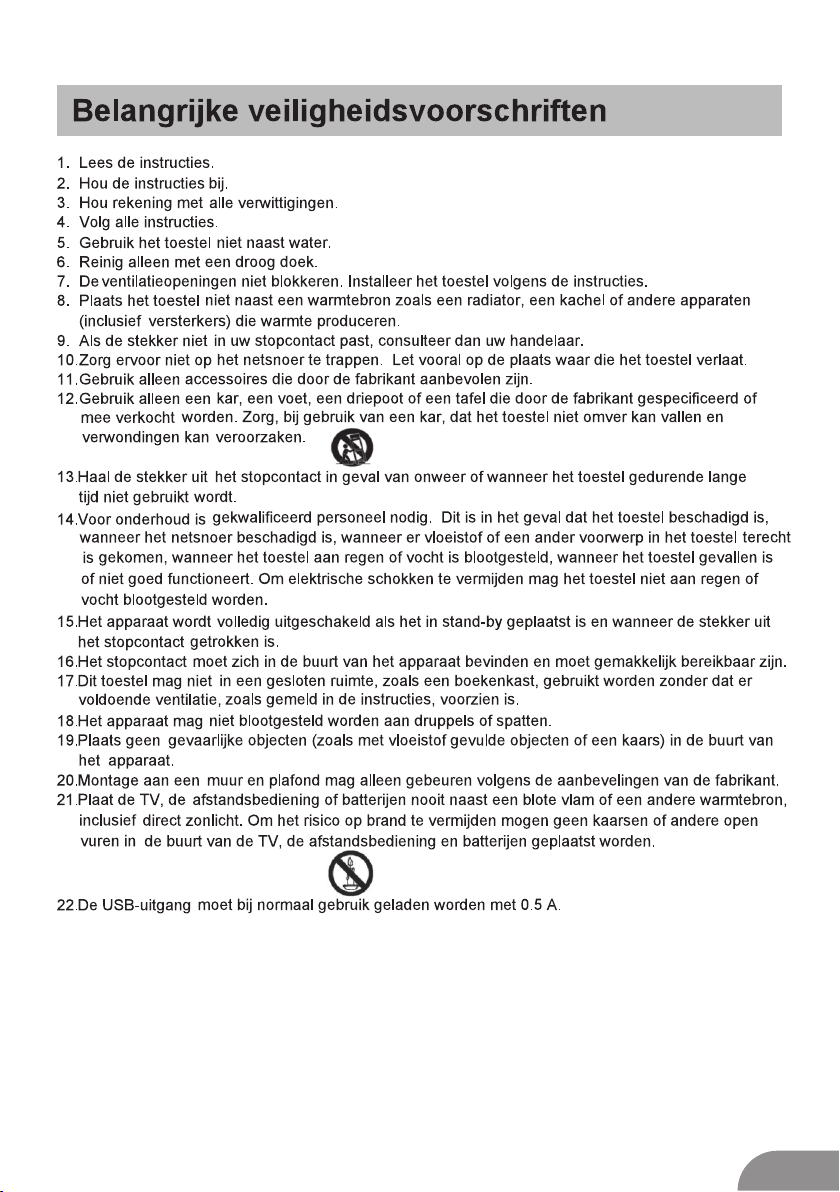

Important Safety Precautions.................................................................................................3
Installed And Connected TV

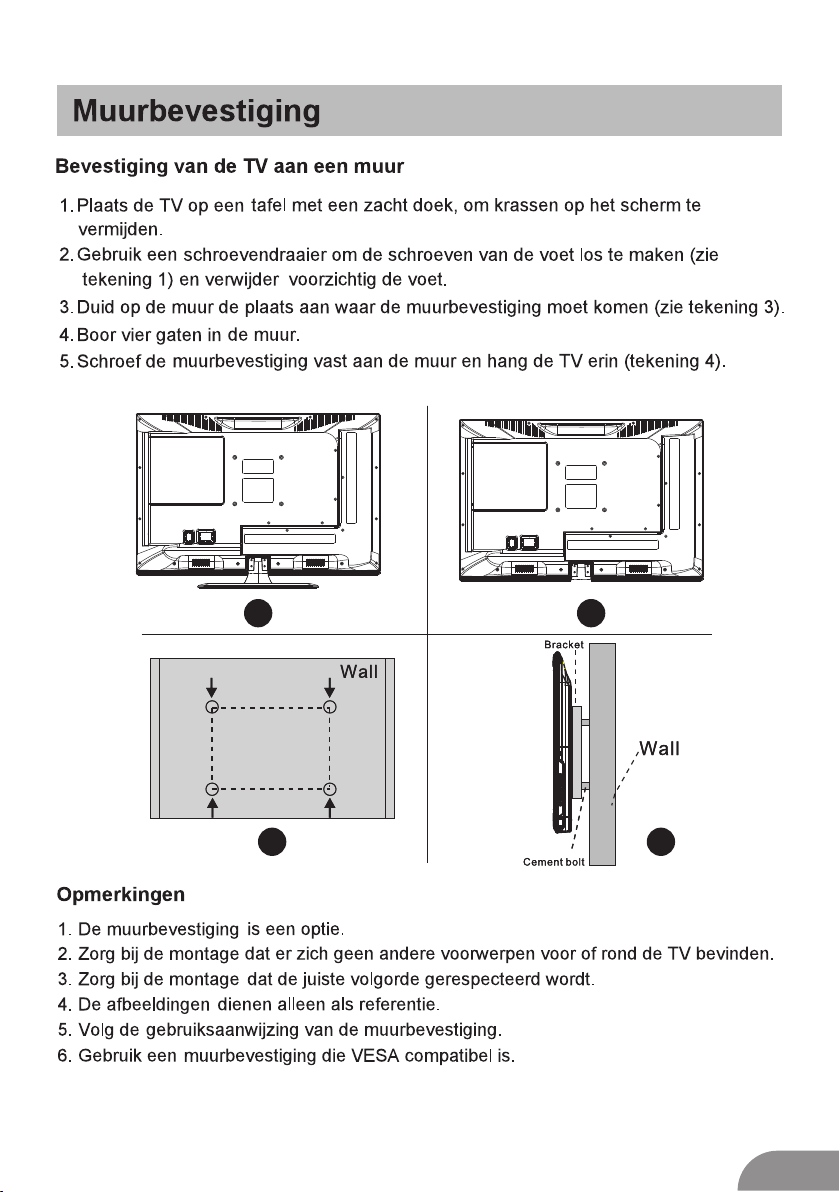

TV Bracket assemble.............................................................................................................4
TV Buttons And Terminal Interface........................................................................................ 5
External device connection diagram...................................................................6
Install And Connect TV...........................................................................................................7
TV rating.........................................................................................................12
Parent Control................................................................................................ 10
Hotel Menu.....................................................................................................12
Select Input Source................................................................................................................8
TV Menu
Channel Menu........................................................................................................................8
Picture Menu..........................................................................................................................8
Sound Menu.......................................................................................................................... 9
Time Menu.............................................................................................................................9
Option Menu.........................................................................................................................10
PC Menu
Screen Menu........................................................................................................................13
Media Menu
Media Menu.........................................................................................................................13
1
Other Information
Help......................................................................................................................................14
Specifications.......................................................................................................................15
TV Stand installation Instructions.......................................................................7
This user manual for reference only
Remote controller.................................................................................................................16
