SAMES KREMLIN 40/1 - 750cc std User manual

INSTRUCTION MANUAL
HP CIRCULATING PUMP
& FLUID SECTION, model 4 BALLS
(stroke 200 mm / 8")
Version Pump # Fluid section #
40/1 - 750 cc std # 49 224 134 xx xx # 104 134 xx xx
53/1 - 570 cc std # 49 224 135 xx xx # 104 135 xx xx
53/1 - 570 cc st steel # 49 225 743 # 105 743
Manual : 574.275.112 – 1806
Date : 25/06/18 - Supersede : 25/06/12
Modif.: Update
KREMLIN REXSON  SAMES KREMLIN
TRANSLATION FROM THE ORIGINAL MANUAL
IMPORTANT : Before assembly and start-up, please read and clearly understand all the
documents relating to this equipment (professional use only).
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.
SAMES KREMLIN SAS
13, chemin de Malacher
38 240 - MEYLAN - France
 : 33 (0)4 76 41 60 60
www.sames-kremlin.com

SAMES KREMLIN 1 Manual : 574.275.112
INSTRUCTION MANUAL
HP CIRCULATING PUMP
& FLUID SECTION, model 4 BALLS
(stroke 200 mm / 8")
TABLE OF CONTENTS
1. WARRANTY .......................................................................................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................................................................2
3. INSTALLATION..................................................................................................................................................6
4. OPERATING.......................................................................................................................................................7
5. USE.....................................................................................................................................................................8
6. MAINTENANCE................................................................................................................................................11
7. DISASSEMBLY / ASSEMBLY.........................................................................................................................12
8. CODIFICATION OF THE PUMPS....................................................................................................................15
9. SPECIFICATIONS............................................................................................................................................15

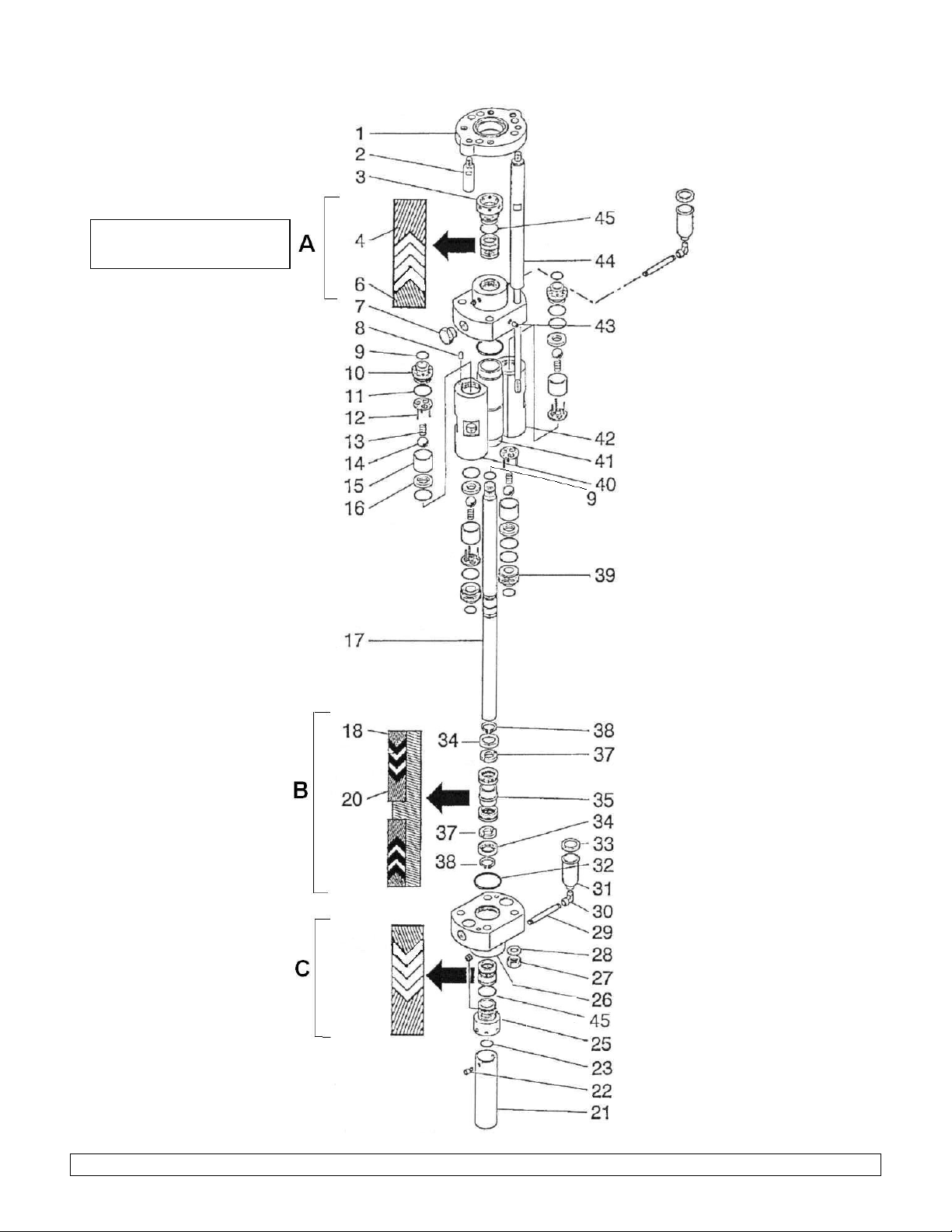

10. EXPLODED VIEW AND PARTS' LIST ............................................................................................................18
Dear Customer,
You are the owner of our new equipment and we would like to take this opportunity to thank you.
To make sure your investment will provide full satisfaction, special care has been taken by SAMES KREMLIN
during all designing and manufacturing processes.
To obtain the best result, safe and efficient operation of your equipment, we advice you to read and make
yourself familiar with instructions and service manual. Indeed, the non-compliance with instructions and
precautions stated in this manual, could reduce the equipment working life, result in operating trouble and
create unsafe conditions.

SAMES KREMLIN 2 Manual : 574.275.112
1. WARRANTY
We reserve the right to make changes; these changes may be carried out after the receipt of our order. No
claim will be accepted as a consequence of any change carried out in the instruction manuals or in the
selection guides.
Our equipment is checked and tested prior to shipment. In the case of a problem arising with the equipment,
this must be in writing, within ten days from the delivery date.
SAMES KREMLIN warrants all equipment manufactured bearing its name, to be free from defect in material
or workmanship for a period of 12 months (one shift per day or 1800 hours - 1 term reached) from the date of
delivery. Work life is based on single shift working - 8 hours per day. Warranty claims for defective items will
only be accepted in writing and will be verified and confirmed by us.
The warranty does not cover fair wear tear, damage or wear caused by misuse, improper maintenance or
non-observance of our recommendations.
SAMES KREMLIN will repair or replace parts (carriage paid to our plant and accepted as defective by us).
We shall not be liable for any losses, resulting from a production breakdown. Upon request, we can carry out
service work at your premises; all expenses (travelling and accommodation) for SAMES KREMLIN
technicians will be chargeable.
In the event that it is found that equipment has been tampered with, this will invalidate the warranty.
Equipment that is bought in will be subject to the supplier's warranty.
2. SAFETY INSTRUCTIONS
GENERAL SAFETY INSTRUCTIONS
CAUTION : The equipment can be dangerous if you do not use it according to
the rules mentioned in this instruction manual. Read carefully all the
instructions hereafter before operating your equipment.
Only trained operators can use the equipment.
The foreman must ensure that the operator has perfectly taken in the safety instructions of this equipment as
well as the instructions in the manuals of the different parts and accessories.
Read carefully all instruction manuals, label markings before operating the equipment.
Incorrect use may result in injury. This equipment is for professional use only. It must be used only for what it
has been designed for.
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
Never modify the equipment. The parts and accessories supplied must be regularly inspected. Defective or
worn parts must be replaced.
Never exceed the equipment components' maximum working pressure.
Comply with regulations concerning safety, fire risks, electricity in force in the country of final destination of
the material. Use only products or solvent compatible with the parts in contact with the material (refer to data
sheet of the material manufacturer).

SAMES KREMLIN 3 Manual : 574.275.112

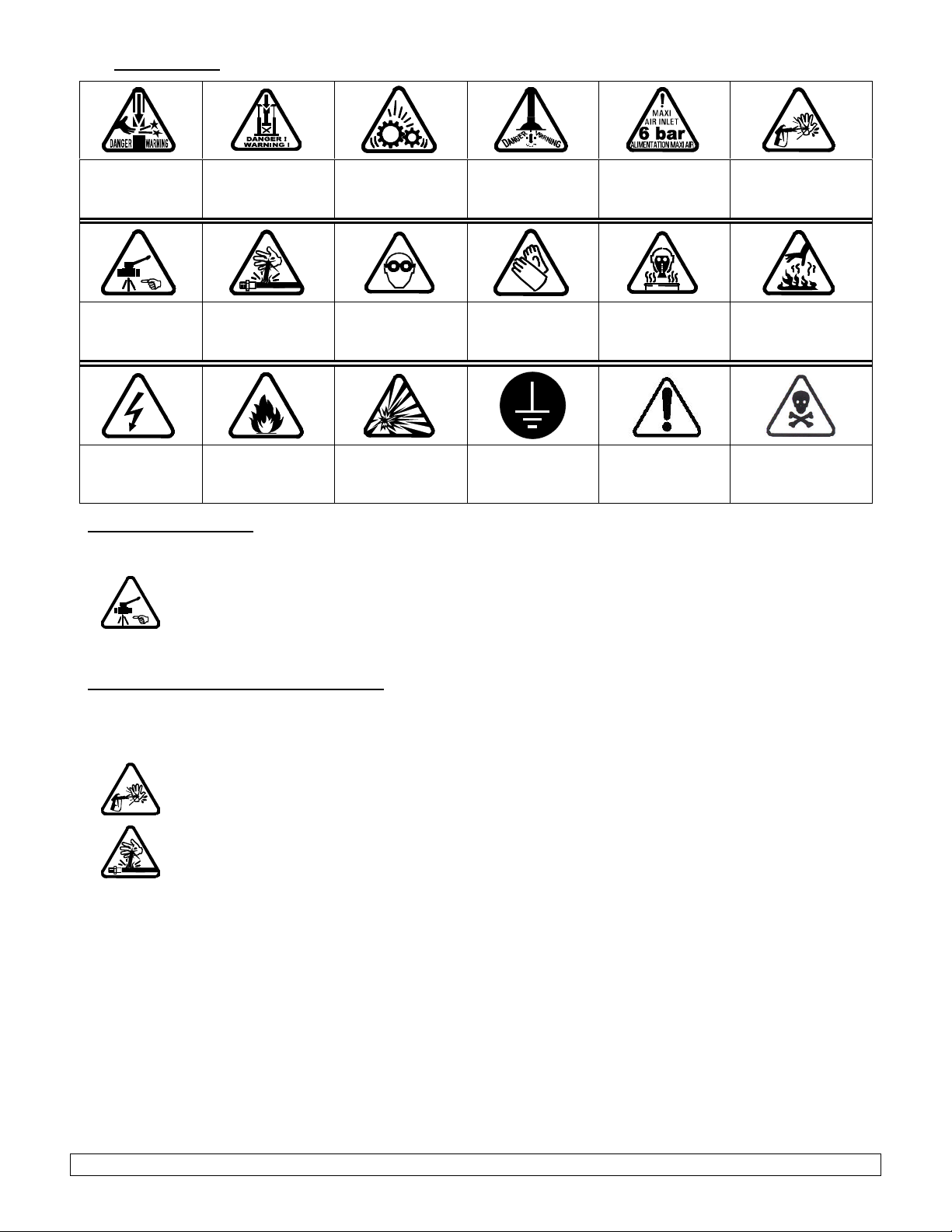

PICTOGRAMS
ADFECG
NIP HAZARD WARNING MOVING
ELEVATOR
WARNING
MOVING PARTS
WARNING
MOVING
SHOVEL
DO NOT
EXCEED THIS
PRESSURE
HIGH PRESSURE
HAZARD
HJLKMQ
RELIEF OR
DRAIN VALVE
WARNING HOSE
UNDER
PRESSURE
WEAR GLASSES
OBLIGATORY
WEAR OF
GLOVES IS
OBLIGATORY
PRODUCT
VAPOR
HAZARDS
WARNING HOT
PARTS OR AREAS
NPR
ELECTRICAL
HAZARD WARNING FIRE HAZARDS EXPLOSION HAZARDS GROUNDING WARNING (USER)
WARNING
SERIOUS
INJURIES
PRESSURE HAZARDS
Current legislation requires that an air relief shut off valve is mounted on the supply circuit of
the pump motor to let air off when closing the supply circuit. Without this precaution, the
motor residual air of the motor may let the pump beat and cause a serious injury.
Please ensure that, a material drain valve is mounted on the material circuit to drain it (after
shutting down air to the motor and the pressure relief) before any servicing on the
equipment. These valves must be closed for air and opened for product when processing.
HIGH PRESSURE INJECTION HAZARDS
When working with high pressure equipment, special care is required. Fluid leaks can occur.
Then there are injection risks in exposed parts of body that may cause severe injuries or
amputations :
Medical care must be handled immediately if product is injected under the skin or in
other parts of the body (eyes, fingers).
Never point the spray gun at any one. Never try to stop the spray with your hands or
fingers nor with rags or similars.
Follow the shut down procedure and always depressurize air and fluid circuits
before carrying out any servicing on the gun (cleaning, checking, maintenance of the
material or cleaning of the gun nozzles).
For the guns equipped with a safety device, always lock the trigger when you do not
start the gun.

SAMES KREMLIN 4 Manual : 574.275.112
FIRE - EXPLOSION - SPARKS - STATIC ELECTRICITY HAZARDS
A poor earth connection, inadequate ventilation, sparks or static electricity can cause an
explosion or fire. to avoid these risks when using or servicing SAMES KREMLIN equipment,
the following safety procedures must be followed :
ensure a good earth connection and ground the parts to be handled i.e. solvents,
materials, components and equipment,
ensure adequate ventilation,
keep working area clean and free from waste solvents, chemicals, or solid waste i.e.
rags, paper and empty chemicals drums,
never use electrical switches / power if in an atmosphere of volatile solvent vapour,
stop working immediately in case of electrical arcs,
never store chemicals and solvents in the working area.
TOXIC PRODUCT HAZARDS
Toxic products or vapours can cause severe injury not only though contact with the body, but
also if the products are ingested or inhaled. It is imperative :
to know the material products and their risks,
notified or hazardous materials must be stored in accordance with the regulations,
the material must be stored in an appropriate container, never place materials in a
container where there is a risk o spillage or leakage,
a procedure must be applied for the safe disposal of waste material. It must comply
with all prevailing regulations and legislations of the country where the equipment is to
be used,
protective clothing should always be worn in compliance with the material
manufacturers' recommendations,
depending on the application and chemical safety instructions, safety glasses, hearing
protective earplug, gloves, foot wear, protective masks and possible breathing
equipment should be worn to comply with the regulations
(Refer to chapter "Safety equipment of SAMES KREMLIN selection guide).
CAUTION!
It is forbidden using any solvent or with halogenated hydrocarbon base and also products
with these solvents facing aluminium or zinc. The non-compliance with the instructions may
cause explosion hazards causing serious or fatal injuries.

SAMES KREMLIN 5 Manual : 574.275.112
EQUIPMENT REQUIREMENTS
Guards (air motor cover, coupling shields, housings,…) have been designed for a
safe use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
PUMP
Before carrying out any work, it is imperative to get used with the compatibilities of motors with
pumps before coupling. The operator shall understand the equipment and the safety
instructions. These instructions are available in the manuals of the pumps.
F
A
The air motor is designed to be mounted with a pump. Never modify any components or
couplings. Where operating, please keep hands away from moving parts. Before starting up the
equipment, please read the PRESSURE RELIEF instructions. Please ensure that any relief or
drain valves fitted are in good working order.
HOSES
Keep hoses out of circulation areas, moving parts or hot surfaces,
Never expose product hoses to temperature higher than + 60°C / 140° F or lower than
0°C / 32° F,
Never pull or use the hoses to move the equipment,
Tighten all fittings as well as the hoses before operating the equipment,
Check the hoses regularly; change them if they are damaged,
Never exceed the maximum working pressure (MWP) indicated on the hose.
USED PRODUCTS
Considering the variety of products that may be used by the users and the impossibility to
check off all chemical data, of possible reactions of chemicals to each other and their long term
evolution, SAMES KREMLIN can not be considered as liable for :
the bad compatibility of wetted parts,
risks for staff and surroundings,
for worn or out of order parts, for wrong working of equipments or units, as well as for the
qualities of final product.
The user must know and prevent the possible risks as toxic vapours, fires or explosions due to
used products. He shall determine the risks of immediate reactions or pursuant to repeated
exposures of the staff.
SAMES KREMLIN shall not be liable for psychic injuries, direct or indirect material damages
further to the use of chemicals.

SAMES KREMLIN 6 Manual : 574.275.112
3. INSTALLATION
HANDLING
The pumps and the fluid sections with important weight and dimensions must be handled with the
appropriate means.
STORAGE
Place the equipment safe from dampness after having closed the different air inlets and ports (plugs).

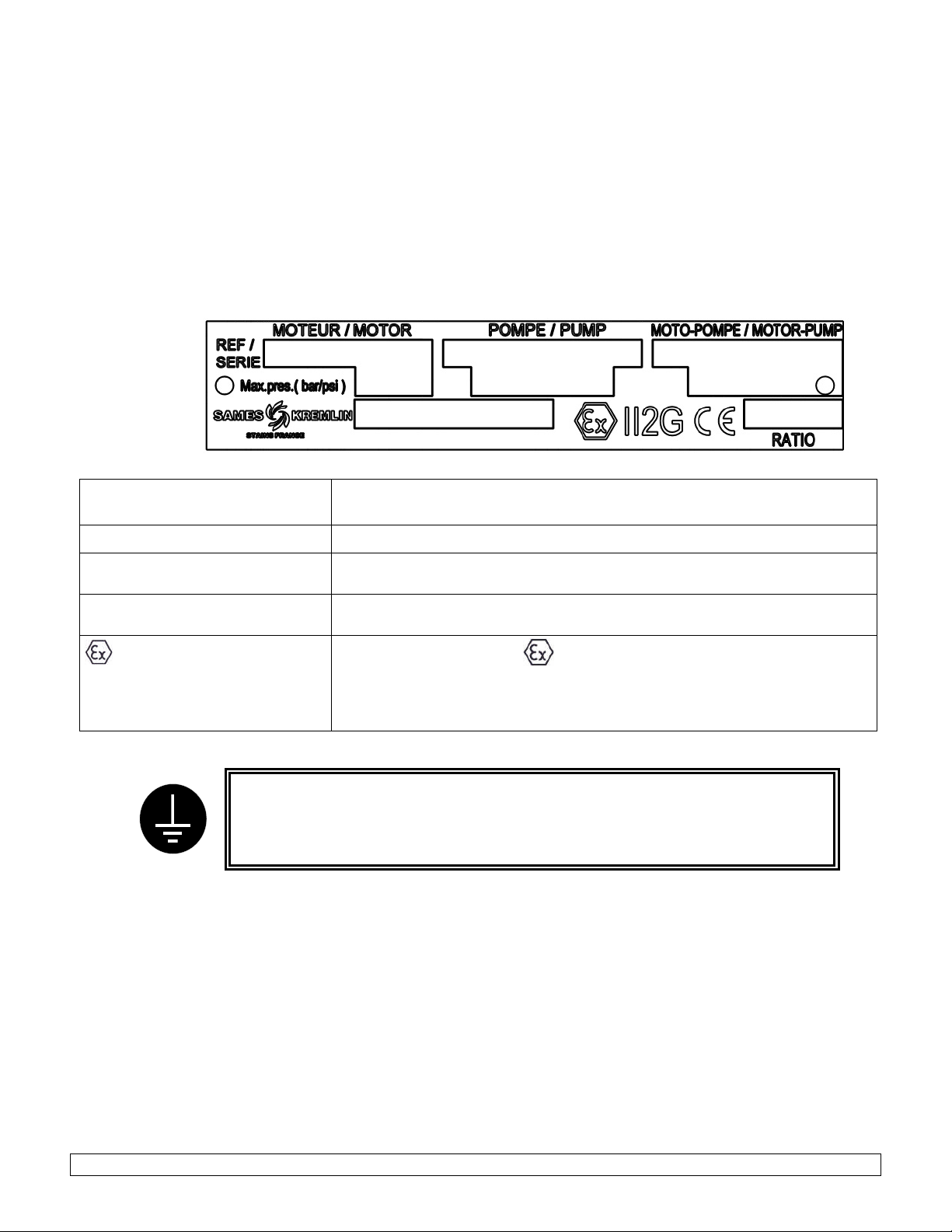

DESCRIPTION OF THE LABEL MARKING
Marking in
accordance
with the
ATEX
directive
SAMES KREMLIN
STAINS FRANCE Name and address of the manufacturer
MOTEUR /MOTOR -
POMPE / PUMP Fluid section part number and serial number. The two first numbers indicate
the manufacturing year.
MOTO-POMPE / MOTOR-PUMP Pump part number and serial number. The two first numbers indicate the
manufacturing year.
II 2 G CE CE : European conformity :For use in explosive area
II : group II 2: class 2 G: gas
Surface equipment meant to an area where explosive atmospheres due to
gas, vapours, mists are liable to appear from time to time in usual operating.
Associated to a pneumatic motor, the fluid sections must be grounded via
the earth cable of that motor.
The earth cable must be grounded to a safe earth.
The pumps are designed to be installed in a spray booth.
CONNECTION OF THE SUBSETS
These fluid sections are designed for the coupling of pneumatic or hydraulic motors with similar stroke.
You must conform to a motor / fluid section association as planned by SAMES KREMLIN.

SAMES KREMLIN 7 Manual : 574.275.112
4. OPERATING
EXPECTED USE
These pumps are designed for the transfer, the pouring off or the spraying of different liquid or viscous
fluids with a requested outlet flow and pressure.

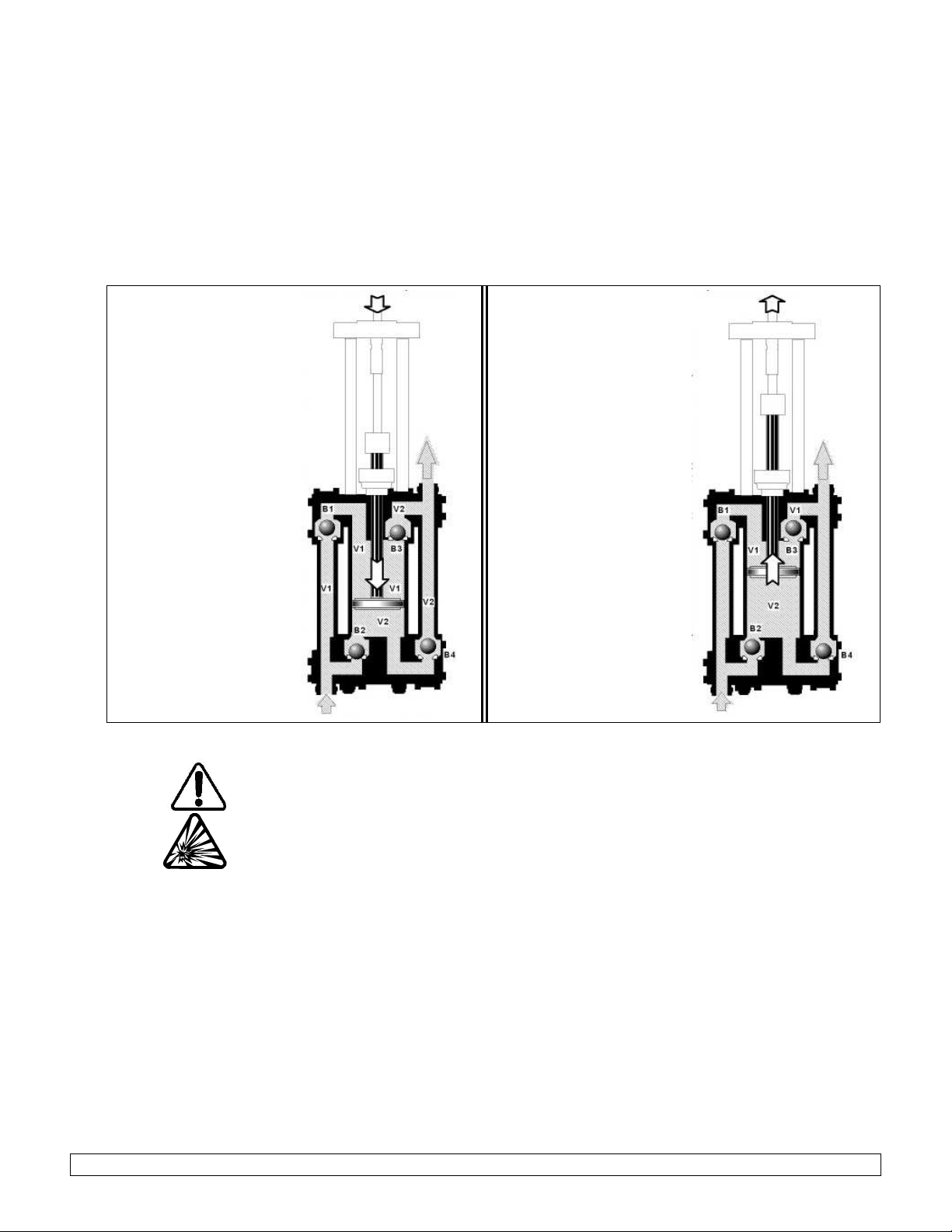

OPERATING DESCRIPTION
DOUBLE EFFECT pump : suction and exhaust are carried out in the 2 translations stages.
A - The piston goes
down
= suction + exhaust
The piston goes
down. The B1 ball
lifts itself up : the V1
chamber is filled. The
V2 exhaust pressure
presses the B2 ball
on its seat and forces
the opening of the B4
ball and forces the
B3 ball on its seat.
There is exhaust
and pressure
increasing
B- The piston goes up
= suction + exhaust
The piston goes up, the
B2 ball lifts itself
up. The V2 chamber is
filled. The V1 exhaust
pressure presses the
B1 ball on its seat,
forces the opening of
the B3 ball and presses
the B4 ball on its seat.
There is exhaust and
pressure increasing..
R
WARNING!
The frictions due to the displacement of fluid inside the pumps and accessories, as
well as the one created by the tightness seals, generate static electricity that may
cause fire or explosion. This is why the pump must be grounded (refer to the
instruction manual of the motor for its grounding).
Never place hands on the suction port of the pump. The suction power can
lead to serious injuries.

SAMES KREMLIN 8 Manual : 574.275.112
5. USE
Protective clothing (gloves, protective masks, glasses, hearing
protective earplug, protective clothing…) should be worn to
comply with the recommendations.
The working area must be correctly ventilated.
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
ADJUSTMENTS
Before starting the equipment, half fill the cup as well as the 2 tanks with T lubricant.
The cup nut must be slightly tightened. A too important tightening would damage the cup seals. A
wrench is supplied to allow a correct tightening.
Tightening of the cup :
- Fill the cup with T lubricant,
- Start the pump, then tighten the cup after 10 minutes, then one hour and then one day of operating,
- If you notice a leakage, the cup must be tightened.
Tightening instructions :
- Depressurize the motor (refer to pressure relief instructions),
- Depressurize the fluid circuit (refer to pressure relief instructions),
- Tighten the cup, clean it and fill it with T lubricant,
- Close the pump drain circuits,
- Open the motor air valve.
START UP
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
The pumps are tested in our workshop with lubricant.
Before starting up, you must flush the pump with the appropriate solvent.
At the end of the working day, carry out a flushing with the appropriate solvent. We advice you to stop
the fluid section in the "low position" to prevent material spreading on the piston rod.

SAMES KREMLIN 9 Manual : 574.275.112
TROUBLESHOOTING
Before any intervention on the pump, please carry out the release pressure and
drain general instructions.
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
To prevent from injuries, material injections, injuries due to moving parts or sparks during the stopping of the
system, the assembly, the cleaning or changing of the nozzle, you must follow the stages hereafter before
intervening :
- Close the guns,
- Shut off the air inlet using the pressure release to evacuate the residual air.
- Move the gun near to a metallic drum to get back the fluid. Keep it against the drum to maintain
the grounding (if necessary use a wire to ground the metallic drum).
- Open the gun to drain the circuit.
- Open the drain valve of the pump and get back the fluid in a metallic drum correctly grounded.
- Let the drain valve open during the intervention.
Check the conformity of cabling before intervening.
DEFECTS CAUSES SOLUTIONS
Leakage at the cup seals
Insufficient tightening of the cup. Screw the cup.
Bad mounting of the seals Check the mounting
Damaged or worn seals. Replace them.
Bad choice of the seals' material Check the compatibility.
The cup seals get rapidly damaged No lubricant in the cup (pumped
product drying on the piston rod).
Clean, replace parts if necessary.
During a long duration shutdown,
stop the pump, the piston is in the
the low position.
Compatibility product / seals. Check.
The pump is stopped
The fluid is polymerized, hardened,
dried in the pump. Clean the pump; change parts if necessary.
The cup nut is too tightened. Unscrew.
Broken part(s) in the pump. Remove, check and replace.
The motor seems to operate but
the pump does not deliver product
Internal parts of the motor
defective. Check the operating of the motor.
Defective coupling. Check coupling.
The pump operates but irregular
flow
Valve clogged on the seat,
incorrectly mounted or worn. Check mounting, state of the parts,
tightening of parts and seals.
Air inlet in the suction circuit.

SAMES KREMLIN 10 Manual : 574.275.112
DEFECTS CAUSES SOLUTIONS
At stop, pump piston carries on
going down Valve worn or incorrectly mounted Check and replace parts.
Plug or drain valve not tightened
At stop, pump piston carries on
going up
Head piston seals or upper valve
worn or incorrectly mounted. Check and replace parts.
Plug or drain valve not tightened
The piston is going down quickly
(simple effect working)
Bad feeding of the pump.
Check use parameters of the
accessories (pressure on follower
plate or suction rod,…).
Accessories can be not adapted or
clogged.
Product is too viscous. Bad definition of the pump.
Lower valve worn. Check and replace parts.
A foreign product obstructs the
lower valve. Clean and check.
The piston goes up quickly Valve worn or damaged. Check and replace parts.
A foreign product obstructs the
upper valve. Clean and check.
The piston goes out and down at
different speeds
Valve, head piston seals or cylinder
worn. Replace parts.
Seals incorrectly mounted or
damaged Check the mounting; change if necessary.
The pump does not deliver enough
pressure
Insufficient air pressure to the
motor (valve insufficiently open, air
leak,…) Check; adjust.
Insufficient air inlet on the motor or
outlet clogged.(hose not adapted) Check filter, mounting, hose not adapted.
Cup or head piston seals too
tightened. Check mounting or loosen cup nut.
Abnormal operating after racing or too
important temperature.
Head piston or cup seals too
tightened, damaged. Check mounting; reduce pumping rhythm. Replace parts if necessary.
Product drum empty. Fill the drum; check the suction
circuit and possible air leakage.

SAMES KREMLIN 11 Manual : 574.275.112
6. MAINTENANCE
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
WARNING!
Before any intervention, please follow the pressure release instructions and read
carefully the safety instructions.
During a long duration shutdown, stop the pump when the piston is in low position.
PREVENTIVE MAINTENANCE
Daily care :
Check if there are leaks. Check that the hoses are in good conditions.
Keep the piston of the pumps clean to prevent from material drying.
Check the PE level inside the shell (keep the level halfway up). Fill it if necessary. The lubricant will normally
be coloured by the material.
Check the PE level inside the two tanks located near the flanges. Fill them if necessary.
Tighten moderately if necessary the cup nut with the wrench provided.
Check the tightening of the different parts.
Manipulate (open and close) all the valves of the installation.
Keep the spray area clean.
Bimonthly care :
If the lubricant is excessively coloured in the cup, fill the cup with new lubricant. Leave the cup clean and
clean it regularly with lubricant after having drained the lubricant.
Yearly care :
Remove the fluid section completely. Clean all the parts with the appropriate solvent cleaning. Install new
seals during the assembly of the pump (refer to package of spare seals). Lubricate the piston and the inside
of the cylinder to prevent from damaging the seals. Install new parts if necessary.
CURATIVE MAINTENANCE
We advice you to schedule a systematic maintenance after a given working time. The rhythm is defined by
the maintenance staff of the user and is done according to the product, the rate of work and the regular using
pressure. Refer to disassembly / assembly of the pump and of the spare parts.

SAMES KREMLIN 12 Manual : 574.275.112
7. DISASSEMBLY / ASSEMBLY
Guards (air motor cover, coupling shields, housings,…) have been designed for a safe
use of the equipment.
The manufacturer will not be held responsible for bodily injury or failure and / or
damage to property due to removal or partial removal of the guards.
WARNING!
Before any intervention, please follow the pressure relief and safety
instructions.
Disassembly of the pump :
- Flush the pump,
- Stop the pump if possible in low or intermediate position,
- Shut off the pump main air supply,
- Carry out the relief pressure instructions,
- Disconnect the outlet and inlet hoses or the outlet and inlet suction systems,
- Take off the spring ring,
- Lift up the closing ring,
- Take off the two half bushes and remove the closing ring,
- Unscrew the 3 screws from the pump bracket,
- Take off the pump.
Flanges (26)
- Unscrew the 2 screws (22),
- Take off the protective tube (21),
- Drain and dismount the lubricate assembly which consists of :
- the tank cover (33),
- the tank (31),
- the elbow (30),
- the sleeve (29).
- Unscrew the cup nuts (3),
- Unscrew the 4 nuts (27),
- Remove the washers (28).
- Take off the lower flange assembly, check and replace if necessary the O-Rings (32),
- Remove the inlet (40) and outlet (42) units' assembly,
- Take off the cylinder (41), the piston rod (17) assembly and the upper flange assembly (26), check and
replace if necessary the O-Rings (32),
- Take off and check the cylinder (41) and remove the adjustment blocks (51).
NOTA : If the cylinder is damaged, you must change at the same time the seals
(Refer to § 'Disassembly of the piston seals'').
Reinstall the parts in the reverse order of the disassembly sequence taking care of the following
instructions :
During the assembly of the flanges, place the adjustment blocks if necessary.
During the assembly of the nuts (27), you must mount them with a maximum screwing torque of 250N.m
/ 184.4 ft/lbs.

SAMES KREMLIN 13 Manual : 574.275.112
Lower or upper cup seals :
- Unscrew the cup nut (3),
- Take off, check and change if necessary in the following order :
- the 'F' washer (4),
- the seals (60 & 61 or 65 & 66 depending upon version refer to detail A & C - § 10),
- the 'M' washer (6).
- Take off, check and change if necessary the O-Rings (23 & 45),
- Remove the lower flange (26).
Clean and reinstall the parts in the reversing order of the disassembly sequence (refer to seals' assembly
- § 10).
Piston seals
- Take off the rings (38),
- Take off the closing rings (34),
- Take off the two half bushes (37),
- Take off, check and change if necessary in the following order :
- the 'M' washer (18),
- the seals (62 & 63 or 67 & 68 depending upon version refer to detail B - § 10)
- the 'F' washer (20).
- Remove the piston (35),
- Take off, check and change if necessary the O-Ring (9) located at the middle of the piston rod (17).
NOTA : If the piston is damaged, when changing it, you must change the seals
indicated previously (refer to § 'lower or upper cup seals').
Clean and reinstall the parts in the following order :
Detail Detail 
- Install the piston (35) in the piston rod (17),
- Prepare the piston (35) to install the Chevron
seals (9) (lower packings)
refer to detail ,
- Install the 'F' washer (20) in the lower part of the
piston,
- Install the seals (62 & 63 or 67 & 68 depending
upon the version refer to detail B - § 10),
- Install the 'M' washer (18) in the lower part of the
piston,
- Add an adjustment block (69) if necessary,
- Install the two stop bushes (37),
- Install the rings (38) on the piston rod (17),
- Lubricate the packing,
- Insert the lower part of the cylinder (41) in the
reverse order of the Chevron seals until reaching
the seals and recovering them
refer to detail ,










35
41
62 & 63
Or
67 & 68










17

SAMES KREMLIN 14 Manual : 574.275.112
Detail Detail 
- Install the other Chevron seals (upper packings)
as well as the 'F' washer, the seals, the 'M'
washer on the piston (35) refer to detail ,
- Install the stop bushes (37),
- Install the rings (38),
- Make the cylinder slide upwards refer to
detail ,
- Lubricate the cylinder (41).
- Add an adjustment block (69) if necessary.
Nota : the 'F' washers (4 & 20) are :
- plastic ones for the fluid sections # 104 134 0001 & 104 135 0001
- brass ones for the fluid sections # 104 134 0008 & 104 135 0008.
The plastic washers are in the spare parts of the package of seals of the concerned fluid sections.
Inlet unit valves :
- Unscrew and take off the terminals (10),
- Take off, check and change if necessary the O-Ring (9) and the first seal (11),
- Take off, check and change if necessary in the following order :
- the retaining grids (12),
- the springs (13),
- the balls (14),
- the spacers (15),
- the seats (16),
- the second O-Rings (11),
- Take off the inlet block (40).
NOTA : Check the seat of each valve. If the seat is damaged, when changing it, you
must change the ball.
Clean and reinstall the parts in the reverse order of the disassembly sequence.









































SAMES KREMLIN 15 Manual : 574.275.112
Outlet unit valves :
- Unscrew and take off the terminals (10),
- Take off, check and change if necessary the O-Ring (9) and the first seal (11),
- Take off, check and change if necessary in the following order :
- the second O-Rings (11),
- the seats (16),
- the balls (14),
- the springs (13),
- the spacers (15),
- the retaining grids (12).
- Take off the outlet block (42).
NOTA : Check the seat of each valve. If the seat is damaged, when changing it, you
must change the ball.
Clean and reinstall the parts in the reverse order of the disassembly sequence.
Before intervening on the equipment :
-Clean the parts with the appropriate cleaning solvent,
-Install new seals if necessary after having lubricated them,
-Lubricate the piston and the inside of the cylinder to prevent from damaging the seals,
-Install new parts if necessary.
8. CODIFICATION OF THE PUMPS
Pump Motor associated Fluid section
Version #Model #Model #
40/1 - 750cc 49 224 134 xxxx
9200 105 292
750cc std 104 134 xxxx
53/1 - 570cc 49 224 135 xxxx 570cc std 104 135 xxxx
53/1 - 570cc inox 49 225 743 570cc st steel 105 743
9. SPECIFICATIONS
FEATURES OF THE PUMPS
FEATURES Pump # 49 224 134 xx xx Pump # 49 224 135 xx xx
# 49 225 743
Pressure ratio 40/1 53/1
Maximum air pressure 6 bar / 87 psi 6 bar / 87 psi
Maximum fluid pressure 240 bar / 3481 psi 318 bar / 4612 psi
Delivery per cycle 750 cc / 25.35 oz 570 cc / 19.3 oz
Fluid flow rate 15 l for 20 cycles / mn 11.4 l for 20 cycles / mn
Noise level < 80 dBa < 80 dBa
Weight 135 kg / 297.5 lb 120 kg / 264.5 lb

SAMES KREMLIN 16 Manual : 574.275.112
PUMP DIMENSIONS
Ind. A B C D E F G H
mm 1857 692 624 180 80 80 470 452
" 73.1 27.2 24.6 8 3.1 Ø 3 5/32 18.5 17.8

SAMES KREMLIN 17 Manual : 574.275.112
FEATURES OF THE FLUID SECTIONS
Features FLUID SECTION, model 750cc
# 104 134 00 01 # 104 134 00 08 # 104 134 01 01
Capacity 375 cc / 12.7 oz
Delivery per cycle 750 cc / 25.35 oz
Stroke 200 mm / 8"
Fluid inlet connection F 1" G
Fluid outlet connection F 1" G
Weight 93 kg / 451.8 lb
Maximum fluid temperature 80°C / 176° F 120°C / 248° F 80°C / 176° F
Wetted part Treated steel, hard chromium steel
Treated steel, hard
chromium steel
Carbide seats and
balls
Cup packings PU / UHMW PTFE G / PEEK PU / UHMW
Piston packings PTFE V / UHMW PTFE G / PEEK PTFE V / UHMW
Tightness seals FPM FPM
Features FLUID SECTION, model 570 cc
104 135 0001 104 135 0008 105 743
Capacity 285 cc / 9.6 oz
Delivery per cycle 570 cc / 19.3 oz
Stroke 200 mm / 8"
Fluid inlet connection F 1" G
Fluid outlet connection F 1" G
Weight 82 kg / 180.8 lb 88 kg / 194 lb
Maximum fluid temperature 80°C / 176° F 120°C / 248° F 80°C / 176° F
Wetted part Treated steel, hard chromium steel Steel
Cup packings PU / UHMW PTFE G / PEEK PU / UHMW
Piston packings PTFE V / UHMW PTFE G / PEEK PTFE V / UHMW
Tightness seals FPM FPM

SAMES KREMLIN 18 Manual : 574.275.112
10. EXPLODED VIEW AND PARTS' LIST
Refer to
for seals'
assembly ind. A , B , C

SAMES KREMLIN 19 Manual : 574.275.112
PARTS' LIST Fluid section, model 750 cc
104 134 00 01 104 134 00 08 104 134 01 01
Ind. Description # # # Qty
1Connecting plate 207 284 1
2 Pin 209 582 2
3 Cup nut 209 325 2
*4 'F' washer 210 362 (Seal kit) 211 713 (Seal kit) 210 362 (Seal kit) 2
6 'M' washer 55 581 2
7 Plug, model 1" 551 247 6
8 Cotter-pin 88 467 4
10 Terminal 207 815 2
*12 Retaining grid 207 496 4
*13 Spring 625 519 4
*14 Ball, model 32 86 032 86 032 87 532 4
15 Spacer 207 819 4
*16 Seat 207 818 207 818 211 175 4
*17 Piston rod 207 820 1
18 'M' washer 207 826 2
*20 'F' washer 210 364 (Seal kit) 211 716 (Seal kit) 210 364 (Seal kit) 2
21 Protective tube 209 307 1
22 Screw, model CHc M 5x10 88 120 2
25 Plug, model 1/4G 906 333 102 2
26 Flange 207 807 2
27 Lock nut 91 225 4
28 Washer 91 226 4
29 Sleeve 207 812 2
30 Elbow, model MF 552 431 2
*31 Tank 107 011 06 2
33 Tank plug 107 011 10 2
34 Closing ring 208 301 2
*35 Piston 207 824 1
*37 Stop bush 208 300 2
*38 Ring 88 497 2
39 Terminal 207 817 2
40 Inlet unit 207 814 1
*41 Cylinder 207 823 1
42 Outlet unit 207 816 1
43 Plug, model1/8" 906 333 106 2
44 Tie-rod 207 808 4
51 Adjustment block 208 124 4
*52 Seal kit 106 981
(Ind. 4-9-11-20-23-32-
45-60-61-62-63)
107 283
(Ind. 4-9-11-20-23-32-
45-65-66-67-68-69)
106 981
(Ind. 4-9-11-20-23-32-
45-60-61-62-63)
1
53 Wrench 207 835 1
54 T lubricant (125 ml) 149 990 020 1
