OWNER'S MANUAL
Powered Studio Monitors

2
If you want to dispose this product, do not mix it with general household waste.
There is a separate collection system for used electronic products in accordance
with legislation that requires proper treatment, recovery and recycling.
Private household in the 28 member states of the EU, in Switzerland and Norway may
return their used electronic products free of charge to designated collection facilities or to
a retailer (if you purchase a similar new one).
For Countries not mentioned above, please contact your local authorities for a correct
method of disposal.
By doing so you will ensure that your disposed product undergoes the necessary treatment,
recovery and recycling and thus prevent potential negative effects on the environment and
human health.
AVIS
RISQUE DE CHOC ÉLECTRONIQUE -
NE PAS OUVRIR
This lightning flash with arrowhead symbol within an equilateral triangle
is intended to alert the user to the presence of non-insulated “dangerous
voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and maintenance instructions in
the literature accompanying the appliance.
To reduce the risk of electric shock, do not remove cover (or back) as there are no user-ser-
viceable parts inside. Refer to servicing to qualified service personnel.
FCC Notice
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Important Safety Information

MediaOne M30 3
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near
water.
6. Clean only with dry cloth.
7. Do not block any ventilation
openings. Install in accordance with
the manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers,
stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose
of the polarized or grounding type
plug. A polarized plug has two
blades with one wider than the
other. A grounding type plug has two
blades and a third grounding prong.
The wide blade or the third prong
are provided for your safety. If the
provided plug does not fit into your
outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly at
the plugs, convenience receptacles,
and at the point where they exit
from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
the apparatus. When a cart is used,
use caution when moving the cart/
apparatus combination to avoid
injury from tip-over.
13. Unplug the apparatus during
lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualified
personnel. Servicing is required
when the apparatus has been
damaged in any way, such as power
supply cord or plug is damaged,
liquid has been spilled or objects
have fallen into the apparatus has
been exposed to rain or moisture,
does not operate normally, or has
been dropped.
15. The apparatus shall not be exposed
to dripping or splashing and that
objects filled with liquids, such
as vases, shall not be placed on
apparatus.
16. Caution-to prevent electric shock,
match wide blade plug wide slot
fully insert.
17. Please keep a good ventilation
environment around the entire unit.
18. WARNING: The mains plug/
appliance coupler is used as
disconnect device, the disconnect
device shall remain readily operable.
19. This equipment is a Class
II or double insulated electrical
appliance. It has been designed in
such a way that it does not require a
safety connection to electrical earth.
20. No naked flame sources, such as
lighted candles, should be placed
on the apparatus.
Important Safety Information

4
Thank you for purchasing the MediaOne M30 Powered Studio Monitors from Samson.
Whether you are in need of a monitor system for your recording studio, video production
suite, or if you just want better speakers for gaming and listening to music on your
computer, MediaOne M30 speakers are the perfect solution. The monitor system produces
a powerful, full-range sound thanks to the internal amplifier, extended range 3” copolymer
woofers, and 3/4” silk dome tweeters. Plus, the MediaOne system delivers deep bass and
extended highs in an amazingly compact size.
The MediaOne M30 system includes one powered monitor for the right-side and a passive
monitor for the left-side. For easy integration the speakers feature rear panel RCA inputs
and 1/8” Stereo / Sub output for extending your system. For listening privacy, the speakers
will mute when a pair of headphones are connected.
In the box, you’ll find a registration card enclosed—please don’t forget to follow the
instructions so that you can receive online technical support and so we can send you
updated information about this and other Samson products in the future. We recommend
you keep the following records for reference, as well as a copy of your sales receipt.
Serial number: ____________________________________________
Date of purchase: __________________________________________
Dealer name: _____________________________________________
If you have any questions or comments regarding the MediaOne M30 Powered Studio
Monitors or any other products from Samson, do no hesitate to contact us at
[email protected].
With proper care and maintenance, your MediaOne M30 will operate trouble-free for many
years. Should your MediaOne M30 ever require servicing, a Return Authorization (RA) number
must be obtained before shipping your unit to Samson. Without this number, the unit will not
be accepted. Please visit www.samsontech.com/ra for an RA number prior to shipping your unit.
Please retain the original packing materials and, if possible, return the unit in its original carton.
If your MediaOne M30 was purchased outside of the United States, contact your local distributor
for warranty details and service information.
Introduction

MediaOne M30 5
• Ported, tuned enclosures providing extremely accurate monitoring for desktop
recording, playback and multi-media applications.
• 3” Copolymer woofers with butyl surrounds
• 1" silk dome high frequency driver set in a custom-designed wave guide.
• Front panel volume control
• Front panel stereo 3.5mm headphone jack mutes speaker
• Rear panel RCA inputs accept -10 dBV line level input
• 3.5mm stereo subwoofer output
• Solid MDF (Medium Density Fiberboard) construction
Features

6

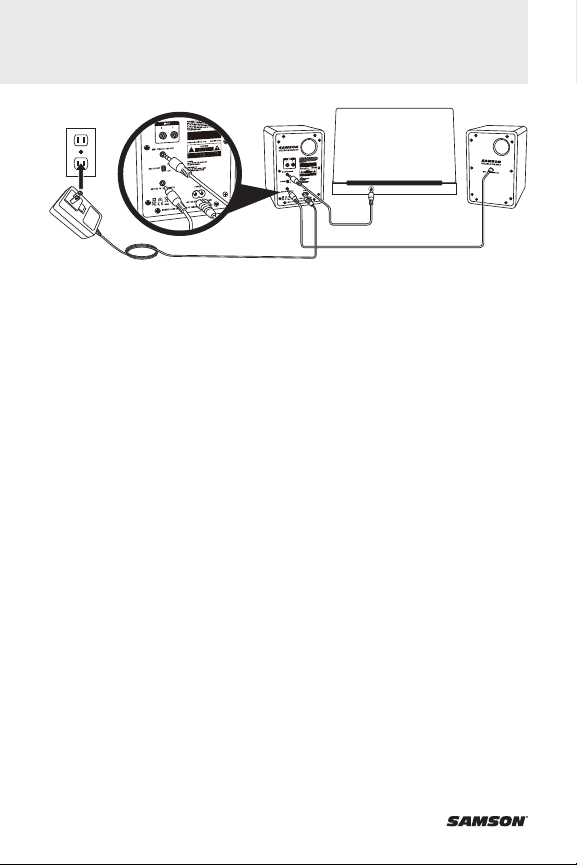

The MediaOne M30 main input connections can be made via the rear panel RCA inputs.
Follow the simple steps and diagram below for connecting an audio source to the speakers.
1. Connect the left and right speakers using the included two-conductor, 3.5mm
speaker cable.
2. Turn the MediaOne M30 Volume control completely counter-clockwise until it clicks
to the minimum/off setting.
3. Connect the MediaOne M30 to an AC power outlet using the included power cable.
4. Connect the audio output from your audio source such as a computer or portable
audio device to the RCA inputs of the MediaOne M30 right side speaker.
5. Turn the Volume control clockwise until it clicks to turn the MediaOne M30 speakers
on. The front panel Power Indicator will light white.
6. Play music from your audio source and slowly raise the volume of the MediaOne
M30 to a comfortable listening level.
Note: Before plugging in and turning on, remember the “last on, first off” rule of powered
speakers. When powering up your system, be sure that all the wires are connected, turn
your mixer and any other outboard gear on, and then last turn on your MediaOne M30.
When powering down, turn your MediaOne M30 off first and then your mixer and outboard
gear.
Quick Start

MediaOne M30 7
Adding an Active Subwoofer
Adding a subwoofer to extend the low fre-
quency response of your monitor system
can be beneficial when mixing your music.
Typically, it is best to set the subwoofer level
to be equal to that of the main speakers.
Because deep-bass frequencies are non-di-
rectional, it is difficult for our ears to
locate the sound source, and the precise
placement of the subwoofer is not as critical
as the main speakers. The ideal location
is between the two main speakers. If you
notice there are frequencies that sound qui-
eter than others, move the subwoofer slightly
to the left or right.

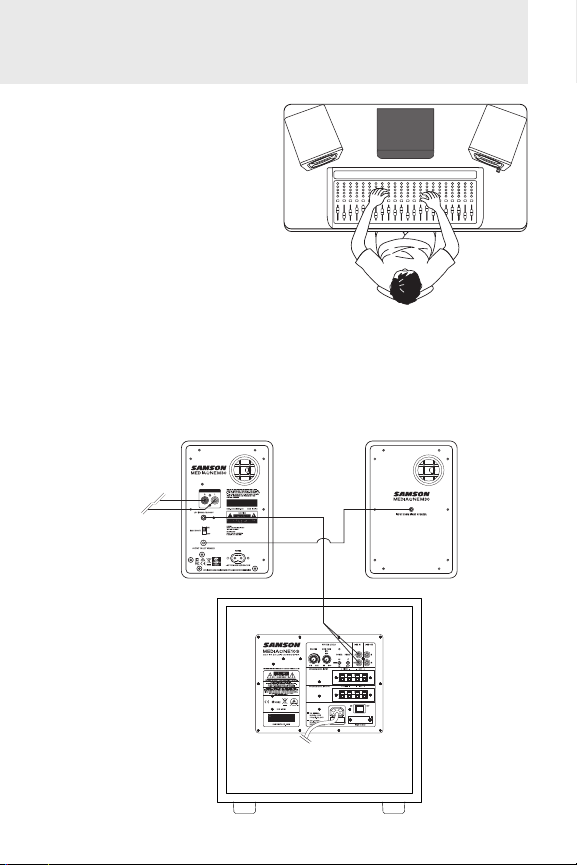

To add a powered subwoofer to your MediaOne M30 speakers to create a 2.1 system:
• Connect your audio source to the left and right RCA Inputs of the MediaOne M30.
• Connect the MediaOne M30 1/8” STEREO / SUB Output to the left and right line
inputs of your active subwoofer.
• Play music from your audio source.
• Turn up your MediaOne M30 to your desired listening level.
• Turn up the level of the subwoofer to desired level.
Note: The MediaOne M30 front panel Volume control will control the level of the entire system.
SUBWOOFER
From Audio Source

8
1. Tweeter - 1” silk dome tweeter set in a custom waveguide
2. Low Frequency Driver - Heavy duty 3” woofer with a polypropylene cone and butyl
surround for extend low frequency response
3. Power / VOLUME (active) - This rotary knob controls the overall amount of the output
level. Turn the control clockwise to turn the system on. Turn the knob counterclock-
wise until it clicks to turn the system off.
4. Headphone Jack - 3.5mm stereo output jack for connecting headphones. The moni-
tors automatically mute when headphones are connected
5. Power Indicator (active) - LED lights white indicating the unit is powered on.
6. AUDIO INPUT - Unbalanced, Stereo RCA-type input connectors, for connecting audio
output from consumer level (-10dBV) devices such as a computer, MP3 player, or
smartphone. The red connector is the for right input and the white is for the left
input.
7. 1/8” STEREO / SUB OUT - This 3.5mm jack outputs stereo full audio to connect to an
external audio device or to an active subwoofer.
8. Bass Boost Switch - This switch enables a bass boost to enhance the low-frequency
response.
MediaOne M30 Layout
Powered Speaker (right speaker)

MediaOne M30 9
MediaOne M30 Layout

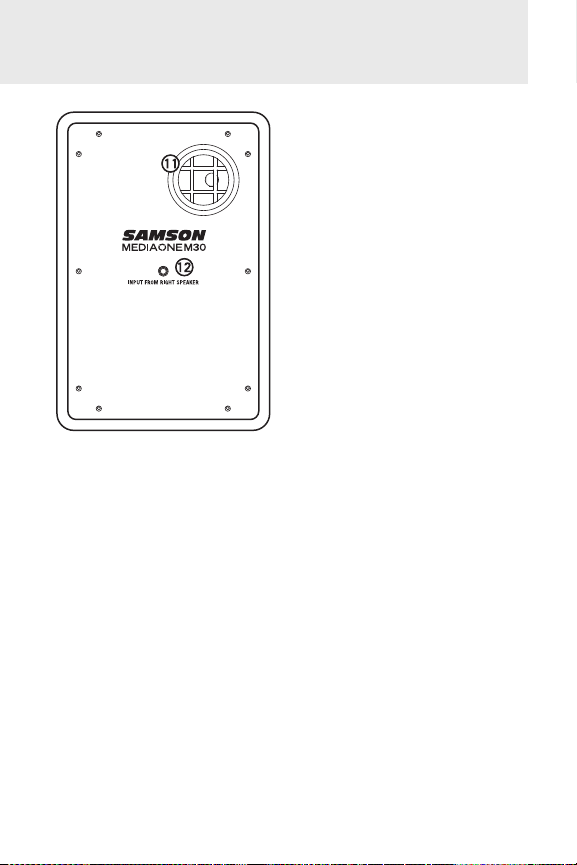

Passive Speaker (left speaker)
9. TO LEFT SPEAKER - 3.5mm jack for
connecting the passive left-side
extension speaker using the includ-
ed two-conductor speaker cable.
10. AC INLET - Connect the supplied
power cable here
11. Bass Port - Tuned low frequency bass
port for extending the low end of the
speaker cabinets. Do not block the
ports as this will restrict the overall
performance of the speakers.
12. Speaker Connections - 3.5mm jack
for connecting the passive left-side
extension speaker using the includ-
ed two-conductor speaker cable.

10

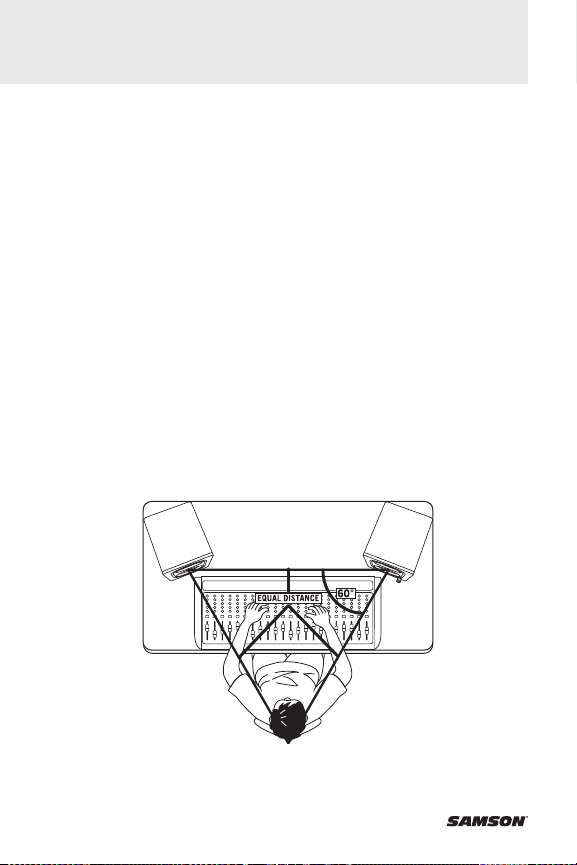

A major objective when setting up your studio monitors is to obtain the best possible stereo
image. The MediaOne M30 monitors are designed to be used in a vertical position, with the
tweeter and woofer symmetrically in line. Do not place these speakers horizontally as this
will cause an offset in sound between the woofer and the tweeter, limiting your ability to
find optimal listening positions.
Near field (close to the listener) monitoring has become the choice of many engineers
because of the cost and complexities associated with mounting monitors onto a wall.
Positioning your studio monitors correctly is very important. Correct placement not only
creates the proper stereo image, but also minimizes the effects of your room’s reflections.
This is especially important in today’s project studios, which are often multi-use spaces. By
taking some time and listening carefully when setting up your monitors, you can create an
optimal listening environment.
The most important consideration when evaluating room acoustics is the presence of
reflective surfaces near the monitoring area. These can include flat tabletops, glass mirrors
or framed pictures, large open walls and even the surface of your mixing console. Most
reflecting sound will eventually reach the listening position, but since it is slightly delayed
from the direct source, the result is random cancellation of some frequencies, or comb fil-
tering. If possible, remove any and all reflective surfaces. You may also want to hang some
acoustic foam on walls near the monitors.
When positioning the monitors, you’ll want to set up what is commonly referred to as the
“mix triangle” (shown below). In this ideal configuration, the space between the left and
right monitor is equal to the distance from the listener to each monitor, forming an equi-
lateral triangle.
Positioning the Speakers

MediaOne M30 11
Low Frequency Speakers 3” (76.2mm) woofer, polypropylene cone with
butyl surround
High Frequency Speakers 3/4” silk dome tweeter
Frequency response 50Hz - 20kHz (-2dB)
Amplifier Power Rating 2 x 10 watts (RMS)
Distortion (T.H.D.) <0.1%
Signal-To-Noise 83dB
Inputs Connectors RCA (rear panel)
Headphone 1/8” (3.5mm) Stereo Output
Subwoofer Output 1/8” (3.5mm)
Controls Power / Volume Knob, Bass Boost Switch
Indicators White (Power))
Enclosure MDF with textured vinyl covering
Dimensions (LxWxH) 5” x 5.78” x 7.48”
127mm x 147mm x 190mm
Weight 6.5 lb
2.95 kg
At Samson, we are continually improving our products, therefore specifications and images
are subject to change without notice.
Specifications

Samson Technologies Corp.
278-B Duffy Ave
Hicksville, New York 11801
Phone: 1-800-3-SAMSON (1-800-372-6766)
www.samsontech.com
