Samsung SH12UA1 User manual

OWNER’S INSTRUCTIONS
MANUAL DE INSTRUCCIONES
ISTRUZIONI PER L’USO
MANUAL DE INSTRUÇÕES
MANUEL D’UTILISATION
GEBRAUCHSANWEISUNG
Split-type Room Air Conditioner (Cool and Heat)
Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)
Condizionatore d’aria per ambienti ad unitàSeparate (Raffreddamento e Riscaldamento)
Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)
Climatiseur de type Séparé(Refroidissement et Chauffage)
Geteilte raumklimaanlage (Kühlen und Wärmen)
SH12YA1
SH12UA1
SH12YA9
Indoor Unit
ENGLISH
ESPAÑOL
ITALIANO
EUTSCH
ES I PF B68-01374A(4)

E-2
Safety Precautions
The following safety precautions must be taken when using your air conditioner.
1 Make sure that the indoor unit is correctly ventilated at all times; do NOT place clothing or other materials
over it.
2 NEVER spill liquid of any kind into the indoor unit. Should this happen, switch off the breaker used for your
air conditioner and contact your installation specialist.
3 Do NOT insert anything between the air flow blades, as the inner fan may be damaged and you may be hurt.
Keep children away from the indoor unit.
4 Do NOT place any obstacles in front of the outdoor unit.
5 If the remote control will not be used for a long time, remove the batteries.
6 Users of this product are cautioned not to attempt repair of this product at their own discretion.
Instead, they are requested to directly contact a designated service center or the outlet at which the
product was purchased.
7 If the supply cord is damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.
8 This device must be installed according to the national electrical rules.
9 Before throwing out the device, it is necessary to pull back the battery cells and get rid of them safely.
10 The appliance is not intended for use by young children or infirm person without supervision;
young children should be supervised to ensure that they do not play with the appliance.
The manufacturer do not take the responsibility of the accident happened
because the air conditioner is not fixed firmly or installed securely, during
installing or using the product. In case you have difficulty in installation,
you must ask for an installation specialist help. The accident will be hap-
pened in case of installing improperly.
CC
CCAA AAUU UUTT TTII IIOO OONN NN

E-3
Contents
◆ P REPARING YOUR AIR CONDITIONER
■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
■ Remote Control-Buttons and isplay . . . . . . . . . . . . . . . . . . . . .6
■ Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
■ Inserting the Remote Control Batteries . . . . . . . . . . . . . . . . . . . .8
◆ O
PERATING YOUR AIR CONDITIONER
■ Selecting the Automatic Operating Mode . . . . . . . . . . . . . . . . . .9
■ Cooling Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
■ Heating Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
■ Changing the Room Temperature Quickly . . . . . . . . . . . . . . . .12
■ Removing Excess Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . .13
■ Airing Your Room . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
■ Adjusting the Air Flow irection Vertically . . . . . . . . . . . . . . . .15
■ Adjusting the Air Flow irection Horizontally . . . . . . . . . . . . . .15
◆ P ROGRAMMING YOUR AIR CONDITIONER
■ Setting the On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
■ Setting the Off Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
■ Setting the Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
◆ R
ECOMMENDATIONS FOR USE
■ Operating Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . .19
■ Temperature and Humidity Ranges . . . . . . . . . . . . . . . . . . . . . .20
■ Cleaning Your Air Conditioner . . . . . . . . . . . . . . . . . . . . . . . . . .20
■ Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . .21
■ Operating Your Air Conditioner Without the Remote Control . .22
■ Installing a Filter (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
◆ T
ECHNICAL SPECIFICATIONS
ENGLISH

E-4
View of the Unit
The design and shape are subject to change according to the model.
Indoor Unit
Air filter
(under the grille) Air flow blades (outlet) Air Inlet
OPERATION indicator
(Operation : Red,
eice : Green)
TIMER indicator
(Orange)
Remote Control Sensor
TURBO indicator(Orange)
SLEEP indicator(Orange)
ON/OFF Button

E-5
Air Inlet(Rear)
Air Outlet Connection Valve
(Inside)
ENGLISH

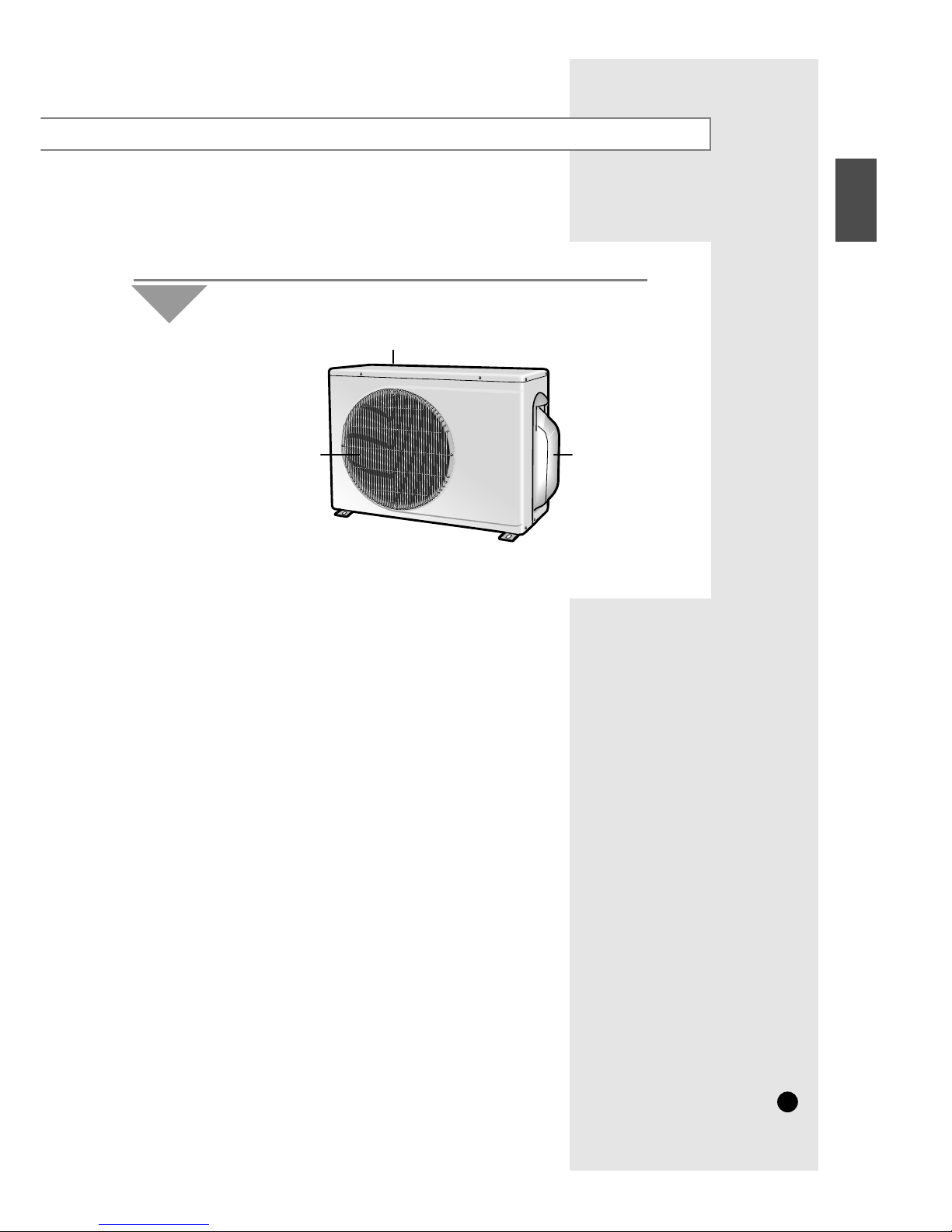

Outdoor Unit

E-6
Remote Control - Buttons and Display
Operating mode
( AUTO, COOL, RY,
FAN, HEAT)
Remote control
transmission indicator Mode selection button
(AUTO, COOL, RY, FAN, HEAT)
Turbo/Sleep mode
selection button
Swing button
On Timer button
Off Timer button
On/Off &
Timer Set/Cancel button
Fan speed adjustment
button
Temperature adjustment
buttons
Temperature setting
Sleep mode
Turbo mode
Fan speed
Air flow direction
On Timer setting
Off Timer setting
Battery discharge indicator

E-7
ENGLISH
Getting Started
You have just purchased a split type air conditioner and it has been
installed by your installation specialist.
Your Owner’s Instructions contain much valuable information on using your
air conditioner. Please take the time to read them as they will help you take full
advantage of the unit’s features.
The booklet is organized as follows.
◆The following figures are shown on pages from 4 to 6 :
- Indoor and outdoor units
- Remote control(buttons and display)
They will help you find the buttons and understand the symbols displayed.
◆In the main part of the document, you will find a series of step-by-step
procedures for each function available.
The illustrations in the step-by-step procedures use three different symbols:
PRESS PUSH HOLD DOWN

E-8

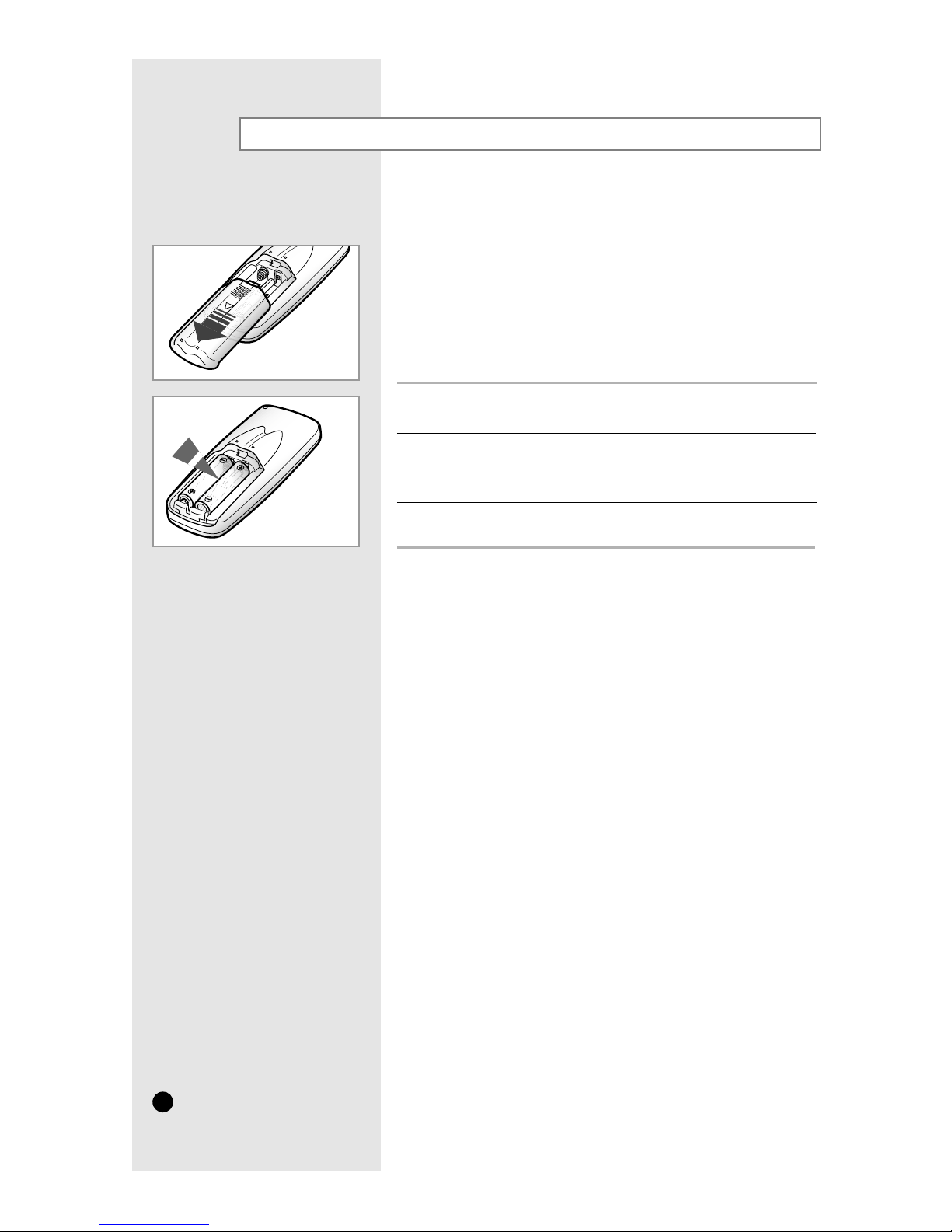

Inserting the Remote Control Batteries
Push the battery cover on the rear of the remote control with your thumb
in the direction of the arrow and remove it.
Insert the two batteries, taking care to respect the polarities :
◆+ on the battery with + on the remote control.
◆- on the battery with - on the remote control.
2
Close the cover by sliding it back until it clicks into place.
3
◆Use two AAA, LR03 1.5V batteries.
◆o not use old batteries or different kinds of batteries together.
◆Batteries may be completely discharged after 12 months, even
◆if they have not actually been used.
You must insert or replace the remote control batteries when :
◆You purchase the air conditioner
◆The remote control does not work correctly
NN
NNoo oott ttee ee

E-9
ENGLISH

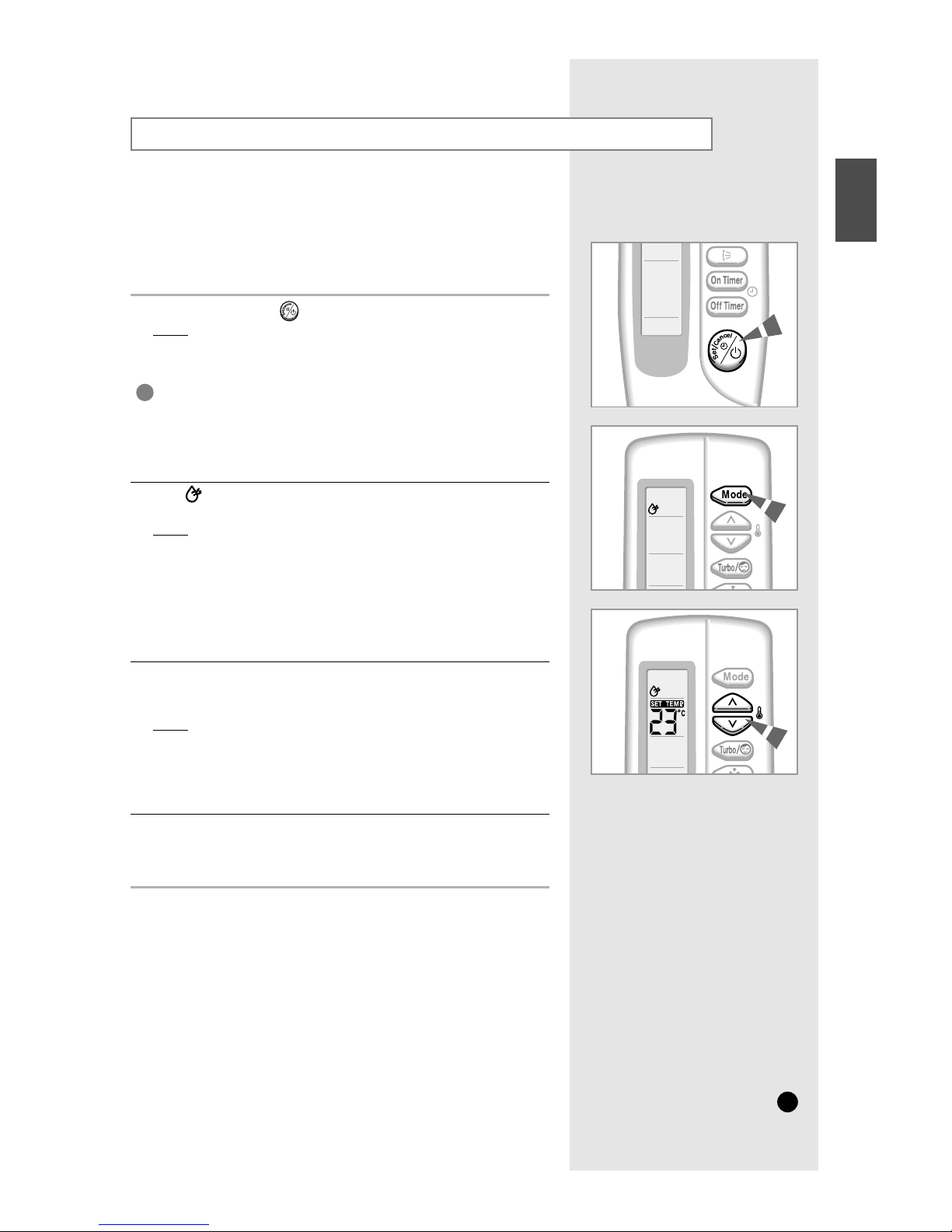

Selecting the Automatic Operating Mode
You can start the air conditioner in Automatic mode from your remote
control. In the Automatic mode, the standard temperature and the
optimum fan speed is selected automatically. You can adjust the
standard temperature but not the fan speed.
If the is not displayed at the top of the remote control,
press the MO E button on the remote control one or more times until it
appears.
Result:◆The indoor unit beeps each time you press the MO E button.
◆The air conditioner runs in AUTO mode.
2
You can change modes at any time.
If necessary, press the (On/Off) button.
Result:◆The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
NN
NNoo oott ttee ee
Auto Change Over Function (Only the Inverter Models)
◆ In the Automatic mode, the air conditioner selects one of
COOL, HEAT, RY depending on the indoor and outdoor
temperatures. If the air conditioner has not been operated
for an hour, the air conditioner will take the current
temperatures again and it will restart operating in
the optimum mode.
NN
NNoo oott ttee ee
To adjust the standard temperature (The air conditioner automatically
set the standard temperature by the current room temperature.),
press the TEMPERATURE buttons one or more times.
3
SET TEMP. SET TEMP. - SET TEMP. SET TEMP.
-2°C -1°C Standard temperature +1°C +2°C
< When you feel hot > < When you feel chilly >

E-10
Cooling Your Room
If necessary, press the (On/Off) button.
Result: ◆ The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected
when the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism to
prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
lt will start up normally after three minutes.
IMPORTANT
If the is not displayed at the top of the remote control,
press the MO E button on the remote control one or more times until it
appears.
Result: ◆ The indoor unit beeps each time you press the MO E button.
◆ The air conditioner runs in COOL mode.
2
You can change modes at any time.
NN
NNoo oott ttee ee
To adjust the temperature, press the TEMPERATURE buttons one or
more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆ Each time you press the TEMPERATURE buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts cooling, provided that the room
temperature is higher than the selected temperature;
the fan will, however, operate.
3
Select the fan speed by pressing the FAN button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result: Each time you press the FAN button, the indoor unit beeps.
4
To control the direction of the air flow, refer to page 15.
5
You must select the Cool mode if you wish to adjust the:
◆Cooling temperature
◆Fan speed when cooling

E-11
Heating Your Room
ENGLISH
You must select the Heat mode if you wish to adjust the:
◆Heating temperature
◆Fan speed when heating
If necessary, press the (On/Off) button.
Result:◆ The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
MO E button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the MO E button.
◆ The air conditioner runs in HEAT mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the TEMPERATURE buttons one or
more times until the required temperature is displayed.
Possible temperatures are between 16°C and 30°C inclusive.
Result:◆Each time you press the TEMPERATURE buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts heating, provided that the room
temperature is lower than the desired temperature
(selected temperature+3°C); the fan will, however, operate.
4Select the fan speed by pressing the FAN button one or more times
until the required setting is displayed:
Automatic (rotated : )
Low
Medium
High
Result:◆
Each time you press the FAN button, the indoor unit beeps.
◆ For the first three to five minutes, the fan operates very
slowly until the air has been sufficiently warmed. Once the
correct temperature has been reached, the fan is automatically
set to the required speed.
5To control the direction of the air flow, refer to page 15.
IMPORTANT

E-12
Changing the Room Temperature Quickly
The Turbo cooling/heating function is used to cool or heat your room as
quickly as possible.
EE
EExx xxaa aamm mmpp ppll llee ee : You have just come home and find that the room is very
hot. You wish to cool it down as quickly as possible.
The Turbo function operates for 30 minutes with the maximum settings before
returning automatically to the mode and temperature previously selected.
If necessary, press the (On/Off) button.
Result:◆The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected when the unit
was last used.
◆The indoor unit beeps.
2 Press the button.
Result:◆The temperature and fan settings are adjusted automatically.
◆The air conditioner cools or heats the room as quickly as possible.
◆The TURBO indicator on the indoor unit lights up.
◆After 30 minutes, the air conditioner is reset automatically to the
previous mode, temperature and fan settings.
But, if you press the button in RY or FAN mode
that is changed with AUTO mode automatically.
3 If you wish to stop the Turbo function before the end of the 30-minute period,
press the button one or more times until or disappears.
Result: The air conditioner is reset automatically to the previous mode,
temperature and fan settings.
But, if you press the button in RY or FAN mode that is
changed with AUTO mode automatically.
4 To control the direction of the air flow, refer to page 15.

E-13
Removing Excess Humidity
ENGLISH
If the atmosphere in your room is very humid or damp, you can
remove excess humidity without lowering the room temperature too
much.
If necessary, press the (On/Off) button.
Result:◆
The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
The air conditioner is fitted with a protection mechanism
to prevent the unit from being damaged when it is started
immediately after being:
◆Plugged in
◆Stopped
It will start up normally after three minutes.
2If the is not displayed at the top of the remote control, press the
MO E button on the remote control one or more times until it appears.
Result:◆
The indoor unit beeps each time you press the MO E button.
◆ The air conditioner runs in RY mode.
NN
NNoo oott ttee eeYou can change modes at any time.
3To adjust the temperature, press the TEMPERATURE buttons one or
more times until the required temperature is displayed.
Possible temperatures are between 18°C and 30°C inclusive.
Result:◆Each time you press the TEMPERATURE buttons:
- The temperature is adjusted by 1°C
- The indoor unit beeps
◆The air conditioner starts removing the excess humidity;
the quantity of air is adjusted automatically.
4To control the direction of the air flow, refer to page 15.
IMPORTANT

E-14
Airing Your Room
If the atmosphere in your room is stale, you can air the room using
the Fan feature.
If necessary, press the (On/Off) button.
Result:◆
The OPERATION indicator on the indoor unit comes on.
◆The air conditioner starts up in the mode selected when
the unit was last used.
◆The indoor unit beeps.
2If the is not displayed at the top of the remote control,
press the MO E button on the remote control one or more times until it
appears.
Result:◆
The indoor unit beeps each time you press the MO E button.
◆ The air conditioner runs in FAN mode.
◆ The temperature is set automatically.
NN
NNoo oott ttee eeYou can change modes at any time.
3Select the fan speed by pressing the FAN button one or more times
until the required setting is displayed:
Low
Medium
High
Result: Each time you press the FAN button, the indoor unit beeps.
4To control the direction of the air flow, refer to page 15.

E-15

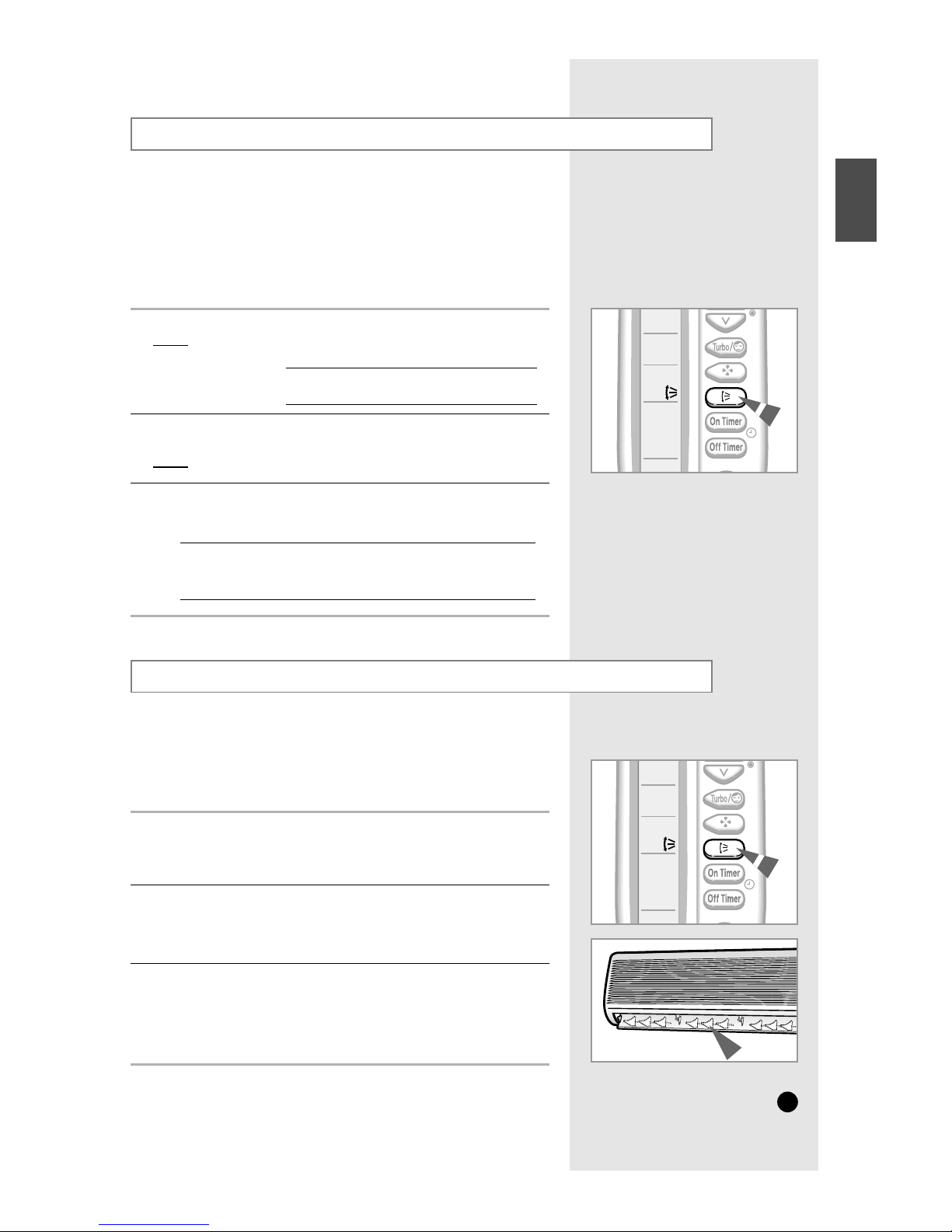

Adjusting the Air Flow Direction Vertically
Adjusting the Air Flow Direction Horizontally
ENGLISH
Depending on the position of the indoor unit on the wall of your
room, you can adjust the position of the outer air flow blade on the
bottom of the unit, thus increasing the efficiency of the air
conditioner.
Press the SWING button one or more times as required.
Result: The outer blade is adjusted vertically.
RECOMMENDATION When... Adjust the blade to face...
Cooling Upwards.
Heating ownwards.
2If you want the blade to move up and down automatically when the air
conditioner is operating, press the SWING button.
Result: The blade move up and down, around the base position set.
3 To stop the blade moving up and down, press the SWING button again.
NN
NNoo oott ttee eeIf you switch the ai conditione ... Then the blade is...
Off Closed completely.
On again Reset to the position that you
previously selected.
There are two sets of inner air flow blades. Just as the outer air flow
blade can be adjusted vertically, the inner blades can be adjusted
horizontally.
Open the air flow blade along the bottom of the indoor unit, by
pressing the SWING button.
2To stop the blade moving up and down, press the SWING button
again.
3Adjust each set of inner blades to the required position, by pushing or
pulling them sideways.

E-16

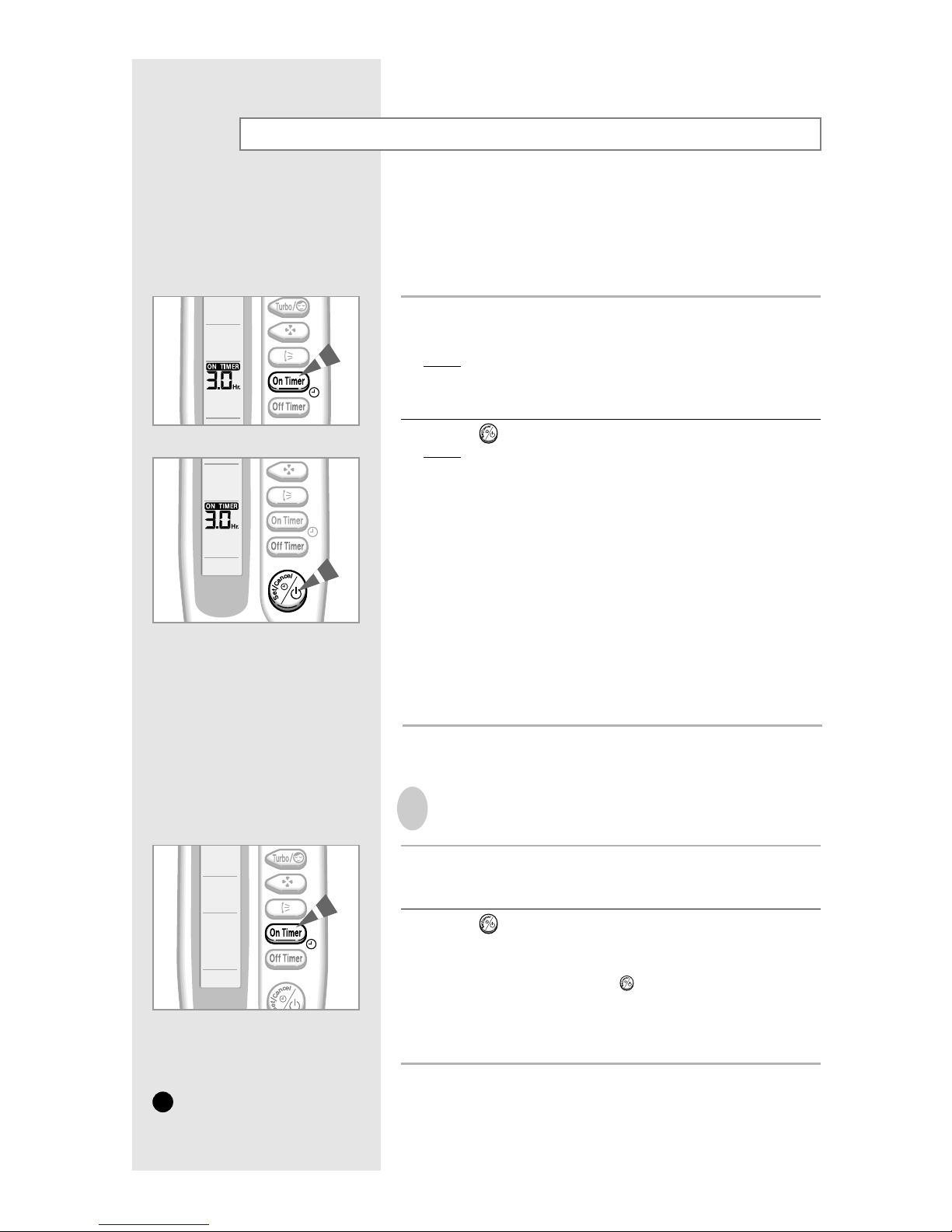

Setting the On Timer
If you want to turn on the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NN
NNoo oott ttee ee
The On Timer enables you to switch on the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the ON TIMER button one or more times
until the required time is displayed. Possible time is between 0.5 hour and
24 hour inclusive.
Result: ◆Each time you press ON TIMER button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 5 seconds.
◆The air conditioner will switch on automatically when the
counter displayed on the remote control reaches the setting
time as disappearing the On timer setting.
2
To cancel the On Timer, press the ON TIMER button one or more times
until the timer setting disappears.
Press the (Set/Cancel) button.
2
To Cancel the On Timer
Yon can see or change the setting mode and/or the temperature
by pressing the MO E button or the TEMPERATURE buttons
after setting the On timer.
NN
NNoo oott ttee ee

E-17
Setting the Off Timer
The Off Timer enables you to switch off the air conditioner automatically
after a given period of time. You can set the period of time from
30 minutes to 24 hours.
To set the operating time, press the OFF TIMER button one or more times
until the required time is displayed. Possible time is between 0.5 hour and 24
hour inclusive.
Result: ◆Each time you press OFF TIMER button:
- The time is adjusted by 0.5 hour to 5 hours, by 1 hour from
6 hours to 24 hours.
Yon can see or change the setting mode and/or the temperature
by pressing the MO E button or the TEMPERATURE buttons
after setting the Off timer.
NN
NNoo oott ttee ee
Press the (Set/Cancel) button to complete the setting.
Result: ◆The remaining time is displayed.
◆Blinking of the timer indicator stops.
◆The selected mode and the temperature disappear on the
display after 5 seconds.
◆The air conditioner will switch off automatically when the
counter displayed on the remote control reaches the setting
time as disappearing the Off timer setting.
2
If you would like to turn the air conditioner on after 2 hours
and to operate it for 2 hours:
1. Press the ON TIMER button until ‘2.0 Hr’ is displayed.
2. Press the (Set/Cancel) button.
3. Press the OFF TIMER button until ‘4.0 Hr’ is displayed.
4. Press the (Set/Cancel) button.
EE
EExx xxaa aamm mmpp ppll llee ee
If you want to turn off the air conditioner before the timer reaches
the setting time, press the (ON/OFF) button.
NN
NNoo oott ttee ee
To cancel the Off Timer, press the OFF TIMER button one or more times
until the timer setting disappears.
Press the (Set/Cancel) button.
2
To Cancel the Off Timer
ENGLISH

E-18
Setting the Sleep Timer
The Sleep Timer can be used when you are cooling or heating your
room to switch the air conditioner off automatically after a period of
six hours.
NN
NNoo oott ttee eeIf you wish to switch the unit off at a specific time, refer to
page 17.
Make sure that you have selected either COOL or HEAT mode.
2Press the button one or more times until appears on the
remote control.
Result:◆The indoor unit beeps.
◆
The SLEEP indicator on the indoor unit lights up.
◆The air conditioner will be controlled as indicated in the
illustrations below.
Cooling The temperature is increased
by 1°C every hour.
When it has been increased
by 2°C (after two hours), the
temperature is maintained for
four hours.
Heating The temperature is decreased
by 1°C every hour.
When it has been decreased
by 2°C (after two hours), the
temperature is maintained for
four hours.
2°C
1°C
Set
TEMP. Start
time Stop
time
1hr 2hr 6hr
-1°C
-2°C
Start
time Stop time
1hr 2hr 6hr
Set
TEMP.
To Cancel the Sleep Timer
If you no longer wish to use the Sleep Timer that you have set, you
can cancel it at any time.
Press the button.
Result:◆The indoor unit beeps.
◆The is no longer displayed.
◆The air conditioner operates normally.

E-19
Operating Recommendations
Here are a few recommendations that you should follow when using
your air conditioner.
Topic Recommendation
Heating performances The heat pump inside the air conditioner
absorbs heat from outside air and brings it
indoors. If the temperature of the outside air
drops, the air conditioner will heat less. If you
find that the room is not warm enough, use an
additional heating appliance.
Warm air circulation The air conditioner circulates warm air to heat
your room; as a result, some time will be
required after starting the air conditioner to
warm the entire room. If necessary, set the air
conditioner going a short time before you wish
to use the room.
Power failure If a power failure occurs when the air conditioner
is operating, the unit is switched off. When the
power returns,
you must press the (ON/OFF)
button to restart it.
ENGLISH
High indoor and outdoor
temperatures If both the indoor and outdoor temperatures are
high and you select the Heat mode, the outdoor
unit’s fan and compressor may stop at times.
This is normal; simply wait until the air conditioner
switches on again.
Frost When outside temperatures are low and humidity
is high, frost may form in the outdoor unit when
heating with your air conditioner.
If this happens:
◆The heating operation is stopped.
◆The eice mode is triggered automatically
for about seven minutes.
◆The OPERATION indicator on the indoor unit
lights up green.
No intervention is required from you; after about
seven minutes, the air conditioner starts operating
again normally.

E-20

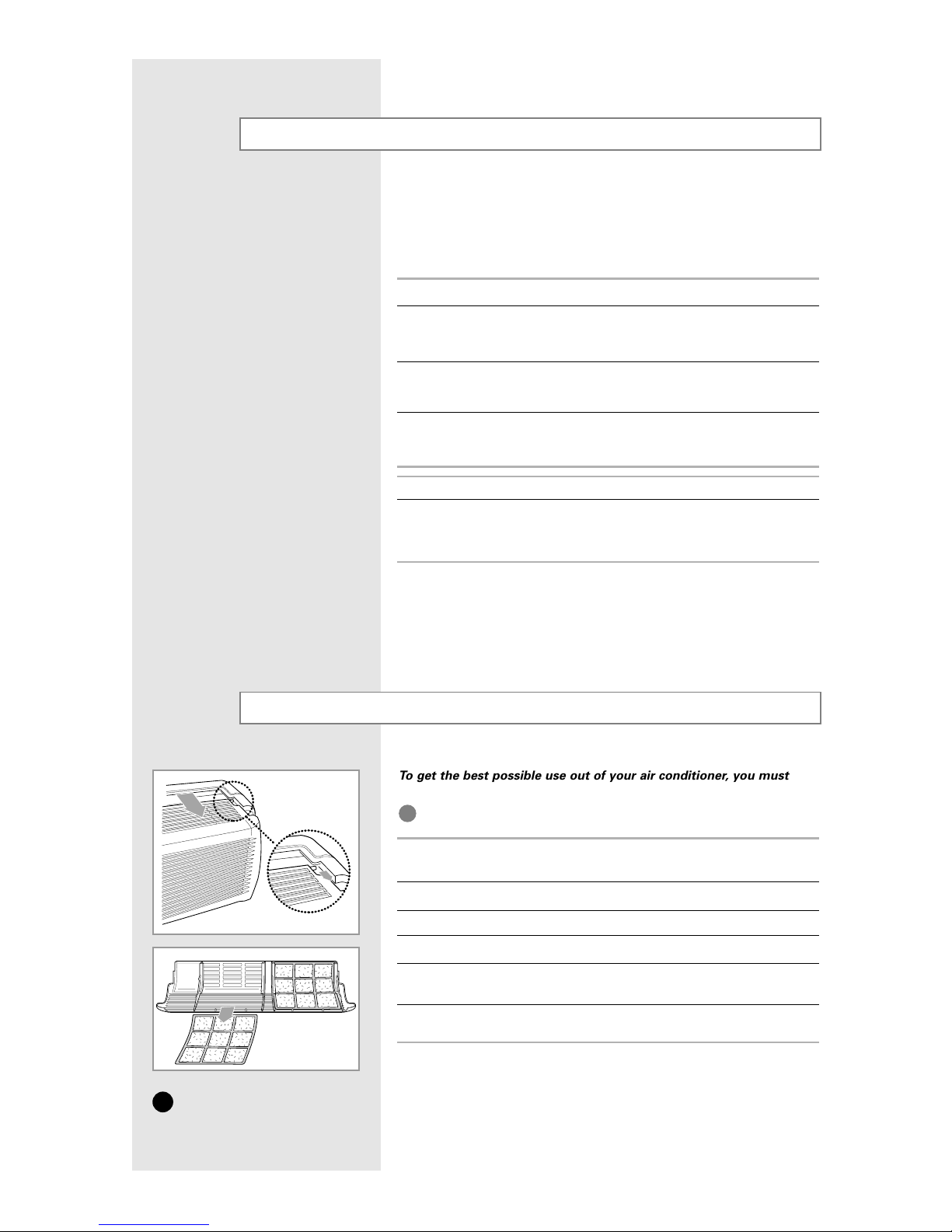

Temperature and Humidity Ranges
The following table indicates the temperature and humidity ranges
within which the air conditioner can be used.
If the air conditioner is used at... Then...
High temperatures The automatic protection feature may
be triggered and the air conditioner
stopped.
Low temperatures A water leakage or some other
malfunction may happen if the heat
exchanger freezes.
High humidity levels Water may condense on and drip
from the surface of the indoor unit if it
is used for long periods.
Mode Outdoor Temperature Indoor Temperature Indoor Humidity
Heating 0°C to 24°C approx. 27°C or less -
Cooling 21°C to 43°C approx. 18°C to 32°C approx. 80% or less
rying 18°C to 43°C approx. 18°C to 32°C approx. -
❇ If the heating operation is used at below 0 °C(outdoor temperature)
then, does not a full capacity.
If the cooling operation is used at over 33
°C(indoor temperature)
then, does not a full capacity.
Cleaning Your Air Conditioner
;;yy
;
;
y
y
;y
;y
;
;
y
y
;;yy
;y
;
;
y
y
;y
;
;
y
y
;;yy
;;yy
;;
;;
yy
yy
;;yy
;y
;
;
y
y
;;yy
;;yy
To get the best possible use out of your air conditioner, you must
clean it regularly to remove the dust that accumulates on the air filter.
Before cleaning your air conditioner, ensure that you
have switched off the breaker used for the unit.
1 Open the front grille by lifting the tabs on the lower right and left sides of
the indoor unit.
2 isassemble the front grille by pulling it forwards.
3
Hold the edge of the air filter under the front grille and pull to release them.
4 Remove all dust on the air filters with a vacuum cleaner or brush.
5 Clean the front panel with a damp cloth and mild detergent (do NOT use
benzene, solvents or other chemicals).
6 Reassemble the air filters and the front grille.
NN
NNoo oott ttee ee◆ If you have not used the air conditioner for a long period
of time, set the fan going for three to four hours to dry the
inside of the air conditioner thoroughly.
IMPORTANT
