Samsung AW07A0SE User manual

ROOM AIR CONDITIONER
AW07A0SE/AW07A1SE
AW09A0SE/AW09A1SE
AIR CONDITIONER CONTENTS
1. Precautions
2. Product Specifications
3. Operating Instructions and
Installation
4. Disassembly and Reassembly
5. Troubleshooting

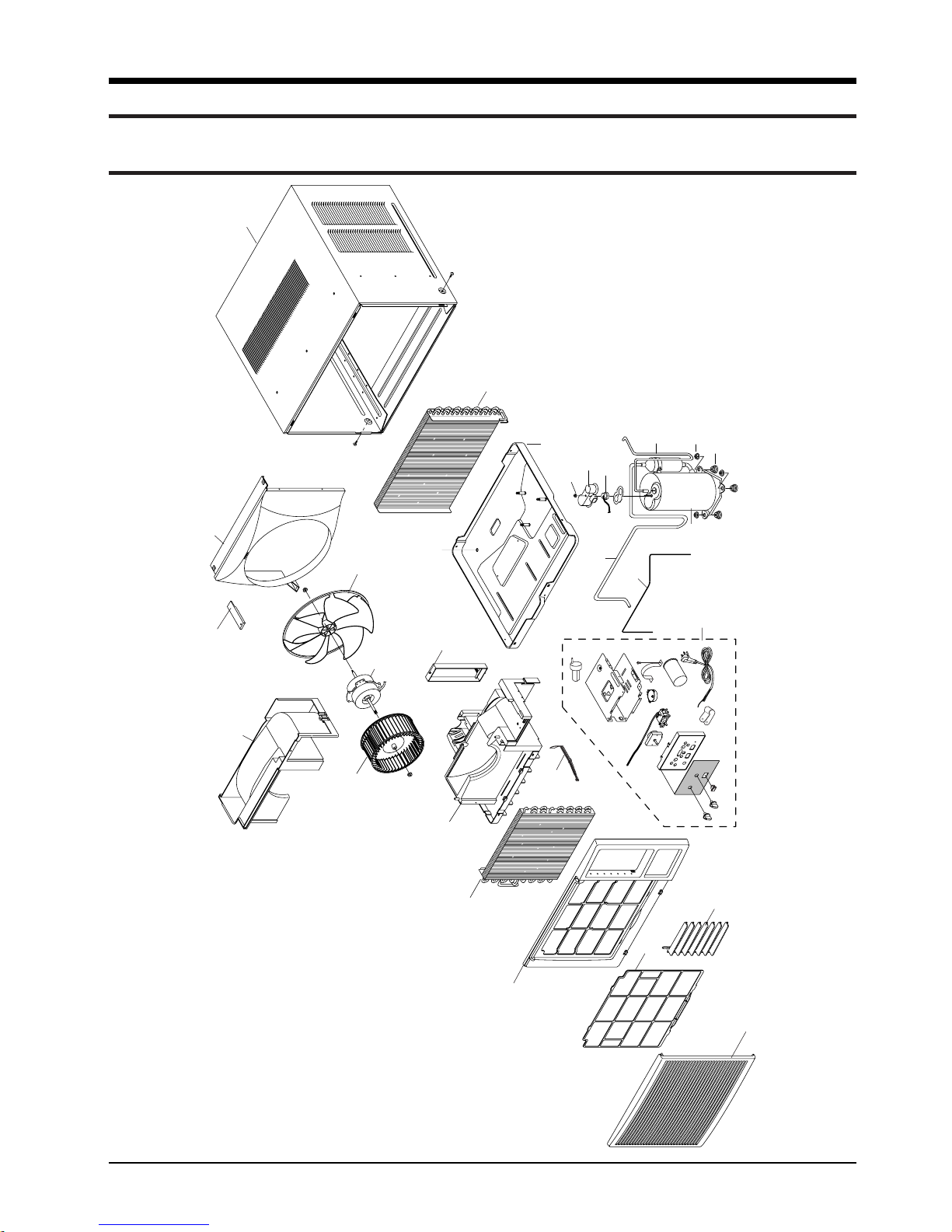

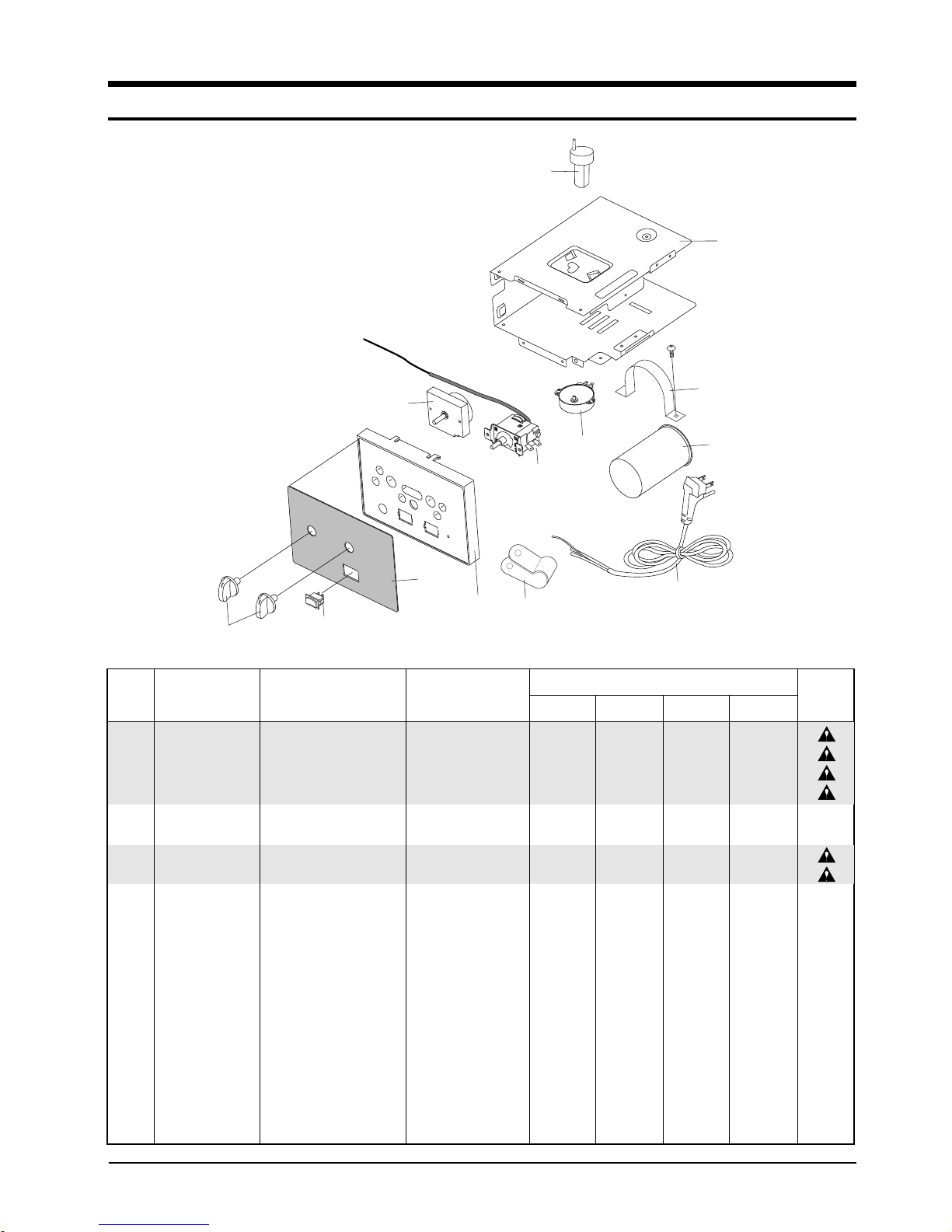

6. Exploded Views and Parts List
7. Block Diagram
8. Wiring Diagram
SERVICE Manual
OFF
LOW
COOL
LOW
FAN
HI
FAN HI
COOL
4
2
8
COOLEST
12
10
6
OPERATION THERMOSTAT
AW07A1SE/AW09A1SE-front 3/12/99 5:26 PM Page 2

Samsung Electronics 1-1
1. Precautions
1. Warning: Prior to repair, disconnect the
power cord from the circuit breaker.
2. Use proper parts: Use only exact
replacement parts. (Also, we recommend
replacing parts rather than repairing them.)
3. Use the proper tools: Use the proper tools
and test equipment, and know how to use
equipment may cause problems later-
intermittent contact, for example.
4. Power Cord: Prior to repair, check the
power cord and replace it if necessary.
5. Avoid using an extension cord, and avoid
tapping into a power cord. This practice
may result in malfunction or fire.
6. After completing repairs and reassembly,
check the insulation resistance, Procedure:
Prior to applying power, measure the
resistance between the power cord and the
ground terminal. The resistance must be
greater than 30 megohms.
7. Make sure that the grounds are adequate.
8. Make sure that the installation conditions
are satisfactory. Relocate the unit if
necessary.
9. Keep children away from the unit while it is
being repaired.
10. Be sure to clean the unit and its surrounding
area.

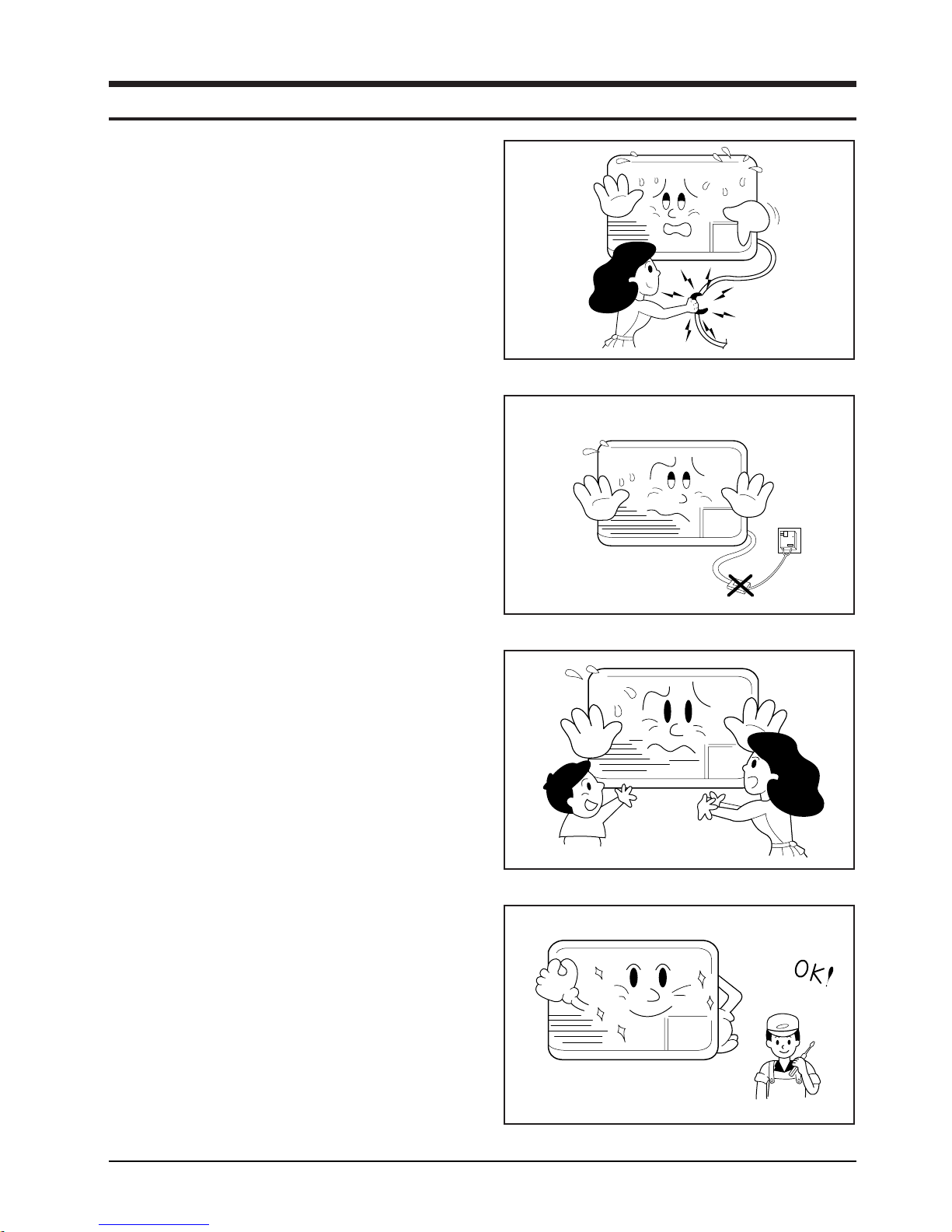

Fig. 1-1 Avoid Dangerous Contact
Fig. 1-2 No Tapping and No Extension Cords
Fig. 1-3 No Kids Nearby!
Fig. 1-4 Clean the Unit
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 1-1

Samsung Electronics 2-1
2. Product Specifications
2-1 Table
Item
Type
Dimensions:
(Width X Height X Depth)
Packing Size
(Width X Height X Depth)
Voltage:
Phase
Frequency
Operating Current
Power Consumption
Refrigerant Type
Refrigerant Charge
Cooling Capacity
EER
Net Weight
Condenser
Condenser Fan
Evaporator
Evaporator Fan
Fan Motor
Compressor(Rotary)
Overload Protect
Compressor Capacitor
Fan Motor Capacitor
Fan Speed Control
Themo Control
Air Swing
Unit of Measure
-
mm (inch)
mm (inch)
Volt
-
Hz
A
W
FREON
g
KW
KW/Wh
kg
Row
Type
Row
Type
W
Model
-
µF/ VAC
-
-
-
3.5
750
410
2.05
2.05
28
44A070JW1E1
MST24AMN - 12008
25/370 Dual Type
2.5/370
AW07A0SE AW07A1SE AW09A0SE AW09A1SE
220 - 240
Single
50
R-22
2 x15
Propeller Fan
2 x14
Blower
IC - 9630SWJ5B
Fan speed switch(High & Low)
Thermostat
4.5
1,000
420
2.60
2.6
29
44B092JW1E5
KRA1256 - 12007
20/370 Dual Type
3/370
Remarks
Window
520 X 345 X 485 (20.5 X 13.6 X 19.1)
571 X 449 X 546 (22.5 X 17.7 X 21.5)
M2LJ49ZR42
(5/6 RPM) -M2LJ49ZR42 (5/6 RPM)
-
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 1-3

2-2 Samsung Electronics
2-2 Dimensions
2-2-1 Main Unit
520
345 345
485
OFF
LOW
COOL
LOW
FAN
HI
FAN HI
COOL
4
2
8
COOLEST
12
10
6
OPERATION THERMOSTAT
Front view Side view
Unit : mm
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 1-4

Samsung Electronics 3-1
3. Installation and Operating Instructions
3-1 Installation
3-1-1 Selecting Area for Installation
1. Make sure that you install the unit in an area
providing good ventilation. The air conditioner
must not be blocked by any obstacles affecting the
airflow near the air inlet and the air outlet.
2. Make sure that you install the unit in an area that
allows good air handling. The installation area
must be able to endure vibration from the unit.
3. Make sure that you install the unit away from heat
or vapor.
4. Make sure that you install the unit in an area
which is cool and has adequate space.
5. Make sure that you install the unit in an area away
from TVs, audio units, cordless phones,
fluorescent lighting fixtures and other electrical
appliances (at least 1 meter clearance).
6. Make sure that you install the unit in an area which
provides easy drainage for condensed water.
7. Make sure that you install the unit in area not
exposed to the rain or direct sunlight.
(Install a separate sunblind if exposed to direct
sunlight).
8. Make sure that you install the unit in an area
allowing good air movement. Do not install it in
a space that would cause noise amplification
of noise.
9. Fix the unit firmly if mounted in a high place.
Caution:
Do not use the air conditioner in the following environments : greasy areas (including areas near machines),
or marine areas. Contact your local dealer for advice.
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 3-1

3-2 Samsung Electronics
3-2 Controls and Components
3-2-1 Thermostat
OFF :
When room temperature is lowered by the air
conditioner, the gas within the thermostat will
contract and cause a break in the electrical
contact. The compressor will then stop.
After the compressor stops, the room
temperature will rise.
ON :
As the room temperature increases to a
selected level, the gas within the thermostat
expands causing electrical contact, which
provides the source of electric power to the
compressor. The room temperature will fall
and the cycle will repeat.
Control Operation :
By turning the control knob clockwise (toward
higher numbers), the temperature will be cooler.
By turning the control knob counterclockwise
(toward lower numbers), the temperature will be
warmer.
Level 1 : Cool air will be supplied above 30~35¡C
Cool air will cease below 28~32.5¡C
Level 12 : Cool air will be supplied above 17.4~20.4¡C
Cool air will cease below 14.4~17.4¡C
OFF
LOW
COOL
LOW
FAN
HI
FAN HI
COOL
4
2
8
COOLEST
12
10
6
OPERATION THERMOSTAT
OFF
LOW
COOL
LOW
FAN
HI
FAN HI
COOL
4
2
8
COOLEST
12
10
6
OPERATION THERMOSTAT
Operating mode
selection dial
<AW07A0SE/AW09A0SE>
<AW07A1SE/AW09A1SE>
Temperature
control dial
Operating mode
selection dial Temperature
control dial
Air flow blade swing switch
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 3-2

Samsung Electronics 3-3
3-2-2 Operation
3-2-4 Air Swing Switch(AW07A1SE/AW09A1SE)
The fan selector switch offers high and low fan cooling control levels to assure maximum comfort.
The two fan speeds allow you to economically circulate room air flow on days when intense cooling is not required. When
combined with the thermostat(set to call for conditioned air), these controls cool, dehumidify, filter, and circulate room air,
with the fan continuing to circulate air even when the compressor is turned off.
3-2-3 Ventilation Control
Use the ventilation switch to exhaust unfresh air.
Open position : The air inside the room circulates, while exhausted is sent outside.
Closed position : The air inside the room circulates without exhaust.
¥ ON ( ) : Automatic oscillation distributes the air flow throughout the room
(controls left and right wave fins)
¥ OFF( ) : Maintains a fixed direction of air flow, Set the Air Swing switch to OFF at the instant the wave
fins come to the desired position.
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 3-3

Samsung Electronics 4-1
4. Disassembly and Reassembly

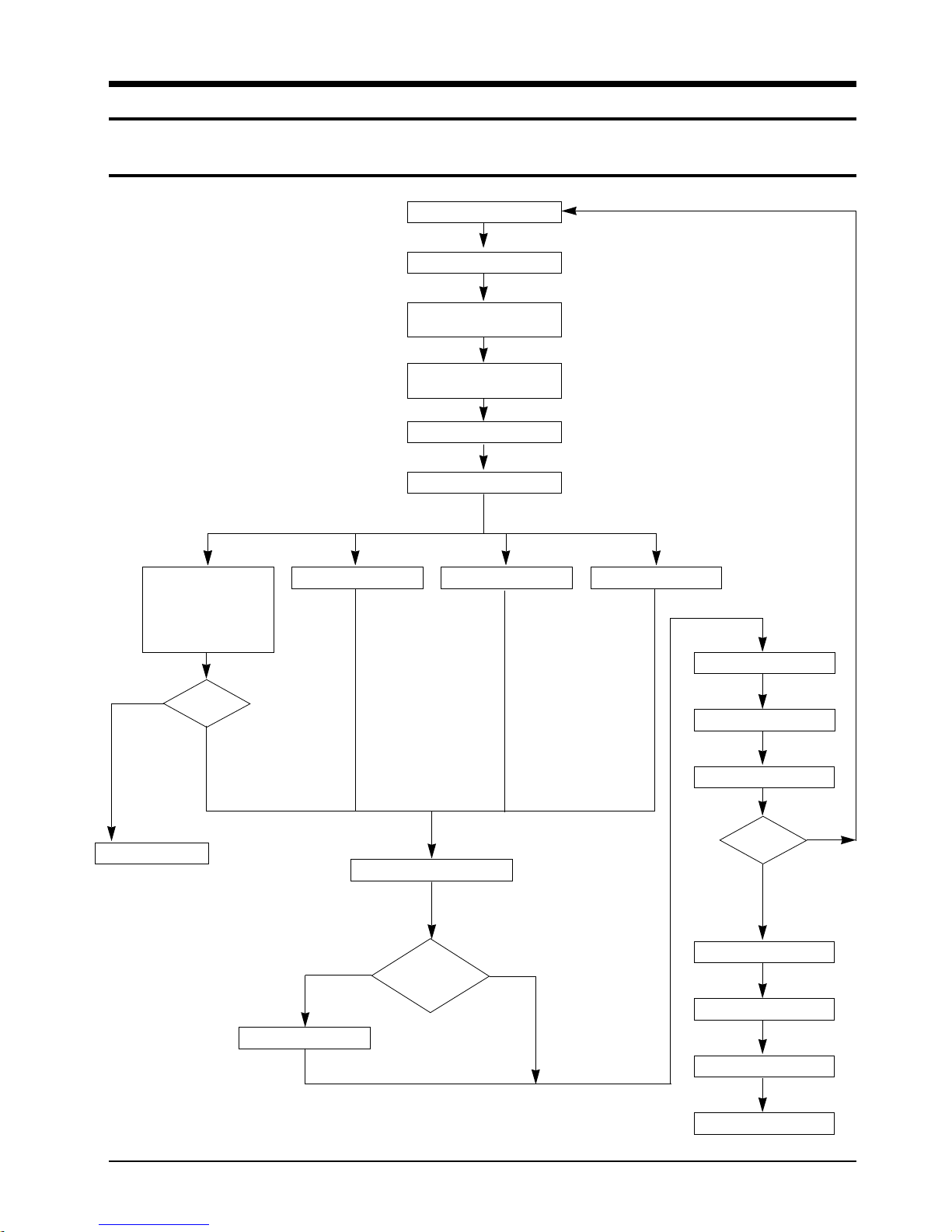

4-1. Compressor Replacement Flow Chart
Locate cause of defect
Release refrigerant
Disconnect electrical
wiring from compressor
Cut refrigerant lines
from compressor
Plug disconnected lines
Replace compressor
Inspect electrical
wiring for defects,
and terminals for
correct and secure
connections
Solder discharge line
Corrective action Check refrigerant oil level
Add oil as necessary
Solder suction line Use nitrogen gas
Perform soldering function
Fill system with nitrogen gas
Check for leakage
Pinch and braze filling tube
Recharge system
Evacuate system
Release nitrogen gas?
Problem?
Low oil level? NY
Y N
N
Y
Leakage?
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 4-1

4-2 Samsung Electronics4-2
4-2 Checking the oil
4-3 Refrigerant Oil Specifications
Put approximately 10cc oil into a transparent container and test it.
4-2-1 Oil quality
4-2-2 Changing and adding refrigerant oil
1. Change the compressor - DO NOT recharge the oil as the compressor itself is
already charged.
2. Change the condenser .... add 50cc
3. Change the evaporator .... add 50cc
4. When the refrigerant is replaced .... add 30cc oil.
5. After vacuum is completed, the oil is filled through the high pressure side.
6. In the event of a refrigerant leak, generally it is not necessary to add oil.
(unless the oil has leaked significantly).
Normal
Over-heated
Motor Damage
Condition of
Refrigerant Cycle Color
Straw Yellow
Brown Color
Dark Brown
Odor
No Odor
-
Pungent oil
Remarks
Return with the system
Change the oil
Change the oil
Oil Condition
AW07A0SE
AW07A1SE
AW09A0SE
AW09A1SE
280cc
360cc SONTEX 200LT
Oil ChargeModel Oil specification
AW07A1SE/AW09A1SE-1 3/12/99 5:27 PM Page 4-2

Samsung Electronics 4-3

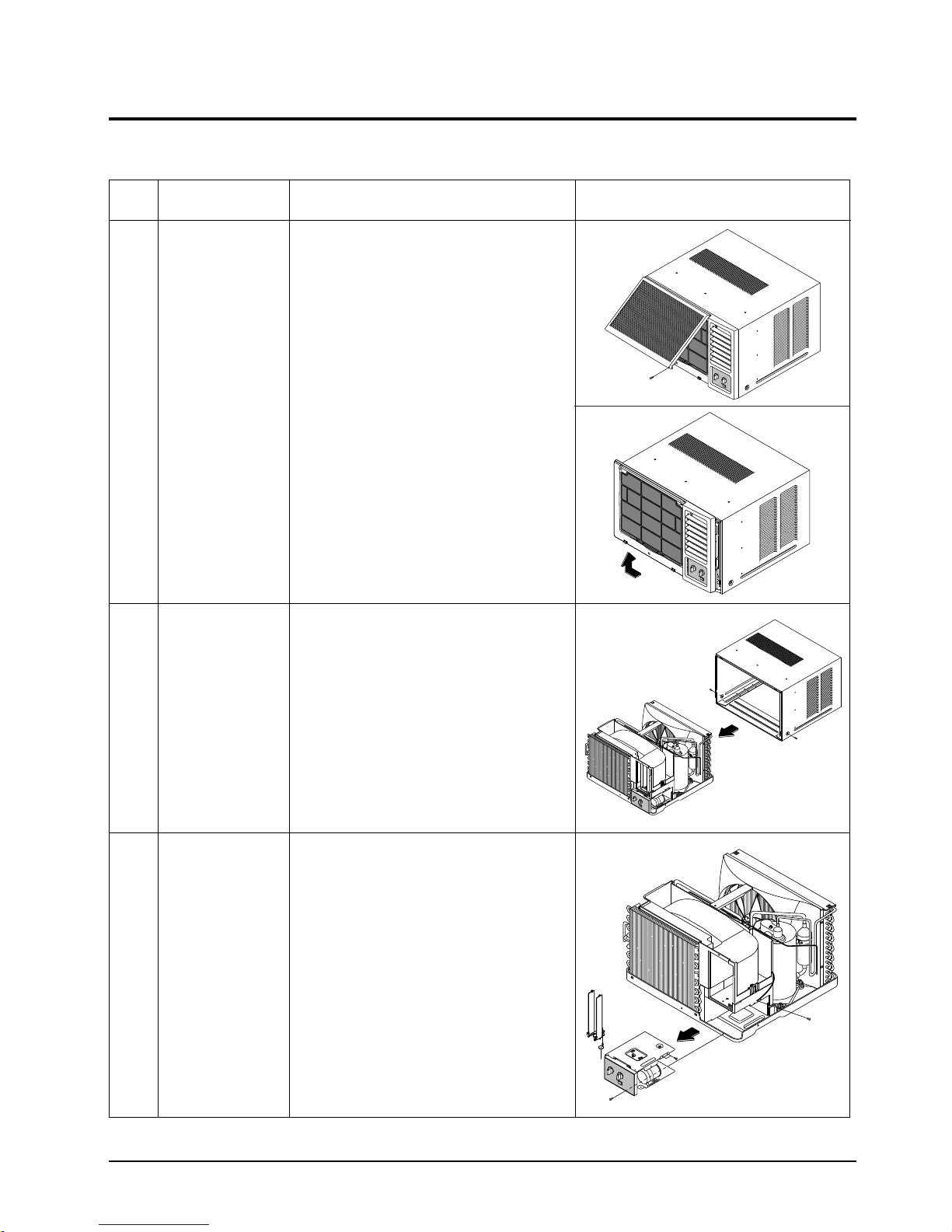

4-3 Disassembly and Reassembly Procedure
Stop operating the air conditioner, and pull out the power cord before repair.
No. Part name Procedures Remarks
①
➁
➂
Ass'y Grill
Ass'y Cabinet
Ass'y Control
1. Pull the panel front and remove the screw
on the grille
2. Push the grille left side and pull up
1. Remove the two screws both side cabinet.
2. Pull the front both side, and remove the unit
from the cabinet.
1. Remove the blade V and arm blade
2. Remove 2 screws, and earth wire screw.
3. Remove two lead wire assemblies.
4. Take out the control box forward.
AW07A1SE/AW09A1SE-1 3/12/99 5:28 PM Page 4-3

4-4 Samsung Electronics

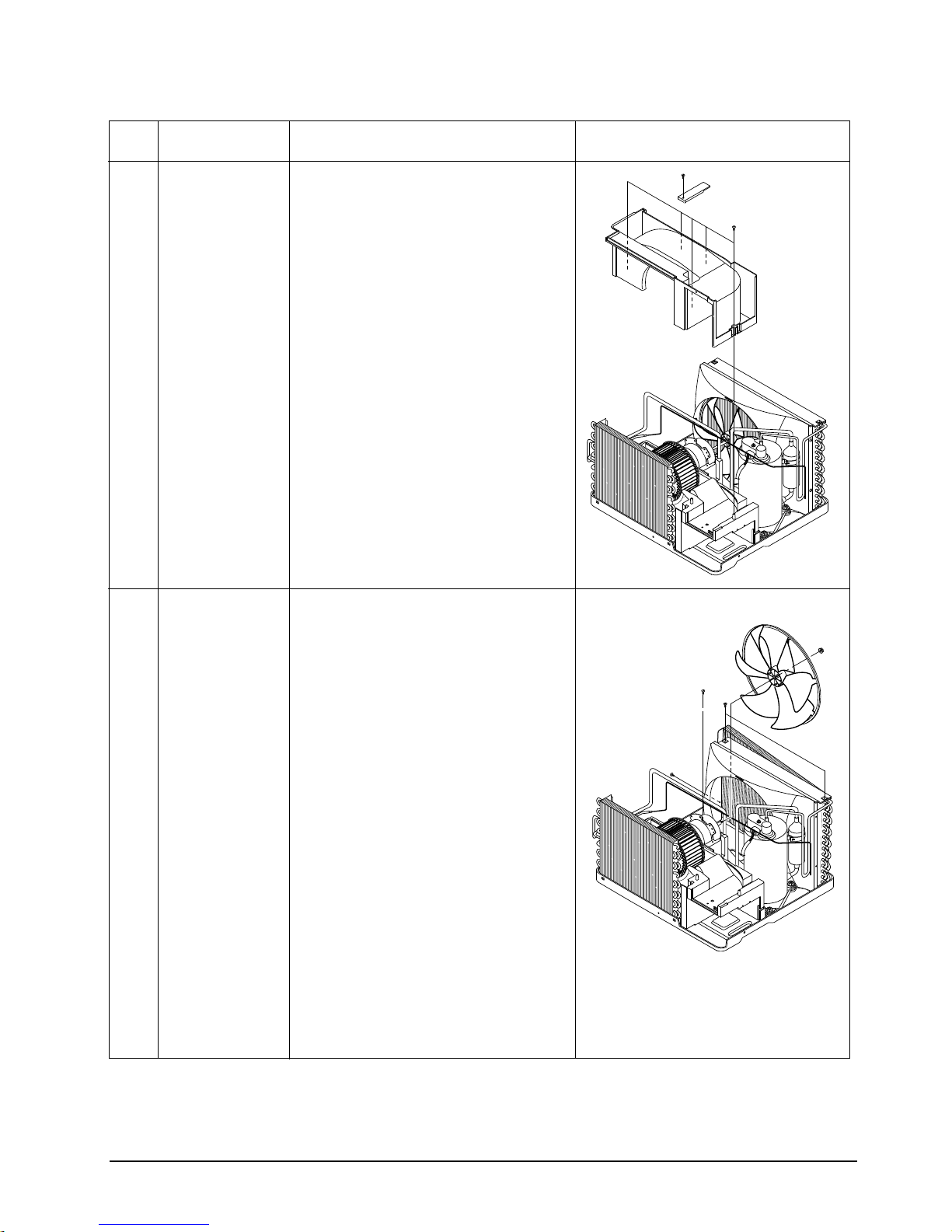

Disassembly and Reassembly
No. Part name Procedures Remarks
➃
➄
Frame Up
Case Cond &
Propeller Fan
1. Remove 6 screws on the Frame up
and remove the Frame up and the reinf
from case cond.
1. Remove two screws on the bottom side,
and 4 screws on the case cond.
2. Pull up the case cond and separate the
cond case from the cond.
3. Remove the nut flange, and remove the
propeller fan
AW07A1SE/AW09A1SE-1 3/12/99 5:28 PM Page 4-4

Samsung Electronics 4-5
Disassembly and Reassembly
No. Part name Procedures Remarks
➅
➆
Cond Casing
Blower & Motor
1. Remove the cond casing
1. Move the motor & blower toward the
evap, and lift up the motor & blower
from the frame low.
AW07A1SE/AW09A1SE-1 3/12/99 5:28 PM Page 4-5

Compressor does not run. 1. check the thermostat position. 1. Setting temp is lower than room temp.
2. check the connection of the lead wire. 2. Disconnection of the lead wire.
3. check the over load protector. 3. O.L.P is faulty
4. check the compressor. 4. Compressor is faulty
Motor does not run. 1. check the connection of the lead 1. disconnection of the lead wire
wire & switch. 2. switch is faulty.
2. check the motor 3. motor is faulty
Low cooling capacity 1. check the refrigerant leakage. 1. Caused by the pipe crack
2. check the evaporator condition 2. shortage of refrigerant
( freezing, blocked with dusts, etc. ) 3. clean the evaporator & air filter.
❈Difference of temp. exists between
the suction side and the discharge
side at least 12°C
❈Standard condition
Indoor : 27°C outdoor : 35°C
Noise 1. check vibration of the pipe 1. pipes are contact with the other parts.
2. check the propeller fan and blower 2. the hex. nut is loose
( not loose or broken ). 3. the parts are broken
3. check bearing noise of the motor 4. motor is faulty
4. check the compressor noise against 5. compressor is faulty
that of other compressors.
Samsung Electronics 5-1
5. Troubleshooting
5-1 Special Precautions
5-1-1 Check the voltage of the of power source.
5-1-2 Check weak and fragile parts.
5-1-3 Check the connection of terminals.
5-1-4 When a malfunction occurs:
The input voltage shall be 220 - 240V~ / 50Hz
The air conditioner may not operate properly if the voltage is out of this range.
No
①
➁
➂
➃
Malfunction Check point Causes
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 5-1

6-1 Samsung Electronics
6. Exploded View and Parts List
6-1 Main unit
15
17
16
19
18
2524
26
20
22
23
21
28
1
2
4
56
3
8
7
10 11
12
14
13
9
27
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 5-2

Samsung Electronics 6-2
■Part List
No. Code No. Description Specification Q'TY
Remarks
AW07A0SE AW07A1SE AW09A0SE AW09A1SE
DB64 - 10158B
DB64 - 00014A
DB63 - 30158A
DB64 - 70093A
DB66 - 30191A
DB75 - 00001A
DB96 - 00045A
DB90 - 00002B
DB66 - 30211A
DB66 - 30212A
DB66 - 70030A
DB67 - 50078A
DB31 - 00004C
DB67 - 50077A
DB90 - 00013B
DB90 - 00014C
DB61 - 00027B
DB75 - 00002A
DB63 - 10388A
DB90 - 00004A
DB96 - 00046A
DB96 - 00009A
DB96 - 10736A
DB96 - 00008A
DB62 - 31953A
DB62 - 00009A
DB95 - 10065K
DB95 - 10065B
DB60 - 30028A
DB73 - 10027A
DB63 - 10504A
DB60 - 00001A
DB47 - 20001Y
DB47 - 20002U
DB90 - 00003A
DB93 - 00139A
–
–
–
INLET - GRILL
INLET - GRILL
GUARD AIR FILTER
PANEL FRONT
BLADE - H PP
ASS’Y EVAP
ASS’Y EVAP
ASS’Y FRAME LOW
BLADE V
BLADE V, M
DAMPER
BLOWER
MOTOR
FAN PROPELLER
ASS’Y CASE COND
ASS’Y FRAME UP
FRAME REINF
ASS’Y COND
CAP DRAIN
ASS’Y BASE
TUBE CAPILLARY ASS’Y
TUBE CAPILLARY ASS’Y
ASS’Y TUBE-SUCTION
ASS’Y TUBE-SUCTION
TUBE-DISCHARGE
TUBE-DISCHARGE
ASS’Y COMP
ASS’Y COMP
NUT WASHER
GROMMET-ISOLATOR
COVER TERMINAL
NUT-FLANGE
OLP-POLYESTER
OLP-POLYESTER
ASS’Y CABINET
ASS’Y CONTROL M
ASS’Y CONTROL M
ASS’Y CONTROL M
ASS’Y CONTROL M
1
-
1
1
1
1
-
1
-
1
1
1
1
1
1
1
1
1
1
1
-
1
-
1
-
1
1
-
3
3
1
1
1
-
1
1
-
-
-
1
1
1
1
1
-
1
1
-
1
1
1
1
1
1
1
1
1
1
-
1
-
1
-
1
1
-
3
3
1
1
1
-
1
-
1
-
-
1
1
1
1
-
1
1
-
1
1
1
1
1
1
1
1
1
1
1
1
-
1
-
1
-
-
1
3
3
1
1
-
-
1
-
-
1
-
1
1
1
1
-
1
1
1
-
1
1
1
1
1
1
1
1
1
1
1
-
1
-
1
-
-
1
3
3
1
1
-
-
1
-
-
-
1
HIPS
HIPS
HIPS
PP
2 X 14
2 X 14
ASS’Y
HIPS
HIPS
PP
ABS
IC9430SWJ5B
ABS
PP
ASS’Y
PP
2 x 15
CR
ASS’Y
ID 1.42 L1100
ID 1.3 L900
ASS’Y
ASS’Y
ASS’Y
ASS’Y
44A070JW1E1
44B092JW1E5
M8, ZPC
EPDM
NORYL, BLK
M5, SM20C
MST24AMN-12008
MRA12056-12007
ASS’Y
AW07A0SE
AW07A1SE
AW09A0SE
AW09A1SE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 5-3

6-3 Samsung Electronics
6-2 Ass’y Control
1
2
4
35
7
12
13
8
9
11
10
6
■Part List
No. Code No. Description Specification Q'TY
Remarks
AW07A0SE AW07A1SE AW09A0SE AW09A1SE
DB93 - 00139A
DB93 - 00139E
DB93 - 00139D
DB93 - 00139G
DB61 - 10202A
DB66 - 70031A
2501 - 001182
2501 - 001168
DB65 - 10008B
DB65 - 20065F
DB34 - 90027C
DB47 - 20074A
DB64 - 70110A
DB64 - 40185A
DB64 - 40185C
DB64 - 50138B
DB34 - 90022A
DB39 - 10062U
DB65 - 10083A
ASS’Y CONTROL M
ASS’Y CONTROL M
ASS’Y CONTROL M
ASS’Y CONTROL M
CASE CONTROL M
ARM - BLADE
C - OIL
C - OIL
CLIP - CAPACITOR
SWING MOTOR
SELECTOR S/W
THERMOSTAT
PANEL - CONTROL M
INLAY - CONTROL(C)
INLAY - CONTROL(C)
KNOB - TIMER ASS’Y
SEESAW - SWITCH
POWER CORD
CLAMP CABLE
1
-
-
-
1
-
1
-
1
-
1
1
1
1
-
2
-
1
1
-
1
-
-
1
1
1
-
1
1
1
1
1
-
1
2
1
1
1
-
-
1
-
1
-
-
1
1
-
1
1
1
1
-
2
-
1
1
-
-
-
1
1
1
-
1
1
1
1
1
1
-
1
2
1
1
1
AW07A0SE
AW07A1SE
AW09A0SE
AW09A1SE
SECC - M
ABS
2.5/25µF, 370VAC
3/30µF, 370VAC
SECC - P, TO.8
M2LJ49ZU32
M250, 12HR
SRB - 315 - 4 - 8 - D
HIPS
TO.5 GRY
TO.5 GRY
ABS
6A, 250V, 2Pin
UCP-2, 250V
NY66 DA - 5N
0
1
2
3
4
5
6
7
8
9
10
11
12
13
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 5-4

Samsung Electronics 7-1
7. Block Diagram
7-1 Refrigerating Cycle Block Diagram
Samsung Electronics
PINCH PIPE
(SERVICE VALVE) SUCTION LINE
ACCUMULATOR/COMPRESSOR
EVAPORATOR
CAPILLARY TUBE
CONDENSER
DISCHARGE LINE
PINCH PIPE
(SERVICE VALVE)
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 7-1

Samsung Electronics 8-1
8. Wiring Diagram
YEL
RED
BLU
BLK
YEL
RED
BLU
BLK
BLK
WHT
RED
COMP
842
17BLK
BLK
GRN
PLUG
M
S
HL
F.M
SELECTOR - S/W
THERMOSTAT
CAPACITOR
BLK
O.L.PSC
R
WHT
GRN/YEL
AW07A0SE
AW09A0SE
CAPACITOR : 2.5/25uF x 370VAC
CAPACITOR : 3/30uF x 370VAC
DIAGRAM-ELECTRIC
YEL
ORG
BLU
RED
YEL
RED
BLU
BLK
BLK
WHT
RED
COMP
842
2
1
1
7BLK
BLK
BLK
ORG
GRN
PLUG
M
S
HL
F.M
SELECTOR - S/W
THERMOSTAT
SEESAW-S/W
CAPACITOR
BLK
O.L.PSC
R
RED
GRN/YEL
G.M
BLK
AW07A1SE
AW09A1SE
CAPACITOR : 2.5/25uF x370VAC
CAPACITOR : 3/30uF x370VAC
DIAGRAM-ELECTRIC
AW07A1SE/AW09A1SE-2 3/12/99 5:31 PM Page 8-1
