Samsung DVM Series User manual

CONTENTSAIR CONDITIONER
11. Precautions
12. Numbering system of model
13. Product Specification
14. Installation
15. Disassembly and Reassembly
16. Refrigerating Cycle Diagram
17. Set up the Model Option
18. Troubleshooting
19. Exploded Views and Parts List
10. Wiring Diagram
11. Schematic Diagram
SERVICE
Manual
S
YSTEM
A
IR
C
ONDITIONER
S
E RVICE
M
ANUAL
SAMSUNG ELECTRONICS
SYSTEMAIRCONDITIONER
(DVMSeries)
DB98-17816A(1)_Co 3/2/04 10:18 AM Page 1

Precautions
1
11. Cut off the power.
● Make sure to cut off the power before repair. If not, you may be damaged by an electric shock.
12. Do not install an outdoor unit on the apartment outside wall(or equivalent) for safety.
● Installing an outdoor unit on the apartment outside wall(or equivalent) is prohibited for the safety purpose. Service will not
be available for the outdoor unit where our servicemen can not access and the cost of moving the outdoor unit to the
service area will be borne by the customer.
● If requested by the customer, you shall discourage him to install an outdoor unit on the apartment outside wall(or
equivalent).
13. Keep the drain hose outlet free.
● Otherwise, air flow will get slow, which may hinder cooling capacity.
● Also, dew may be laden on the service valve.
14. Use of Certified Parts
● Use certified parts only. (An electric contact part, if broken down, shall not be repaired but replaced with a new one.
Remodeling shall be prohibited. In no case, the customer shall repair the product on his own because this is dangerous
enough to bring about breakdown or fire.)
15. Ban on Middle Connection of Power Cord
● Do not cut the power cord in the middle to be connected to other power cord nor use a middle socket between two power
cords. This is dangerous enough to bring about breakdown or fire.
16. Check Insulation
● After assembly, be sure to check insulation resistance.
(Use an insulation ohmmeter to measure the insulation resistance between the power cord and the earthing wire. Do not
supply power until it reads 30MΩ.)
17. Be sure to keep the symmetry of the product.
● Otherwise, you may hear vibration noise.
18. Caution for Children
● Do not keep children off the product while it is in repair. Otherwise, they might be endangered.
19. Be sure to put the indoor or outdoor unit free of corrosive gases such as sulfuric water,
ammonium, and sulfuric gas.
● Otherwise, copper tubes or soldered parts could be corroded causing refrigerant leak.
10. Arrangement of surroundings
● After repair finishes, clean the air conditioner and its surroundings and inform the customer of what it is like.
- 1 -
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 1

- 2 -
Model
AVM
!
K
@
H
#
020
$
E
%
A
^
00 0 0
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
&

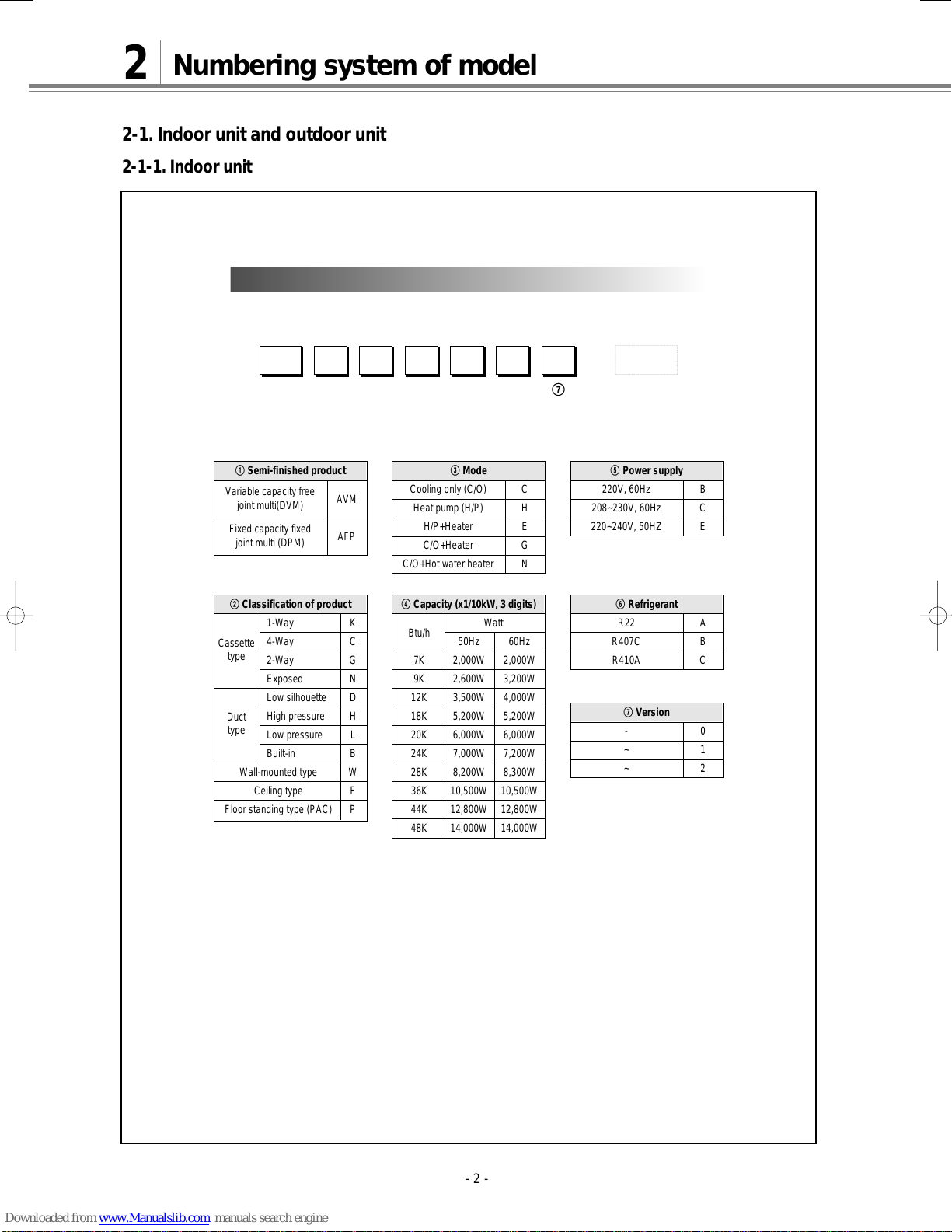

2-1. Indoor unit and outdoor unit
2-1-1. Indoor unit
- 2 -
! Semi-finished product
Variable capacity free AVM
joint multi(DVM)
Fixed capacity fixed AFP
joint multi (DPM)
@ Classification of product
1-Way K
4-Way C
2-Way G
Exposed N
Low silhouette D
High pressure H
Low pressure L
Built-in B
Wall-mounted type W
Ceiling type F
Floor standing type (PAC) P
# Mode
Cooling only (C/O) C
Heat pump (H/P) H
H/P+Heater E
C/O+Heater G
C/O+Hot water heater N
% Power supply
220V, 60Hz B
208~230V, 60Hz C
220~240V, 50HZ E
^ Refrigerant
R22 A
R407C B
R410A C
& Version
-0
~1
~2
Cassette
type
Duct
type
$ Capacity (x1/10kW, 3 digits)
Btu/h Watt
50Hz 60Hz
7K 2,000W 2,000W
9K 2,600W 3,200W
12K 3,500W 4,000W
18K 5,200W 5,200W
20K 6,000W 6,000W
24K 7,000W 7,200W
28K 8,200W 8,300W
36K 10,500W 10,500W
44K 12,800W 12,800W
48K 14,000W 14,000W
Numbering system of model
2
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 2

- 3 -- 3 -
Model
RVM
!
H
@
060
#
C
$
B
%
M
^
00 0 0
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
&
2-1-2. Outdoor unit
! Semi-finished product
Variable capacity free RVM
joint multi(DVM)
Fixed capacity fixed RFP
joint multi (DPM)
Module Multi RMA
Module Multi RMB
@ Mode
Cooling only (C/O) C
Heat pump (H/P) H
# Capacity (x 1/10 HP, 3 digits)
& Version
^ Combination of indoor unit
1-Way K
4-Way C
2-Way G
Exposed N
Low silhouette D
High pressure H
Low pressure L
Built-in B
Wall-mounted type W
Ceiling type F
Floor standing type (PAC) P
Free M
$ Power supply
208~230V, 60Hz C
220V, 60Hz B
220~240V, 50Hz E
208~230V, 60Hz, 3ø F
380~415V, 50Hz, 3ø G
380V, 60Hz, 3ø H
460V, 60Hz, 3ø J
Cassette
type
Duct
type
% Refrigerant / Discharge direction
Refrigerant Discharge Classification
direction
R22 Upward A
Onward B
R470C Upward C
Onward D
R410A Upward E
Onward F
Numbering system of model
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 3

2-2. Indoor unit Version
2-2-1. 1-way cassette type (K)
2-2-2. 4-way cassette type (C)
- 4 -
Numbering system of model
2
Version Modification
Indoor unit model
Heat Pump Cooling only
AVMKH020E(C)A0 AVMKH032E(C)A0
AVMKH040E(C)A0 AVMKC020E(C)A0 AVMKC032E(C)A0 AVMKC040E(C)A0 -
- Built in electric expansion valve
- Use a distributor kit type
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Use a distributor kit type
- Enlarged the DVM PLUS indoor unit
0
1
2
3
4
AVMKH020E(C)A1 AVMKH032E(C)A1
AVMKH040E(C)A1 AVMKC020E(C)A1 AVMKC032E(C)A1 AVMKC040E(C)A1
AVMKH020E(C)A2 AVMKH032E(C)A2
AVMKH040E(C)A2 AVMKC020E(C)A2 AVMKC032E(C)A2 AVMKC040E(C)A2
AVMKH020E(C)A3 AVMKH032E(C)A3
AVMKH040E(C)A3 AVMKC020E(C)A3 AVMKC032E(C)A3 AVMKC040E(C)A3
AVMKH020E(C)A4 AVMKH032E(C)A4
AVMKH040E(C)A4 AVMKC020E(C)A4 AVMKC032E(C)A4 AVMKC040E(C)A4
Version Modification
Indoor unit model
Heat Pump Cooling only
AVMCH052E(C)A0 AVMCH072E(C)A0
AVMCH083E(C)A0 AVMCH105E(C)A0 AVMCC052E(C)A0 AVMCC072E(C)A0 AVMCC083E(C)A0 AVMCC105E(C)A0 -
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
0
1
3
AVMCH052E(C)A1 AVMCH072E(C)A1
AVMCH083E(C)A1 AVMCH105E(C)A1
AVMCH128E(C)A1 AVMCH140E(C)A1
AVMCC052E(C)A1 AVMCC072E(C)A1
AVMCC083E(C)A1 AVMCC105E(C)A1
AVMCC128E(C)A1 AVMCC140E(C)A1
AVMCH052E(C)A3 AVMCH072E(C)A3
AVMCH083E(C)A3 AVMCH105E(C)A3
AVMCH128E(C)A3 AVMCH140E(C)A3
AVMCC052E(C)A3 AVMCC072E(C)A3
AVMCC083E(C)A3 AVMCC105E(C)A3
AVMCC128E(C)A3 AVMCC140E(C)A3
- Auto address setting for indoor unit
- Applicable non-polarity
communication
- Built in electric expansion valve
- Enlarged the DVM PLUS indoor unit
- New Design
- Modify the specification of
drain hose
- Additional capacity of Indoor unit
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 4

2-2. ???
2-2-3. Duct type (Low silhouette : D)
2-2-4. Duct type (High pressure : H)
2-2-5. Duct type (Low pressure : L)
2-2-6. Duct type (Built-in : B)
- 5 -
Numbering system of model
Version Modification
Indoor unit model
Heat Pump Cooling only
AVMDH052E(C)A0 AVMDH072E(C)A0 AVMDC052E(C)A0 AVMDC072E(C)A0 -
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
0
3AVMDH052E(C)A3 AVMDH072E(C)A3
AVMDH083E(C)A3 AVMDC052E(C)A3 AVMDC072E(C)A3 AVMDC083E(C)A3
Version Modification
Indoor unit model
Heat Pump Cooling only
AVMHH105E(C)A0 AVMHH128E(C)A0 AVMHC105E(C)A0 AVMHC128E(C)A0 -
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
0
3AVMHH105E(C)A3 AVMHH128E(C)A3
AVMHH140E(C)A3 AVMHC105E(C)A3 AVMHC128E(C)A3 AVMHC140E(C)A3
Version Modification
Indoor unit model
Heat Pump Cooling only
-
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
1
3
AVMBH020E(C)A0 AVMBH032E(C)A0
AVMBH040E(C)A0 AVMBH052E(C)A0
AVMBH072E(C)A0
AVMBC020E(C)A0 AVMBC032E(C)A0
AVMBC040E(C)A0 AVMBC052E(C)A0
AVMBC072E(C)A0
AVMBH020E(C)A3 AVMBH032E(C)A3
AVMBH040E(C)A3 AVMBH052E(C)A3
AVMBH072E(C)A3
AVMBC020E(C)A3 AVMBC032E(C)A3
AVMBC040E(C)A3 AVMBC052E(C)A3
AVMBC072E(C)A3
Version Modification
Indoor unit model
Heat Pump Cooling only
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
3AVMLH105E(C)A3
AVMLH128E(C)A3
AVMLH140E(C)A3
AVMLC105E(C)A3
AVMLC128E(C)A3
AVMLC140E(C)A3
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 5

2-2-7. Wall mounted type (W)
2-2-8. Floor standing type (P)

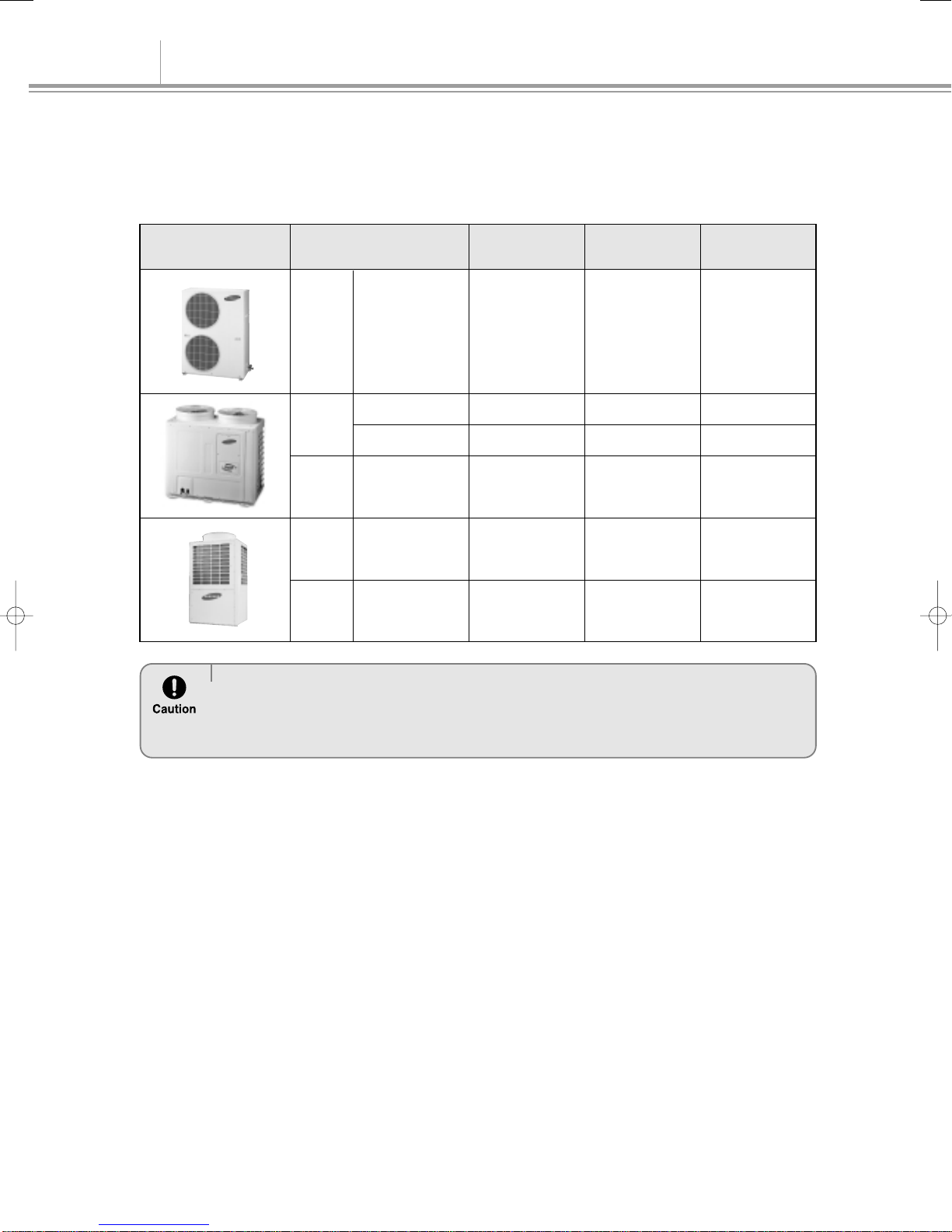

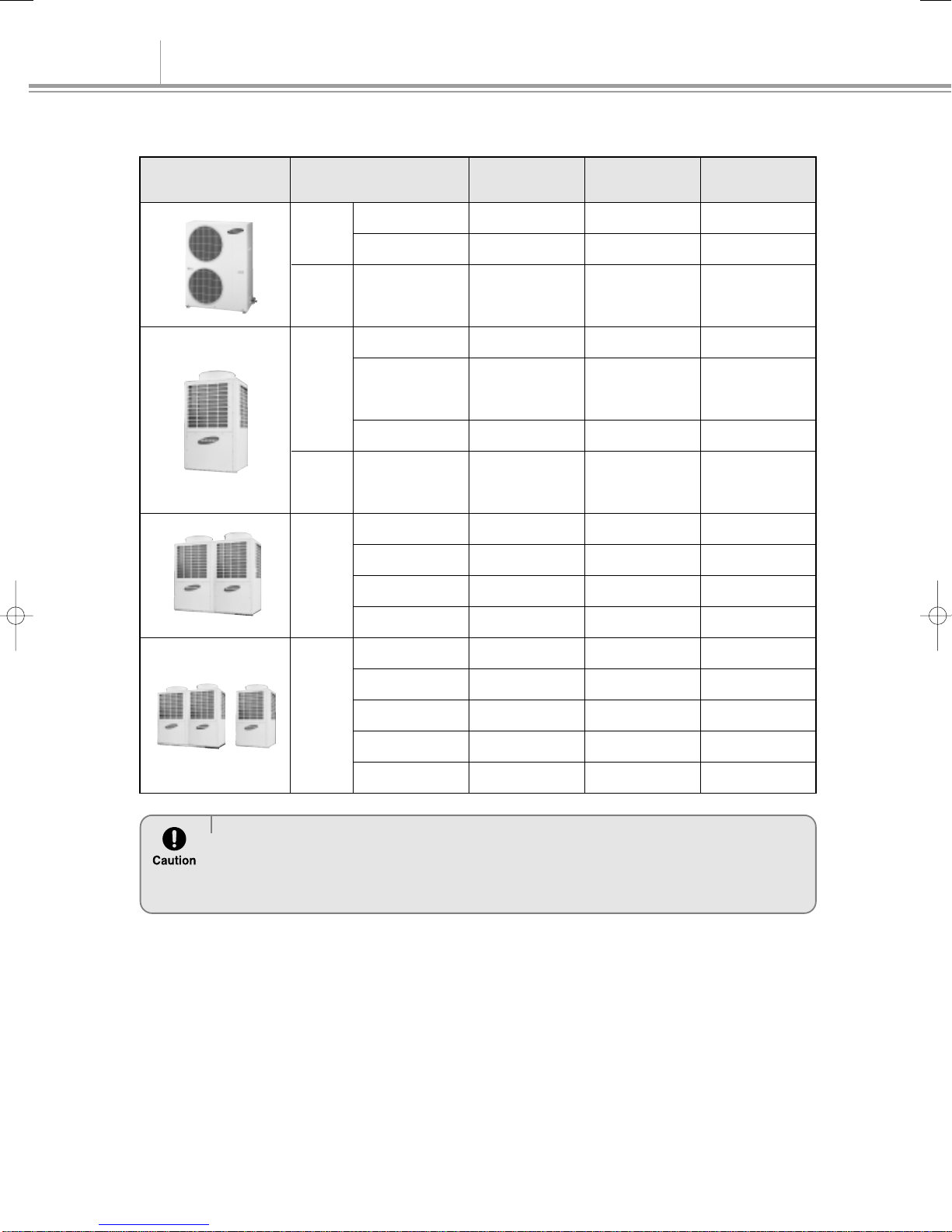

2-3. Outdoor unit version
- 6 -
Numbering system of model
2
Version Modification
Indoor unit model
Heat Pump Cooling only
AVMPH060E(C)A0 AVMPH072E(C)A0
AVMPH083E(C)A0 AVMPC060E(C)A0 AVMPC072E(C)A0 AVMPC083E(C)A0 -0
AVMPH060E(C)A3 AVMPH072E(C)A3
AVMPH083E(C)A3 AVMPC060E(C)A3 AVMPC072E(C)A3 AVMPC083E(C)A3
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
3
Version Modification
Outdoor unit model
Heat Pump Cooling only
RVMH100FAM5 RVMH080FAM5 RVMC075CBM5 RVMC050CBM5 - Special anti-corrosion treatment
outdoor unit
5
Version Modification
Indoor unit model
Heat Pump Cooling only
-
- C&C grille design indoor unit
0
1
AVMWH020E(C)A0 AVMWH032E(C)A0
AVMWH040E(C)A0 AVMWH052E(C)A0
AVMWH072E(C)A0
AVMWC020E(C)A0 AVMWC032E(C)A0
AVMWC040E(C)A0 AVMWC052E(C)A0
AVMWC072E(C)A0
AVMWH020E(C)A1
AVMWH032E(C)A1
AVMWH040E(C)A1
AVMWC020E(C)A1
AVMWC032E(C)A1
AVMWC040E(C)A1
- Auto address setting for Indoor unit
- Applicable non-polarity
communication
- Enlarged the DVM PLUS indoor unit
3AVMWH020E(C)A3 AVMWH032E(C)A3
AVMWH040E(C)A3 AVMWH052E(C)A3
AVMWH072E(C)A3
AVMWC020E(C)A3 AVMWC032E(C)A3
AVMWC040E(C)A3 AVMWC052E(C)A3
AVMWC072E(C)A3
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 6

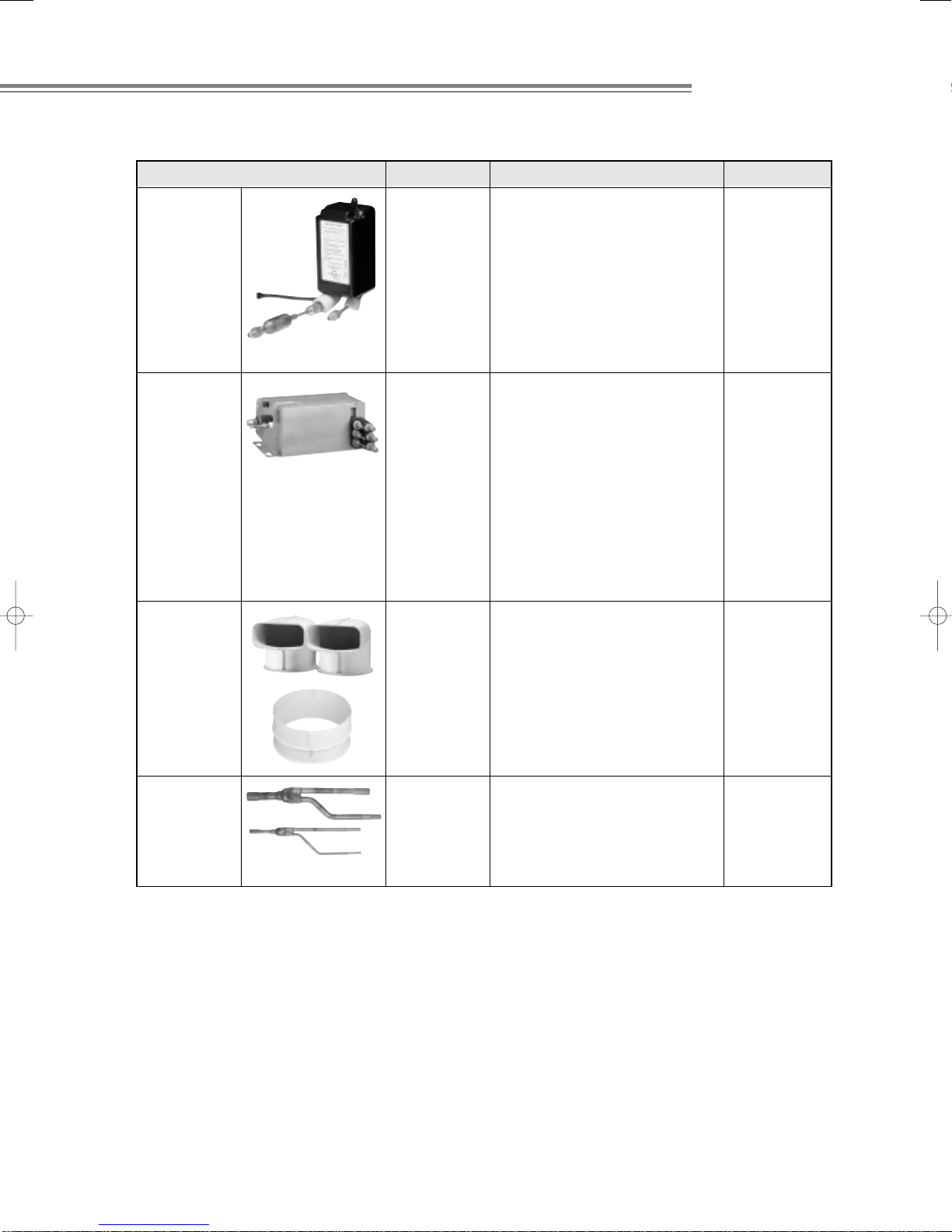

2-4. Accessories (options)
- 7 -
Classification Model Standard for model name Examples
Numbering system of model
●MEV-14SA
●MEV-18SA
●MEV-24SA
MEV : EEV(Electronic Expansion Valve)
! : EEV Capacity (Double figures)
•14(For 2.0kW~4.0kW Capa Indoor)
•18(For 5.2kW~8.5kW Capa Indoor)
•24(For 10.5kw over Capa Indoor)
@ : Company classification
# : Version
MXD : Distributor kit
! : EEV Capacity (Double figures)
•14(For 2.0kW~4.0kW Capa Indoor)
•18(For 5.2kW~8.5kW Capa Indoor)
@ : Number of !Capa EEV
# : EEV Capacity (Double figures)
•14(For 2.0kW~4.0kW Capa Indoor)
•18(For 5.2kW~8.5kW Capa Indoor)
$ : Version
MEV-!@#
MXD-!K@#$
EEV
(Set attachment)
EEV Kit
(Distributor kit) :
Set 2 or
3 EEV
●MXD-14K300A
(3EA of 14
Capa EEV)
●MXD-14K218A
(2EA of 14
Capa EEV,
1EA of 18
Capa EEV)
MDF : Outdoor discharge duct
! : Hole size (ø, cm, Double figures)
@ : Version
MDF-!@
Discharge Duct ●MDF-45A
MXJ : Refnet joint
! : Inlet pipe diameter (mm, Double figures)
@ : Outlet pipe diameter
(mm, Double figures)
# : Version
MXJ-!@#
Refnet Joint ●MXJ-1509B
(Inlet pipe
Diameter 15mm,
Outlet pipe
Diameter 9mm)
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 7

- 8 -
Numbering system of model
2
Classification Model Standard for model name Examples
●MXJ-Y3112A
(MXJ-3112A: gas side +
MXJ-1206A : liquid side)
MXJ : Refnet joint
Y : One packing for gas and liquid side
! : Inlet pipe diameter for gas side
(mm, Double figures)
@ : Inlet pipe diameter for liquid side
(mm, Double figures)
# : Version
MXJ : Refnet header
H : One packing for gas and liquid side
! : Inlet pipe diameter for gas side
(mm, Double figures)
@ : Inlet pipe diameter for liquid side
(mm, Double figures)
# : Version
MXJ-Y!@#
MXJ-H!@#
Refnet Joint
Refnet Header ●MXJ-H3112A
MDP : Drain pump for separate sales
! : Lift(mm, Three figures)
@ : Inlet pipe diameter for liquid side
(mm, Double figures)
# : Version
MDP-!@#
Drain Pump ●MDP-075SA
! : G(Grille applicable, Front panel)
@ : Applicable indoor unit
•K : 1-Way cassette
•G : 2-Way cassette
•C : 4-Way cassette
•B : Built in duct
# : Function Classification
•H: Cooling only & Heat pump
•N: Not used wireless remote control
$ : Size(Mark the longer part between the
width and length, cm, three figures)
% : Color(G: Gray, I: Ivory)
^ : Language [E: English only
^ : Language [C: Chiness
^ : Language [A: Arabic
^ : Language [M: 8 Languages
^ : Language [U: 3 Languages(˚F & Inch)]
& : Version
M!@#$%^&
Front Panel ●MGKH118IE0
- Overseas
- For 1W/C
- Heat Pump
- 8 Languages
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 8

- 9 -
Numbering system of model
Classification Model Standard for model name Examples
MRW : Remote Control Receiver Kit Wire
! : Length(m, Double figures)
@ : Version
MRW-!@
Remote Control
Receiver wire ●MRW-10A
MWR : Wired Remote Control
! : Remote Control Design (A ~ Present)
@ : Function Classification
(C: For cooling only, H: Heat Pump )
#, $ : Version
% : Language [None: 9 Languages
% : Language [C: Chinese
% : Language [U: 3 Languages(˚F & Inch)]
MWR-!@#$%
Wired Remote
Control ●MWR-AH01
MIM : Interface Module
! : Applicable part
•A: Indoor unit
•B: Outdoor unit
•C: Others
@, # : Version
$ : Language
(None: 9 Languages, C: Chinese)
MIM-!@#$
Transmitter
(Interface Module) ●MIM-B00
●MRK-A00MRK : Remote Control Receiver Kit
! : Receiver Kit design (A ~ present)
@ : Function Classification
(C: For cooling only, H: Heat Pump )
# : Version
MRK-!@#
Remote Control
Receiver Kit
(For Duct)
MR : Wireless Remote Control
! : Design of Wireless Remote Control
(A~compact)
@ : Function Classification
(C: For Cooling only, H: Heat pump)
#, $ : Version
MR-!@#$
Wireless Remote
Control ●MR-AC10
(Wireless liquid
remote control
for cooling only)
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 9

- 10 -
Numbering system of model
2
Classification Model Standard for model name Examples
MSC : Super Cooler for separate sales
!, @ : Applicable Outdoor unit
(If it is 10HP, mark 00)
# : Power Spec.
•B : 220V, 60Hz
•F : 220V, 60Hz, 3ø
•H : 380V, 60Hz, 3ø
•J : 460V, 60Hz, 3ø
$ : Design(A: Front, B: Upper)
% : Version
MSC-!@#$%
Super Cooler –●MSC-00EB0
(Applicable to
the upper of
10HP outdoor
unit)
MSH : Super Heater for separate sales
!, @ : Applicable Outdoor unit
(If it is 10HP, mark 00)
# : Power Spec.
•B : 220V, 60Hz
•F : 220V, 60Hz, 3ø
•H : 380V, 60Hz, 3ø
•J : 460V, 60Hz, 3ø
$ : Design(A: Front, B: Upper)
% : Version
MSH-!@#$%
Super Heater –●MSH-00EB0
(Applicable to
the upper of
10HP outdoor
unit)
●MF-C1B0MF : Filter for separate sales
! : Classification
@ : Filter specification
•0: Air Filter (Dust Filter)
•1: Electro-deodorizing Filter
•2: Electric Precipitation
•3: Scroll Electric Precipitation
# : Color (B: Black, G: Green)
$ : Version
MF-!@#$
Filter –
MCM : Controller
! : Function
•A: Controller
•B: Measuring instrument
•C: Others
@ : LCD Classification
(1:LCD 2: Non LCD)
#, $: Version
% : Language [None: 9 Languages
% : Language [C: Chinese
% : Language [U: 3 Languages(˚F & Inch)]
MCM-!@#$%
Controller ●MCM-A200
(Centralized Controller)
●MCM-A100
(Function Controller)
●MCM-B100
(Integrate power
distributor)
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 10

- 11 -
Numbering system of model
Classification Model Standard for model name Examples
●MWC-083D0
(For 8300W of
Low silhouette)
MWC : Water Coil
!, @, # : Applicable Indoor unit Capacity
(x 10kW)
$ : Applicable products
(H : High pressure Duct, D: Small duct
B : Built-in Duct)
% : Version
MWC-!@#$%
Water Coil –
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 11

- 12 -
Numbering system of model
2
2-5. Combination
2-5-1. Outdoor unit
■Cooling only
Power supplyDesign Model
60Hz 208~230V, 1øRVMC050CBM0
Capacity(HP)
5
Refrigerant
R22
50Hz
60Hz
50Hz
60Hz
380~415V, 3ø
380~415V, 3ø
208~230V, 3ø
RVMC060GAM0
RVMC060GAM1
RVMC070FAM0(5)
6
6
7
R22
R22
R22
380~415V, 3ø
208~230V, 3ø
RVMC100GAM0
RVMC100FAM0
10
10
R22
R22
•The system enables the connection of indoor units with a total capacity of between 50 to 120% of that of
the corresponding outdoor unit but where this capacity ratio exceeds 100% then the actual capacity of each
indoor unit will fall a little short of its individual rated capacity when all the units are operated simultaneously.
(Except for the Middle East models)
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 12

- 13 -
Total capacity of indoor units
(kW, ISO standard) RemarkDesign Max. connectible indoor units
7 7.2 ~ 18.8
14
14
8.0 ~ 20.8
8.0 ~ 16.0
10.5 ~ 27.3
10.5 ~ 21.0
8
8
10
14.0 ~ 36.4
14.0 ~ 28.0
14.0 ~ 36.4
14.0 ~ 28.0
For the Middle East
For the Middle East
For the Middle East
For the Middle East
•The system enables the connection of indoor units with a total capacity of between 50 to 120% of that of
the corresponding outdoor unit but where this capacity ratio exceeds 100% then the actual capacity of each
indoor unit will fall a little short of its individual rated capacity when all the units are operated simultaneously.
(Except for the Middle East models)
Numbering system of model
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 13

- 14 -
Numbering system of model
2
■Heat pump
Power supplyDesign Model
50Hz
60Hz
380~415V, 3ø
380~415V, 3ø
208~230V, 1ø
RVMH060GBM0
RVMH060GDM0
RVMH050CBM0
Capacity(HP)
6
6
5
Refrigerant
R22
R407C
R22
50Hz
60Hz
380~415V, 3ø
380~415V, 3ø
208~230V, 3ø
208~230V, 3ø
RVMG080GAM0
RVMH100GAM0
RVMH100GCM0
RVMH100FAM0
8
10
10
10
R22
R22
R22
R22
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
380V, 3ø
RMAH140GAM0
RMAH160GAM0
RMAH180GAM0
RMAH200GAM0
RMAH220GAM0
RMAH240GAM0
RMAH260GAM0
RMAH280GAM0
RMAH300GAM0
14
16
18
20
24
26
28
30
32
R22
R22
R22
R22
R22
R22
R22
R22
R22
•The system enables the connection of indoor units within 100%.
•The maximum number of connectable indoor unit should be computed on the basis of the minimum capacity
of indoor unit within 100%.
(But, the minimum capacity of RMAH✳✳✳H1M✳is 0.7HP.)
* Separate installation of
RMBH100GAM0
*Note
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 14

- 15 -
* Separate installation of
RMBH100H1M0
*Note
Total capacity of indoor units
(kW, ISO standard) RemarkDesign Max. connectible indoor units
8
8
7
8.0 ~ 20.8
8.0 ~ 20.8
7.2 ~ 18.8
11
14
14
14
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
11.0 ~ 29.0
14.0 ~ 36.4
14.0 ~ 28.0
14.0 ~ 36.4
14.0 ~ 36.4
14.0 ~ 28.0
20.0 ~ 40.0
22.5 ~ 45.0
25.5 ~ 51.0
28.0 ~ 56.0
30.8 ~ 61.5
34.0 ~ 68.0
36.5 ~ 73.0
39.3 ~ 78.5
42.5 ~ 85.0
For Middle East
For Middle East
•The system enables the connection of indoor units within 100%.
•The maximum number of connectable indoor unit should be computed on the basis of the minimum capacity
of indoor unit within 100%.
(But, the minimum capacity of RMAH✳✳✳H1M✳is 0.7HP.)
Numbering system of model
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 15

2-5-2. Indoor unit
- 16 -
Numbering system of model
2
Design Power
supply
2.0kW
(7,000Btu/h)
2.6kW
(9,000Btu/h)
3.2kW
(11,000Btu/h)
3.5kW
(12,000Btu/h)
4.0kW
(13,500Btu/h)
5.2kW
(18,000Btu/h)
6.0kW
(20,000Btu/h)
AVMKC020EA✳
AVMKH020EA✳
AVMKC020CA✳
AVMKH020CA✳
-
-
-
-
-
-
-
-
AVMBC020EA✳
AVMBH020EA✳
AVMBC020CA✳
AVMBH020CA✳
-
-
-
-
AVMWC020EA✳
AVMWH020EA✳
AVMWC020CA✳
AVMWH020CA✳
-
-
-
-
-
-
-
-
Cool/
Heat
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
AVMKC026EA✳
AVMKH026EA✳
-
-
-
-
-
-
-
-
-
-
AVMBC026EA✳
AVMBH026EA✳
-
-
-
-
-
-
AVMWC026EA✳
AVMWH026EA✳
-
-
-
-
-
-
-
-
-
-
-
-
AVMKC032CA✳
AVMKH032CA✳
-
-
-
-
-
-
-
-
-
-
AVMBC032CA✳
AVMBH032CA✳
-
-
-
-
-
-
AVMWC032CA✳
AVMWH032CA✳
-
-
-
-
-
-
-
-
AVMKC035EA✳
AVMKH035EA✳
-
-
-
-
-
-
-
-
-
-
AVMBC035EA✳
AVMBH035EA✳
-
-
-
-
-
-
AVMWC035EA✳
AVMWH035EA✳
-
-
-
-
-
-
-
-
-
-
-
-
AVMKC040CA✳
AVMKH040CA✳
-
-
-
-
-
-
-
-
-
-
AVMBC040CA✳
AVMBH040CA✳
-
-
-
-
-
-
AVMWC040CA✳
AVMWH040CA✳
-
-
-
-
-
-
-
-
-
-
-
-
AVMCC052EA✳
AVMCH052EA✳
AVMCC052CA✳
AVMCH052CA✳
AVMDC052EA✳
AVMDH052EA✳
AVMDC052CA✳
AVMDH052CA✳
AVMBC052EA✳
AVMBH052EA✳
AVMBC052CA✳
AVMBH052CA✳
-
-
-
-
AVMWC052EA✳
AVMWH052EA✳
AVMWC052CA✳
AVMWH052CA✳
-
-
-
-
AVMFC052EA✳
AVMFH052EA✳
AVMFC052CA✳
AVMFH052CA✳
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
AVMPC060EA✳
AVMPH060EA✳
AVMPC060CA✳
AVMPH060CA✳
-
-
-
-
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
1-way cassette type
4-way cassette type
Duct type(Low silhouette)
Duct type (Built-in)
Duct type
(High pressure,Low pressure)
Wall-mounted type
Floor standing type
Ceiling type
•The design and capacity of indoor unit are subject to change without notice.
DB98-17816A(1)_1~4 3/2/04 9:30 AM Page 16

- 17 -
•The design and capacity of indoor unit are subject to change without notice.
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Cooling only
Heat pump
Design
7.0kW
(24,000Btu/h)
7.2kW
(24,000Btu/h)
8.2kW
(28,000Btu/h)
8.3kW
(28,000Btu/h)
10.5kW
(36,000Btu/h)
12.8kW
(44,000Btu/h)
14.0kW
(48,000Btu/h)
-
-
-
-
AVMCC070EA✳
AVMCH070EA✳
-
-
AVMDC070EA✳
AVMDH070EA✳
-
-
AVMBC070EA✳
AVMBH070EA✳
-
-
-
-
-
-
AVMWC070EA✳
AVMWH070EA✳
-
-
AVMPC070EA✳
AVMPH070EA✳
-
-
AVMFC070EA✳
AVMFH070EA✳
-
-
-
-
-
-
-
-
AVMCC072CA✳
AVMCH072CA✳
-
-
AVMDC072CA✳
AVMDH072CA✳
-
-
AVMBC072CA✳
AVMBH072CA✳
-
-
-
-
-
-
AVMWC072CA✳
AVMWH072CA✳
-
-
AVMPC072CA✳
AVMPH072CA✳
-
-
AVMFC072CA✳
AVMFH072CA✳
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
AVMPC082EA✳
AVMPH082EA✳
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
AVMPC083CA✳
AVMPH083CA✳
-
-
-
-
-
-
-
-
AVMCC105EA✳
AVMCH105EA✳
AVMCC105CA✳
AVMCH105CA✳
-
-
-
-
-
-
-
-
AVMH(L)C105EA✳
AVMH(L)H105EA✳
AVMH(L)C105CA✳
AVMH(L)H105CA✳
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
AVMH(L)C128EA✳
AVMH(L)H128EA✳
AVMH(L)C128CA✳
AVMH(L)H128CA✳
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
AVMCC140EA✳
AVMCH140EA✳
AVMCC140CA✳
AVMCH140CA✳
-
-
-
-
-
-
-
-
AVMH(L)C140EA✳
AVMH(L)H140EA✳
AVMH(L)C140CA✳
AVMH(L)H128CA✳
-
-
-
-
-
-
-
-
-
-
-
-
1-way cassette type
4-way cassette type
Duct type(Low silhouette)
Duct type (Built-in)
Duct type
(High pressure,Low pressure)
Wall-mounted type
Floor standing type
Ceiling type
Power
supply Cool/ Heat
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
Numbering system of model
DB98-17816A(1)_1~4 3/2/04 9:31 AM Page 17

- 18 -
3-1. Indoor unit
3-1-1. 1-Way cassette type
■50Hz
- 18 -
Model
Power supply
Remark
Performance
Power
Others
Size
Panel
Function /
Option
Cooling✳ 1)
Heating✳2)
Cooling (High/Low)
Heating (High/Low)
Type
Output
Air flow rate
Cooling
Heating
Cooling
Heating
Liquid
Gas
Drain(Inside dia.)
Capacity
Sound Level✳3)
Fan output
Running current
Power input
Connecting pipe
Net weight
Shipping weight
Net dimension (WxHxD)
Shipping dimension(Carton/Case) (WxHxD)
Net weight
Shipping weight
Net dimension (WxHxD)
Shipping dimension(Carton/Case) (WxHxD)
Air filter
Auto restart
Auto change over
Centralized controller (On/Off)
Group/Individual control from R/C
Troubleshooting by L.E.D
Auto swing (Up/Down)
Max. installation ceiling height
Drain pump
Certifications
AVMKC020EA✳AVMKC026EA✳AVMKC035EA✳AVMKH020EA✳AVMKH026EA✳AVMKH035EA✳
1, 220 ~ 240, 50
7,000
2.0
-
-
32/29
-
Cross fan
13
5.8
0.18
-
35
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
9,000
2.6
-
-
36/32
-
Cross fan
14
7.0
0.20
-
40
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
12,000
3.5
-
-
38/35
-
Cross fan
16
7.5
0.23
-
45
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
7,000
2.0
7,500
2.2
32/29
32/29
Cross fan
13
5.8/6.0
0.18
0.18
35
35
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
9,000
2.6
10,000
2.9
36/32
36/32
Cross fan
14
7.0/7.5
0.20
0.20
40
40
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
12,000
3.5
13,000
3.8
38/35
38/35
Cross fan
16
7.5/8.0
0.23
0.23
45
45
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
Cooling only Heat pump
Btu/h
kW
Btu/h
kW
dB
dB
-
Watt
m3/min
A
A
Watt
Watt
mm
mm
mm
kg
kg
mm
mm
kg
kg
mm
mm
-
Yes/No
Yes/No
Yes/No
Yes/No
Yes/No
Yes/No
mm
Yes/No
-
ø, V, Hz
✳ 1) Indoor temperature : 27ºC DB, 19ºC WB / Outdoor temperature : 35ºC DB, 24ºC WB / Piping length : 10m, difference : 0m
✳ 2) Indoor temperature : 20ºC DB, 19ºC WB / Outdoor temperature : 7ºC DB, 6ºC WB / Piping length : 10m, difference : 0m
✳ 3) Actual noise level may differ, depending on the room structure, etc, since these noise values are from an anechoic room.
Product Specification
3
DB98-17816A(1)_1~4 3/2/04 9:31 AM Page 18

- 19 -
1-Way cassette type (cont.)
■60Hz
- 19 -
✳ 1) Indoor temperature : 27ºC DB, 19ºC WB / Outdoor temperature : 35ºC DB, 24ºC WB / Piping length : 10m, difference : 0m
✳ 2) Indoor temperature : 20ºC DB, 19ºC WB / Outdoor temperature : 7ºC DB, 6ºC WB / Piping length : 10m, difference : 0m
✳ 3) Actual noise level may differ, depending on the room structure, etc, since these noise values are from an anechoic room.
Model
Power supply
Remark
Performance
Power
Others
Size
Panel
Function /
Option
Cooling✳1)
Heating✳2)
Cooling (High/Low)
Heating (High/Low)
Type
Output
Air flow rate
Cooling
Heating
Cooling
Heating
Liquid
Gas
Drain(Inside dia.)
Capacity
Sound Level✳3)
Fan output
Running current
Power input
Connecting pipe
Net weight
Shipping weight
Net dimension (WxHxD)
Shipping dimension(Carton/Case) (WxHxD)
Net weight
Shipping weight
Net dimension (WxHxD)
Shipping dimension(Carton/Case) (WxHxD)
Air filter
Auto restart
Auto change over
Centralized controller (On/Off)
Group/Individual control from R/C
Troubleshooting by L.E.D
Auto swing (Up/Down)
Max. installation ceiling height
Drain pump
Certifications
AVMKC020CA✳AVMKC032CA✳AVMKC040CA✳AVMKH020CA✳AVMKH032CA✳AVMKH040CA✳
1, 208 ~ 230, 60
7,000
2.0
-
-
32/29
-
Cross fan
13
5.8
0.18
-
35
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
11,000
3.2
-
-
36/32
-
Cross fan
14
7.5
0.20
-
40
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
13,500
4.0
-
-
38/35
-
Cross fan
16
8.0
0.23
-
45
-
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
7,000
2.0
7,500
2.2
32/29
32/29
Cross fan
13
5.8/6.0
0.18
0.18
35
35
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
11,000
3.2
12,000
3.5
36/32
36/32
Cross fan
14
7.5/8.0
0.20
0.20
40
40
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
13,500
4.0
14,500
4.3
38/35
38/35
Cross fan
16
8.0/8.5
0.23
0.23
45
45
6.35
12.70
20
15
18
970x180x390
1,168x302x467
3.5
6.2
1,180x35x460
1,259x144x539
0
Yes
No
Yes (Option)
Yes (Option)
Yes
Yes
195
Yes
Cooling only Heat pump
Btu/h
kW
Btu/h
kW
dB
dB
-
Watt
m3/min
A
A
Watt
Watt
mm
mm
mm
kg
kg
mm
mm
kg
kg
mm
mm
-
Yes/No
Yes/No
Yes/No
Yes/No
Yes/No
Yes/No
mm
Yes/No
-
ø, V, Hz
Product Specification
DB98-17816A(1)_1~4 3/2/04 9:31 AM Page 19
