Samsung SGH-E310 User manual

GSM TELEPHONE
SGH-E310
GSM TELEPHONE CONTENTS
1. Specification
2. Flow Chart of Troubleshooting
3. Exploded Views and Parts List
4. Electrical Parts List
5. Block Diagrams
6. PCB Diagrams
SERVICE
Manual

SAMSUNG Proprietary-Contents may change without notice
1. SGH-E310 Specification
This Document can not be used without Samsung's authorization
1-1
GSM900
Phase 1 EGSM 900 Phase 2 DCS1800 Phase 1 PCS1900
Freq. Band[MHz]
Uplink/Downlink 890~915 935~960 880~915 925~960 1710~1785 1805~1880 1850~1910 1930~1990
ARFCN range 1~124 0~124 &
975~1023 512~885 512~810
Tx/Rx spacing 45MHz 45MHz 95MHz 80MHz
Mod. Bit rate/
Bit Period 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us 270.833kbps 3.692us
Time Slot
Period/Frame Period 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms 576.9us 4.615ms
Modulation 0.3GMSK 0.3GMSK 0.3GMSK 0.3GMSK
MS Power 33dBm~13dBm 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm
Power Class 5pcl ~ 15pcl 5pcl ~ 19pcl 0pcl ~ 15pcl 0pcl ~ 15pcl
Sensitivity -102dBm -102dBm -100dBm -100dBm
TDMA Mux 8 8 8 8
Cell Radius 35Km 35Km 2Km -
1. GSM General Specification

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Specification
1-2
This Document can not be used without Samsung's authorization
TX Power
control level GSM900
5 33±2dBm
6 31±2dBm
7 29±2dBm
8 27±2dBm
9 25±2dBm
10 23±2dBm
11 21±2dBm
12 19±2dBm
13 17±2dBm
14 15±2dBm
15 13±2dBm
16 11±3dBm
17 9±3dBm
18 7±3dBm
19 5±3dBm
TX Power
control level DCS1800
0 30±3dBm
1 28±3dBm
2 26±3dBm
3 24±3dBm
4 22±3dBm
5 20±3dBm
6 18±3dBm
7 16±3dBm
8 14±3dBm
9 12±4dBm
10 10±4dBm
11 8±4dBm
12 6±4dBm
13 4±4dBm
14 2±5dBm
15 0±5dBm
TX Power
control level PCS1900
0 30±3dBm
1 28±3dBm
2 26±3dBm
3 24±3dBm
4 22±3dBm
5 20±3dBm
6 18±3dBm
7 16±3dBm
8 14±3dBm
9 12±4dBm
10 10±4dBm
11 8±4dBm
12 6±4dBm
13 4±4dBm
14 2±5dBm
15 0±5dBm
2. GSM TX power class

SAMSUNG Proprietary-Contents may change without notice
2. SGH-E310 Flow Chart of Troubleshooting
2-1
This Document can not be used without Samsung's authorization
1.Baseband
1. Power ON
Check the current
consumption more
than 100mA
'Power On' does not work
Check the Voltage
more than 3.3V
Download again
Charge the Battery
Check the pin
11 of U102 is more
than 2.8V
Check U102 and C117
U102 pin 39
=2.8V Check U102 and C116
Check the clock
signal at pin4 of
OSC801
Freq=13MHz ?
Vrms≥300mV ?
Vpp is around
900mVpp ?
Check the clock generation
circuit
Check the initial operation
END
No
Yes
Yes
Yes
Yes
Yes
Yes
No
No
No
No
U102 pin 9
=1.8V
No
Yes

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-2
This Document can not be used without Samsung's authorization
2. Initial
3. Sim Part
Check the signal at the
pin19ofU102is
"High" when the phone
is boot on
Initial Failure
Check U102
END
No
Yes
Check the pin 22 of
U102 is "High"
Yes
Check the U701
Check the pin 4 of
OSC801 is around 2.8V
Check the soldered status of
OSC801,R801,U102
Yes
No
Yes
Check LCD connector CN201,
and resolder bridge
Yes
No
Check the pin 1 of
CN101. voltage 3V ?
Phone can't access SIM card
Check the SIM
connector's (CN101)
connection to SIM
card
Check the circuit related to
U102
Resolder or change CN101
Check the circuit around CN101
input
circuitry
END
No
Yes
Yes
Yes
Yes
No
Check the related circuit of
CN101
No
Check the circuit around U601
output
and vlotage supply circuitry
Yes
Check the related circuit of
U601 and U102
No

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-3
This Document can not be used without Samsung's authorization
4. Charging Part
Check the pin 17, 18
of CN300 is
TA_VEXT>4?
Abnormal charging part
Check the pin 2 of
Q102 is "low"?
Replace TA,Check CN300
Check the Q102
Check the Q100
END
No
Yes
Yes
Yes
Yes
No
No
Check the pin 3 of
Q100 is "low"?
Check the pin 5 of
Q102 is "3.2~4.2V"? Check the Q102
No
Yes
Check the ICHRG is
1V(during charging)
and around 180mV(full
charging)?
No
Resolder or change R102
Yes

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-4
This Document can not be used without Samsung's authorization

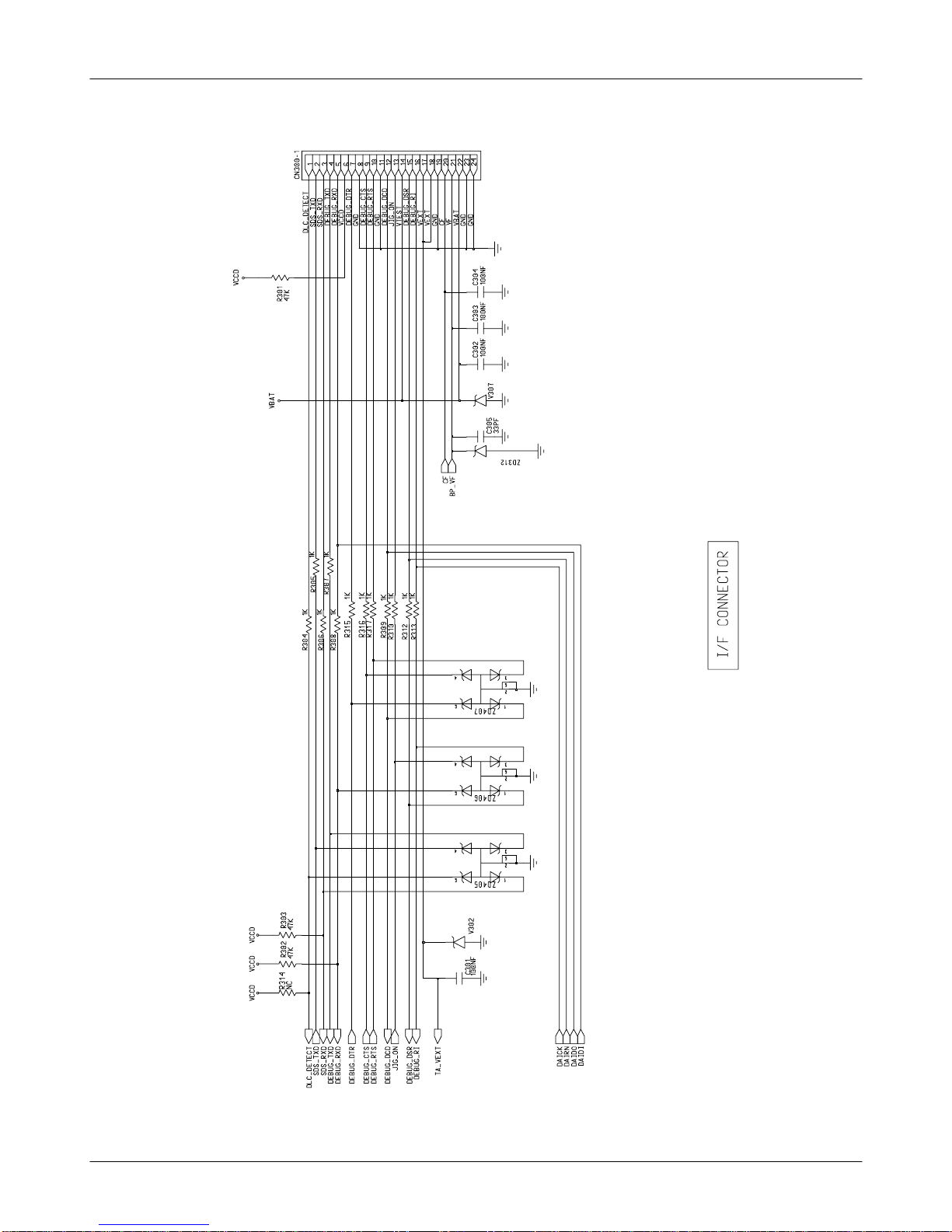

(Picture 1)

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-5
This Document can not be used without Samsung's authorization

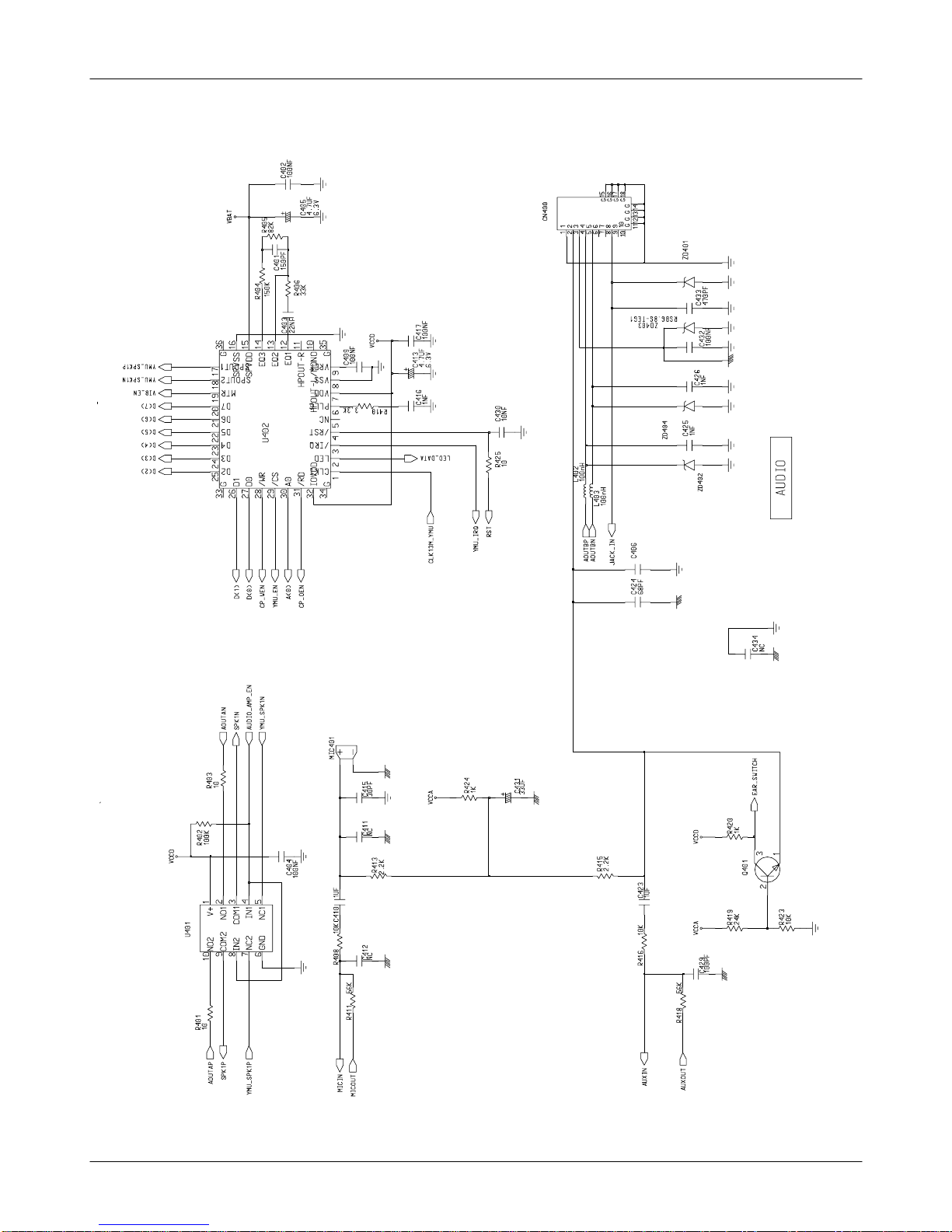

(Picture 2)

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-6
This Document can not be used without Samsung's authorization
(Picture 3)

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-7
This Document can not be used without Samsung's authorization
5. Microphone Part
6. Speaker Part
check the soldered
status of microphone.
Microphone does not work
Check the reference
voltage on mic path
C431 ≒ 2.0 V
Resolder microphone
Resolder or change
R424,C431,R413,C410,R408,R411
END
No
Yes
Yes
Yes
Yes
No
Is microphone ok?
No
Check U701
Check the connection
from CN201 to LCD
module
Speaker does not work
Check the PIN 4
and PIN 8 of
U401='High'?
Check the circuit related to U401
Check U601
Is speaker ok?
Check U701
END
No
Yes
Yes
Yes
Yes
No
No
Is speaker ok?
Change Speaker
Yes
No

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-8
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-9
This Document can not be used without Samsung's authorization
7. Camera Part
"Camera" function dose not work
Yes
Check the connect
CN201
Yes
U1002 PIN 9,10 = 2.8V?
Yes
R1020 = 25MHz
Connect the camera module
Check U1002 and C1022,C1021
Check U1001 and OSC1000
No
No
No
END

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams

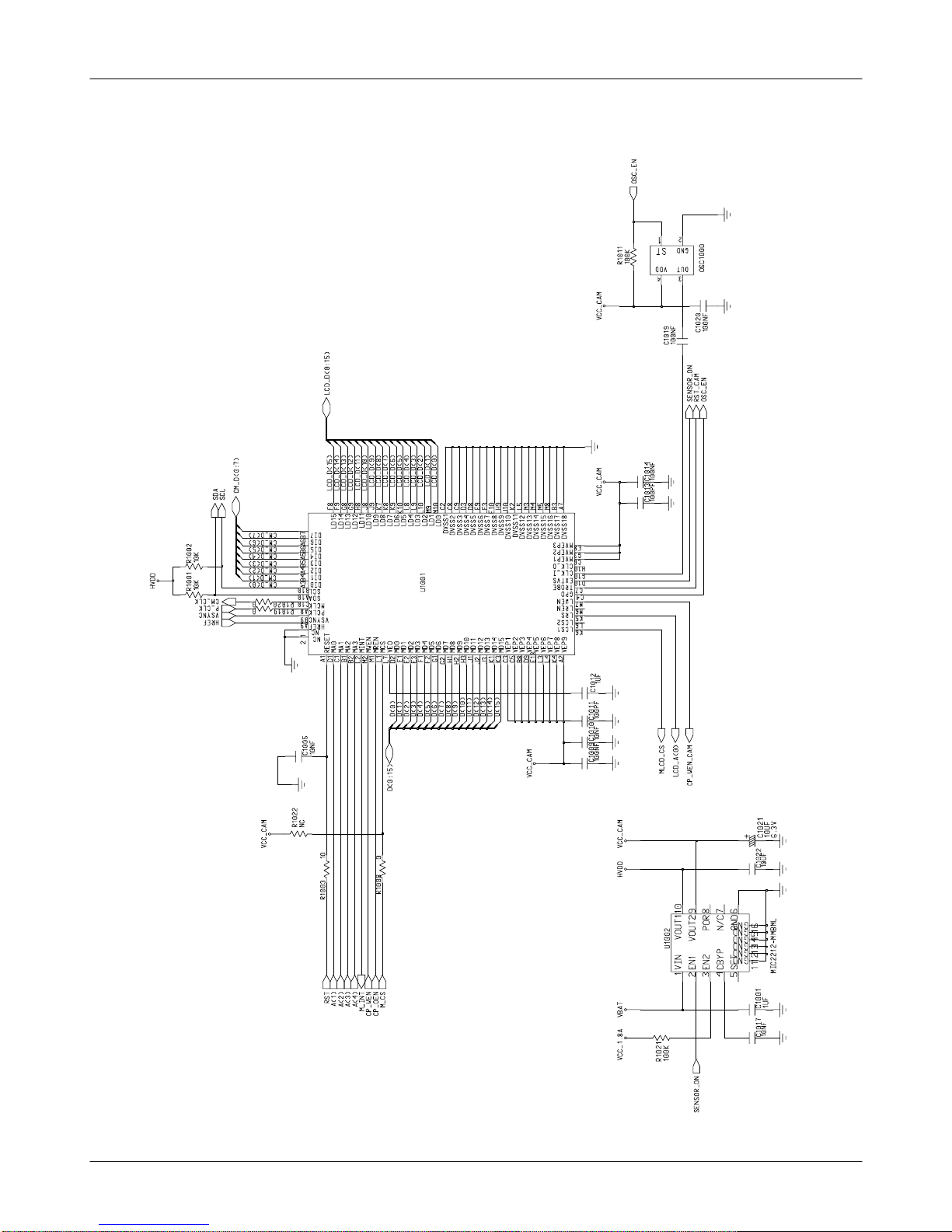

2-10
This Document can not be used without Samsung's authorization

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-11
This Document can not be used without Samsung's authorization
F900 CHECK
pin8 ≥ -65dBm ?
2.RF
1. EGSM RX
CONTINUOUS RX ON
RF INPUT : 62CH
AMP : -50dBm
NORMAL CONDITION
catch the channel?
CHECK
ANT701,L905 contact ?
U800
pin 9,32: 2.8V ?
F900 CHECK
pin2,3 ≥ -65dBm ?
U800 CHECK
pin20,21 ≥ -65dBm ?
C900, F901
resolder or change
F900
resolder or change
C912,C913,L901
resolder or change
U102 pin39, C112
change or resolder
U800 CHECK
pin 8 : 13MHz ?
Vp-p : 950mV?
OSC801
change or resolder
U800
resolder or change
U701 CHECK!!
U800
pin1,2,3,28 Vp-p
: 120mV ?
NO
YES
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-12
This Document can not be used without Samsung's authorization
F900 CHECK
pin8 ≥ -65dBm ?
2. DCS RX
CONTINUOUS RX ON
RF INPUT : 698CH
AMP : -50dBm
NORMAL CONDITION
catch the channel?
CHECK
ANT701,L905 contact ?
U800
pin 9, 32: 2.8V ?
F900 CHECK
pin4,5 ≥ -65dBm ?
U800 CHECK
pin18, 19 ≥ -65dBm ?
C900, F901
resolder or change
F900
resolder or change
C914,C915,L902
resolder or change
U102 pin39, C112
change or resolder
U800 CHECK
pin 8 : 13MHz ?
Vp-p : 950mV?
OSC801
change or resolder
U800
resolder or change
U701 CHECK!!
U800
pin1,2,3,28 Vp-p
: 120mV ?
NO
YES
NO
NO
NO
NO
NO
NO
YES
YES
YES
YES
YES
YES

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-13
This Document can not be used without Samsung's authorization
3. EGSM TX
F900 pin 13 :
about 2~3 dBm?
F901, C900,L905
check&change
F900
pin1 : 2.8 V?
U702,U703
check & change
U900 pin12 :
about 4~5dBm?
F900
check & change
U900
pin8,20:3.7V?
NO NO
YES
YES
YES
NO
NO BATTERY, U102
check & change
U900
pin 22 : 1.6V ?
YES
NO
U900 pin6
about : -5dBm ?
YES
U900
pin 2 : 3V?
YES
YES
U900
change or resolder
NO
U701
check
U701
check
NO
U800
pin9,32 : 2.8V ?
U102 pin39, C112
change or resolder
YES
U800
pin8 : 13MHz ?
Vp-p : 950mV?
U800
pin4,5,6,7:100mV?
YES
U701
change or resolder
NO
NO
U800
change or resolder
YES
NO OSC801
change or resolder
CONTINUS TX ON CONDITION
TX POWER DAC: 600 CODE APPLIED
CH : 62
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-14
This Document can not be used without Samsung's authorization
5. DCS TX
F900 pin 13 :
about 2~3 dBm?
F901, C900,L905
check&change
F900
pin6 : 2.8 V?
U702,U703
check & change
U900 pin11 :
about 4~5dBm?
F900
check & change
U900
pin8,20:3.7V?
NO NO
YES
YES
YES
NO
NO BATTERY, U102
check & change
U900
pin 22 : 1.4V ?
YES
NO
U900 pin5 about
:-5dBm?
YES
U900
pin 2 : 3V?
YES
YES
U900
change or resolder
NO
U701
check
U701
check
NO
U800
pin9,32 : 2.8V ?
U102 pin39, C112
change or resolder
YES
U800
pin8 : 13MHz ?
Vp-p : 950mV?
U800
pin4,5,6,7:100mV?
YES
U701
change or resolder
NO
NO
U800
change or resolder
YES
NO OSC801
change or resolder
CONTINUOUS TX ON CONDITION
CH : 698CH(DCS)
TX POWER CODE: 520 CODE Aplied
RBW : 100KHz
VBW : 100KHz
SPAN : 10MHz
REF LEV. : 10dBm
ATT. : 20dB

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-15
This Document can not be used without Samsung's authorization

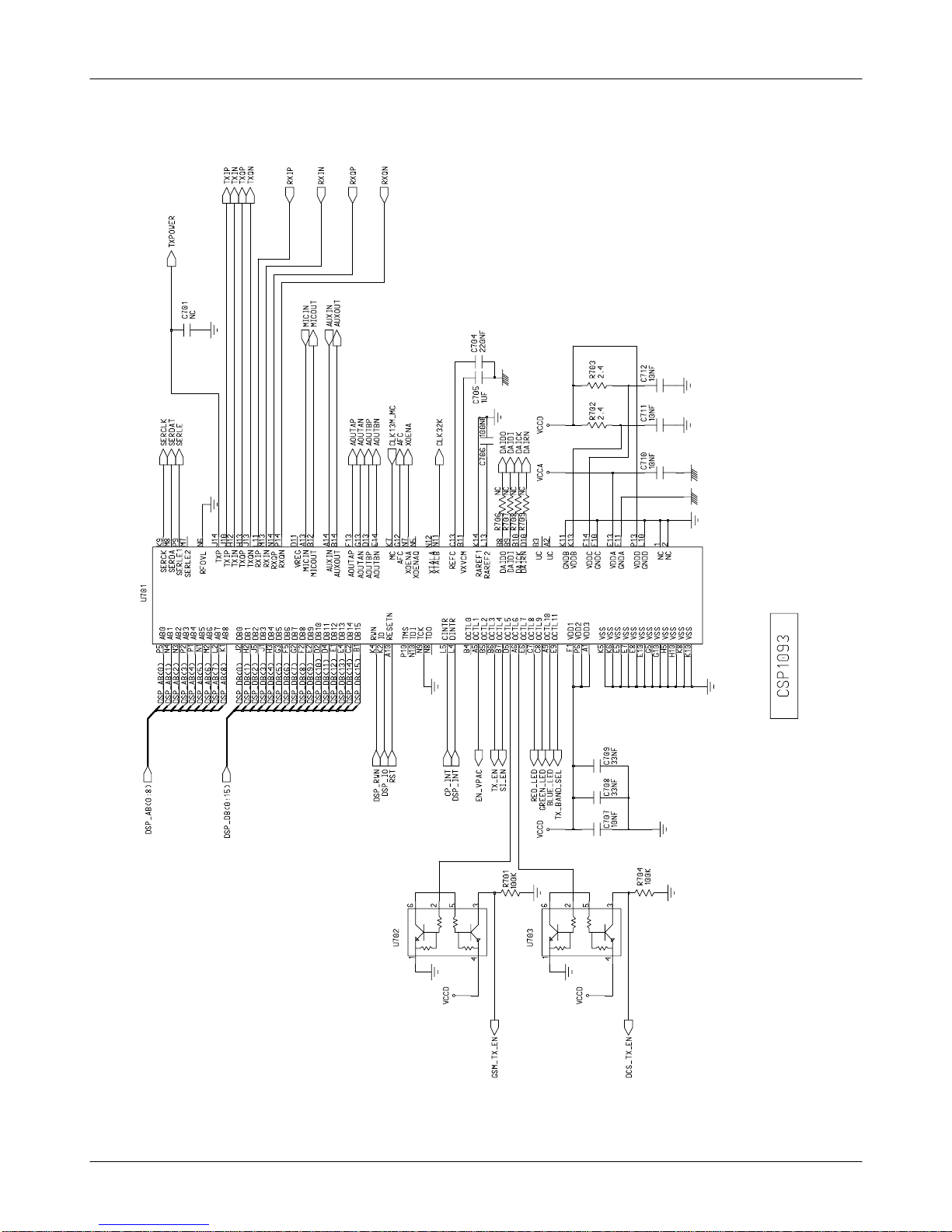

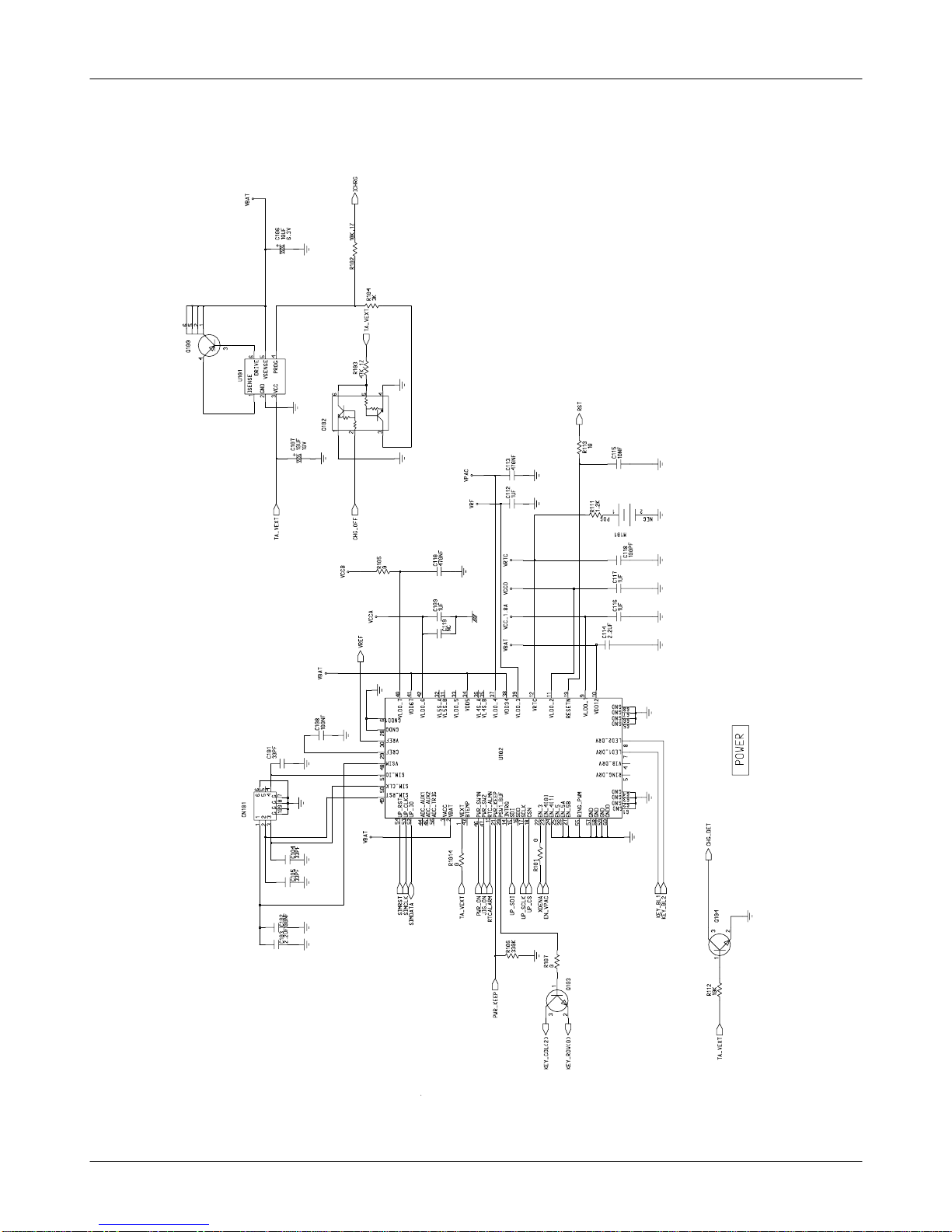

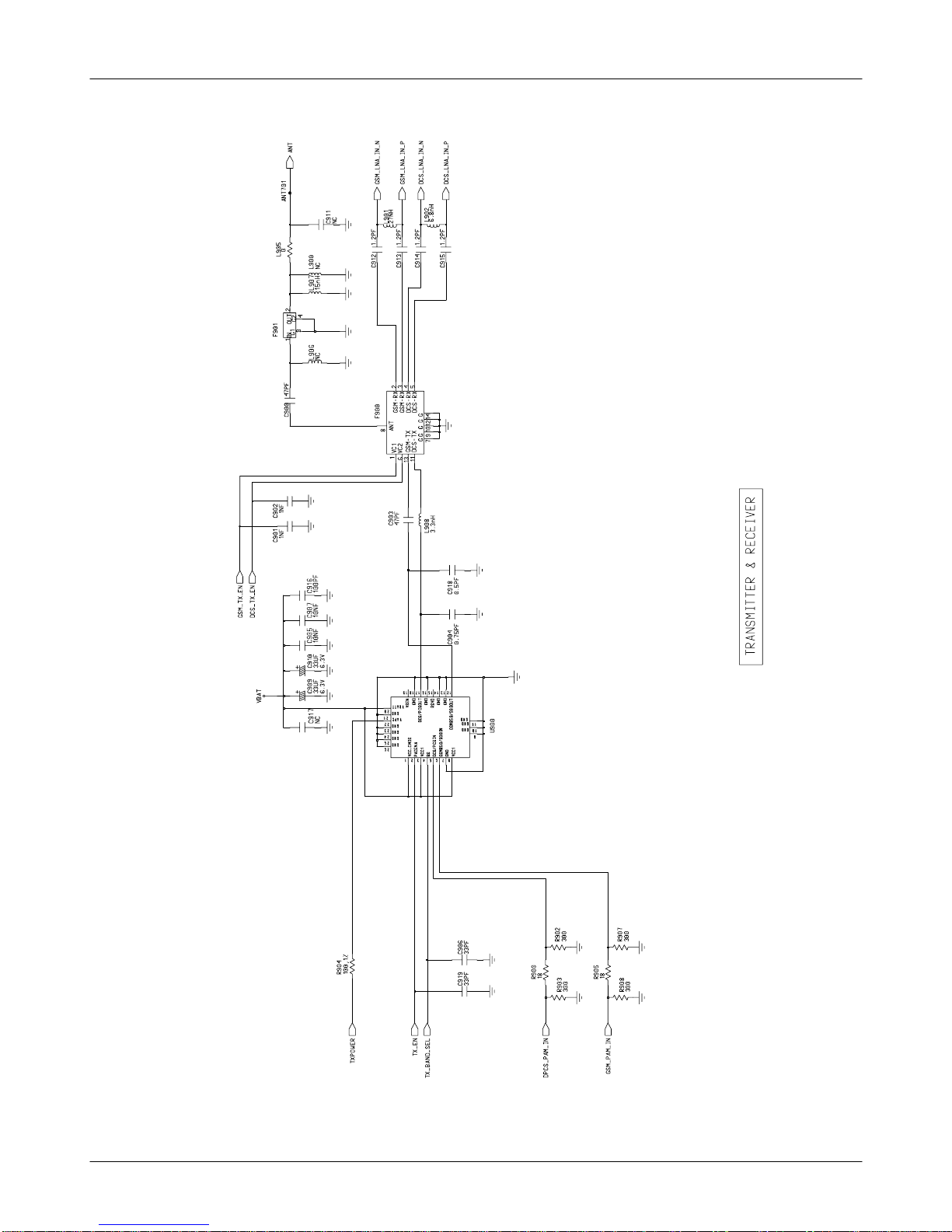

(Picture 1)

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-16
This Document can not be used without Samsung's authorization

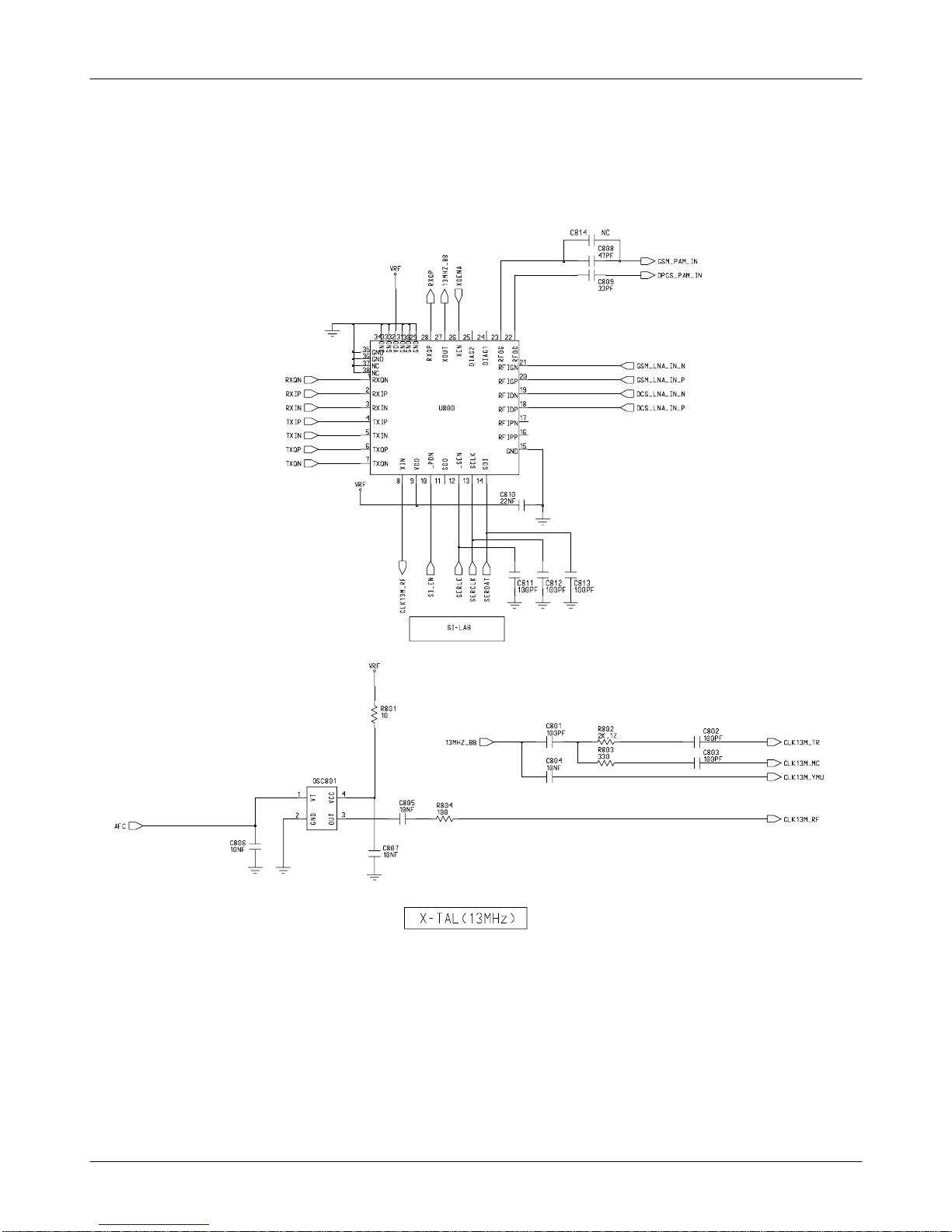

(Picture 2)

SAMSUNG Proprietary-Contents may change without notice
SGH-E310 Flow Chart of Troubleshooting and Circuit Diagrams
2-17
This Document can not be used without Samsung's authorization
(Picture 3)
