Samsung AQ100 User manual

1
Thank you for buying a Samsung Digital Camera.

Prior to using this camera, please read the user manual thoroughly.
If you require After Sales service, please bring the camera and
the cause of the camera malfunction (such as battery, Memory
card etc.) to a Samsung Authorized Service Center.
Please check that the camera is operating properly before you
intend to use it (e.g. for a trip or an important event) to avoid
disappointment. Samsung takes no responsibility for any loss or
damage that may result from camera malfunction.
Keep this manual in a safe place.

If you use a card reader to copy the images on the memory card to
your PC, the images could be damaged. When transferring the
images taken with the camera to your PC, be sure to use the
supplied USB cable to connect the camera to your PC. Please note
that the manufacturer holds no responsibility for loss or damage of
images on the memory card due to the use of a card reader.
The contents and illustrations of this manual are subject to
change without prior notice for upgrading the camera functions.

It is advisable to replace waterproof components once a year to
maintain the waterproof performance. Contact your nearest Samsung
service center for the replacement of waterproof components.
ÄMicrosoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries.
Ä
Adobe and Reader are either trademarks or registered trademarks
in the United States and/or other countries.
ÄAll brand and product names appearing in this manual are
registered trademarks of their respective companies.
Ä
For Open Source License information, refer to the “OpenSourceInfo.pdf”
in the provided CD-ROM.
Getting to Know your camera
Setting up the application
software
Instructions
Use this camera in the following order.
Take a picture. (p.23)
Insert the supplied USB cable
into the PC’s USB port and the
camera’s USB connection
terminal. (p.96)
Check the camera’s power. If the
power is turned off, press the
power button to turn it on.
Open Windows’s EXPLORER
and search for [Removable Disk].
(p.97)
Take a picture
Insert the USB cable
Check the camera's power
Check [Removable Disk]
To use this camera with a PC, install
the application software first. After
you have done this, you can move
the stored images in the camera to
you PC and can edit them using an
image editing program.

2
Warning
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may cause
eyesight damage.
For safety reasons keep this product and its accessories out of
reach of children or animals to prevent accidents e.g.:
- Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
- There is the possibility of injury from the camera’s moving parts.
The battery and camera may become hot during prolonged use
and it may result in camera malfunction. If the camera or battery
becomes hot, allow the camera to sit idle for a few minutes to
allow it time to cool.
Do not leave this camera in places subject to extremely high
temperatures, such as a sealed vehicle, direct sunlight or other
places of extremes in temperature. Exposure to extreme
temperatures may adversely affect the camera’s internal
components and could cause a fire.

When in use, do not cover the camera or Charger. This may cause
heat to build up and distort the camera body or cause a fire. Always
use the camera and its accessories in a well-ventilated area.
Danger
DANGER indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Do not attempt to modify this camera in any way. To do so may
result in fire, injury, electric shock, or severe damage to you or
your camera. Internal inspection, maintenance and repairs should
only be carried out by your dealer or Samsung Camera Service
center.
Please do not use this product in close proximity to flammable or
explosive gases, as this could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera,
do not use it. Switch off the camera, and then disconnect the
power source. You must contact your dealer or Samsung Camera
Service center. Do not continue to use the camera as this may
cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into
the camera through access points e.g. the memory card slot and
battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a
risk of electric shock.

3
Caution
CAUTION indicates a potentially hazardous situation which, if not
avoided, may result in a minor or moderate injury.
Leaking, overheating, or damaged battery could result in fire or
injury.
- Only use battery with the correct specifications for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera for a
long period of time. Otherwise the battery may leak corrosive
electrolyte and permanently damage the camera’s components.
Do not fire the flash while it is in contact with hands or objects. Do
not touch the flash after using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using
the AC adapter. After use, always switch off the camera before
unplugging the cable from the wall socket. Then make sure that
any connector cords or cables to other devices are disconnected
before moving the camera. Failure to do so may damage the
cords or cables and cause a fire or electric shock.
Take care not to touch the lens to avoid taking an unclear image
and possibly causing camera malfunction.

Avoid obstructing the lens or the flash when you capture an image.
When using this camera in low temperatures, you may experience
the following. These are not camera malfunctions. The camera
usually recovers at normal temperature.
- It takes longer to turn on the LCD screen and the color may differ
from the subject.
- After changing to a different subject or scene, there may be an
after image on the LCD screen.
Credit cards may be demagnetized if left near case. Avoid leaving
magnetic strip cards near the case.
Never connect the 20 pin connector to the USB port of a PC. This
carries a high risk of computer malfunction.
Do not open the battery cover or the USB cover in the sea, a lake
or in similar underwater conditions. Do not open the battery cover
or the USB cover with a wet hand either. It may cause electric
shock or camera malfunction.

4
Contents
028 Recording HD (High Definition) movie clips
028 Recording amovie clip without sound
029 Things to Watch Out for When Taking
Pictures
030
Using the camera buttons to set the camera
030 POWER button
030 SHUTTER button
031 Zoom button
032 Info (DISP) / Up button
033 Macro / Down button
034 Focus lock
035 Flash / Left button
037 Self-timer / Right button
038 MENU button
038 OK button
038 Shooting
039 How to Enable Functions Using the
MENU Button
040 Photo Size / Movie Size
040 Quality / Frame rate (Image Resolution)
041 Exposure compensation
041 ISO
042 White balance
043 Face Detection
046 Smart FR Edit
READY
RECORDING
007 System chart
007 Package Contents
007 Sold Separately
008 Identification of features
008 Front & Top
009 Back
010 Bottom
010 5 Function button
011 Self-timer lamp
011 Camera Status Lamp

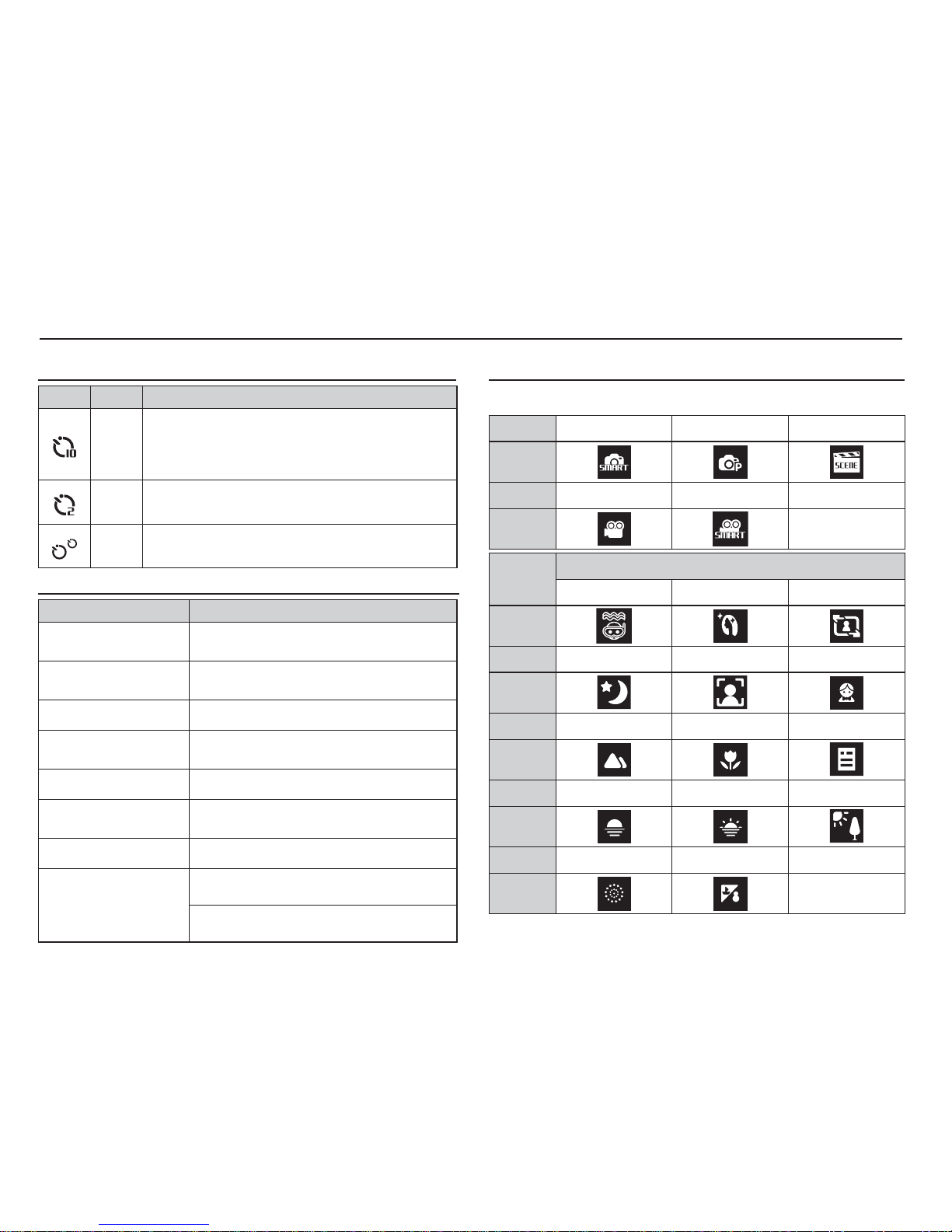

011 Mode icon
012 Connecting to a Power Source
015 Inserting the memory card
016
Instructions on how to use the memory card
018 Waterproof management
020
When using the camera for the first time
021 LCD screen indicator
022 How to use the menu
023 Starting the recording mode
023 Selecting modes
023 How to use the Smart Auto mode
024 How to use the Program mode
025 How to use the Scene modes
027 How to use the Movie clip mode

5
047 Face Tone
047 Face Retouch
047 Auto Focus type
048 Metering
048 Photo Style Selector
049 Smart Filter
050 Image Adjust
051 ACB
051 Drive mode
052 DIS
052 Movie Clip frame stabiliser
052 Smart Scene Detection
053 Voice Memo
053 Voice Recording
054 Recording
amovie clip without voice
054 Setting movie recording
055 Sound menu
055 Sound
055 Volume
055 Start up sound
055 Shutter sound
055 Beep sound
056 AF sound
056 Setup menu
SETUP
056 Display
056 Language
056 Function Description
057 Start up image
057 Display Brightness
057 Quick view
057 Display Save
058 Settings
058 Formatting a memory
058 Initialization
059 Setting up the Date / Time / Date type
059 Time Zone
059 File name
060 Imprinting the recording date
060 Auto power off
061 Auto Focus lamp
061 Selecting Video out type
062 Setting the USB
063 Starting play mode
063 Playing back a still image
063 Playing back a movie clip
064 Movie clip capture function
064 Playing back a recorded voice
065 Playing back a voice memo
Contents
PLAY

6
Contents
080 File Options
080 Deleting images
080 Protecting images
081 Face List Edit
081 Voice memo
082 DPOF
084 Copy to Card
085 PictBridge
086 PictBridge : Picture Selection
086 PictBridge : Print Setting
087 PictBridge : Reset
087 Important notes
089 Warning indicator
090 Before contacting a service center
092 Specifications
095 Transferring files to your computer
for Windows
095 For Windows users
099 Transferring files to your computer for
Mac
099 For Mac users
101 FAQ
SOFTWARE
APPENDIX
PICTBRIDGE
065 LCD screen Indicator
066
Using the camera buttons to set the camera
066 Play mode button
066 Thumbnail / Enlargement button
066 Smart Album
069 Info (DISP) / Up button
069 Play & Pause / OK button
070 Left / Right / Down / MENU button
070 Delete button
071 Setting the playback functions using the
LCD Screen
072 Setting the playback PictBridge function
using the LCD screen
073 Edit
073 Resize
074 Rotating an image
074 Photo Style Selector
075 Smart Filter
076 Image Adjust
077 Starting the Multi Slide Show
077 Start the Multi Slide Show
078 Selecting Images
079 Setting play interval
079 Setting Background Music
079 Configure Multi Slide Show effects

7
System chart
Please make sure your package contains the contents listed below before using this product. The contents can vary depending on the sales
region. To buy the optional equipment listed under Sold Separately, contact your nearest Samsung dealer or Samsung service center. The
appearance of the parts and accessories in your package may differ from the illustrations below.
Package Contents
Camera Rechargeable battery
AD43-00194A
AC adapter / USB cable
AD44-00143A /
AD39-00165A
Camera strap
AD63-02604A
AD63-02596A
Software CD
(User manual included)
AD46-00331A
Quick Start Manual
AD68-04852A
Sold Separately
SD/SDHC memory card
(see p.17) Camera case AV cable
AD39-00146A
Battery charger
AD44-00164A

8
Identification of features
Front & Top
Lens
Shutter button
Flash
POWER button
Self-timer lamp /
AF Lamp
Microphone
Speaker
USB / AV / DC terminal
Strap eyelet

9
Identification of features
Back
5 function button
Play mode button
MENU button
LCD Screen
Camera status lamp
Fn / Delete button
MODE button
Zoom button

10
Bottom
Identification of features
5 Function button
Ä
To open the battery chamber cover, slide it in the direction shown
above.
Information / Up button
Flash /
Left button
Self-timer /
Right button
Macro / Down button
OK / Play & Pause
button
Tripod socket
Memory card slot
Battery chamber
Battery chamber cover
Battery holder

11
Self-timer lamp
Icon Status Description
Blinking
- For the first 8 seconds, the lamp blinks at 1 second
intervals.
- For the final 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking For the 2 seconds, the lamp blinks quickly at
0.25-second intervals.
Blinking A picture will be taken after about 10 seconds and 2
seconds later a second picture will be taken.
Camera Status Lamp
Status Description
Power on The lamp turns on and off when the camera
is ready to take a picture.
After taking a picture
The lamp blinks while saving the image data and
turns off when the camera is ready to take a picture.
When flash battery is charging The lamp blinks.
When the USB cable is
inserted into a PC
The lamp lights up.
(LCD screen turns off after initializing the device.)
Transmitting Data with a PC
The lamp blinks. (LCD screen turns off.)
When the USB cable is
inserted into a printer The lamp blinks.
When the printer is printing The lamp blinks.
When the AF activates
The lamp turns on.
(The camera focus on the subject.)
The lamp blinks.
(The camera doesn’t focus on the subject.)
Identification of features
Mode icon
Refer to page 23 for more information about the camera mode setting.
MODE Smart Auto Program Scene
ICON
MODE Movie Smart Movie -
ICON
MODE SCENE
Aqua Beauty Shot Frame Guide
ICON
MODE Night Portrait Children
ICON
MODE Landscape Close Up Text
ICON
MODE Sunset Dawn Backlight
ICON
MODE Fireworks Beach & Snow -
ICON

12
Connecting to a Power Source
BP70A rechargeable battery Specification
Model BP70A
Type Lithium lon
Capacity 740mAh
Voltage 3.7V
C harging time Approximately 150 Minutes
You should use the rechargeable battery BP70A supplied with the cam-
era. Be sure to charge the battery before using the camera.
Number of images and battery life: Using the BP70A
Battery life /
Number of images Conditions
Still image Approx. 90 MIN /
Approx. 180 shots
Using the fully charged battery,
Default settings, Program mode,
Shot to shot interval: 30Sec.
Changing the zoom position between
the Wide and the Tele after every shot.
Using the flash on every second shot.
Using the camera for 5 minutes and
then powering it off for 1 minute.
Movie Approx. 70 MIN
Using the fully charged battery
640x480 image size
30 fps frame rate
ÄThese figures are measured under Samsung’s standard conditions
and shooting conditions and may vary depending on the user’s
methods.
Important information about battery usage.
When camera is not in use, turn off the power.
Please remove the battery if the camera will not be used
for long periods. Batteries can lose power over time and are
prone to leaking if kept inside the camera.
Low temperatures (below 0°C) can affect the performance
of the battery and you may experience reduced battery life.
Batteries will usually recover at normal temperatures.
During extended use of the camera, the camera body may
become warm. This is perfectly normal.
If you connect the AC adapter to the USB cable, you can use it
as an AC cable and recharge the spare battery with it.
- Using an AC cable
: Connect the AC adapter to the
USB cable. It can be used as a
power cable.
- Using a USB cable
: Remove the AC adapter.You can
download stored images to your
PC (p.96) or supply the power
to your camera through the USB
cable.

13
Connecting to a Power Source
How to charge the rechargeable battery
Important information about USB cable usage.
Use a USB cable with the correct specification.
Do not connect the camera to a PC through a USB hub.
Connect the camera directly to the PC.
Do not connect the camera and other devices to a PC at the
same time. Connect the camera by itself.
If your PC can not detect the camera when you use the front
side USB port, use the back side USB port of computer.
If the USB port of the PC doesn’t meet the Power output
standard (5V, 500mA), the battery may not charge.

Before inserting any cables or the AC adapter, make sure the
direction of the cable or adapter plug is correct. Do not insert
by force. It may cause breakage of cable or camera.
If the charging LED of the AC Charger does not turn on
or blink after you have inserted the rechargeable battery,
please make sure the battery is inserted correctly.
If you charge the battery with the camera power on, the
battery won’t be fully charged. Turn the camera off while
charging the battery to get a full charge.
Charging LED of the AC charger
Charging LED
Being Charged Red LED is on
Charging is complete Green LED is on
Charging error Orange colored LED is off or blinking

If you insert a fully discharged battery to charge it, do not turn on
the camera at the same time. If you do, the camera may turn off
unexpectedly. Charge the battery for more than 10 minutes before
using the camera.

Do not use the flash frequently or take a movie clip with the fully
discharged battery that has been charged for only a short time.
Even if the charger is inserted, the camera power may be turned
off because the rechargeable battery is discharged again.

14
When using the battery, please follow these guidelines. Failure
to do so may cause heat, fire, or explosion.
ƔIf you find the battery is bulging or distorted, contact a service
center. It may present aphysical danger.
ƔUse only the recommended battery charger.
ƔDo not place the product close to a fire or any high temperature
source.
ƔDo not insert the product into amicrowave oven.
ƔDo not leave the product inside a car during the summer.
ƔDo not place the product in a hot, humid environment.
ƔDo not place the camera on a carpet, comforter, or electronic
mattress for a long time.
Ɣ Do not leave the camera turned on where there is no air circulation.
ƔDo not let accessories like necklaces, coins, keys, watches, and
and so on come in contact with the battery chamber.
ƔUse Advanced Lithium Batteries with a guarantee from the
manufacturing company.
ƔDo not try to disassemble or perforate the camera or battery with
a sharp pin.
ƔDo not subject the camera to high pressure.
ƔDo not drop or strike the camera, or subject it to a harsh shock.
ƔDo not expose the product to temperatures over 60°C (140°F)
degree.
ƔDo not expose the product to water or high humidity.
ƔBattery shall not be exposed to excessive heat such as sunshine,
fire or the like.
Guidelines for disposal
ƔDo not throw away a battery that no longer charges.
ƔDo not dispose of a battery by throwing it in a fire.
ƔDispose of the battery according to the envronmental laws of
your country, state, or area.
Guidelines for recharging abattery
ƔDo not recharge the battery using a method that differs from the
method detailed in this users manual. Failure to follow these
instructions may cause a fire or explosion.
Connecting to a Power Source

15

There are 4 battery status indicators displayed on the LCD screen.
Battery
indicator
Battery
status
The battery is
fully charged
Low battery
capacity
(Prepare to
recharge or
use spare
battery)
Low battery
capacity
(Prepare to
recharge or
use spare
battery)
Battery empty.
(Recharge
or use spare
battery)
ÄWhen using the camera and the battery in a place that is excessively
cold or hot, the battery status on the LCD may be different from the
actual battery status.
Insert the battery as shown
- If the camera does not turn on
after you have inserted battery,
please check whether the
battery (+ / -) direction is right.
-When opening the battery
chamber cover, do not use
excessive force. You may
damage it.
Connecting to a Power Source Inserting the memory card
Insert the memory card as shown.
- Turn off the camera’s power
before inserting the memory card.
- Have the front label of the
memory card facing toward the
front of the camera (Lens) and
the card pins toward the back of
the camera (LCD screen).
- Do not insert the memory card
the wrong way round. Doing so
may damage the memory card
slot.

16
Instructions on how to use the memory card
The data on the memory card can be corrupted if:
- The memory card is used incorrectly.
- The power is switched off or the memory card is removed while
recording, deleting (formatting) or reading.
Samsung cannot be held responsible for lost data.

It is advisable to copy important data onto other media as back-up
e.g. floppy disks, hard disks, CD etc.
If there is insufficient memory available :
A [Memory Full] message will appear and the camera will not
operate. To optimize the amount of memory in the camera,
replace the memory card or delete unnecessary images stored
on the memory card.
Be sure to format the memory card (see p.58) if you are using
a newly purchased memory card for the first time, if it contains
data that the camera cannot recognize, or if it contains images
captured with a different camera.
Turn off the camera power whenever the memory card is being
inserted or removed.
Repeated use of the memory card will eventually reduce the
memory card’s performance. Should this be the case, you will
need to purchase a new memory card. Wear and tear on the
memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device. Do not bend,
drop or subject the memory card to any heavy impact.
Do not store the memory card in an environment with strong
electronic or magnetic fields, e.g. near loud speakers or TV
receivers.
Please do not use or store in an environment where there are
extremes in temperature.
Do not allow the memory card to become dirty or to come into
contact with any liquid. Should this happen, clean the memory
card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the
memory card is warm. This is perfectly normal.
Do not use a memory card that is used in another digital camera.
To use the memory card in this camera, format the memory card
using this camera.
Do not use a memory card formatted by another digital camera or
memory card reader.
Don't remove the memory card when the camera status lamp is
blinking as this may cause damage to data in the memory card.

17
Instructions on how to use the memory card
When using a 1GB SD memory, the specified shooting capacity will be
as follows. These figures are approximate as image capacities can be
affected by variables such as subject matter and memory card type.
The zoom button doesn’t function during the movie recording.
Movie recording times may decrease when you use the zoom
function.
Several videos were recorded in succession to determine the total
recording time.
The camera can use SD/SDHC Memory Cards.
[SD (Secure Digital) memory card]
Card pins
Write protect switch
Label
Recorded
image size
Super
Fine Fine Normal 60 FPS 30 FPS 15 FPS
Still
About
134
About
220
About
329 ---
About
152
About
249
About
371 ---
About
181
About
296
About
438 ---
About
200
About
328
About
487 ---
About
313
About
510
About
751 ---
About
494
About
789
About
1154 ---
About
1731
About
2597
About
3463 ---
*Movie
clip
----
About
00:14'25"
About
00:28'17"
----
About
00:41'31"
About
01:50'45"
---
About
01:29'48"
About
02:38'14"
About
03:47'36"
The SD/SDHC memory card has a write protect switch that
prevents image files from being deleted or formatted. When you
slide the switch towards the bottom of the SD/SDHC memory
card, the data is protected. When you slide the switch towards
the top of the SD/SDHC memory card, the data protection is
cancelled.
Slide the switch to the top of the SD/SDHC memory card before
taking a picture.

18
Waterproof management
You can use this camera underwater to a maximum depth of 9.8 feet
(3m) in an ocean, lake, or similar underwater environment for one
hour. To ensure the camera operates properly underwater, you must
practice the correct waterproof management before and after using
the camera, as follows.
ŶBefore using the camera
1.
Make sure that there is no dirt, dust, or sand on the camera and
that the lens is always kept clean.
- If there is foreign matter or moisture on the battery chamber cover
or the USB cover, wipe them with a smooth, lint free cloth. Also
check if there are any scratches on the waterproof seal.
2. Make sure that the battery chamber cover and the USB cover
make a clicking sound when closing them, so that they are firmly
shut.
ƔDo not open the battery chamber cover or the USB cover under-
water, with a wet hand, or in any environment that has a great
deal of moisture and dirt.
ŶAfter using the camera
1. Make sure that any water and dirt on the camera are removed with
a dry cloth after using the camera under water.
2. Ensure the battery chamber cover and the
USB cover are closed, and then wash the
camera with flowing water, making sure
to remove all sand, foreign matter, and
dirt. You can also submerge the camera
in clean water for 2 to 3 minutes before
washing it. See page 19 for details.
- Do not wipe the camera with other
liquids such as soapy water, neutral
detergents, or alcohol.
3. Wipe the camera with a dry cloth, and then dry the camera in a
well ventilated place.
ŶWhile using the camera:
- Do not use the camera under water at a depth of more than 9.8 feet
(3m).
- Do not use the camera continuously for over one hour under water.
- Do not open the battery chamber cover and the USB cover under
water.
- Do not use the camera in hot water.
- Do not leave the camera on the sand. Sand may enter the speaker
or the microphone, and the camera may get hot if it is exposed to
direct sunlight for a prolonged time.
- The waterproof performance may deteriorate if the camera is struck,
dropped, subjected to strong pressure or to strong vibration.
- The accessories that came with the camera are not waterproof.
USB cover Battery chamber cover

19
Waterproof management
4. Open the battery compartment and the USB compartment and look for
water drops on the inside of the covers . If there are water drops on
either, use cotton swab to remove the drops before storing the camera.
Since your camera may fail if you use the camera when foreign
matter is on the camera lens, wash the camera using the following
procedure:
1. Make sure that the battery chamber cover and the USB cover
make a clicking sound when closing them, so that they are firmly
shut.
2. Fill a bucket or a large bowl with
water and submerge the camera in
the water with the camera lens facing
downwards, then shake the camera.
3. If the foreign matter is not removed
in the above procedure, wash the
camera directly under a strong flow of
water.
ŶStorage and maintenance
- Do not store the camera in an environment with high or low
temperature. The waterproof function may be damaged.
- Do not use any chemicals to clean, to prevent rust, or to repair the
camera. The waterproof function may be damaged.
-
Replace waterproof components once a year to maintain waterproof
performance, since they are consumable parts. Contact your nearest
Samsung service center for the replacement of waterproof components.
