Getting to know your camera
Getting to know your camera
Identification of features / Contents of camera
Battery life & number of shot (Recording time)
LCD monitor indicator
Mode dial
Taking a picture
Playing back / Deleting images
Downloading images
Specifications
1
4
5
6
7
8
9
10
11
Contents

NOTE :
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guaran-
tee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment to an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

CAUTION :
Changes or modifications not expressly approved by the manufacturer
responsible for compliance could void the user’s authority to operate the
equipment.

Declaration of Conformity
Trade Name : SAMSUNG TECHWIN
Model No. : SAMSUNG S85/D85
Responsible Party : Samsung Opto-Electronics America, INC.
Address : 40 Seaview Dr. Secaucus,NJ 07094
Telephone No. : 201-902-0347
This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
FCC notice

Microsoft, Windows and Windows logo are registered trademarks
of Microsoft Corporation incorporated in the United States and/or
other countries

All brand and product names appearing in this manual are regis-
tered trademarks of their respective companies.

The contents and illustrations of this manual are subject to change
without prior notice for upgrading the camera functions.

Refer to the user manual included on the Software CD for more
information.

2
Getting to know your camera
DANGER WARNING
Do not attempt to modify this camera in any way. To do so may
result in fire, injury, electric shock or severe damage to you or your
camera. Internal inspection, maintenance and repairs should only
be carried out by your dealer or Samsung Camera Service centre.
Should any form of liquid or a foreign object enter the camera, do
not use it. Switch off the camera, and then disconnect the power
source. You must contact your dealer or Samsung Camera Service
centre. Do not continue to use the camera as this may cause a fire
or electric shock.
Please do not use this product in close proximity to flammable or
explosive gases, as this could increase the risk of explosion.
Do not insert or drop metallic or inflammable foreign objects into
the camera through access points e.g. the memory card slot and
battery chamber. This may cause a fire or electric shock.
Do not operate this camera with wet hands. This could pose a risk
of electric shock.
Do not use the flash in close proximity to people or animals.
Positioning the flash too close to your subject’s eyes may cause
eyesight damage.
For safety reasons keep this product and accessories out of
reach of children or animals to prevent accidents e.g.:
-Swallowing battery or small camera accessories. If an accident
should occur, please consult a doctor immediately.
-There is the possibility of injury from the camera’s moving parts.
Battery and camera may become hot during prolonged use and
it may result in camera malfunction. Should this be the case,
allow the camera to sit idle for a few minutes to allow it time to
cool.
Do not leave this camera in places subject to extremely high
temperatures, such as a sealed vehicle, direct sunlight or other
places of extreme variances in temperature. Exposure to ex-
treme temperatures may adversely affect the camera’s internal
components and could cause a fire.
When in use, do not cover the camera or Charger. This may
cause heat to build up and distort the camera body or cause
a fire. Always use the camera and its accessories in a well-
ventilated area.
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.

3
ENGLISH
Getting to know your camera
Before an important event or going on a trip, you should check
the camera condition. Samsung cannot be held responsible for
camera malfunctions.

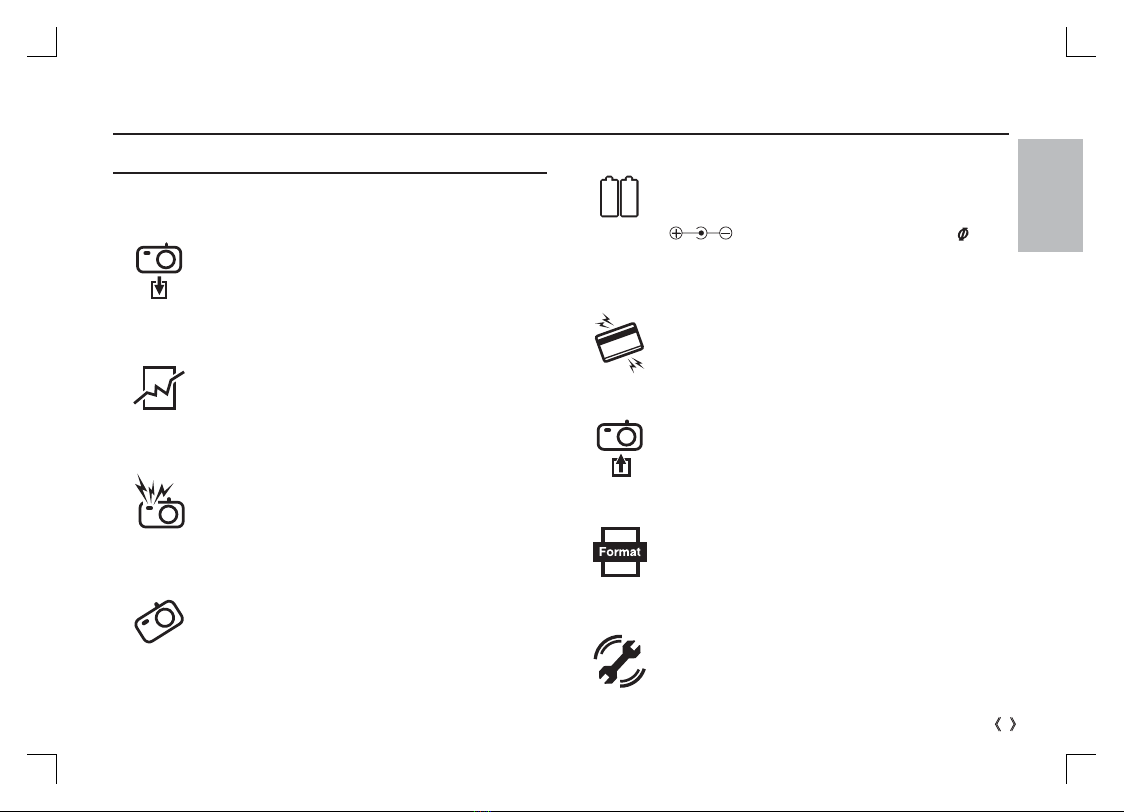

CAUTION
Be sure to format the memory card if you are using a newly
purchased memory for the first time, if it contains data that the
camera cannot recognise, or if it contains images captured with
a different camera.
Do not insert the memory card the wrong way round.
Credit cards may be demagnetized if left near a camera case.
Avoid leaving magnetic strip cards near the case.
Take care not to touch the lens or lens cover to avoid taking an
unclear image and possibly causing camera malfunction.
Do not fire the flash while it is in contact with hands or objects.
Do not touch the flash after using it continuously. It may cause
burns.
Leaking, overheating, or damaged battery could result in fire or
injury.
- Use battery with the correct specification for the camera.
- Do not short circuit, heat or dispose of battery in fire.
- Do not insert the battery with the polarities reversed.
Remove the battery when not planning to use the camera for a
long period of time.
Otherwise the battery may leak corrosive electrolyte and perma-
nently damage the camera’s components.
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in a minor or moderate injury.
Using an AC adapter that doesn’t match with the camera
specification may cause camera malfunction. We recommend
supplied battery or exclusive rechargeable battery.
ÄAvailable AC adapter :
Voltage: 3.3V, Amprer: 2.0A, Diameter ( ): 2.35
- After turning on the camera, Check whether the battery type
and the camera setting set on the [Setup] > [Battery Type]
menu are same or not.

4
DC input
connection port
Microphone
ÄPlease check that you have the correct contents before using this product. The contents can vary depending on the sales region. To buy the optional
equipment, contact your nearest Samsung dealer or Samsung service centre.
Shutter button

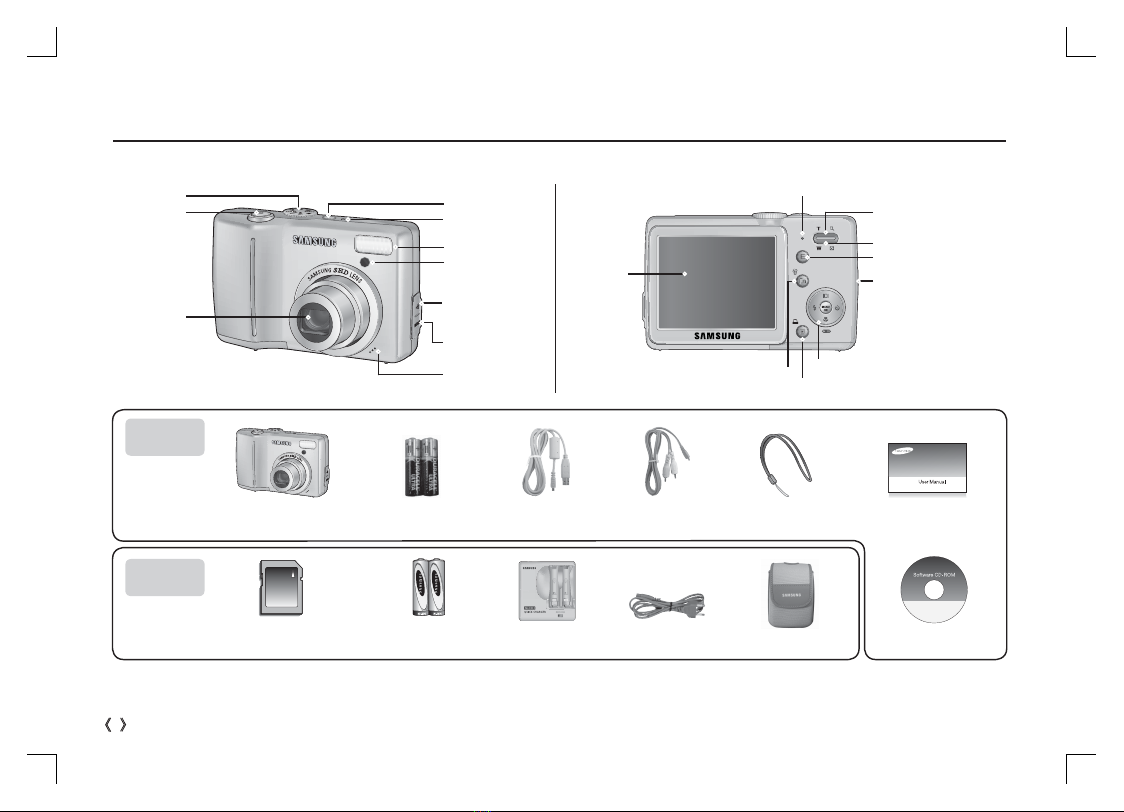

Identification of features / Contents of camera
Mode dial
Lens / Lens cover
Speaker
Power button
Flash
AF sensor/
Self-timer lamp
USB / AV connection
terminal
Zoom W button (Thumbnail)
Zoom T button (Digital zoom)
E (Effects) button
Strap eyelet
LCD monitor
5 function button
Play mode / Printer button
Fn / Delete button
Camera status lamp
Rechargeable Battery
(SNB-2512)
SD / SDHC memory card /
MMC
USB Cable AV Cable Camera strap
Camera AA Alkaline
Batteries
Charger (SBC-N2) AC Cord Camera case Software CD
User manual,
Product warranty
Included
items
Optional
items

5
ENGLISH
Battery life & Number of shot (Recording time)
When using a 256MB MMC memory, the specified shooting capacity
will be as follows. These figures are approximate as image capacities
can be affected by variables such as subject matter and memory card
type.
Recorded image
size
Super
Fine Fine Normal 30FPS 15FPS
Still im-
age
Ÿ57 103 180 - -
¬68 115 206 - -
84 134 233 - -
✩93 158 271 - -
✨172 265 425 - -
✧558 663 742 - -
Movie
Clip
ì---
About 3'36" About 7'2"
❪---
About 13'18" About 25'38"
ÄThe recording times can be changed by the zoom operation.
The zoom button doesn't use during the movie recording.
We recommend batteries for a digital camera (Within a year from the date
of manufacture). The batteries are listed below.
- Non rechargeable batteries : 2 X AA Alkaline (High Capacity)
- Rechargeable batteries (Optional) : SNB-2512 (Ni-MH)
SNB-2512 rechargeable battery Specification
Model SNB-2512
Type Ni-MH
Capacity
25 00mAh
Voltage 1.2V x 2
C harging time Approximately 300 Minutes (Use for SBC-N2)
ÄIncluded battery may vary depending on sales region.

6
Number of available shots remaining /
Remaining time 6/00:00:00 Ì
Memory card icon / Internal memory icon
Ö/×Í
Recording mode

Color / Saturation 
Aperture Value / Shutter Speed
F2.8, 1/30 
Face Recognition 
Flash

Self-timer

Macro 
Contrast 
Sharpness / Without Sound
/ Ç
Auto Focus Frame 
Voice memo Ï
Optical / Digital Zoom bar /
Digital Zoom rate
Battery
Image Size
Image Quality / Frame Rate
Metering
Drive mode
ISO
White Balance
Exposure compensation
Date / Time
2007/08/01 01:00 PM
Camera shake Warning
LCD monitor indicator
ÄRefer to the user manual included on the Software CD for more information.

7
ENGLISH
Mode dial
AUTO
Selects this mode for quick and easy picture taking with
minimal user interaction.
PROGRAM
Selecting the program mode will configure the camera
with optimal settings. You can still manually configure all
functions except the aperture value and shutter speed.
You can select a desired camera mode by using the Mode dial on the top of the camera.
ASR
This mode will reduce the effect of camera shake and
help you get a well-exposed image in dim conditions.
MANUAL
You can manually configure all functions with the aper-
ture value and shutter speed.
SCENE
Use the menu to easily configure optimal settings for a
varisty of shooting situations.
PORTRAIT
Use this menu to take a picture of a person.
NIGHT
This mode helps to get a well-exposed pictures in the
night time and darkness.
MOVIE CLIP
A movie clip can be recorded for as long as the available
recording time.

8
Taking a picture
How to take a picture
How to record a movie
Rotate the Mode dial and select ( ´).
1. Turn on the camera and select a cam-
era mode by rotating the mode dial.
2. Hold the camera as shown
3. Confirm the composition
4. Take a picture
Pressing halfway down
Focus and Flash status
are checked.
Pressing fully
Image is taken
1. Confirm the composition
2. Start the recording
Press the Shutter button and the re-
cording starts and press the Shutter
button again to stop the recording

9
ENGLISH
Playingback the images
-The last image stored on the memory is displayed.
Press the play button ( Î).

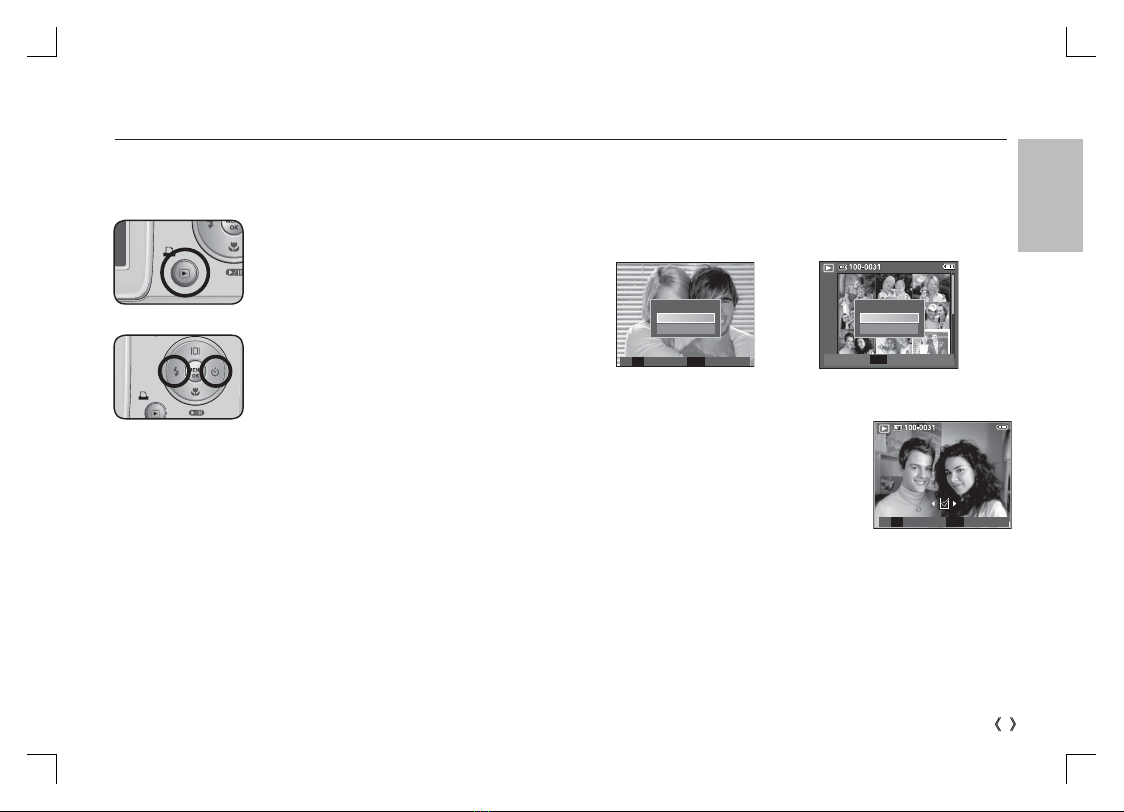

Deleting images
- This deletes images stored on the memory card.
1. Select an image that you want to delete by pressing the Left / Right
button and press the DELETE ( Õ) button.
Select an image that you want to play back by
pressing the Left/ Right button
Playing back / Deleting images
[Single Image] [Thumbnail Image]
2. To add images to delete, press the T button.
- Left / Right button : Selects images
- T button : Checks for deletion
- OK button : deletes the selected
images.
3. Select the submenu values by pressing the Up / Down button and
then press the OK button.
- If [No] is selected : cancels "Delete Image".
- If [Yed] is selected : deletes the selected images.
ÄManner mode : Pressing the play mode button for more than 3 sec-
onds changes the buzzer and start-up sound setting
to OFF, even though you may have set these to ON.
Delete?
No
Yes
Comfirm
OK
Delete?
No
Yes
Select Confirm
T OK
Prev Next
Select Delete
T OK

10
For Windows For Macintosh
PC with processor better than
Pentium II 450MHz
(Pentium 800MHz recommended)
Power Mac G3 or later
Windows 98SE / 2000 / ME / XP/Vista Mac OS 10.0 ~ 10.4
Minimum 128MB RAM
(Over 512MB recommended)
200MB of available hard disk space
(Over 1GB recommend)
Minimum 64MB RAM
(Over 256MB recommended)
110MB of available hard-disk space
USB port USB port
CD-ROM drive CD-ROM drive
1024x768 pixels, 16bit color display
compatible monitor
(24bit color display recommended)
MicroSoft DirectX 9.0C
PC connection mode
2. Download the images
1. Install the supplied Software.
- Connect the camera and Computer with
supplied USB cable and download the
image on your computer to save them.
Downloading images

11
ENGLISH
Specifications
Image Sensor - Type : 1/2.5" CCD
- Effective Pixel : Approx. 8.2 Mega-pixel
- Total Pixel : Approx. 8.3 Mega-pixel
Lens - Focal Length : SHD Lens f = 6.3 ~ 31.5mm
(35mm film equivalent : 38 ~ 190mm)
- F No. : F 2.8 ~ F 4.6
- Digital Zoom : ·Still Image mode :1.0X ~ 5.0X
·Play mode : 1.0X ~ 12.0X
(depends on image size)
LCD Monitor - 2.5" color TFT LCD (230,000 dots)
Focusing - Type : TTL auto focus, Multi-AF, Face Recognition AF
- Range
Normal Macro Super Macro Auto Macro
Wide 80cm ~ Infinity 5cm ~ 80cm 1cm ~ 5cm 5cm ~ Infinity
Tele 50cm ~ 80cm - 50cm ~ Infinity
Shutter - Speed 1~1/2,000 sec.
(Manual mode :15~1/2,000 sec.,
Night :15~1/2,000 sec., Fireworks :4 sec.)
Exposure - Control : Program AE, Manual Exposure,
Face Recognition AE
- Metering : Multi, Spot, Center-weighted
- Compensation : ±2EV (1/3EV steps)
- ISO : Auto, 50, 100, 200, 400, 800, 1600
Flash - Modes : Auto, Auto & Red-eye reduction, Fill-in flash,
Slow sync, Flash off, Red-eye Fix
- Range : Wide : 0.4m ~ 3.0m,
Tele : 0.5m ~ 2.5m
- Recharging Time : Approx. 5 sec
Sharpness - Soft+, Soft, Normal, Vivid, Vivid+
Color Effect - Normal, B&W, Sepia, Blue, Red, Green, Negative,
Custom Color
White Balance - Auto, Daylight, Cloudy, Fluorescent_H, Fluorescent_L,
Tungsten, Custom
Voice Recording - Voice Recording (max. 10 hours)
- Voice Memo in Still Image (max. 10 sec.)
Date Imprinting - Date, Date & Time, Off (user selectable)
Shooting - Still Image
·Mode : Auto, Program, ASR, Manual, Scene, Portrait,
Night
·Scene : Children, Landscape, Close-up, Text, Sunset,
Dawn, Backlight, Fireworks, Beach & Snow,
Self Shot, Food, Cafe
·Shooting : Single, Continuous, AEB, Motion Capture,
Wise Shot
·Self-timer : 10 sec., 2 sec., Double, Motion Timer

12
Specifications
- Movie Clip
·With Audio (recording time : memory capacity
dependent)
·Size : 640x480, 320x240
·Frame rate : 30 fps, 15 fps
·Optical Zoon up to 5.0X
·Movie Editing (Embedded): Pause during
recording, Still Image Capture
Storage - Media
·Internal memory : About 19MB flash memory
·External Memory (Optional)
: MMC card (Up to 1GB guaranteed)
SD card (Up to 2GB guaranteed)
SDHC card (Up to 4GB guaranteed)
- File Format
·Still Image : JPEG (DCF), EXIF 2.2, DPOF 1.1,
PictBridge 1.0
·Movie Clip : AVI (MJPEG)
·Audio : WAV
- Image Size
Ÿ¬✩✨✧
3264X
2448
3264X
2176
3264X
1824
2592X
1944
2048X
1536
1024X
768
- Capacity (256 MB Size)
Ÿ¬✩✨✧
Super Fine 57 68 84 93 172 558
Fine 103 115 134 158 265 663
Normal 180 206 233 271 425 742
ÄThese figures are measured under Samsung standard conditions and
may vary depending on shooting conditions and camera settings.
“E” Button - Effect : Color, Image Adjust, Special Color,
Fun ( Highlight, Composite, Photo Frame)
- Editing : Resize, Rotate, Color, Special Color(Color
FIlter, Color Mask), Image Adjust ( Brightness,
Contrast, Saturation, Add Noise, Red Eye
Fix), Fun (Cartoon , Highlight, Composite,
Photo Frame, Sticker)
Image Play - Type : Single image, Thumbnails, Slide show,
Movie Clip
Interface - Digital output connector : USB 2.0
- Audio : Mono
- Video output : NTSC, PAL (user selectable)
- DC Adapter : 3.3V
Power Source - Primary Battery : 2 X AA Alkaline
- Rechargeable battery (Optional) : SNB-2512 KIT
( 2xAA Ni-MH Battery & Charger )
ÄIncluded battery may vary depending on sale region.

13
ENGLISH
Specifications
Dimensions (WxHxD) - 100.3 X 63 X 23.4mm
(excluding protrusions)
Weight - Approx. 154g (without batteries and card)
Operating Temperature - 0 ~ 40°C
Operating Humidity - 5 ~ 85%
Software - Samsung Master, Adobe Reader
Specifications are subject to change without prior notice.
All trademarks are the property of their respective owners.

14
Correct Disposal of This Product
Samsung Techwin cares for the environment at all product
manufacturing stages to preserve the environment, and is
taking a number of steps to provide customers with more
environment-friendly products. The Eco mark represents
Samsung Techwin's will to create environment-friendly
products, and indicates that the product satisfies the EU
RoHS Directive.
Correct Disposal of This Product (Waste Electrical & Electronic
Equipment)
(Applicable in the European Union and other European coun-
tries with separate collection systems) This marking shown
on the product or its literature, indicates that it should not be
disposed with other household wastes at the end of its work-
ing life. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, please separate this from other types
of wastes and recycle it responsibly to promote the sustainable re-use
of material resources. Household users should contact either the retailer
where they purchased this product, or their local government office, for
details of where and how they can take this item for environmentally safe
recycling. Business users should contact their supplier and check the
terms and conditions of the purchase contract. This product should not
be mixed with other commercial wastes for disposal.

15
ENGLISH
MEMO

16
MEMO

~1~
DEUTSCH
Die Kamera kennen lernen
Die Kamera kennen lernen
Identifikation der Funktionen / Lieferumfang der Kamera
Batteriebetriebsdauer und Anzahl der Aufnahmen
(Aufnahmezeit)
LCD-Monitoranzeige
Moduswahl
Fotografieren
Wiedergabe / Löschen von Bildern
Herunterladen von Bildern
Technische Daten
1
4
5
6
7
8
9
10
11
Inhalt
Microsoft Windows und das Windows-Logo sind eingetragene Waren-
zeichen der Microsoft Corporation Incorporated in den Vereinigten
Staaten und/oder anderen Ländern.
Alle in dieser Bedienungsanleitung genannten Marken- und Produktna-
men sind eingetragene Warenzeichen der jeweiligen Firmen.
Inhalt und Illustrationen in diesem Handbuch können bei Aktualisierung
der Kamerafunktionen ohne vorherige Ankündigung verändert werden.
Weitere Informationen finden Sie in der Bedienungsanleitung auf der
Software-CD.

~2~
Die Kamera kennen lernen
GEFAHR WARNUNG
Versuchen Sie nicht, die Kamera in irgendeiner Weise zu verän-
dern. Dies kann Feuer, Verletzungen, einen Stromschlag oder
schwerwiegende Schäden an Ihrer Person oder Ihrer Kamera
verursachen. Die Inspektion des Kamerainneren, Wartung und
Reparaturen dürfen nur von Ihrem Händler oder einem Samsung
Camera Kundendienstzentrum durchgeführt werden.
Benutzen Sie die Kamera nicht, wenn Flüssigkeiten oder Frem-
dkörper in das Innere der Kamera gelangt sind. Schalten Sie die
Kamera aus und unterbrechen Sie dann die Stromversorgung.
Wenden Sie sich unbedingt an Ihren Händler oder ein Samsung-
Kamera-Kundendienstzentrum. Benutzen Sie die Kamera
auf keinen Fall weiter, da dies einen Brand oder Stromschlag
verursachen kann.
Benutzen Sie bitte dieses Gerät nicht in nächster Nähe zu
feuergefährlichen oder explosiven Gasen, da damit die Explo-
sionsgefahr vergrößert werden kann.
Stecken Sie keine metallenen oder entzündlichen Fremdkörper
in die Öffnungen der Kamera, wie z. B. den Speicherkartens-
teckplatz und die Batteriekammer. Das kann zu einem Brand
oder Stromschlag führen.
Bedienen Sie die Kamera nicht mit nassen Händen. Es besteht
die Gefahr eines Stromschlags.
Benutzen Sie den Blitz nicht in nächster Nähe von Menschen
oder Tieren. Wird der Blitz zu nah an den Augen des Motivs
gezündet, kann es zu Augenschäden kommen.
Bewahren Sie aus Sicherheitsgründen dieses Gerät und die
Zubehörteile außer Reichweite von Kindern und Tieren auf, um
Unfälle zu verhindern wie z. B.:
-Verschlucken von Batterien oder Kamerakleinteilen. Bei einem
Unfall suchen Sie bitte sofort einen Arzt auf.
-Es besteht Verletzungsgefahr durch die beweglichen Teile der
Kamera.
Werden Batterien und Kamera über einen längeren Zeitraum
verwendet, kann es zu Fehlfunktionen der Kamera kommen. Bei
längerer Benutzung sollten Sie die Kamera zwischendurch für
einige Minuten abschalten, damit sich das Gerät abkühlen kann.
Setzen Sie diese Kamera keinen hohen Temperaturen aus, wie
z. B. in einem geschlossenen Fahrzeug, direktem Sonnenlicht
oder anderen Orten mit starken Temperaturunterschieden.
Zu hohe Temperaturen können die Funktion der Kamera
beeinträchtigen, die Bauteile der Kamera zerstören und Feuer
verursachen.
Decken Sie die Kamera oder das Ladegerät bei Benutzung nicht
ab. Das kann zur verstärkten Erwärmung führen und das Kam-
eragehäuse beschädigen oder ein Feuer verursachen. Benutzen
Sie die Kamera und ihr Zubehör immer an einem gut belüfteten
Ort.
Mit GEFAHR gekennzeichnete Informationen weisen auf eine drohende
Gefahr hin, die zum Tode oder zu schweren Verletzungen führen kann.
Mit WARNUNG gekennzeichnete Informationen weisen auf eine mögliche
Gefahr hin, die zum Tode oder zu schweren Verletzungen führen kann.

~3~
DEUTSCH
Die Kamera kennen lernen
Vor einem wichtigen Ereignis oder dem Antritt einer Reise sollten
Sie den Zustand der Kamera überprüfen. Samsung kann nicht für
Funktionsstörungen der Kamera verantwortlich gemacht werden.
ACHTUNG
Sie müssen eine neu gekaufte Speicherkarte vor dem ersten Ge-
brauch formatieren, ebenso Speicherkarten, die Daten enthalten,
die die Kamera nicht lesen kann oder Bilder, die mit einer anderen
Kamera gemacht wurden.
Setzen Sie die Speicherkarte nicht falsch herum ein.
In der Nähe der Tasche belassene Kreditkarten können entmag-
netisiert werden.
Karten mit Magnetstreifen niemals in der Nähe der Tasche liegen
lassen.
Vermeiden Sie Kontakt mit dem Objektiv, da es andernfalls zu
unscharfen Aufnahmen und zur Fehlfunktion der Kamera kom-
men könnte.
Der Blitz darf beim Zünden nicht mit der Hand oder
irgendwelchen Gegenständen berührt werden. Berühren Sie
den Blitz nicht, wenn er über längere Zeit verwendet wurde. Dies
könnte Verbrennungen verursachen.
Durch Auslaufen, Überhitzen oder Explodieren der Batterien
können Feuer oder Verletzungen verursacht werden.
- Benutzen Sie nur solche Batterien, die die richtigen Spezifika-
tionen für die Kamera aufweisen.
- Die Batterien dürfen niemals kurzgeschlossen, erhitzt oder in
Feuer geworfen werden.
- Legen Sie die Batterien stets polrichtig ein.
Entfernen Sie die Batterien, wenn die Kamera längere Zeit nicht
benutzt wird.
Aus den Batterien kann korrosiver Elektrolyt austreten und die
Bauteile der Kamera irreparabel beschädigen.
Mit ACHTUNG gekennzeichnete Informationen weisen auf eine mögliche
Gefahr hin, die zu leichten oder mittelschweren Verletzungen führen kann.
Die Verwendung eines AC-Adapters, der nicht zur Kameraspe-
zifikation passt kann zur Fehlfunktion der Kamera führen. Wir
empfehlen die Verwendung der mitgelieferten Batterie oder des
exklusiven Akkus.
ÄVerfügbarer Wechselstromadapter
Spannung : 3,3V, Amprer: 2,0 A, Durchmesser ( ): 2.35
Bitte prüfen Sie vor der Verwendung der Kamera, welcher
Batterietyp im Einstellungsmenü festgelegt wurde. Wenn de Bat-
terietyp nicht mit der Kameraspezifikation übereinstimmt, kann die
Kamera nicht richtig funktionieren.
