Thank you for buying a Samsung Camera.
This manual will guide you through using the camera, including capturing images, downloading images and
using the application software. Please read this manual carefully before using your new camera.
ENGLISH
User's Manual

2
Instructions
Use this camera in the following order
Insert the
USB cable
Set up the
camera driver
Before connecting the camera to a PC, via the
USB cable, you will need to set up the camera
driver. Install the camera driver that is contained in
the Application S/W CD-ROM.(p.101)
Take a picture (p.23)
Insert the supplied USB cable into the PC’s USB
port and the camera’s USB connection
terminal.(p.109)
Check the camera’s power
If the power is turned off, press the camera button
to power it on.(p.29)
Take a picture
Check the
camera’s power
Check
[Removable Disk]
Open Window s EXPLORER and search for
[Removable Disk].(p.110)
To play back a video shot with this camera, be sure to use the QuickTime player supplied on
the software CD-ROM. Applications that do not support the MPEG-4 codec
(e.g., Windows Media Player) may not be able to play back the video.
If you use a card reader to copy the images on the memory card to your PC, the images
could be damaged. When transferring the images taken with the camera to your PC, be sure
to use the supplied USB cable to connect the camera to your PC. Please note that the
manufacturer holds no responsibility for loss or damage of images on the memory card due
to the use of a card reader.

3
Getting to know your camera 5
About the icons 5
Danger 6
Warning 6
Caution 7
An FCC warning 7
This digital camera can be used for 8
Manufacturer's contents 10
Identification of features 11
Front & Top 11
Back & Bottom 12
Side/ 5-function button 13
Mode dial 13
Connecting to a Power Source 16
Using the batteries 16
Removing the battery 16
Using the AC power adapter
(SAC-51, 5.0V) 17
Instructions on how to use the
memory card 18
Inserting the memory card 20
Removing the memory card 20
When Using the Camera for the First Time 21
LCD monitor indicator 22
Starting the recording mode 23
Things to Watch Out for When Taking
Pictures 28
Using the camera buttons to adjust the
camera 29
POWER button 29
SHUTTER button/ Jog dial 29
ZOOM W/T button 29
TELE Zoom 30
WIDE Zoom 30
Voice memo/ UP button 32
Recording a voice memo 32
Macro/ Down button (Focusing) 33
Focus lock 34
FLASH/ LEFT button 35
Self-timer / Remote / Right button 37
MENU/ OK button 39
S button 39
MF button 45
LCD button 46
AEL button (Automatic Exposure Lock) 46
Using the LCD monitor to adjust the camera
settings 47
How to use the menu 49
Size 49
Quality 50
Metering 51
Effect 51
Sharpness 52
Continuous shot 52
Save / Load the camera configuration 53
Scene 54
Starting play mode 55
Playing back a still image 55
Playing back a movie clip 56
Playing back a recorded voice 56
LCD monitor indicator 57
Using the camera buttons to adjust the
camera 58
Thumbnail/ Enlargement button 58
Voice memo/ Up button 59
Play & Pause/ Down button 60
Contents
READY
RECORDING PLAY

4
LEFT/ RIGHT/ MENU/ OK button 61
LCD button 61
Delete button 62
COPY button 63
Setting up the play back function using the
LCD monitor 64
Deleting images 66
Copy Pictures 67
Protecting images 68
Starting the slide show 69
Resize 70
Rotating an image 71
DPOF 71
DPOF : STANDARD 72
DPOF : INDEX 72
DPOF : PRINT SIZE 73
DPOF : CANCEL 73
PictBridge 74
PictBridge: Picture Selection 75
PictBridge: Print Setting 76
PictBridge: Picture Printing 77
PictBridge : DPOF AUTO PRINT 78
PictBridge : RESET 78
Setup menu 79
File name 80
Auto power off 81
Language 82
Formatting a memory card 82
Setting up the Date/ Time/ Date type 83
Imprinting the recording date 83
Function lamp 84
Sound 85
LCD brightness 85
Selecting Video out type 86
Quick view 87
Connecting an External Device (USB) 87
Initialization(RESET ALL) 88
Select card 88
Setting up the MYCAM menu 89
Start up image 89
Start up sound 90
Shutter sound 90
Important notes 91
Warning indicator 93
Before contacting a service center 94
Specifications 97
Software Notes 99
System Requirements 99
About the software 100
Setting up the application software 101
Starting PC Mode 109
Removing the USB Driver for
Windows 98SE 112
Removable Disk 113
Removing the removable disk 114
Setting up the USB Driver for MAC 115
Using the USB Driver for MAC 115
Digimax Viewer 2.1 116
Using PhotoImpression 117
FAQ 119
Contents
SOFTWARE
SETUP

5
Getting to know your camera
Thank you for buying a Samsung Digital Camera.
Prior to using this camera, please read the user manual thoroughly.
When you require After Sales service, please bring the camera and the cause of the camera
malfunction (such as Batteries, Memory card etc.) to the A/S center.
Please check that the camera is operating properly prior to when you intend to use it (e.g. for
a trip or an important event) to avoid disappointment. Samsung camera takes no
responsibility for any loss or damages that may result from camera malfunction.
Keep the manual in a safe place.
Microsoft, Windows and Windows logo are registered trademarks of Microsoft Corporation
incorporated in the United States and/or other countries.
Apple, Mac and QuickTime logo are registered trademarks of Apple computer.
Memory Stick Duo is a registered trademark of Sony Corporation.
All brand and product names appearing in this manual are registered trademarks of their
respective companies.
This manual contains instructions on using this camera that will help you to use this camera
safely and correctly. This will help prevent danger and injury to others.
About the icons
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation, which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation, which, if not avoided,
may result in a minor or moderate injury.

6
Danger
Do not attempt to modify this camera in any way. This may result in fire, injury, electric shock
or severe damage to you or your camera. Internal inspection, maintenance and repairs
should be carried out by your dealer or Samsung Camera Service Center.
Please do not use this product in close proximity to flammable or explosive gases, as this
could increase the risk of explosion.
Should any form of liquid or a foreign object enter the camera, do not use it. Switch off the
camera, and then disconnect the power source (batteries or AC Power Adapter). You must
contact your dealer or Samsung Camera Service Center. Do not continue to use the camera
as this may cause a fire or electric shock.
Do not insert or drop metallic or inflammable foreign objects into the camera through access
points e.g. the memory card slot and battery chamber. This may cause a fire or electric
shock.
Do not operate this camera with wet hands. This could pose a risk of electric shock.
Do not use the flash in close proximity to people or animals. Positioning the flash too close to
your subject’s eyes, may cause eyesight damage.
When taking photographs, never point the lens of the camera directly into very strong light.
This may result in permanent damage to your eyesight.
For safety reasons keep this product and accessories out of reach of children or animals to
prevent accidents e.g.:
Swallowing batteries or small camera accessories. If an accident should occur, please
consult a doctor immediately.
There is the possibility of injury from the camera’s moving parts.
Batteries and camera may become hot during prolonged use and it may result in camera
malfunction. Should this be the case, allow the camera to sit idle for a few minutes to allow it
time to cool.
Do not recharge non rechargeable batteries. This may cause an explosion.
Do not leave this camera in places subject to extremely high temperatures, such as a sealed
vehicle, direct sunlight or other places of extreme variances in temperature. Exposure to
extreme temperatures may adversely affect the camera s internal components and could
cause a fire.
When in use, do not cover the camera or AC Power Adapter. This may cause heat to build up
and distort the camera body or cause a fire. Always use the camera and its accessories in a
well-ventilated area.
Warning

7
Caution
Leaking, overheating, or burst batteries could result in fire or injury.
Use batteries with the correct specification for the camera.
Do not short circuit, heat or dispose of batteries in fire.
Do not insert the batteries with the reverse polarities.
Remove the batteries when not planning to use the camera for a long period of time.
Batteries may leak corrosive electrolyte and irreparably damage the camera's components.
Do not fire the flash while it is in contact with hands or objects. Do not touch the flash after
using it continuously. It may cause burns.
Do not move the camera while it is switched on, if you are using the AC Power Adapter.
After use, always switch off the camera before unplugging the adapter from the wall socket.
Then make sure that any connector cords or cables to other devices are disconnected before
moving the camera. Failure to do so may damage the cords or cables and cause a fire or
electric shock.
A non-rechargeable (disposable) battery can be used but has a short lifespan because of its
relatively low battery capacity. We recommend the rechargeable battery which has a bigger
capacity and longer lifespan than the non rechargeable type. (Rechargeable batteries may
not be available everywhere).
An FCC warning
This device has been tested in accordance with the limits of a class B digital device
under item 15 of the FCC rules. These limits are designed to provide protection against
harmful interference in commercial installation. This equipment generates, absorbs and
can emit radio frequency energy. If it is not installed and used in accordance with the
instructions, it may cause harmful interference to radio communication. There is
however, no guarantee that interference will not occur in some situations. Should any
interference occur when this device is in operation, please try one or more of the
following measures.
Change the location and direction of any aerial.
Increase distance between the camera and the affected device.
Use a different socket away from the affected device.
Please contact a Samsung agent or a radio/TV engineer.
This device complies with part 15 of the FCC Rules.
Changes or modifications not expressly approved by the party responsible for
compliance could void user's authority to operate the equipment.

8
This digital camera can be used for
Printing images using a dedicated printer,
DPOF and PictBridge compatible printer or a
DPOF-equipped photo lab.
(refer to page 71~78)
Down loading image files
from camera to computer.
(refer to page 110)
Editing images on a PC.
(refer to page 117)
Viewing images on a TV.
(refer to page 86)
Taking a picture.
(refer to page 23~54)

9
This digital camera can be used for
Inserting images directly into any
electronic document.
Taking a self-portrait and using the image
to personalize calendar.
You can even create your own unique gift wrap
paper by using your digital images.
Creation of a digital photo album.
Recording your voice.
(refer to page 25) Recording a movie clip.
(refer to page 26)

10
Manufacturer's contents
Please check that you have the correct contents before using this product.
marked contents are optional.
Digital Camera USB cableAV cablePouch Camera strap
Software CD Remote controlProduct warrantyUser manual
SD memory card 2 AA Alkaline
Batteries
Memory Stick Duo AC adapter
(SAC-51, 5.0V)
Battery
charger
Rechargeable
battery
AC cord
Battery charger
(SBC-L2) Rechargeable battery
AC cord
Digimax Power Pack : SLB-1437A KIT Digimax Battery I-Pack : SBP-1303 KIT

11
Identification of features
Front & Top
Shutter button
Viewfinder
Flash light amount sensor
Power button
Microphone
Lens
Auto Focus
lamp
Speaker
Flash
Mode dial
Function lamp& Self-timer lamp Remote control sensor
Lens ring
Mode dial lamp
Jog dial
SCL-T3755/W3755 conversion lens and SLA-3537 connection adapter are designed for the
Digimax digital cameras. They are sold separately depends on the camera model.
Please check local retailers for the purchase. Please see page 31 or included manual for the
usage.
TELE Conversion lens
Model Name: SCL-T3755
Extends camera lens focus to 1.7 times.
WIDE conversion lens
Model Name: SCL-W3755
Extends camera lens focus to 0.7 times.
Conversion lens adapter
Model Name: SLA-3537
Used to attach a WIDE/ TELE conversion
lens to the camera.

Please keep the LCD monitor closed while not using the camera.
Please do not over twist the rotational LCD monitor to prevent camera damage.
Rotational range : 180 degrees horizontal to the camera.
180 degrees to forward and 90 degrees to backward while opened.
Back & Bottom
12
Identification of features
AEL/ COPY button
MF/ DELETE button
Viewfinder
Flash indicator lamp(Red)
Autofocus indicator lamp(Green) Zoom W button
(Thumbnail)
Zoom T button
(Digital zoom)
S button
Play mode buttonTripod socket
LCD monitor
USB/ AV connection terminal
5-function button
DC input
connection
point
* When using the digital zoom to take a picture, the composition of the picture may be different
depending on whether you are using the LCD monitor or the viewfinder. The picture will be
taken in the composition of the picture as it appears on the LCD monitor.
Please do not flip or twist the LCD monitor to the arrow direction.
Strap eyelet
LCD button
INFORMATION

13
Identification of features
PROGRAM mode
Please select this mode for quick and easy picture taking
with minimal user interaction.
Selecting the automatic mode will configure the camera with
optimal settings. You can still manually configure all
functions except the iris and shutter speed.
AUTO mode

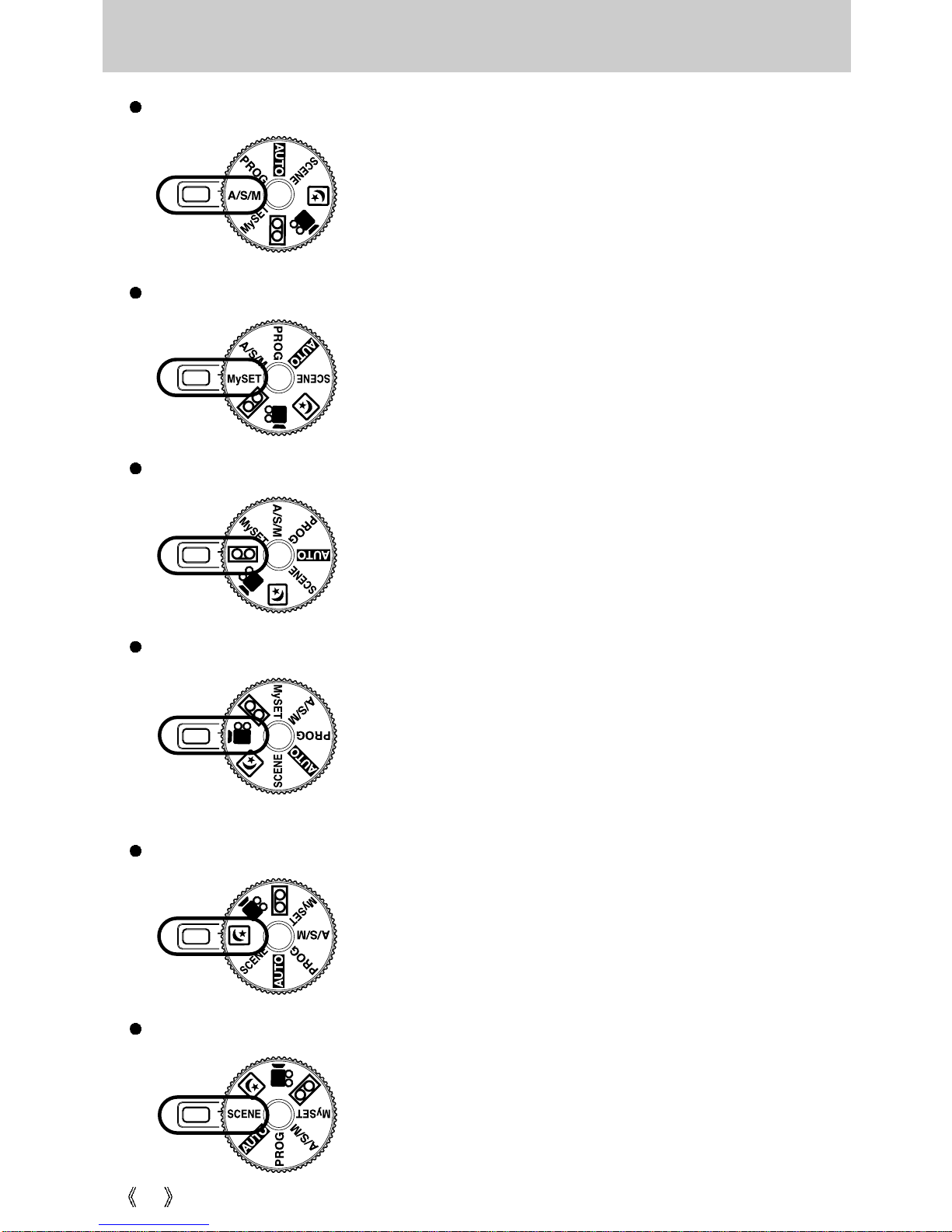

You can select the desired working mode by using the mode dial located on the top of the
camera. This digital camera has 8 recording modes. These are listed below.
FLASH/
LEFT
button
MENU/ OK button
Macro / DOWN button
Play & Pause button
SELF-TIMER/
RIGHT button
Voice memo/ UP button
Side/ 5-function button
Mode dial
SD(MMC)
memory
card slot
Memory Stick
DUO slot
Battery chamber
Battery
holder Battery chamber cover

14
Identification of features
A movie clip can be recorded for as long as the available
recording time of the memory capacity allows.
- Image size : 640x480, 320x240 (user selectable)
- Movie clip file type : *.mov
MOVIE CLIP mode
A voice recording can be recorded for as long as the available
recording time of the memory capacity allows.(Max : 1 hour)
- Voice recording file type : *.wav
VOICE RECORDING mode
Use the menu to easily configure optimal settings for a variety
of shooting situations including portrait, children, landscape,
close-up, sunset, dawn, backlight, fireworks, beach scenes,
and snowscape.
SCENE mode
A/S/M mode
This mode allows users to save frequently used shooting
settings for later use.
MySET mode
This mode is used at night or against a dark background.
NIGHT SCENE mode
The Aperture and Shutter can be set manually in the ASM
mode.
- A : Aperture priority mode
- S : Shutter priority mode
- M : Manual mode

15
Identification of features
Function Description
Power on Blue light blinks and then turns off when the camera is ready to take a picture.
After taking a picture Blue lamp blinks once.
While movie recording Blue lamp blinks at a 1-second interval.
While voice recording Blue lamp blinks at a 1-second interval.
After selecting the remote controller mode Blue lamp blinks at a 1-second interval.
For the first 7 seconds, the lamp blinks at 1 second intervals.
For the final 3 seconds, the lamp blinks quickly at 0.25 second intervals.
* The lamp will function while using the self-timer even if the
configuration is set to off the lamp.
(Based on 10-second Self-timer; see p. 37)
Color Status Camera Status
Blinking
Recording Mode (lightly press the shutter button): Not focused.
PC Mode: Transmitting Data.
Recording Mode (lightly press the shutter button): Focused.
PC Mode: When the USB cable is inserted.
On
Green
Color Status Camera Status
Blinking Flash in the process of charging.
Flash ready.
On
Red
Auto focus indicator lamp
Function lamp & Self-timer lamp
Flash indicator lamp
Color Status Camera Status
On Turned off the LCD with the LCD button.Green
Mode dial lamp
While the self timer
is functioning
MODE
Icon
Icon
MODE SCENE
AUTO
PROGRAM
A/S/M MySET
VOICE RECORDING
MOVIE CLIP
NIGHT SCENE
PLAY
CHILDREN
Mode icons
LANDSCAPE
CLOSE-UP
PORTRAIT SUNSET DAWN BACKLIGHT FIREWORKS BEACH&SNOW

16
Connecting to a Power Source
There are two ways in which to provide the camera with power. You can use batteries or
alternatively, you can use an AC(100 ~ 250V) Adapter (DC 5.0V 2.0A).
We recommend using batteries for a digital camera (Within a year from the date of
manufacture). The batteries are listed below.
Non rechargeable batteries : AA type - Alkaline(High capacity), Ni-Mn(High capacity),
Ni-Zn(High capacity), Lithium
CR-V3 type - Lithium
Rechargeable batteries : AA type - Ni-MH (over 2300mAh), Ni-Cd (over 1100mAh)
CR-V3 type - SBP-1303
Exclusive type - SLB-1437
Using the batteries
Battery status
Battery indicator
The batteries are fully
charged. Prepare new batteries.
There is no battery capacity.
Replace with new batteries.
There are 3 indicators for battery condition that are displayed on the LCD monitor.
Removing the battery
1. Turn off the camera power. Open the battery chamber cover and
move the battery holder aside. The battery will be released.
2. Take out the battery and close the battery chamber cover.
1. Open the battery chamber
cover by pushing in the
direction of the arrow.
2. Insert the batteries taking
note of the polarity (+ / -). 3. To close the battery chamber cover, push it
until it clicks.
: If the camera does not turn on after you have inserted batteries,
please check whether the batteries are inserted with the correct
polarity(+/-).
: Please use the following steps to remove the manufacturer’s
rechargeable battery SLB-1437.

17
Connecting to a Power Source
If you have access to a mains supply, using an AC
Adapter (SAC-51, 5.0V) allows the camera to be
used for long periods of time.
Plug the adapter into the connection point
(DC IN 5.0V) on the camera.
Remove the batteries from the camera when
using an AC adapter.
Using the AC power adapter (SAC-51, 5.0V)
Important information about battery usage
As for the AA type alkaline battery, you can only use the high capacity type.
Do not use the normal type alkaline battery.
When the camera is not used, turn off the camera power.
Do not recharge the non rechargeable batteries. It may cause an explosion.
Please remove the batteries if the camera will not be used for long periods.
Batteries can lose power over time and are prone to leaking if kept inside the camera.
We recommend high capacity ALKALINE batteries as manganese batteries cannot
deliver sufficient power.
Low temperatures (below 0 ) can affect the performance of the batteries and you may
experience reduced battery life.
Batteries will usually recover at normal temperatures.
Do not use old and new batteries at the same time.
During extended use of the camera, the camera body may become warm.
This is perfectly normal.
If the lamps blink once and camera doesn’t turn on by pressing the power button, it
means that there is no battery capacity. In this case, change the battery with new one.
Always turn off the power before taking the AC adapter out of the mains supply.
As with all mains powered devices, safety is important. Ensure that neither the camera
nor adapter comes into contact with water or metallic materials.
Please ensure that you use an AC adapter (SAC-51, 5.0V) with the correct specification
for the camera. Failure to do so may affect your warranty.
INFORMATION
DANGER

18
Instructions on how to use the memory card
Be sure to format the memory card (see p. 82) if you are using a newly purchased memory
for the first time, if it contains data that the camera cannot recognize, or if it contains images
captured with a different camera.
Turn off the camera power whenever the memory card is being inserted or removed.
Repeated use of the memory card will eventually reduce the memory card’s performance.
Should this be the case, you will need to purchase a new memory card.
Wear and tear on the memory card is not covered by the Samsung warranty.
The memory card is an electronic precision device.
Do not bend, drop or subject the memory card to any heavy impact.
Do not store the memory card in an environment with strong electronic or magnetic fields,
e.g. near loud speakers or TV receivers.
Please do not use or store in an environment where there are extremes in temperature.
Do not allow the memory card to become dirty or to come into contact with any liquid.
Should this happen, clean the memory card with a soft cloth.
Please keep the memory card in its case when not in use.
During and after periods of extended use, you may notice that the memory card is warm.
This is perfectly normal.
Do not use a memory card that is used in another digital camera or memory card reader.
Do not use a memory card formatted by another digital camera or memory card reader.
Maintenance of the memory card
If the memory card is subjected to any of the following, the recorded data may become
corrupted :
- When the memory card is used incorrectly.
- If the power is switched off or the memory card is removed while recording, deleting
(formatting) or reading.
Samsung cannot be held responsible for lost data.
It is advisable to copy important data onto other media as back-up e.g. floppy disks, hard
disks, CD etc.
If there is insufficient memory available : If you press the shutter button for the shot, a [CARD
FULL !] message will appear and the camera will not operate.
To optimize the amount of memory in the camera, replace the memory card or delete
unnecessary images stored on the memory.
Preserving the memory card data

19
Instructions on how to use the memory card
If you open the battery chamber cover when the camera power is turned on, the power
will turn off automatically.(Except for the exclusive type SLB-1437 battery)
Don't remove the memory card when the Auto focus lamp(Green) is blinking as this
may cause damage to data in the memory card.
INFORMATION
Recorded image size TIFF SUPER FINE FINE NORMAL 30 FPS 15FPS
2592X1944 1 11 23 35 - -
2272X1704 2 15 30 45 - -
2048X1536 3 18 36 53 - -
1600X1200 5 30 61 91 - -
1024X768 12 70 130 183 - -
640X480 29 183 305 457 - -
640X480 - - - - 1MIN 50SEC 3MIN 35SEC
320X240 - - - - 3MIN 35SEC 6MIN 47SEC
Still
Movie
clip
[ SD(Secure Digital) memory card ]
Write protect
switch
Label
Card pins
The camera can use SD Memory Cards, MMC (Multi Media Card), and Memory Stick Duo.
Please consult the enclosed manual for using the MMC and Memory Stick Duo.
The SD memory card has a write protect
switch that prevents image files from being
deleted or formatted.
By sliding the switch to the bottom of the SD
memory card, the data will be protected.
By sliding the switch to the top of the SD
memory card, the data protection will be
canceled. Slide the switch to the top of the SD
memory card before taking a picture.
When using a 32MB SD memory card, the specified shooting capacity will be as follows.
(These figures are intended as an indication of expected performance). These figures are
approximate as image capacities can be affected by variables such as subject matter.

20
Inserting the memory card
1. Turn the power off using the power button.
Open the battery chamber cover and press the memory card as
shown in the image and release.
2. Remove the memory card and close the battery chamber cover.
3. To close, push the battery chamber cover until you hear a click.
If the memory card does not slide in smoothly, do not attempt to
insert it by force. Check the direction of insertion, and then insert it
correctly. Do not insert the memory card the wrong way round.
Doing so may damage the memory card slot.
2. Have the front of the memory card facing toward the front of the
camera (lens) and the card pins toward the back of the camera
(LCD monitor), and then push the memory card into the card slot
until you hear a click.
* When inserting the Memory Stick Duo, please have the card pins
side facing up(toward the lens). Be careful not to insert the Memory
Stick Duo into the SD memory card slot.
1. Turn off the camera’s power and pull the battery chamber cover in
the direction of the arrow to open.
Removing the memory card
