Samsung SM-R210 User manual

www.samsung.com
User Manual
SM-R210
English. 02/2017. Rev.1.0

2
Table of Contents
Basics
3 About the Gear 360
4 Read me first
5 Package contents
6 Device layout
8 Indicator light
9 Camera status screen
11 Memory card
14 Battery
17 Attaching the strap to the Gear 360
18 Turning the Gear 360 on and off
19 Connecting the Gear 360 to a mobile
device
Using the Gear 360
22 Using the Gear 360’s menus
23 Using the Gear 360 solely
24 Connecting to a mobile device
remotely
25 Recording videos or taking photos
35 Live broadcast
36 Configuring camera settings
38 Viewing videos or images
44 Connecting the Gear 360 and a
computer
44 Transferring files to a computer
45 Settings
46 Updating the software
Appendix
47 Troubleshooting

3
Basics
About the Gear 360
The Gear 360 camera captures 360-degree videos and photos of you and your surroundings
in one shot. The two fisheye lenses capture lively photos and videos.
When you connect the Gear 360 to your mobile device via Bluetooth or Wi-Fi, you can capture
videos and photos remotely from your mobile device. You can also view, edit, and share
videos and photos.
If you connect the Gear 360 to a Gear VR, you can view your Gear 360 videos more realistically.

Basics
4
Read me first
Please read this manual before using this device to ensure safe and proper use.
•
Images may differ in appearance from the actual product. Content is subject to change
without prior notice. You can access the full user manual for more information. Visit
www.samsung.com to view device information, the user manual, and more.
•
Before using other devices, make sure they are compatible with the Gear 360. Visit
www.samsung.com to see a list of compatible mobile devices.
•
This product includes certain free/ open source software. To see the instructions for
viewing the open source license, go to the Samsung website (opensource.samsung.com).
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Notice: notes, usage tips, or additional information

Basics
5
Package contents
Check the product box for the following items:
•
Gear 360
•
USB Cable (USB Type-C)
•
Strap
•
Pouch
•
Quick start guide
•
The items supplied with the Gear 360 and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this Gear 360 and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the Gear 360 before purchase.
•
Use only Samsung-approved accessories. Using unapproved accessories may cause
the performance problems and malfunctions that are not covered by the warranty.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Basics
6
Device layout

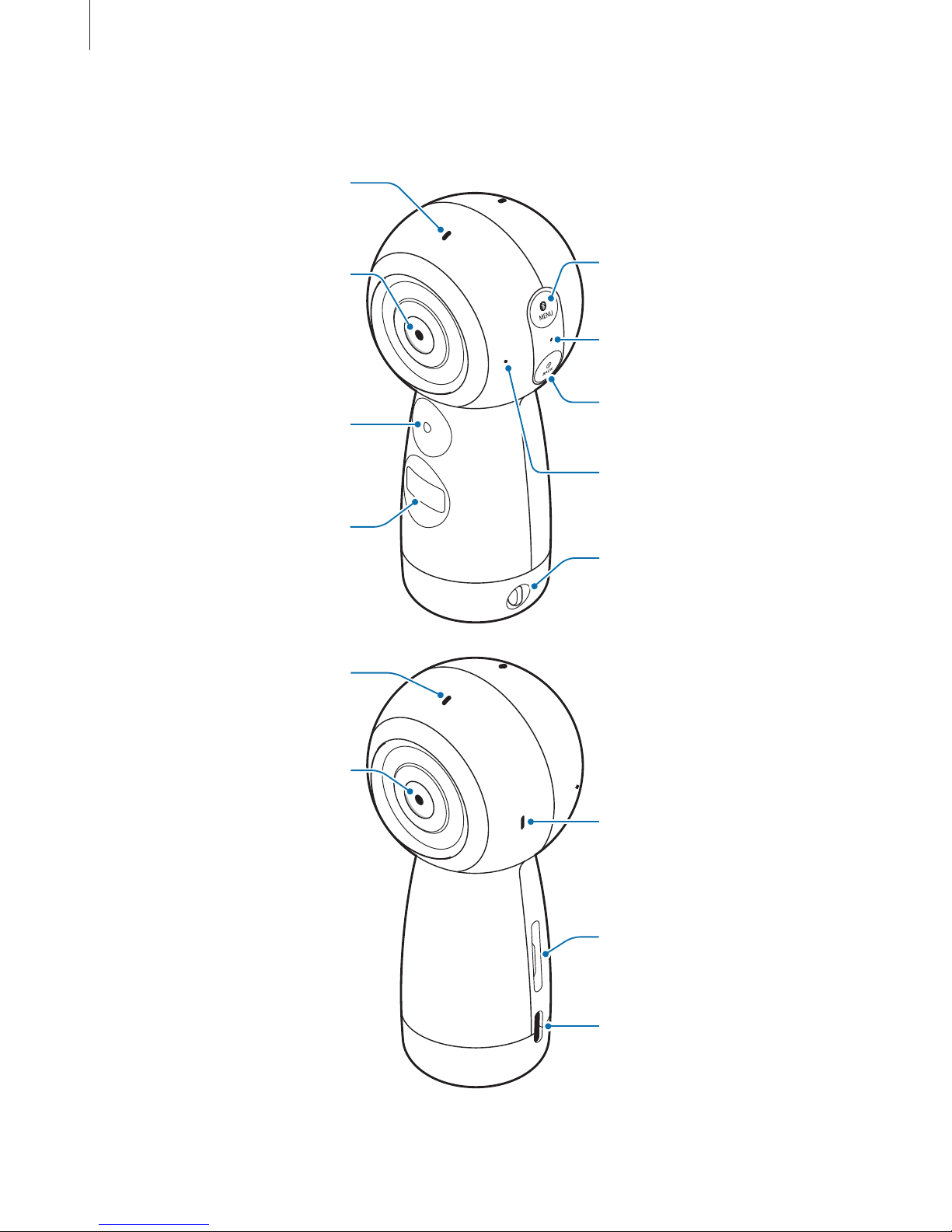

Strap hole
OK key
Front camera
Front camera status
light
Menu key
Indicator light
Camera status screen
Power key
Microphone
Speaker
Rear camera
Rear camera status
light
Memory card tray
Multipurpose jack

Basics
7
Tripod socket

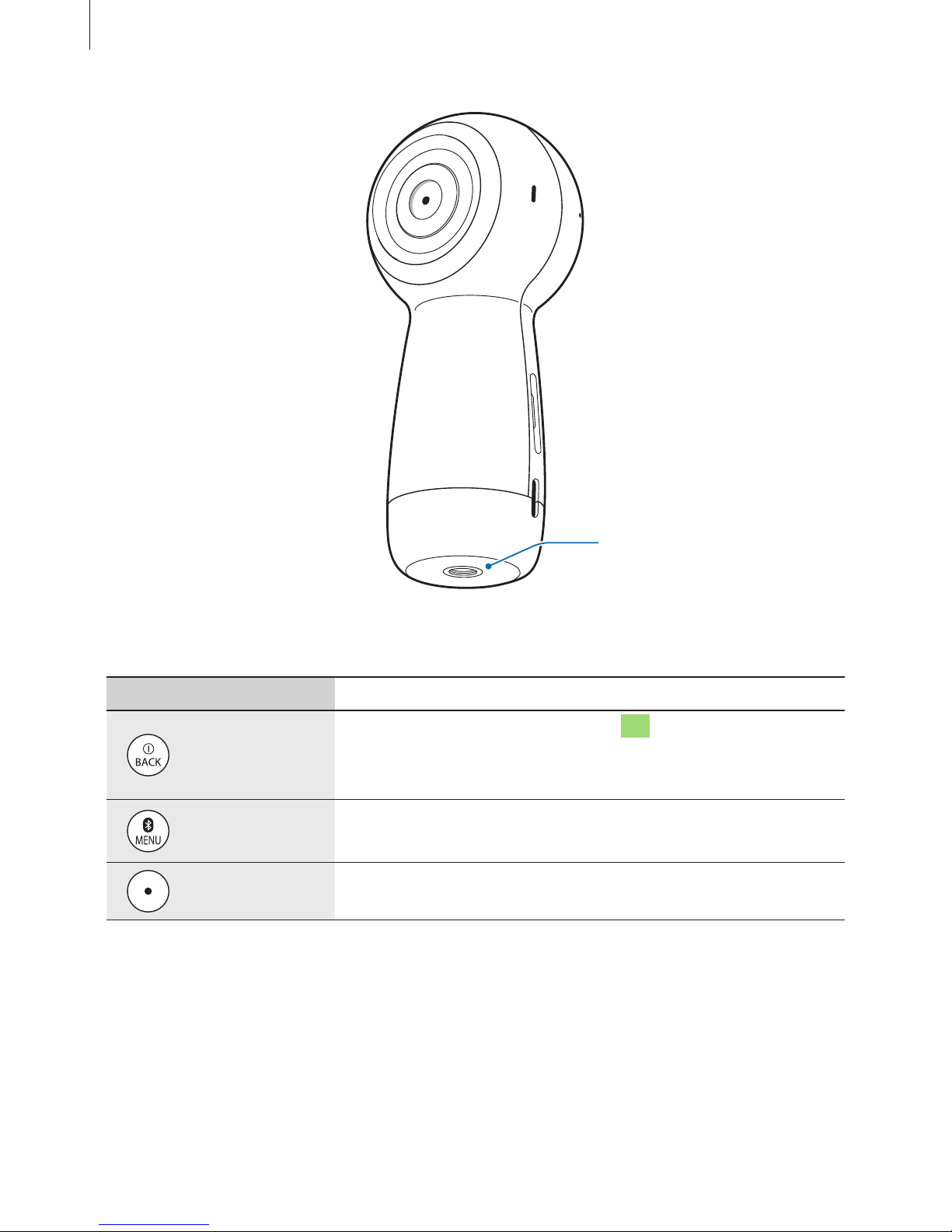

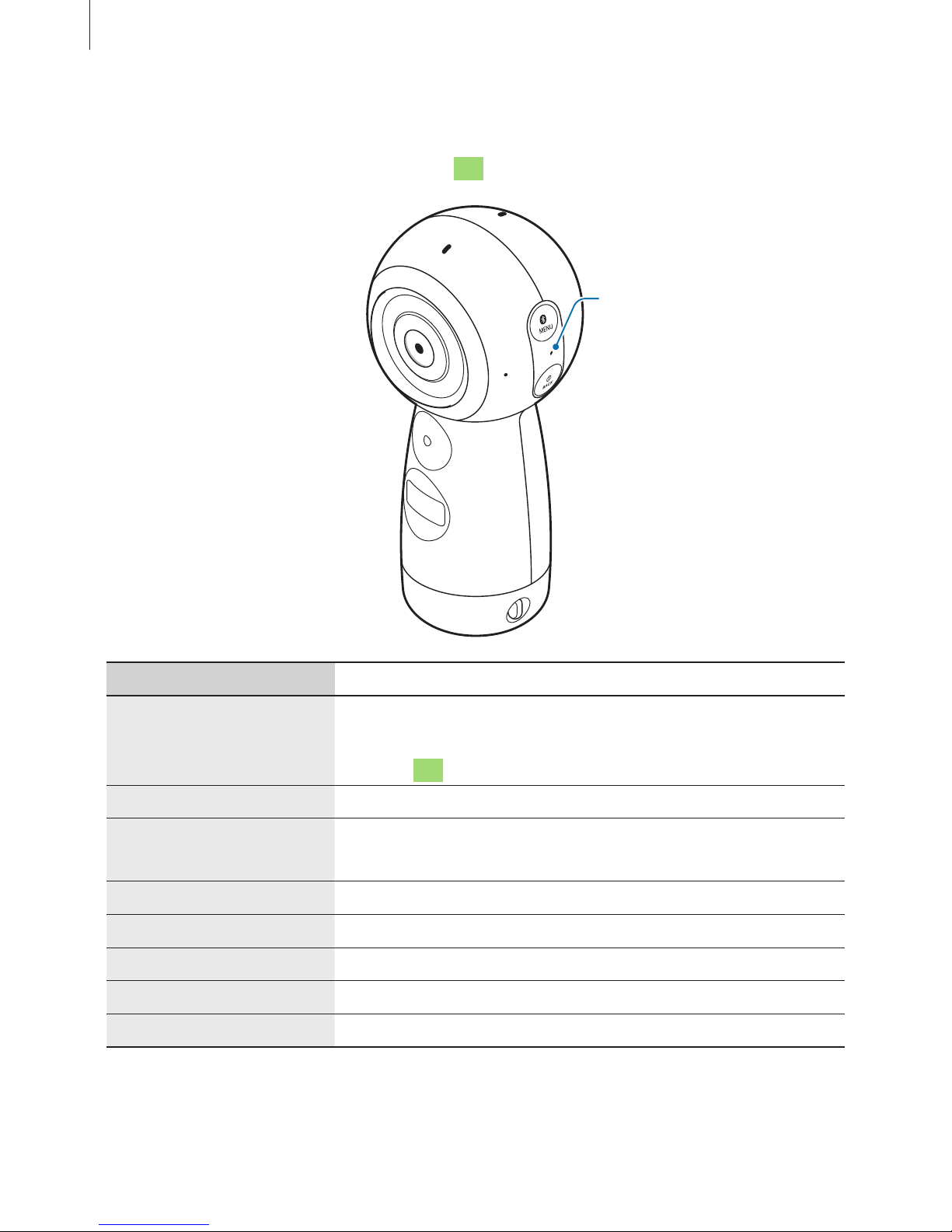

Keys
Key Function
Power
•
Press and hold to turn the Gear 360 on or off.
•
Press to return to the previous screen on the camera status
screen.
Menu
•
Press repeatedly to move to the menu you want.
•
Press and hold to access connection modes.
OK
•
Press to record a video or take a photo, or select the option
you want.

Basics
8
Indicator light
The indicator light informs you of your Gear 360’s status.
Indicator light
Colour Status
Flashes blue three times
•
Power on
•
Formatting a memory card or successfully resetting the
Gear 360
Flashes red three times
•
Power off
Flashes red
•
Battery power is low (lower than 10 %)
•
Overheating
Continuously on red
•
The battery is charging.
Continuously on green
•
The battery is fully charged.
Red
→
Green
→
Blue
•
Bluetooth pairing mode
Continuously on blue
•
Connected to a mobile device via Bluetooth
Flashes blue
•
Transferring videos or photos, or updating software

Basics
9
Camera status screen
Access options, such as camera modes and connection modes, and view the Gear 360’s status
via messages and indicator icons on the camera status screen.
Camera status screen
Indicator icons
Indicator icons appear on the camera status screen. You can check the Gear 360’s status on
the camera status screen.
Current shooting mode
Available video
recording
time/Available number
of photos you can take
Connected via
Bluetooth
Battery power/Charging
status

Basics
10
Icon Function
Battery power level
Battery charging status
•
: Charging
•
: Overheating
•
: Charger connected improperly
Connected to a mobile device via Bluetooth
Bluetooth pairing mode
Bluetooth pairing mode ended
Recording mode
Recording a video
Shooting mode
Time lapse mode
Take several photos at set intervals and save them as one video.
Time lapse shooting interval
Recording a time lapse video
Video looping mode
Record a video continuously by overwriting a set period of the previously
recorded content and saving the new content.
Video looping overwriting time
Landscape HDR mode
Taking photos with rich colours and reproduce details even in bright and
dark areas.
Memory card full
No memory card
Memory card error
Connected to computer
USB connection error

Basics
11
Memory card
Installing a memory card
A memory card must be inserted to take photos or record videos. Depending on the memory
card manufacturer and type, some memory cards may not be compatible with your device.
•
Some memory cards may not be fully compatible with the Gear 360. Using an
incompatible card may damage the Gear 360 or the memory card, or corrupt the
data stored in it.
•
If you use a slow writing memory card, the recording of your movie can be
interrupted because the card cannot process data at the rate the video is being
shot. If this occurs, replace the card with a faster memory card or reduce the video
size.
•
Use caution to insert the memory card right-side up.
•
Memory cards are sold separately.
•
If you insert or remove a memory card while the Gear 360 is turned on, the power
will turn off.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When a memory card is not inserted, Check SD Card is displayed on the camera
status screen.

Basics
12

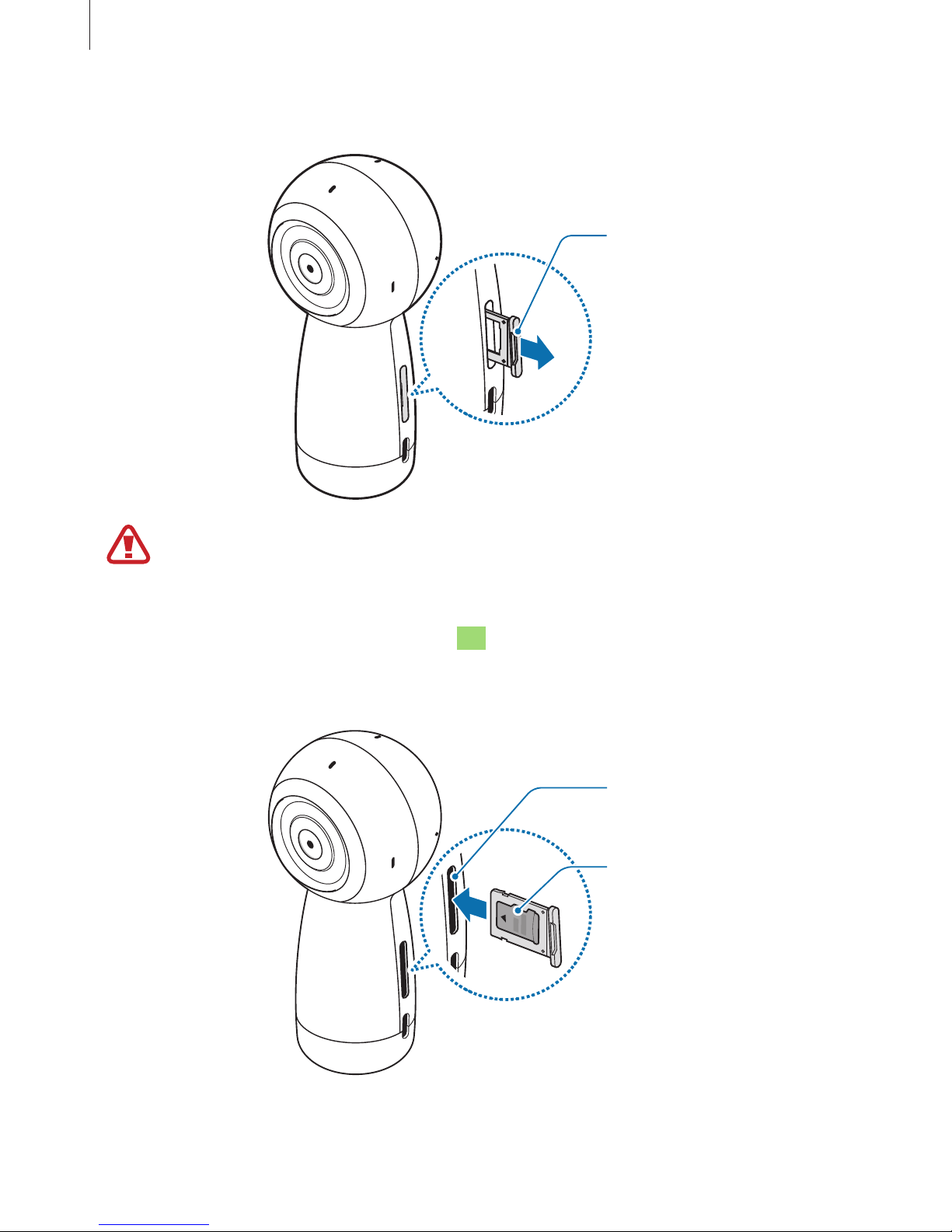

1 Pull out the memory card tray gently from the memory card tray slot.
Memory card tray
Be careful not to damage your fingernails when you remove the memory card tray.
2 Gently press the memory card into the memory card tray with the gold-coloured
contacts properly aligned with the Gear 360’s contacts.
3 Insert the memory card tray back into the memory card tray slot.
Memory card
Memory card tray slot

Basics
13
Removing the memory card
1 Pull out the memory card tray gently from the memory card tray slot.
2 Remove the memory card.
3 Insert the memory card tray back into the memory card tray slot.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the Gear 360. Format
the memory card on the Gear 360 or on the Samsung Gear 360 app.
Before formatting the memory card, remember to make backup copies of all
important data stored in the memory card. The manufacturer’s warranty does not
cover loss of data resulting from user actions.
Formatting on the Gear 360
1 Press the Menu key until
Settings appears on the camera status screen, and then press
the OK key to select it.
2 Press the Menu key until
Format appears on the camera status screen, and then press the
OK key to select it.
3 Press the Menu key until
Yes appears on the camera status screen, and then press the OK
key to select it.
A confirmation message will appear on the camera status screen when the formatting is
finished.

Basics
14
Formatting on the Samsung Gear 360 app
1 On the mobile device, tap
Samsung Gear 360 app
→
Settings .
2 Tap
Reset and format
→
Format Gear 360 SD card .
A confirmation message will appear on the camera status screen when the formatting is
finished.
If you want to format a memory card using the Samsung Gear 360 app, you must
connect the Gear 360 to the mobile device. Refer to Connecting the Gear 360 to a
mobile device for more information.
Battery
Charging the battery
Charge the battery before using it for the first time or when it has been unused for extended
periods.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the Gear.
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
Chargers are sold separately.
•
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.

Basics
15

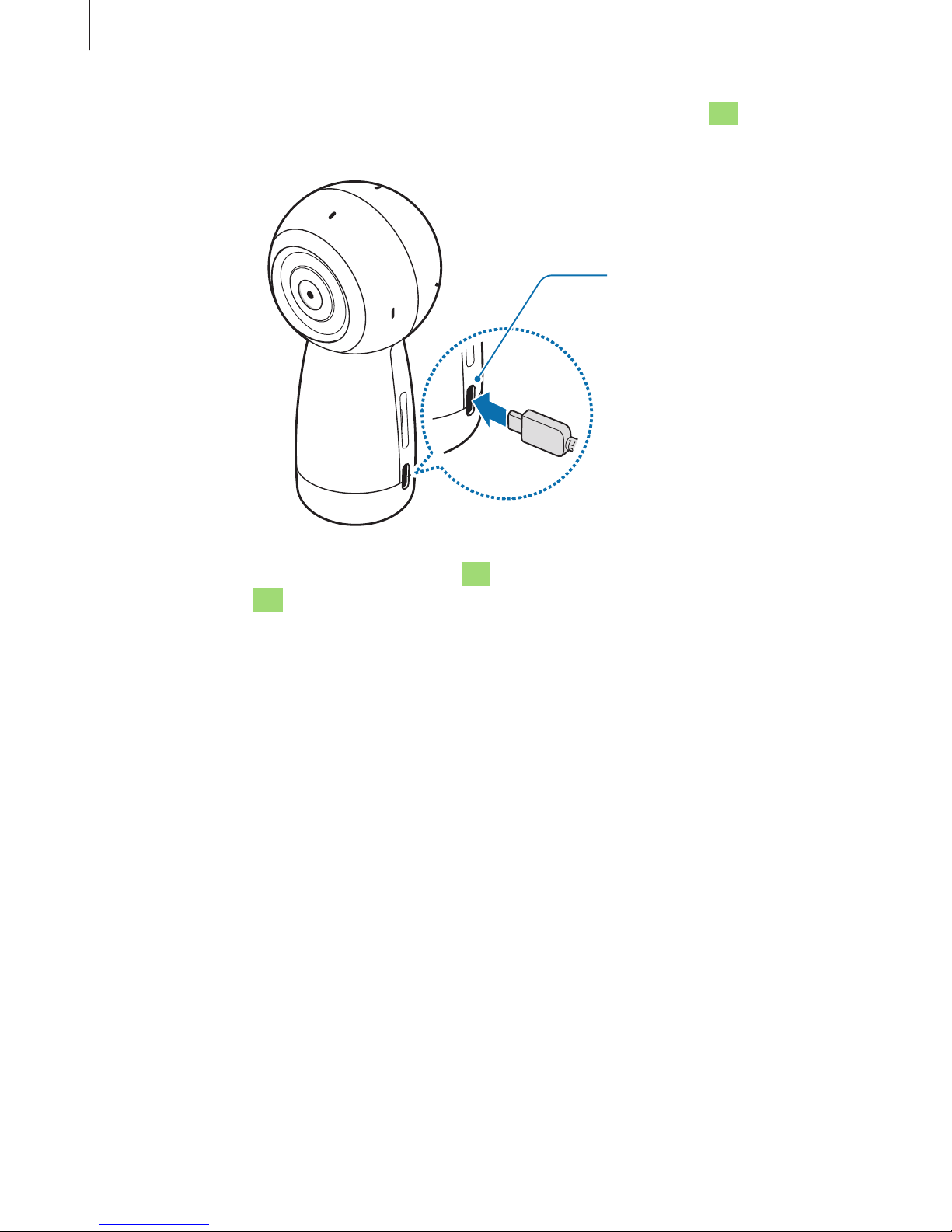

1 Plug the small end of the charger into the multipurpose jack of the Gear 360, and plug
the large end of the charger into an electric socket.
Multipurpose jack
2 After fully charging, disconnect the Gear 360 from the charger. First unplug the charger
from the Gear 360, and then unplug it from the electric socket.

Basics
16
Battery charging tips and precautions
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on immediately
when the charger is connected. Allow a depleted battery to charge for a few minutes
before turning on the device.
•
Using a power source other than the charger, such as a computer, may result in a slower
charging speed due to a lower electric current.
•
The device can be used while it is charging, but it may take longer to fully charge the
battery.
•
If the device receives an unstable power supply while charging, the touchscreen may not
function. If this happens, unplug the charger from the device.
•
While charging, the Samsung Gear 360 and the charger may heat up. This is normal and
should not affect the Samsung Gear 360’s lifespan or performance. If the temperature
rises above a certain level, battery charging will be stopped.
•
You cannot charge the Samsung Gear 360 while recording a video, using the time lapse
feature, or using the viewfinder remotely on the connected mobile device.
•
To save the battery power, activate the auto shut-off feature.
•
If the Samsung Gear 360 is not charging properly, take the Samsung Gear 360 and the
charger to a Samsung Service Centre.

Basics
17
Attaching the strap to the Gear 360

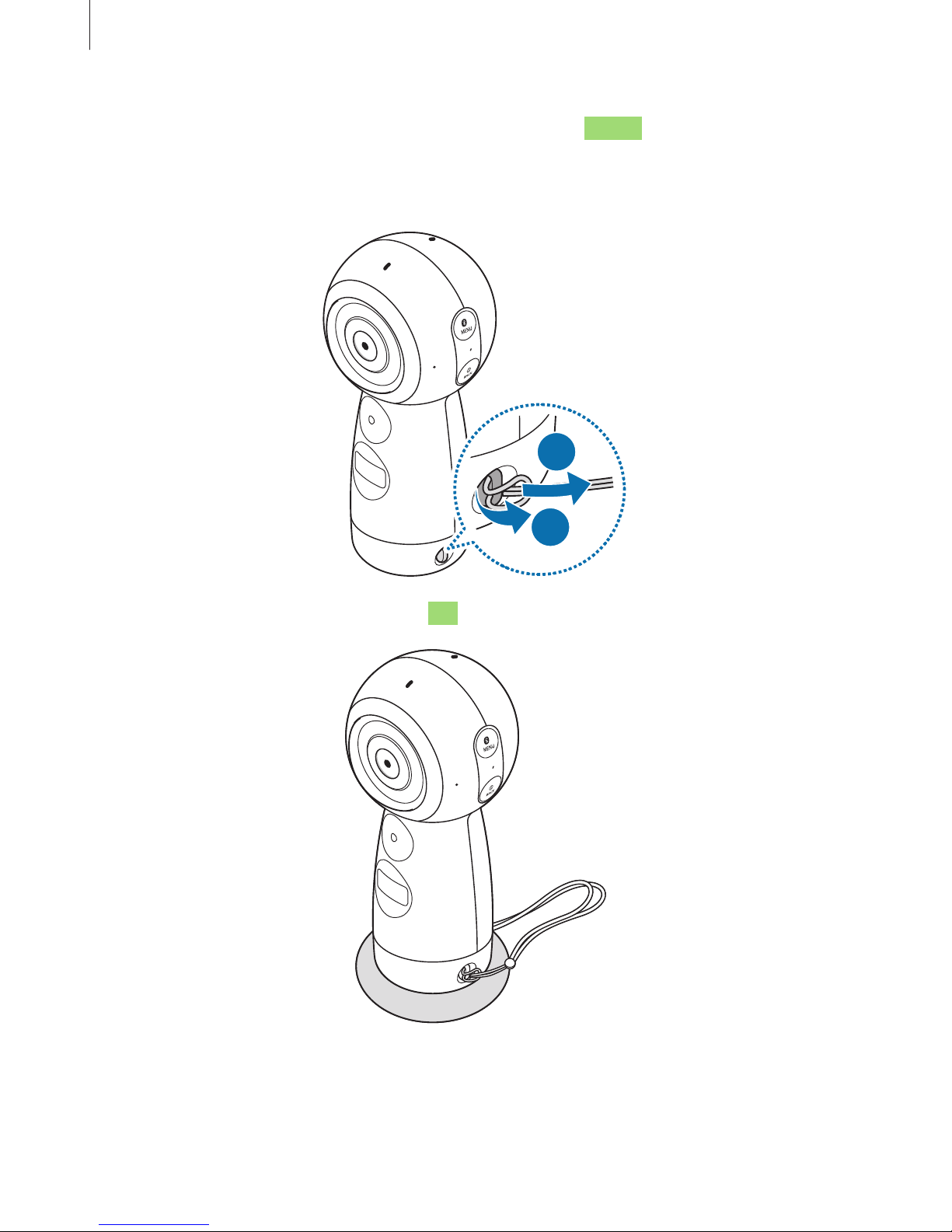

You can conveniently carry the Gear 360 by attaching the strap to the Gear 360. Insert the
strap into the strap hole, and then pull the loop.
1
2
You can also use the strap to fix the Gear 360 on a flat surface to record videos or take photos.

Basics
18
Turning the Gear 360 on and off
Press and hold the Power key to turn on the Gear 360.
To turn off the Gear 360, press and hold the Power key.
•
The Gear 360 turns off if the device is not used for a specified period. By using the
Auto power off after option, you can set the length of time the Gear 360 waits
before it turns off. Refer to Settings for more information.
•
Follow all posted warnings and directions from authorised personnel in areas, such
as aeroplanes and hospitals.
Restarting the Gear 360

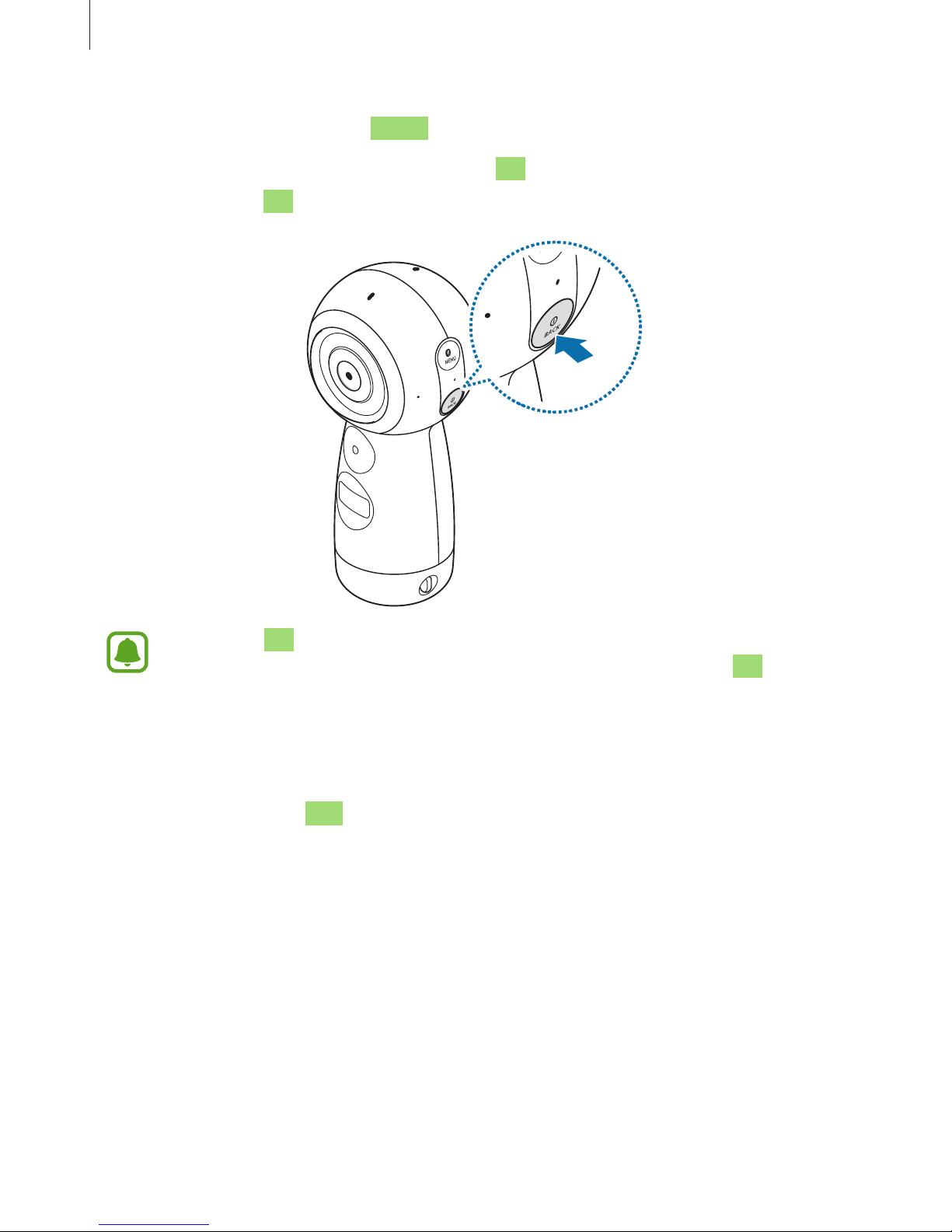

If your device is frozen and unresponsive, press and hold the Power key and the OK key
simultaneously for more than 7 seconds to restart it.

Basics
19
Connecting the Gear 360 to a mobile device
Installing the Samsung Gear 360 app
To connect your Gear 360 and mobile device, install the Samsung Gear 360 app on the mobile
device.
Depending on your device, you can download the Samsung Gear 360 app from the following
app stores:
•
Samsung Android devices: Galaxy Apps
•
Other Android devices: Play Store
•
iOS devices: App Store
Connecting to a mobile device via Bluetooth
To control the Gear 360 from your mobile device, the Gear 360 must be paired with the
mobile device. After the Gear 360 has paired with the mobile device, the Gear 360 will try to
connect to the mobile device every time you turn on the Gear 360.
After connecting the devices, you can record videos and take photos using the mobile device
and view the captured content on the mobile device via Wi-Fi Direct.
Connection methods may vary depending on your mobile device and its software
version. To connect with an iOS device, connect the Gear 360 with the mobile device
via a Wi-Fi network, launch the Samsung Gear 360 app, and then complete the
connection.
Gear 360
1 Turn on the Gear 360.
2 Press and hold the Menu key.
3 When
Android OS Gear360App appears on the camera status screen, press the OK key.
For iOS devices, when
iOS Gear360App appears on the camera status screen, press the
OK key.

Basics
20
Mobile device
4 Launch
Samsung Gear 360 app on the mobile device.
5 Tap
CONNECT TO GEAR 360 .
The mobile device will activate the Bluetooth feature and search the devices to pair with.
6 Follow the on-screen instructions to complete the connection.
When your Gear 360 and mobile device are connected, the Bluetooth icon will appear on
the camera status screen.
Disconnecting or reconnecting the Gear 360
On the mobile device, tap Samsung Gear 360 app
→ →
Disconnect . The Gear 360 will be
disconnected from the mobile device.
To reconnect the Gear 360, tap
CONNECT on the Samsung Gear 360 app’s screen.
