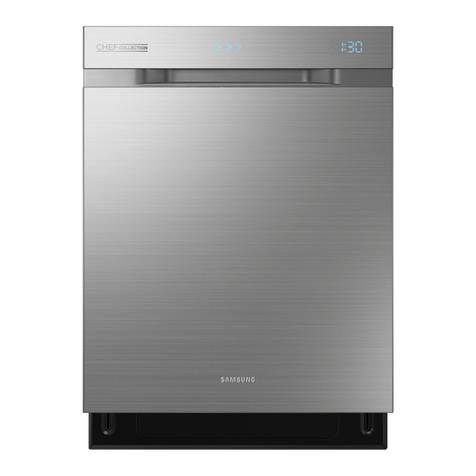

Samsung DW80H9950US/AA Reference manual

This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
SUBJECT: LE error code or water leak from
under the door
Background: Some instances of an LE error code or water leak from under the door are caused
by installation errors. Check the installation of the 90 degree elbow on the water valve. Make sure
that white Teflon tape has been used and that the elbow is tightened correctly. Also ensure that the
water supply line is properly tightened. In addition, check the condition of the drain hose in the
back of the dishwasher.
Make sure that the clamp
is correctly installed.
Ensure the hose is not
crimped.
SERVICE BULLETIN
Product:
Dishwasher
Bulletin Date: 8/18/2014
Bulletin Number: ASC20140818001
Models:
DW80H9930US/AA,
DW80H9950US/AA,
DW80H9970US/AA
ELECTRONICS
If the elbow is not connected
correctly, water can flow into the
shutter under the dishwasher and
cause an LE error code.
Make sure that the water line is
properly connected.
Water mark and LE
error caused by
installation defect.
Water mark and LE
error caused by
installation defect.

This information is published for informational purposes only and intended for use only by personnel qualified for the specific tasks
depicted. Qualified personnel are those who, based on their training and experience, are capable of identifying risks and avoiding
potential hazards when handling or servicing a product. Only qualified personnel should repair products powered by electricity. Any
attempt to handle, service or repair the product or products by anyone other than qualified personnel could result in serious injury or
death. You agree that your use of and reliance on this information is at your sole risk. This information is subject to change or update
without notice. There are no warranties, either expressed or implied, regarding the accuracy or completeness of this information.
Solution: If there is no Teflon tape on the elbow where it connects to the valve, install Teflon tape.
Tighten the elbow fitting taking care not to over tighten. The elbow fitting should be in the 4 o’clock
position to make it easier to connect the water supply line. For the drain hose, make sure the
clamp is in the correct position so that the drain hose is tightly connected to the dishwasher. If the
drain hose is damaged, order and replace the drain hose with the part listed below.
•Hose Drain-In DD67-00115A
Symptom 1
Symptom 2
Symptom 3
Symptom 4
L3
2
2
Note: Consult the Samsung Service Website at (http://.service.samsungportal.com) for the Service Manual
and other information on this product.
