Safety information
Congratulations on yournew Samsung dryer. This manual contains important information on the
installation, use, and care of your appliance. Please take the time to read this manual to take full advantage
of your dryer’s many benefits and features.
What you need to know about the safety instructions
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to caution and care when installing, maintaining, or
operating your dryer.
Always contact your manufacturer about problems or conditions you do not understand.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
CAUTION
To reduce the risk of fire or explosion, follow these basic precautions.
NOTE
Indicates that a risk of personal injury or material damage exists.
Read the instructions
These warning signs are here to prevent injuryto yourself and others.
Please follow them explicitly.
Afterreading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate
this appliance, familiarize yourself with its operation and exercise care when using it.
WARNING
Risk of Fire
• Clothes dryer installation must be performed by a qualified technician.
• Install the clothes dryeraccording to the manufacturer’s instructions and local codes.
• To reduce the risk of severe injury or death, follow all installation instructions.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 4 2020/12/10 11:11:47

English
English 5
Important safety precautions
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using
yourappliance, follow basic precautions, including the following:
1. This appliance is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible
for their safety.
2. Foruse in Europe: This appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
3. Children should be supervised to ensure that they do not play with
the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 5 2020/12/10 11:11:47

English
Safety information
English6
6. For appliances with ventilation openings in the base, that a carpet
must not obstruct the openings.
7. Foruse in Europe: Children of less than 3 years should be kept away
unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
9. The tumble dryer is not to be used if industrial chemicals have been
used for cleaning.
10. The lint trap has to be cleaned frequently, if applicable.
11. Lint must not to be allowed to accumulate around the tumble dryer.
(not applicable for appliances intended to be vented to the exterior of
the building)
12. Adequate ventilation has to be provided to avoid the back flow of
gases into the room from appliances burning other fuels, including
open fires.
13. Do not dry unwashed items in the tumble dryer.
14. Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes
and wax removers should be washed in hot waterwith an extra
amount of detergent before being dried in the tumble dryer.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 6 2020/12/10 11:11:47

English
English 7
15. Items such as foam rubber (latex foam), shower caps, waterproof
textiles, rubber backed articles and clothes or pillows fitted with foam
rubber pads should not be dried in the tumble dryer.
16. Fabric softeners, or similar products, should be used as specified by
the fabric softener instructions.
17. The final part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures
that the items will not be damaged.
18. Remove all objects from pockets such as lighters and matches.
19. WARNING: Never stop a tumble dryer before the end of the drying
cycle unless all items are quickly removed and spread out so that the
heat is dissipated.
20. Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
21. The appliance must not be installed behind a lockable door, a sliding
door or a doorwith a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
22. WARNING: The appliance must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by a utility.
Heat pump model only: The instructions shall also include the
substance of the following:
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 7 2020/12/10 11:11:47

English
Safety information
English8
WARNING: In the appliance enclosure or in the built-in structure,
keep ventilation openings clear of obstruction.
WARNING: Do not damage the refrigerant circuit.
To minimize the risk of fire in a tumble dryer, the following should be
observed
CAUTION
Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should
not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to
heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil.
Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard. If it is
unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care
products be placed in a tumble dryerthey should first be washed in hot water with extra detergent – this
will reduce, but not eliminate, the hazard. The ‘cool down’ cycle of tumble dryers should be used to reduce
the temperature of the items. They should not be removed from the tumble dryer or piled or stacked while
hot.
Items that have been previously cleaned in, washed in, soaked in or spotted with petrol/gasoline, dry-
cleaning solvents or other flammable or explosive substances should not be placed in a tumble dryer.
Highly flammable substances commonly used in domestic environments include acetone, denatured
alcohol, petrol/gasoline, kerosene, spot removers(some brands), turpentine, waxes and wax removers.
Items containing foam rubber(also known as latex foam) or similarly textured rubber. Like materials should
not be dried in a tumble dryer on a heat setting. Foam rubber materials can, when heated, produce fire by
spontaneous combustion.
Fabric softeners or similar products should not be used in a tumble dryerto eliminate the effects of static
electricity unless this practice is specifically recommended by the manufacturer of the fabric softener or
product.
Undergarments that contain metal reinforcements should not be placed in a tumble dryer. Damage to the
tumble dryer can result if metal reinforcements come loose during drying. When available a drying rack
could be used for such items.
Plastic articles such as shower caps or babies’ waterproof napkin covers should not be placed in a tumble
dryer.
Rubber-backed articles, clothes fitted with foam rubber pads, pillows, galoshes and rubber-coated tennis
shoes should not be placed in a tumble dryer.
Do not dry unwashed items in the tumble dryer(orwashing machine drying mode,etc).
Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, Kerosene, spot
removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 8 2020/12/10 11:11:48

English
English 9
Items such as foam rubber(latex foam), shower caps, waterproof textiles, rubber backed articles and
clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
The final part of a tumble dryer cycle occurs without heat(cool down cycle) to ensure that the items are left
at a temperature that ensures that the items will not be damaged.
Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble
dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat
cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items
can prevent heat from escaping and so create a fire hazard.
If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care
products be placed in a tumble dryerthey should first be washed in hot water with extra detergent - this
will reduce, but not eliminate, the hazard.
Never stop a tumble dryerbefore the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Remove all objects from pockets such as lighters and matches.
The tumble dryer(or washing machine drying mode, etc) is not to be used if industrial chemicals have been
used for cleaning.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
Plug the power cord into a wall socket and use the socket for this appliance only. In addition, do not use an
extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
• Ensure that the powervoltage, frequency and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire. Failure Plug the power plug into the
wall socket firmly.
Remove all foreign substances such as dust orwaterfrom the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.
Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to
children.
• If a child places a bag over its head, it may result in suffocation.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 9 2020/12/10 11:11:48

English
Safety information
English10
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national codes.
Do not install or keep the product exposed to the outdoorelements.
Do not use a damaged powerplug, damaged power cord or loose wall socket.
• This may result in electric shock or fire.
If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or
a similar qualified technician in orderto avoid a hazard.
This appliance should be positioned to be accessible to the power plug after installation.
Do not pull or excessively bend the power cord.
Do not twist ortie the powercord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
Do not pull the power cord, when unplugging the power plug.
• Unplug the power plug by holding the plug.
• Failure to do so may result in electric shock or fire.
This appliance must be properly grounded. Never plug the power cord into a receptacle that is not
grounded adequately and in accordance with local and national codes. See installation instructions for
grounding this appliance.
Install this appliance in a location with solid, level floor.
• Failing to do so may result in abnormal vibrations, noise or problems with the product.
Since an ingredient in hair spray may degrade the hydrophile property of the heat exchanger so that dew
may appear on the outer surface of the appliance when the cooling operation is running, do not install the
appliance in a beauty salon.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Critical usage warnings
WARNING
Do not let children or pets on or into the product. In addition, when disposing of this product, disassemble
the door lock (lever).
• This may result in children falling and injuring themselves.
• If children become locked in the product, there is a danger of suffocation.
Do not try to access the inside of the product when the drum is rotating.
Do not sit on the product or lean against the door.
• This may result in the product turning over and resulting in injury.
Dry the laundry only after it was spun by an appropriate washing machine.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 10 2020/12/10 11:11:48

English
English 11
Do not dry unwashed items in the tumble dryer.
Do not drink the condensed water.
Never stop a tumble dryerbefore the end of the drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
Do not dry laundry contaminated by inflammable materials such as gasoline, kerosene, benzene, thinner,
alcohol, etc.
• This may result in electric shock, fire or explosion.
Do not let pets chew or play with the dryer.
• This may result in electric shock or injury.
When disposing of the product, separate the door and the power cord before disposing of the product.
• Failing to do so may result in damage to the power code or an injury.
Do not touch the power plug with wet hands.
• This may result in electric shock.
When gas (city gas, propane gas, LP gas) leaks, do not touch this appliance or the power cord, ventilate
immediately.
• At this time, do not use the ventilating fan.
• A spark may cause an explosion or fire.
Do not repair, replace, or attempt to service any part of the appliance unless specifically recommended in
the user-repair instructions. You must also have the skills necessary to service this appliance.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use any fuse(such as cooper, steel wire, etc.) other than the standard fuse.
• When repairing or reinstalling the appliance is required, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.
The product you have purchased is designed for domestic use only.
The use forbusiness purposes qualifies as product misuse. In this case, the product will not be covered
by the standard warranty provided by Samsung and no responsibility can be attributed to Samsung for
malfunctions or damages resulting from such misuse.
If the product generates strange noise, smells of something burning, or generates smoke, immediately cut-
off the powerand contact the service center.
• Otherwise, it may cause an electric shock or fire as a result.
Do not let children (orpets) play in or on your product. The product door does not open easily from the
inside and children may be seriously injured if trapped inside.
Usage cautions
CAUTION
Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes,
dishes, chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 11 2020/12/10 11:11:48

English
Safety information
English12
Do not touch the glass door and inside of the drum during or just after drying as it is hot.
• This may result in burns.
The door glass becomes hot during drying. Therefore, do not touch the door glass.
Also, do not allow children to play around the dryer or touch the doorglass.
• This may result in burns.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
Do not dry laundry containing forming rubber (latex) or similar rubber textures.
• If forming rubberis heated, it may start a fire.
Do not dry laundry contaminated byvegetable oil or cooking oil as a large amount of the oil will not be
removed when washing the laundry. In addition, use the unheated dry cycle so that the laundry is not
heated.
• The oxidization heat of the oil may start a fire.
Do not dry laundry contaminated by foreign substances such as oil, cream, lotion, or other chemicals that
are used in places such as skincare room, massage parlor, beauty salon, or hospital.
• This may result in electric shock, fire, malfunction, and injury.
Make sure that the pockets of all clothing to be dried are empty.
• Hard, sharp objects, such as coins, safety pins, nails, screws, or stones can cause extensive damage to
the appliance.
Do not dry clothing with large buckles, buttons, or other heavy metal (zippers, hooks and eyelets, button-
up covers).
If necessary, use the laundry net for small and lightweight laundry such as fabric tie belt, apron strings, and
underwire bras which can dissolve or break during a cycle.
Dryer sheets are compatible with this model, and are recommended for better drying performance.
Dryer sheets are also beneficial in reducing the static electricity generated during a drying cycle. Static
electricity could lead to damage of laundry items and potentially the appliance.
Do not use the dryernear dangerous powders such as coal dust, wheat flour, etc.
• This may result in electric shock, fire or an explosion.
Do not place inflammable materials near the product.
• This may result in toxic gases from the product, damage to parts, electric shock, fire or an explosion.
• The appliance should not be placed behind lockable doors etc.
Do not touch the rear side of the appliance during or immediately after drying is complete.
• The appliance remains hot and may cause burns.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 12 2020/12/10 11:11:48

English
English 13
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use benzene, thinner or alcohol to clean the appliance.
• This may result in discoloration, deformation, damage, electric shock or fire.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or fire.
Clean the filter case before and after using the dryer.
Clean the inside of the product on a regular basis by asking an authorized service engineer.
Clean the Heat Exchanger with a soft brush orvacuum cleaner once a month, Do not touch the heat
exchangerwith your hand. Otherwise, it may cause an injury.
The interior of the dryer should be cleaned periodically by qualified service personnel.
Care forpreventing freezing
• Install the dryer in an area where the temperature does not drop below zero degree Celsius.
• If draining directly using a long drain hose, water remaining inside the hose can freeze in winter. Make
sure there is no water left inside the hose after use.
• If the drain hose has frozen, wrap the hose with a towel soaked in warm waterfor approximately ten
minutes to thaw it.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 13 2020/12/10 11:11:48

English
English14
Installation
What’s included
Carefully unpack the dryer. Keep all packaging materials away from children. The parts and location of
parts shown below may differ from your dryer. Before installation, make sure the dryer has all the parts
listed here. If the dryer and/or parts are damaged or missing, contact the nearest Samsung customer
service center.
Dryerat a glance
ՋՍ
ՋՎ
ՋՌ
ՋՐ
ՋՒ
ՋՑ
ՋՏ
01 Top cover 02 Water tank
03 Door 04 Heat exchanger
05 Control panel 06 Lint filter
07 Levelling feet
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 14 2020/12/10 11:11:48

English
English 15

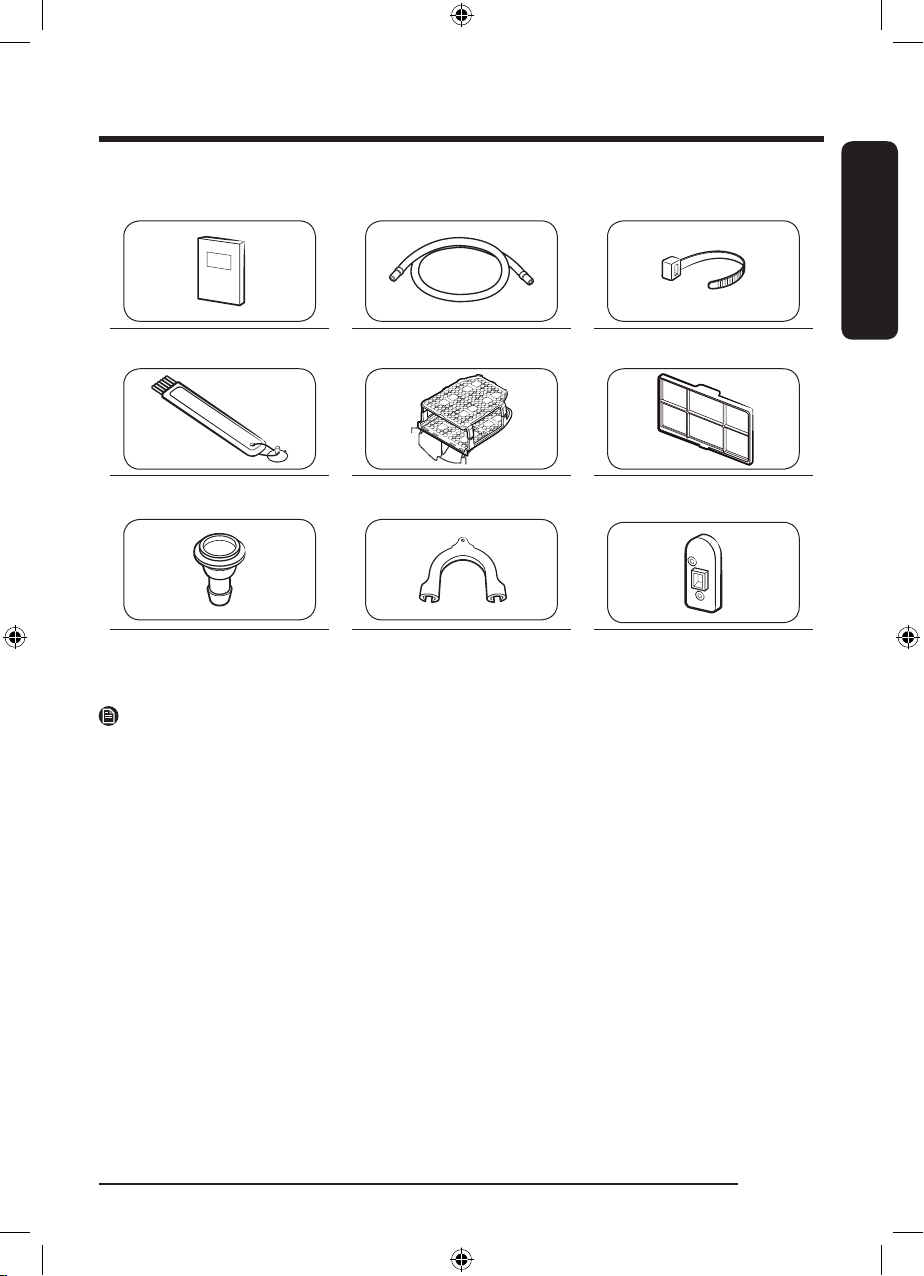

Accessories (supplied)
User manual Long drain hose (3 m) Cable tie
Cleaning brush Drying rack Micro soft filter(Optional Filter)
Hose connector Hose guide Holder lever (applicable models
only)
NOTE
• The stacking kit allows the dryer to be stacked on top of a washing machine. Please note that the
stacking kit can only be used with Samsung washing machine and dryers. To purchase a stacking kit
above, contact a Samsung service centre or local appliance retailer. The stacking kit differs with the
washing machine model.
• For stacking instructions with the dryer, see the installation manual included in the stacking kit.
• For information on which stacking kit model you can use to stack your dryer on the washing machine,
see the user manual included in your Samsung washing machine.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 15 2020/12/10 11:11:50

English
Installation
English16
Installation requirements
NOTE
This dryer must be installed by a qualified installer. If service is required due to poor or faulty installation,
it is considered the owner’s responsibility and mayvoid the warranty. Keep these instructions for future
reference.
WARNING
• Do not plug the power cord into a wall outlet before the dryer is completely installed.
• Have two or more persons help move the dryer.
• Do not let children or pets play in, on, or around the dryer. Proper supervision is necessary at all times.
• Keep all packaging materials away from children.
• Do not replace a damaged power cord or power plug yourself. Have Samsung ora qualified service
technician replace a damaged power cord or power plug.
• Do not attempt to repair, disassemble, or modify the dryer. For any repairs, contact the nearest Samsung
service center.
• Remove the door/lids from all discarded appliances to avoid children from suffocating.
• If the dryer generates a strange noise, burning smells, or smoke, unplug the power plug immediately
and contact the nearest Samsung service center.
• Do not unplug the dryer while it is operating.
• Do not place flammable objects near the dryer.
Electrical and grounding requirements
• The dryer requires an AC 220-240 V / 50 Hz electrical supply.
• The dryer must be properly grounded. If the dryer malfunctions or breaks down, grounding reduces the
risk of electric shock by providing a path of least resistance for the electric current. The dryer comes
with a power cord that has a 3-prong grounding plug. The plug must be plugged into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• If you have any questions regarding the electrical or grounding requirements, please contact Samsung
or a qualified electrician.
WARNING
• Plug the power cord into a grounded, 3-prong outlet.
• Do not use a damaged powerplug, cord, or loose or damaged wall outlet.
• Do not use an adapter or an extension cord.
• Improper connection of the equipment-grounding conductor may result in electric shock. If you are
unsure if the dryer is properly grounded, check with a qualified electrician.
• Do not modify the power plug, powercord, or power outlet in any way.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water pipes.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 16 2020/12/10 11:11:50

English
English 17
Alcove or closet installation
For alcove or closet installation, the dryer requires the following minimum clearances:
Sides Top Front Rear
20 mm 25 mm 490 mm 50 mm
If installing the dryerwith a washing machine, the front of the alcove or closet must have an unobstructed
air opening of at least 550 mm.
Step-by-step installation
Before you install your dryer, make sure you have read Installation requirements on page 16.
STEP 1 Select a location
Location requirements
Select a level, well-constructed surface that will withstand vibrations. Select a location where a grounded,
3-prong outlet is easily accessible.
For convenience, consider installing the dryer next to your washing machine.
WARNING
• Install the dryer indoors only.
• Do not install the dryerin areas exposed to the weather.
• Do not install the dryerwhere the temperature may fall below 5 °C or rise above 35 °C.
• Do not install the dryerwhere gas may leak.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 17 2020/12/10 11:11:50

English
Installation
English18
STEP 2 Adjust the levelling feet
A
B
1. Gently slide the dryer into the desired location.
2. Use a level (A) and check the levelness of the dryer
from side to side and front to back.
3. If the dryer is not level, turn the levelling feet (B) left
or right to adjust the height.
4. Once the dryer is level, make sure the dryer stands
firmly on the floor.
5. Plug in the dryer.
C D
NOTE
• To set the dryer to the same height as the washing
machine, turn the levelling feet to the right until it
fully retracts (C). Then, turn the levelling feet to the
left to extend (D) it until the dryer and the washing
machine are the same height.
• Extend the levelling leg only as much as necessary.
Extending the levelling leg more than necessary can
cause the dryer to vibrate.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 18 2020/12/10 11:11:51

English
English 19
STEP 3 Connect the drain hose
Draining directly to a drainage system
9

• We strongly recommend draining condensed water
directly to your drainage system instead of draining
to the built-in water tank.
• Use the provided accessory hose (long drain hose) to
drain condensed water directly to your drain system
instead of draining to the built-in water tank (which is
a default method).
• Use the built-in water tank only if you cannot drain
the condensed water directly to a drainage system.
NOTE
As a factory default, this dryer is set to use the built-in
watertank to drain condensed water.

9
1. Remove the water tank drain hose from the drain
water outlet (A), and then insert it to the holder (B).
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 19 2020/12/10 11:11:52

English
Installation
English20

ՋՌ
01 70 mm
2. Insert one end of the accessory hose (long drain
hose) into drain water outlet (A).
3. Place the other end (outlet) of the accessory hose at
least 70 mm away from a drain hole.
Placing the accessory hose overa wash basin
A
CB
1. Make sure to place the end of the accessory hose
lower than 90 cm (*) from the bottom of dryer.
2. To bend some point of the accessory hose, use the
supplied plastic hose guide (B) and secure the guide
to the wall with a hook or to the tap with a piece of
string. Assemble the drain hose (A) and the hose
guide (B) and fix them with the cable-tie (C).
3. You can drain the condensed water by connecting the
accessory hose (long drain hose) to the drain-outlet
directly.
CAUTION
Do not extend the drain hose. Water may leak from the
connected area. Use a long drain hose.
DV8700TK_SimpleUX_DC68-04223A-00_AU_EN.indd 20 2020/12/10 11:11:52
