Samsung DV50K7500E(G) series User manual

Dryer
User manual
DV50K7500E(G)*, DV45K6500E(G)*, DV45K6200E(G)*
DV7500K-03381C-00_EN_160218.indd 1 2016-02-18  1:19:27

Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 5
Warnings 7
Cautions 8
Installation requirements 10
Key installation requirements 10
Location considerations 10

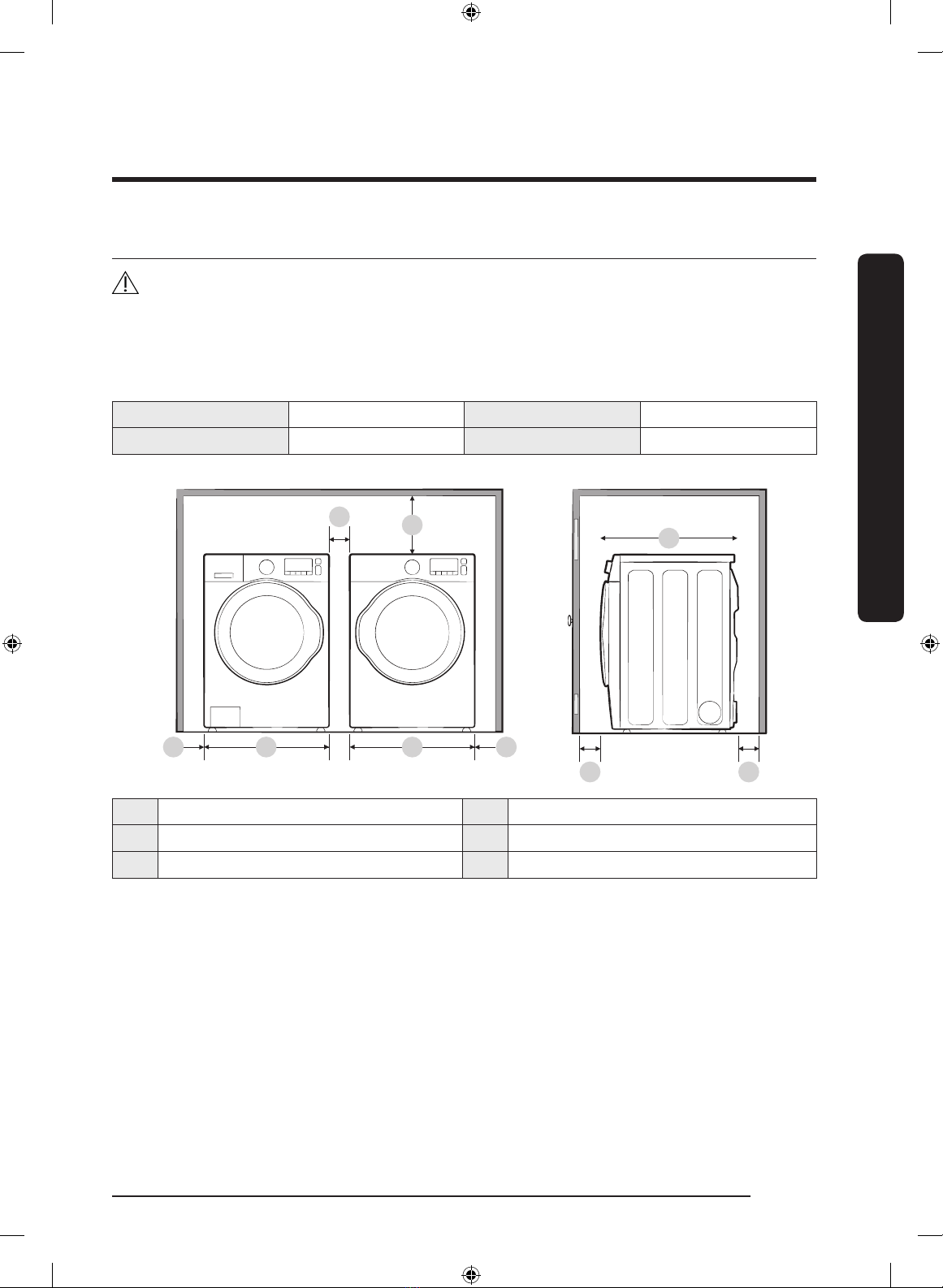

Alcove or closet installations 11
Ducting requirements 14

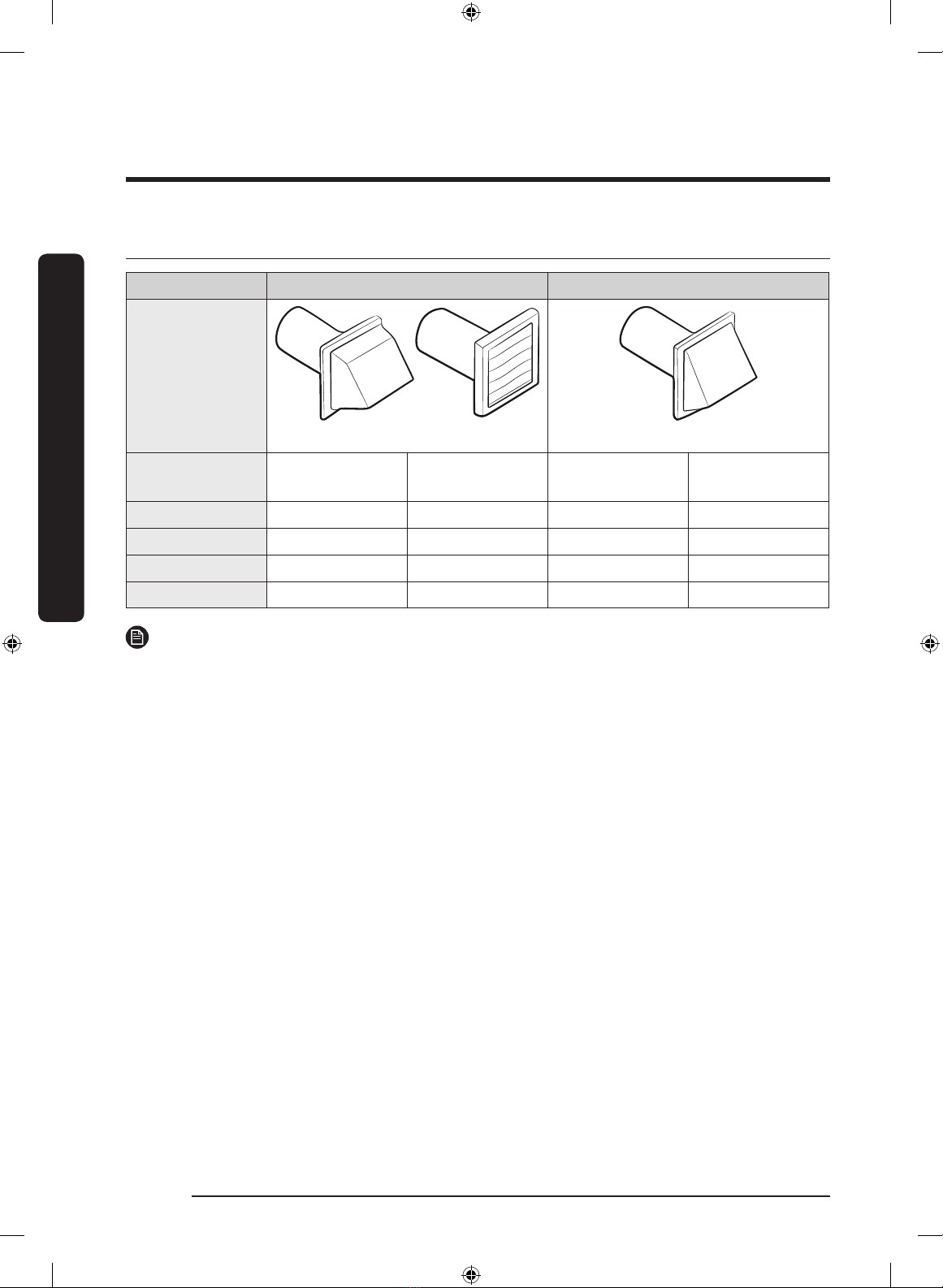

Exhausting requirements 15
Gas requirements 16
Electrical requirements 17
Installation 19

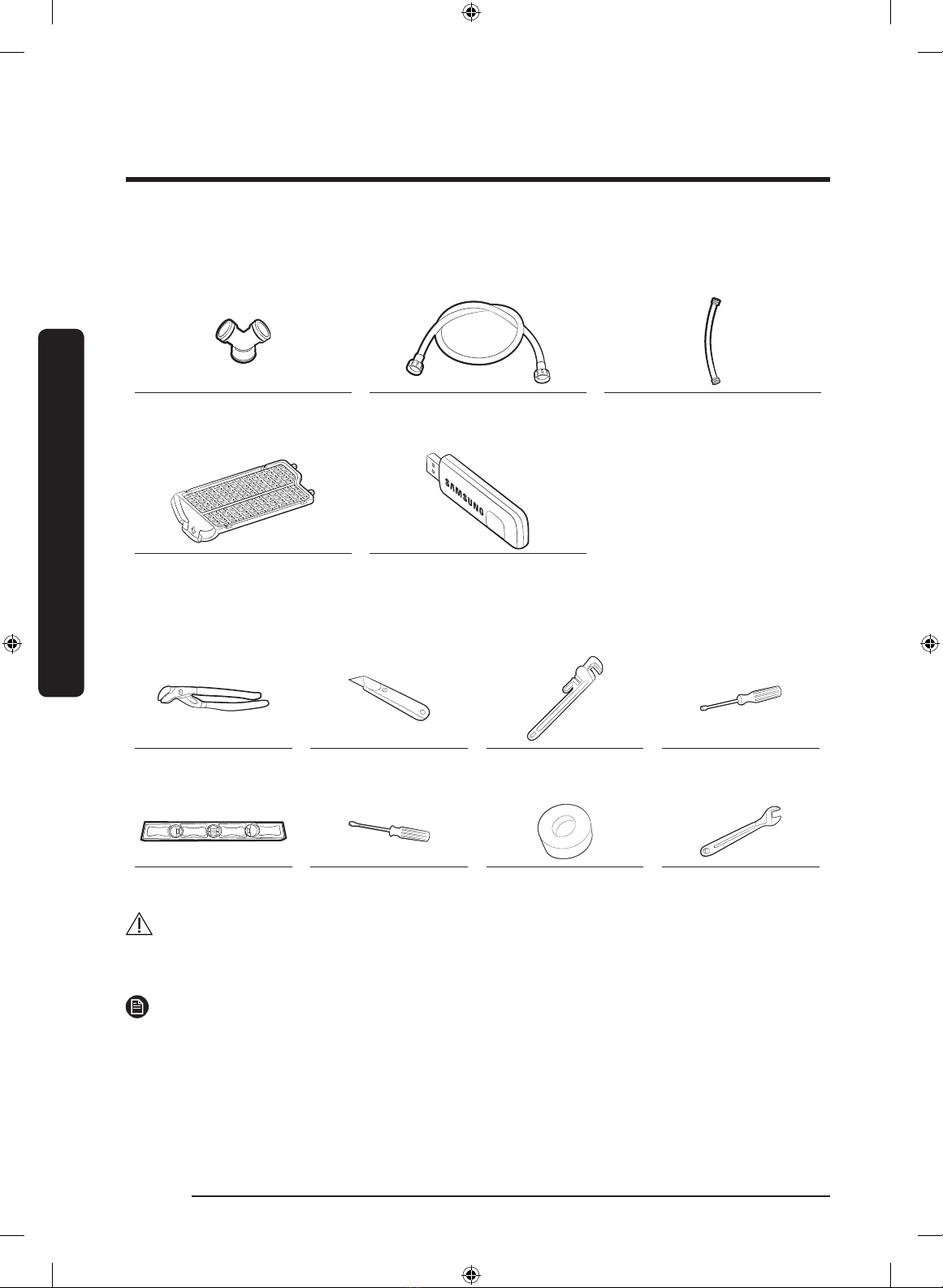

What’s included 19
Step-by-step installation 21
Vent blockage test 31
Exhaust ducting guide 32
Door reversal 33
Before you start 36
Sort and load 36
Functional prerequisite 36
Rack Dry (applicable models only) 37
Operations 39
Feature panel 39
Simple steps to start 44
Cycle overview 45
Drying guide 46
Special features 48
Samsung Smart Home (applicable models only) 50
DV7500K-03381C-00_EN_160218.indd 2 2016-02-18  1:19:27

Contents
English 3
Maintenance 53
Vent sensor 53
Cleaning 54
Troubleshooting 55
Checkpoints 55
Samsung Smart Home 58
Information codes 59
Specications 60
Fabric care chart 60
Protecting the environment 61
Specication sheet 62
Cycle chart 63
DV7500K-03381C-00_EN_160218.indd 3 2016-02-18  1:19:27

Safety information
SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
DV7500K-03381C-00_EN_160218.indd 4 2016-02-18  1:19:27

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 5
WARNING - Gas Appliances:
• State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65 listed substances,
including but not limited to, benzene, carbon monoxide, formaldehyde and soot,
substances resulting from the incomplete combustion of natural gas or LP fuels.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons
when using your appliance, follow basic precautions, including the
following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any ammable substance,
such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner,
etc., or anything containing wax or chemicals, such as mops and cleaning cloths.
Flammable substances may cause the fabric to catch re by itself.
DV7500K-03381C-00_EN_160218.indd 5 2016-02-18  1:19:27

Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English6
4. Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
5. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
7. Do not reach into the appliance if the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with internal controls.
10. Do not repair or replace any part of the appliance or attempt any service unless
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-
like materials.
14. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
15. The interior of the appliance and exhaust duct should be cleaned periodically by
qualied service personnel.
16. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch
re.
17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in
“Installation” section.
18. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
19. Do not insert your hand under the dryer.
• This may result in injury.
20. Take care that children’s ngers are not caught in the door when closing it.
• This may result in injury.
21. The control board and inlet valve are intentionally not grounded and may present a
risk of electric shock only during servicing.
• Do not contact these parts while the appliance is energized.
DV7500K-03381C-00_EN_160218.indd 6 2016-02-18  1:19:27

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 7
WARNING - To reduce the risk of re or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Items containing foam rubber which may be labeled latex foam) or similarly
textured rubberlike materials must not be dried on a heat setting. Heated foam
rubber materials can, under certain circumstances, ignite spontaneously.
WARNING - What to do if you smell gas:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied installer, service agency, or
the gas supplier.
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,
i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Gas leaks may occur in your system, resulting in a dangerous situation.
DV7500K-03381C-00_EN_160218.indd 7 2016-02-18  1:19:28

Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English8
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
• Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user-repair instructions and you have the
understanding and skills to carry out the procedure.
• Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
the installation instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
DV7500K-03381C-00_EN_160218.indd 8 2016-02-18  1:19:28

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 9
• Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
DV7500K-03381C-00_EN_160218.indd 9 2016-02-18  1:19:28

Installation requirements
English10
Installation requirements
Read through the following instructions before installing the dryer and keep this manual
for future reference.
WARNING
The control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact these parts while the appliance is energized.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except
in Canada).
• Gas lines (for gas models) that must
meet national and local regulations.
• An exhaust system made of rigid metal
or exible stiff-walled metal exhaust
ducting.
WARNING
Remove the door from all discarded
appliances to prevent a child from
suffocating.
Location considerations
The dryer should be located where there
is enough space at the front for loading
the dryer, and enough space behind for
the exhaust system. This dryer is factory-
ready for the rear exhaust option. To
exhaust out the bottom, right or the left,
use the accessory exhaust kit. Instructions
are included with the kit. Make sure
the room in which the dryer is located
has enough fresh air. The dryer must
be located where there are no air-ow
obstructions. For gas dryers, adequate
clearance must be maintained as noted
on the data plate to ensure adequate
air for combustion and the proper dryer
operation.
The dryer must not be installed or stored
in an area where it will be exposed to
water and/or weather. The dryer area must
be kept clear of combustible materials,
gasoline, and other ammable vapors and
liquids. A dryer produces combustible lint.
The area around the dryer should be kept
lint-free.
DV7500K-03381C-00_EN_160218.indd 10 2016-02-18  1:19:28

Installation requirements
English 11
Alcove or closet installations
WARNING
• The dryer must be exhausted to the
outside to reduce the risk of re when
installed in an alcove or closet.
• No other fuel-burning appliance should
be installed in the same closet as the
dryer.
Minimum clearances between the dryer and adjacent walls or other surfaces:
Sides 1 in. (25 mm) Rear 5.9 in. (150 mm)
Top 17 in. (432 mm) Closet front 2 in. (51 mm)
AA
B B
AC
E
D F
A1 in. (25 mm) D2 in. (50 mm)
B27 in. (686 mm) E32.6 in. (828 mm)
C17 in. (432 mm) F5 in. (127 mm)
DV7500K-03381C-00_EN_160218.indd 11 2016-02-18  1:19:28

Installation requirements
Installation requirements
English12
Installation with pedestal
A
C
E F
D
B
A38.7 in. (984 mm) D
53.4 in. (1395 mm) - DV50K7500*
53 in. (1345 mm) - DV45K6500*, 6200*
to clear open door
B53.3 in. (1355 mm) E32.6 in. (828 mm) - DV50K7500*
32.4 in. (823 mm) - DV45K6500*, 6200*
C27 in. (686 mm) F5 in. (127 mm)
DV7500K-03381C-00_EN_160218.indd 12 2016-02-18  1:19:28

Installation requirements
English 13
Installation with stacked washing machine and dryer
KJ
I
LHG
E
F
D
C
A
B
A3 in. (76 mm) G1 in. (25 mm)
B48 in2. (3100 mm2)H27 in. (686 mm)
C24 in2. (1550 mm2)I5 in. (127 mm)
D3 in. (76 mm) J1 in.(25 mm)
E6 in. (152 mm) K36.3 in. (922.6 mm) - DV50K7500*
35.1 in. (891.6 mm) - DV45K6500*, 6200*
F78.5 in. (1994 mm) L8 in. (203 mm)
NOTE
The front of the closet must have two unobstructed air openings (B, C) for a combined
minimum total area of 72 in² (465 cm²) with a minimum clearance of 3 in. (7.6 cm) at the
top (A) and bottom (D).
External exhaust elbow requires additional space (L).
NOTE
Stacking (MODEL NO: SKK-7A)
Samsung’s Washer and Dryer can be stacked to maximize usable space.
The dryer legs need to be removed to stack the Washer and Dryer. You can purchase an
optional stacking kit from your Samsung retailer.
DV7500K-03381C-00_EN_160218.indd 13 2016-02-18  1:19:28

Installation requirements
Installation requirements
English14
Ducting requirements
Recommended Use only for short-run installation
Weather hood
type
4” (10.2 cm) 2.5” (6.4 cm)
No. of 90°
elbows Rigid Metallic exible* Rigid Metallic exible*
080 ft. (24.4 m) 41 ft. (12.4 m) 74 ft. (22.6 m) 33 ft. (10.1 m)
168 ft. (20.7 m) 37 ft. (11.2 m) 62 ft. (18.9 m) 29 ft. (8.8 m)
257 ft. (17.4 m) 33 ft. (10.1 m) 51 ft. (15.5 m) 25 ft. (7.6 m)
347 ft. (14.3 m) 29 ft. (8.8 m) 41 ft. (12.5 m) 21 ft. (6.5 m)
NOTE
* Use a 4-inch (10.2 cm) diameter rigid aluminum or galvanized steel duct.
If you integrate the dryer’s vent system with an existing exhaust system:
• Make sure the exhaust system meets all applicable local, state, and national regulations.
• Verify you are not using exible plastic duct.
• Make sure to check for and remove all lint buildup from inside the existing ducts.
• Conrm the duct is not kinked or crushed.
• Make sure the exhaust hood damper opens and closes freely.
Manometer measurements
The static pressure in any exhaust system must not exceed 0.83 inches of water column
or be less than 0. Note that these values are measured with the dryer running with a
manometer presented to the exhaust duct that connects to the dryer. The dryer tumbler
must be empty and lint lter clean.
DV7500K-03381C-00_EN_160218.indd 14 2016-02-18  1:19:29

Installation requirements
English 15
Exhausting requirements
The dryer must not be exhausted into a
chimney, a wall, a ceiling, an attic, a crawl
space, or a concealed space of a building.
Exhausting the dryer to the outside will
prevent large amounts of lint and moisture
from being blown into the room.
In the United States and Canada
• All dryers must be exhausted to the
outside.
• The required exhaust duct is 4 inches
(10.2 cm) in diameter.
• See “Ducting requirements” in the
“Installation” section for the maximum
duct length and number of bends that
can be used.
• The total length of exible metal duct
must not exceed 7’ 10½” (2.4 m).
• Do not assemble the duct with screws
or other fasteners that extend into the
duct and catch lint.
• For the United States only: Use only
those foil-type exible ducts, if any,
specically identied for use with the
appliance by the manufacturer and that
comply with the Outline for Clothes
Dryer Transition Duct. Use Subject
2158A.
Outside the United States and Canada
• Refer to the local codes.
WARNING
• You must exhaust the dryer to the
outside to reduce the risk of re when
you install the dryer in an alcove or
closet.
• Do not use a plastic or non-metal
exible duct.
• If your existing ductwork is plastic, non-
metal, or combustible, replace it with
metal.
• Use only a metal exhaust duct that is
non-ammable to ensure containment
of exhaust air, heat, and lint.
DV7500K-03381C-00_EN_160218.indd 15 2016-02-18  1:19:29

Installation requirements
Installation requirements
English16
Gas requirements
WARNING
• Use only natural or LP (liquid propane)
gases.
• THE INSTALLATION MUST CONFORM
WITH LOCAL CODES, OR IN THE
ABSENCE OF LOCAL CODES, WITH
THE NATIONAL FUEL GAS CODE ANSI/
Z223.1, LATEST REVISION (FOR THE
UNITED STATES), OR WITH THE CAN /
CGA-B149 INSTALLATION CODES (FOR
CANADA).
• Gas dryers are equipped with a burner
vent for use with natural gas. If you
plan to use your dryer with LP (liquid
propane) gas, it must be converted
for safe and proper performance by a
qualied service technician.
• A 1/2” (1.27 cm) gas supply line is
recommended and must be reduced to
connect to the 3/8” (1 cm) gas line on
your dryer. The National Fuel Gas Code
requires that an accessible, approved
manual gas shut-off valve be installed
within 6” of your dryer.
• Gas dryers installed in residential
garages must be raised 18 inches (46
cm) above the oor.
• Additionally, a 1/8” (0.3 cm) N.P.T.
(National Pipe Thread) plugged tapping,
accessible for test gauge connection,
must be installed immediately upstream
of your dryer’s gas supply connection.
• Your dryer must be disconnected from
the gas supply pipe system during any
pressure testing of the system.
• Do not reuse old exible metal gas
lines. Flexible gas lines must be
design certied by the American Gas
Association (CGA in Canada).
NOTE
• Your dryer uses an automatic ignition
system to ignite the burner. There is no
constant burning pilot.
• Any pipe joint compound used must be
resistant to the action of any liqueed
petroleum gas.
• As a courtesy, most local gas utilities
will inspect a gas appliance installation.
Commonwealth of Massachusetts
installation instructions
Your dryer must be installed by a licensed
plumber or gas tter. A “T” handle manual
gas valve must be installed in the gas
supply line to your dryer. If a exible gas
connector is used to install your dryer, the
connector can be no longer than 3’ (36”).
WARNING
• Gas leaks may occur in your system,
creating a dangerous situation.
• Gas leaks may not be detected by smell
alone.
• Gas suppliers recommend you purchase
and install a UL-approved gas detector.
• Install and use in accordance with the
manufacturer’s instructions.
DV7500K-03381C-00_EN_160218.indd 16 2016-02-18  1:19:29

Installation requirements
English 17
Electrical requirements
The wiring diagram is located on the plate
under the control panel or rear frame.
WARNING
• Improperly connecting the equipment
grounding conductor can result in a
risk of electric shock. Check with a
qualied electrician or serviceman if
you are in doubt as to whether your
dryer is properly grounded. Do not
modify the plug provided with your
dryer – if it doesn’t t the outlet, have
a proper outlet installed by a qualied
electrician.
• To prevent unnecessary risk of re,
electrical shock, or personal injury, all
wiring and grounding must be done in
accordance with local codes, or in the
absence of local codes, in accordance
with the National Electrical Code, ANSI/
NFPA No. 70-Latest Revision (for the
U.S.) or the Canadian Electrical Code CSA
C22.1 – Latest Revisions and local codes
and ordinances. It is your responsibility
to provide adequate electrical service
for your dryer.
• All gas installations must be done in
accordance with the national Fuel Code
ANSI/Z2231 – Latest Revision (for the
U.S.) or CAN/CGA – B149 Installation
Codes – Latest Revision (for Canada)
and local codes and ordinances.
Grounding
This dryer must be grounded. In the event
of a malfunction or breakdown, the ground
will reduce the risk of electrical shock by
providing a path of least resistance for the
electrical current.
Gas models
WARNING
• Your dryer has a cord with an
equipment-grounding conductor and
a grounding plug. The plug must be
plugged into an appropriate outlet that
is properly installed and grounded in
accordance with all local codes and
ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
• Do not connect the ground wire to
plastic plumbing lines, gas lines, or hot
water pipes.
Electric models
WARNING
• Your dryer has an optional cord with
an equipment-grounding conductor
and a grounding plug. This cord is sold
separately.
• The plug must be plugged into an
appropriate outlet that is properly
installed and grounded in accordance
with all local codes and ordinances.
• Do not modify the plug provided with
your dryer – if it doesn’t’t t the outlet,
have a proper outlet installed by a
qualied electrician.
DV7500K-03381C-00_EN_160218.indd 17 2016-02-18  1:19:29

Installation requirements
Installation requirements
English18
• If a power cord is not used and the
electric dryer is to be permanently
wired, the dryer must be connected to
a permanently grounded metal wiring
system, or an equipment grounding
conductor must be run with the circuit
conductors and connected to the
equipment grounding terminal or lead
on the dryer.
Electrical connections
Before operating or testing, follow all
grounding instructions in the “Grounding”
section. An individual branch (or separate)
circuit serving only your dryer is
recommended.
Do not use an extension cord.
Gas models – U.S. and Canada
A 120 volt, 60 Hz AC approved electrical
service with a 15-ampere fuse or circuit
breaker is required.
Electric models – U.S. only
Most U.S. dryers require a 120 / 240 volt,
60 Hz AC approved electrical service.
Some require 120 / 208 volt, 60 Hz
approved electrical service. The electric
service requirements can be found on
the data label located behind the door.
A 30-ampere fuse or circuit breaker on
both sides of the line is required.
• If a power cord is used, the cord
should be plugged into a 30-ampere
receptacle.
• The power cord is not provided with
U.S. electric model dryers. This cord is
sold separately.
WARNING
Risk of Electric Shock
When local codes allow, you can connect
the dryer’s electrical supply with a new
power supply cord kit, marked for use with
a dryer, that is U.L. listed and rated at a
minimum of 120 / 240 volts, 30-amperes
with three No. 10 copper wire conductors
terminated with closed loop terminals,
open-end spade lugs with turned up ends,
or with tinned leads.
• Do not reuse a power supply cord from
an old dryer. The power cord electric
supply wiring must be supported at the
dryer cabinet by a suitable UL-listed
strain relief.
• Grounding through the neutral
conductor is prohibited for (1) new
branch-circuit installations, (2) mobile
homes, (3) recreational vehicles, and
(4) areas where local codes prohibit
grounding through the neutral
conductor. (Use a 4-prong plug for a
4 wire receptacle, NEMA type 14-30R.)
Electric models – Canada Only
• A 120 / 240 volt, 60 Hz AC approved
electrical service fused through a
30-ampere fuse or circuit breaker on
both sides of the line is required.
• All Canadian models are shipped
with the power cord attached. The
power cord should be plugged into a
30-ampere receptacle.
NOTE
In Canada, you may not convert a dryer to
208 volts.
DV7500K-03381C-00_EN_160218.indd 18 2016-02-18  1:19:29

Installation
English 19
Installation
This dryer must be installed by a qualied technician. The installer is responsible for
connecting the dryer to the main power while observing the relevant safety regulations of
your area.
What’s included
Make sure all the parts are included in the product package. If you have a problem with
the dryer or the accessories, contact a local Samsung service center or the retailer.
Dryer at a glance
01
02
04
03
05
06
01 Worktop 02 Control panel 03 Filter
04 Door 05 Exhaust duct 06 Smart Home Adapter
Port
DV7500K-03381C-00_EN_160218.indd 19 2016-02-18  1:19:29

Installation
Installation
English20
Accessories & tools
Provided accessories
Y connector Water hose
(Canadian models only)
Short water hose
Rack Dry
(DV50K7500E(G)* Only)
Smart Home Adapter
(sold separately)
Required tools
Pliers Cutting knife Pipe wrench
(gas models only)
Nut screwdriver
Level Philips screwdriver Duct tape Wrench
WARNING
Packing materials can be dangerous to children. Keep all packing materials (plastic bags,
polystyrene, etc.) out of children’s reach.
NOTE
The Smart Home Adapter is available for purchase only on the Samsung website (www.
samsung.com).
DV7500K-03381C-00_EN_160218.indd 20 2016-02-18  1:19:30
