Contents
English2
Contents
Safety information 4
What you need to know about the safety instructions 4
Important safety symbols 4
Important safety precautions 6
Warnings 8
Cautions 8
Installation requirements 10
Key installation requirements 10
Location considerations 10

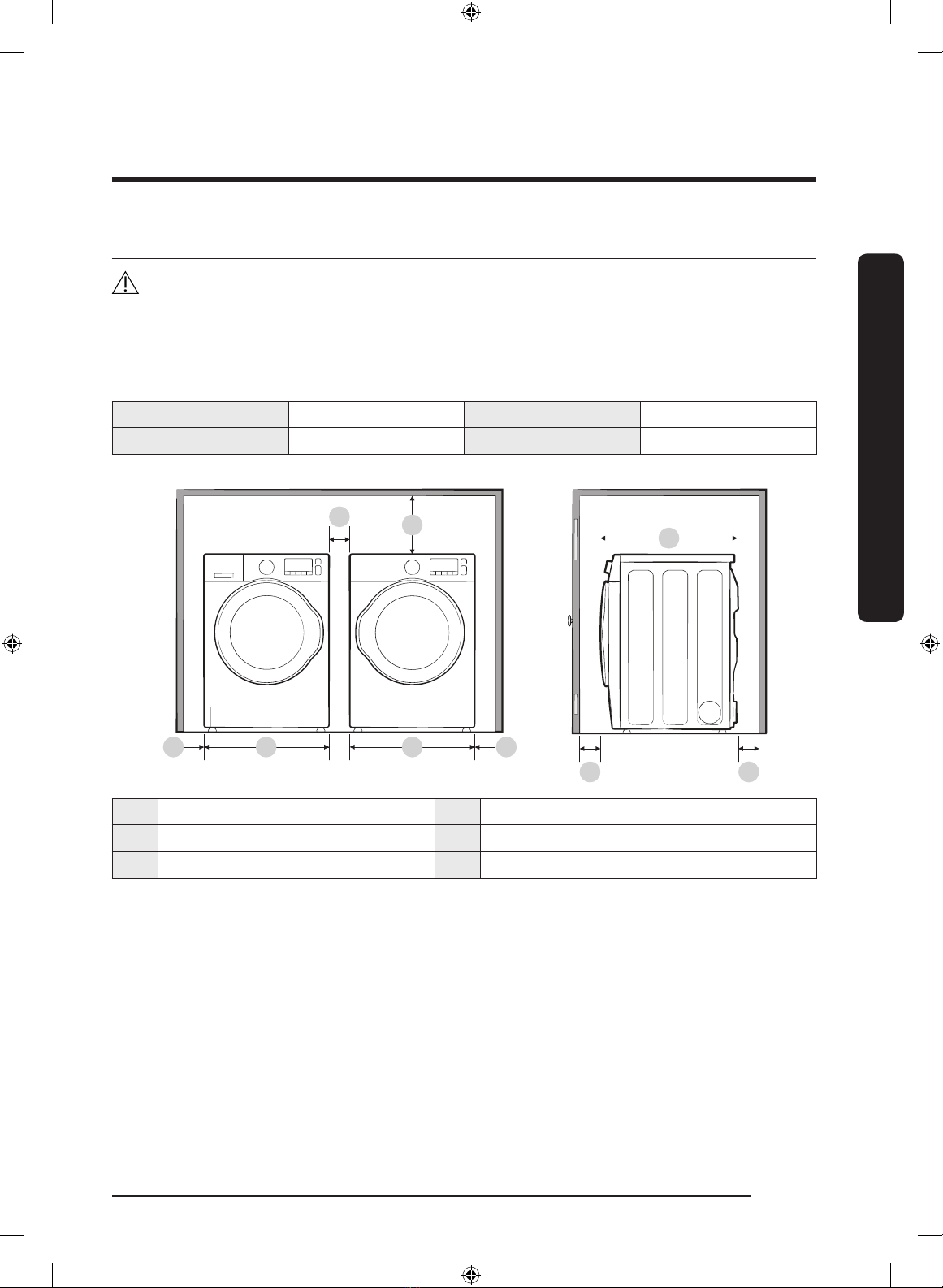

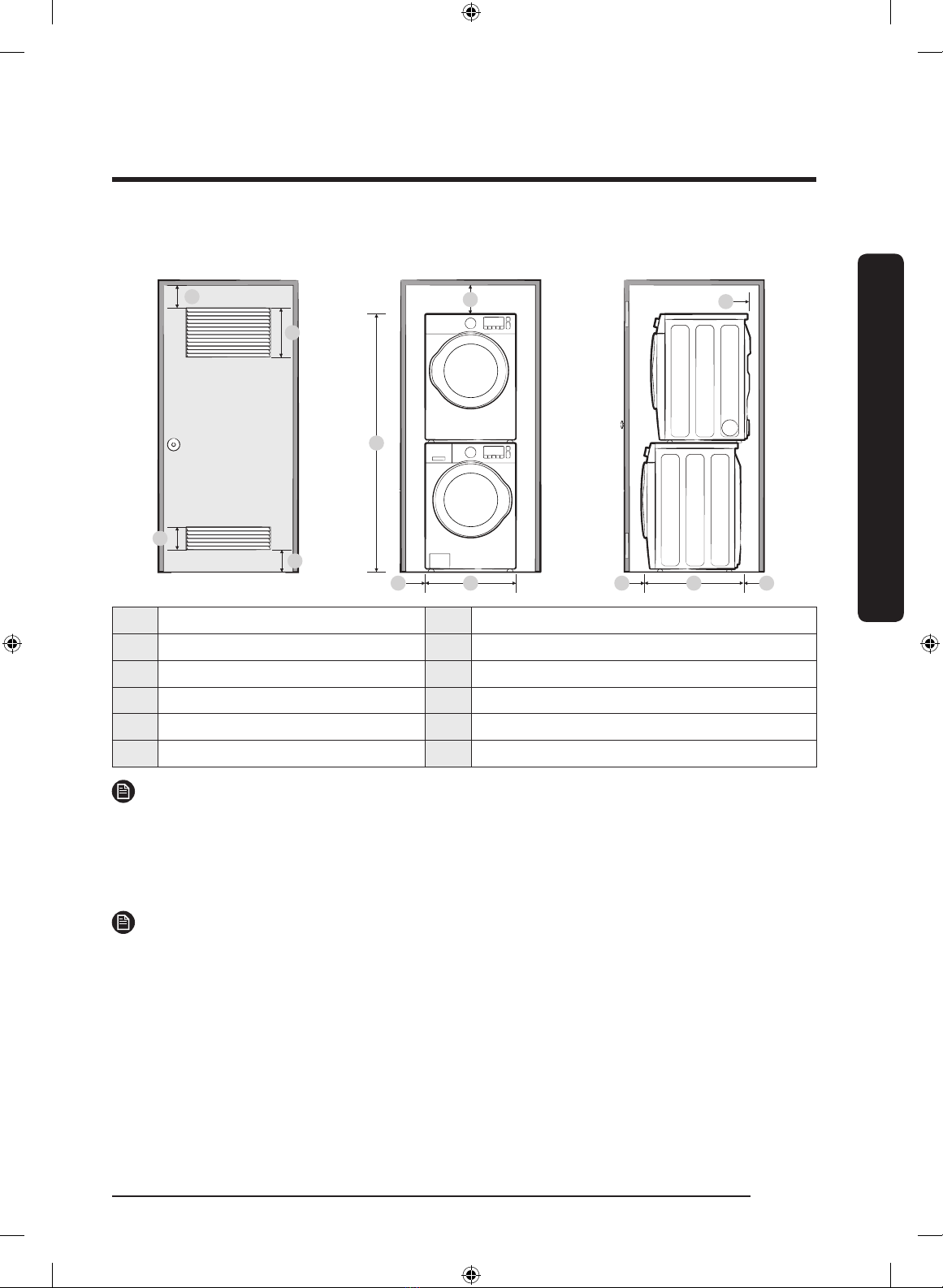

Alcove or closet installations 11
Ducting requirements 14
Exhausting requirements 15
Gas requirements 16
Electrical requirements 17
Installation 19
What’s included 19
Step-by-step installation 21
Vent blockage test 28
Exhaust ducting guide 29
Door reversal 30
Before you start 33
Sort and load 33
Functional prerequisite 33
Operations 34
Feature panel 34
Simple steps to start 37
Cycle overview 38
Drying guide 39
Special features 40
DV5500M_03381G_EN.indd 2 12/26/2016 11:01:57 AM

Contents
English 3
Maintenance 42
Vent sensor 42
Cleaning 43
Troubleshooting 44
Checkpoints 44
Information codes 47
Specications 48
Fabric care chart 48
Protecting the environment 49
Specication sheet 50
Cycle chart 51
DV5500M_03381G_EN.indd 3 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONS
English4
Safety information
Congratulations on your new Samsung dryer. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this
manual to take full advantage of your dryer’s many benets and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efciently
operate the extensive features and functions of your new appliance. Please store the
manual in a safe location close to the appliance for future reference. Use this appliance
only for its intended purpose as described in this instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible
conditions and situations that may occur. It is your responsibility to use common sense,
caution and care when installing, maintaining and operating your dryer.
Because the following operating instructions cover various models, the characteristics of
your dryer may differ slightly from those described in this manual and not all warning
signs may be applicable. If you have any questions or concerns, contact your nearest
service center or nd help and information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or
property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
DV5500M_03381G_EN.indd 4 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 5
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist.
To safely operate this appliance, familiarize yourself with its operation and exercise care
when using it.
WARNING - Gas Appliances:
• State of California Proposition 65 Warning (US only)
This product contains chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm.
• Gas appliances can cause low-level exposure to Proposition 65 listed substances,
including but not limited to, benzene, carbon monoxide, formaldehyde and soot,
substances resulting from the incomplete combustion of natural gas or LP fuels.
WARNING - Risk of Fire
• Clothes dryer installation must be performed by a qualied installer.
• Install the clothes dryer according to the manufacturer’s instructions and local codes.
• Do not install a clothes dryer with exible plastic venting materials. If exible metal
(foil type) duct is installed, it must be of a specic type identied by the appliance
manufacturer as suitable for use with clothes dryers. Flexible venting materials are
known to collapse, be easily crushed, and trap lint. These conditions will obstruct
clothes dryer airow and increase the risk of re.
• To reduce the risk of severe injury or death, follow all installation instructions.
• Save these instructions.
DV5500M_03381G_EN.indd 5 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English6
Important safety precautions
WARNING
To reduce the risk of re, electric shock, or injury to persons when using your appliance,
follow basic precautions, including the following:
1. Read all instructions before using this appliance.
2. Do not dry articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other ammable or explosive
substances, as they give off vapors that could ignite or explode.
3. Do not use the dryer to dry clothes which have traces of any ammable substance,
such as vegetable oil, cooking oil, machine oil, ammable chemicals, paint thinner,
etc., or anything containing wax or chemicals, such as mops and cleaning cloths.
Flammable substances may cause the fabric to catch re by itself.
4. Do not store or use gasoline or other ammable vapors and liquids near this or any
other appliance.
5. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
6. Before the appliance is removed from service or discarded, remove the door to the
drying compartment.
7. Do not reach into the appliance if the drum is moving.
8. Do not install or store this appliance where it will be exposed to the weather.
9. Do not tamper with internal controls.
10. Do not repair or replace any part of the appliance or attempt any service unless
specically recommended in the user-maintenance instructions or in published user-
repair instructions that you understand and have the skills to carry out.
11. Do not use fabric softeners or products to eliminate static unless recommended by the
manufacturer of the fabric softener or product.
12. Clean the lint screen before or after each load.
13. Do not use heat to dry articles containing foam rubber or similarly textured rubber-
like materials.
14. Keep area around the exhaust opening and adjacent surrounding areas free from the
accumulation of lint, dust, and dirt.
15. The interior of the appliance and exhaust duct should be cleaned periodically by
qualied service personnel.
DV5500M_03381G_EN.indd 6 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 7
16. Do not place items exposed to cooking oils in your dryer. Items contaminated with
cooking oils may contribute to a chemical reaction that could cause a load to catch
re.
17. This appliance must be grounded. See “Electrical requirements” and ”Grounding” in
“Installation” section.
18. Do not allow children to play on or in the appliance. Close supervision of children is
necessary when the appliance is used near children.
19. Do not insert your hand under the dryer.
• This may result in injury.
20. Take care that children’s ngers are not caught in the door when closing it.
• This may result in injury.
21. The control board and inlet valve are intentionally not grounded and may present a
risk of electric shock only during servicing.
• Do not contact these parts while the appliance is energized.
WARNING - To reduce the risk of re or explosion:
• Do not dry items that have been previously cleaned, washed, soaked, or spotted with
gasoline, dry cleaning solvents, or other ammable or explosive substances. They
emit vapors that could ignite or explode. Any material that has been in contact with a
cleaning solvent or ammable liquids or solids should not be placed in the dryer until
all traces of these ammable liquids or solids and their fumes have been removed.
There are many highly ammable items used in homes, such as acetone, denatured
alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers,
turpentine, waxes, and wax removers.
• Items containing foam rubber (which may be labeled latex foam) or similarly
textured rubberlike materials must not be dried on a heat setting. Heated foam
rubber materials can, under certain circumstances, ignite spontaneously.
DV5500M_03381G_EN.indd 7 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONS
Safety information
SAVE THESE INSTRUCTIONS
English8
WARNING - What to do if you smell gas:
• Do not try to light any appliance.
• Do not turn on the appliance.
• Do not touch any electrical switch.
• Do not use any phone in your building.
• Clear the room, building or area of all occupants.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied installer, service agency, or
the gas supplier.
Warnings
WARNING
• Ensure pockets are free of small, irregularly shaped hard objects and foreign material,
i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Gas leaks may occur in your system, resulting in a dangerous situation.
Cautions
CAUTION
• Do not allow children or pets to play on, in, or in front of the appliance. Close
supervision is necessary when the appliance is used near children and pets.
• Before discarding or removing your dryer from service, remove the door to the drying
compartment to prevent children or animals from becoming trapped inside.
• Do not reach into the appliance when the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather.
• Do not tamper with the controls.
• Do not repair, replace, or attempt to service any part of the appliance unless
specically instructed to in the user-repair instructions and you have the
understanding and skills to carry out the procedure.
DV5500M_03381G_EN.indd 8 12/26/2016 11:01:57 AM

Safety information
SAVE THESE INSTRUCTIONSSAVE THESE INSTRUCTIONS
English 9
• Do not use fabric softeners or products to eliminate static unless the softener or
product is recommended for dryer use by the manufacturer of the fabric softener or
product.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust,
and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualied
service personnel.
• This appliance must be properly grounded. Never plug the power cord into a receptacle
that is not grounded adequately or not in accordance with local and national codes. See
the installation instructions for information about grounding this appliance.
• Do not sit on top of the dryer.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid objects.
• Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL-approved gas detector.
• Install and use in accordance with the manufacturer’s instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil
or cooking oil. Even after being washed, these items may contain signicant amounts
of these oils.
• Residual oil on clothing can ignite spontaneoulsy. The potential for spontaneous
combustion increases when items containing vegetable oil or cooking oil are exposed
to heat. Heat sources such as your dryer can warm these items, allowing an oxidation
reaction in the oil to occur. Oxidation creates heat. If this heat cannot escape, the items
can become hot enough to catch re. Piling, stacking, or storing these kinds of items
may prevent heat from escaping and can create a re hazard.
• All washed and unwashed fabrics that contain vegetable oil or cooking oil can be
dangerous.
Washing these items in hot water with extra detergent will reduce, but not eliminate,
the hazard. Always use the Cool Down cycle for these items to reduce their
temperature. Never remove these items from the dryer hot or interrupt the drying
cycle until the items have run through the Cool Down cycle. Never pile or stack these
items when they are hot.
DV5500M_03381G_EN.indd 9 12/26/2016 11:01:57 AM

Installation requirements
English10
Installation requirements
Read through the following instructions before installing the dryer and keep this manual
for future reference.
WARNING
The control board and inlet valve are intentionally not grounded and may present a risk of
electric shock only during servicing.
Service personnel - Do not contact these parts while the appliance is energized.
Key installation requirements
• A grounded electrical outlet.
• A power cord for electric dryers (except
in Canada).
• Gas lines (for gas models) that must
meet national and local regulations.
• An exhaust system made of rigid metal
or exible stiff-walled metal exhaust
ducting.
WARNING
Remove the door from all discarded
appliances to prevent a child from
suffocating.
Location considerations
The dryer should be located where there
is enough space at the front for loading
the dryer, and enough space behind for
the exhaust system. This dryer is factory-
ready for the rear exhaust option. To
exhaust out the bottom, right or the left,
use the accessory exhaust kit. Instructions
are included with the kit. Make sure
the room in which the dryer is located
has enough fresh air. The dryer must
be located where there are no air-ow
obstructions. For gas dryers, adequate
clearance must be maintained as noted
on the data plate to ensure adequate
air for combustion and the proper dryer
operation.
The dryer must not be installed or stored
in an area where it will be exposed to
water and/or weather. The dryer area must
be kept clear of combustible materials,
gasoline, and other ammable vapors and
liquids. A dryer produces combustible lint.
The area around the dryer should be kept
lint-free.
DV5500M_03381G_EN.indd 10 12/26/2016 11:01:57 AM
