Samsung SH-D163B User manual

Samsung's OMS (Optical Media Solution) Customer Support Website
(Http://samsung-ODD.com) offers the latest versions of firmware for ODD products,
user instructions and product information. Select Model
SH-D163B(TS-H353B)

Select Languages
English
Select Model
SH-D163B(TS-H353B)
Main Pa
g
e
Safet
y
Precautions
Notational
Installation
While Operating
Other
RoHS & WEEE
Usin
g
the Drive
Using the DVD-ROM Drive
Storing and Cleaning Your Discs
Upgrading the Firmware Flash Memory
System Requirements
Introduction
Front
Rear
Troubleshootin
g
Solving Technical Problems
Setup
Installing the DVD-ROM Drive
Connecting the Cables
Installing the Device Driver
Setting Up the Device Driver
Specifications

Select Languages
English
Select Model
SH-D163B(TS-H353B)

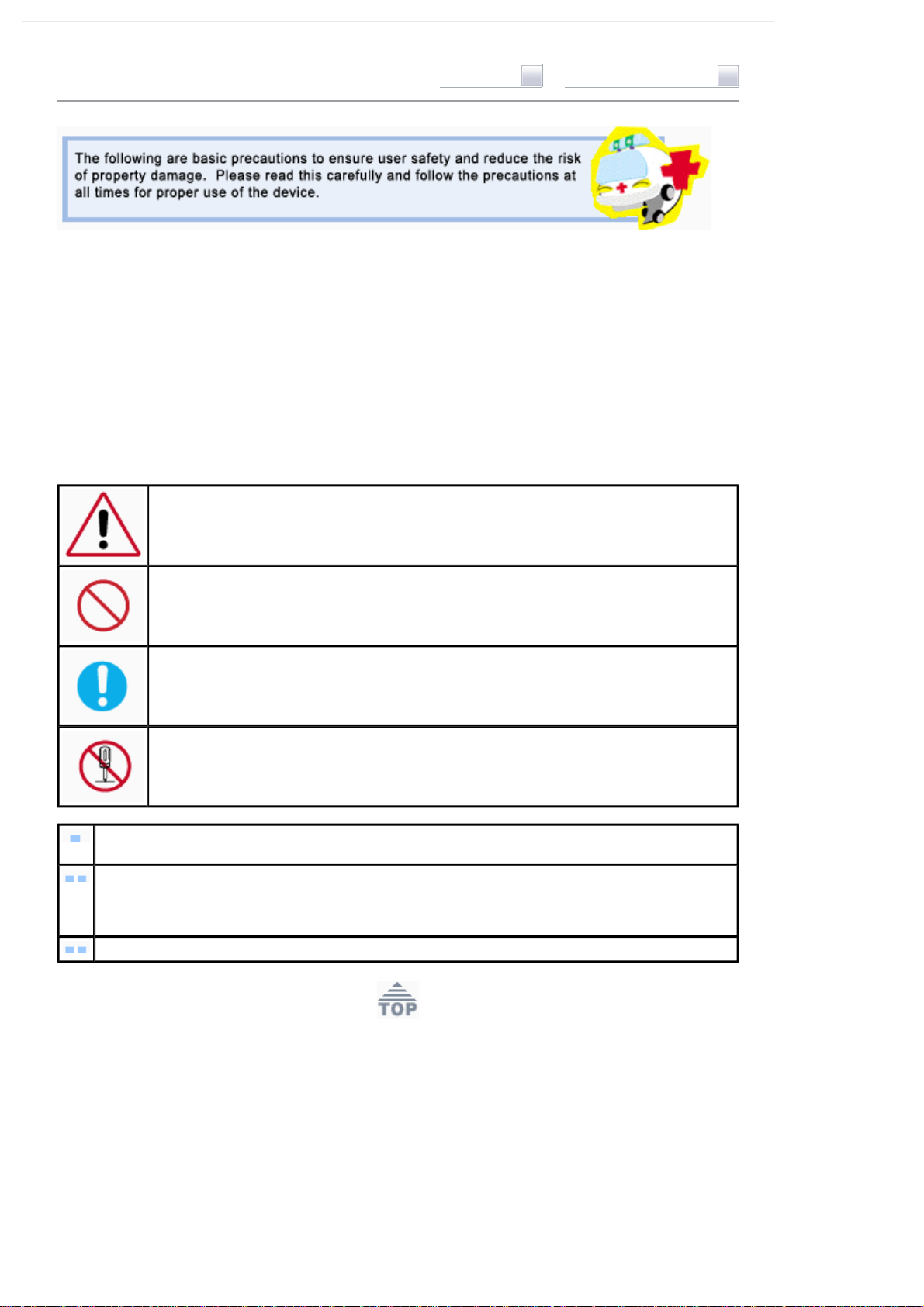

Warning / Caution
Warning : This symbol indicates explanations about extremely dangerous matters.
If users ignore this symbol and handle the device the wrong way, serious injury or death could
result.
Caution : This symbol indicates explanations about dangerous matters.
If users ignore this symbol and handle the device the wrong way, damage to home or property
could result.
Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited
Important to read and understand at all times
Do not disassemble
Any change or modification not expressly approved by designated qualified personnel could void your
authority to operate this device.
Always make sure that the disc does not have a crack before use. If the disc has a crack (especially
around the center hole), it is recommended to make a copy immediately and use the copy instead.
When a cracked disc is used continuously, the size of the crack is likely to grow and this will eventually
result in irreparable damage to the disc.
Important to read and understand at all times.

Select Languages
English
Select Model
SH-D163B(TS-H353B)

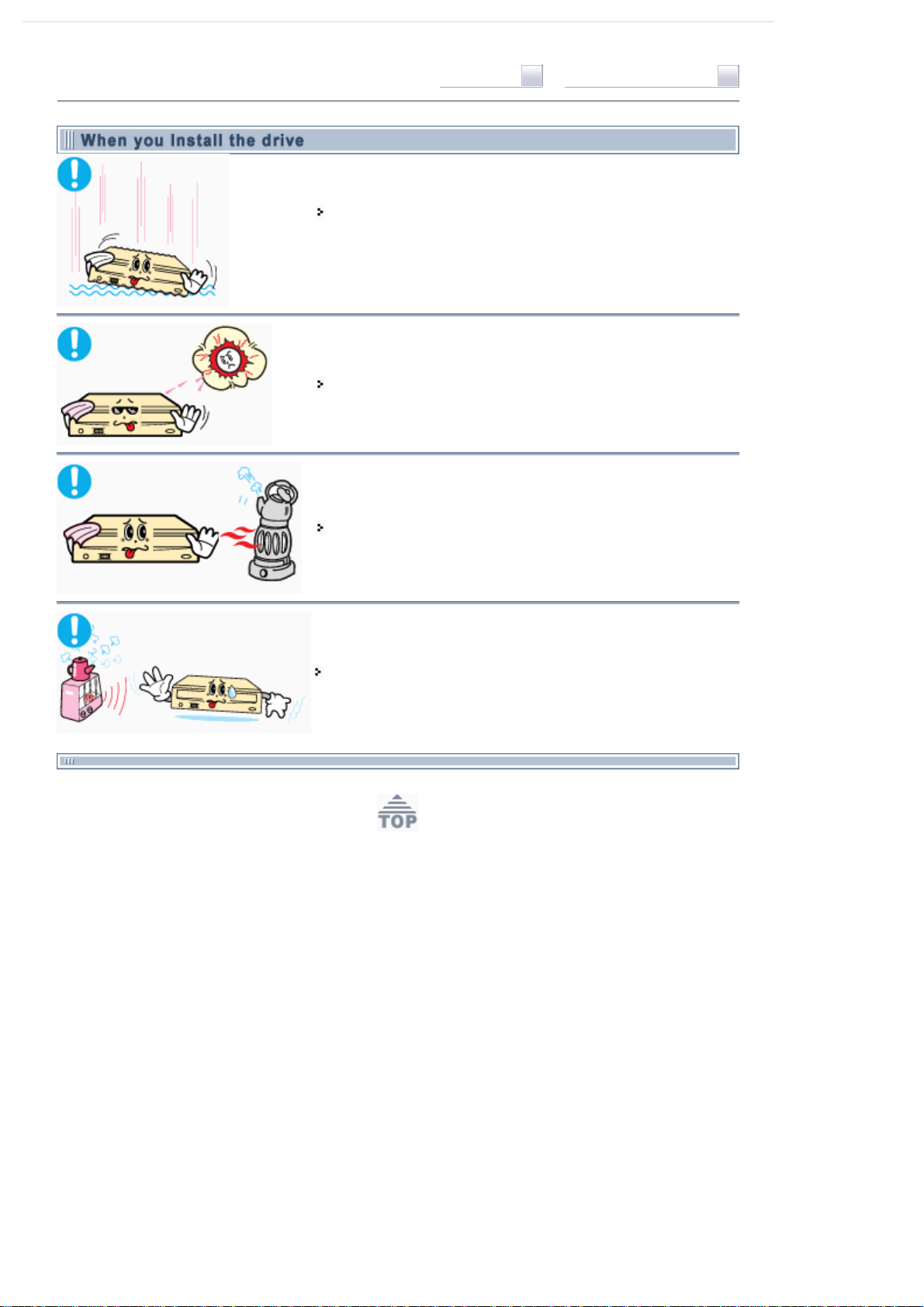

Place the drive on a level surface.
-Failure to do so may cause the device to fall onto a hard surface,
resulting in damage or malfunction.
Do not place the drive in direct sunlight.
A
void low- or high-temperature environments.
A
void high-humidity environments.

Select Languages
English
Select Model
SH-D163B(TS-H353B)

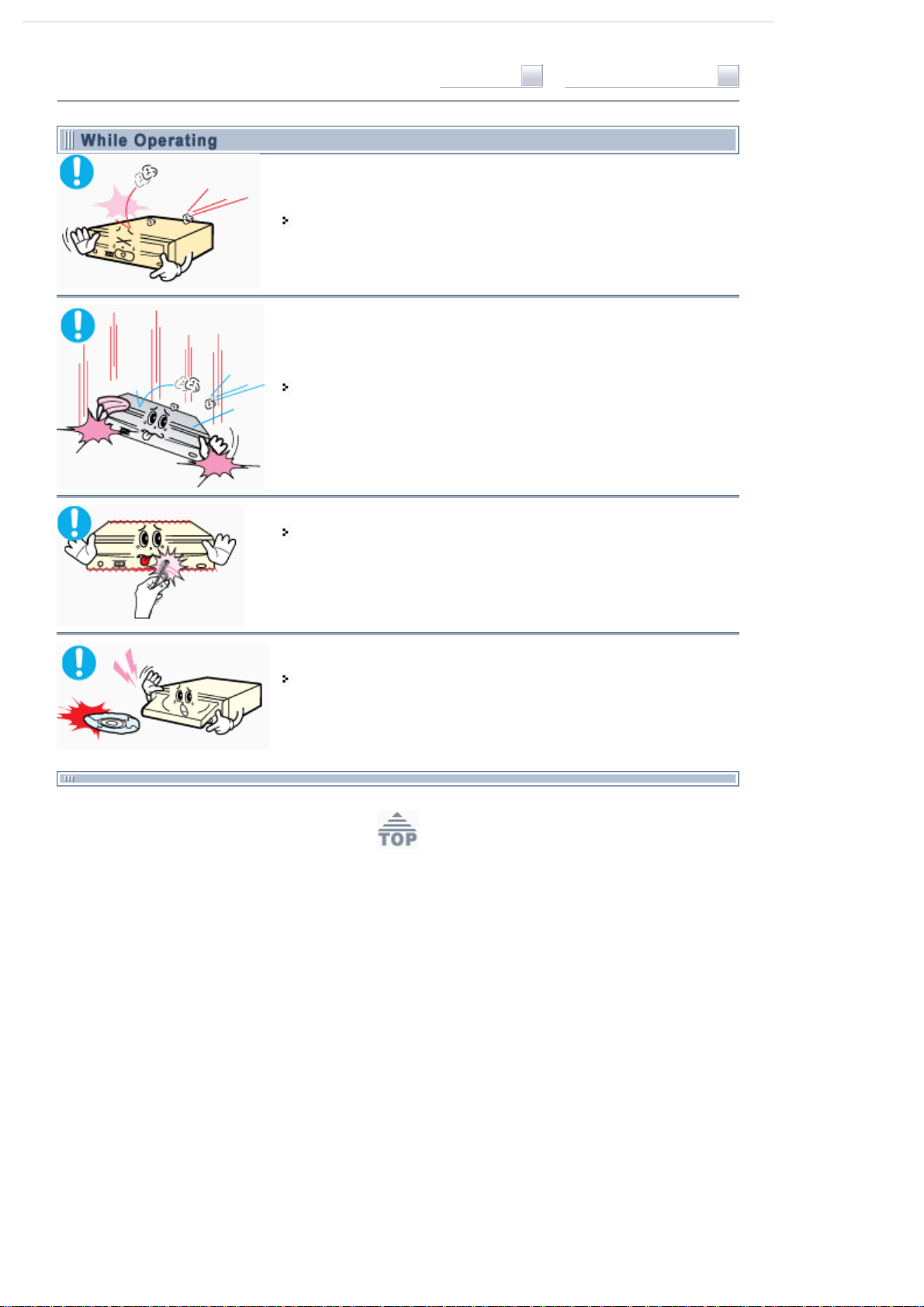

Handle with caution to prevent damage from external shock.
Do not drop the drive, and protect it fromsevere shocks.
- It can damage the drive or cause it to malfunction.
Do not move the drive while in operation and do not attempt to open
the disc tray byforce.
Make sure to close all working programs before attempting to open the
tray and always usethe open/close button.
- Do not insert a pin into the emergency opening while in operation.
Do not use cracked, distorted or damaged discs.
- In particular, a disc with a crack on the inner tracks may break while in
use.

Select Languages
English
Select Model
SH-D163B(TS-H353B)

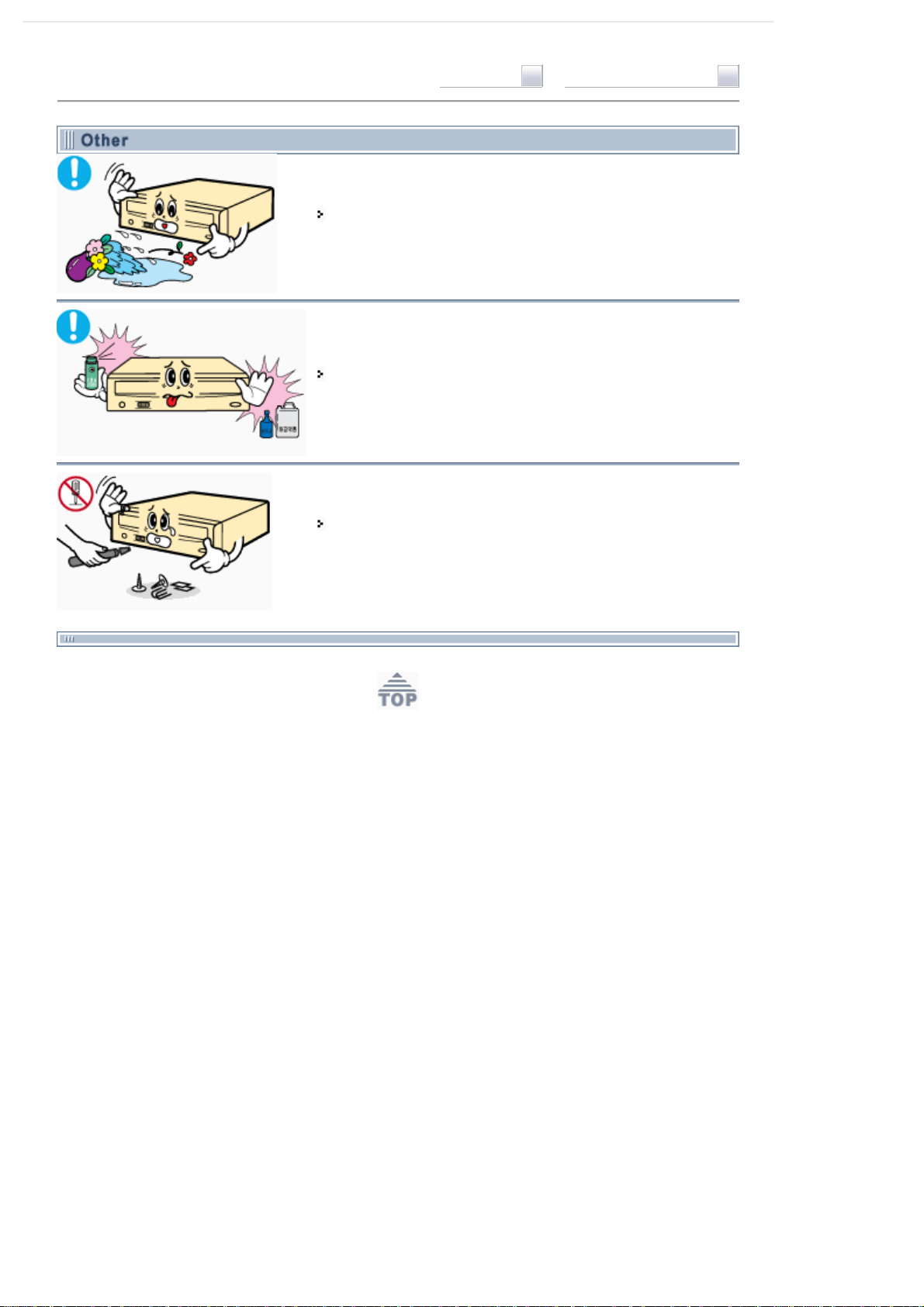

Never allow food particles or foreign substances to enter the drive
casing.
To protect against the risk of fire, do ot spill such liquids as
alcohol and benzene on the drive.
Do not disassemble, attempt to repair or modify the device
without express approval as directed in the manual.
- To reduce the risk of damage, electric shock, and fire,

Select Languages
English
Samsung Eco-mark
The Samsung’s own Eco mark helps
consumers to easily understand that
Samsung develops eco-friendly
products. This mark represents
Samsung’s continuous effort to develop
eco-friendly products.
RoHS (Restriction of the use of certain hazardous substances in electrical and electronic equipment)The
RoHS, the environment regulation announced by European Union, restricts the use of lead, mercury,
cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in The European Union
after July 1, 2006. .
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
1. Emergency eject hole. (if the compartment does not open when you press the Eject button, power off the
computer, insert a pin or unfolded paper clip in the hole and push firmly)
2. Indicator Light. (When it is green, a disc is being read.)
3. Eject button.
4. Disc compartment. (the compartment opens and closes automatically when you press the Eject button)

Select Languages
English
Select Model
SH-D163B(TS-H353B)
1. S-ATA Power Port 2. S-ATA Data Port

Select Languages
English
Select Model
SH-D163B(TS-H353B)
To install your DVD-ROM Drive in the PC, proceed as follows.
Installing the DVD-ROM Drive
Make sure that the PC is powered off and disconnected from any power source.
If necessary, attach a horizontal bracket to both sides of the drive.
Remove the cover from a free expansion slot and install the DVD-ROM drive, as shown in the
illustration.

Select Languages
English
Select Model
SH-D163B(TS-H353B)

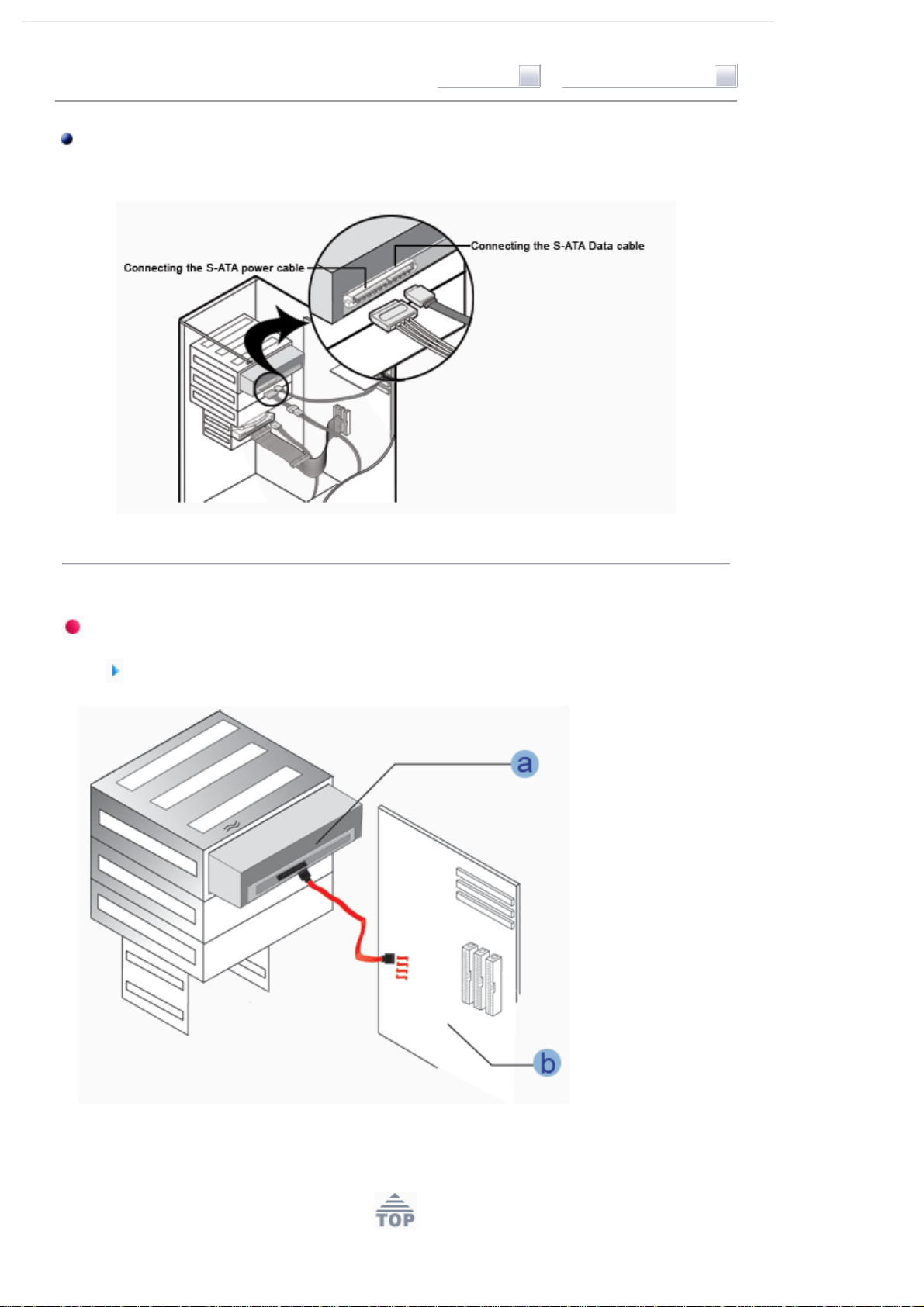

Connecting the Cables
Connecting S-ATA Cable
When you use one S-ATA cable
a : Drive
b : MotherBoard

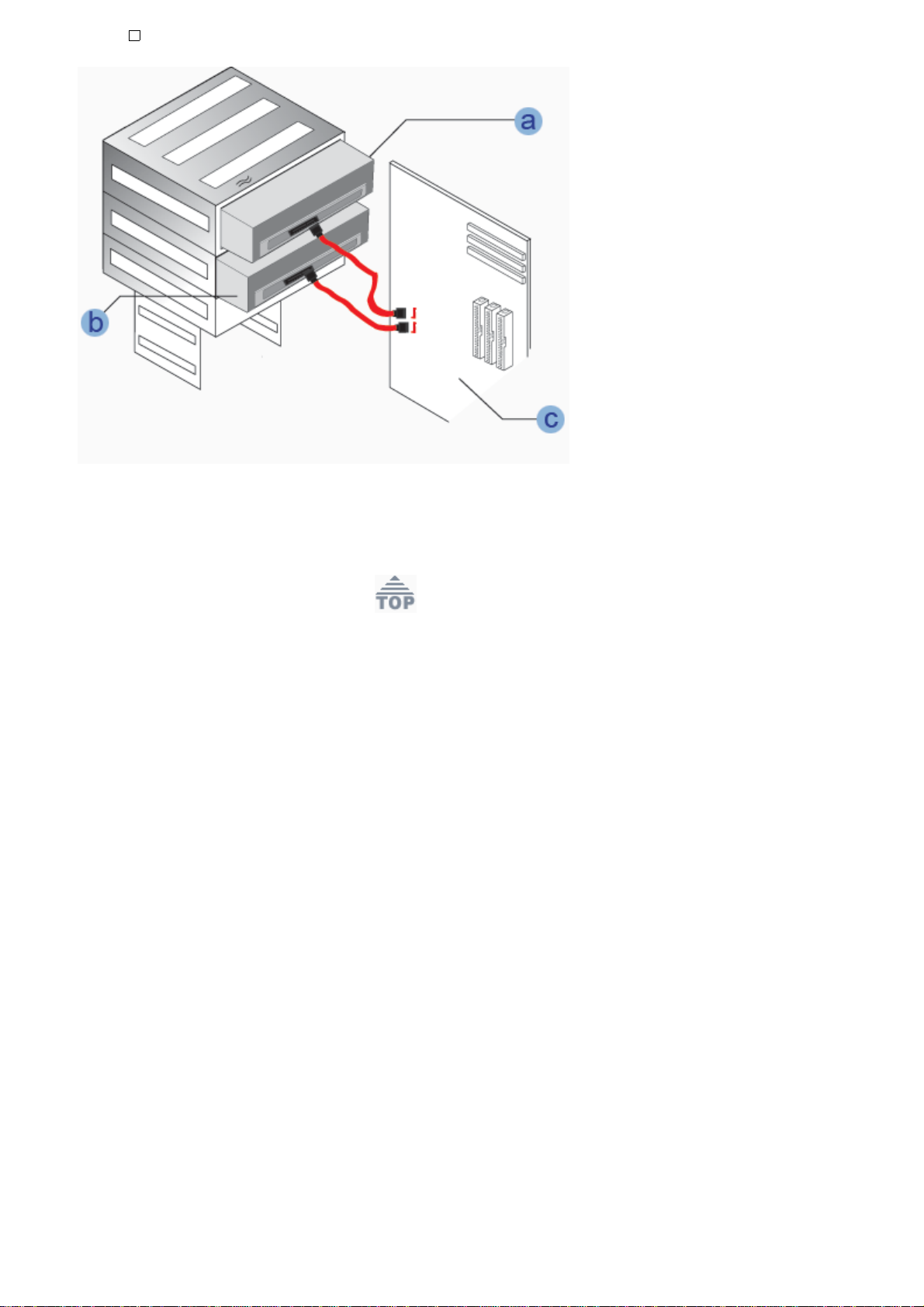

When
y
ou have one ODD and the other ODD
p
roducts.
a : Master Drive (S-ATA 1)
b : Slave Drive (S-ATA 2)
c : Motherboard

Select Languages
English
Select Model
SH-D163B(TS-H353B)
This Device Driver is an installation driver that can detect ODD (Optical Disc Drive) products in DOS mode.
It provides only the reading function in Dos mode.
(For recording, it is recommend not to install the Device Driver designed for DOS mode)
The Device Driver for DOS mode is included in the Ddriver or DOS Driver folder of the disc enclosed with the
product that you purchased.
Installing the Device Driver
For Windows2000/XP/Vista or higher version that uses a device driver provided by Windows,
there is no need to set up an extra device driver.
Refer to the steps below to see if Windows detects the drive.
Double-click on the My Computer icon on your desktop.
Double-click on the Control Panel folder.
Double-click on the System icon.
Click on the Device Manager tab.
Expand the CD-ROM branch.
The Installing the Device Driver device name is displayed.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
The device driver is located in the Ddriver folder of the User's Guide disc with is provided in the
package.
This device driver is to recognize a DVD-ROM drive on Dos mode.
This driver should be applied for DOS mode user to install on Windows 98 or Windows ME only.
Setting Up the Device Driver
Automatic Setup
Insert the User's Guide disc into the CD-ROM drive and open the Ddriver folder.
Run the CDSETUP.EXE file in the Ddriver folder.
When Setup is successfully completed, click OK button or press the Enter key.
Reboot the computer.
Manual Setup
Make the C:\SAMSUNG directory.
Copy the files from the User's Guide disc to the C:\SAMSUNG directory.
To do so, type COPY D:\Ddriver * . * C:\SAMSUNG after the C:\prompt and press [Enter].
Edit the CONFIG.SYS file.
Add the DEVICE=C:\SAMSUNG\SSCDROM.SYS \D:SSCD000/V entry.
Edit the AUTOEXEC.BAT file.
Add the C:\SAMSUNG\MSCDEX/D:SSCD000 entry.
Reboot the computer.

Playing Video CDs
Set up and run the SOFT MPEG program.
Select Languages
English
Select Model
SH-D163B(TS-H353B)
To play audio or video CDs and / or DVDs in your DVD-ROM drive, proceed as follows.
Using the DVD-ROM Drive
Push the power button and boot the computer.
After booting the computer, open the disc compartment by pressing the Eject button.
Insert the disc (CD/DVD) with the label on the disc facing upwards and close the disc
compartment by pressing the Eject button. The indicator light comes on.
Play the disc (CD/DVD).
Accessories
zThe type of accessories varies depending on product model.
Application software & User
manual CD Setup guide Four screws to install the drive
Design and specifications are subject to change without prior notice.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
To ensure a long service life for your discs and drive, follow the pre-cautions below when storing and cleaning
your discs.
Storing and Cleaning Your Discs
Do not place a disc in direct sunlight.
Store a disc vertically in a well-ventilated and stable location.
Do not write or attach a label on a disc.
Do not drop a disc or place heavy objects on it.
Do not touch the surface of a disc; hold it by the edges.
To clean a disc, polish lightly from the inside of the disc to the outside with a soft cotton cloth.
Do not leave the disc compartment open when you are not using it.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
The product firmware can be upgraded by downloading the updated file from the following Web site:
http://samsung-ODD.com
Htt
p
://samsun
g
.com
Upgrading the Firmware Flash Memory

Select Languages
English
Select Model
SH-D163B(TS-H353B)
Before you install the DVD-ROM drive, we strongly recommend that you check that your setup meets the
system requirements listed below.
System Requirements
Item Description
OS Microsoft Windows 2000/XP/ Vista
CPU S-ATA supported PC
(The compatible motherboard list can be found from the website)
RAM 256Mbytes or above
DVD Re
g
ion Protection Codin
g
(
RPC
)
:
The RPC feature is supported on DVD players and is used with DVD-video discs (such as movies). Currently,
the motionpicture industry has divided the worldinto different regions or zones thatcorrespond to the regional
markets intowhich the motion picture industry releasesmovies. Simply put, RPC codes are placedon movies
marketed throughout the world,based on the region of the world inwhich they are being sold. These
RPCcodes help control and prevent piratingof new movies into other motion pictureregions prior to their true
releasedates within those markets.
The DVD-ROM drive supports RPCphase II. In the RPC-2 mode, the localcode can be changed by users.
RPC-2is selected by default for the DVD-ROM drive.
You can change the region code up tofive times via an MPEG application.
Please contact your dealer or local SAMSUNG representative if you wish tochange the local code more than
fivetimes.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
Problem Meaning / Solution
The DVD-ROM drive is not
detected by the computer.
After installing the DVD-ROM
drive, the PC gets slower.
Check that the power and S-ATA cables are correctly connected to
the computer.
Change the S-ATA cable and reconnect it to the computer.
Preferably, connect a second S-ATA cable to the DVD-ROM drive.
The DVD-ROM drive is not
recognized by MS-DOS. Reinstall the device driver or update it with the latest version by
downloading it from the Samsung Web site.
- Http://samsung-ODD.com
- Http://samsung.com
The DVD-ROM drive is not
detected by Windows. This case may occur when there is a Windows installation problem;
reinstall Windows.
No sound is heard from an
audio CD.
Check that the sound card is operational.
Adjust the volume control of windows.
A CD is not read or is read
too slowly. Check whether the CD is of good quality and clean it, if necessary.
The disc compartment will
not open. Check that the power cable is correctly connected.
Power off and disconnect the PC.
Insert a pin or unfolded paper clip in the emergency hole and push
firmly until the disc compartment opens.
When the MPEG software
plays a Video CD, the pictures
are not regular and the running
speed is too slow.
Adjust the size of the replay screen.
After checking the display resolution, adjust it, if necessary.
The Disc is not in message is
displayed even though a disc
has been inserted.
The computer may not recognize the disc if you start playback too
quickly after inserting the disc. Open and close the disc
compartment and try again.
Clean the disc and try again.
The DVD-ROM drive is not
detected after it is connected to
a sound card.
The interface mode of the sound card is AT-BUS.
You must therefore connect the DVD-ROM drive to the S-ATA port
on the PC mother board, rather than to the sound card, or install an
S-ATA compatible sound card.

Select Languages
English
Select Model
SH-D163B(TS-H353B)
SAMSUNG continually strives to improve its products. Both the design specifications and these user
instructions are thus subject to change without notice.
Technical Specifications
ITEM
Model Name SH-D163B(TS-H353B)
ITEM DVD | CD
Disc
Disc types supported in
read mode CD-DA(Audio), CD-ROM, CD-R, CD-RW, Photo-CD(Single,
Multi-session), Video CD ready, Enhanced CD, CD-I/FMV,
CD-TEXT,CD-Plus, DVD-ROM, DVD-VIDEO, DVD+R, DVD-R,
DVD+RW, DVD-RW, DVD-RAM, DVD±R DUAL
Disc diameter 120mm or 80mm
DRIVE PERFORMANCE
Data transfer rate
Sustained : Max. 21,600KB/sec(16X) | Max. 7,200KB/sec (48X)
ACCESS TIME (typical) 110ms
Data Buffer capacity 198KB
Laser Semiconductor laser
Slide mechanism Stepping motor, Sensorless
Spindle motor Brushless motor
Load mechanism Tray. DC motor (Soft Eject). Horizontal/Vertical.
ERROR RATE
ERROR RATE 10 -15 | Mode 1:10 -12 , Mode 2:10 -9
FRONT PANEL
Eject button Auto eject or Auto inject
Indicator(LED) BUSY
REAR PANEL
Required power 1.5A (rms)
Interface connector S-ATA
OPERATING ENVIRONMENT
Operations Temperature: 5~45°C Humidity: 10~80%
Storage Temperature: -25~60°C Humidity: 10~90%
GENERAL
Dimensions 148.2 (W) x 42 (H) x 170 (D) mm (including bezel)
Net weight 740 g
