Samsung NP-R20 series User manual

*The items marked with this symbol are optional items
that are supported depending on the computer model
SAMSUNG R20 FEATURES
SERVICEManual
SAMSUNG
R20P/R25P
NP-R20xxxx/xxx
NP-R25xxxx/xxx
1. High Performance Notebook Computer
-. Intel Core™2 Duo processor, ntel Core™
Duo/Solo Processor . DDR II Memory
-. wireless LAN,Bluetooth
-. 14.1'' WXGA LCD
-. Windows Vista/XP Premium Supportable.
2. Easy-To-Use
Play AVStation and AVStation Now
(optional)are provided to easily play various
multimedia files.
3.Sophisticated Design for increased Usability
-. AVNowandvariousshortcutkeysonthe
keyboard
-. Multi card slot
-. Luxurious design with increased usability

1. Precautions
1) General After-Sales Service Precautions...............................................................................................1-1
2) Safety Precautions...................................................................................................................................1-2
3) Ground......................................................................................................................................................1-3
2. Introduction and Specification
1) Introduction...............................................................................................................................................2-1
2) Specification.............................................................................................................................................2-2
3) Wireless LAN Specification.....................................................................................................................2-8
4) Option list...............................................................................................................................................2-10
3. Function
1) Construction of System...........................................................................................................................3-1
2) Keyboard..................................................................................................................................................3-5
3) Multi Card Slot........................................................................................................................................3-7
4) PC Card Slot.........................................................................................................................................3-10
5) Connecting a monitor/TV......................................................................................................................3-11
6) Microsoft Windows Vista.......................................................................................................................3-12
7) Adjusting the Volume............................................................................................................................3-17
8) Media Center.........................................................................................................................................3-18
9) BIOS Setup............................................................................................................................................3-19
10) Description of Main board..................................................................................................................3-21
4. Disassembly and Reassembling
1) Disassembly and Reassembly of R20...................................................................................................4-1
5. Troubleshooting
1) General.....................................................................................................................................................5-1
2) Debugging Flow Chart............................................................................................................................5-2
3) System Diagnosis....................................................................................................................................5-4
4) Hardware Troubleshooting......................................................................................................................5-8
5) Device Settings Related Software Diagnosis.......................................................................................5-17
6) Battery Use Time..................................................................................................................................5-22
6. Exploded view
1) Exploded view of R20.............................................................................................................................6-1
3) ODD........................................................................................................................................................6-12
7. Schematic
1) SYSTEM...................................................................................................................................................7-2
- This Document can not be used without Samsung's authorization -
CONTENTS

8. System Block Diagram
1) Block diagram.........................................................................................................................................8-1
9. System Wire Diagram
1) R20 Top..................................................................................................................................................9-1.
2) R20 Bottom.............................................................................................................................................9-1
3) LCD.........................................................................................................................................................9-2
10. Part list
1) SYSTEM.................................................................................................................................................10-1
11. References
1) Model Numbering Rule.........................................................................................................................11-1.
2) CPU Code table....................................................................................................................................11-4
3) Glossary.................................................................................................................................................11-5
4) Hardware Upgrade...............................................................................................................................11-12
- This Document can not be used without Samsung's authorization -
CONTENTS

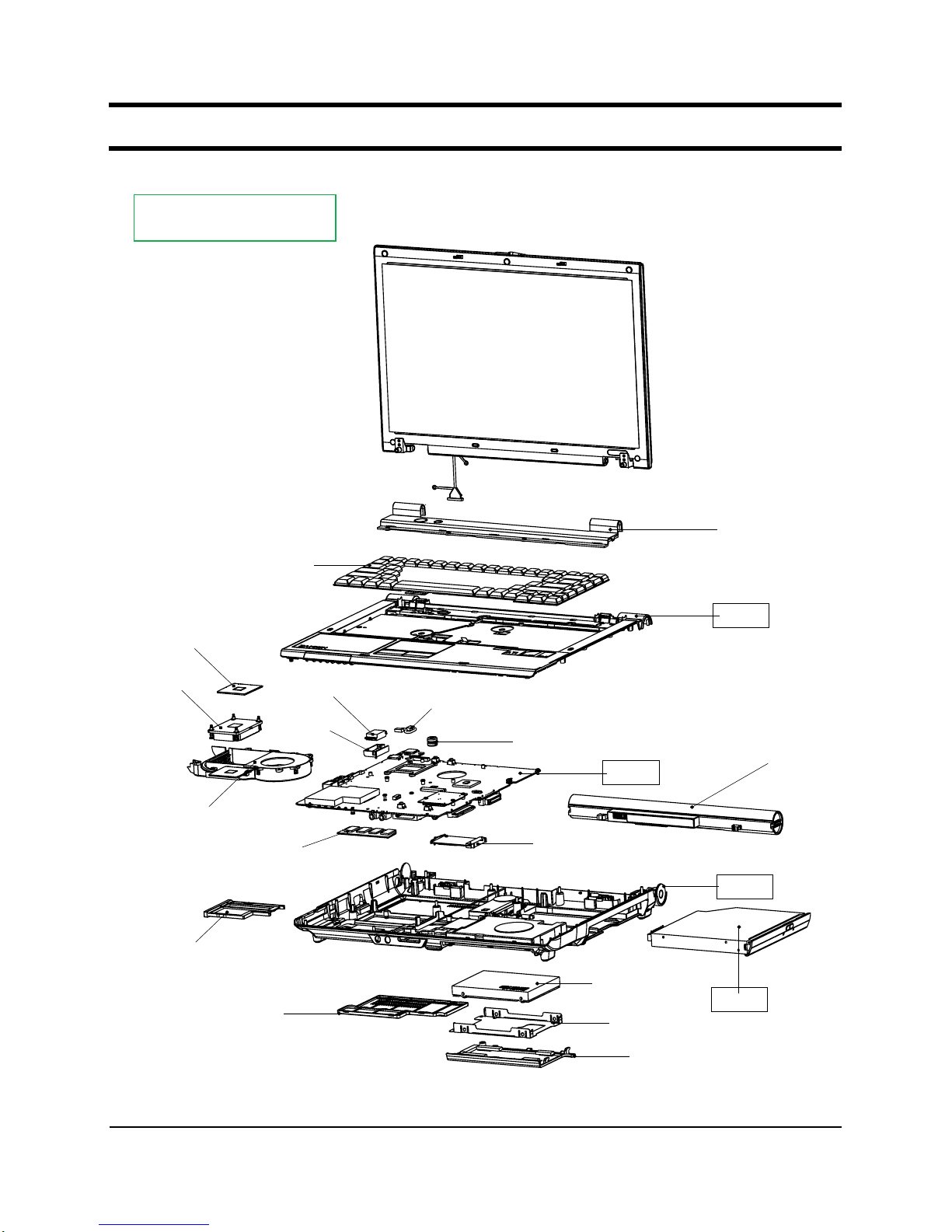

6-1
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
SYSTEM
T0010
T0001
W3007
T2004
M0001
I0009
G0003
I0001
M3005
M3004
G0011
X2000
I0002
B0013
B0003
B0100
B0150
I0005
D0001
B0001
I0006

6-2
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
K0007
K0001
K3001
K3002
K4001
K4002
K1002
K1001
K0100
K0201
K1003
K0002
Assy LCD

6-3
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
Unit-Top
Unit-Back
K0006
K0004
K2002
W0005
W0005
T0101
T0301

6-4
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21

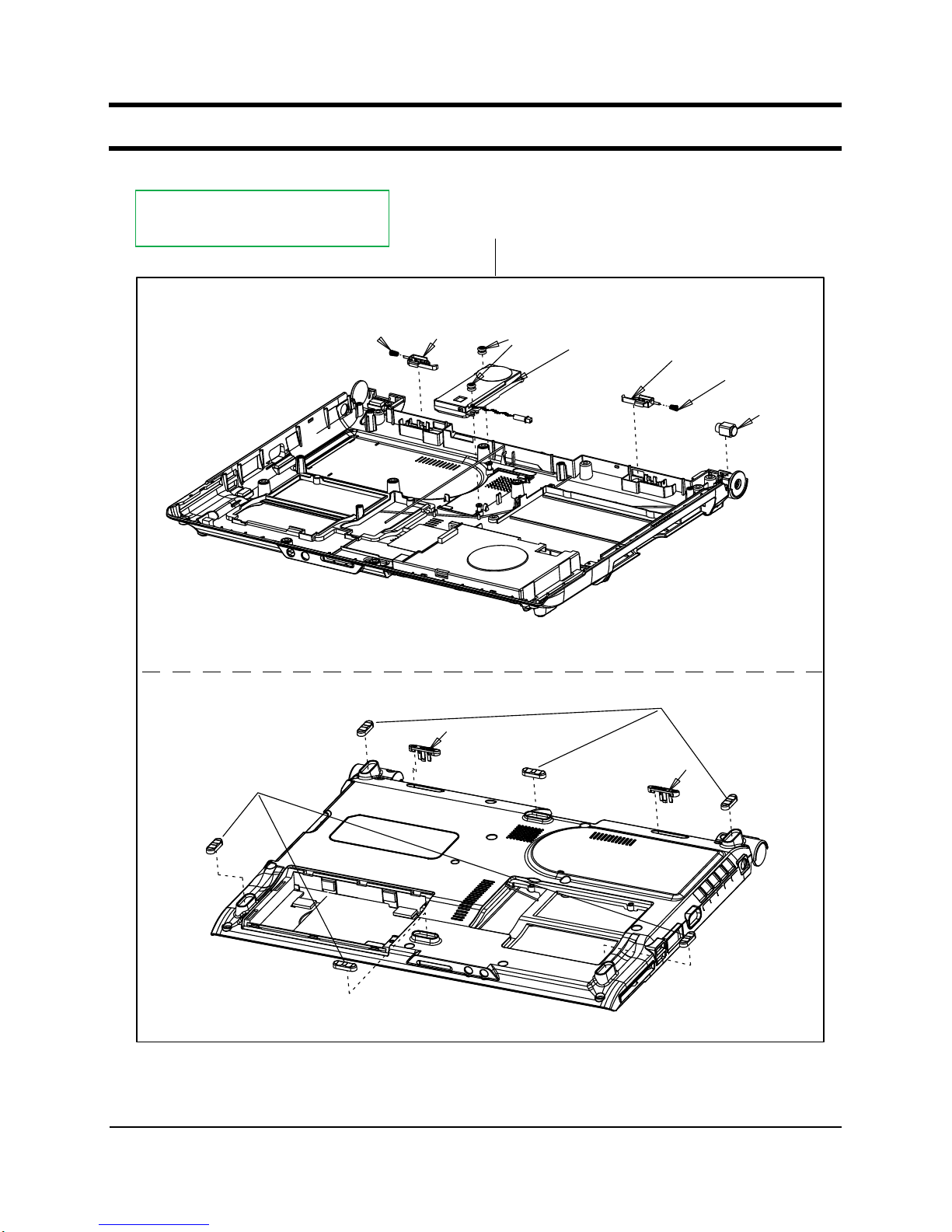

Unit-Bottom
B0001
B0501 B0302
B0303
B0501
T2004 T2001
RUDMB
B0009
B0403
B0402
B0009

6-5
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
D3000
D1002
D2000
D0001
Unit-ODD

6-6
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
NP-R25FE03/SER
Location Part Number Parts Name & Specification Q'ty SA/SNA
A0010 3903-000115 CBF-POWER CORD;DT,EU,CP3,IEC320 C5,250/2 1 SA
A1001 BA46-05728A S/W CD;RCD,NP/DT,VISTAHP,1.0,RUS,DVD,1/1 1 SA
A1001 BA46-06903A S/W CD;UTILITY,HAINAN3 EXT,VISTA,1.0,EXP 1 SA
B0001 BA75-01865E UNIT-HOUSING_BOTTOM;HAINAN3,DOMESTIC,PC/ 1 SA
B0003 BA81-03392A DOOR-MEMORY;hainan2,domestic,pc/abs,L118 1 SA
B0009 BA81-03443A RUBBER-FOOT;HAINAN2,DOMESTIC,SR,L19*W6.5 6 SA
B0013 BA81-03452A CARD-DUMMY_EXPRESS;HAINAN2,DOMESTIC,PC/A 1 SA
B0100 BA75-01866A UNIT-DOOR_HDD;HAINAN2,DOMESTIC,PC/ ABS,T 1 SA
B0150 BA75-01788A UNIT-BRKT_HDD;FIRENZE2,SESC,SUS T0.3,W10 1 SA
B0302 BA81-01605A LINK-BATT_L;SORRENTO,POM,T0.8mm,NTR,-,-, 1 SA
B0303 BA81-01606A LINK-BATT_R;SORRENTO,POM,T0.8mm,NTR,-,-, 1 SA
B0402 BA81-03389A KNOB-BATT_L;HAINAN2,DOMESTIC,PC/ABS,L22. 1 SA
B0403 BA81-03390A KNOB-BATT_R;HAINAN2,DOMESTIC,PC/ABS,L22. 1 SA
B0501 BA61-00780A SPRING ETC-BATT;AQUILA-P,STS304,CD0.3,ID 2 SA
B0701 BA61-00987A DUMMY CARD-3IN1;SORRENTO,ABS,T2.7,W21.45 1 SA
D0001 BA96-03084C ASSY DVD-SUPERMULTI;Hainan2,DVD-SUPERMUL 1 SA
D0001 BA96-03084D ASSY DVD-SUPERMULTI;Hainan2,DVD-SUPERMUL 1 SA
D0001 BA96-03330A ASSY DVD-SUPERMULTI;HAINAN2,TSST,TS-L632 1 SA
D1002 BA59-01900A DVD-SUPERMULTI;TS-L632D,8x,130ms,EIDE,2M 1 SA
D1002 BA59-02020A DVD-SUPERMULTI;DV-W28E-C,8X,110ms,E-IDE, 1 SA
D1002 BA59-02192A DVD-SUPERMULTI;TS-L632H,18x,130ms,Pata,2 1 SA
D2000 BA61-00503A BRACKET-CD;DRACO,SECC,T1.0,W15,L20mm,NTR 1 SA
D3000 BA75-01863B UNIT-BEZEL_ODD-MULTI_DL;HAINAN2,DOMESTIC 1 SA
G0003 BA59-02154A MODULE-WLAN;DT/NP,WLL3141,-,802.11BG,min 1 SA
G0011 BA59-01691A MODULE-BLUETOOTH;Bluetooth V2.0,T60H928. 1 SA
G0011 BA59-01916A MODULE-BLUETOOTH;Bluetooth Version 2.0,B 1 SA
I0001 0902-002250 IC-MICROPROCESSOR;LF80537GG0412M,2.0GHz, 1 SA
I0002 1105-001684 IC-DRAM MODULE;M470T2953,DDR2 667MHz,1GB 2 SA
I0003 BA59-01880A LCD PANEL-14.1WXGA;LTN141W1-L03-G,14.1WX 1 SA
I0003 BA59-02059A LCD PANEL-141WXGA;CLAA141WB05A,14.1WXGA, 1 SA
I0003 BA59-02148A LCD PANEL-141WXGA;LTN141W1-L04-D,14.1WXG 1 SA
I0005 BA59-02003A HDD;160G,HTS541616J9SA00,S63,H16,D16385, 1 SA
I0005 BA59-02110A HDD;160G,MHW2160BH-PL,S63,H16,D16385,H9. 1 SA
I0005 BA59-02187A HDD;160G,HM160HI,S63,H16,D16385,H9.5mm,2 1 SA
I0005 BA59-02203A HDD;160G,HTS542516K9A300,S63,H16,D16385, 1 SA

6-7
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
NP-R25FE03/SER
Location Part Number Parts Name & Specification Q'ty SA/SNA
I0005 BA59-02209A HDD;160G,MHY2160BH,S63,H16,D16385,9.5mm, 1 SA
I0005 BA59-02227A HDD;160G,WD1600BEVS-22RST0,S63,H16,D1638 1 SA
I0006 BA59-02032C KEYBOARD;Hainan2,88key,M/B,-,Russia,-,Bl 1 SA
I0006 BA59-02032J KEYBOARD;Hainan2,88key,M/B,-,Russia,-,Bl 1 SA
I0007 BA44-00210A ADAPTOR;API5AD10,AD-9019S,AC/DC,90to264V 1 SA
I0007 BA44-00215A ADAPTOR;0455A1990,AD-9019S,AC/DC,90to264 1 SA
I0007 BA44-00233A ADAPTOR;SADP-90FH B,AD-9019S,ACtoDC,100t 1 SA
I0009 BA43-00158A BATTERY;4UR18650F-SDN,Hainan,Li-Ion,1P4S 1 SA
I0009 BA43-00171A BATTERY;P41R07-04-H01,Hainan2,Li-lon 1P4 1 SA
K0001 BA75-01962A UNIT-HOUSING_LCD-BACK;HAINAN2,DOMESTIC,P 1 SA
K0002 BA75-01869A UNIT-HOUSING-LCD_FRONT;HAINAN2,DOMESTIC, 1 SA
K0004 BA81-03399A LATCH-LCD;HAINAN2,DOMESTIC,PC/ABS,L145*W 1 SA
K0006 BA61-00631A SPRING ETC-KNOB_LCD;AQUILLA,STS304,T0.25 1 SA
K0007 BA64-00716A LOGO-SAMSUNG;HAINAN2,DOMESTIC,T0.75,8.25 1 SA
K0100 BA81-03447A RUBBER-LCD;HAINAN2,DOMESTIC,SR,HS90,BLAC 5 SA
K0101 BA81-02701B RUBBER-LCD_LOWER;TORINO,DOMESTIC,SR,T1.6 2 SA
K0201 BA81-04158A LABEL-SHEET;HAINAN3 EXT,DOMESTIC,PC,W25* 1 SA
K1001 BA39-00621A WIRE HARNESS-LCD;hainan2,teflon,UL10005, 1 SA
K1001 BA39-00622A WIRE HARNESS-LCD;hainan2,teflon,UL10005, 1 SA
K1002 BA44-00211A INVERTER;SEDONA,DAC-09N014,-,8.5to20V,1. 1 SA
K1002 BA44-00245A INVERTER;FIRENZE-R,D86N,-,8.5to20V,1.5mA 1 SA
K1003 BA81-02706A PROTECTOR-FILM_LCD;HAINAN,PET,W325*L207* 1 SA
K2002 BA42-00152A ANTENNA-AUX;SS-03-03-070,Habana,2.4to6GH 1 SA
K3001 BA81-03434A HINGE-L;HAINAN2,DOMESTIC,Mg,W18*L13.7*H6 1 SA
K3002 BA81-03435A HINGE-R;HAINAN2,DOMESTIC,Mg,W18*L13.7*H6 1 SA
K4001 BA81-03401A BRACKET-LCD_L;HAINAN2,DOMESTIC,EGI,L229. 1 SA
K4002 BA81-03402A BRACKET-LCD_R;HAINAN2,DOMESTIC,EGI,L229. 1 SA
L1004 BA68-20039A LABEL-PPID_E;BLADE,-,PET,-,W50.8,L12.7mm 1 SA
L1005 BA68-20323A LABEL CAUTION;NOTE PC,-,PET,T0.06,W30.0, 1 SA
M0001 BA92-04483A ASSY MOTHER BD-TOP;HAINAN3 EXT,Core 2 DU 1 SA
M0006 BA39-00431A WIRE HARNESS;RTC battery assy.,-,UL 1061 1 SA
M0006 BA39-00660A WIRE HARNESS;Hainan2,AWG28,UL 1061,2PIN, 1 SA
M1004 2203-001140 C-CER,CHIP;68nF,10%,16V,X7R,1608 1 SA
M1004 2203-001683 C-CER,CHIP;0.068nF,5%,50V,NP0,1608 1 SA
M1004 2203-005052 C-CER,CHIP;0.0033nF,0.25pF,50V,NP0,1005 1 SA

6-8
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
NP-R25FE03/SER
Location Part Number Parts Name & Specification Q'ty SA/SNA
M1004 2203-005918 C-CER,CHIP;1000nF,10%,6.3V,X7R,1608 1 SA
M1004 2203-006000 C-CER,CHIP;1NF,10%,3KV,X7R,TP,4520 1 SA
M1008 3708-002190 CONNECTOR-FPC/FFC/PIC;12,0.5,SMD-A,AUF,Y 1 SA
M1009 3711-005753 HEADER-BOARD TO BOARD;BOX,10P,1R,1mm,SMD 1 SA
M1018 0505-001562 FET-SILICON;SI4816DY,N,30V,5.3/7.7A,30/1 1 SA
M1021 1201-001991 IC-AUDIO AMP;TPA6017A2PWPR,TSSOP,20P,6.5 1 SA
M1024 0801-002195 IC-CMOS LOGIC;7S08,AND GATE,SOT-25,5P,63 1 SA
M1024 0801-002252 IC-CMOS LOGIC;7S14,INVERTER,SOT-25,5P,63 1 SA
M1025 1203-003344 IC-POSI.FIXED REG.;MIC5252,SOT-23,5P,2.9 1 SA
M1028 3722-001692 JACK-MODULAR;12P/10C,STANDARD,N,SMD-OFFS 1 SA
M1028 3722-002002 JACK-USB;4P/1C,TIN,BLK,ANGLE-OFFSET,- 1 SA
M1028 3722-002601 JACK-USB;4P/2C,AUF,BLK,ANGLE-OFFSET,A TY 1 SA
M1029 2007-000072 R-CHIP;47ohm,5%,1/10W,TP,1608 1 SA
M1029 2007-008299 R-CHIP;61.9ohm,1%,1/16W,TP,1005 1 SA
M1032 BA61-00784A SUPPORT-VIDEO_BD;ARGO,CU ALLOY,T3.5,W3.5 1 SA
M1036 0504-001157 TR-DIGITAL;DTA114YUA,PNP,200mW,10K/47K,U 1 SA
M2001 BA61-01083A BRACKET-SUPPORT_CPU;FIRENZE2,SUS,T4.2,W3 1 SA
M2001 BA75-01891A UNIT-BRACKET_CPU;FIRENZE2,SEC,SECC(EGI), 1 SA
M3004 BA31-00052A FAN-CPU;MCF-913PAM05-30,HAINAN3,Plastic, 1 SA
M3005 BA62-00434A HEAT SINK-CPU;Hainan2,Copper,T8.8,W40,L5 1 SA
M3005 BA62-00434B HEAT SINK-CPU;Hainan2,Copper,T8.8,W40,L5 1 SA
M4000 BA59-02036A MODEM;1456VQL-T3(INT-RoHS),56Kbps,Agere 1 SA
M4000 BA59-02037A MODEM;T60M951.07 LF,56Kbps,Agere 2 Chip, 1 SA
M4001 BA39-00623A CBF HARNESS-MDC;hainan2,-,UL1571,2P/2P,1 1 SA
M9999 0403-001047 DIODE-ZENER;BZX84C12L,5%,225mW,SOT-23,TP 1 SA
M9999 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 1 SA
M9999 0505-001699 FET-SILICON;FDS8958A,N/P,30/30V,7/-5A,0. 1 SA
M9999 0601-001130 LED;SMD,RED/GRN,3.0X2.5MM,660/570NM,3.0X 1 SA
M9999 0801-002981 IC-CMOS LOGIC;7SZ08,2-INPUT AND GATE,SC- 1 SA
M9999 0903-001439 IC-MICROCOMPUTER;H8S/2110B,16Bit,TQFP,10 1 SA
M9999 0904-002188 IC-BUS CONTROLLER;AU6366,LQFP,48P,7x7mm, 1 SA
M9999 0904-002207 IC-MEMORY CONT.;216MEP6CLA14FG,FCBGA,120 1 SA
M9999 0904-002230 IC-I/O CONTROLLER;SB600,FcBGA,549P,23x23 1 SA
M9999 0904-002270 IC-GRAPHIC CONT.;216PWAVA12FG,BGA,632P,2 1 SA
M9999 1103-001244 IC-EEPROM;93LC46B,1Kbit,64x16Bit,SOP,8P, 1 SA

6-9
6. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
NP-R25FE03/SER
Location Part Number Parts Name & Specification Q'ty SA/SNA
M9999 1105-001688 IC-VIDEO RAM;K4J52324QC,GDDR3,512Mbit,8x 1 SA
M9999 1107-001646 IC-FLASH MEMORY;MX25L8005,8Mbit,8Mx1,SOP 1 SA
M9999 1203-002546 IC-POSI.FIXED REG.;MIC5258,SOT-23-5,5P,6 1 SA
M9999 1203-003476 IC-PWM CONTROLLER;ISL6227,SSOP,28P,9.9x3 1 SA
M9999 1203-003903 IC-PWM CONTROLLER;SC470ITSTRT,TSSOP,14P, 1 SA
M9999 1203-004005 IC-PWM CONTROLLER;MAX8632ETI+T,QFN,28P,5 1 SA
M9999 1203-004108 IC-PWM CONTROLLER;MAX8734AEEI+T,QSOP,28P 1 SA
M9999 1205-002596 IC-SWITCH;TPS2062,SOIC,8P,5x6x1.65mm,PLA 1 SA
M9999 1205-002807 IC-SWITCH;R5538D001-TR-F,QFN,20P,4x4mm,P 1 SA
M9999 1205-002853 IC-CODEC;ALC262-GR,LQFP,48P,7x7mm,PLASTI 1 SA
M9999 1205-002941 IC-ETHERNET CONTROLLER;RTL8100CL-LF,LQFP 1 SA
M9999 1205-003157 IC-CLOCK GENERATOR;ICS951461,TSSOP,64P,1 1 SA
M9999 2007-000309 R-CHIP;10ohm,5%,1/10W,TP,1608 1 SA
M9999 2007-000972 R-CHIP;5.1ohm,5%,1/4W,TP,3216 1 SA
M9999 2007-007382 R-CHIP;20Mohm,5%,1/10W,TP,1608 1 SA
M9999 2007-007441 R-CHIP;562ohm,1%,1/10W,TP,1608 1 SA
M9999 2007-008789 R-CHIP;0.001ohm,1%,1W,TP,6432 1 SA
M9999 2203-002487 C-CER,CHIP;4.7nF,10%,25V,X7R,1005 1 SA
M9999 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,1005 1 SA
M9999 2203-006090 C-CER,CHIP;10000nF,10%,6.3V,X5R,2012 1 SA
M9999 2203-006093 C-CER,CHIP;1000nF,+80-20%,6.3V,Y5V,1005 1 SA
M9999 2203-006474 C-CER,CHIP;22000nF,20%,6.3V,X5R,2012 1 SA
M9999 2402-001120 C-POLYMER AL CHIP;330uF,0.2,6.3V,-,TP,7. 1 SA
M9999 3301-001772 BEAD-SMD;27ohm,1608,-,TP,30ohm/120MHz,48 1 SA
M9999 3404-001311 SWITCH-TACT;12VDC,50mA,100gf,6.0x6.0x5.0 1 SA
M9999 3701-001403 CONNECTOR-DSUB;15P,2R,FEMALE,ANGLE,NI 1 SA
M9999 3708-002166 CONNECTOR-FPC/FFC/PIC;25P,0.5mm,SMD-A,AU 1 SA
M9999 3709-001401 CONNECTOR-CARD EDGE;52P,0.8mm,SMD-A,AU,m 1 SA
M9999 3709-001413 CONNECTOR-CARD EDGE;44P,0.8mm,SMD-A,AU,4 1 SA
M9999 3709-001459 CONNECTOR-CARD EDGE;200P,0.6mm,SMD-A,Au, 1 SA
M9999 3709-001466 CONNECTOR-CARD EDGE;26,0.35mm,SMD-A,AU,T 1 SA
M9999 3710-002130 SOCKET-BOARD TO CABLE;30P,1R,0.5mm,SMD-S 1 SA
M9999 3710-002133 SOCKET-BOARD TO BOARD;12P,2R,0.8mm,SMD-A 1 SA
M9999 3711-000386 HEADER-BOARD TO CABLE;BOX,10P,1R,1.25MM, 1 SA
M9999 3711-000541 HEADER-BOARD TO CABLE;BOX,2P,1R,1.25mm,S 1 SA

6-10
06. Exploded View and Part List
- This Document can not be used without Samsung's authorization -
NP-R20/R21
NP-R25FE03/SER
Location Part Number Parts Name & Specification Q'ty SA/SNA
M9999 3711-005947 HEADER-BOARD TO BOARD;BOX,8P,1R,1MM,SMD- 1 SA
M9999 3711-006322 HEADER-BOARD TO BOARD;-,26P,-,0.35,1mm,1 1 SA
M9999 3711-006364 CONNECTOR-HEADER;BOX,22P,1R,1.27mm,SMD-A 1 SA
M9999 3711-006376 HEADER-BATTERY;NOWALL,5P,1R,2.50mm,BATTE 1 SA
M9999 3722-002191 JACK-DC POWER;3P,5.6pi,Sn-P,Black 1 SA
M9999 3722-002544 JACK-PHONE;6P,AU,LIME,ANGLE 1 SA
M9999 3722-002545 JACK-PHONE;6P,AU,PINK,ANGLE 1 SA
M9999 BA63-00029A GASKET-CPU;BLADE,71TS,T1.5,W4.0,L9.0mm,N 2 SA
RUDMB BA81-03457A RUBBER-DMB;HAINAN2,DOMESTIC,SR,L10.7*W8. 1 SA
T0001 BA75-01862C UNIT-HOUSING_TOP;HAINAN3,DOMESTIC,PC+ABS 1 SA
T0005 BA68-03575A LABEL-INTEL_CORE2-DUO;HAINAN-C,N/P ALL,C 1 SA
T0005 BA68-03653B LABEL-ZAIGEN;HAINAN2,CIS,POLY,T0.1,W100, 1 SA
T0005 BA68-03686A LABEL-LOGO_VISTA-PREMIUM;N/P ALL,VISTA P 1 SA
T0005 BA68-03914A LABEL-ATI;PALAU,ATI,POLY C/B,T0.1,W16.1, 1 SA
T0010 BA75-01867B UNIT-CAP_TOP;HAINAN2,DOMESTIC,PC+ABS NH1 1 SA
T0101 BA59-01801A BOARD-TOUCHPAD;Hainan,TM-00379-003,BONGW 1 SA
T0301 BA41-00722A FFC-TOUCHPAD;hainan2,1.0,AU,12P,0.3,L108 1 SA
T2001 BA96-03233B ASSY SPEAKER;Hainan3,X07428PS01-51-P,74/ 1 SA
W0005 BA81-01775A RUBBER-TOP;FIRENZE,THERMO POLYURETHANE,W 2 SA
W3007 BA39-00570A CBF HARNESS-BLUETOOTH;TORINO,WIRE,UL1571 1 SA
W3007 BA39-00584A CBF HARNESS-BLUETOOTH;TORINO,WIRE,UL1006 1 SA
W4001 6001-001625 SCREW-MACHINE;BH,+,-,M2.6,L8,ZPC(BLK),SW 11 SA
W4001 6001-001650 SCREW-MACHINE;BH,+,-,M2,L3,NI PLT,SWRCH1 1 SA
W4001 6001-001651 SCREW-MACHINE;BH,+,-,M2,L6,NI PLT,SWRCH1 5 SA
W4002 6001-001413 SCREW-MACHINE;CH,+,-,M2,L5,NI PLT,SWRCH1 6 SA
W4002 6001-001420 SCREW-INCH MACH;CH,+,UNC4-40,L4,NI PLT,S 2 SA
W4002 6001-001480 SCREW-MACHINE;CH,+,M3,L4.0,ZPC(BLK),SWRC 2 SA
W4002 6001-001549 SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 2 SA
W4002 6001-001570 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(BLK),SWRC 1 SA
W4002 6001-001626 SCREW-MACHINE;CH,+,-,M2,L4,ZPC(WHT),SWRC 2 SA
X2000 BA81-02719A CASE-BLT;TORINO,DOMESTIC,PC/ABS,W5.3*L29 1 SA
Z8999 2603-000048 TRANS-MATCHING;-,1:1,0mA,6P:6P,11.81x8.6 1 SA

Samsung
Confidential
THIS DOCUMENT CONTAINS CONFIDENTIAL
C
34. MINICARD/DMB/BT
DATE
HAINAN3_EXT
DEV. STEP
32. 4 IN 1 CARD
BA41-00810A NANYA
2007.06.16
SAMSUNG PROPRIETARY
Remarks :
PROPRIETARY INFORMATION THAT IS
A
CHECK
1
49. SWITCH POWER
A
44. P3.3V_AUX & P5.0V_AUX
Model Name :
EXCEPT AS AUTHORIZED BY SAMSUNG.
19 . DDR2 TERMINATION
3 2
APPROVAL
D
HAINAN3_EXT
46. GRAPHIC CORE POWER
40. LAN
48. CPU VRM
42. KBD & TOUCH-PAD CONN
43. CHARGE
3
TITLE
B
2
Table of Contents
ROKY ZHENG
Intel Santarosa Merom
12. THERMAL & FAN
4
MODULE CODE
BA41-00809A GCE
1.0
CHECK
51. POWER STRAPS
23. GFX MEMORY
47. DDR2 POWER
Dev. Step :
LAST EDIT
DRAW
SAMSUNG
SAMSUNG ELECTRONICS CO’S PROPERTY.
1. COVER
ELLEN ZHANG
8. CLOCK
9-11. MEROM
PART NO.
DRAW
RS600&SB600&M64S
OF
SR
50. POWER SWITCH AND LED
ELECTRONICS
45. P1.2V & VCCP_CORE
PAGE
CPU :
T.R. Date :
PBA Name :
APPROVAL
MAIN
Mobility Platform
18. DDR2 SODIMM
C
2-7. DIAGRAM & ANNOTATION
4
29. SPI ROM
Chip Set :
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
D
Revision :
20-22. GFX
28. SB600 TERMINATION
KEVIN LEE
30. LCD
13-17. RS600
31. CRT
33. EXPRESS CARD
35-37. AUDIO
1
38. HDD & ODD
ELLEN ZHANG
ROKY ZHENG
KEVIN LEE
undefined
6/16/2007
SR
1.0
March 23, 2007 11:06:39 AM
BA41-00809/810A
153
HAINAN3_EXT
COVER
24-27. SB600
41. LAN & MDC & USB CONN
REV
B
52-53. TP
39. MICOM
PCB Code :

Samsung
Confidential
PG 18
PG 29
H8S-2110B
ALC262
BT
PG 37
Direct Media Interface
MICOM
MIC-IN
3.3V LPC, 33MHz
PG 30
Single channel
ANT
PG 30
MiniCARD
1
PG 18
PG 35
Mobile Processor
MDC
CONN.
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
Audio
PSB
CD-ROM
USB 8
4 3
PG 12
USB 0,1,2
2
USB 0,1,2
4 IN 1 CARD
D
AZALIA Secondary
PG 25
SAMSUNG PROPRIETARY
2P
IMVP-6
AMP
PCI
12P
PG 20 ~ 23
RS600M
PG 31
4
RJ45
SPI
AZALIA Primary
EXCEPT AS AUTHORIZED BY SAMSUNG.
SPI
AZALIA
Clocking
LAN
PG 32
AZALIA
ICS95461
PG 39
RJ11
ELECTRONICS
PG 27
CRT
Touch
B
LVDS
CRT/TV
RTL8100CL
SB600
B
PG 37
PAD
SODIMM 0
PG 8
A
1
L2 Cache : 2 MB
Wireless LAN
SODIMM 1
PG 28
SATA
Video Memory
Internal Graphics
PG 42
C
Circuit
ANT
MX25L8005
3
AU6366
USB 6
30P
Ext. - Int. Option
PG 13 ~ 17
Switche PWR
VRM
PG 44
PG 9,10,11
A
DMB
THIS DOCUMENT CONTAINS CONFIDENTIAL
(667MHz/800)
PG 34
PG 36-37
USB 5
D
USB 7
Ext. PEG
nVidia G7X
PG 38
PG 33
GFx Board
KBD
SAMSUNG
AUDIO
SD/xD/MS
Express Card
CPU
USB 3
PG 32
549 BGA
Pri. IDE slave
Codec
CRT
LCD
PG 43
667 MT/S
x4/x2, 1.5V
DDR II 667/533
C
SAMSUNG ELECTRONICS CO’S PROPERTY.
PG 29
Sensor
478pin
DDR II
PG 38
External Graphics
LVDS
64 PIN
SATA
HDD
PG 12
DDR II
PG 30
1021 FCBGA
PG 30
26P
Modem
VRM
Merom - 4M
GMCH-M
PEG x16
MiniPCIE
PROPRIETARY INFORMATION THAT IS
PG 34
CPU
SPKR R
2
DVB-T
PG 37
Charging
PG 37
PG 25
FAN
HP
Lane 2
PG 28
Hitachi H8S
PCIE x1
Thermal
USB 4
DDR II

Samsung
Confidential
S4
P1.2V
Full On
ON
L
2
SAMSUNG
ON ON
KBC3_SUSPWRON
S5
S0
L
H
ON
VCCP3_PWRGD
P1.2V_ALWS
SB
NB
Rail
L
KBC3_VRON
P5.0V_AUX
H
1
OFF
P0.9V
4
C
MEROM
SUSPWR
OFF
OFFON
+V*AUX
P5.0V_ALWS
4
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
PROPRIETARY INFORMATION THAT IS
Power Diagram
3
D
S3
AC Adapter
THIS DOCUMENT CONTAINS CONFIDENTIAL
S3
VDC
P12.0V_ALWS
A
ON
S5 / S4
B
L
OFF L
2
EXCEPT AS AUTHORIZED BY SAMSUNG.
ELECTRONICS
B
Battery DC
ON
P3.3V
PWRON
1
KBC3_PWRON
+V
P1.8V
H
P3.3V_AUX
(VCCP_CORE)
3
H
CPU_CORE
P1.2V_ALWS
SAMSUNG ELECTRONICS CO’S PROPERTY.
P3.3V_MICOM
SAMSUNG PROPRIETARY
L
P1.8V_AUX
A
ON
P1.05V
P2.5V_LAN
P1.5V
+V*Always VRON
State
H
C
P5.0V
D
MEROM
L

Samsung
Confidential
D
2
VRM3_CPU_PWRGD
SAMSUNG
P1.8V/P1.5V/P0.9V/P1.2V
A
T3=40mS
ADT3_SEL
A
4
THIS DOCUMENT CONTAINS CONFIDENTIAL
T8=50mS
CHP3_SLPS3*
PWRON
1
KBC3_RSMRST*
PCI3_RST*
B
CPU1_PWRGDCPU
T12=72mS
T7=15mS
P1.2V_ALWS
T9=110mS
KBC3_PWRBTN*
CHP3_ALINK_RST*
P5.0V_ALWS
MEM1_VREF
SAMSUNG ELECTRONICS CO’S PROPERTY.
T10=(47-66)mS
P5.0V
KBC3_VRON
T14=50mS
KBC3_SUSPWRON
P5V_AUX/P3.3V_AUX/P1.8V_AUX/1.2V_AUX

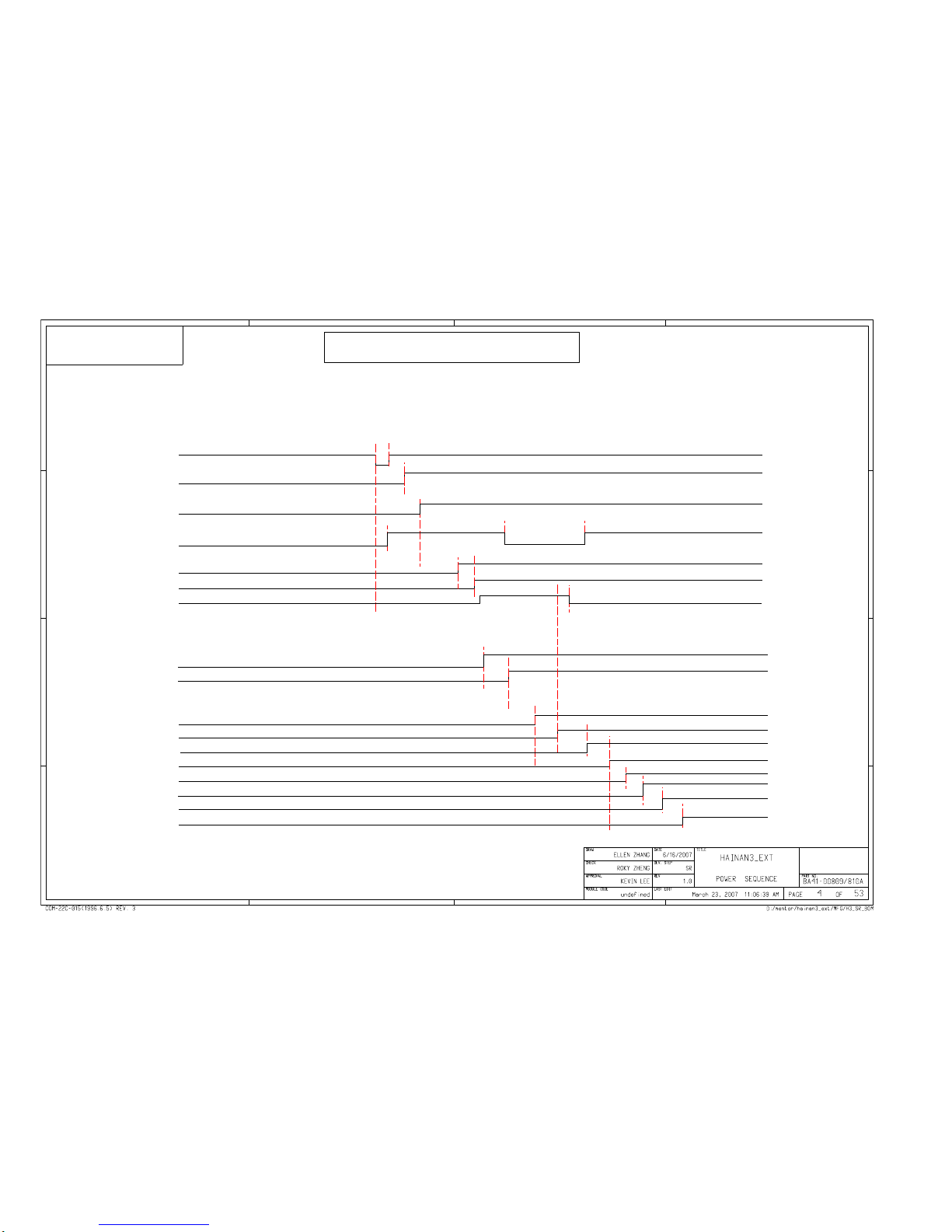

POWER SEQUENCE
3
PROPRIETARY INFORMATION THAT IS
T16=170mS
EXCEPT AS AUTHORIZED BY SAMSUNG.
VDC
CPU_CORE
KBC3_SBPWRGD
C
T1
CHP3_SLPS5*
T5=10mS
T4=120mS
T15=30mS
CPU1_CPURST* T13=73mS
KBC3_PWRON
3
ELECTRONICS
KBC3_CLKPWRGD#
P3.3V_MICOM
D
4
T6=100mS
KBC3_RUNSCI#
1
T2=10mS
PRTC_BAT
T5=3mS
B
VCCP3_PWRGD
KBC3_PWRSW*
T11=80nS
KBC3_RST*
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
SAMSUNG PROPRIETARY
VCCP_CORE
2
C
KBC3_NBPWRGD

Samsung
Confidential
P5.0V_AUX
4
P5.0V_ALWS P1.8V_AUX
3
CPU_CORE
MIC5219
ISL6227CAZ-T
P0.9V
THIS DOCUMENT CONTAINS CONFIDENTIAL
FDS6680A
SI4435DY
ADAPTER
EXCEPT AS AUTHORIZED BY SAMSUNG.
P3.3V_MICOM
P3.3V
A
MIC5219B
MAX8734
B
SAMSUNG
D
SAMSUNG ELECTRONICS CO’S PROPERTY.
P1.2V_ALWS
B
SAMSUNG PROPRIETARY
FDS6680A
PROPRIETARY INFORMATION THAT IS
C
MIC5258
4
MAX8734AEEI+T
VCCP_CORE
2
P3.3V_AUX
P5.0V
P1.8V
BATTERY
19V
A
1
P1.5V
C
MAX1909ETI+T
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
SC452
1
220V
P1.2V
3
ELECTRONICS
P5.0V_ALWS
POWER RAILS ANALYSIS
D
MAX8632ETI+
2

Samsung
Confidential
CLK0_HCLK1#
CLK1_EXPCARD#
ELECTRONICS
CLK3_PCLKMICOM
1
CLK3_PCLKLAN
2
EXCEPT AS AUTHORIZED BY SAMSUNG.
14.318 MHz
B
MEROM
RS600MF
CLK3_ICH14
SB600
EXP CARD
CLK0_HCLK1
CLOCK GENERATOR
CLK1_PCIEICH
EXP3_CLKREQ#
THIS DOCUMENT CONTAINS CONFIDENTIAL
CLK1_PCIERCLK
3
CLK1_PCIENB
25MHz
MINI CARD
A
SAMSUNG
A
D
C C
D
CLK0_HCLK0
CLK0_HCLK0*
B
4
2
CLK1_PCIERCLK#
CLK3_USB48
10MHz
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
CLK1_PCIENB#
SAMSUNG PROPRIETARY
1
PROPRIETARY INFORMATION THAT IS
MICOM
CLK1_EXPCARD
CLK3_33M_MIN
SAMSUNG ELECTRONICS CO’S PROPERTY.
4
RTL8100
CLK3_NB14M
CLK1_PCIEICH#
3

Samsung
Confidential
0.1875 V
0.1750 V
1
1
1
1
1
1
1
0
0
0
1
1
0
1.0125 V
01
1
0
0
0.4750 V
0.4625 V0
1
0
0
1
0
0
0
1
1
0
0
0
0.4875 V0
0
0
0
1
0
1
0
1
1
0.1625 V
1
1
0.1000 V0
0
1
0
1
1
0
0
0
0
1
1
1
1
1
0
1
1
1
1
1
1
0.9250 V
Voltage
0
1
0
0
0
1
01.1125 V 1
0
0
0
0.3375 V
0.4500 V1
0
0
0
1
0
0
0
0
1
0
0
0
01
1
0
1
1
1
0
1
1
P2.5V_LAN
0.1250 V
0
1
1
0.2250 V
0
0
0
1
1
1
1
0
0
0
0
0
0
1
1
1
0
0
0.9500 V
0
0
0
0
0
1.1750 V
1.0250 V
Internal MAC
0
1
0
0
0
0
1
0
0.4000 V
0.3875 V0
0
0
0
0
1
1
1
0
0
0
1
0
0
0
0
1
1
0
1
0
-
1
P3.3V
0.1125 V
0
1
1
0
0.1500 V
0
0
1
1
1
1
0
0
0
0
1
1
1
0.8250 V
0
1
0
0
0.8625 V
1.2000 V
1
1
1
CHP3_SLPS3* S3, Suspend-To-RAM(STR) : The system context is maintained in system DRAM, but power is shut off to non-critical circuits.
1.1000 V
USB
0
1
0
0
0
0
0.3750 V
1
0
1
0
1
0.7375 V
0.6625 V
10
1
1
0
1
1
Active
0
1
0
1
0
0
P5.0V
10MHz
1
1
AD31(internal)
0.2375 V
1
0
1
1
1
1
1
1
1
11
0
1
0
0.8750 V
0
1
VID(6:0)
0
0.9375 V
1.2625 V
1
1
0
1
C
-
1
Master
0 or 1
The system context is maintained in system DRAM. Power is maintained to PCI, the CPU, memory controller, memory, and all other criticial subsystems.
0
1
1
0
1
1
0.3625 V
0
0
0
01
1
1
1
1
1
0
0
1
0
0
0
0
1
1
-
P1.8V
-
0
DO NOT DISCLOSE TO OR DUPLICATE FOR OTHERS
1
FREQUENCY
0.2125 V
1
0
1
0
1
0
0
0
1
1
0.9000 V
1
1
1
0
0.8125 V
1.2750 V
1
0
0
0
1.1875 V
1
In Deeper Sleep, CPU voltage reduced in this state to reduce the leakage power.
Hub to PCI
ICS95411 (Clock Generator)
1
Hex
1
PROPRIETARY INFORMATION THAT IS
0
1
0
0
0
1
0.3250 V
0
1
1
0.7250 V
1
0
0
1
1
0
1
IMVP-6
0
1
1
1
1
Real Time Clock
-
32.768KHz
P1.8V_AUX
AD30(internal)
Crystal
1
4 IN 1 CARD
1
SB600
1
1
1
1
0
1
1
0.9625 V
0
0
1
0
0.8375 V
1.3000 V
1
1
0
1
1.2125 V
1
0
0
-
D
A
VDC
P5.0V_ALWS
3
1
9Ch
0
Memory is retained, and refreshes continue. All clocks stop except RTC clock.
0
1
1
0.5000 V
0
0.2000 V
0.7500 V
0
1
0
1
0
1
0
DPRSTP*
0
1
1
1
0
0
1
P3.3V_AUX
1
1001 110X
MINI PCIE
I C / SMB Address
AD31(internal)
ELECTRONICS
1
-
1
RS600 SB600
1
1
0
0
1
1
1
0
0.8875 V
1
1
1
0
0
1.1500 V
0
0
0
0
0
1
1010 0000
SODIMM1
4
CHP3_SLPS1* S1, Powered-On-Suspend(POS) : In this state, all clocks(except the 32.768KHz clock) are stopped.
D2h
1
HD64F2110B
0
-
1
1
1
1
1
0
1
0
1
0
0
0
1
0
0
0
0
1.3875 V
0
1
THERMAL SB600 MICOM LED P1.8V_ALWS
1
P5.0V_AUX
1
-
SYSTEM POWER
AU6366
4
DEVICE
1
1
5
1
AD21
1
1.0375 V
1
0
0.9125 V
1
0
0
0
Voltage
1.2875 V
1
1
0
10
1
1
for either Deep Sleep or Deeper Sleep.
1
0
EXPRESS CARD
-
DDR2
AD31(internal)
Voltage Rails
1
Crystal
0
1
0
1
0
1
1
0
1
1
1
0
1
DPRSLPVR
1.4125 V
0
1
1
1.1375 V
1
1
ASSIGNED TO
PSI2*
CPU EXPCARD
Dual Mode Region
1
VCCP_CORE
SYSTEM PORT A
RS600
-
AC Link
1
BT
1
1
0.8500 V
1
0
1
0
1.4250 V
1
0
0
0
10
1
0
0
1
1
1
SAMSUNG ELECTRONICS CO’S PROPERTY.
1
D
0
2
SB600
3
Crystal
THIS DOCUMENT CONTAINS CONFIDENTIAL
Bus
1
1,2
1
-
0
1
0
1
0
0
0
0
1
1.3500 V
1
1
1
0
1.3750 V
0
0
0
1
1
4 IN 1 CARD DPRSTP*
Interrupts
*"1111111" : 0V power good asserted.
SAMSUNG
Crystal
7
1010 001X
P1.5V
MDC MICOM MINIPCI EXP-CARD SB600 THERMAL
1
B
0
1
0
1.4500 V
0
0
0
0
00
0
0
0
0
0
1
1
0
1
1
1
0
1101 001x
SODIMM0
MICOM
Note that this state does not preclude power being removed from non-essential devices, such as disk drives. During this state, CPU can be selected
SAMSUNG PROPRIETARY
P1.5V P3.3V P1,8V
1
-
0
0
0
0
1
0
1
1.4875 V
0
0
0
0
1.4000 V
0
1
1
1
1
1
0
1
1
CPU_CORE
0 or 1
Crystal / Oscillator
P0.9V
TYPE
Externally appears same as S5, but may have different wake events.
PORT NUMBER
Clock, Unused Clock Output Disable
C
IDSEL#
0
1.3250 V
0
1
1
0
1.3625 V
1
0
0
0
0
0
0
1
1
1
0
1
1
1
1
Address
1
25MHz
0.0000 V
A0h
0
CHP3_SLPS5* S5, Soft Off(SOFF) : System context is not maintained. All power is shut off except for the logic required to restart. A full boot is required when waking.
EXCEPT AS AUTHORIZED BY SAMSUNG.
G
0
0
1
PSI2*
0
1
0
0
1
1
1.4625 V
0
1
0
1
1
1
0.3000 V
1
1
DPRSLPVR
0
Deeper Sleep/Extended Deeper Sleep
1
DMB 0
4
SYSTEM PORT B
-
LAN
6,8
Thermal Sensor
0
1
1
01.4375 V
1
0
0
0
0
0
0
0
0
0
0.6000 V
0
0
1
0
1
0
1
1
EMC6N300(CPU Thermal Sensor)
1
USAGE
0.0000 V
CPU
2
23
1
P1.2V_ALWS
0
00
0
1
0
1.4750 V
0
VID(6:0)
0
1
0.9875 V
*Yonah Processor (2.33 GHz / 800 MHz : TBD)
0
VID(6:0)
0
1
0.4250 V
1
1
Deeper Slp
0
12MHz
1
REQ/GNT#
Dual Mode Region
A2h
PCI Devices
Devices
RTL8100
1
0
1.3125 V
0
1
0
0
0
1
0
1
0
0
1
0
1
1
1
0
1
1
1
1
1
1
1
USB PORT Assign 1
System Power States
0.0000 V
LAN
DDR2 P1.8V RS600
0
00
0
0
0
1.5000 V
0
01
1
1
0
1
1
1
0.3125 V
0
1
1
1
0.3500 V
1
1
1
0
A
1
CHP3_SLP4S* S4, Suspend-To-Disk(STD) : The Context of the system is maintained on the disk. All power is then shut off to the system except for the logic required to resume.
0
SMBUS Master
FAN THERMAL CRT SB600 AU6366 MINIPCI ALC262 HDD ODD MICOM USB TOUCH-PAD CPU_CORE
1.3375 V
0
1
1
1
0
1
0
1
1
0
1
00
1
0.6125 V
1
1
1
1
1
1
1
1
1
1
0.0000 V
0
1.0750 V
Primary DC system power supply (7 to 21V)
0.0000 V
0
0
CPU Core Voltage Table
0
1
1
00
0
0
0
1
0
0
0.9750 V
B
1
0 0.4375 V
0
1
1
1
0
1
1
Active Mode
0.2875 V
SCHEMATIC ANNOTATIONS AND BOARD INFORMATION
1
LOM
1
1
0
0
1.2250 V
1
0
0
1
0
0
01
0
0.6250 V
1
1
1
0
1
1
0
0
1
0
1
0.0750 V
1
0
0.0000 V
0
THERMAL LCD P1.2V P5.0V
1.0500 V
SB600,P1.2V
0
1
1
01
1
0
0
1
1
0
1.0000 V
P1.2V
1
0
0
0
1
0
0.4125 V
0
1
0
1
1
1
1
Active/Deeper Sleep
0.2625 V
Devices
1
1
1.2500 V
0
0
1
0
0
0
00
0
0.6375 V
1
0
1
0
1
1
1
1
1
1
0
0
1
1
1
0.0500 V
1.0875 V
1
0.0000 V
0
1
1
0
0
1
0
0
1
1
0
11
1
P12.0V_ALWS
LPC bridge/IDE/AC97/SMBUS
0
1
14.318MHzCrystal
1
0
0
Voltage
1
1
0
0
0
1
0
1
0.2500 V
0
0
1
0
1.1625 V
0
01
1
1
1
0.6875 V
0.6750 V
0
0
0
0
0
1
0
1
1
1
0
0.0875 V
0
0
1
0
0.0375 V
1.0625 V
1
00
0
1
1
1
01
1
0
0
-
-
0
0
1
0.5875 V
0
1
CLOCK-Generator ICS95461
1
1
1
0
0
0
1
0.2750 V
1
1
0
0
0
1.2375 V
1
0
0
0
0
0
0.7125 V
0.7000 V
0
1
0
0
1
1
0
0
1
0.8000 V
1
1
0
0
0.0625 V
0.0000 V
0.0250 V
0
0.0125 V
0
0
1
0
1
11
0.5375 V
0.5250 V
1
0
P3.3V_MICOM P3.3V DDR2-PWR
0
0
1
10
1
0.5750 V
0.5625 V
1
1
1
0
1
0
0
1
0
0
0.1375 V
0
1.1250 V
0
0
0
1
1
1
0.6500 V
0.7625 V
0
1
0
0
1
1
1
1
1
0
1
0
0.7875 V
0.7750 V
0
0
0
0
1
1
0
1
1
0
1
0.5125 V
0.5500 V
0
1
1
CPU RS600 SB600
1
0
0
10
1
