Samsung 450 Series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please register
your product
at
www.samsung.com/register
Model Serial No. _

I-F;Il~ iI ~S ~nd Illustrations in this User Manual are provided for reference only aneJ Illay differ fro III (1;tua~! Ocill~I--;~lPf~;~,;~~~--1
Ploduct design and specifications Illay be changed without notice. __ ~
Important Warranty Information Regarding Television Format Viewing
.,;.!. See the warranty card for more information on warranty terms.
Wide ';cleen lormat LCD Displays (16:9, the aspect ratio of the screen width
to height) are primarily designed to view widp screen fOrlni'lt hlll-
,nut,on
Video The images displayed on them should primarily be in the wide screen 1 G:9 ratio format. or expanded fo fill tile screetl If your 1n<,df,1
offers thiS feature and the Images are constantly moving. Displaying stationary graphics and images on screen. such as Ih" dark s,dehars Ull
nonexpanded standard format television video and programming. should be limited to 110 more than 50;" of the total televls,un vlewII1Q pel- weok
Adciiliollally. viewing other stationary Images and text
SUCl1 as stock market reports. video game displays. station logos. web SltAS or computer
graphiC; and patterns. should be limited as described above for
all televiSions. Displaying stationary imilges that exceed 1118 above glildelines
I;all
,;~Juse uneven aging of LCD Displays that leave subtle. but permanent burned-in ghost images In the LCD picture. To ·\Vuid thiS. vary the
proqrcllllming and illiages. and primanly rjisplay
full screen moving images. not stationary patterns or dark bars. On LCD illodels irkl! offer plC'lLIre
SIzII'9 features. use these controls to view different formats as afull screen picture.
Be
Cilrt-~ful in the selection and duration of teleVision formats used for vieWing. Une'lell LCD aging as aresult of for!TJat sele!I'lion il!l(i Lise. <is · .. .-ell J!,
burn"KI-in ilTJages. are not covered by your Snn'lsung hlniter1 warranty.
.c;/\MSUNG ELECTRONICS NORTH AMFRIC.I\N LIMITED WARRANTY STATEMENT
S'IIJJ8Cf to the requirements. conditions exclusiollS dnd limitations of the originill Limited Warrrtnty supplied With SClIlI,~ung t=iecironics
,s1\MSUNG) products. and the requirements. conditions. exclusions and limitations contained herein. SAMSLJNG will iKJditionaliy
prOVI(iE'
Wilrranty Repair Service in the United States on SAMSUNG products purchaser] in Canada. and in Cclililda on SAMSUNC; pr!lCJllct"
purchased
In the United States. for the warranty penod originally speCified. and to the Onginal Purchasel only.
Tile above descnbed warranty repairs must be performed by aSAMSUNG Authorized Service Center Along with
thiS Staterrlent. Ihe Original
umited Warranty Statement and adated Bill of Sale as Proof of Purchase must be presented to the Service Center. Transportafion to and
frulll the Service Center is the responsibility of the purchaser. Conditions covered are limited only to manufactunng llefects in material or
'/VIJrkmanshlp. and only those encountered
in normal use of the product.
t:xciuded. but nol limited to. are any originally specified provisions
for. In-home or on-site services. minirTJum or maximum repair limes.
E'xc!langes or replacements. accessories. options. upgrades. or consumables.
'-/,r Ihe location of aSAMSUNG Authorized Service Center. please call toll-free:
In fhe United States. 1 -800-SAMSUNG (1 -SOO- 726· 7864i
II ICcl:lada 1-SOO-SAMSUNG
Still image warning
Avo!l Idisplaying still images (such as Jpeg picture files) or still image elemenls (such as TV channel logos. panorama or 4-3 Image format. stock
or news bars at screen
bottom etc.) on tile screen. Constant displaying of still pictures can cause uneven wear of the SCIP,~n phospllt)r. which will
,1 ifF:' tlinage quality To reduce risk of thiS effect. please follow below re~onlll18ndations:
i\vnid displaYing tile S31lle TJ channel for long periods.
,\Iways try to display any image nn full screen. use
TV set picture format menu for best pOSSible mclfch
Reduce briglltness nnd contrast values to minimum reqUired to achieve desireu picture quality.
()xcec~rj(;cJ values I1Kl\' speed lip tile bU'''tJul
pifjt:ess,
hpquenlly use all TV fealures deSigned to reduce image retention and screen burnout. refer to proper liser nl3nual s",lion 101 detilll':;
•
CCJntalns mercury, Dispose according to Local. State or Federal Laws.
Securing the Installation Space
Keei-llhe required distances between the product and other objects (e.g. walls) to ensure proper ventilation.
Faliillq 10
do so may result in fire or aproblem with the product due to an Increase in the internal temperature of the product
When uSing astand or Willi-mount, use parts provideri by Samsung Electronics only
•ii you use parts prOVided by another manufacturer.
it may result in aproblem with the proriuct or an rnfury (1ue to ii If) product lallil1lj
.' /. lllL~ appearance may differ depending on the product
Installationwith a stand.
© 2C11() Sarnsung Electronics Co. Ltd. All nghts reserved.
2English
Installation with a wall-mount.

Contents
Getting Started
•List of Features 4
•Accessories 4
•Installing the
LCD 1V Stand 4
•Viewing the Control
Panel 5
•Viewing the Remote Contro!. 6
•Connecting to
an Antenna 7
•
Plug & Play (Initial Setup) 7
Connections
•Connecting to an AV Device 8
•Connecting to
an Audio Device 9
•Connecting to a
PC 9
•Changing the Input source 10
Basic Features
•How to Navigate Menus 11
• Channel Menu 11
Seeing Channels 11
Using Favorite Channels 12
Memorizing channels 12
Editing channels 12
Other Features 12
•Picture Menu 13
Changing the Preset Picture Mode 13
Adjusting picture settings 13
Setting up the TV with your PC 14
Changing the Picture Options 14
•Sound Menu 16
Changing the Preset Sound Mode 16
Adjusting sound settings 16
Sound Settings 16
•Setup Menu 17
Setting the Time 17
Using the Sleep Timer 17
Setting the On/Off Timer 17

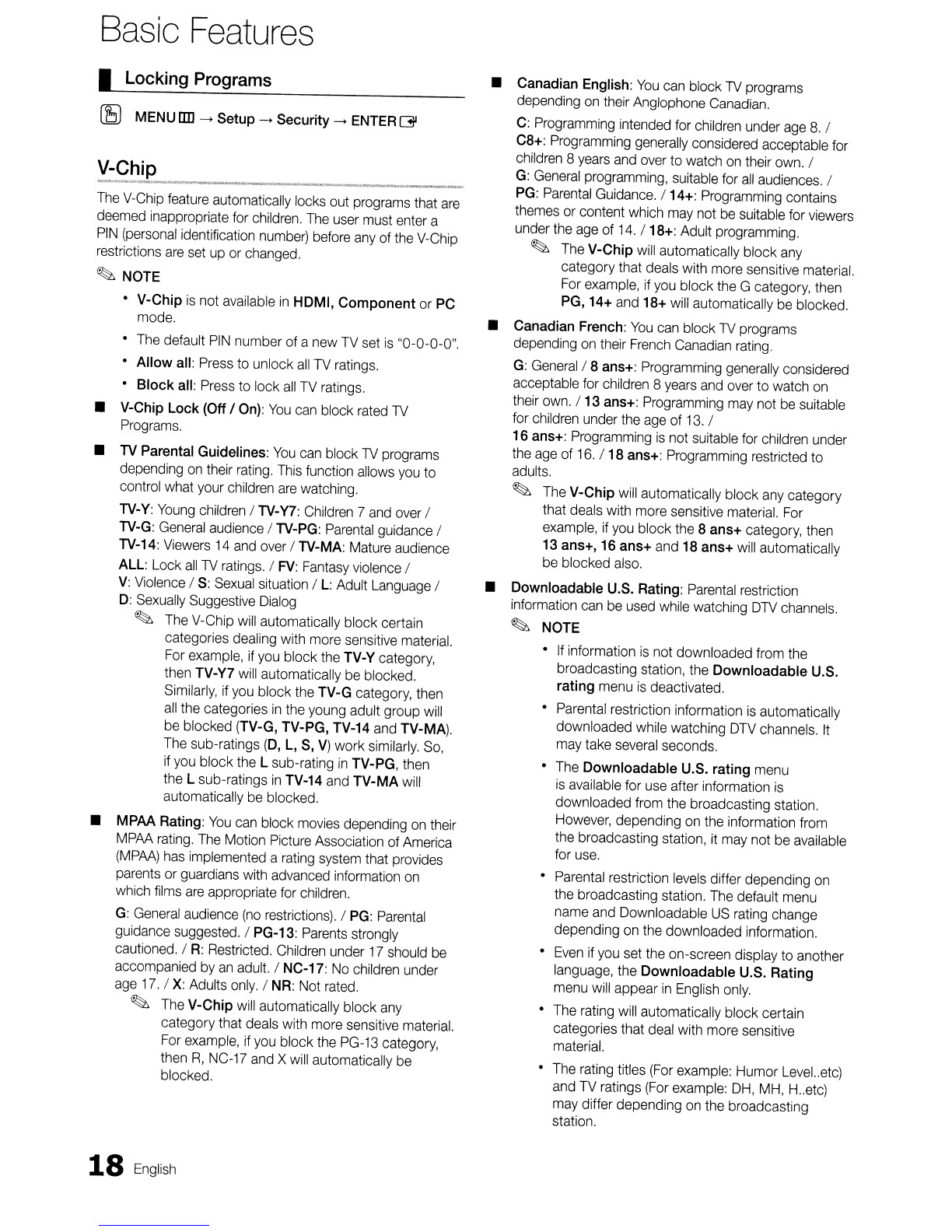

Locking Programs 18
Other Features 19
•Support Menu 20
Advanced Features
•Media Play 21
Connecting a USB Device 21
•Anynet+ 25
Setting Up Anynet+ 26
Switching between Anynet+ Devices 26
Recording 26
Listening through a Receiver 27
Troubleshooting for Anynet+ 27
Other Information
•Installing the Wall Mount 28
•Securing the 1Vto the
Wall 31
•Anti-Theft Kensington Lock 31
•Troubleshooting 32
•Specifications 35
License 35
•Dimensions 36
•Index
37
Check the Symbol!
ICelel .. m
This function can be used by pressing the
TOOLS button on the remote contro!. Note:
Important information Step
by step guide:
Informs
you how to access
the
menu.
English 3

Getting Started
List of Features
• Excellent Digital Interface & Networking: With abuilt-in HD digital tuner, nonsubscription HD broadcasts can be viewed
without a cable box / STB (Set-Top-Box) satellite receiver.
•Media Play: Allows you to play music files, and pictures saved on a USB device. (P. 21)
• Self Diagnosis: You can check picture and sound operation. (P. 20)
Accessories
~ Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
~ The items' colors and shapes may vary depending on the models.
Installing the LCD TV Stand
Components
When installing the stand, use the provided components and parts.
~ 3EA(M4X L16)
LN22C450
Front
... __ ..•
o ..
L,~L,
• 0 ,-,_. o.
:::
•
i:.L Rear
................ ~ '
fII". ..
~.
\.
o
4 English

Viewing the Control Panel
I
Speakers
Power Indicator
I
-VOL +VCH /\. • (!)
Remote control sensor
Press to turn the TV on and off.
Aim the remote control towards this spot on the
TV.
Toggles between all the available input sources. In the on-screen menu, use this
~~~~~~n~~Jf~1l~~~~~~i~'ff~~i~~I;~~ button as you would use the ENTER GI button on the remote control.
~~ Displays an on-screen menu of your TV's features.
Adjusts the volume.
In the on-screen menu, use the -VOL+buttons as you would
"'.""Z_or_ use the ~ and ~ buttons on the remote control.
Changes the channels.
In the on-screen menu, use the V CH Abuttons as you
1would use the "and .. buttons on the remote control.
""''';2'Wi''~' .'·.JOe •• ·... ""···",,
Blinks and turns off when the power is on and lights up in standby mode.
1 I SOURCE G' MENU
~_"iiiiiiiiiiiii!iiiiiiiiiiF;;;SAM;'U;·'._.!!iiiii ... ii_:;~· .
I '1 FI "~""_~I!'11!11!1!!111_~~~!!!!!l!!I!!!l!"""""""'_""""
~ The product color and shape may vary depending on the model.
~ Make sure to distinguish between the front and rear of the Stand when attaching it to the TV.
~ Make sure that at least two persons lift and move the LCD TV.
~ Lay the product down, with the screen facing up and fasten the screws.
Standby mode
Do not leave your TV
in standby mode for long periods of time (when you are away on aholiday, for example). Asmall amount
of electric power
is still consumed even when the power button is turned off. It is best to unplug the power cord.
English 5

Getting Started
Viewing the Remote Control
S.MODE: Selects the sound mode. (P. 16)
SLEEP: Automatically shuts off the 1V at a
preset time. (P. 17)
MTS: Press to choose stereo, mono or
Separate
Audio Program (SAP
broadcast). (P. 16)
P.MODE: Selects picture mode. (P. 13)
P.SIZE: Choose the picture size. (P. 15)
CC: Controls the caption decoder. (P. 19)
Exit the menu.
Return to the previous channel.
Display and select the available video
sources. (P. 10)
~ NOTE
• Use the remote control within 23
feet from 1V.
•Bright
light may affect the
performance of the remote control.
Avoid use when nearby fluorescent
lights or neon signs .
•
The Color and shape may vary
depending on the model.
b-~- Change channels.
Displays Favorite Channel Lists on the
screen. (P. 12)
b-"':":""- Press to display information on the 1V
screen. (P.17)
,=...----:=-.:.....:.;:....-- Displays the main on-screen menu.
~~~~=~~~- Cut off the sound temporarily.
..
....
o..o
o
·
·
·
·
o
.
o
.
. .
..
.. ..
...........
Adjusts the volume. ----'.,;,-
Turns the 1V on and off. --.;..;.
Return to the previous menu. -----=.;..--"
Select on-screen menu items and ---'-,,,....--(
change menu values.
Press to directly access to channels. -----'----I
Use these buttons in the Media Play -J~~~~~~i
and Anynet+ modes.
(~: Controls recording on Samsung
recorders with the Anynet+ feature)
Displays the channel list on the screen. ---'-,---~
(P. 11)
View the Media Play. (P. 21) -.....:.;.. .....
Quickly select frequently used functions --:-----'-"
Buttons used in the Channel list, Media ---'-,--1:
Play menu, etc.
Installing batteries (Battery size: AAA)
6 English

When the 1V is initially powered on, basic settings proceed automatically.
~ Connecting the power cord and antenna.
POWER
~
Connecting to an Antenna
Press the ENTER ~ button.
Press
the. or Tbutton, the select the desired OSD (On Screen
Display) language.
Press the
.... or ~ button, then press the ENTER ~ button.
•Select the
Home Use mode. Store Demo Mode is for retail
environments.
•
To return the unit's settings from Store Demo to Home Use
(standard): Press the volume button on the 1V. When you see the
volume
in the OSD, press and hold MENU for 5sec.
Press
the. or Tbutton, then press the ENTER ~ button. Select Air, Cable or Auto.
~ In Cable mode, you can select the correct signal source among STD, HRC, and IRC
by pressing the ., T, .... or ~ button, then press the ENTER ~ button.
The channel search will start automatically.
For more information, refer
to Channel -+ Auto Program. (P. 12)
~ Press the ENTER ~ button at any time to interrupt the memorization process.
Set the Clock Mode automatically or manually.
~ If you select the Auto, set the daylight saving time.
Select the time zone where you live.
The connection method for the best
HD screen quality is displayed.
Press the
ENTER ~ button.
Plug &Play (Initial Setup)
~
~ Power Input
When the 1V is initially powered on, asequence of on-screen prompts will assist in configuring basic settings. Press the
POWERC!) button. Plug &Play is available only when the Input source is set to TV.
~ To return to the previous step, press the red button.
If You Want to Reset This Feature ...
~ MENU lID -+ Setup -+ Plug & Play -+ ENTER ~
English 7

Connections
Connecting to an AV Device
Using an HOMII OVI Cable: HO connection (up to 1080p)
We recommend using the HOMI connection for the best quality HO picture.
Available devices: DVO, Blu-ray player, HO cable box, HO STB (Set-Top-Box) satellite receiver
Red White
I
--_._-.-~-"""'-""
~ HDMI (OVI) IN IPC/DVI AUDIO IN
• When using an HOMI/OVI cable connection, you must use the HDMI (OVI) IN jack for video. A DVO, Blu-ray
player, HO cable box, HO STB satellite receiver, cable box, or STB satellite receiver may require a OVI-HDMI (DVI
to HOMI) cable or OVI-HOMI (OVI to HOMI) adapter. The PC/DVI AUDIO IN jack is required for audio.
• If an external device such as a OVO /Blu-ray player / cable box / satellite receiver (Set-Top Box) supporting
•
HOMI version older than 1.3 is connected, the TV may operate abnormally (e.g. no screen display / no sound I
annoying flicker abnormal Color).
• If there is no sound after connecting an HOMI cable, check the HOMI version of the external device. If you
suspect the version is older than 1 .3, contact the provider of the device to confirm the HOMI version and request
an upgrade.
•
It is recommended you purchase an HOMI-certifi ed cable. Otherwise, the screen may appear blank or a connection
error may occur.
Using aComponent Cable: (up to 1080p), Using an AudioNideo Cable: (480i only)
Available devices: OVO, Blu-ray player, cable box, STB satellite receiver, VCR
Y~low Red White Red Blue Green
~ COMPONENT IN I AV IN
When connecting to AV IN, the color of
the AV IN [YNIOEO] jack (Green) does not
match the color of the
video cable (Yellow).
~ For better picture quality, the Component
connection
is recommended over the AN
connection.
Blu-ray
player
R-AUDIO·L
e
VIDEO OUT AUDIO OUT
e®
8 English

Connecting to an Audio Device o I\)
Using an Optical (Digital) or Audio (Analog) Cable Connection
Available devices: Digital Audio System, Amplifier, Home Theater
••
Headphones
o
~ DIGITAL AUDIO OUT (OPTICAL)
•When aDigital Audio System
is connected to the DIGITAL AUDIO OUT (OPTICAL) jack, decrease the volume
of both the TV and the system.
• 5.1 CH (channel) audio is available when the TV is connected to an external device supporting 5.1 CH.
•When the receiver (Home Theater)
is set to on, you can hear sound output from the TV's optical jack. When
the TV
is receiving aDTV signal, the TV will send 5.1 CH sound to the Home Theater receiver. When the
source
is adigital component such as a DVD /Blu-ray player /cable box /STB (Set-Top-Box) satellite receiver
and
is connected to the TV via HDMI, only 2CH audio will be heard from the Home Theater receiver. If you
want to hear
5.1 CH audio, connect the digital audio out jack from your DVD /Blu-ray player /cable box /STB
satellite receiver directly to
an amplifier or Home Theater.
~ Headphones 0
Headphones may be connected to the headphones output on your set. While the headphones are connected, the
sound from the built-in speakers will be disabled.
•The available sound function can be restricted when connecting headphones to the TV.
•The headphone volume and TV volume are adjusted separately.
Connecting to aPC .
Using an HDMI/DVI Cable IaD-sub Cable
AUDIO OUT DVI OUT
!:!J @lillillB@1
AUDIO OUT pc OUT
=
English 9

Connections
Display Modes (D-Sub and HDMl/DVllnput
Optimal resolution is 1360x768@60Hz.
I
Mode
ResoIutlon
Horizontal Frequency (kHz) Yet1tcaI Frequency (Hz) PIxel Clock Frequency (MHz)
Sync Polarity (tIN)
~
640 x350 31.469 70.086 25.175 + /-
IBM 720 x400 31.469 70.087 28.322 - / +
640 x480 35.000 66.667 30.240 -
/-
MAC 832 x624 49.726 74.551 57.284 -/-
31.469 59.940 25.175 -/-
640 x480 37.861 72.809 31.500 -
/-
37.500 75.000 31.500 - /-
37.879 60.317 40.000 +/+
800 x600 48.077 72.188 50.000
+/+
VESADMT 46.875 75.000 49.500
+/+
48.363 60.004 65.000 -/-
1024 x768 56.476 70.069 75.000 -/-
60.023 75.029 78.750
+/+
1280 x720 45.000 60.000 74.250
+/+
1360 x768 47.712 60.015 85.500
+/+
720 x576 35.910 59.950 32.750 - / +
VESACVT 95.750 - / +
1280 x720 56.456 74.777
VESAGTF 1280 x720 52.500 70.000 89.040 - / +
~ NOTE
• For HDMI/DVI cable connection, you must use the HDMI (DVI) IN jack.
•
The interlace mode is not supported.
•
The set might operate abnormally if anon-standard video format is selected.
•
Separate and Composite modes are supported. SOG (Sync on Green) is not supported.
EX-LINK
I(!) IConnector for service only.
EX-UNK
Input Cables (Sold Separately)
VGA
Coaxial (RF)
a
HOMl-OVl
HOM!
Changing the Input source
Edit Name
(8 MENU an ~ Input ~ Source List ~ ENTER [3l
Source List
Use to select TV or an external input sources
such as a DVD I Blu-ray player I cable box I
STB satellite receiver.
• TV I AV IComponent! PC IHDMI/DVI
~ You can only choose external
devices that are connected to the
TV. In the Source List, connected
inputs
will be highlighted.
~ PC always stay activated.
10 English
SOURCE
~
(8 MENU an ~ Input ~ Edit Name ~ ENTER [3l
•VCR IDVD ICable STB ISatellite STB IPVR STB
I AV Receiver IGame ICamcorder IPC I DVI PC I
DVII TV IIPTV IBlu-ray IHD DVD IDMA: Name the
device connected to the input jacks to make your input
source selection easier.
~ When a PC with aresolution of 1360X768@60Hz. is
connected to the HDMI (DVI) IN port, you should set
the port to HDMI/DVI mode under Edit Name.
~ When connecting an HDMI/DVI cable to the HOMI
(DVI)
IN port, you should set the port to HDMI/DVI
mode under Edit Name.

Basic Features
How to Navigate Menus Channel Menu
CH LIST
CJ
n
~ MENU [ll] --+ Channel --+ Channel List --+ ENTER[31
• ~II All Channels: Shows all currently available
channels.
•HIAdded Channels: Shows all added channels.
••Favorite: Shows all favorite channels.
••Programmed: Shows all currently reserved
programs.
~ Using the color buttons with the Channel List
• • Green (Zoom): Enlarges or shrinks achannel
number.
· 0 Yellow (Select): Selects multiple channel lists.
Select desired channels and press the Yellow button
to set
all the selected channels at the same time. The
-../ mark appears to the left of the selected channels.
•;.J (Tools): Displays the Channel List option menu.
(The Options menus may differ depending on the
situation.)
Channel Status Display Icons
Add, delete or set Favorite channels and use
the program guide for digital broadcasts.
Select achannel
in the All Channels, Added
Channels, Favorite
or Programmed
screen by pressing the • / T buttons, and
pressing the ENTER [31 button. Then you
can watch the selected channel.
Channel List
ISeeing Channels
The main menu options appear on
the screen:
Picture, Sound, Channel, Setup,
Input, Application, Support.
Select an icon with the •or T
button.
Press ENTER [31 to access the
sub-menu.
Select the desired submenu with
the ... or Tbutton.
Adjust the value of
an item with the
.... or ~ button. The adjustment in
the OSD may differ depending on
the selected menu.
Press ENTER [31 to confirm the
selection.
Press EXIT.
How to Operate the OSD (On Screen Display)
The access step may differ depending on the selected menu.
oMENU button: Displays the main on-screen menu.
f) ENTER [31/ Direction button: Move the cursor and
select
an item. Confirm the setting.
eRETURN button: Returns to the previous menu.
eEXIT button: Exits the on-screen menu.
Before using the
N, follow the steps below to learn how to
navigate the menu and select and adjust different functions.
IIcons Operations I
-../
Achannel selected.
•Achannel set
as aFavorite.
GAreserved program.
6Aprogram currently being broadcast.
English
11

• Add to Favorite / Delete from Favorite '(,I,I~ii'
IUsing Favorite Channels
[B MENU lID -Channel -Channel List -ENTER G
Basic Features
Set channels you watch frequently as
Favorites.
1. Select achannel and press the TOOLS
button.
2. Add or delete achannel using the Add
to Favorite or Delete from Favorite
menu respectively.
IMemorizing channels
[B MENU lID -Channel -ENTER G
Antenna (Air /Cable) 11,1,1£11
~ NOTE
•When selecting the Cable TV system: Selects the
cable system. STD, HRC and IRC identify various
types of cable TV systems. Contact your local cable
company to identify the type of cable system that
exists
in your particular area. At this point, the signal
source has been selected.
•After
all the available channels are stored, it starts
to remove scrambled channels. The
Auto program
menu then reappears.
How to Stop Auto Programming
1. Press the ENTER Gbutton.
2. Amessage will ask Stop Auto Program? Select Yes by
pressing the
.... or ~ button.
3. Press the ENTER Gbutton.
IEditing channels
[B MENU lID -Channel -Channel List -ENTER G
Channel Name Edit
1I,1,I~fi
1. Select achannel and press the TOOLS button.
2. Edit the channel name using the Channel Name Edit
menu.
•Channel Name Edit (analog channels
only): Assign your
own channel name.
IOther Features
[B MENU lID -Channel -ENTER G
Before your television can begin memorizing the available
channels, you must specify the type of signal source that
is
connected to the TV (i.e. an Air or aCable system).
Auto Program
•Air: Air antenna signal.
•Cable: Cable antenna signal.
•Auto: Air and Cable antenna.
12 English
Clear Scrambled Channel
This function is used to filter out scrambled channels after
Auto Program
is completed. This process may take up to
20-30 minutes.
How to Stop Searching Scrambled Channels
1. Press the ENTER Gbutton to select Stop.
2. Press the .... button to select Yes.
3. Press the ENTER Gbutton.
~ This function is only available in Cable mode.
Channel List
[B MENU lID -Channel -Channel List -ENTER G
Channel List Option Menu
"'I,I~1I
Set each channel using the Channel List menu options (Add/
Delete, Timer Viewing, Select AII/ Deselect All). Option
menu items may differ depending on the channel status.
1. Select achannel and press the TOOLS button.
2. Select afunction and change its settings.

•Add /Delete: Delete or add achannel to display the
channels you want.
~ NOTE
• All deleted channels will be shown on the All
Channels menu.
• A gray-colored channel indicates the channel
has been deleted.
•The Add menu only appears for deleted
channels.
•Delete achannel from the Added Channels
or
Favorite menu in the same manner.
•Timer Viewing:
You can set adesired channel to be
displayed automatically at the set time; even when you
are watching another channel. Set the current time first
to use this function.(P. 17)
1. Press the ..... / ~ /6. /Tbuttons to select the
desired channel
in Channel List.
2. Press the TOOLS button, then select Timer Viewing.
3. Scroll up or down to adjust the settings in the box,
or use the numeric buttons on your remote for
entering the date and time.
~ If you selected Once, Every Week or Every Day
in Repeat, you can enter the date you want.
4. Select OK, then press the ENTER~ button when done.
~ NOTE
•Only memorized channels can be reserved.
•Reserved programs will be displayed in the
Programmed menu.
•When adigital channel is selected, press the
~
button to view the digital program.
•Select
All: Select all the channels in the channel list.
•Deselect
All: Deselect all the selected channels.
~ You can only select Deselect All when one or
more channels are selected.
lj)Programmed
(in Channel List)
You can view, modify or delete ashow you have reserved to
watch.
1. Press the ENTER[]I button to select Channel List.
2. Press the ..... and Tbutton move to the Programmed
menu.
•Change Info: Change ashow you have reserved to
watch.
•Cancel Schedules: Cancel ashow you have reserved
to watch.
•Information: Display ashow you have reserved
to watch.
(You can also change the reservation
Information.)
•Select
All /Deselect All: You can select or deselect all
channels in the channel list.
Fine Tune
----*------,---------
(analog channels only)
If the reception is clear, you do not have to fine tune the
channel,
as this is done automatically during the search and
store operation.
If the signal is weak or distorted, fine tune
the channel manually.
•Select Fine Tune
in the Channel menu.
~ Fine tuned channels that have been saved are marked
with an asterisk
"*,, on the right-hand side of the
channel number
in the channel banner.
~ To reset the fine-tuning, select Reset.
Picture Menu
I Changing the Preset Picture Mode
(8 MENUlID -+ Picture -+ Mode -+ ENTER ~
Mode
Select your preferred picture type
bypressing the P.MODE button.
•Dynamic: Suitable for abright room.
•Standard: Suitable for anormal
environment.
•Movie: Suitable for watching movies
in
adark room.
I Adjusting picture settings
(8 MENUlID -+ Picture -+ Backlight -+ ENTER ~
Backlight IContrast I Brightness I
Sharpness IColor I Tint (G/R)
Your television has several setting options for picture quality
control.
~ NOTE
•When you make changes to Backlight, Contrast,
Brightness, Sharpness, Color
or Tint (G/R), the
OSD will be adjusted accordingly.
•
In PC mode, you can only make changes to
Backlight, Contrast and Brightness.
•Settings can be adjusted and stored for each
external device connected to the
TV.
•Lowering picture brightness reduces power
consumption.
English
13

Basic
Features
I
Setting
up
the
TV
with
your
PC
Set
the
input
source
to
PC.
~uto_
Adjustment
'l,t,I"M
~
MENU llll
-Picture
-
Auto
Adjustment -
ENTERG
Adjust
frequency
values/positions
and
fine
tune
the
settings
automatically.
~
Not
available
when
connecting through
HDMI/DVI
cable.
Screen
•Coarse /
Fine:
Removes
or
reduces
noise.
If
the
noise
is
not
removed
by
Fine-tuning
alone,
then
adjust
the
frequency
as
best
as
possible
(Coarse)
and
Fine-
tune
again.
After
the
noise
has
been
reduced,
readjust
the
so
that
it
is
aligned
to
the
center
of
screen.
•
PC
Position:
Adjust
the
PC's
screen
positioning
if it
does
not
fit
the
TV
screen.
Press
the
•
or
T
button to
adjust
the
Vertical-Position.
Press
the
~
or
~
button to
adjust
the
Horizontal-Position.
•Image
Reset:
Resets
the
to
default
settings.
Using
Your
TV
as
aComputer
(PC)
Display
Setting
Up
Your
PC
Software
(Based
on
Windows
XP)
Depending
on
the
version
of
Windows
and
the
video
card,
the
actual
screens
on
your
PC
will
probably
look
different,
but
the
same
basic
set
-up
information
will
apply
in
most
cases.
(If
not,
contact
your
computer manufacturer
or
Samsung
Dealer.)
1.
Click
on
"Control
Panel"
on
the
Windows start
menu.
2.
Click
on
"Appearance
and
Themes"
in
the
"Control
Panel"
window
and
a
display
dialog-box
will
appear.
3.
Click
on
"Display"
and
a
display
dialog
box
will
appear.
4.
Navigate
to
the
"Settings"
tab
on
the
display
dialog-box.
•
The
correct
size
setting
(resolution)
[Optimum:
1350x758
pixels]
•
If
avertical-frequency option
exists
on
your
display
settings
dialog
box,
the
correct
value
is
'50'
or
'50
Hz'.
Otherwise,
just click 'OK'
and
exit
the
dialog
box.
14
English
I
Changing
the
Options
~dv~!'Eed
..
~inJ~.~
...
~_
...
..
~
__
....
__
,
~
MENU
lID
-
-Advanced Settings -
ENTERG
(available
in
Standard /Movie
mode)
Compared
to
previous
models,
new
Samsung
TVs
have
a
more
precise
picture.
~
In
PC
mode,
you
can
only
make
changes
to
Gamma
and
White Balance.
•Black
Tone
(Off
/Dark /Darker /
Darkest):
Select
the
black
level
to adjust
the
screen
depth.
•
Dynamic
Contrast
(Off
/
Low
/Medium /
High):
Adjust
the
screen
contrast.
•
Gamma:
Adjust
the
primary
color
intensity.
•Color Space
(Auto
/
Native):
Adjust
the
range
of
colors
available
to
create
the
image.
•White
Balance:
Adjust
the
color temperature
for
a
more
natural
picture.
R-Offset /G-Offset /B-Offset:
Adjust
each
color's
(red,
green,
blue)
darkness.
R-Gain /G-Gain /
B-Gain:
Adjust
each
color's
(red,
green,
blue)
brightness.
Reset:
Resets
the
White Balance
to it's
default
settings.
•
Flesh
Tone:
Emphasize
pink
"flesh
tone".
•
Edge
Enhancement
(Off
/
On):
Emphasize
object
boundaries.

16:9,4:3
16:9, Zoom1 ,
Zoom2,4:3
16:9, 4:3, Wide Fit,
Screen Fit
PC
OTV(1080i),
Component
(1 080i, 1080p),
HOMI (720p, 1080i, 1080p)
ATV, AV,
Component (4801, 480p)
Picture Reset
(Reset Picture Mode ICancel)
•After selecting Screen Fit in HOMI (1080il1080p) or
Component
(1 080i/1080p) mode, you may need to
center the picture:
1. Press the
~ or ~ button to select Position.
2. Press the ENTER [3l button.
3. Press the
.. , T, ~ or ~ button to move the
picture.
4. Press the ENTER
[3l button.
5. Press the ~ or ~ button to select Reset.
6. Press the ENTER [3l button.
•
HO (High Definition): 16:9 -1080i/1080p (1920x1080),
720p (1280x720)
•Settings can be adjusted and stored for each
external device you have connected to an input on
the
TV.
Resets your current picture mode to it's default settings.
•Reset Picture Mode: Returns
all picture values in the
currently selected mode
to the default settings.
•Digital Noise Filter (Off I
Low / Medium IHigh I
Auto): If the broadcast signal received by your TV is
weak, you can activate the Digital Noise Filter feature
to reduce any static and ghosting that may appear
on
the screen.
~ When the signal is weak, try other options until the
best picture
is displayed.
•HDMI
Black Level (Normal/Low): Selects the black
level on the screen to adjust the screen depth.
~ Available only in HOMI mode (RGB signals).
•Film
Mode (Off IAuto): Sets the TV to automatically
sense and process film signals from
all sources and
adjusts the picture for optimum quality.
~ Available in TV, AV, COMPONENT (480i I1080i)
and HOMI (480i I1080i).
•After selecting Zoom1,
Zoom2 or Wide Fit:
1. Press the
~ button to select Position.
2. Press the ENTER [3l button.
3. Press the .. or Tbutton to move the picture up
or down.
4. Press the ENTER
[3l button.
5. Press the ~ button to select Reset.
6. Press the ENTER[31 button to reset the picture
to its default position.
•
Color Tone (Cool INormal IWarm1 /Warm2)
~ Warm1 or Warm2 will be deactivated when the
picture mode
is Dynamic.
~ Settings can be adjusted and stored for each
external device connected to
an input on the TV.
•Size: Your cable box/satellite receiver
may have its own set of screen sizes
as
well. However, we highly recommend
you use 16:9 mode most of the time.
16:9: Sets the picture to 16:9 wide
mode.
Zoom1 :Use for moderate magnification.
Zoom2: Use for astronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
4:3: Sets the picture
to basic (4:3) mode.
~ Do not watch in 4:3 format for along time. Traces
of borders displayed on the left, right and center
of the screen may cause image retention (screen
burn) which are not covered by the warranty.
Screen Fit: When receiving
HOMI (720p/1 080i/1 080p),
Component
(1 080i/1 080p) or OTV (1 080i) signals, use
this function to see the
full image without any cutoff.
~ NOTE
(8 MENU fII] ---+ Picture ---+ Picture Options ---+
ENTER[3l
~ In PC mode, you can only make changes to the Color
Tone, Size and Digital Noise Filter.
Picture Options
English 15

Basic Features
Sound Menu
I Changing the Preset Sound Mode
(8 MENU aD -+ Sound -+ Mode -+ ENTER G
Mode ii.!.j~ti
• Standard: Selects the normal sound
mode.
• Music: Emphasizes music over voices.
• Movie: Provides the best sound for
movies.
• Clear Voice: Emphasizes voices over other sounds.
• Custom: Recalls your customized sound settings.
I Adjusting sound settings
(8 MENU aD -+ Sound -+ Equalizer -+ ENTER G
Equalizer
Adjusts the sound mode.
• Mode: Selects the sound mode among the predefined
settings.
• Balance UR: Adjusts the balance between the right and
left speaker.
•100Hz /300Hz / 1 KHz / 3KHz / 10KHz (Bandwidth
Adjustment): Adjusts the level of specific bandwidth
frequencies.
• Reset: Resets the equalizer to its default settings.
I Sound Settings
(8 MENU aD -+ Sound -+ ENTER G
SRS TruSurround HD (Off / On)
SRS TruSurround HD is a patented SRS technology that
solves the problem of playing 5.1 multichannel content
over two speakers. TruSurround delivers a compelling,
virtual surround sound experience through any two-speaker
playback system, including internal television speakers. It is
fully compatible with all multichannel formats.
16 English
Preferred Language
(digital channels only)
Digital-TV broadcasts are capable of
simultaneous transmission of many
audio tracks (for example, simultaneous
translations of the program into foreign
languages).
~ You can only select alanguage among the ones being
broadcasted.
~ulti- Track Sound (MT~)
(analog channels only)
• Mono: Choose for channels that are
broadcasting in mono or if you are
having difficulty receiving a stereo signal.
• Stereo: Choose for channels that are
broadcasting in stereo.
• SAP: Choose to listen to the Separate
Audio Program, which is usually a foreign-language
translation.
~ Depending on the particular program being broadcast,
you can listen to Mono, Stereo or SAP.
~~~~~ (Off ! £nt~ .. ~ ._
Because each broadcasting station has its own signal
conditions, the volume may fluctuate each time channel
is changed. This feature lets you automatically adjust the
volume of the desired channel by lowering the sound output
when the modulation signal is high or by raising the sound
output when the modulation signal is low.
Speaker Select
,~xtern21 Spe~~er !_'!Y ~Ee~.ker) ,~ ... _ .. _ .. __ ..
A sound echo may occur due to a difference in decoding
speed between the main speaker and the audio receiver. In
this case, set the TV to External Speaker.
~ When Speaker Select is set to External Speaker, the
volume and MUTE buttons will not operate and the
sound settings will be limited.
~ When Speaker Select is set to External Speaker, you
should use these settings.
•
TV speaker: Off, External speaker: On
~ When Speaker Select is set to TV Speaker, you
should use these settings.
•
TV speaker: On, External speaker: On
~ If there is no video signal, both speakers will be mute.

Sound Reset (Reset All /Reset Sound
Mode /Cancel)
-----_....:.._--~-_._.-_. --_.
•Reset All: Resets all sound settings to the factory
defaults.
•Reset Sound Mode: Returns all sound values in the
currently selected mode to the default settings
Setup Menu
I Setting the Time
(15) MENU [J]] -+ Setup -+ Time -+ ENTER OJ!
Time
--_._.~---_._._---_._-~--.
~ The current time will appear every time you press the
INFO button.
• Clock: Setting the clock is for using various timer
features of the 1V.
~ If you disconnect the power cord, you have to set
the clock again.
Clock Mode: Set up the current time manually or
automatically.
- Auto: Set the current time automatically using the
time
from the digital channel.
~ The antenna must be connected in order to set
the time automatically.
-Manual: Set the current time manually.
~ Depending on the broadcast station and signal,
the auto time set up
may not be correct. In this
case, set the time manually.
Clock Set: Set the Month, Day, Year, Hour, Minute
and am/pm.
~ Available only when Clock Mode is set to
Manual.
~ You can set the Month, Day, Year, Hour and
Minute directly by pressing the number buttons
on the remote control.
DST (Daylight Saving Time) (Off / On / Auto):
Switches the Daylight Saving Time function on or off.
~ This function is only available when the Clock
Mode
is set to Auto.
Time Zone: Select your time lone.
~ This function is only available when the Clock
Mode
is set to Auto.
I Using the Sleep Timer
(8 MENU [J]] -+ Setup -+ Time -+ Sleep Timer -+
ENTER OJ!
•Sleep Timer iI.I.I .......:Automatically
shuts off
the 1V after apreset period
of
time. (30, 60, 90, 120, 150 and 180
minutes).
~ To cancel the Sleep Timer, select
Off.
I Setting the On/Off Timer
(15) MENU [J]] -+ Setup -+ Time -+ Timer 1 -+
ENTER OJ!
•Timer 1 / Timer 2 / Timer 3: Three different on /off
timer settings
can be made. You must set the clock first.
On Time / Off Time: Set the hour, minute, am/pm
and activate /inactivate. (To activate the timer with the
setting you've chosen, set to Activate.)
Volume: Set the desired volume level.
Contents: When the On Time is activated, you can turn
on aspecific channel or play back contents such as
photo or audio files.
-TV/USB: Select TV or USB. (Make sure that an USB
device is connected to your 1V.)
- Antenna: Select Air or Cable.
-
Channel: Select the desired channel.
- Music: Select the folder containing MP3 files on the
USB device.
- Photo: Select the folder containing JPEG files on the
USB device.
Repeat: Select Once, Everyday, Mon-Fri, Man-Sat,
Sat-Sun
or Manual to set at you convenience. If you
select Manual, you can set up the day you want to
activate the timer.
~ The -./ mark indicates the day is selected.
~ Auto Power Off (available only when the TV is turned
on by the Timer): The TV will be automatically turned off
after 3hours of being left
idle to prevent overheating.
English 17

Basic Features
ILocking Programs
(8 MENU lID -> Setup -> Security -> ENTER G
V-Chip
__ ." ,a ~ •• ¥ .... ,_"'_ ..... _~ .. __ ".-.,,"'''''_ ..... _01.._' ! __ 1$i_
The V-Chip feature automatically locks out programs that are
deemed inappropriate for children. The user must enter a
PIN (personal identification number) before any of the V-Chip
restrictions are set up or changed.
~ NOTE
•
V-Chip is not available in HDMI, Component or PC
mode.
•The default
PIN number of anew TV set is "0-0-0-0".
•
Allow all: Press to unlock all TV ratings.
•
Block all: Press to lock all TV ratings.
•V-Chip
Lock (Off /On): You can block rated TV
Programs.
•TV Parental Guidelines: You can block TV programs
depending on their rating. This function allows you to
control what your children are watching.
TV-Y: Young children /TV-V?: Children 7and over /
TV-G: General audience /TV-PG: Parental guidance /
TV-14: Viewers 14 and over /TV-MA: Mature audience
ALL: Lock
all TV ratings. / FV: Fantasy violence /
V: Violence / S: Sexual situation / L: Adult Language /
0: Sexually Suggestive Dialog
~ The V-Chip will automatically block certain
categories dealing with more sensitive material.
For example, if you block the TV-V category,
then TV-V? will automatically be blocked.
Similarly,
if you block the TV-G category, then
all the categories in the young adult group will
be blocked (TV-G, TV-PG, TV-14 and TV-MA).
The sub-ratings (0, L,
S, V) work similarly. So,
if you block the Lsub-rating in TV-PG, then
the Lsub-ratings in TV-14 and
TV-MA will
automatically be blocked.
•MPAA Rating:
Vou can block movies depending on their
MPAA rating. The Motion Picture Association of America
(MPAA) has implemented arating system that provides
parents or guardians with advanced information on
which films are appropriate for children.
G: General audience (no restrictions). / PG: Parental
guidance suggested. /PG-13: Parents strongly
cautioned. /
R: Restricted. Children under 17 should be
accompanied by
an adult. /NC-17: No children under
age 17. /
X: Adults only. /NR: Not rated.
~ The V-Chip will automatically block any
category that deals with more sensitive material.
For example, if you block the PG-13 category,
then
R, NC-17 and Xwill automatically be
blocked.
18 English
•Canadian English:
You can block TV programs
depending on their Anglophone Canadian.
C: Programming intended for children under age 8. /
C8+: Programming generally considered acceptable for
children 8years and over to watch on their own. /
G: General programming, suitable for all audiences. /
PG: Parental Guidance. /14+: Programming contains
themes or content which may not be suitable for viewers
under the age of 14.
/18+: Adult programming.
~ The V-Chip will automatically block any
category that deals with more sensitive material.
For example,
if you block the Gcategory, then
PG, 14+ and 18+ will automatically be blocked.
•Canadian French:
You can block TV programs
depending on their French Canadian rating.
G: General / 8 ans+: Programming generally considered
acceptable for children 8years and over to watch
on
their own. / 13 ans+: Programming may not be suitable
for children under the age of 13. /
16 ans+: Programming
is not suitable for children under
the age of 16.
/18 ans+: Programming restricted to
adults.
~ The V-Chip will automatically block any category
that deals with more sensitive material. For
example, if you block the 8
ans+ category, then
13 ans+, 16
ans+ and 18 ans+ will automatically
be blocked also.
•
Downloadable U.S. Rating: Parental restriction
information can be used while watching
DTV channels.
~ NOTE
•
If information is not downloaded from the
broadcasting station, the
Downloadable U.S.
rating menu is deactivated.
•Parental restriction information is automatically
downloaded while watching DTV channels. It
may take several seconds.
•The
Downloadable U.S. rating menu
is available for use after information
is
downloaded from the broadcasting station.
However, depending on the information from
the broadcasting station, it may not be available
for use.
•Parental restriction levels differ depending on
the broadcasting station. The default menu
name and Downloadable
US rating change
depending on the downloaded information.
•
Even if you set the on-screen display to another
language, the
Downloadable U.S. Rating
menu will appear in English only.
•The rating will automatically block certain
categories that deal with more sensitive
material.
•The rating titles
(For example: Humor Level..etc)
and TV ratings
(For example: DH, MH, H .. etc)
may differ depending on the broadcasting
station.

Game Mode (Off /On)
:...- __ .....:.._-------
•Other Features
(l5) MENU an --> Setup --> ENTER ~
Set the menu language.
1. Select Language
and press the ENTER ~ button.
2. Choose desired language and press the ENTERG
button.
(On-Screen Text Messages)
•
Caption (Off /On): You can switch the
caption function on or off.
If captions are
not available, they will not be displayed
on the screen.
~ The Caption feature doesn't
work
in Component, HDMI or PC
modes.
•Caption Mode: You can select the desired caption
mode.
~ The availability of captions depends on the
program being broadcasted.
Default /
CC1-CC4/ Text1- Text4: (analog channels
only) The Analog Caption function operates in either
analog
1V channel mode or when asignal is supplied
from
an external device to the 1V. (Depending on the
broadcasting signal, the Analog Caption function mayor
may not work with digital channels.)
Default /
Service1-Service6/ CC1-CC4 /
Text1- Text4: (digital channels only) The Digital Captions
function works with digital channels.
~ Service1-6 may not be available in digital caption
mode depending on the broadcast.
•Digital
Caption Options: (digital channels only)
Size: Options include Default, Small, Standard and
Large. The default is Standard.
Font Style: Options include Default and Styles 0 to 7.
The default is Style O.
Foreground Color: Options include Default, White,
Black, Red, Green, Blue, Yellow, Magenta and Cyan.
You can change the color of the letter. The default is
White.
Background Color: Options include Default, White,
Black,
Red, Green, Blue, Yellow, Magenta and Cyan.
You can change the background color of the caption.
The default
is Black.
Foreground Opacity: This adjusts the opacity of text.
Options include Default, Transparent, Translucent, Solid
and Flashing.
Background Opacity: This adjusts the opacity of
the caption background. Options include Default,
Transparent, Translucent, Solid and Flashing.
Return
to Default: This option sets each Size, Font
Style, Foreground Color, Background Color, Foreground
Opacity and Background Opacity to its default.
Caption
_....:-_-------------~-
-----
When connecting to agame console such as PlayStation™
or Xbox TM, you can enjoy amore realistic gaming experience
by selecting the game menu.
~ NOTE
•Precautions and limitatio'ns for game mode
- To disconnect the game console and connect
another external device, set Game Mode to Off in
the setup menu.
- If you display the 1V menu in Game Mode, the
screen shakes slightly.
•
Game Mode is not available when the input source
is set to TV or PC.
•After connecting the game console, set Game Mode
to On to prevent poor picture quality.
•
If Game Mode is On: Picture mode is set to
Standard and Sound mode is set to Movie.
•Selecting Reset after adjusting the equalizer returns
the equalizer to its default settings.
How to watch arestricted channel
If the 1V is tuned to arestricted channel, the V-Chip
will block it. The screen will go blank and the following
message will appear: This channel is blocked by
V-Chip. Please enter the PIN to unblock.
~ If you forget the PIN, press the remote-control
buttons in the following sequence, which resets
the pin to "0-0-0-0": POWER (off) --> MUTE -->
8--> 2--> 4--> POWER (on)
Language_. _
• Change PIN: The Change PIN screen will appear.
Choose any 4digits for your
PIN and enter them. As
soon as the 4digits are entered, the
Confirm New
PIN screen appears. Re-enter the same 4digits. When
the Confirm screen disappears, your
PIN has been
memorized.
English
19

TV Rear Panel
Basic Features
~ NOTE
o Digital Caption Options are available only
when
Default and Service1 - Service6 can be
selected
in Caption Mode.
oThe availability of captions depends on the
program being broadcasted.
oThe Default setting follow the standards set by
the broadcaster.
•The Foreground and Background cannot be set
to have the same color.
•
You cannot set both the Foreground Opacity
and the Background Opacity to Transparent.
Melody (Off I L~~ IMedium IHigh)
Set so that amelody plays when the TV is turned on or off.
~ NOTE
oOnly available when the Input source is set to TV.
To turn the melody off, set Melody to Off.
oThe Melody does not play.
-When no sound
is output from the TV because the
MUTE button has been pressed.
-When no sound
is output from the TV because the
volume has been reduced to minimum with the
VOL -button.
-When the TV
is turned off by Sleep Timer function.
Energy Saving (Off ILow IMedium IHigh
(,~A~!OL .=._, __ ~ ~ __
Adjust the brightness of the TV in order to reduce power
consumption. When watching TV at night, set the Energy
Saving to High to reduce eye fatigue as well as power
consumption.
Support Menu
(8 MENUIlD --> Support --> ENTER[31
~el!_pi~ag_'!.9~~~,_,~_._ "" •...... . __ ._ .. __ . __
•Picture Test: Use to check for picture problems. If the
problem continues to occur, check the Color pattern.
Yes:
If the test pattern does not appear or there is
noise in the test pattern, select Yes. There may be a
problem with the
TV. Contact Samsung's Call Center for
assistance (1-800-SAMSUNG).
No:
If the test pattern is properly displayed, select No.
There may be aproblem with your external equipment.
Please check your connections.
If the problem persists,
refer to the external device's user manual.
20 English
•
Sound Test: Use the built-in melody sound to check for
sound problems.
~ If you hear no sound from the TV's speakers,
before performing the sound test, make sure
Speaker Select is set to TV speaker in the
Sound menu.
~ The melody will be heard during the test even if
Speaker Select is set to External Speaker or the
sound
is muted by pressing the MUTE button.
Yes:
If you can hear sound only from one speaker or not
at
all during the sound test, select Yes. There may be a
problem with the
TV. Contact Samsung's Call Center for
assistance (1-800-SAMSUNG).
No: If you can hear sound from the speakers, select No.
There may be aproblem with your external equipment.
Please check your connections.
If the problem persists,
refer to the external device's user manual.
•Signal Strength: (digital channels only)
An HD channel's
reception quality
is either perfect or the channels are
unavailable. Adjust your antenna to increase signal
strength.
Software Upgrade
Software Upgrade can be
performed by downloading
the latest firmware from
samsung.com to aUSB
memory device.
Current Version -the
software already installed
in the TV.
~ Software is represented as 'Year/Month/Day_Version'.
HD Connection Guide
Refer to this information when connecting external devices
to the
TV.
9_ontact Samsung~ . _
View this information when your TV does not work properly
or when you want to upgrade the software.
You can find
information regarding our call centers and how
to download
products and software.
