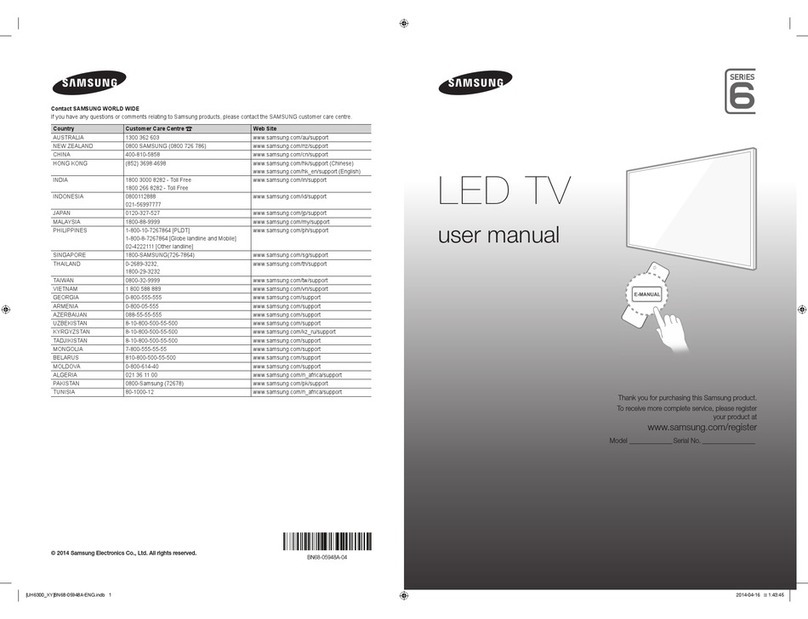

Samsung 6 series User manual

imagine the possibilities
Thank you for purchasing this Samsung product.
To receive more complete service, please
register your product at
www.samsung.com/register
Model Serial No. _

oImportant Warranty Information Regarding Television Format Viewing
®See the warranty card for more information on warranty terms.
Wide screen format LCD Displays (16:9, the aspect ratio of the screen width
to height) are primarily designed to view wide screen
format full-motion video. The images displayed on them should primarily be
in the wide screen 16:9 ratio format, or expanded to
fill the screen if your model offers this feature and the images are constantly moving. Displaying stationary graphics and images
on screen, such as the dark sidebars on nonexpanded standard format television video and programming, should be limited to no
more than
5% of the total television viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays, station logos, web sites
or computer graphics and patterns, should
be limited as described above for all televisions. Displaying stationary images that
exceed the above guidelines can cause uneven aging of LCD Displays that leave subtle, but permanent burned-in ghost images
in
the LCD picture. To avoid this. vary the programming and images, and primarily display full screen moving images, not stationary
patterns or dark bars.
On LCD models that offer picture sizing features, use these controls to view different formats as afull screen picture.
Be careful
in the selection and duration of television formats used for viewing. Uneven LCD aging as aresult of format selection
and use. as well as burned-in images, are not covered by your Samsung limited warranty.
•U.S.A Only
The product unit accompanying this user manual
is licensed under certain intellectual property rights of certain third parties.
In particular. this product is licensed under the following US patents 5,991,715. 5,740,317. 4,972,484, 5,214,678, 5,323,396,
5.539.829. 5,606,618, 5.530,655. 5,777,992, 6,289,308, 5,610,985, 5,481,643, 5,544,247, 5,960.037, 6,023,490, 5,878,080,
and under US Published Patent Application
No. 2001-44713-A1
This license
is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for
commercial use. The license does not cover any product unit other than this product unit and the license does not extend
to
any unlicensed product unit or process conforming to ISOIIEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with
this product unit. The license only covers the use of this product unit
to encode and/or decode audio files conforming to the
ISOIIEC 11172-3 or ISO/IEC 13818-3.
No rights are granted under this license for product features or functions that do not
conform
to the ISO/IEC 11172-3 or ISOIIEC 13818-3.
•Other countries
The product unit accompanying this user manual
is licensed under certain intellectual property rights of certain third parties.
This license
is limited to private non-commercial use by end-user consumers for licensed contents. No rights are granted for
commercial use. The license does not cover any product unit other than this product unit and the license does not extend to
any unlicensed product unit or process conforming
to ISO/IEC 11172-3 or ISO/IEC 13818-3 used or sold in combination with
this product unit. The license only covers the use
of this product unit to encode and/or decode audio files conforming to the
ISO/IEC 11172-3 or ISOIIEC 13818-3. No rights are granted under this license for product features or functions that
do not
conform
to the ISO/IEC 11172-3 or ISO/IEC 13818-3.
•SAMSUNG ELECTRONICS NORTH AMERICAN LIMITED WARRANTY STATEMENT
Subject
to the requirements, conditions, exclusions and limitations of the original Limited Warranty supplied with Samsung
Electronics (SAMSUNG) products. and the requirements, conditions, exclusions and limitations contained herein, SAMSUNG
will additionally provide Warranty Repair Service
in the United States on SAMSUNG products purchased in Canada, and
in Canada on SAMSUNG products purchased in the United States, for the warranty period originally specified, and to the
Original Purchaser only.
The above described warranty repairs must be performed
by aSAMSUNG Authorized Service Center Along with this
Statement, the Original Limited Warranty Statement and adated Bill of Sale
as Proof of Purchase must be presented to the
Service Center. Transportation
to and from the Service Center is the responsibility of the purchaser.
Conditions covered are limited only
to manufacturing defects in material or workmanship, and only those encountered in
normal use of the product.
Excluded but not limited to, are any originally specified provisions for. in-home or on-site services, minimum or maximum
repair times. exchanges or replacements. accessories, options. upgrades, or consumables.
For the location of aSAMSUNG Authorized Service Center, please call toll-free:
LJ In the United States: 1·800·SAMSUNG (1.800·726·7864)
J0 In Canada: 1·800·SAMSUNG
::J Precautions When Displaying a Still Image
Astill image may cause permanent damage to the TV screen
•Do not display astill image
on the LCD panel for more than 2hours as it can cause screen image retention. This image
retention
is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the
screen when displaying astill image.
•Watching the LCD TV
in 4:3 format for along period of time may leave traces of borders displayed on the left,
right and center of the screen caused by the difference of light emission
on the screen.
Playing aDVD or agame console may cause asimilar effect
to the screen.
Damages caused by the above effect are not covered by the Warranty.
•Displaying still images from Video games and
PC for longer than acertain period of time may produce partial after-images.
To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.
©2009 Samsung Electronics Co, Ltd. All rights reserved.

CONTENTS
GENERAL INFORMATION
• List of Features : :2
• Accessories 2
•
Viewing the Control Panel 3
•
Viewing the Connection Panel... : 4
•
Remote Control 5
•
Installing Batteries in the Remote Control 5
CONNECTIONS
• Connecting VHF and UHF Antennas 6
•
Connecting Cable TV 6
•
Connecting a OVO I Blu-ray player I Cable Box I
Satellite receiver (Set-Top Box) via HOMI 7
•
Connecting a DVO I Blu-ray player I Cable Box I
Satellite receiver (Set-Top Box) via DVI ; 8
•
Connecting a DVO I Blu-ray player I Cable Box I
Satellite receiver (Set-Top Box) via Component cables 8
•
Connecting a VCR 9
•
Connecting a Digital Audio System 9
•
Connecting an Amplifier I DVD Home Theater 10
•
Connecting a Camcorder ; 11
• Connecting a PC , 12
OPERATION
• Viewing the menus .. c • ; 13
• Plug & Play Feature 14
CHANNEL CONTROL
• Configuring the Channel Menu , 15
• Managing Channels 15
o License
PICTURE CONTROL
• Configuring the Picture Menu 17
• Using Your TV as a Computer (PC) Display 19
• Setting up the TV with your PC 20
SOUND CONTROL
• Configuring the Sound Menu 21
SETUP
• Configuring the Setup Menu ;.22
INPUT I SUPPORT
• Configuring the Input Menu 26
• Configuring the Support Menu 26
APPENDIX
• Troubleshooting : 28
• Wall Mount Kit Specifications (VESA) 29
• Using the Anti-Theft Kensington Lock 30
• Securing the TV to the Wall. 30
• Specifications 31
SRSCe)
[email protected]!.! .• :!.)
DIGITAL
[I] DOLBY
DIGITAL I
o Symbol
TruSurround HD, SRS and (e) Symbol are trademarks of SRS Labs, Inc.
TruSurround HD technology is incorporated under license from SRS Labs, Inc.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks
of Dolby Laboratories.
Note
One-Touch Button
~
TOOL Button

GENERAL INFORMATION
® Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
Product design and specifications may be changed without notice in order to enhance product performance.
• List of Features
•Adjustable picture settings that can be stored in the TV's memory.
• Automatic timer to turn the TV on and off.
• A special sleep timer.
•Excellent Digital Interface & Networking:
• With abuilt-in HD digital tuner, non-subscription HD broadcasts can be viewed with no Cable Box/Satellite receiver (Set-Top
Box) needed.
• HDMI/DVI connection of your PC to this TV.
•Excellent Picture Quality
• SRS TruSurround HD provides avirtual surround system.
• Accessories
Remote Control
(BN59-00857 A)
Batteries (AAA x 2)
•
Warranty Card /
Safety Guide Manual
Power Cord
(3903-000144)
Stand Base(BN96-11163A)
Cleaning Cloth
(BN63-01798B)
Stand Body(BN96-1 0168A)
Owner's Instructions
® Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.
® The items color and shape may vary depending on the model.

• Viewing the Control Panel
l~ The product color and shape may vary depending on the model.
I:D The front panel buttons can be activated by touching it with your finger.
SAMSUNG
SOURCE
G
MENU -VOL +v CH A
.<!>
oC) (POWER): Press to turn the TV on and off.
f) POWER INDICATOR: Blinks and turns off when the power is on and lights up in stand-by mode.
eVCH A: Press to change channels. In the on-screen menu, use the VCH Abuttons as you would use the" and.
buttons on the remote control.
e-VOL +: Press to increase or decrease the volume. In the on-screen menu, use the -VOL+buttons as you would use the
.... and ~ buttons on the remote control.
oMENU: Press to see an on-screen menu of your TV's features.
o SOURCE G: Toggles between all the available input sources. In the on-screen menu, use this button as you use the
ENTER Gbutton on the remote control.
o REMOTE CONTROL SENSOR: Aim the remote control towards this spot on the TV.
o SPEAKERS

I Viewing the Connection Panel
[TV Rear Panel]
ANT IN
R •
~~~~~~~~~L~::::~iiiDDm~ISERVICE
..... ® (!j • '@ E3 ~
Q - AUDIO -G EX-LINK Q - AUDIO -G
lEI The product color and shape may vary depending on the model.
o EX-LINK
- Connector for service only.
o DIGITAL AUDIO OUT (OPTICAL)
- Connects to a Digital Audio component such as a Home theater receiver.
e PC IN [PC] / [AUDIO]
- Connects to the video and audio output jacks on your PC.
e0 (HEADPHONE)
- Connects a set of external headphones for private listening.
9 HDMI (DVI) IN / DVI AUDIO IN [R-AUDIO-L]
- Connects to the HOMI jack of a device with an HOMI output.
lEI No sound connection is needed for an HOMI to HOMI connection.
lEI Use the HDMI (DVI) IN jack for OVI connection to an external device. Use a OVI to HOMI cable or OVI-HOMI adapter
(OVI to HOMI) for video connection and the DVI AUDIO IN [R-AUDIO-L] jacks for audio.
lEI When using an HOMI/OVI cable connection, you must use the HOM I (DVI) IN jack
lEI You can also use the ports to connect to a PC.
e SERVICE
- Connector for software upgrades.
o ANT IN
- Connects to an antenna or cable TV system.
o POWER INPUT
- Connects the supplied power cord.
o KENSINGTON LOCK
- The Kensington Lock (optional) is a device used to physically fix the system when used in a public place. If you want to
use a locking device, contact the dealer where you purchased the TV.
lEI The location of the Kensington Lock may be different depending on its model.
(I!) AV IN
- Video and audio inputs for external devices, such as a camcorder or VCR.
G) COMPONENT IN
- Connects Component video / audio.
o AUDIO OUT
- Connects to the audio input jacks on your Amplifier/Home theater.

• Remote Control
~~ You can use the remote control up to adistance of about 23 feet from the TV.
fB The performance of the remote control may be affected by bright light.
lEI The product color and shape may vary depending on the modeL
SftMSUNG
TV
POWER
o PRE-CH: Enables you to return
to the previous channel you were
watching.
Q) VCH A : Press to change
channels.
~ SOURCE: Press to display
and select the available video
sources.
@ FAV.CH: Press to switch to your
favorite channels.
'0 MENU: Displays the main on-
screen menu.
o RETURN: Returns to the
previous menu.
~ UP./DOWNT/LEFT ... ,
RIGHT~/ENTER[3I: Use to
select on-screen menu items and
change menu values.
Q) EXIT: Press to exit the menu.
~ CC: Controls the caption
decoder.
6) MTS: Press to choose stereo,
mono or Separate Audio
Program (SAP broadcast).
oPOWER: Turns the TV on and
off.
oNUMERIC BUTTONS: Press to
change the channeL
e B: Press to select additional
channels (digital) being
broadcast by the same station.
For example, to select channel
'54-3', press '54', then press B
and '3'.
eMUTE 4: Press to temporarily
cut off the sound.
" - VOL +: Press to increase or
decrease
the volume.
oCH LIST: Used to display
Channel Lists on the screen.
f) TOOLS: Use to quickly select
frequently
used functions.
o INFO: Press to display
information
on the TV screen.
oCOLOR BUTTONS: Use these
buttons in the Channel list menus
etc.
~ P.SIZE: Picture size selection.
m TV: Selects the TV mode directly.
• Installing Batteries in the Remote Control
1. Lift the cover at the back of the remote control upward as shown in the figure. ~
2. Install two AAA size batteries.
@) ::,a~~~~e~mat'" the ',' "d '-' "d"lthe balte,;e, w;th the d;ag,am ;";de the . . . " .. ~.'V
3. Replace the cover. _
lEI Remove the batteries and store them in a cool, dry place if you won't be using the
remote control for a long time. (Assuming typical TV usage, the batteries should last for about one year.)
lEI If the remote control doesn't work, check the following:
•
Is the TV power on?
• Are the plus and minus ends of the batteries reversed?
• Are the batteries drained?
• Is there a power outage or is the power cord unplugged?
•
Is there a special fluorescent light or neon sign nearby?

CONNECTIONS
• Connecting VHF and UHF Antennas
If your antenna has a set of leads that look like the diagram to the right, see 'Antennas with 300
o Flat Twin Leads' below.
If your antenna has one lead that looks like the diagram to the right, see 'Antennas with 75 0
Round Leads'.
If you have two antennas, see 'Separate VHF and UHF Antennas'.
Antennas with 300 n Flat Twin Leads
If you are using an off-air antenna (such as a roof antenna or 'rabbit ears') that has 3000 twin
flat leads, follow the directions below.
1. Place the wires from the twin leads under the screws on a 300-75 0adapter (not
supplied). Use ascrewdriver to tighten the screws.
2. Plug the adaptor into the ANT IN terminal on the back of the TV.
Antennas with 75 n Round Leads
Plug the antenna lead into the ANT IN terminal on the back of the TV.
Separate VHF and UHF Antennas
If you have two separate antennas for your TV (one VHF and one UHF), you must combine
the two antenna signals before connecting the antennas to the TV. This procedure requires an
optional combiner-adaptor (available at most electronics shops).
1. Connect both antenna leads to the combiner.
2. Plug the combiner into the ANT IN terminal on the bottom of the rear panel.
• Connecting Cable TV
To connect to a cable TV system, follow the instructions below.
Cable without a Cable Box
Plug the incoming cable into the ANT IN terminal on the back of the TV.
l0 Because this TV is cable-ready, you do not need a cable box to view unscrambled cable
channels.
Connecting to a Cable Box that Descrambles All Channels
1. Find the cable that is connected to the ANT OUT terminal on your cable box.
l0 This terminal might be labeled 'ANT OUT, 'VHF OUT or simply, 'OUT
2. Connect the other end of this cable to the ANT IN terminal on the back of the TV.
(
--~
I:

Connecting to a Cable Box that Descrambles Some Channels
If your cable box descrambles only some channels (such as premium channels), follow the instructions below. You will need atwo-
way splitter, an RF (NB) switch and four lengths of RF cable. (These items are available at most electronics stores.)
Incoming cable
~ OID IN CABLE ~ ~
Splitter l=J
Cable Box
RF (AlB) Switch
1. Find and disconnect the cable that is connected to the ANT IN terminal on your cable box.
®This terminal might be labeled 'ANT IN', 'VHF IN' or simply, 'IN'.
2. Connect this cable to atwo-way splitter.
3. Connect an RF cable between the OUTPUT terminal on the splitter and the IN terminal on the cable box.
4. Connect an RF cable between the ANT OUT terminal on the cable box and the B-IN terminal on the RF(NB) switch.
5. Connect another cable between the other OUT terminal on the splitter and the A-IN terminal on the RF (NB) switch.
6. Connect the last RF cable between the OUT terminal on the RF (NB) switch and the ANT IN terminal on the rear of the TV.
After you have made this connection, set the NB switch to the 'A' position for normal viewing. Set the NB switch to the 'B'
position to view scrambled channels (When you set the NB switch to 'B', you will need to tune your TV to the cable box's
output channel, which is usually channel 3 or 4.)
• Connecting a OVO' Blu-ray player' Cable Box 'Satellite receiver (Set-Top Box) via HOMI
This connection can only be made if there is an HOM IOutput connector on the external device.
o HOMI Cable (Not supplied)
OVO IBlu-ray player ICable Box I
Satellite receiver (Set-Top Box)
TV Rear Panel
1. Connect an HOMI Cable between the HDMI (DVI) IN jack on the TV and the HOM Ijack on the DVD IBlu-ray Player or Cable
Box ISatellite receiver (Set-Top Box).
®What is HOMI?
•HOMI(High-Definition Multimedia Interface), is an interface that enables the transmission of digital audio and video signals
using asingle cable.
• The difference between HOM I and OVI is that the HOM Idevice is smaller in size and has the HDCP (High Bandwidth Digital
Copy Protection) coding feature installed.
® Each DVO IBlu-ray player I Cable Box ISatellite receiver (Set-Top Box) has adifferent back panel configuration.
® The TV may not output sound and pictures may be displayed with abnormal color when DVD /Blu-ray player /Cable Box /
Satellite receiver (Set-Top
Box) supporting HDMI versions older than 1.3 are connected. When connecting an older HOMI
cable and there is no sound, connect the HOMI cable to the HDMI (DVI) IN jack and the audio cables to the DVI AUDIO
IN [R·AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVO /Blu-ray player /
Cable
Box /Satellite receiver (Set-Top Box) to confirm the HDMI version, then request an upgrade.
® HOMI cables that are not 1.3 may cause annoying flicker or no screen display.

•Connecting a DVD IBlu-ray player ICable Box ISatellite receiver (Set-Top Box) via DVI
This connection can only be made if there is a DVI Output connector on the external device.
TV Rear Panel
o OVI to HOMI Cable (Not supplied)
OVO IBlu-ray player ICable Box I
Satellite receiver (Set-Top Box)
r~~s~~~tJ
lei ;:,.lJ9 '"dlo C.bb (No,""ppU'dj
L~ eeJI +14i;;::t---------------t
_~I;-_--~
il~l!
~G
'.'
;.i;
1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HOMI (OVI) IN jack on the TV and the DVI jack on the DVD /
Blu-ray player / Cable Box /Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the DVI AUDIO IN [R-AUDIO-Lj jack on the TV and the DVD /Blu-ray player / Cable Box /
Satellite receiver
(Set-Top Box).
~ Each DVD / Blu-ray player / Cable Box /Satellite receiver (Set-Top Box) has adifferent back panel configuration.
~ When connecting a DVD / Blu-ray player / Cable Box /Satellite receiver (Set-Top Box), match the color of the connection
terminal to the cable.
• Connecting a DVD I Blu-ray player I Cable Box I Satellite receiver (Set-Top Box) via Component cables
The rear panel jacks on your TV make it easy to connect a DVD / Blu-ray player / Cable Box /Satellite receiver (Set-Top Box) to
your TV
TV
Rear Panel
DVD IBlu-ray player ICable Box I
Satellite receiver (Set-Top Box)
f) Audio Cable (Not supplied)
oComponent Cable (Not supplied)
1. Connect a Component Cable between the COMPONENT IN [V, Ps, PRJ jacks on the TV and the COMPONENT [Y, Ps, PRJ
jacks on the DVD / Blu-ray player I Cable Box /Satellite receiver (Set-Top Box).
2. Connect Audio Cables between the COMPONENT IN [R-AUOIO-Lj jacks on the TV and the AUDIO OUT jacks on the DVD I
Blu-ray player / Cable Box ISatellite receiver (Set-Top Box).
~ Component video separates the video into Y (Luminance (brightness)), Pb (Blue) and Pr (Red) for enhanced video quality.
Be sure to match the component video and audio connections. For example, if connecting a Component video cable to
COMPONENT IN, connect the audio cable to COMPONENT IN also
~ Each DVD / Blu-ray player / Cable Box ISatellite receiver (Set-Top Box) has adifferent back panel configuration.
~ When connecting a DVD / Blu-ray player / Cable Box ISatellite receiver (Set-Top Box), match the color of the connection
terminal to the cable.

L Connecting a VCR
TV Rear Panel
VCR Rear Panel
I:~?l
[~~.(O)=-J
f) Audio Cable (Not supplied)
o Video Cable (Not supplied)
1. Connect a Video Cable between the AV IN [VIDEO] jack on the TV and the VIDEO OUT jack on the VCR.
2. Connect Audio Cables between the AV IN [R·AUDIO·L] jacks on the TV and the AUDIO OUT jacks on the VCR.
I0 If you have a'mono' (non-stereo) VCR, use aV-connector (not supplied) to connect to the right and left audio input jacks
of
the TV. Alternatively, connect the cable to the 'R' jack. If your VCR is stereo, you must connect two cables.
I0 Each VCR has adifferent back panel configuration.
I0 When connecting a VCR, match the color of the connection terminal to the cable.
• Connecting a Digital Audio System
The rear panel jacks on your TV make it easy to connect a Digital Audio System (Home theater/Receiver) to your TV.
TV Rear Panel
Digital Audio System
o Optical Cable (Not supplied)
1. Connect an Optical Cable between the DIGITAL AUDIO OUT (OPTICAL) jacks on the TV and the Digital Audio Input jacks on
the Digital Audio System.
I0 When a Digital Audio System is connected to the DIGITAL AUDIO OUT (OPTICAL) jack: Decrease the volume of the TV
and adjust the volume level with the system's volume control.
I0 5.1 CH audio is possible when the TV is connected to an external device supporting 5.1 CH.
I0 Each Digital Audio System has adifferent back panel configuration.
I0 When the Home Theater receiver is set to On, you can hear sound output from the TV's Optical jack When the TV is
displaying a DTV(air) signal, the TV will send out 5.1 channel sound to the Home theater receiver. When the source is a
digital
component such as a DVD /Blu-ray player / Cable Box /Satellite receiver (Set-Top Box) and is connected to the
TV via HDMI, only 2 channel sound will be heard from the Home Theater receiver. If you want to hear 5.1 channel audio,
connect the digital audio out jack on DVD / Blu-ray player / Cable Box / Satellite receiver (Set-Top Box) directly to an
Amplifier or Home Theater, not the TV.

• Connecting an Amplifier I DVD Home Theater
TV Rear Panel
AmplifierlDVD Home Theater
r~·~1
[f®~
o Audio Cable (Not supplied)
1. Connect Audio Cables between the AUDIO OUT [R-AUDIO-L] jacks on the TV and Audio Input jacks on the Amplifier I DVD
Home Theater.
IEJ When an audio amplifier is connected to the AUDIO OUT [R·AUDIO-L] jacks: Decrease the volume of the TV and adjust
the volume level with the Amplifier's volume control.
IEJ Each AmplifierlDVD Home Theater has adifferent back panel configuration.
IEJ When connecting an AmplifierlDVD Home Theater, match the color of the connection terminal to the cable.

LConnecting aCamcorder
Using a Video Cable
TV Rear Panel
Camcorder
f) Audio Cable (Not supplied)
o Video Cable (Not supplied)
1. Connect aVideo Cable between the AV IN [VIDEO] jack on the TV and the VIDEO OUT jack on the camcorder.
2. Connect Audio Cables between the AV IN [R·AUDIO·L] jacks on the TV and the AUDIO OUT jacks on the camcorder.
l0 Each Camcorder has adifferent back panel configuration.
l0 When connecting aCamcorder, match the color of the connection terminal to the cable.
Using an HOMI Cable
TV Rear Panel
HD
Camcorder
i2
oHDMI Cable (Not supplied)
1. Connect aHDMI Cable between the HDMI (DVI) IN jack on the TV and the HDMI OUT jack on the camcorder.

I Connecting a PC
Using a O-Sub Cable
TV Rear Panel
PC
f) PC Audio Cable (Not supplied)
oD·Sub Cable (Not supplied)
1. Connect aD-Sub Cable between PC IN [PC] connector on the TV and the PC output connector on your computer.
2. Connect a PC Audio Cable between the PC IN [AUDIO] jack on the TV and the Audio Out jack of the sound card on your
computer.
(EJ When connecting a PC, match the color of the connection terminal to the cable.
Using an HOMIIOVI Cable
TV Rear Panel
f) 3.5 mm Stereo mini.plug/2RCA Cable (Not supplied)
PC
oHDMIIDVI Cable (Not supplied)
1. Connect an HDMIIDVI cable between the HDMI (DVI) IN jack on the TV and the PC output jack on your computer.
2. Connect a3.5 mm Stereo miniplug 12RCA Cable between the DVI AUDIO IN [R·AUDIO-L] jack on the TV and the Audio Out
jack of the sound card
on your computer.
Using an HOM I Cable
TV Rear Panel
PC
..
II
iI
o HOM ICable (Not supplied)
,,' ~
1. Connect an HOM Icable between the HDMI (DVI) IN jack on the TV and the PC output jack on your computer.
(EJ Each PC has adifferent back panel configuration.
~} .. ,,:,;.":.fI'~,"''f~;~t'.:,!:.~~
~"" ~ t

OPERATION
•Viewing the menus
Before using the TV, follow the steps below to learn how to navigate the menu in order to
select and adjust different functions.
1. Press the MENU button.
The main menu
is displayed on the screen. Its left side has the following icons: Picture,
Sound, Channel, Setup, Input, Support.
2. Press the &or ~ button to select one of the icons.
Press the
.... or ~ button to access the icon's sub-menu.
3. Press the &or ~ button to move to items in the menu.
Press the ENTERGbutton
to enter items in the menu.
4. Press the &/~ I .... /~ button to change the selected items.
~ Press the RETURN button to return to the previous menu.
5. Press the EXIT button to exit from the menu.
Using the remote
control buttons
~
~
..-
"'
-Mode
: Standard
BackJ~ht 8
...
Con~ast 95
Bf19htness
45
Sharpness 50
Color
50
Tint(GIR)
G5OIR50
Button Operations
MENU lID Display the main on-screen menu.
RETURN,::> Return
to the previous menu.
--------- ---_._-,------'--_ .. _._--------!
EXIT +[J Exit the on-screen menu.
Example: Setting the TV's Brightness in the Picture Menu
II Adjusting the Brightness to 80
1. Press the MENU button to display the menu.
2. Press the ENTERGbutton to select Picture.
3. Press the &or ~ button to select Brightness.
4. Press the ENTERGbutton.
5. Press the .... or ~ button until the Brightness changes to 80.
6. Press the ENTERG button.
~ Press the EXIT button to exit from the menu.
Button "
&/~/""/~I
ENTERG
OperatiQns
Move
the cursor and select an item.
Select the currently selected item.
Confirm the setting.
[-; - --.()- ~
• Move ~~ Adjust 8¥ Enter ") Return
C=~~
•• Move ~~ Adjust ~ Enter ") Return

Plug & Play
Ea~guag, Siore D;mo Cha~~eIS and Time WI!' be sell
S~rt
=<iJ t:1'er
• Plug & Play Feature
When the TV is initially powered on, basic settings proceed automatically and subsequently.
1. Press the POWER 0 button on the remote control.
IEJ You can also use the POWER 0 button on the TV.
IEJ The message Menu Language, Store Demo, Channels, and Time will be set. is
displayed
2. Press the ENTER G button, then Sets the menu language. menu is automatically
displayed.
3. Press the A. or T button to select the language, then press the ENTER G button. The message Select 'Home Use' when
installing this
TV in your home. is displayed.
4. Press the. or ~ button to select Store Demo or Home Use, then press the ENTER G button. The message Select the
Antenna source to memorize.
is displayed.
IEJ We recommend setting the TV to Home Use mode for the best picture in your home environment.
IEJ Store Demo mode is only intended for use in retail environments. If the unit is accidentally set to Store Demo mode and
you want to return to Home Use (Standard): Press the volume button on the TV. When the volume OSD is displayed,
press and hold the MENU button on the TV for 5 seconds.
5. Press the A. or T button to memorize the channels of the selected connection. Press the ENTER G button to select Start.
IEJ Air: Air antenna signal. /Cable: Cable antenna signal. /Auto: Air and Cable antenna signals.
IEJ In Cable mode, you can select the correct signal source among STD, HRC, and IRC by pressing the A., T, • or ~
button, then press the ENTER G button. If you have Digital cable, select the cable system signal source for both Analog
and Digital. Contact your local cable company to identify the type of cable system that exists in your particular area.
6. Press the ENTER G button to select Start. The TV will begin memorizing all of the available channels.
IEJ To stop the search before it has finished, press the ENTER G button with Stop selected.
IEJ After all the available channels are stored, it starts to remove scrambled channels. The Auto program menu then
reappears. Press the ENTER G button when channel memorization is complete. The message Set the Clock Mode. is
displayed.
7. Press the ENTER G button.
Press the A. or T button to select Auto, then Press the ENTER G button. The message Set to daylight saving time. is
displayed. If you select Manual, Set current date and time is displayed.
8. Press the A. or T button to select Off, On or Auto, then press the ENTER G button.
9. Press the A. or T button to highlight the time zone for your local area. Press the ENTER G button. If you have received a
digital signal, the time will be set automatically. If not, see page 22 to set the clock.
10. The connection method to provide the best quality HD is offered. After confirming the method, press the ENTER G button.
11. The message Enjoy your TV is displayed. When you have finished, press the ENTER G button.
Ifyou want to reset this feature ...
1. Press the MENU button to display the menu. Press the A. or T button to select Setup, then press the ENTER G button.
2. Press the ENTER G button again to select Plug & Play.
IEJ The Plug &Play feature is only available in the TV mode.

CHANNEL CONTROL
• Configuring the Channel Menu
oAntenna -+ Air ICable
Before your television can begin memorizing the available channels, you must specify the type
of signal source that
is connected to the TV (i.e. an Air or aCable system).
..Ll Press the TOOLS button to display the Tools menu. You can also set the Antenna by
selecting
Tools ---> Switch to Cable (or Switch to Air).
oAuto Program
•Air: Air antenna signal. ICable: Cable antenna signal. I Auto: Air and Cable antenna
signals
BWhen selecting the Cable TV system: Selects the cable system. STD, HRC and IRC
identify various types of cable TV systems. Contact your local cable company
to identify the type ofcable system that exists in
your particular area. At this point the signal source has been selected.
BAfter all the available channels are stored, it starts to remove scrambled channels (Clear Scrambled Channels). The Auto
program menu then reappears.
BIf you want to stop Auto Programming, press the ENTERGbutton. The Stop Auto Program? message will be displayed.
Select Yes by pressing
the'" or ~ button, then press the ENTERGbutton.
oClear Scrambled Channels (digital channels only)
This function is used to filter out scrambled channels after Auto Program is completed. This process may take up to 20-30
minutes.
r.0 To stop searching scrambled channels: Press the ENTERGbutton to select Stop. Press the'" button to select Yes, then
press the
ENTERG button.
:B This function is only available in Cable mode.
oChannel List
For detailed procedures on using the Channel List, refer to the 'Managing Channels' instructions.
(5) You can select these options by simply pressing the CH LIST button on the remote control.
oFine Tune (analog channels only)
Use fine tuning to manually adjust aparticular channel for optimal reception.
r.0 If you do not store the fine-tuned channel in memory, adjustments are not saved.
(lg *will appear next to the name of fine-tuned channels.
r.0 To reset the fine tuning setting, press the'" button to select Reset, then press the ENTERGbutton.
• Managing Channels
»
AJr
"
~ 4 Air
4·2
'TV 113
V>
Air
13
AJr
13·1
'TV "3
A1,,:;e's Adventures In Wonderland
Using this menu, you can add Idelete or set favorite channels and use the program guide for
digital broadcasts.
•
All Channels
Shows all currently available channels.
•
Added Channels
Shows all added channels.
III Favorite
Shows all favorite channels.
Sl To select the favorite channels you ilave set up, press the FAV.CH button on the remote control.
Zoom - Select DT oals

Programmed
Shows all current reserved Programs.
®Select achannel in the All Channels, Added Channels or Favorite screen by pressing the ... ITbuttons, and pressing the
ENTERGbutton. Then you can watch the selected channel.
®Using the Color buttons with the Channel List
-Green (Zoom): Enlarges or shrinks achannel number.
-Yellow (Select): Selects multiple channel lists.
You can perform the add Idelete or add to Favorite Idelete from Favorite
function for multiple channels at the same time. Select the required channels and press the yellow button
to set all the
selected channels at the same time.
The"; mark appears to the left of the selected channels.
-TOOLS (Tools): Displays the
Add (or Delete), Add to Favorite (or Delete from Favorite), Timer Viewing, Channel
Name Edit, Select
All (or Deselect All) and Auto Program menus (The Options menus may differ depending on the
situation.)
®Channel Status Display Icons
• : A channel set as aFavorite.
.,; : A channel selected by pressing the yellow button.
-
~: AProgram currently being broadcast.
- G: Areserved program
Channel List Option Menu (in All Channels I Added Channels I Favorite)
®Press the TOOLS button to use the option menu.
®Option menu items may differ depending on the channel status.
III
Add IDelete
You can delete or add achannel to display the channels you want.
®All deleted channels will be shown on All Channels menu.
®Agray-colored channel indicates the channel has been deleted.
®The Add menu only appears for deleted channels.
®You can also delete achannel from the Added Channels or Favorite menu in the same
manner.
!ill Add to Favorite IDelete from Favorite
You can set channels you watch frequently
as Favorite.
~ Press the TOOLS button to display the Tools menu. You can also set the add to (or delete from) Favorites by selecting Tools
--> Add to Favorite (or Delete from Favorite)
® The. symbol will be displayed and the channel will be set as afavorite.
® All favorite channels will be shown in the Favorite menu.
!Ii Timer Viewing
If you reserve aprogram you want to watch, the channel
is automatically switched to the reserved channel in the Channel List;
even when you are watching another channel.
To reserve aprogram, set the current time first. (See page 22)
®Only memorized channels can be reserved.
®You can set the channel, month, day, year, hour and minute directly by pressing the number buttons on the remote control.
®Reserving aprogram will be shown in the Programmed menu
®Digital Program Guide and Viewing Reservation
When adigital channel
is selected, and you press the ~ button, the Program Guide for the channel appears. You can reserve
aprogram according to the procedures described above.
iii Channel Name Edit (analog channels only)
Channels can labeled
so that their call letters appear whenever the channel is selected.
®The names of digital broadcasting channels are automatically assigned and cannot be labeled.
Select
Alii Deselect All
•Select All: You can select all the channels in the channel list.
•Deselect All: You
can deselect all the selected channels.
liB You can only select Deselect All when there is aselected channel.
II Auto Program
liB For further details on setting up options, refer to page 15.

Channel List Option Menu (in Programmed)
You can view, modify or delete areservation.
[~ Press the TOOLS button to use the option menu.
iii Change Info
Select to change aviewing reservation.
iii Cancel Schedules
Select to cancel aviewing reservation.
iii Information
Select to view aviewing reservation. (You can also change the reservation information.)
iii SelectAII
Select all reserved Programs.
PICTURE CONTROL
• Configuring the Picture Menu
oMode
You can select the type of picture which best corresponds to your viewing requirements.
~ Press the TOOLS button to display the Tools menu. You can also set the picture mode by
selecting
Tools --t Picture Mode.
iii Dynamic
Selects the picture for increased definition in abright room.
iii Standard
Selects the picture for the optimum display
in anormal environment.
II Movie
Selects the picture for viewing movies in adark room.
o Backlight IContrast IBrightness ISharpness I Color I Tint (G/R)
Your television has several selling options that allow you to control the picture quality.
•Backlight: Adjusts the brightness
of LCD back light.
•Contrast: Adjusts the contrast level of the picture.
•
Brightness: Adjusts the brightness level of the picture
•Sharpness: Adjusts the edge definition of the picture.
•Color: Adjusts color saturation of the picture.
•
Tint (GIRl: Adjusts the color tint of the picture.
I~ When you make changes to Backlight, Contrast, Brightness, Sharpness, Color or Tint (GIRl the OSD will be adjusted
accordingly.
I~ In PC mode, you can only make changes to Backlight, Contrast and Brightness.
I~ Settings can be adjusted and stored for each external device you have connected to an input of the TV.
I~ The energy consumed during use can be significantly reduced if the brightness level of the picture is lowered, which will
reduce the overall running cost.
BlacHon.
Dynamic Contrast
Gamma
Color Space
Whie ba~nce
Flesh Tone
Edge Enhancement
oAdvanced Settings
Samsung's new TVs allow you to make even more precise picture settings than previous
models.
!~ Advanced Settings is available in Standard or Movie mode.
~ In PC mode, you can only make changes to Gamma and White Balance from among the
Advanced Settings items.
fill Black Tone --t Off IDark IDarker I Darkest
You can select the black level on the screen to adjust the screen depth.
Advanced Settings
~
:On I
~~ __ J
~ Move (31 Enter ~ Retum

\'II Dynamic Contrast Off! Low! Medium! High
You can adjust the screen contrast so that the optimal contrast is provided.
8 Gamma
You can adjust the primary color (red, green, blue) Intensity. (-3 - +3)
II Color Space
Color space is a color matrix composed of red, green and blue colors. Select your favorite color space to experience the most
natural color.
• Native: Native Color Space offers deep and rich color tone.
• Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.
II White Balance
You can adjust the color temperature for more natural picture colors.
•R·Offset! G-Offset! B-Offset! R-Gain ! G-Gain ! B-Gain: You can adjust the Color 'temperature' in the light areas by
changing the values of R, G, B. Recommended for advanced users only.
• Reset: The preViously adjusted white balance will be reset to the factory defaults
~ Changing the adjustment value will refresh the adjusted screen.
IlII Flesh Tone
You can emphasize the pink 'flesh tone' in the picture.
~ Changing the adjustment value will refresh the adjusted screen.
Ill! Edge Enhancement --+ Off! On
You can emphasize object boundaries in the picture.
o Picture Options
~ In PC mode, you can only make changes to the Color Tone and Size from among the
items in Picture Options.
Color Tone --+ Cool! Normal! Warm1! Warm2
~ Warm1 or Warm2 is only activated when the picture mode is Movie.
~ Settings can be adjusted and stored for each external device you have connected to an
input of the TV .
• Size
Occasionally, you may want to change the size of the image on your screen. Your TV comes with six screen size options, each
designed to work best with specific types of video input. Your cable box/satellite receiver may have its own set of screen sizes as
well. In general, though, you should view the TV in 16:9 mode as much as possible.
(5) Alternately, you can press the P.SIZE button on the remote control repeatedly to change the picture size.
•16:9: Sets the picture to 16:9 wide mode.
• Zoom1: Magnifies the size of the picture on the screen.
• Zoom2: Magnifies the size of the picture more than Zoom1.
• Wide Fit: Enlarges the aspect ratio of the picture to fit the entire screen.
•4:3: Sets the picture to 4:3 normal mode.
• Screen Fit: Use the function to see the full image without any cutoff when HOMI (720p!1080i), Component (1 080i) or OTV
(1080i) signals are input.
