Samsung LE32M73BD User manual

TFT-LCD TV
Chassis GED32SE
GND32SE
GED40SE
GND40SE
GND46SE
Model LE32M73BD
LE32N73BD
LE40M73BD
LE40N73BD
LE46N73BD
Manual
SERVICE
TFT-LCD TV Fashion Feature
- Luxurious Slim Design
- Supreme Picture Quality
- Supreme Sound Quality
- Supreme Convenience Quality
- Convenience for Users
- DVB-T, iDTV
- MHP(Only for Italy)
LE32M73BD / LE40M73BD
LE32N73BD / LE40N73BD / LE46N73BD

ii
Copyright
©2006 by Samsung Electronics Co., Ltd.
All rights reserved.
This manual may not, in whole or in part, be copied,
photocopied, reproduced, translated, or converted to
any electronic or machine readable form without prior
written permission of Samsung Electronics Co., Ltd.
LE32M73BD / LE32N73BD / LE40M73BD /
LE40N73BD / LE46N73BD Service Manual
First edition June 2006.
Printed in Korea.
Trademarks
Samsung is the registered trademark of Samsung
Electronics Co., Ltd.
LE32M73BD / LE32N73BD / LE40M73BD /
LE40N73BD / LE46N73BD and MacMaster Cable
Adapter are trademarks of Samsung Electronics Co.,
Ltd.
Macintosh, Power Macintosh are trademarks of Apple
Computer, Inc.
All other trademarks are the property of their respective
owners.

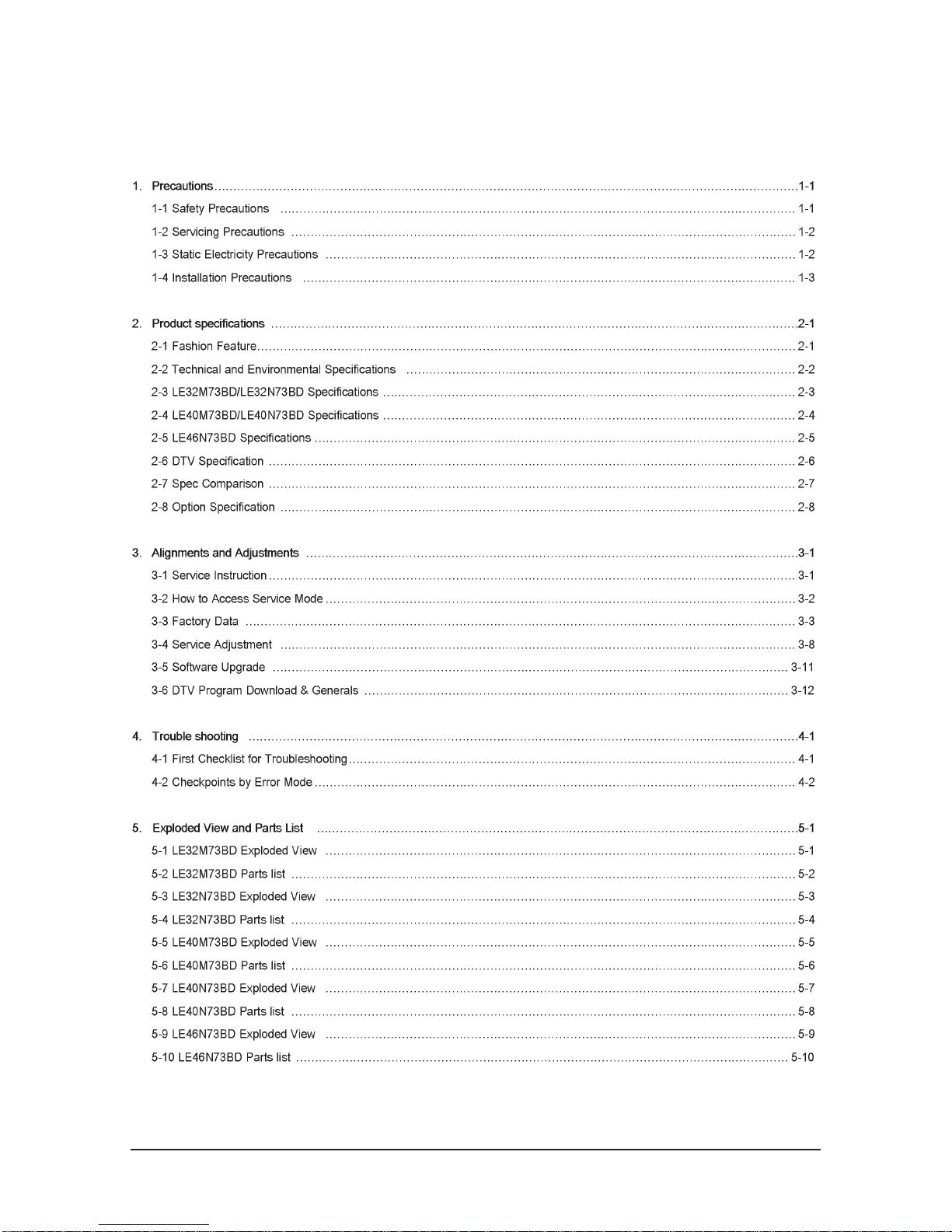

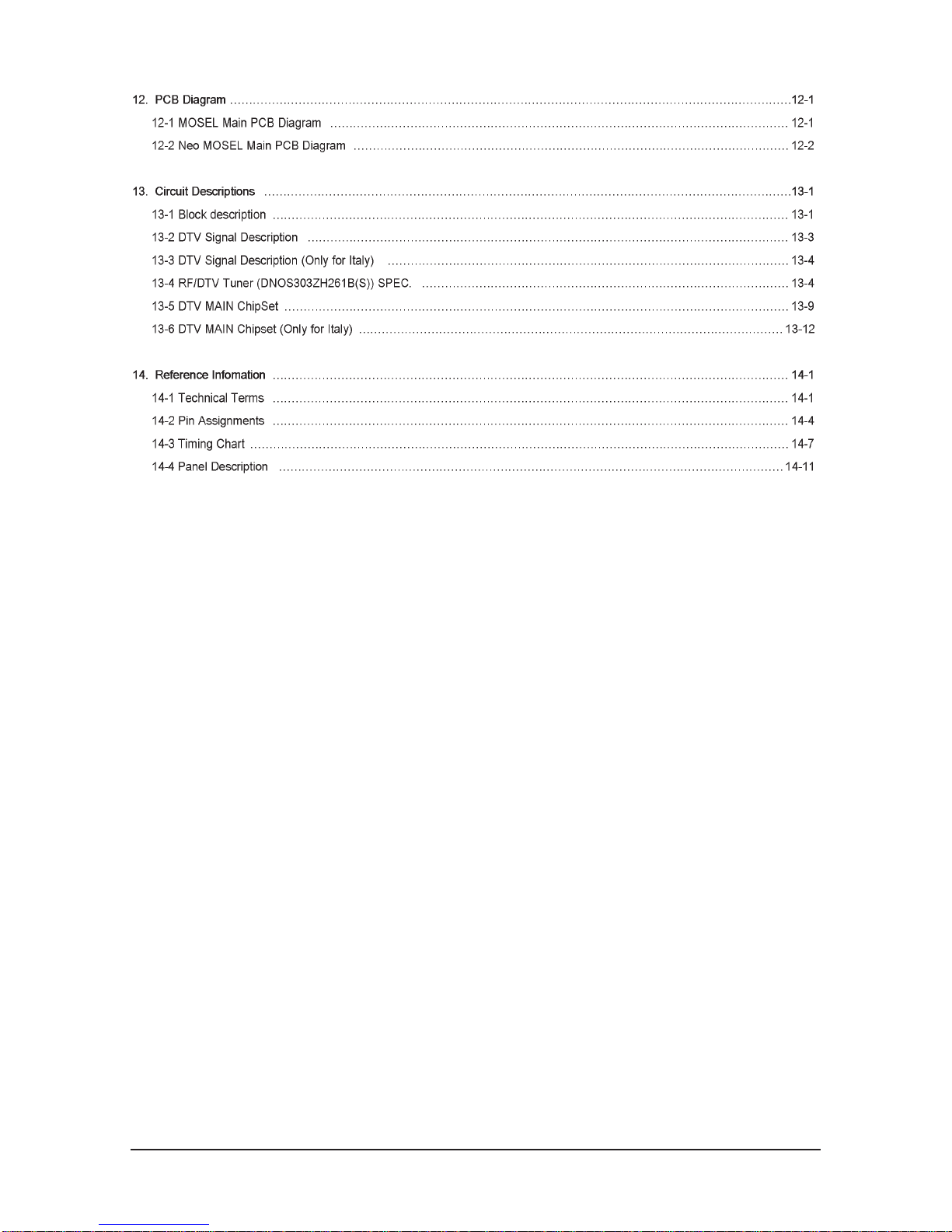

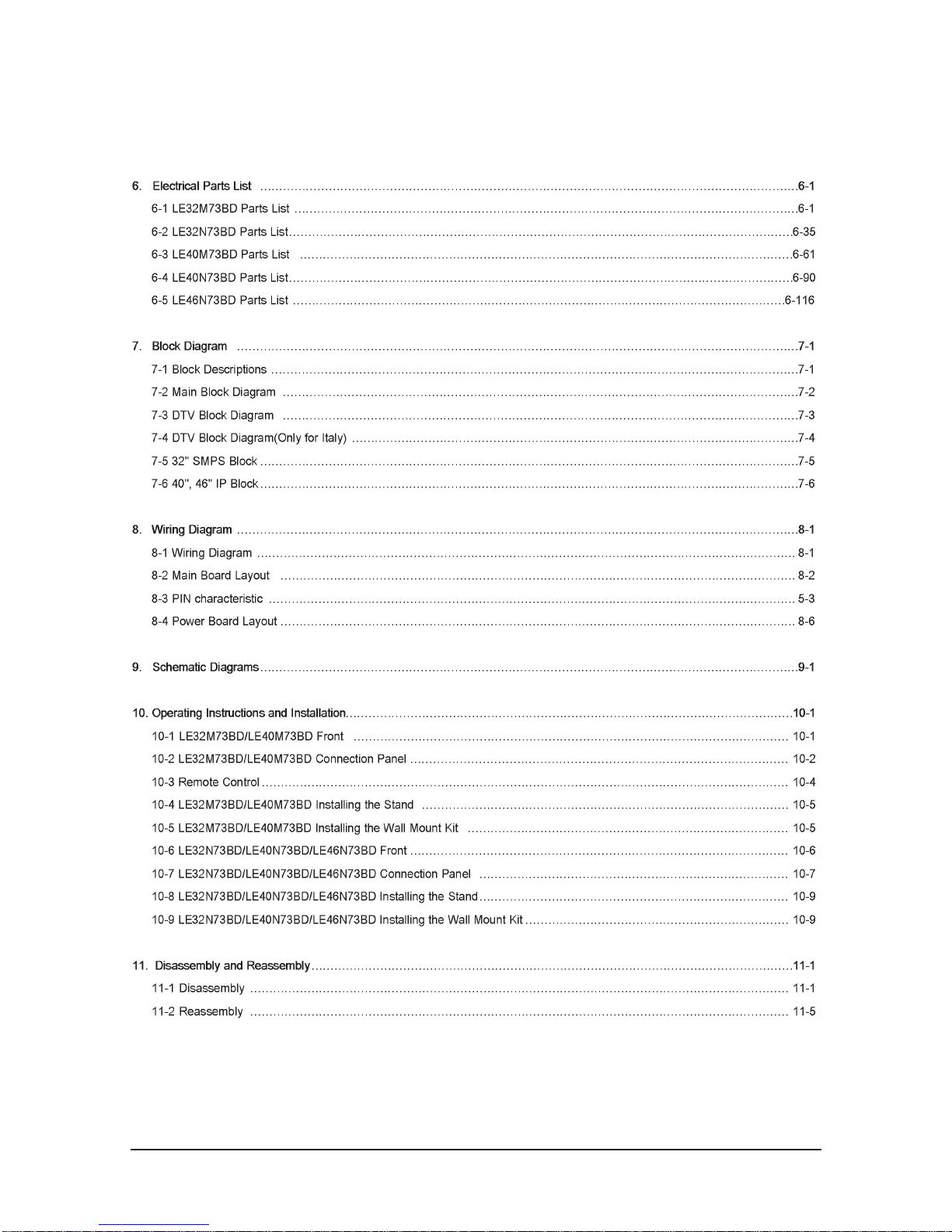

Contents

Contents

3

Samsung Electronics Co.,Ltd.
416, Maetan-3Dong, Yeongtong-Gu, Suwon City,
Gyeonggi-Do, Korea, 443-742
Printed in Korea
P/N : BN82-00144D-00
URL : http://itself.sec.samsung.co.kr/
- This Service Manual is a property of
Samsung Electronics Co., Ltd.
Any unauthorized use of Manual can be
punished under applicable International
and/or domestic law.

3 Alignments and Adjustments
3-1
3 Alignments and Adjustments
3-1 Service Instruction
1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.

3 Alignments and Adjustments
3-2
3-2 How to Access Service Mode
3-2-1 Entering Factory Mode
" "
- If you have Factory remote - control
- The buttons are active in the service mode.
1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)
2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)

3 Alignments and Adjustments
3-3
3-3 Factory Data
1. Calibration
2. Option Table XXXX XXXX
3. White Balance
4. SVP-PX
5. Option Block
6. STV8257/STA323W
7. YC Delay
8. Adjust
9. I2C Check
10. W/B MOVIE
11. Checksum
12. Reset
13. Spread Spectrum
T-MSLMPEUD-0000(MOSEL Main Micom Ver)
T-NMSLMPEUD-0000(Neo MOSEL Main Micom Ver)
T-CBGMPEUS-0000(Sub Micom Ver)
T-MSLMPEUW-0000(MMS Micom Ver)
Month / Day / Year
Hour / Min. / Sec.
1. Calibration
1) AV Calibration
2) Comp Calibration
3) PC Calibration
4) HDMI Calibration

3 Alignments and Adjustments
3-4
Byte
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ITEM
Inch Option.
Gamma
Panel Option
2 HDMI
----
Hot Plug
Clk Ct±â
Hot Plug Delay
----
LNA
Carrier Mute
Language
Auto FM
High Deviation
TTX
TTX List
ACR
Dynamic CE
Dynamic Dimming
Tuner TOP
TTX Group
Auto Power
Magazine LNA
VOL_MODE
Shop Mode
Debug
CH TABLE
iDTV_Cntry
Dynamic Contrast
Default
40
AMLCD
CCFL_120
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK
OFF
32"
32"
AUO
AUO
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK/France/Germany
OFF
40"
40"
AMLCD
CCFL_120
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK/France/Germany
OFF
2. Option Table
(1) MOSEL
UK/France/Germany

3 Alignments and Adjustments
3-5
Byte
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
ITEM
Inch Option.
Gamma
Panel Option
2 HDMI
----
Hot Plug
Clk Ct±â
Hot Plug Delay
----
LNA
Carrier Mute
Language
Auto FM
High Deviation
TTX
TTX List
ACR
Dynamic CE
Dynamic Dimming
Tuner TOP
TTX Group
Auto Power
Magazine LNA
VOL_MODE
Shop Mode
Debug
CH TABLE
iDTV_Cntry
Dynamic Contrast
Default
40
AMLCD
CCFL_120
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK
OFF
32"
32"
AUO
AUO_WCG
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK/France
Germany/Sweden
/Finland/Italy
/Spain
OFF
40"
40"
AMLCD
AMWCG_INT
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK/France
Germany/Sweden
/Finland/Italy
/Spain
OFF
46"
46"
AMLCD
AMWCG_INT
ON
OFF
ON
OFF
9
ON
ON
OFF
English
ON
OFF
On/Off
Flof
OFF
ON
ON
8
Auto
ON
OFF
Large
OFF
OFF
SUWON
UK/France
Germany/Sweden
/Finland/Italy
/Spain
OFF
(2) Neo MOSEL
UK/France/Germany/Sweden/Finland/Italy/Spain

3 Alignments and Adjustments
3-6
3. White Balance
No
1
2
3
4
5
6
7
8
Item
Sub-Brightness
R-offset
G-offset
B-offset
Sub-Contrast
R-Gain
G-Gain
B-Gain
TV/AV
80
120
128
113
36
140
128
150
Component
115
130
128
128
32
129
128
129
PC
128
128
128
128
32
128
128
128
DVI(HDMI)
140
129
128
128
28
130
128
120
Range
0~255
0~255
0~255
0~255
0~63
0~255
0~255
0~255
4. SVP-EX
1) Comb Filter
No
1
Item
Y-Filter EEPROM NTSC PAL X
80h SECAM Control IC RemarkRange
0~255
No
1
Item
Monitor EEPROM X
80h Control IC RemarkRange
0~255
No
1
2
3
4
5
Item
Y-Peaking
Peaking Delay
Peaking Gain
Peaking Width
Peaking f0
EEPROM TV AV X
X
X
X
X
80h
80h
80h
80h
80h
Component Control IC RemarkRange
0~255
0~255
0~255
0~255
0~255
2) Peaking
No
1
2
3
4
Item
Y-NR-Off
C-NR-Off
Y-NR-ON
C-NR-ON
EEPROM
TV/AV/S-Video Component
X
X
X
X
80h
80h
80h
80h
PC
TV/AV/S-Video Component PC
Control IC RemarkRange
0~255
0~255
0~255
0~255
3) NR
4) Delnterlace

3 Alignments and Adjustments
3-7
No
1
2
3
4
5
6
7
8
9
10
11
12
13
Item
TCD3 Contrast
TCD3 Brightness
TCD3 CR Saturation
TCD3 CB Saturation
TCD3 YC Delay
Analog Y offset
Analog PB offset
Analog PR offset
Analog Y Gain
Analog PB Gain
Analog PR Gain
Black Level Setting
Brightness (SVP)
EEPROM TV/AV/S-Video
78h
20h
78h
78h
00h
40h
80h
80h
D6h
FEh
FEh
78h
20h
78h
78h
00h
40h
80h
80h
D6h
FEh
FEh
AV Calibration(78h)
AV Calibration(20h)
78h
78h
00h
40h
80h
80h
D6h
FEh
FEh
78h
20h
78h
78h
00h
3
DTV Calibration(80h)
DTV Calibration(80h)
DTV Calibration(D6h)
FEh
FEh
PCComponent
00h
00h
DVI/HDMIRange
0~255
0~255
0~255
0~255
0~15
00~255
00~255
00~255
00~255
00~255
00~255
00~255
0~255
5) Picture Gain Adjust
No
1
2
3
4
5
6
Item
R-offset
G-offset
B-offset
R-Gain
G-Gain
B-Gain
EEPROM TV/AV/S-Video PC Calibration(128)
PC Calibration(128)
PC Calibration(128)
PC Calibration(192)
PC Calibration(192)
PC Calibration(192)
151 (SC1 RGB)
151 (SC1 RGB)
151 (SC1 RGB)
123 (SC1 RGB)
123 (SC1 RGB)
123 (SC1 RGB)
XX
PC
Component
DVI/HDMIRange
00~255
00~255
00~255
00~255
00~255
00~255
5. MST9883
No
1
2
3
4
5
6
7
8
9
10
Item
FM-Prescale
NT-M-Prescale
SECAM-L-Prescale
NICAM-Prescale
AV-Prescale
12S_1 Prescale
12S_12 Prescale
Carrier Mute
Pilot High
Pilot Low
EEPROM PAL
20h
20h
22h
42h
1Ah
10h
10h
42h
14
7
Range
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
6. MSP34XX/44XX

3 Alignments and Adjustments
3-8
No
1
2
3
4
5
6
7
8
9
10
11
12
13
Item
RF PAL-B/G
RF PAL-D/K
PF PAL-I
RF SECAM-B/G
PF SECAM-D/K
RF SECAM-L/L'
RF NTSC 3.58
RF NTSC 4.43
AV PAL
AV SECAM
AV NTSC 3.58
AV NTSC 4.43
AV PAL60
EEPROM TV/AV/S-Video
77h
88h
66h
88h
77h
88h
66h
CCh
77h
BBh
66h
CCh
77h
PCComponent
88h 88h 88h
DVI/HDMIRange
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
00~255
7. YC Delay
8. Adjust
No
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
No
1
2
3
4
5
Item
Video Mute Time
Melody Volume
Ana_Dimm_Max
TTX Contrast
TTX Brightness
TTX Color
Dynamic Contrast
Dynamic Brightness
Dynamic Color
Dynamic Sharpness
Standard Contrast
Standard Brightness
Standard Color
Standard Sharpness
Movie Contrast
Movie Brightness
Movie Color
Movie Sharpness
Item
LNA PLUS
RFDB_1 Level
RFDB_2 Level
RFDB_3 Level
RFDB_4 Level
EEPROM
EEPROM Component/PC/HDMI
Dynamic
Mode
Standard
Mode
Movie
Mode
P4 CVD2 0x7F
[07..00]
X
TV/AV/S-Video
10
5
FEH
50
50
50
100
50
55
75
80
50
50
50
70
50
25
45
TV/AV/S-Video
1
5
10
16
Component DVI/HDMIPC Control IC RemarkRange
0~20
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
0~100
Range

3 Alignments and Adjustments
3-9
9. 12C Check
10. Chip Debugger : OFF
11. Checksum XXXX XXXX
12. Reset
13. Spread Spectrum
1
2
3
4
Spectrum
Delta
Positive
Negative
ON
-3
8
2

3 Alignments and Adjustments
3-10
3-4 Service Adjustment
3-4-1 White Balance - Calibration
If picture color is wrong, do calibration first.
Equipment : CA210, Patten : chess pattern
Execute calibration in Factory Mode
Source AV : PAL composite, Component : 1280*720/60Hz
PC : 1024*768/60Hz
3-4-2 White Balance - Adjustment
If picture color is wrong, check White Balance condition.
Equipment : CA210, Patten : Toshiba
Adjust W/B in Factory Mode
Sub brightness and R/G/B Offset controls low light region
Sub contrast and R/G/B Gain controls high light region
Source AV : PAL composite, Component : 1280*720/60Hz
HDMI[DVI] : 1280*720/60Hz
Toshiba Patten
[ Test Pattern : MSPG-945 Series Pattern #16 ]
*Color temperature
1500K +/-500, -6 ~-20 MPCD
*Color coordinate
H/L : 267/263 +/- 2 35.0 Ft +/- 2.0Ft
L/L : 270/260 +/- 3 1.5 Ft +/- 0.2Ft
( chess patten )

3 Alignments and Adjustments
3-11
3-4-3 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 2 : 744X484@60 Hz
NO 6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz
* Pattern NO 36 : 16 Color Pattern
NO 16 : Toshiba ABL Pattern
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model
LE26M51B/LE32M51B/LE40M51B/LE46M51B .
3-4-4 Method of Adjustment
1. Adjust the white balance of AV, Component and DVI Modes.
(AV Component)
a) Set the input to the mode in which the adjustment will be made
(RF DTV PC DVI).
* Input signal - VIDEO Mode : Model #2 (744*484 Mode), Pattern #16
- DTV,DVI Mode : Model #6 (1280*720 Mode), Pattern #16
- HDMI Mode: Model #6(1280*720 Mode), Pattern #16
b) Enter factory color control, confirm the data.
c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
* Do not adjust green offset data.
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.
Picture 4-2 Toshiba ABL Pattern
Low light
Measurement point

3 Alignments and Adjustments
3-12
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.
Picture 4-3 Toshiba ABL Pattern
High light
Measurement point

3 Alignments and Adjustments
3-13
3-5 Software Upgrade

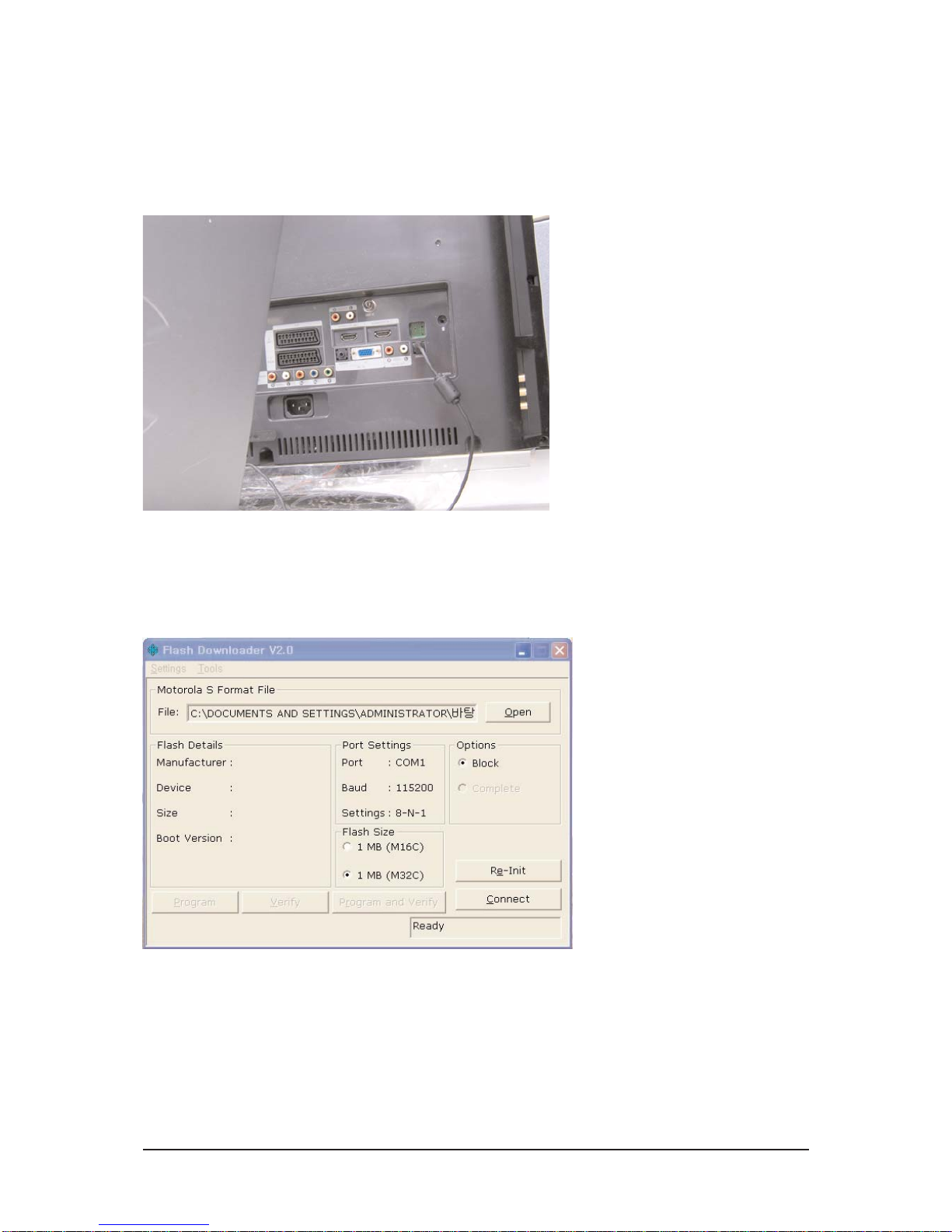

3-5-1 How to Update Flash ROM
1. Installthe Flash Downloader
ConnectSet(Service Jack)and Jig Cable to execute Program Update.
2. Flash Downloader program update
-Before Turning on the set,Click "connect"which is under of OSD Screen!
-Turn on the Set.

3-6 DTV Program Download & Generals
3-6-1 Software Version Check Method
Press the MENU key and select System.
Where you can find the Prodect Information menu in it.
When you press the Product Information you can find the Software Version.
3-6-2 Serial Download Method
1) Turn off LCD-TV.
2) Connect the RS-232 cable to the LCD-TV
3) Execute the sv2_fr.exe file.
4) Assign the path of samsung.tvz file (application image)
5) Execute the progress follow the screen until step 2.
6) Turn On the LCD-TV.
7) If the LCD-TV turn on during the sv2_fr.exe execution, it will automatically find the COM port and
execute the upgrade.
3-6-3 Hyper Terminal Setting
Set the hyper terminal to observe the progress of the TV via the RS-232 cable.
Set up hyper terminal.
1) When setting up a hyper terminal, set it in sub-program.
2) Enter a new name.
3) Select a modem port. (com 1 and direct connection.)
4) Set the bit/second to 115200.
5) Set the data bit to 8.
6) No parity bit.
7) Set stop bit to 1.
8) No flow control.
9) Save in memory.
10) At this point, the new hyper terminal is ready.
3-6-4 Resetting the System Parameters
1) Press the MENU button and select the Reset menu of System.
2) Press the secret number.
3) Press the RED, GREEN, YELLOW, BLUE button in order, after the Reset execute.
4) In a few minutes, DTV will booting again.
3 Alignments and Adjustments
3-14
