Samsung LW22N23N User manual

TFT-LCD TV/MONITOR
Chassis Model
VR22EO LW22N23N
Manual
SERVICE
TFT-LCD TV/MONITOR CONTENTS
1. Precautions
2. Product Specifications
3. Disassembly & Reassembly
4. Alignment & Adjustments
5. Troubleshooting
6. Exploded View & Parts List
7. Parts List
8. Block Diagram
9. Wiring Diagram
10. PCB Layout
11. Schematic Diagrams
12. Panel Description

LW22N23N 4-1
4 Alignments and Adjustments
4-1 General Alignment Instuction
1. Usually, a color TV-VCR needs only slight touch-up adjustment upon installation.
Check the basic characteristics such as height, horizontal and vertical sync.
2. Use the specified test equipment or its equivalent.
3. Correct impedance matching is essential.
4. Avoid overload. Excessive signal from a sweep generator might overload the front-end
of the TV. When inserting signal markers, do not allow the marker generator to distort
test result.
5. Connect the TV only to an AC power source with voltage and frequency as specified on
the backcover nameplate.
6. Do not attempt to connect or disconnect any wire while the TV is turned on. Make sure
that the power cord is disconnected before replacing any parts.
7. To protect aganist shock hazard, use an isolation transform.

4 Alignments and Adjustments
4-2 LW22N23N
4-2 Factory Mode Adjustments
4-2-1 Entering Factory Mode
1. To enter “Service Mode” Press the remote -control keys in this sequence :
- If you do not have Factory remote - control
- If you have Factory remote - control
4-2-2 Factory Mode Tree
- The buttons are active in the service mode.
1. Remote - Control Key : Power, Arrow Up, Arrow Down, Arrow Left
Arrow Right, Menu, Enter, Number Key(0~9)
2. Function - Control Key : Power, CH +, CH -, VOL +, VOL -,
Menu, TV/VIDEO(Enter)

4 Alignments and Adjustments
LW22N23N 4-3

4 Alignments and Adjustments
4-4 LW22N23N

4 Alignments and Adjustments
LW22N23N 4-5

4 Alignments and Adjustments
4-6 LW22N23N

4 Alignments and Adjustments
LW22N23N 4-7

4 Alignments and Adjustments
4-8 LW22N23N
* Unless otherwise specifid, do not adjust data in Factory Mode.
* Data may be changed for display improvement.

4 Alignments and Adjustments
LW22N23N 4-9
4-3 White Balance Adjustment
1. In factory mode (1, 3, 6), you can adjust the white balance.
2. As the adjustment and data values differ depending on input sources, different adjustments are
requried for RF, PC/DVI modes.
3. Optimum condition data for each mode are saved as default values. (Refer to Table 2, 3)
4. As the RF mode is applied with the same vlaues as for VIDEO and S-VIDEO, adjustment can be
made in any of RF, VIDEO and S-VIDEO modes.

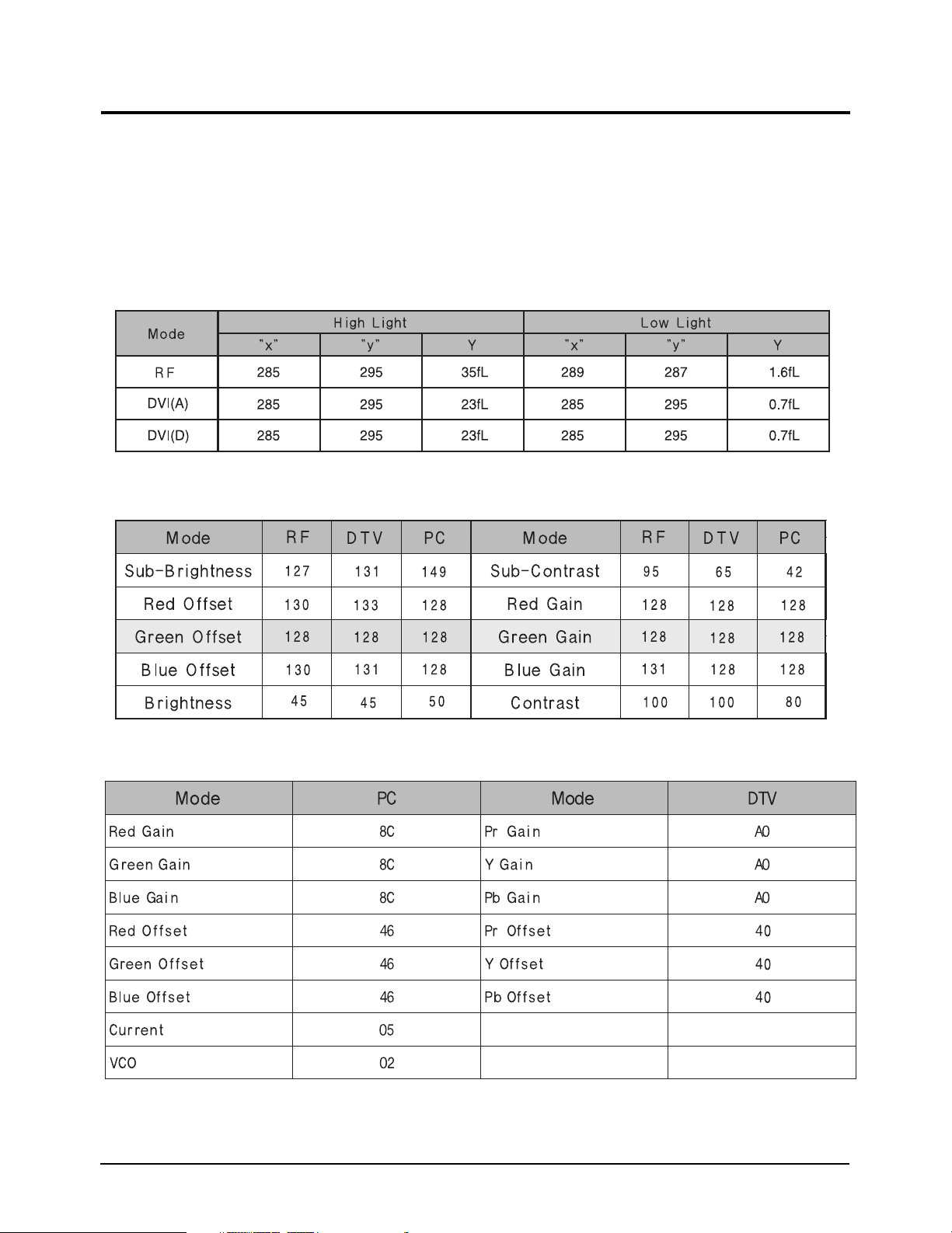

Table 4-1. White Balance Setting Conditions
Table 4-2. Color Control Default Vlaue
Table 4-3. Color Control Default Vlaue

4 Alignments and Adjustments
4-10 LW22N23N
4-3-1 Conditions for Measurement
1. On the basis of toshiba ABL pattern : High Light level (57 IRE)
- INPUT SIGNAL GENERATOR : MSPG-925LTH
* Mode NO 1 : 750X480@60 Hz
NO 6 : 1280X720@60 Hz
NO 21 : 1024X768@60 Hz
* Pattern NO 36 : 16 Color Pattern
NO 16 : Toshiba ABL Pattern
2. Optical measuring device : CA210 (FL)
Please use the MSPG-925 LTH generator for model LTP227W.
4-3-2 Method of Adjustment
1. Adjust the basic level of DTV and PC input signals.
a) Set the input to the mode in which the adjustment will be made (PC).
* Input signal - PC Mode : Model #21 (1024*768 Mode), Pattern #16 (Picture 4-1)
b) Enter factory Calibration, confirm the ADC data (PC Mode Only).
* ADC default value : Table 4-3.
2. Adjust the white balance of RF, DTV and PC Modes.
a) Set the input to the mode in which the adjustment will be made (RF DTV PC).
* Input signal - VIDEO Mode : Model #1 (750*480 Mode), Pattern #16
- PC Mode : Model #21 (1024*768 Mode), Pattern #16
b) Enter factory color control, confirm the data.
Picture 4-1 Toshiba ABL Pattern

4 Alignments and Adjustments
LW22N23N 4-11
c) Adjust the low light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust sub - Brightness to set the 'Y' value.
- Adjust red offset ('x') and blue offset ('y') to the color coordinates.
* Do not adjust green offset data.
d) Adjust the high light. (Refer to table 1, 2 in adjustment position by mode)
- Adjust red gain ('x') and blue gain ('y') to the color coordinates.
* Do not adjust the green gain and sub-contrast (Y) data.

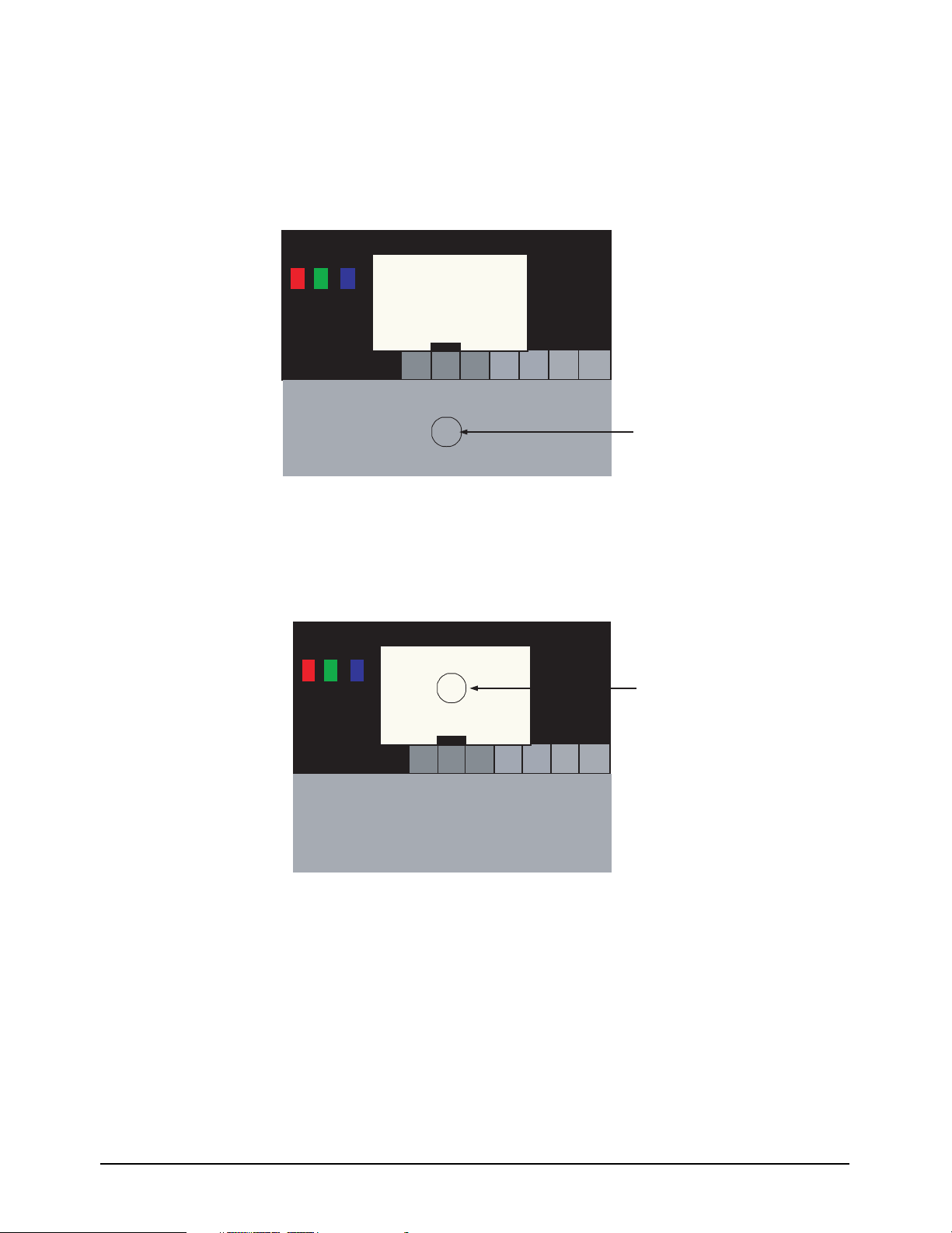

Picture 4-2 Toshiba ABL Pattern
Picture 4-3 Toshiba ABL Pattern
Low light
Measurement point
High light
Measurement point

4 Alignments and Adjustments
4-12 LW22N23N
4-3-4 PW565
* Below figures are for contrast adjustment of PW565 (IC565). Do not change the data.
4-3-3 Option Table
* The default settings are most recommended for Option Data. Each data may be adjusted.

4 Alignments and Adjustments
LW22N23N 4-13
4-3-5 VPC 3230-MAIN
* Data may be adjusted.
4-3-6 ADC
*Adjust the R(Pr), G(Y), B(Pb) gain and offset to the basic level of DTV and PC Input signals.

4 Alignments and Adjustments
4-14 LW22N23N

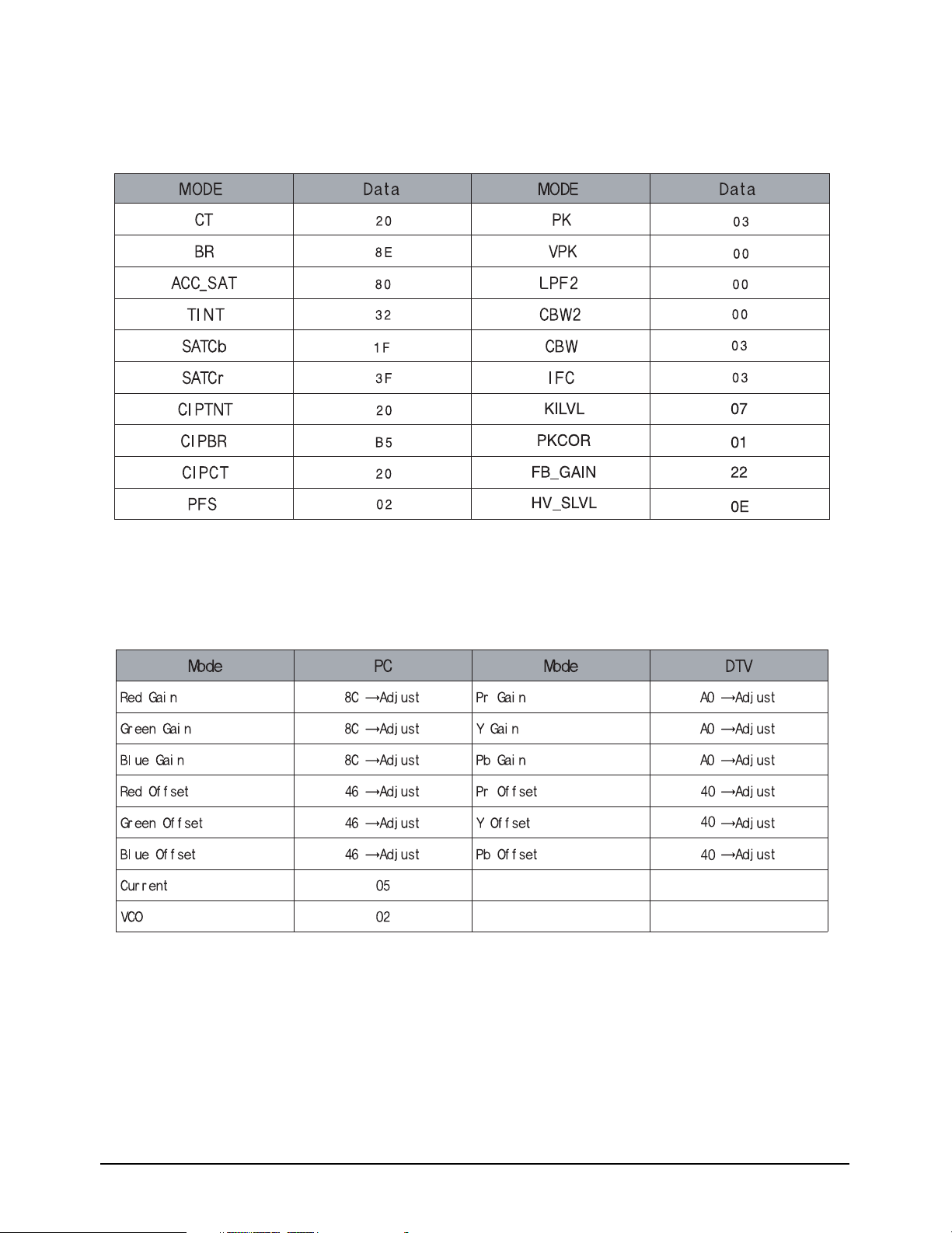

4-3-8 MDIN-150
* Control the specify item that a output signals (RF, CVBS, S-VHS Modes) of MDIN-150 (IC405).
* This data can be changed without notice.
4-3-9 Test Pattern
* Use below test patters to demonstrate the image display of PW565 (IC565).
1) Luma Ramp (16 step)
2) Luma Ramp (128 Step)
3) White 16
4) White 240
5) Color Bar
6) RGB Ramp (32 Step)
4-3-10 Check sum
* XXXX : Displays the current check sum size of the MICOM.
(Varies depending on program update)
4-3-11 Reset
* Initializes the data in the MICOM. (Set to default value)
Use ‘Reset’ to restore adjustmints made in Factory Mode to the original settings.
4-3-12 T_VIC22NUS_0166 11/27/2003 20:10:51
* Displays the MICOM program version
4-3-7 DNIe
* Control the specify item that a output signals of scalar (PW565).
* This data can be changed without notice.

4 Alignments and Adjustments
LW22N23N 4-15
4-4 How to use SW(FlashupgradNT) for LTP227W Set program update
1. Store program practice file in new folder.
2. Connect Set and Jig Cable to execute Program Update.
(Refer to the Picture 4-4 attachment)
3. After completing the JIG Cable connection, store Update practice program (hex file 3EA) in new folder.
(guiR, romcode, factoryGui).
4. Click FlashupgradNT.exe icon 2 times and execute it.
(Upgrader OSD screen is marked)
5. Select OFull.inf in Flash.
(flaher, romcode, guir, factorygui items look in Files To)
Picture 4-4
Picture 4-5

4 Alignments and Adjustments
4-16 LW22N23N
7. After acting No.6, extract Set’s Power Cable and connect it again.
8. During acting No.7, program Update sledding is marked sequentially on OSD screen.
9. After Program Update completion, act NO.7 again.
10. Program Update is completed.
3
2
1
4
<Attachment Picture 4-7 : JIG Cable Connection Explain>
1. Connect with PC Pattern Generator’s output.
(Connect only when you want to see PC screen.)
2. Connect with JIG Output (15 pins) and PC Input (PC/DVI 24 pins) terminal.
3. Connect with COM Port1 of PC (9 Pins).
4. Connect 14V 4.5A Adaptor Cable.
6. Click the “Flash” that is under right of OSD screen.
(if warning message comes out, Click the “Yes”(Y).)
Picture 4-6
Picture 4-7
