Samsung 400MPX User manual

ii
LCD MONITOR
quick start guide
400MP 460MP 400MPX 460MPX

Introduction
Package Contents
Note
Please make sure the following items are included with your LCD Display.
If any items are missing, contact your dealer.
Contact a local dealer to buy optional items.
Note
This stand is not for the Floor Standing Type.
Unpacking
LCD Display
Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User's Guide
Cables
D-Sub Cable Power Cord
Others

Others
Remote Control Batteries (AAA X 2)
(Not available in all loca-
tions)
HDD Cover
BNC to RCA Adaptor Jack
Sold separately
DVI Cable Wall Mount KIT LAN Cable
(Applicable to the MPn mod-
el only)
TV tuner box NetWork Box
(Applicable to the MP model
only)
Semi Stand KIT
BNC Cable
Note
•You can purchase and connect a separate network box or TV tuner box. For information on how
to use these, refer to their respective user manuals.
• You can only connect one external box.
Introduction

Your LCD Display
Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu
or return to the previous menu.
Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu values.
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected menu val-
ues. When OSD is not on the screen, push the button to adjust volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Changing the source is only allowed for
external devices that are connected to the LCD Display at the time.
[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo] → [TV] → [BNC]→ [Com-
ponent]
Note
•The TV menu is available when a TV tuner box is installed.
•The MagicInfo menu is available when a network box is installed in the MPn
or MP model.
D.MENU
Opens the on-screen D.MENU.
Note
•This is available when a TV tuner box is installed.
Power button [ ]
Introduction

Use this button for turning the LCD Display on and off.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding power
saving functions. For energy conservation, turn your LCD Display OFF when it
is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Rear
Note
For detailed information concerning cable connections, refer to Connecting Cables under Setup. The
LCD Display 's configuration at the back may vary slightly depending on the LCD Display model.
POWER S/W ON [
│ ] / OFF [O]
Switches the LCD Display On/Off.
POWER IN
The power cord plugs into the LCD Display and
the wall plug.
Introduction

RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
DVI/PC/HDMIIN[DVI/PC/HDMIAUDIO
IN] (PC/DVI/HDMI Audio Connection Terminal
(Input))
DVI / PC / HDMI IN [HDMI]
Connect the HDMI terminal at the back of your
LCD Display to the HDMI terminal of your dig-
ital output device using a HDMI cable.
DVI / PC / HDMI IN [RGB](PC Video Con-
nection Terminal)
Using a D-Sub Cable (15 pin D-Sub) - PC mode
(Analog PC)
DVI / PC / HDMI IN [DVI] (PC Video Con-
nection Terminal)
Using a DVI Cable (DVI-D to DVI-D) - DVI
mode (Digital PC)
DC OUT [5V/1.5A]
Connect this to the POWER connector of a TV
tuner box or network box.
AV IN [VIDEO] (VIDEO Connection Termi-
nal)
Connect the [ VIDEO ] terminal of your monitor
to the video output terminal of the external device
using a VIDEO cable.
AV AUDIO IN [L-AUDIO-R](LCD Display
Audio Connection Terminal (Input))
AV AUDIO OUT [L-AUDIO-R] (LCD Dis-
play Audio Connection Terminal (Output))
Introduction

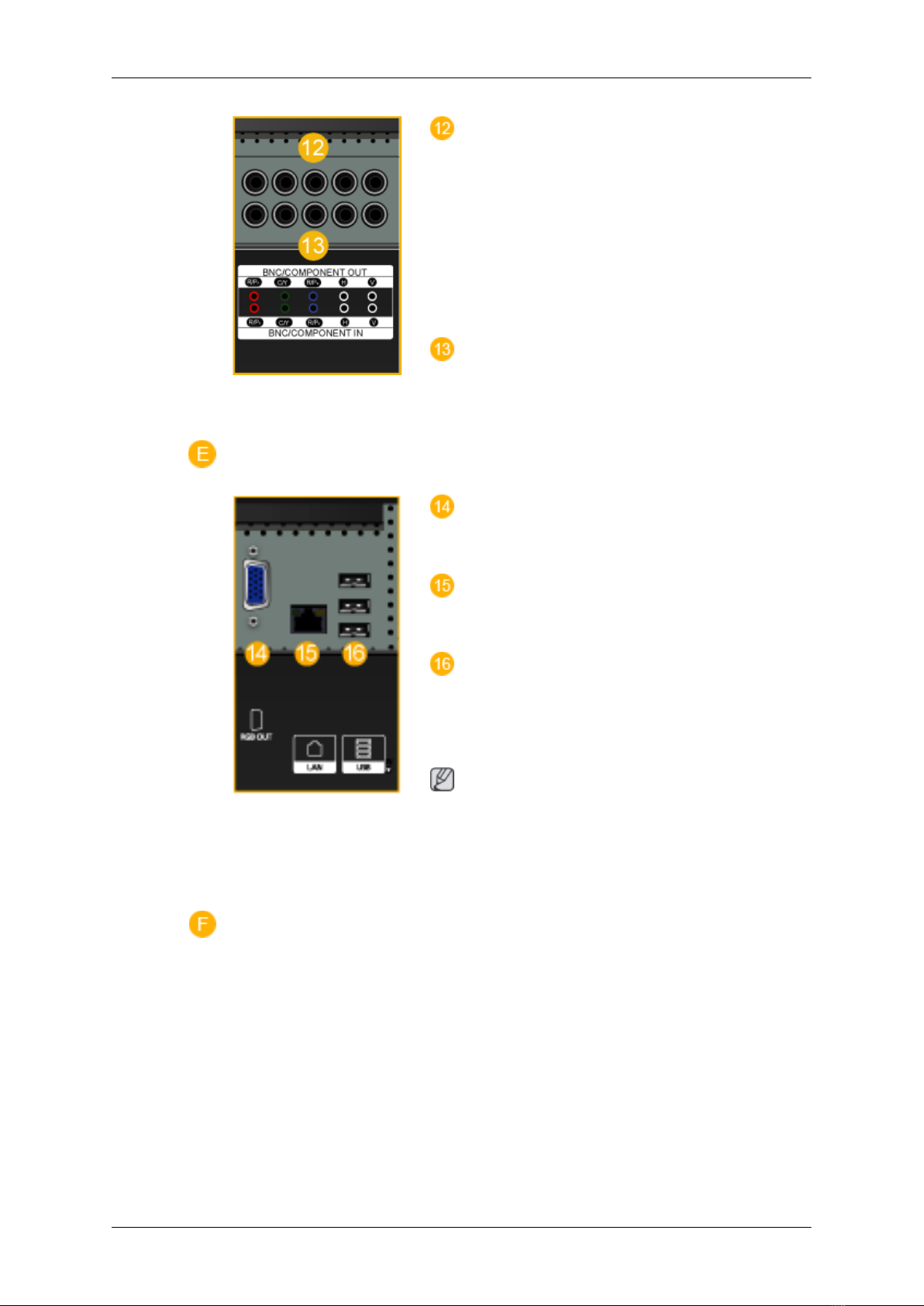

BNC/COMPONENT OUT[R/PR, G/Y, B/PB,
H, V]
(BNC/Component Connection Terminal (Out-
put))
BNC (Analog PC) Connection: connecting the R,
G, B, H, V ports.
Component Connection: connecting the PR, Y,
PB ports.
BNC/COMPONENTIN[R/PR,G/Y,B/PB,H,
V]
(BNC/Component Connection Terminal (Input))
RGB OUT
(Applicable to the MPn model only)
LAN (LAN Connection Terminal)
(Applicable to the MPn model only)
USB(USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device Com-
patible.
(Applicable to the MPn model only)
Note
The number of LCD Displays that can be con-
nected to loopout may differ depending on the
cables, signal source etc. With cables where there
is no degradation or signal source, up to ten LCD
Displays can be connected.
Introduction

Kensington Lock
The Kensington Lock is a device used to physi-
cally fix the system when using it in a public
place. The locking device has to be purchased
separately. The appearance and locking method
may differ from the illustration depending on the
manufacturer. Refer to the manual provided with
the Kensington Lock for proper use. The locking
device has to be purchased separately.
Note
The location of the Kensington Lock may be dif-
ferent depending on its model.
Using the Anti-Theft Kensington Lock
1. Insert the locking device into the Kensington
slot on the Monitor and turn it in the
locking direction .
2. Connect the Kensington Lock cable.
3. Fix the Kensington Lock to a desk or a heavy
stationary object.
Note
See Connecting Cables for further information regarding cable connections.
Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device operating
near the LCD Display , causing a malfunction due to interference with the frequency.
Introduction

POWER
OFF
Number Buttons
DEL button
+ VOL -
MUTE
TV/DTV
MENU
INFO
COLOR BUTTONS
TTX/MIX
STILL
AUTO
S.MODE
MDC
LOCK
SOURCE
ENTER/PRE-CH
CH/P
D.MENU
GUIDE
RETURN
Up-Down Left-Right buttons
EXIT
SRS
MagicInfo
P.MODE
DUAL/MTS
PIP
SWAP
1. POWER Turns the product On.
2. Off Turns the product Off.
3. Number Buttons Press to change the channel.
Introduction

4. DEL button
The "-" button operates only for DTV. It is used to select MMS
(multi-channel) for a DTV.
5. + VOL - Adjusts the audio volume.
6. MUTE Pauses (mutes) the audio output temporarily. This is displayed on
the lower left corner of the screen. The audio resumes if MUTE
or - VOL + is pressed in the Mute mode.
7. TV/DTV Selects the TV and DTV mode directly.
8. MENU Opens the on-screen menu and exits from the menu or closes the
adjustment menu.
9. Activates a highlighted menu item.
10. INFO Current picture information is displayed on the upper left corner
of the screen.
11.COLOR BUTTONS Press to add or delete channels and to store channels to the favorite
channel list in the “Channel List” menu.
12. TTX/MIX TV channels provide written information services via teletext.
- Teletext Buttons
For more information > TTX / MIX
13.STILL Press the button once to freeze the screen. Press it again to un-
freeze.
14.AUTO Adjusts the screen display automatically in PCmode. By changing
the resolution in the control panel, auto function is performed.
15. S.MODE When pressing this button, the current mode is displayed at the
bottom centre of the screen. The LCD Display has a built-in high
fidelity stereo amplifier. Then press the button again to circle
through available preconfigured modes. ( Standard → Music →
Movie → Speech → Custom )
16.MDC MDC Quick Launch Button.
17.LOCK Activates or deactivates all function keys on both the remote con-
trol and the LCD Display except for the Power and LOCK buttons.
18. SOURCE Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices that
are connected to the monitor at the time.
19. ENTER/PRE-CH This button is used to return to the immediately previous channel.
20. CH/P In TV mode, selects TV channels.
21.D.MENU DTV menu display
22.GUIDE Electronic Program Guide (EPG) display.
23. RETURN Returns to the previous menu.
Introduction

24. Up-Down Left-Right but-
tons
Moves from one menu item to another horizontally, vertically or
adjusts selected menu values.
25. EXIT Exits from the menu screen.
26. SRS Selects SRS TruSurround XT mode.
27.MagicInfo MagicInfo Quick Launch Button.
28. P.MODE When you press this button, current picture mode is displayed on
the lower center of the screen.
AV / HDMI / TV : P.MODE
The LCD Display has four automatic picture settings that are pre-
set at the factory. Then push button again to circle through avail-
able preconfigured modes. ( Dynamic → Standard → Movie →
Custom )
PC / DVI / MagicInfo: M/B (MagicBright)
MagicBright is a feature providing the optimum viewing envi-
ronment depending on the contents of the image you are watching.
Then push button again to circle through available preconfigured
modes. (Entertain → Internet → Text → Custom )
29. DUAL/MTS DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the
broadcasting type by using the DUAL button on the remote control
while watching TV.
MTS-
You can select MTS (Multichannel Television Stereo) mode.
Audio Type MTS/S_Mode Default
FM Stereo Mono Mono Manual Change
Stereo Mono ↔Stereo
SAP Mono ↔SAP Mono
30. PIP Every time you press the button, a PIP screen appears.
- This fuction does not work for this LCD Display.
31.SWAP Swaps the contents of the PIP and main image. The image in the
PIP window will appear on the main screen, and the main screen
image will appear in the PIP window.
- This fuction does not work for this LCD Display.

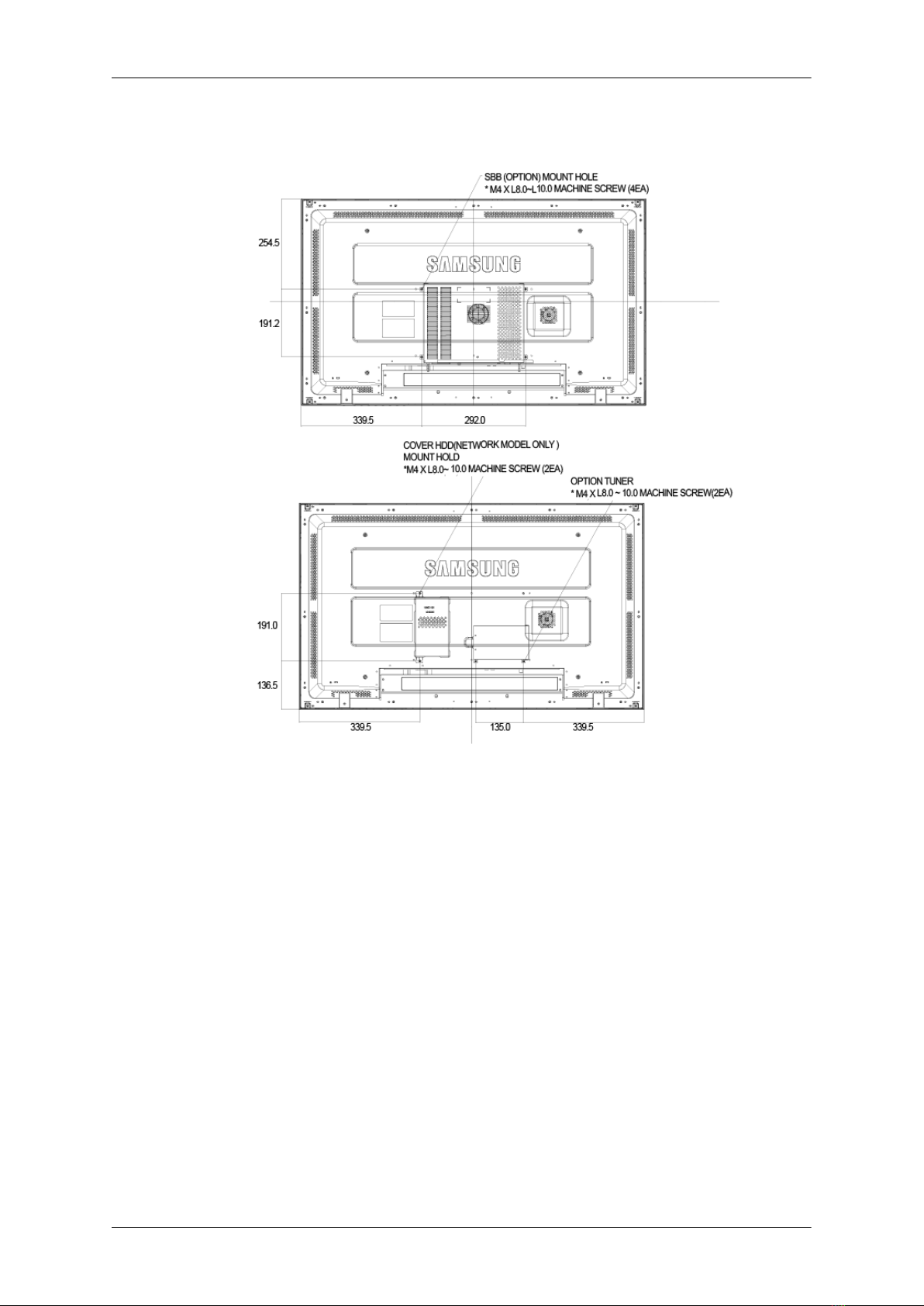

Mechanical Layout(400MP(N))
Mechanical Layout
Introduction

Introduction

LCD Display Head
NETWORK MODEL SIZE
Installation VESA Bracket
•When installing VESA, make sure to comply with the international VESA standards.
•Purchasing VESA Bracket and Installation Information : Please contact your nearest SAMSUNG
Distributor to place an order. After your order is placed, installation professionals will visit you
and install the bracket.
• At least 2 persons are needed in order to move the LCD Display.
•SAMSUNG is not responsible for any product damage or any injury caused by installation at
customer's discretion.
Introduction

Dimensions
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
Wall Bracket Installation
•Contact a technician for installing the wall bracket.
•SAMSUNG Electronics is not responsible for any damages to the product or harm to customers
when the installation is done by the customer.
•This product is for installing on cement walls. The product may not stay in place when installed
on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw(B)
(4)
Anchor
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.

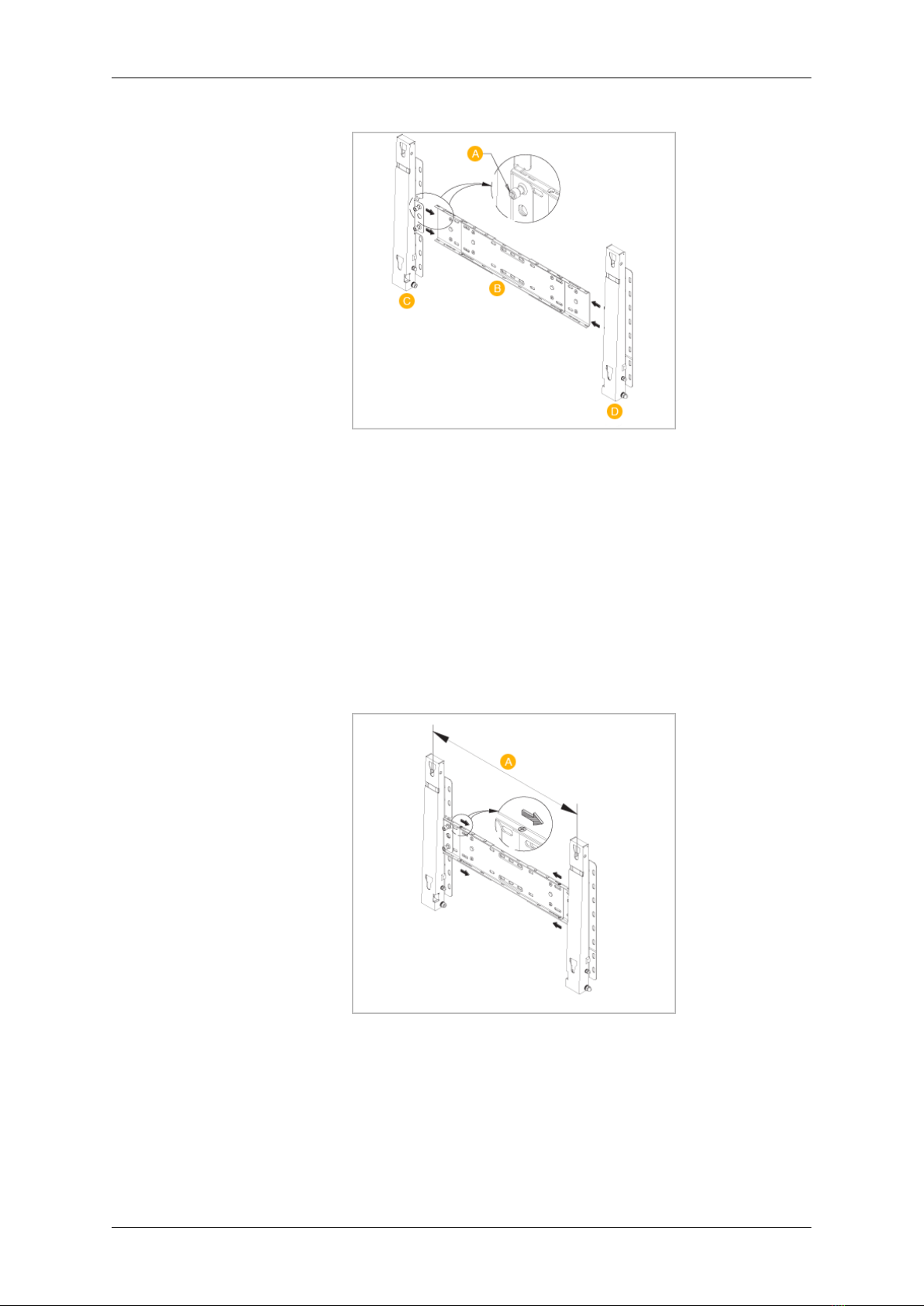

1. Insert and tighten the Captive Screw in the direction of the arrow.
Introduction

When done, mount the wall bracket on the wall.
There are two hinges(left and right). Use the correct one.
A - Captive Screw
B - Wall Bracket
C - Hinge (Left)
D - Hinge (Right)
2. Before drilling into the wall, check if the length between the two locking holes at the back of the
product is correct.
If the length is too short or long, loosen all or some of the 4screws on the wall bracket to adjust
the length.
A - Length between the two locking holes

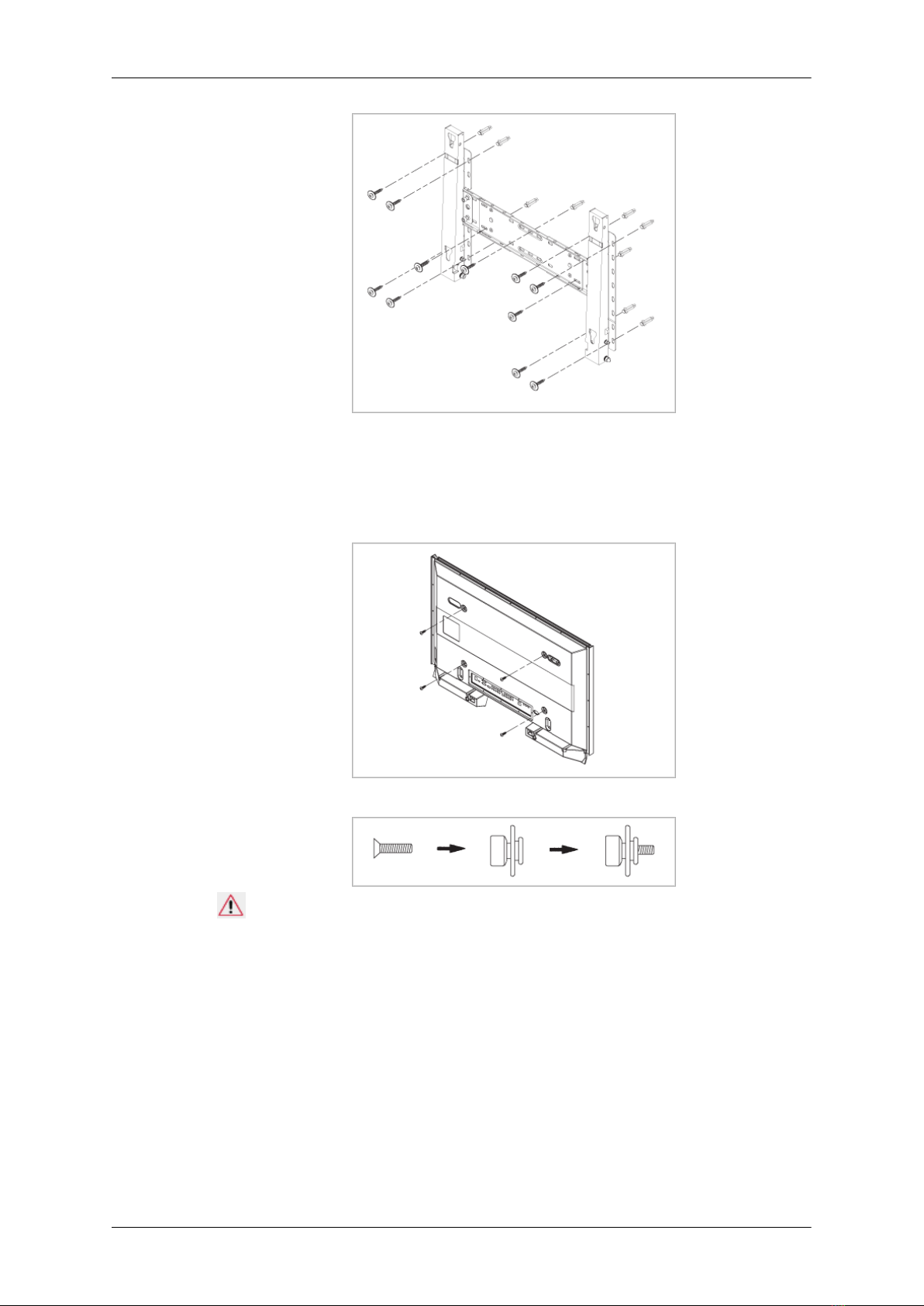

3. Check the installation diagram and mark the drill points on the wall. Use the 5.0 mm bit to drill
holes deeper than 35 mm. Fix each anchor in the corresponding hole. Match each of the brackets
and hinge holes to the corresponding anchor holes and insert and tighten the 11 screws A.
Introduction

To mount the product on the wall bracket
The shape of the product may vary depending on the model. (The assemblies of the plastic hanger and
the screw are the same)
1. Remove the 4 screws on the back of the product.
2. Insert the screw B into the plastic hanger.
Notice
•Mount the product on the wall bracket and make sure it is properly fixed to the left and right
plastic hangers.
•Be careful when installing the product on the bracket as fingers can be caught in the holes.
•Make sure the wall bracket is securely fixed to the wall, or the product may not stay in place
after installation.

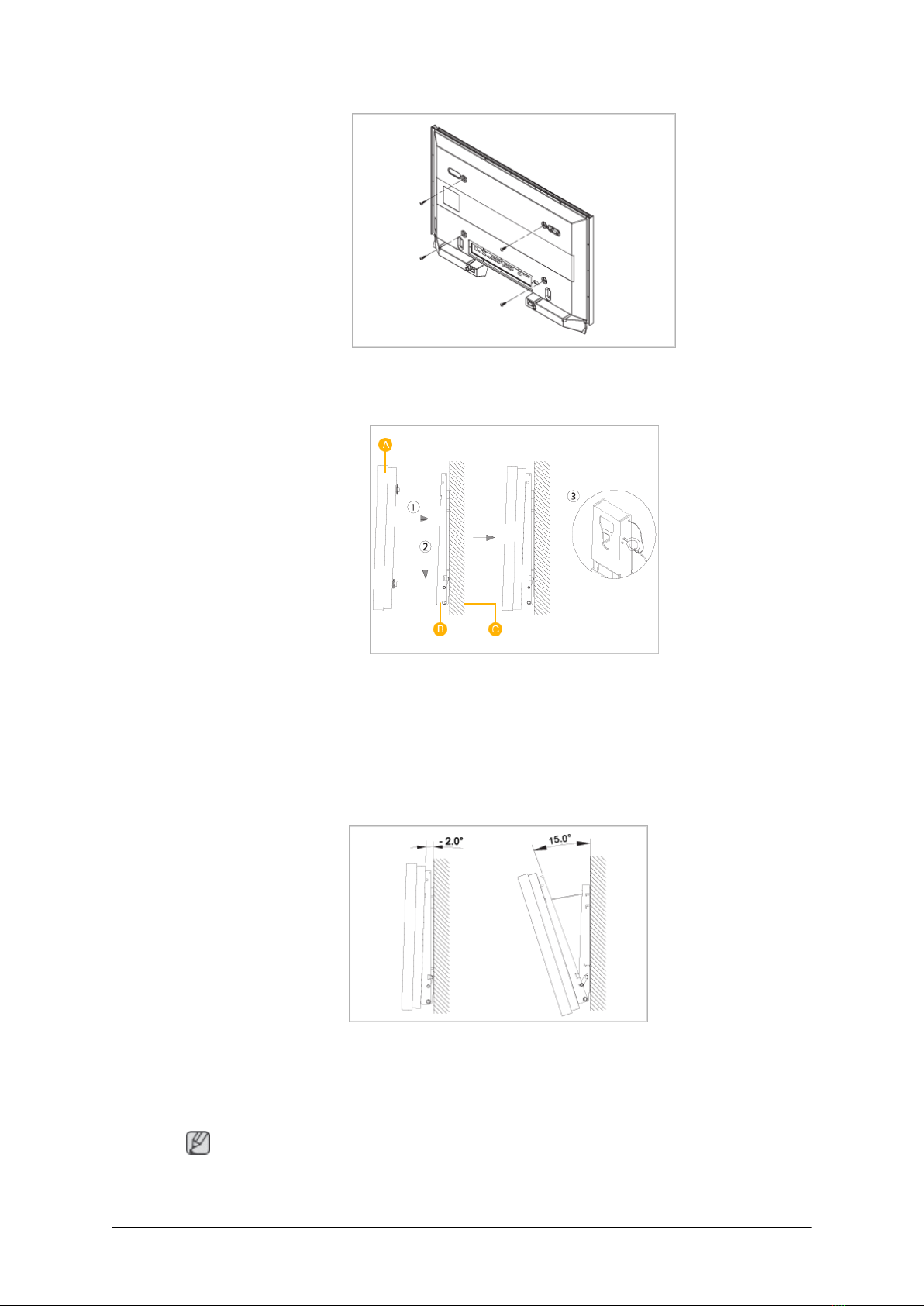

3. Tighten the 4 screws in step 2 (plastic hanger + screw B)to the rear holes of the product.
Introduction

4. Remove safety pin (3) and insert the 4 product holders into the corresponding bracket holes (1).
Then place the product(2) so that it is firmly fixed to the bracket. Make sure to re-insert and tighten
the safety pin (3) to securely hold the product to the bracket.
A - LCD Display
B - Wall Bracket
C - Wall
Wall Bracket Angle Adjustment
Adjust the bracket angle to -2° before installing it on the wall.
1. Fix the product to the wall bracket.
2. Hold the product at the top in the center and pull it forward (direction of the arrow) to adjust the
angle.
Note
You can adjust the bracket angle between -2° and 15°.
Introduction

Make sure to use the top center, and not the leftor the right side of the product to adjust the angle.
Mechanical Layout(460MP(N))
Mechanical Layout
Introduction

LCD Display Head
NETWORK MODEL SIZE
Installation VESA Bracket
•When installing VESA, make sure to comply with the international VESA standards.
•Purchasing VESA Bracket and Installation Information : Please contact your nearest SAMSUNG
Distributor to place an order. After your order is placed, installation professionals will visit you
and install the bracket.
• At least 2 persons are needed in order to move the LCD Display.
•SAMSUNG is not responsible for any product damage or any injury caused by installation at
customer's discretion.
Introduction

Dimensions
Notice
For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
Wall Bracket Installation
•Contact a technician for installing the wall bracket.
•SAMSUNG Electronics is not responsible for any damages to the product or harm to customers
when the installation is done by the customer.
•This product is for installing on cement walls. The product may not stay in place when installed
on plaster or wood.
Components
Only use the components and accessories shipped with the product.
Wall Bracket(1) Hinge(Left 1, Right
1)
Plastic
Hanger
(4)
Screw
(A)(11)
Screw(B)
(4)
Anchor
(11)
Wall Bracket Assembly
Note
There are two hinges(left and right). Use the correct one.
1. Insert and tighten the Captive Screw in the direction of the arrow.
Introduction
