Samsung PPM 42H3 User manual

PDP-MONITOR
(PLASMA DISPLAY PANEL)
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PICTURE INPICTURE (PIP)
VIDEO WALL
MDC (MULTIPLE DISPLAY CONTROL)
Intended for Commercial Use and Operation
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 1

2
ENG
Thank You for Choosing Samsung!
Thank you for choosing Samsung! Your new Samsung product represents the latest in PDP
technology. We designed it with easy-to-use on-screen menus, making it one of the best
products in its class. We are proud to offer you a product that will provide convenient,
dependable service and enjoyment for years to come.
Important Warranty Information Regarding PDP Format
Viewing
Wide screen format PDP Displays (16:9,the aspect ratio of the screen width to height) are primarily
designed to view wide screen format full-motion video. The images displayed on them should primarily
be in the wide screen 16:9 ratio format, or expanded to fill the screen if your model offers this feature and
constantly moving. Displaying stationary graphics and images on screen, such as the dark side-bars on
non-expanded standard format PDP video and programming, should be limited to no more than 5% of
the total PDP viewing per week.
Additionally, viewing other stationary images and text such as stock market reports, video game displays,
station logos, web sites or computer graphics and patterns, should be limited as described above for all
PDP displays. Displaying stationary images that exceed the above guidelines can cause uneven aging of
PDP Displays that leave subtle, but permanent burned-in ghost images in the PDP picture. To avoid
this, vary the programming and images, and primarily display full screen moving images, not stationary
patterns or dark bars. On PDP models that offer picture sizing features, use these controls to view
different formats as a full screen picture.
Be careful in the selection and duration of PDP formats used for viewing. Uneven PDP aging as a result
of format selection and use, as well as burned-in images, are not covered by your Samsung limited
warranty.
DNIeTM (Digital Natural Image engine)
This feature bring you more detailed image with 3D noise reduction, detail enhancement, contrast
enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer,
much detailed image to you. DNIeTM technology will fit every signals into your eyes.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 2

3
ENG
Owner’s Instructions
Remote Control/
AAA Batteries
Power Cord
PC Cable
Ferrite Cores for
Speaker Wire
(2EA)
Checking Parts
Speaker Wires
(2EA)
MDC Cable
(RS232C)
1 Install CD
MDC Software (RS232C)
User Instructions
◆Screen Image retention
Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on the
plasma display panel for more than 2 hours as it can cause screen image retention. This image
retention is also known as “screen burn”. To avoid such image retention, reduce the degree of
brightness and contrast of this screen when displaying a still image.
◆Cell Defect
The plasma display panel consists of fine cells. Although the panels are produced with more than
99.9 percent active cells, there may be some cells that do not produce light or remain lit.
◆Height
The PDP can normally operate only under 2000m in height. It might abnormally function at a place
over 2000m in height and do not install and operate there.
◆Warranty
-Warranty does not cover any damage caused by image retention.
-Burn-in is not covered by the warranty.
➢The PPM42H3 model uses the same MDC program CD used for PPM50H3/PPM63H3 models.
Stand-Base
(2EA)
Screws
(4EA)
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 3

4
ENG
Contents
◆FOREWORD
■Important Warranty Information Regarding PDP Format Viewing................. 2
■User Instructions............................................................................................ 3
◆CONNECTING AND PREPARING YOUR DISPLAY
■Your New Plasma Display Panel................................................................... 6
■Becoming Familiar with the Remote Control................................................. 8
■Inserting the Batteries in the Remote Control................................................ 9
■Assembling the Stand-Base.......................................................................... 9
■Installing the Display on the Wall Attachment Panel..................................... 10
■Before Using the Video Wall and the Multiple Display Contol function ......... 12
■Connecting Speakers.................................................................................... 13
■Switching On and Off..................................................................................... 15
■Choosing Your Language.............................................................................. 15
◆USING YOUR DISPLAY
■Selecting the Color System (Video or S-Video Mode)................................... 16
■Changing the Picture Mode........................................................................... 16
■Adjusting the Picture Settings........................................................................ 17
■Adjusting the Picture Settings (PC or DVI Mode).......................................... 18
■Selecting the Picture Size.............................................................................. 19
■Activating/Deactivating the Digital Noise Reduction Feature ........................ 19
■Freezing the Current Picture ......................................................................... 20
■Changing the Sound Mode............................................................................ 20
■Adjusting the Sound Settings ........................................................................ 21
■Extra Sound Settings..................................................................................... 22
- Auto Volume
- Melody
- Pseudo Stereo / Virtual Surround
■Adjusting the Screen Position and Scale....................................................... 23
■Adjusting the Image Preferences (PC Mode)................................................ 24
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 4

5
ENG
Contents (continued)
◆USING YOUR DISPLAY (CONTINUED)
■Locking the Control buttons........................................................................... 25
■Setting the MDC (Multiple Display Control)................................................... 25
■Protecting the Screen Burning....................................................................... 26
■Setting the Multiple Screen............................................................................ 27
■Displaying the PC Information....................................................................... 28
■Displaying the Setting Information................................................................. 28
■Setting and Displaying the Current Time....................................................... 29
■Switching On and Off Automatically.............................................................. 30
■Setting the Film Mode.................................................................................... 31
■Viewing the Picture In Picture (PIP) .............................................................. 32
■Listening to the Sound of the Sub Picture..................................................... 34
◆ADDITIONAL INFORMATION AND CONNECTIONS
■Viewing Pictures From External Sources...................................................... 34
■Connecting to the Audio/Video Input............................................................. 35
■Connecting to the S-Video Input.................................................................... 36
■Connecting to the DVD/DTV RECEIVER Input............................................. 36
■Connecting to the DVI Input .......................................................................... 37
■Connecting to the RGB(PC) Input................................................................. 37
■Setting up Your PC Software (Windows only)............................................... 38
■Pin Configurations......................................................................................... 39
■Input Mode (PC/DVI)..................................................................................... 40
■Power Saver (PC1 mode only)...................................................................... 41
◆RECOMMENDATIONS FOR USE
■Troubleshooting: Before Contacting Service Personnel................................ 42
■Care and Maintenance.................................................................................. 42
■Technical Specifications................................................................................ 43
☛➢
Press Important Note
Symbols
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 5

6
ENG
Your New Plasma Display Panel
Front Panel
Speaker Speaker
abc
SOURCE
-External input selection.
-Store your settings in the menu.
-When the Main menu is displayed on screen,
the Main menu is not operated with source key.
MENU
Menu display and exit.
- VOL +
-Volume adjustment.
-Adjust an option value respectively.
(VOL + : Enter to the selected menu.)
▼ SEL ▲
Control the cursor in the menu.
I /
Press to turn the PDP on and off.
a
Power Indicator
-Power Off; Red
-Power On; Off
-Timer On; Green
b
Remote Control Signal Receiver
Aim the remote control towards this spot on the
PDP.
c
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 6

7
Your New Plasma Display Panel
ENG
Rear Panel
b
ad
ch
gi
ef
j
a) RS232C
- IN :Used for the MDC function when connecting
PC or RS232C output of another PDP.
- OUT :Used for the MDC function when
connecting with RS232C input of another
PDP.
b) DVI IN
Connect to the video output jack for device with
DVI output.
c) AUDIO
Connect to the audio output jack on your PC or any
device with DVI output. (It is audio input for b, d,
and e.)
d) RGB1(PC1) IN
Connect to the video output jack on your PC.
e) COMPONENT2/RGB2(PC2) IN
Connect for input of an Analog RGB or Y/Pb/Pr
video signal from in PC, DVD, or HD devices.
➢“PC Mode” from this page onward means
PC1/PC2 mode using RGB1(PC1) and
RGB2(PC2).
f) VIDEO IN
Video and audio inputs for external devices, such as
VCR, DVD, video game device or video disc players
(or for external devices with an S-Video output;
S-VIDEO).
g) COMPONENT1 IN
Video (Y/Pb/Pr) and audio (L/R) inputs for
component.
h) VIDEO OUT (VIDEO / L-AUDIO-R)
Used to output screen of Video or S-Video in PDP
when connecting video and/or audio input of
external devices.
i) EXT SPEAKER (8Ω)
Connect external speakers.
j) POWER IN
Connect the supplied power cord.
➢For further details about connection, refer to pages 35~37.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 7

8

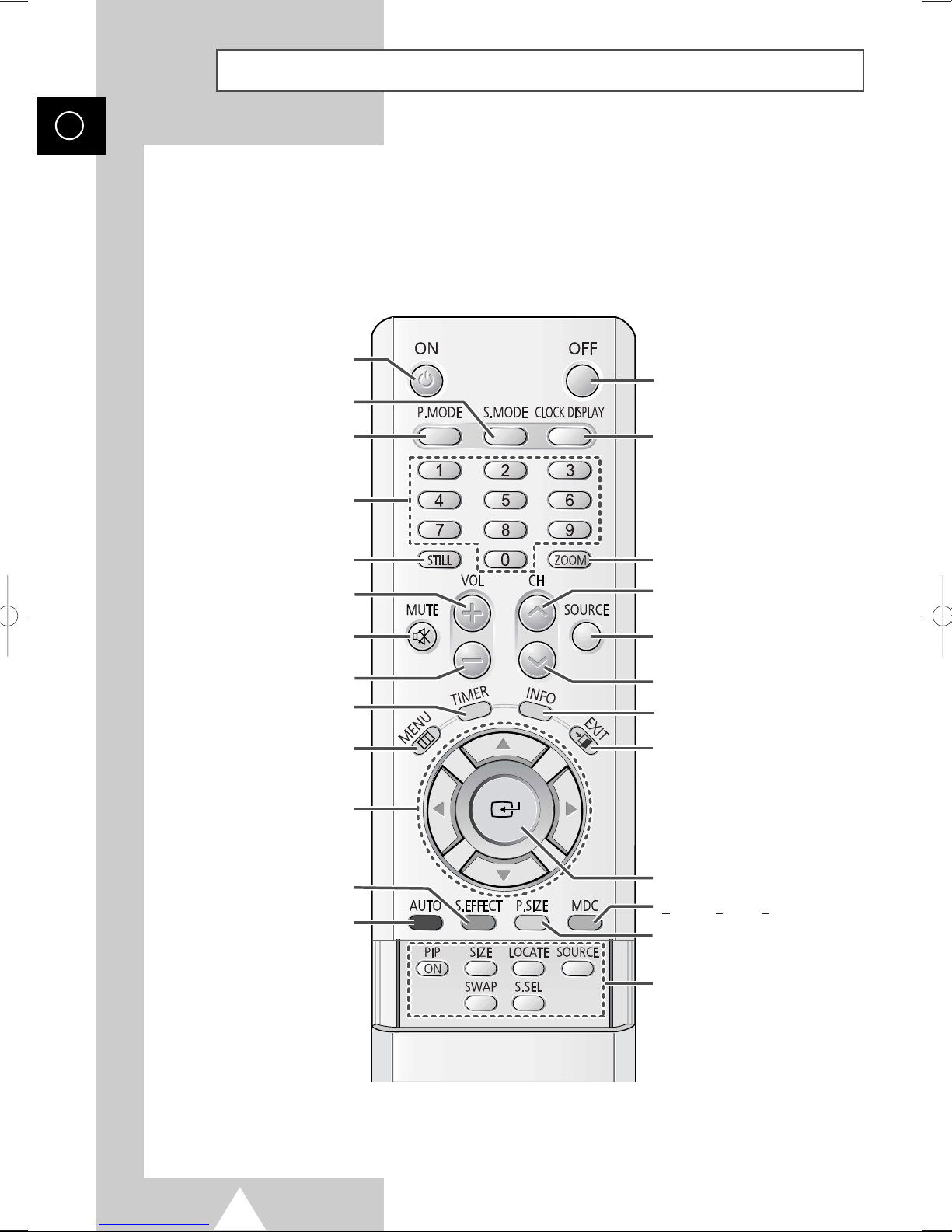

Becoming Familiar with the Remote Control
ENG
PDP ON
NUMERIC BUTTONS
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
➣Press it again , or
- /+ button
to turn the sound back on.
DISPLAY AND CLOSE THE MENU/
RETURN TO THE PREVIOUS MENU
MOVE TO THE REQUIRED MENU
OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
SCREEN EFFECT SELECTION
(BURNING PROTECTION)
PICTURE MODE SELECTION
EXTERNAL INPUT SELECTION
CURRENT TIME DISPLAY
SOUND MODE SELECTION
EXIT FROM ANY DISPLAY
PREVIOUS CHANNEL
(NOT AVAILABLE FOR THIS MONITOR)
CHANGE CONFIRMATION
INFORMATION DISPLAY
PIP FUNCTIONS;
-PIPON/OFF
- SIZE SELECTION (SIZE)
- LOCATION SELECTION (LOCATE)
-INPUT SOURCE SELECTION
(SOURCE)
-INTERCHANGE THE MAIN AND THE
SUB PICTURE (SWAP)
- SOUND SELECTION (S.SEL)
PICTURE SIZE SELECTION
PICTURE STILL
SETTING THE TIMER
AUTO ADJUSTMENT IN PC MODE
PDP OFF
ZOOM/PANNING MENU DISPLAY
(ONLY PC MODE)
MULTIPLE DISPLAY CONTROL
VOLUME DECREASE
NEXT CHANNEL
(NOT AVAILABLE FOR THIS MONITOR)
The remote control is used mainly to:
◆Change sources and adjust the volume
◆Set up the PDP using the on-screen menu system
➢The performance of the remote control may be affected by bright light.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 8

ENG
9
You must insert or replace the batteries in the remote control when
you:
◆Purchase the PDP
◆Find that the remote control is no longer operating
correctly
1Remove the cover on the rear of the remote control by pressing
the symbol downwards and then pulling firmly to remove it.
2Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆ - on the battery against - on the remote control
◆ + on the battery against + on the remote control
3Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Inserting the Batteries in the Remote Control
Assembling the Stand-Base
Fit the Stand-Base into the guide hole on the bottom of
the monitor and tighten the left and right sides using
four screws for each side.
➢
Two or more people should carry the PDP.
Never lay the PDP on the floor because of possible
damage to the screen. Always store the PDP
upright.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:02 PM Page 9

10
ENG
Installing the Display on the Wall Attachment Panel
Wall Mount Bracket
Mounting Kits
Plastic Hanger x4Screws x4
How to Adjust Mounting Angle
1Secure the PDP to the wall mount bracket.
(Please refer to the following instructions.)
2Set the angle by pulling the upper end of the
PDP attached to bracket in the direction of the
arrow.
3The angle can be adjusted from 0° to 20° by
±2°.
The wall mount bracket is delivered
separately. Please tighten the captive
screw in the direction of the arrow after
assembling the bracket.
☛This wall mount bracket installation guide is for the WMN4230 model. This installation guide may be
different from the PDP User’s manual. Please refer to the proper installation guide for your product.
Installation Notes
◆ Do not install the PDP on any place other than vertical walls.
◆ To protect the performance of the PDP and prevent troubles, avoid the followings:
- Do not install next to smoke and fire detectors.
- Do not install in an area subjected to vibration or high voltage.
- Do not install near or around any heating apparatus.
◆ Use only recommended parts and components.
◆ Do not install the PDP vertically.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 10

11
ENG
Installing the Display on the Wall Attachment Panel
1Remove the screws from the back of the PDP.
2Use the screws and assemble the plastic hanger.
☛◆Please ask the installers to install the wall mount bracket.
◆Please be sure to check if the plastic hanger is completely secured on both the left and right
side after hanging the PDP on the wall mount bracket.
◆Please avoid catching your fingers while installing and adjusting the angle.
◆Please tightly secure the wall mount bracket to the wall to avoid injury from a falling PDP.
3Tighten the screws of the plastic hanger to the back side of the PDP.
4Put the 4 pegs on the PDP in the grooves of the wall mount bracket and pull down on the PDP (!) to
secure it to the wall mount bracket (@). Tighten the screws as shown (#) so that the PDP cannot be
separated from wall mount bracket.
➢The exterior of the PDP may be different than the picture.
(Assembly and installation of the plastic hanger is the same.)
PDP panel
Wall attachment panel bracket
Wall
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 11

12
ENG
Before Using the Video Wall and the Multiple Display Contol function
1Please create ID for each PDP before installing them close together. It may be difficult to create IDs when
operating the remote control for PDPs that are installed close to each other.
2Press the MDC button on the remote control. Select ID input on the menu. Use the numeric buttons to
enter the ID for PDP adjustment. You can operate the remote control only for the PDP that has been
selected.
➢◆For details about Video Wall configuration and operation, refer to “Setting the Multiple
Screen” on page 27.
◆For details about Multiple Display Control, refer to “Setting the MDC (Multiple Display
Control)” on page 25 and the Help section in MDC program CD.
◆The PPM42H3 model uses the same MDC program CD used for PPM50H3/PPM63H3
models.
➢Do not install the PDP vertically.
Example for 2x2 Video Wall function
Example for Multiple Display Control connections
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 12

13
ENG
Connecting Speakers
1Remove the screws on the rear of the PDP.
2Hang the two “T” shaped hangers on the square holes on the rear of the PDP.
3Tighten the PDP and the speaker bracket using the screws removed from the PDP.
➢When moving your PDP, do NOT hold the speaker connected to your PDP. It may damage the
bracket clamping the speaker and your PDP together and result in a drop of your PDP and a risk of
personal damage and injury.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 13

14
ENG
Connecting Speakers (continued)
Ferrite Cores
The ferrite cores are used to attenuate undesired signals.
When connecting cables, attach one of these ferrite cores to the cable
near the connector.
Connect the speaker audio cable to the external speaker output jack on the rear of the PDP matching
the “+” and “
- ” ends of the cable with the diagram on the PDP.
➢◆The speakers MUST have to a power handling capability of 10 watts minimum
(impedance 8Ω).
◆When you connect the speaker wire to the external speaker out connector, first bind the
speaker wire round the ferrite core to secure it.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 14

15
When you start using your PDP for the first time, you must select the
language which will be used for displaying menus and indications.
1Press the MENU button.
Result:The main menu is displayed.
2Press the ▲or ▼button to select Function.
Result:The options available in the Function group are
displayed.
3Press the √button.
Result:The Language option is selected.
4Press the √button again.
Result:The languages available are listed.
5Select the appropriate language by pressing the ▲ or ▼button
repeatedly.
6Press the button to confirm your choice.
Choosing Your Language
ENG
The mains lead is attached to the rear of your PDP.
1Plug the mains lead into an appropriate socket.
Result:The Standby indicator on the front of the PDP lights up.
➢
The main voltage is indicated on the rear of the PDP and
the frequency is 50 or 60Hz.
2Press the “ I / ” button on the front of the PDP (or ON ()
button on the remote control) to switch the PDP on.
3To switch your PDP off, press the “ I / ”button again (or OFF
button on the remote control).
Front of the PDP
Switching On and Off
English
Français
Deutsch
Italiano
Español
Language
Sel. Store
Language English
Time √√
Film Mode œœOff √√
Function
Move Enter Return
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 15

16
ENG
If necessary, select the broadcasting standard which best
corresponds to your viewing requirements.
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
Result:The Color System is selected.
3Select a required color system by pressing the œor √button.
Result:The following color systems are available.
AUTO - PAL - SECAM - NTSC4.43 - NTSC3.58 -
PAL M - PAL N - PAL60
Selecting the Color System (Video or S-Video Mode)
Color System œœAUTO √√
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Sel. Return
You can select the type of picture which best corresponds to your
viewing requirements.
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
3Press the ▲or ▼button to select Mode. Select the option by
pressing the œor √button.
Result:The following modes are available depending on the
input source.
◆Dynamic - Standard - Movie - Custom
◆Custom - High - Middle - Low
(PC or DVI Mode)
➣You can also set these options simply by pressing the
P.MODE (Picture Mode) button.
Changing the Picture Mode
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Sel. Return
➢Preset to the Video or S-Video mode by using the SOURCE button.
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 16

17
ENG

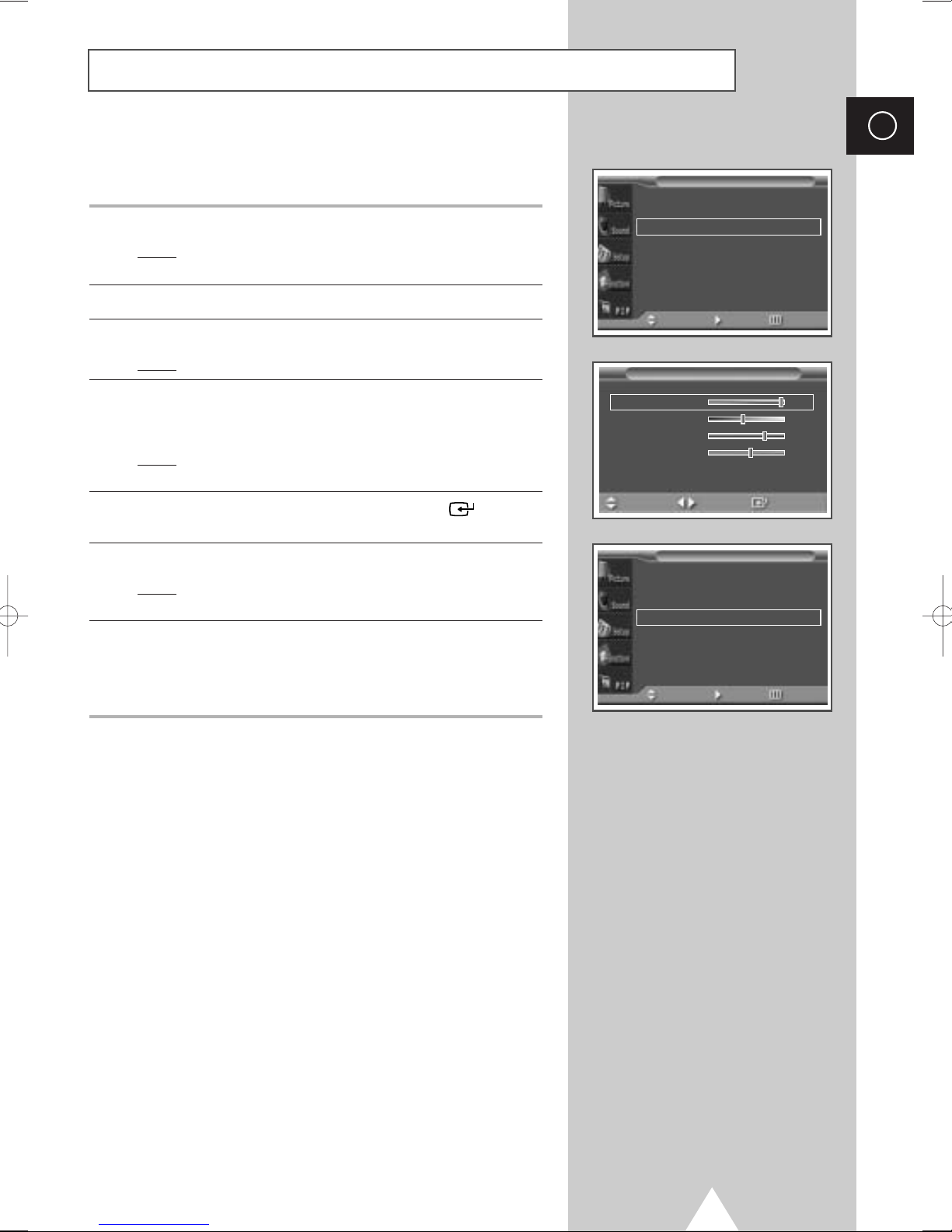

Your PDP has several settings which allow you to control picture
quality.
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
3Press the ▲or ▼button to select Adjust. Press the √button.
Result:The Adjust menu is displayed.
4Press the ▲or ▼button to select the option (Contrast,
Brightness, Sharpness, Color, Tint-NTSC only) to be
adjusted. Press the œor √button.
Result:The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œor √button.
5When you are satisfied with the settings, press the button to
store them.
6Press the MENU button.
Result:The options available in the Picture group are
displayed again.
7Press the ▲or ▼button to select Color Tone. Select the option
by pressing the œor √button. The color tones are displayed in
the following order.
Normal - Warm1 - Warm2 - Cool2 - Cool1
➣If you make any changes to these settings, the picture
mode is automatically switched to the Custom.
Adjusting the Picture Settings
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Enter Return
Adjust (Dynamic)
Contrast 100
Brightness 45
Sharpness 75
Color 55
Move Adjust Store
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Enter Return
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 17

18
Color Adjust
Move Adjust Store
ENG
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
3Press the ▲or ▼button to select Adjust. Press the √button.
Result:The Adjust menu is displayed.
4Press the ▲or ▼button to select the option (Contrast,
Brightness, Sharpness) to be adjusted. Press the œor √button.
Result:The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œor √button.
5When you are satisfied with the settings, press the button to
store them.
6Press the MENU button.
Result:The options available in the Picture group are
displayed again.
7Press the ▲or ▼button to select Color Tone. Select the option
by pressing the œor √button. The color tones are displayed in
the following order.
Custom (PC mode only) - Color1 - Color2 - Color3
8Press the ▲or ▼button to select color Adjust. Press the √
button.
Result:The Color Adjust menu is displayed.
➣◆When select the Color Tone to Custom, the Color
Adjust menu is displayed.
◆The Color Adjust menu can not be selected in DVI
mode.
9Press the ▲or ▼button to select the option (Red, Green, Blue) to
be adjusted. Press the œor √button.
Result:The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œor √button.
10 When you are satisfied with the settings, press the button to
store them.
Adjusting the Picture Settings (PC or DVI Mode)
➢Preset to the PC or DVI mode by using the SOURCE button.
Red 50
Green 50
Blue 50
Mode œœCustom √√
Adjust √√
Color Tone œœCustom √√
Color Adjust √√
Size Wide
Move Sel. Return
Mode œœCustom √√
Adjust √√
Color Tone œœCustom √√
Color Adjust √√
Size Wide
Move Enter Return
Mode œœCustom √√
Adjust √√
Color Tone œœCustom √√
Color Adjust √√
Size Wide
Move Enter Return
Adjust (Custom)
Contrast 75
Brightness 60
Sharpness 50
Move Adjust Store
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 18

19
ENG
Size
Wide
œœ√√
Sel. Store

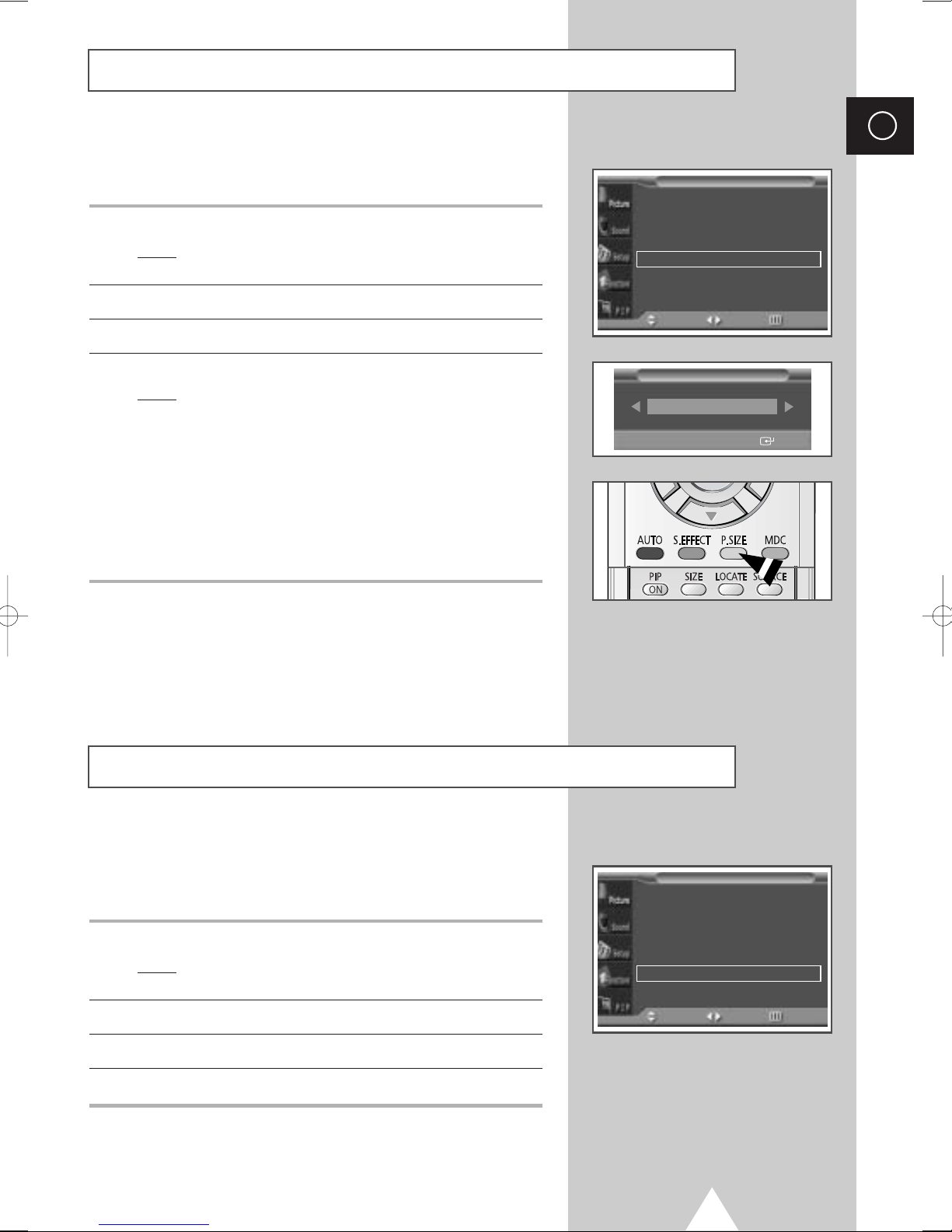

Selecting the Picture Size
You can select the picture size which best corresponds to your
viewing requirements.
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
3Press the ▲or ▼button to select Size. Press the √button.
4Select the option by pressing the œor √button.
Result:The following modes are available depending on the
input source.
◆Wide - Zoom1 - Zoom2 - 14:9 - Normal
◆Wide - Panorama (Video or S-Video Mode) -
Zoom1 - Zoom2 - 14:9 - Normal
➣The lifting is available in the Zoom1, Zoom2 or
14:9 mode by pressing the †or …button.
◆Wide - Normal
(PC or DVI Mode)
➣You can also set these options simply by pressing the
P.SIZE button.
Activating/Deactivating the Digital Noise Reduction Feature
If the signal received by your PDP is weak, you can activate this
feature to reduce any static and ghosting that may appear on the
screen.
1Press the MENU button.
Result:The options available in the Picture group are
displayed.
2Press the √button.
3Press the ▲or ▼button to select Digital NR.
4Press the œor √button to change the setting (On or Off).
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Sel. Return
Mode œœDynamic √√
Adjust √√
Color Tone œœNormal √√
Size Wide
Digital NR œœOff √√
Move Sel. Return
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 19

20
ENG
You can freeze the picture when watching a moving picture simply
by pressing the “STILL” button. To return to normal viewing, press
it again.
➣In the PIP mode, the main and sub pictures are stilled at
the same time.
Freezing the Current Picture
You can select the type of special sound effect to be used when
watching a given broadcast.
1Press the MENU button.
Result:The main menu is displayed.
2Press the ▲or ▼button to select Sound.
Result:
The options available in the Sound group are displayed.
3Press the √button.
Result:The Mode is selected.
4Select the option by pressing the œor √button. The sound effects
are displayed in the following order.
Custom - Standard - Music - Movie - Speech
➣You can also set these options simply by pressing the
S.MODE (Sound Mode) button.
Changing the Sound Mode
Mode œœCustom √√
Equalizer √√
Auto Volume œœOff √√
Melody œœOff √√
Pseudo Stereo œœOff √√
Virtual Surround œœOff √√
Sound
Move Sel. Return
0108 D55B-BN68-00589A-00_ENG 1/8/04 4:03 PM Page 20
