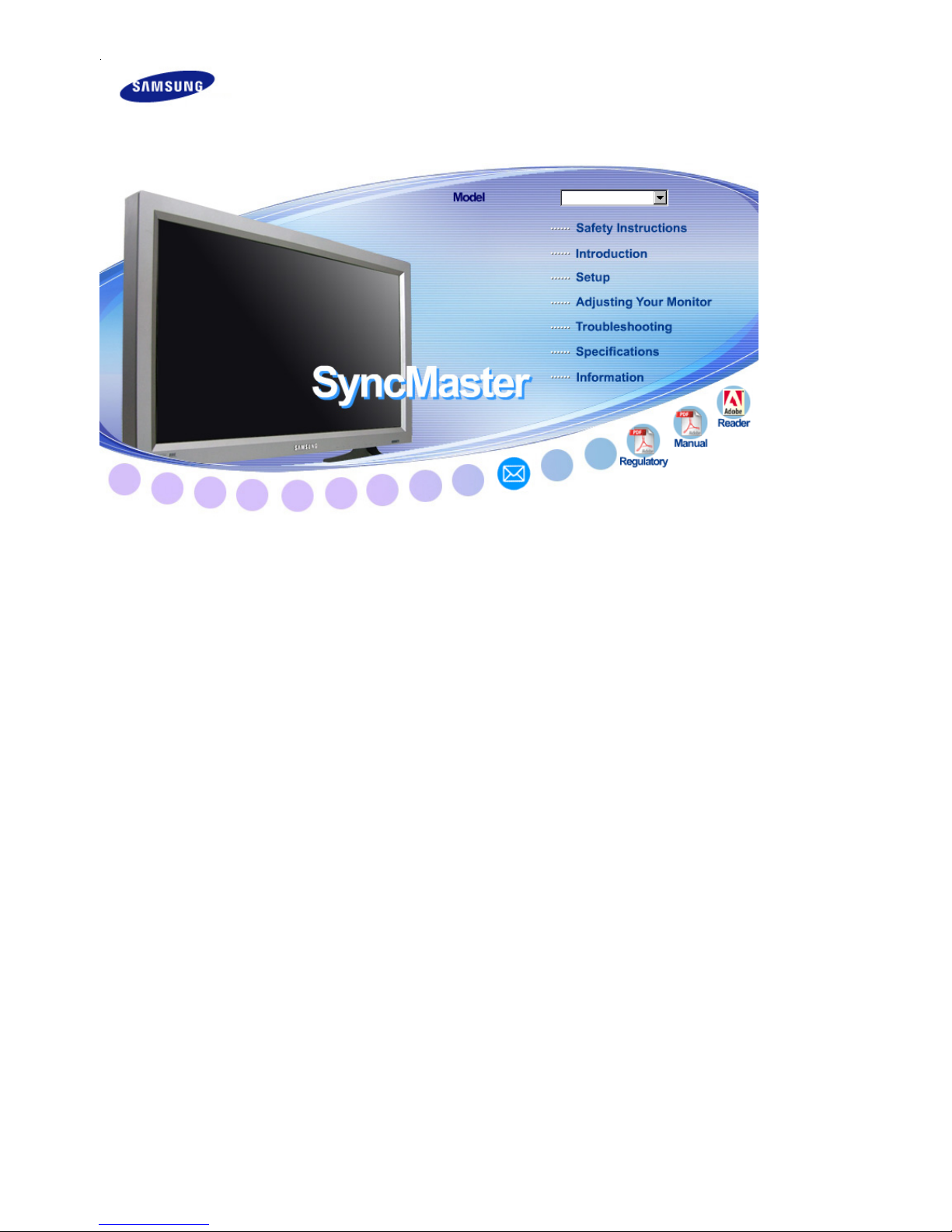

Samsung SyncMaster 320P User manual

 
SyncMaster 320P

Model
Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to the
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Ground to prevent an electric shock
Power
When not used for an extended period of time, set your computer to DPMS.
If using a screen saver, set it to active screen mode.
Do not use a damaged or loose plug.

zThis may cause electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Insert the power plug firmly so that it does not come loose.
zA bad connection may cause fire.
Do not bend the plug excessively and wire nor place heavy objects upon them,
which could cause damage.
zThis may cause electric shock or fire.
Do not connect too many extension cords or plugs to one outlet.
zThis may cause fire.
Do not disconnect the power cord while using the monitor.
zA surge may be caused by the separation and may damage the monitor.
Do not use the power cord when the connector or plug is dusty.
zIf the connector or plug of the power cord is dusty, clean it with a dry cloth.
zUsing the power cord with a dusty plug or connector may cause electric shock
or fire.
Installation
Be sure to contact an authorized the Service Center, when installing your monitor in a

location with heavy dust, high or low temperatures, high humidity, and exposed to
chemical substances and where it operates for 24 hours such as at airports, train
stations etc.
Failure to do so may cause serious damage to your monitor.
Place your monitor in a location with low humidity and a minimum of dust.
zFailure to do so may cause electric shock or fire inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or the person carrying it.
Install the monitor base in a showcase or on a shelf so that the end of the
base does not protrude from the showcase or shelf.
zDropping the product may cause damage to the product or the person
carrying it.
Do not place the product on an unstable or small surface area.
zPlace the product on an even and stable surface, as the product may fall
and cause harm to someone walking by, specifically children.
Do not place the product on the floor.
zTake care, as someone, specifically children may trip over it.
Keep any flammable objects such as candles, insecticides or cigarettes
away from the product.
zOtherwise, this may cause fire.
Keep any heating devices away from the power cable.
zA melted coating may cause electric shock or fire.
Do not install the product in places with poor ventilation, for instance, a
bookshelf, closet, etc.
zAny increase in the internal temperature may cause fire.
Put down the monitor carefully.

zFailing to do so may damage the monitor.
Do not place the monitor face down.
zThis may damage the TFT-LCD surface.
The installation of the bracket must be done by a qualified professional.
zInstalling the bracket by unqualified personnel may result in injury.
zAlways use the mounting device specified in the owner's manual.
When installing the product, make sure to keep it away from the wall (more
than 10 cm/4 inches) for ventilation purposes.
zPoor ventilation may cause an increase in the internal temperature of the
product, resulting in a shortened component life and degraded performance.
Keep the plastic packaging (bag) out of children’s reach.
zThe plastic packaging (bag) may cause suffocation if children play with it.
Clean
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened, soft fabric.
Do not spray water or detergent directly onto the monitor.
zThis may cause damage, electric shock or fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it properly
usin
g
a dr
y
cloth.

zA dirty connector may cause electric shock or fire.
Make sure to unplug the power cord before cleaning the product.
zOtherwise, this may cause electric shock or fire.
Unplug the power cord from the power outlet and wipe the product using a
soft, dry cloth.
zDo not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, air freshener, lubricant or detergent.
Contact the SAMSUNG customer care center or Customer Center for interior
cleaning once a year.
zKeep the product's interior clean. Dust which has accumulated in the interior
over an extended period of time may cause a malfunction or fire.
Others
Do not remove the cover (or back).
zThis may cause electric shock or fire.
zRefer to a qualified servicing company.
If your monitor does not operate normally - in particular, if there is any
unusual sound or smell coming from the monitor - unplug it immediately
and contact an authorized dealer or the Service Center.
zThis may cause electric shock or fire.
Keep the product away from places exposed to oil, smoke or moisture; do
not install inside a vehicle.
zThis may cause a malfunction, electric shock or fire.
zIn particular, avoid operating the monitor near water or outdoors where the
monitor could be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off and
unplug the power cord. Then contact the Service Center.
zThe monitor may malfunction, causing electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is not
used for a long period of time.
zFailure to do so may cause electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not move the monitor right or left by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects on
the monitor.
zThis may cause a malfunction, electric shock or fire.
zIf a foreign substance enters the monitor, unplug the power cord and
contact the Service Center.
Keep the product away from combustible chemical sprays or inflammable
substances.
zThis may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
zThis may cause electric shock, fire or injury.
Do not insert metal objects such as chopsticks, wire and gimlet or
inflammable objects such as paper and match into the vent, headphone port
or AV ports or etc.
zThis may cause electric shock or fire. If an alien substances or water enters
the product, turn the product off, unplug the power connector from the wall
outlet and contact the Service Center.
When viewing a fixed screen for an extended period of time, residual image
or blurriness may appear.
zChange the mode to energy save or set a screensaver to move the picture
when away from the monitor for an extended period of time.

Adjust the resolution and frequency to the level appropriate for the model.
zAn inappropriate resolution may cause undesirable picture quality.
32 inch (80 cm) - 1360 X 768
V
iewing the monitor continuously at a too close angle may result in damage
to your eyesight.
To ease eye strain, take at least a five-minute break after every hour of
using the monitor.
Do not install the product on an unstable, uneven surface or a location
prone to vibrations.
zDropping the product may cause damage to the product or the person
carrying it. Using the product in a location prone to vibrations may shorten
the lifetime of the product or may cause the product to catch fire.
When moving the monitor, turn off and unplug the power cord. Make sure
that all cables, including the antenna cable and cables connected to other
devices, are disconnected before moving the monitor.
zFailure to disconnect cables may damage it and cause fire or electric
shock.
Make sure there are more than two people when moving the product.
zDropping the product may cause a malfunction or injury to the person
carrying it.
Place the product out of children’s reach, as they could damage by hanging
onto it.
zA falling product may cause injury to the person or even fatality.
When not using the product for an extended period of time, keep the
product unplugged.
zOtherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, causing electric shock or fire.
Do not place your children's favorite toys or any other objects of interest on
the product.
zChildren may try to climb on the product to retrieve an object. The product
could fall, causing causing injury or even fatality.
When removing batteries from the remote control, ensure that the children

do not swallow the batteries. Keep the batteries out of children's reach.
zIf the batteries are swallowed, see a doctor immediately.
When replacing batteries, place the batteries in the correct +/- polarity
position as indicated on the battery holder.
zThe incorrect polarity may cause a battery to break or leak and may cause
fire, injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used batteries
together.
zThis may cause a battery to break or leak and may cause fire, injury, or
contamination (damage).
The batteries (and rechargeable batteries) is not ordinary refuse and must
be returned for recycling purposes. The customer is responsible for
returning the used or rechargeable batteries for recycling purposes as the
consumer.
zThe customer can return used or rechargeable batteries to a nearby public
recycling center or to a store selling the same type of the battery or
rechargeable battery.

Model
Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local dealer to bu
y
optional items.
This stand is not for the Floor Standing Type.
Unpacking
Monitor
Manual
Quick Setup Guide Warranty Card
(
Not available in all locations
)
User's Guide, MDC software,
Natural Color software
Cable

D-Sub Cable Power Cord Speaker Wire Cable
Sold separatel
y
Wall Mount KIT S
p
eaker Set Stand KIT
DVI Cable
Other
Remote Control Batteries
(
AAA X 2
)
Cover-Hole
BNC to RCA
Ada
p
ter Jack Semi Stand

Front
1. MENU 6. PIP
2. Navigate buttons (Up-Down buttons) 7. Power button
3. Adjust buttons (Left-Right buttons)/
Volume buttons
8. Power indicator
4. ENTER 9. Remote Control Sensor
5. SOURCE
1. MENU
Opens the on-screen menu and exits from the menu or closes the screen adjustment
menu.
2. Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu values.
3. Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected menu values.
Adjusts the audio volume.
4. ENTER
Activates a highlighted menu item.
5. SOURCE
Switches from PC mode to Video mode.
Changing the source is only allowed for external devices that are connected to the monitor
at the time.
To switch Screen modes:
[PC] [BNC] [DVI] [AV] [S-VIDEO] [Component]
>>Click here to see an animation clip
6. PIP
Push the PIP button to turn the PIP screen On/Off.
More than one PIP cannot overlap on screen as BNC and the component use the same
terminal.
>>Click here to see an animation clip
• PC / DVI
: AV / S-Video / Component Mode
• BNC
: AV / S-Video Mode
• AV / S-Video
: PC / BNC / DVI Mode
• Component
: PC / DVI Mode
7. Power button
Turns the monitor On/Off.
8. Power indicator
Shows PowerSaver mode by blinking green.
9. Remote Control Sensor
Aim the remote control towards this spot on the Monitor.
See PowerSaver described in the manual for further information regarding power saving functions.
For ener
gy
conservation, turn
y
our monitor OFF when it is not needed or when leavin
g
it unattended

for lon
g
p
eriods.
Rear
For detailed information concerning cable connections, refer to Connecting Cables under Setup.
The monitor's configuration at the back may vary slightly depending on the monitor model.
1. RS232C OUT/IN (RS232C Serial PORT): MDC(Multiple Display Control) Program Port
2. DVI IN(HDCP) (PC Video Connection Terminal)
: Using a DVI Cable (DVI-D to DVI-D) - DVI mode (Digital PC)
3. PC IN(RGB) (PC Video Connection Terminal)
: Using a D-Sub Cable (15 pin D-Sub) - PC mode (Analog PC)
4. PC/DVI/BNC AUDIO IN (PC/DVI/BNC Audio Connection Terminal (Input))

5. COMPONENT AUDIO IN [L-AUDIO-R](Component Audio Connection Terminal
(Input))
6. BNC/COMPONENT OUT (BNC/Component Connection Terminal (Output))
- BNC (Analog PC) Connection : connecting the R, G, H, V ports.
- Component Connection : connecting the PR, Y, PBports
7. BNC/COMPONENT IN (BNC/Component Connection Terminal (Input))
8. AV AUDIO IN [L-AUDIO-R](Monitor Audio Connection Terminal (Input))
9. AV OUT [VIDEO](VIDEO Connection Terminal) : AV mode (Output)
10. AV IN [VIDEO](VIDEO Connection Terminal) (Input)
11. AV OUT [S-VIDEO](S-Video Connection Terminal) : S-Video mode (Output)
12. AV IN [S-VIDEO](S-Video Connection Terminal) (Input)
13. EXT SPEAKER(8 Ω) (EXT Speaker Connection Terminal)
14. MONITOR OUT [L-AUDIO-R](Monitor Audio Connection Terminal (Output))
- MONITOR OUT is terminal for the PC sound output.
The number of monitors that can be connected to loopout may may differ
depending on the cables, signal source etc. With cables where there is no
degradation or signal source, up to ten monitors can be connected.
15. POWER S/W : Switches the monitor On/Off.
16. POWER IN : The power cord plugs into the
monitor and the wall plug.
17. Kensington Lock

The Kensington lock is a device used to
physically fix the system to something when
using it in a public place. (The locking device
has to be purchased separately.) For using a
locking device, contact the place of purchase.
See Connecting the Monitor for further information regarding cable connections.
Remote Control
The performance of the remote control may be affected by a TV or other electronic device operating near
the monitor, causin
g
a malfunction due to interference with the fre
q
uenc
y
.
1. ON / OFF
2. MAGICNET
3. MDC
4. LOCK
5. MagicNet buttons
6. +100
7. VOL
8. MUTE
9. AUTO
10. MENU
11. ENTER
12. PRE-CH
13. CH/PAGE
14. SOURCE
15. INFO
16. EXIT
17. Up-Down Left-Right buttons
18. P.MODE (M/B)
19. STILL
20. BBE
21. MTS
22. PIP
23. SOURCE
24. SIZE
25. SWAP
26.
27.
28.
29.

1. ON / OFF
Turns the monitor On/Off.
2. MAGICNET
MagicNet Quick Launch Button.
- This fuction does not work for this monitor.
3. MDC
MDC Quick Launch Button.
4. LOCK
Activates or deactivates all function keys on both the remote control and the monitor except for
the Power and LOCK buttons.
5. MagicNet buttons
- Used for MagicNet.
zAlphanumeric: Used to enter the Internet address.
zDEL : Functions as the backspace.
zSYMBOL: Used to enter the symbols (.O_-:/).
zENTER : Used to enter values.
- This fuction does not work for this monitor.
6. +100
Press to select channels over 100.
For example, to select channel 121, press "+100", then press "2" and "1".
- This fuction does not work for this monitor.
7. VOL
Adjusts the audio volume.
>>Click here to see an animation clip
8. MUTE
Pauses (mutes) the audio output temporarily.
This is displayed on the lower left corner of the screen.
The audio resumes if MUTE or - VOL + is pressed in the Mute mode.
9. AUTO
Adjusts the screen display automatically.
By changing the resolution in the control panel, auto function is performed.
10. MENU
Opens the on-screen menu and exits from the menu or closes the screen adjustment menu.
11. ENTER
Activates a highlighted menu item.
12. PRE-CH
Returns to the immediately previous channel.
- This fuction does not work for this monitor.
13. CH/PAGE
Selects channels or page.
- This fuction does not work for this monitor.
14. SOURCE
Changes the video source.
15. INFO

The current picture information is displayed in the top left corner of the screen.
16. EXIT
Exits from the menu screen.
17. Up-Down Left-Right buttons
Moves from one menu item to another horizontally, vertically or adjusts selected menu values.
18. P.MODE (M/B)
When pressing this button, current picture mode is displayed at the bottom center of the screen.
AV / S-Video / Component : P.MODE
The Monitor has four automatic picture settings that are preset at the factory.
Then press the button again to circle through available preconfigured modes.
( Dynamic Standard Movie Custom )
PC/DVI/BNC : M/B (MagicBright™)
MagicBright™ is a new feature providing the optimum viewing environment depending on the
contents of the image you are watching.
Then press the button again to circle through available preconfigured modes.
(Entertain Internet Text Custom )
19. STILL
When pressing this button, STILL is displayed at the bottom center of the screen.
Press the button once to freeze the screen.
Press it again to unfreeze.
20. BBE
Recreates the natural sound and improves sound clarity through boosting high and low range
frequencies. As a result high sounds are clearer, brilliant and finely detailed while low sounds are
tight, well-defined and harmonically rich.
21. MTS
You can select MTS (Multichannel Television Stereo) mode.
- This fuction does not work for this monitor.
Audio Type MTS/S_Mode Default
FM Stereo
Mono Mono Manual Change
Stereo Mono Stereo
SAP Mono SAP Mono
22. PIP
Every time you press the button, a PIP screen appears.
23. SOURCE
Changes the source of the PIP window signal.
24. SIZE
Switches the Picture Size.
25. SWAP
Swaps the contents of the PIP and main image.
The image in the PIP window will appear on the main screen, and the main screen image will
appear in the PIP window.
26.
Rewind
27.
Stop
28.
Play/Pause
29.
Fast forward

Mechanical Layout | Monitor Head | Stand | Speaker | Installation VESA Bracket | Wall Bracket Installation
1. Mechanical Layout
2. Monitor Head

3. Stand
4. Speaker
5. Installation VESA Bracket
zWhen installing VESA, make sure to comply with the international VESA standards.
zPurchasing VESA Bracket and Installation Information : Please contact your nearest Samsung Distributor to place
an order. After your order is placed, installation professionals will visit you and install the bracket.
zAt least 2 persons are needed in order to move the LCD Monitor.
zSamsung is not responsible for any product damage or any injury caused by installation at customer's discretion.
Dimensions

For securing the bracket on a wall, use only machine screws of 6 mm diameter and 8 to 12 mm length.
6. Wall Bracket Installation
zContact a technician for installing the wall bracket.
zSamsung Electronics is not responsible for any damages to the product or harm to customers when the
installation is done by the customer.
zThis product is for installing on cement walls. The product may not stay in place when installed on plaster or wood.
Components(Sold separately)
Only use the components and accessories shipped with the product.
AWall-Bracket BSet-Bracket CScrew:
8 EA DScrew:
3 EA EWood Screw:
7 EA FAnchor:
7 EA GInstallation Guide
How to assemble the Wall Mount Bracket
1
1. Mark the location of hole on the wall.
2. Make over 35mm-depth-hole on the marked location using drill.
3. Fix anchors Fon each hole on the wall.
4. Connect wall-bracket Ato the wall with wood screws Eafter fitting
anchors Finto the wall-bracket A.
If the bracket is not firmly fixed to the wall, set can fall off.
2 1. Turn the power off and unplug the power cord from the outlet.
2. Place the monitor faced down on a soft cloth or cushion on a table.
3. Attach the set-bracket Bonto the rear side of the monitor set and secure the screws C.
