Samsung SyncMaster 940MG User manual

Install Drivers Install Pro
g
rams
SyncMaster 940MG

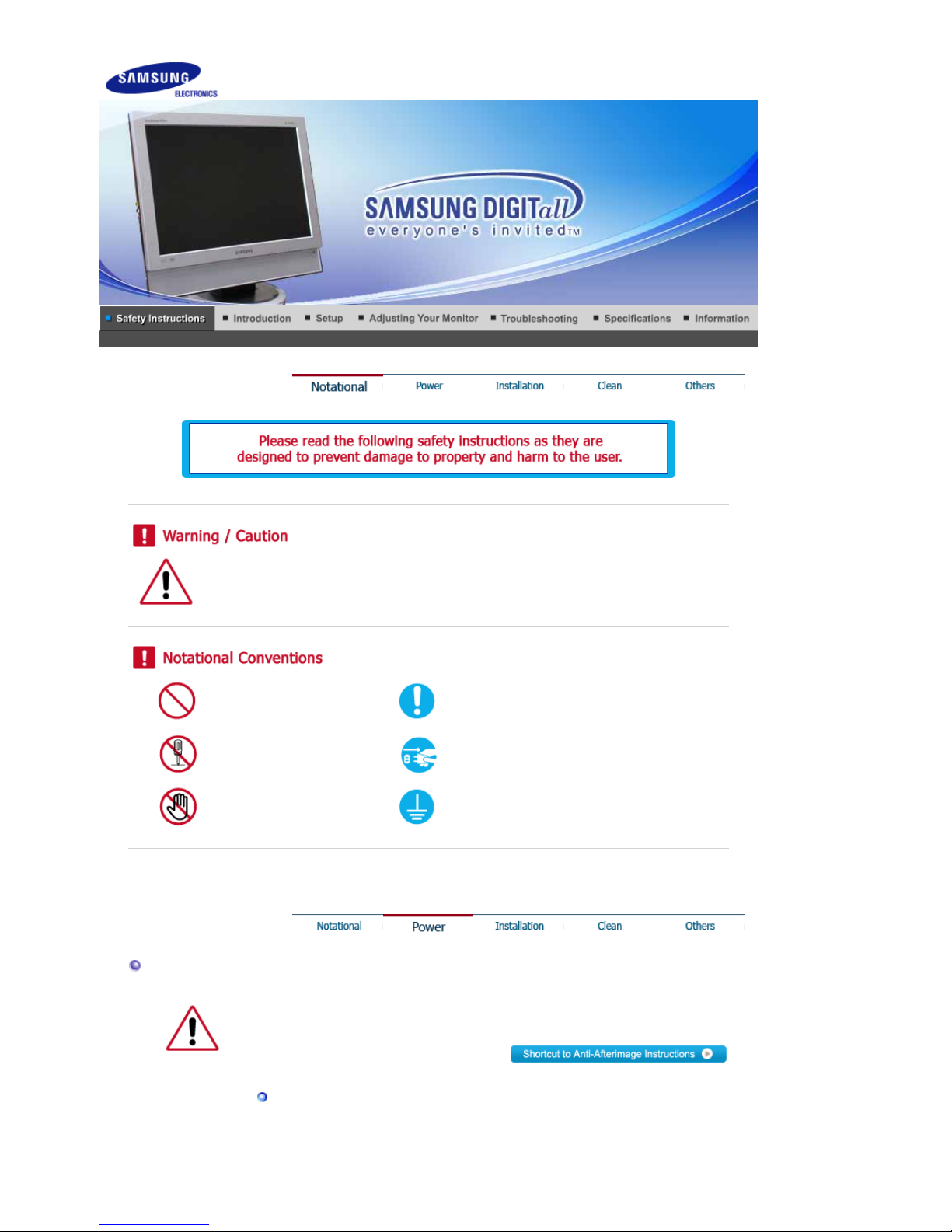

Failure to follow directions noted by this symbol could result in bodily harm or damage to the
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock
Power
When not used for extended period of time, set your computer to DPMS.
If using a screen saver, set it to active screen mode.

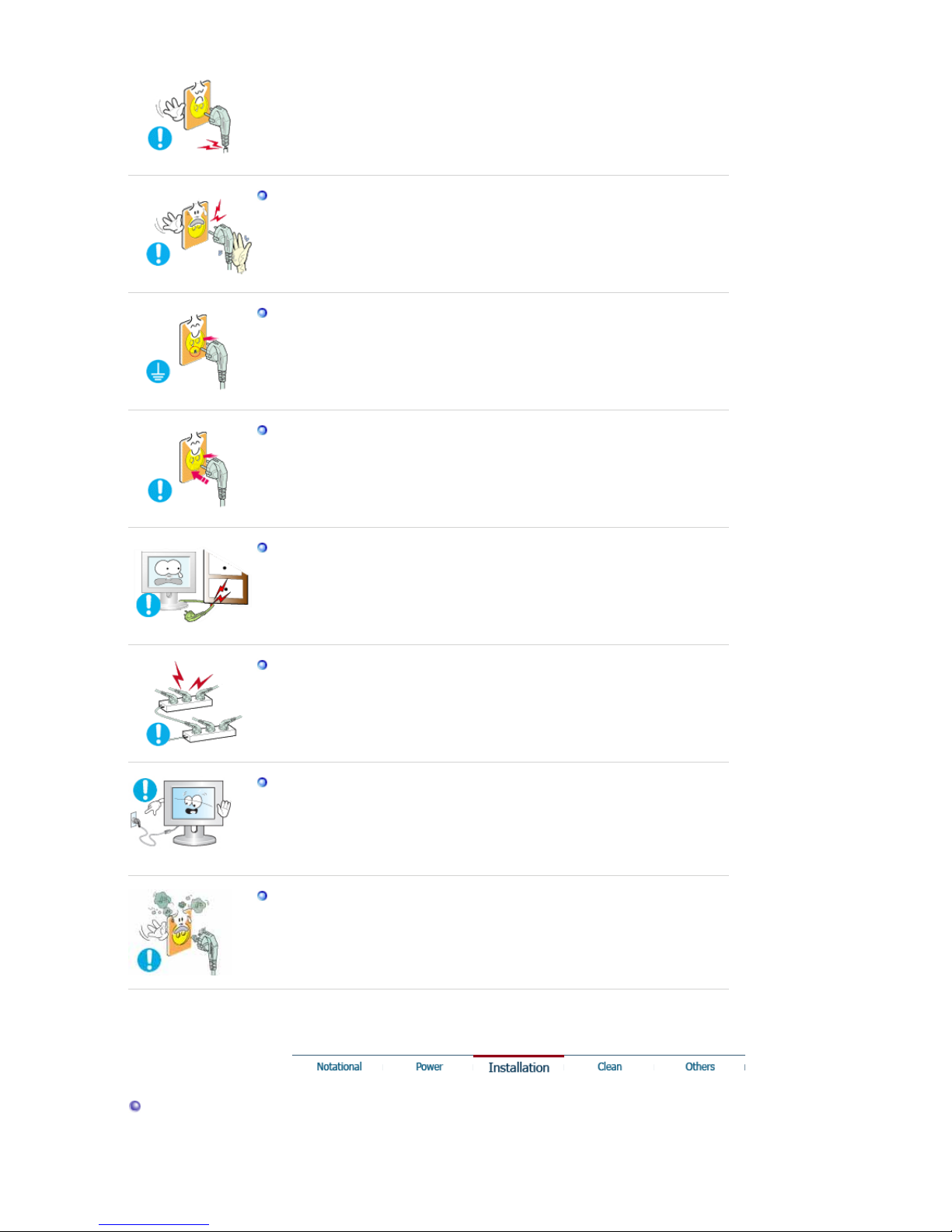

Do not use a damaged or loose plug.
zThis may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Insert the power plug firmly so that it does not come loose.
zA bad connection may cause fire.
Do not excessively bend the plug and wire nor place heavy objects upon them,
which could cause damage.
zThis may cause electric shock or fire.
Do not connect too many extension cords or plugs to one outlet.
zThis may cause fire.
Do not disconnect the power cord while using the monitor.
zA surge may be caused by the separation and may damage the monitor.
Do not use the power cord when the connector or plug is dusty.
zIf the connector or plug of the power cord is dusty, clean it with a dry cloth.
zUsing the power cord with a dusty plug or connector may cause an electric
shock or fire.
Installation
Be sure to contact an authorized Service Center, when installing your monitor in a

location with heavy dust, high or low temperatures, high humidity, and exposed to
chemical substances and where it operates for 24 hours such as at airports, train
stations etc.
zFailure to do so may cause serious damage to your monitor.
Place your monitor in a location with low humidity and a minimum of dust.
zFailure to do so may cause electric shock or fire inside the monitor.
Do not drop the monitor when moving it.
zThis may cause damage to the product or the person carrying it.
Install the monitor base in a showcase or shelf so that the end of the base does
not protrude from the showcase or shelf.
zDropping the product may cause damage to the product or the person carrying
it.
Do not place the product on the floor.
zTake care, as someone, specifically children may trip over it.
Do not place the product on an unstable or small surface area.
zPlace the product on an even, stable surface, as the product may fall and
cause harm to someone walking by, specifically children.
Keep any flammable objects such as candles, insecticides or cigarettes away
from the product.
zOtherwise, this may cause fire.
Keep any heating devices away from the power cable.
zA melted coating may cause electric shock or fire.
Do not install the product in places with poor ventilation, for instance, a
bookshelf, closet, etc.
zAny increase in internal temperature may cause fire.
Put down the monitor carefully.

zThe monitor could be damaged or broken.
Do not place the monitor face down.
zThis may damage the TFT-LCD surface.
The installation of the bracket must be done by a qualified professional.
zInstalling the bracket by unqualified personnel may result in injury.
zAlways use the mounting device specified in the owner's manual.
When installing the product, make sure to keep it away from the wall (more than
10 cm / 4 inchs) for ventilation purposes.
zPoor ventilation may cause an increase in the internal temperature of the
product, resulting in a shortened component life and degraded performance.
To prevent rainwater from running along the outdoor antenna cable and
entering the house, be sure the outdoor portion of the cable hangs down below
the point of entry.
zIf rainwater enters the product, it may cause an electric shock or fire.
If you are using an outdoor antenna, be sure to put sufficient distance between
your antenna and the electrical wires nearby so that they would not come in
contact with each other in case the antenna is knocked over by strong wind.
zA knocked-over antenna may cause injury or an electric shock.
Keep the plastic packaging (bag) out of children's reach.
zThe plastic packaging (bag) may cause suffocation if children play with it.
Clean
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with a
slightly moistened, soft fabric.
Do not spray water or detergent directly onto the monitor.

zThis may cause damage, electric shock or fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it properly
using a dry cloth.
zA dirty connector may cause electric shock or fire.
Make sure to unplug the power cord before cleaning the product.
zOtherwise, this may cause electric shock or fire.
Unplug the power cord from the power outlet and wipe the product using a
soft, dry cloth.
zDo not use any chemicals such as wax, benzene, alcohol, thinners, insecticide,
air freshener, lubricant or detergent.
Contact a Service Center or Customer Center for interior cleaning once a year.
zKeep the product's interior clean. Dust which has accumulated in the interior
over an extended period of time may cause a malfunction or fire.
Others
Do not remove the cover (or back).
zThis may cause an electric shock or fire.
zRefer servicing to a qualified servicing company.
If your monitor does not operate normally - in particular, if there is any unusual
sounds or smell coming from the monitor - unplug it immediately and contact
an authorized dealer or Service Center.
zThis may cause electric shock or fire.

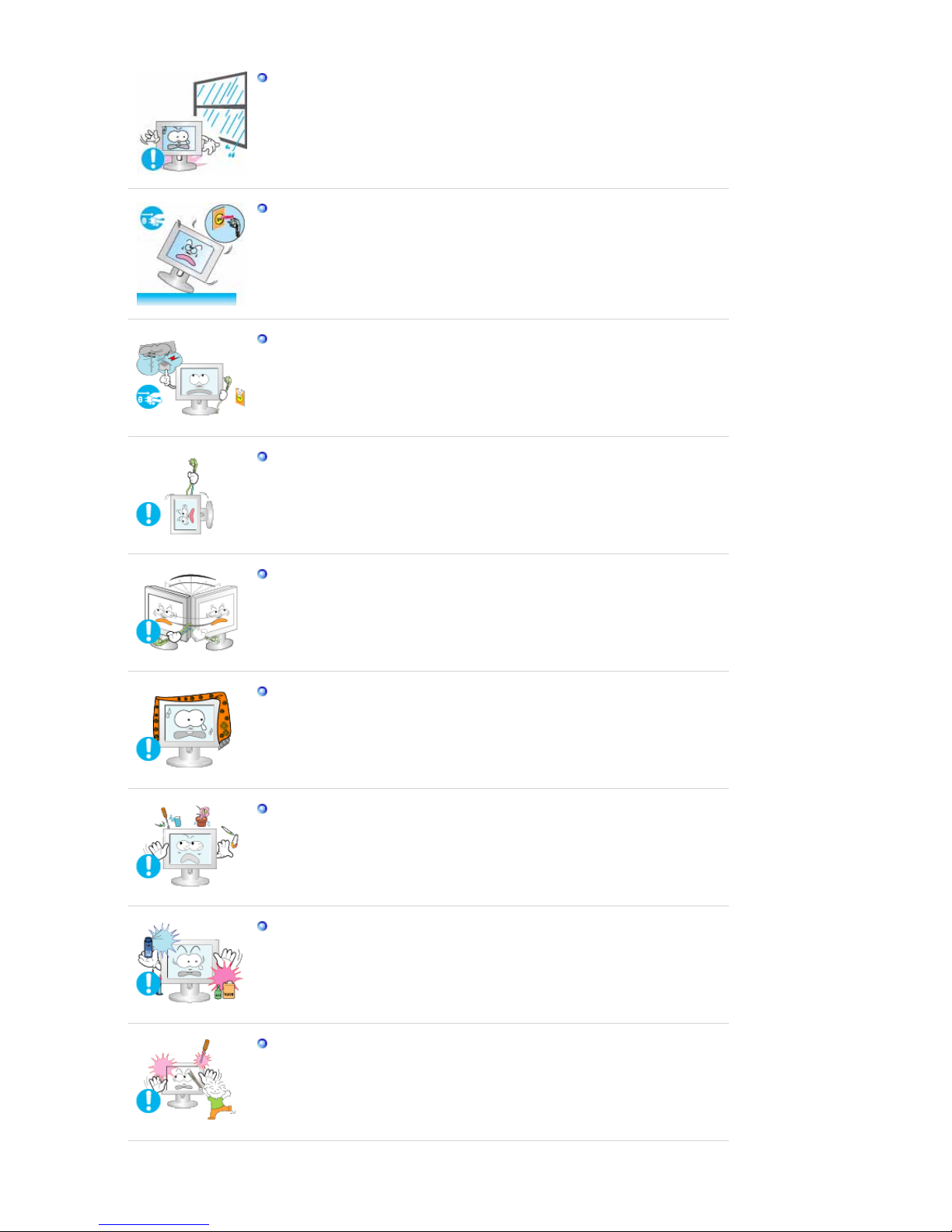

Keep the product away from places exposed to oil, smoke or moisture; do not
install inside a vehicle.
zThis may cause a malfunction, electric shock or fire.
zIn particular, avoid operating the monitor near water or outdoors where it could
be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off and
unplug the power cord. Then contact a Service Center .
zThe monitor may malfunction, causing an electric shock or fire.
Disconnect the plug from the outlet during storms or lightning or if it is not
used for a long period of time.
zFailure to do so may cause electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not move the monitor right or left by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or fire due to damage to the
cable.
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects on the
monitor.
zThis may cause a malfunction, electric shock or fire.
zIf a foreign substance enters the monitor, unplug the power cord and contact
the Service Center .
Keep the product away from combustible chemical sprays or inflammable
substances.
zThis may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
zThis may cause electric shock, fire or injury.

Do not insert metal objects such as chopsticks, wire and tools or inflammable
objects such as paper or matches into the vent, headphone port or AV ports.
zIt may cause a fire or an electric shock. If an alien substances or water flows
into the product, turn the product off, unplug the power connector from the wall
outlet and contact the Service Center.
If you view a fixed screen for an extended period of time, residual image or
blurriness may appear.
zChange the mode to energy saving mode or set a screensaver to a changing
picture when away from the monitor for an extended period of time.
Adjust the resolution and frequency to the levels appropriate for the model.
zAn inappropriate resolution may cause undesirable picture quality.
19 inch Wide (48 cm) - 1440 X 900
Keep the volume at a comfortable level when using the headphones.
zExcessively loud volume levels may damage hearing.
Viewing the monitor continuously at a too close angle may result in damage to
your eyesight.
To ease eye strain, take at least a five-minute break after every hour of using
the monitor.
Do not install the product on an unstable, uneven surface or a location prone to
vibrations.
zDropping the product may cause damage to the product or the person carrying
it. Using the product in a location prone to vibrations may shorten the lifetime of
the product or may catch fire.
When moving the monitor, turn off and unplug the power cord. Make sure that
all cables, including the antenna cable and cables connected to other devices,
are disconnected before moving the monitor.
zFailure to disconnect cables may damage it and lead to fire or an electric
shock.
Place the product out of children's reach, as they could damage it by hanging
onto it.
zA falling product may cause injury to the person or even fatality.

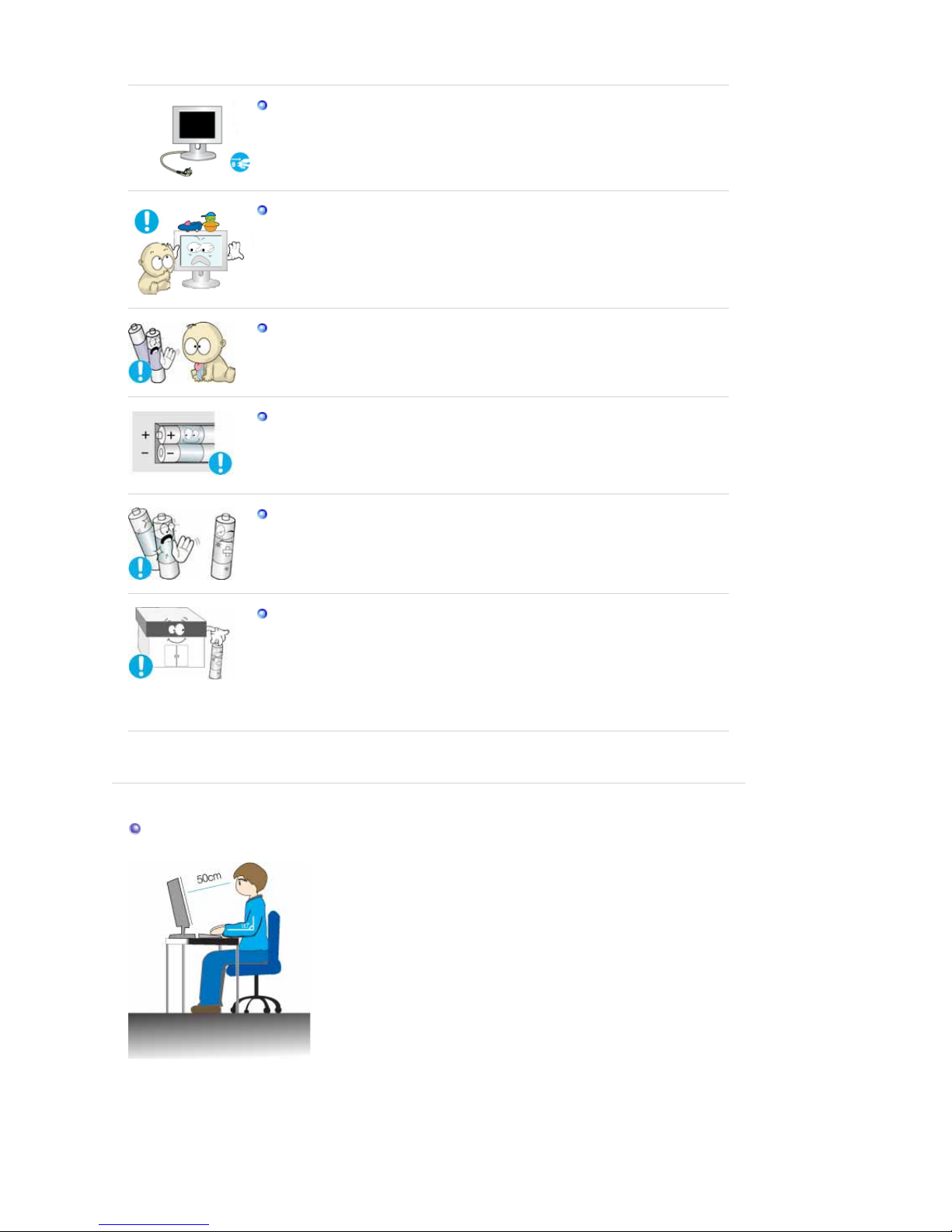

When not using the product for an extended period of time, keep the product
unplugged.
zOtherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, causing electric shock or fire.
Do not place your children's favorite toys or any other objects of interest on
the product.
zChildren may try to climb on the product to retrieve an object. Theproduct could
fall, causing causing injury or even fatality.
When you remove batteries from the remote, be careful that they are not
swallowed by children. Keep batteries out of the reach of children.
zIf swallowed, see a doctor immediately.
When replacing batteries, place the batteries in the correct +/- polarity position
as indicated on battery holder.
zIncorrect polarity may cause a battery to break or leak and could lead to fire,
injury, or contamination (damage).
Use only specified standard batteries. Do not use new and used batteries
together.
zThis may cause a battery to break or leak and could lead to fire, injury, or
contamination (damage).
The battery (and rechargeable battery) are not ordinary refuse and must be
returned for recycling purposes. The customer is responsible for returning the
used or rechargeable battery for recycling purposes as the consumer of the
battery.
zThe customer can return the used or rechargeable battery to a nearby public
recycling center or to a store selling the same type of the battery or
rechargeable battery.
Proper Seating Posture During Monitor Use
zPeriodically take a 10 minute break every hour or so to relieve eye
strain.
zPosition the monitor so that your eyes are slightly higher than the
display panel.
zAdjust the LCD screen panel angle so that the panel faces
downwards.
zAdjust the LCD screen panel so that the reflection of the illumination
is minimized for your comfort.
zKeep your arms parallel to the floor and lightly place your hands on
the keyboard.
zPosition the monitor or chair so that your eyes are slightly higher than
the display panel.

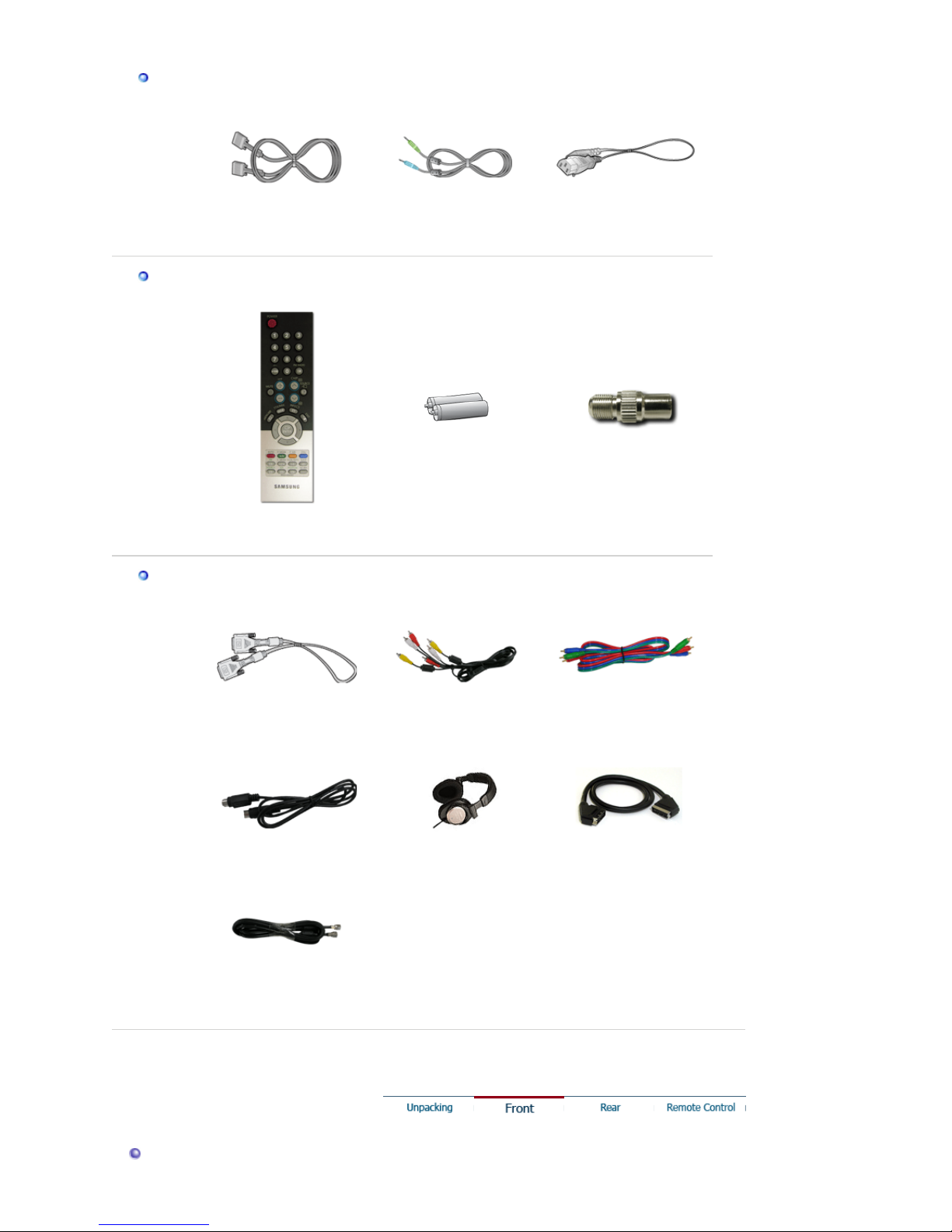

Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local deale
r
to bu
y
o
p
tional items.
Unpacking
Monito
r
Manual
Quick Setup Guide Warranty Card
(
Not available in all locations
)
User's Guide, Monitor Driver,
Natural Color software

Cable
D-Sub Cable Audio Cable Power Cord
Others
Remote Control Batteries
(
AAA X 2
)
Connecte
r
Sold se
p
aratel
y
DVI Cable RCA Cable (Video-Yellow,
Audio-Red and White
)
Component(PR, PB, Y) Cable
S-
V
ideo Cable Ear
p
hones/Head
p
hones SCART Cable
TV antenna cable

Front
1. SOURCE 2. PIP 3. MENU 4. CH 5. - VOL +
6. [ ] Enter button 7. [ ] Power button 8. Power indicator 9. Remote Control Sensor 10. Speaker
1. SOURCE
Press the 'SOURCE' button to change the input signal source.
Changing the source is allowed only in external devices that are connected to the monitor
at the time.
To switch Screen modes:
[PC] ˧[DVI] ˧[TV] ˧[Ext.] ˧[AV] ˧[S-Video] ˧[Component]
>>Click here to see an animation clip
According to broadcasting type in each country, you may not be able to choose.
For more information > Broadcasting Systems
2. PIP - Available in PC/DVI Mode
In PC mode, turns on Video or TV screens in PIP mode.
>>Click here to see an animation clip
3. MENU
Use this button for open the on-screen menu and exits from the menu screen or closes
screen adjustment menu.
4. CH
Moves from one menu item to another vertically or adjusts selected menu values.
In TV mode, selects TV channels.
>>Click here to see an animation clip
5. - VOL +
Moves from one menu item to another horizontally or adjusts selected menu values.
Adjusts the audio volume.
>>Click here to see an animation clip
6. [ ] Enter button
Activates a highlighted menu item.
7. [ ] Power button
Use this button to turn the monitor on and off.
8. Power indicator
Power indicator shows PowerSaver mode by green blinking.
9. Remote Control Sensor
Aim the remote control towards this spot on the monitor.
10. Speaker
You can hear sound by connecting the soundcard of your PC to the monitor.
See PowerSaver described in the manual for further information regarding power saving functions.
For energy conservation, turn your monitor OFF when it is not needed or when leaving it unattended
for long periods.

Rear
(The configuration at the back of the monitor may vary from product to product.)
1. POWER
Power terminal
Connect the power cord for your monitor to the POWER on
the back of the monitor.
This product may be used with 100 ~ 240VAC(+/- 10%).
2. DVI/PC IN
DVI/PC IN
1. DVI(HDCP)
: Connect the DVI cable to the DVI(HDCP) port on the
back of your monitor.
2. RGB
: Connect the signal cable to the RGB port on the back
of your monitor.
3. AUDIO
: PC sound terminal (input)
3. EXT(RGB)
External device terminal
EXT(RGB) is mainly used in Europe.
A
s for EXT(RGB) port of the monitor, it makes TV or Video
signal input and output.

4. COMPONENT IN
COMPONENT IN
1. R - AUDIO - L
: DVD/DTV sound input terminal (left/right)
2. PR, PB,Y
: DVD/DTV video input terminal(PR, PB,Y)
5. ANT IN
ANT IN
Connect the CATV cable or TV antenna cable to the "ANT
IN" port on the rear side of the monitor. Make sure to use a
TV antenna cable (sold separately) as the antenna cable.
6. / S-VIDEO / VIDEO / L - AUDIO - R
1.
: Headphone sound output terminal
2. S-VIDEO
: External device (S-video) input terminal
3. VIDEO
: External device (video) input terminal
4. L - AUDIO - R
: External device sound input terminal
7.
Kensington Lock
The Kensington lock is a device used to physically fix the
system when using it in a public place.
(The locking device has to be purchased separately.)
For using a locking device, contact where you purchase
it.

See Connecting the monitor for further information regarding cable connections.
Remote Control
The performance of the remote control may be affected by a TV or other electronic device operated near
the monitor, causin
g
malfunction due to interference with fre
q
uenc
y
.
1. POWER
2. Number button
3. +100, -/--
4. - +
5. MUTE
6. TTX/MIX
7. MENU
8. ENTER
9. CH/P
10. SOURCE
11. INFO
12. EXIT
13. Up-Down Left-Right buttons
14. AUTO
15. P.MODE, M/B (MagicBright™)
16. P.SIZE
17. STILL
18. PIP
19. S.MODE
20. DUAL/MTS
21. PRE-CH
22. SOURCE
23. SIZE
24. POSITION
25. MAGIC-CH
1. POWER
Use this button to turn the monitor on and off.

2. Number button
Selects TV channels in the TV mode.
Used to change channels when PIP is selected and the PIP Source is set to TV.
3. +100
Press to select channels over 100.
For example, to select channel 121, press "+100", then press "2" and "1".
-
/
--
(
One/Two-Di
g
it channel selection
)
Use to select a channel numbered ten or over.
Press this button, and the "--" symbol is displayed.
Enter the two-digit channel number.
This function is available only in Europe.
4. - +
A
djusts the audio volume.
5. MUTE
Press to mute the sound temporarily.
Displayed on the bottom left of the screen.
Press the MUTE button again to cancel the Mute function.
A
lternatively press the - + buttons to cancel the Mute function.
6. TTX/MIX
TV channels provide written information services via teletext.
For more information > TTX / MIX
This function is available only in Europe.
7. MENU
Use this button to open the on-screen menu and exit from the menu screen or close screen
adjustment menu.
8. ENTER
A
ctivates a highlighted menu item.
9. CH/P
In TV mode, selects TV channels.
10. SOURCE
Press the 'SOURCE' button to change the input signal source.
Changing the source is allowed only in external devices that are connected to the monitor at
the time.
11. INFO
Current picture information is displayed on the upper left corner of the screen.
12. EXIT
Exits from the menu screen.
13. U
p
-Down Left-Ri
g
ht buttons
Moves from one menu item to another horizontally, vertically or adjusts selected menu
values.
14. AUTO - Available In PC mode Onl
y
A
djusts the screen display automatically.
15. P.MODE, M/B
(
Ma
g
icBri
g
ht™
)
Press to select a pre-defined Picture Mode of the monitor or to change the picture
atmosphere as required.
When you press this button, current mode is displayed on the lower center of the screen.
TV / AV / Ext. / S-Video /Component Mode : P.MODE( Picture Mode )
The monitor has four automatic picture settings that are preset at the factory.
Then push button again to circle through available preconfigured modes.
( Dynamic ˧Standard ˧Movie ˧Custom )
PC / DVI Mode : M/B ( MagicBright™ )
MagicBright™ is a new feature providing the optimum viewing environment depending on
the contents of the image you are watching.
Then push button again to circle through available preconfigured modes.
( Entertain˧Internet ˧Text ˧Custom )
16. P.SIZE - Not available in PC/DVI Mode
Press to change the screen size.
( Auto Wide ˧Wide ˧Zoom ˧4:3 )
Zoom are not available in 1080i(or over 720p) of DTV.

17. STILL - O
p
erates onl
y
for the CVBS, S-
V
ideo and RF Si
g
nal sources.
Press the button once to freeze the screen. Press it again to unfreeze.
18. PIP - Available in PC/DVI Mode
Push the PIP button to turn PIP screen On/Off.
19. S.MODE
(
Sound Mode
)
When you press this button, current mode is displayed on the lower center of the screen.
The monitor has a built-in high fidelity stereo amplifier.
Then push button again to circle through available preconfigured modes.
( Standard ˧Music ˧Movie ˧Speech ˧Custom )
20. DUAL / MTS
DUAL : STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM MONO/NICAM STEREO
can be operated depending on broadcasting type by using DUAL button on the remote
control while watching TV.
MTS : You can select the MTS (Multichannel Television Stereo) mode.
. Mono, Stereo, SAP (Separate Audio Program)
Set 'MTS' to ON to choose Mono, Stereo or SAP.
21. PRE-CH
This button is used to return to the immediately previous channel.
22. SOURCE - Ad
j
ustable when the PIP function is ON.
Selects the Video source.
23. SIZE - Ad
j
ustable when the PIP function is ON.
You can switch the PIP picture size.
24. POSITION - Ad
j
ustable when the PIP function is ON.
Changes the Position of the PIP window.
25. MAGIC-CH
MagicChannel enables you to watch only certain channels.
This function is available only in Korea.

Connectin
g
the monitor

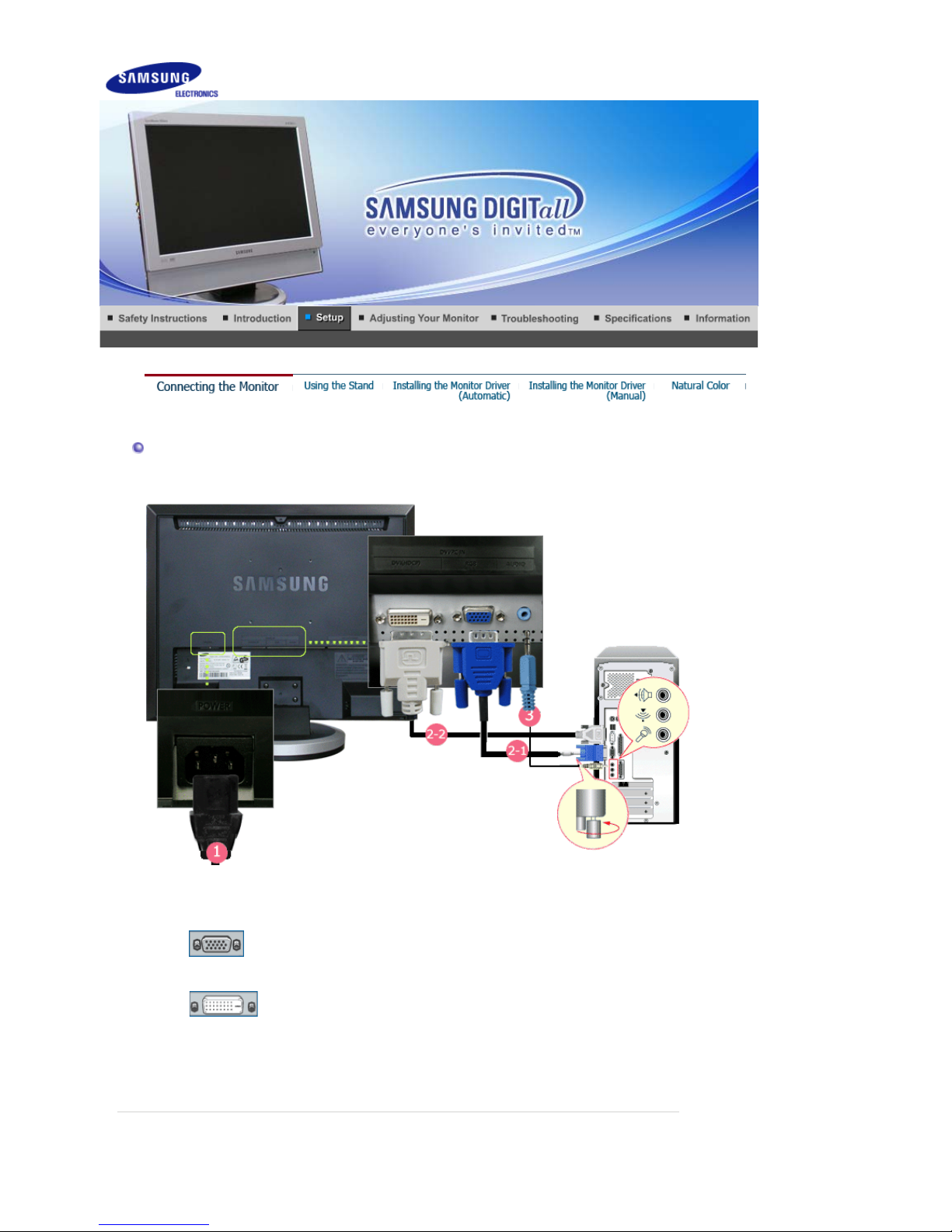

1.Connectin
g
to a Com
p
ute
r
1. Connect the power cord for your monitor to the POWER on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the RGB port on the back of your monitor.
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI cable to the DVI(HDCP) port on the back of your monitor.
3. Connect the (DVI/PC IN) AUDIO port on the rear side of the monitor to the sound card of the PC.
4. Turn on both your computer and the monitor.

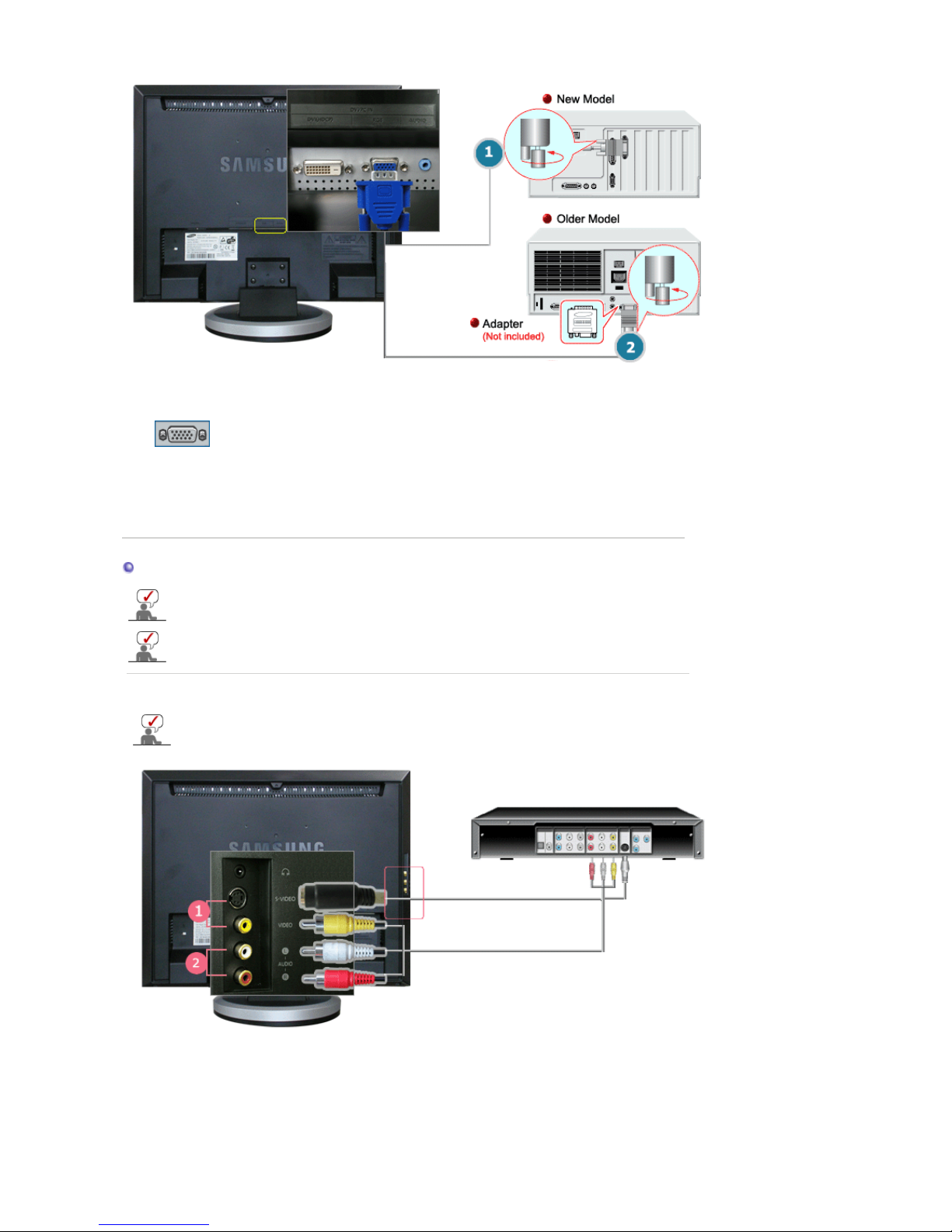

2. Connecting to a Macintosh

1. Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the D-SUB port on the Macintosh computer.
2. For older model Macintoshes, you need to adjust the resolution control DIP switch on the Macintosh
adapter (optional) referring to the switch configuration table shown on its rear.
3. Turn on the monitor and Macintosh.
Connectin
g
to Other devices
This monitor allows the user to connect it to such input devices as a DVD player, a VCR or
camcorder, or a DTV or TV without disconnecting the PC.
The configuration at the back of the monitor may vary from product to product.
1-1. Connecting AV Devices
The monitor has AV connection terminals to connect AV input devices like DVDs, VCRs or
Camcorders. You may enjoy AV signals as long as the monitor is turned on.
1. Input devices such as DVD, VCR or Camcorder are connected to the VIDEO or S-VIDEO terminal
of the monitor using the Video or S-Video cable.
2. Connect the port of the DVD, VCR (DVD / DTV Set-Top Box) to the R-AUDIO-L port of the monitor.

3. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
4. Select AV or S-Video using the SOURCE.
1-2. Connecting EXT.(RGB) - It only applies to AV DEVICE that supports SCART.
Connect to the DVD Devices input if the device has a EXT (RGB) jack.
You can watch DVD simply by hooking up the DVD with the monitor as long as the power is on.
1. Connect the EXT (RGB) port of the monitor to the DVD Player using a SCART jack.
2. Select Ext. using the SOURCE.
2. Connecting TV
You may view television programs on the monitor if it is connected to an antenna or CATV cable
without installing any separate TV reception hardware or software on your computer.
1. Connect the CATV cable or TV antenna cable to the "ANT IN" port on the rear side of the monitor.
Make sure to use a TV antenna cable (sold separately) as the antenna cable.
2. Turn on the monitor.
3. Select TV using the SOURCE.
4. Select a desired TV channel.
When using an interior antenna terminal:
Check the antenna terminal on the wall first and connect the antenna cable.
When using an outdoor antenna:
If you are using an outdoor antenna, use a professional for installation if possible.
To connect the RF cable to the antenna input terminal:
Keep the copper wire portion of the RF cable straight.
