Introduction
Package Contents
Checking the Contents of the Package

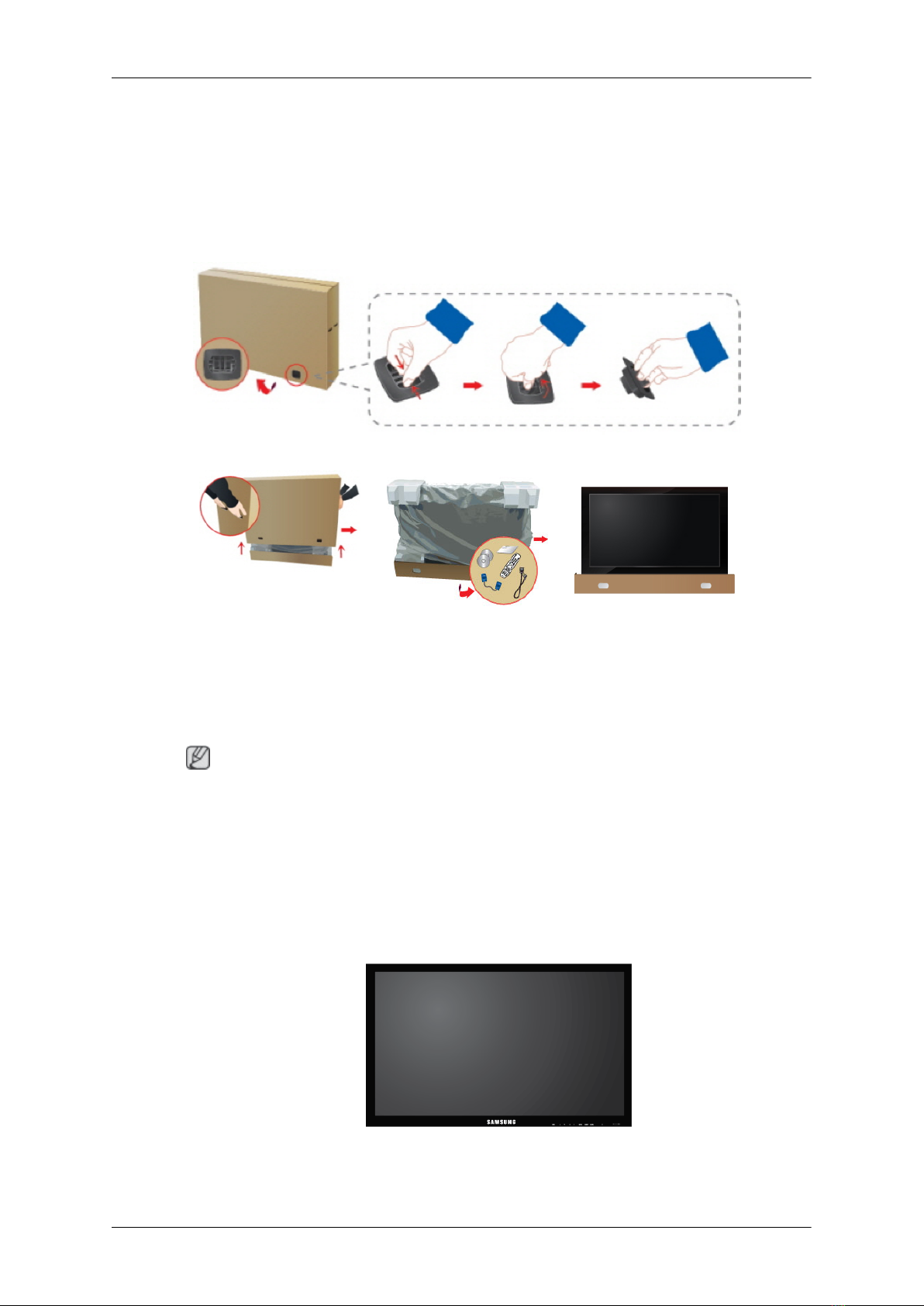

Remove the lock from the package box, as shown in the figure above.
Lift up the package box by
holding the grooves on
both sides of the package
box.
Check the contents of the
package.
Remove the Styrofoam
and vinyl cover.
Note
• After unpacking the package, make sure to check the contents of the package.
• Store the packaging box in case you need to move the Product later.
• If any items are missing, contact your dealer.
• Contact a local dealer to purchase optional items.
Unpacking
LCD Display

Manuals
Quick Setup Guide Warranty Card
(Not available in all loca-
tions)
User Manual
Cables
Power Cord D-Sub Cable
Others
Remote Control
(BP59-00138B)
Batteries (AAA X 2)
(Not available in all loca-
tions)
Sold separately
Semi Stand KIT LAN Cable USB Cable
RGB to BNC Cable RGB to COMPONENT Ca-
ble
Introduction
MagicInfo Software CD,
MagicInfo Manual CD
TV tuner box

Sold separately
Wall Mount KIT RS232C Cable
Note
Accessories that can be purchased with the product vary by country.
Your LCD Display
The color and the appearance may differ depending on the product, and the specifications
are subject to change without prior notice to improve the performance.

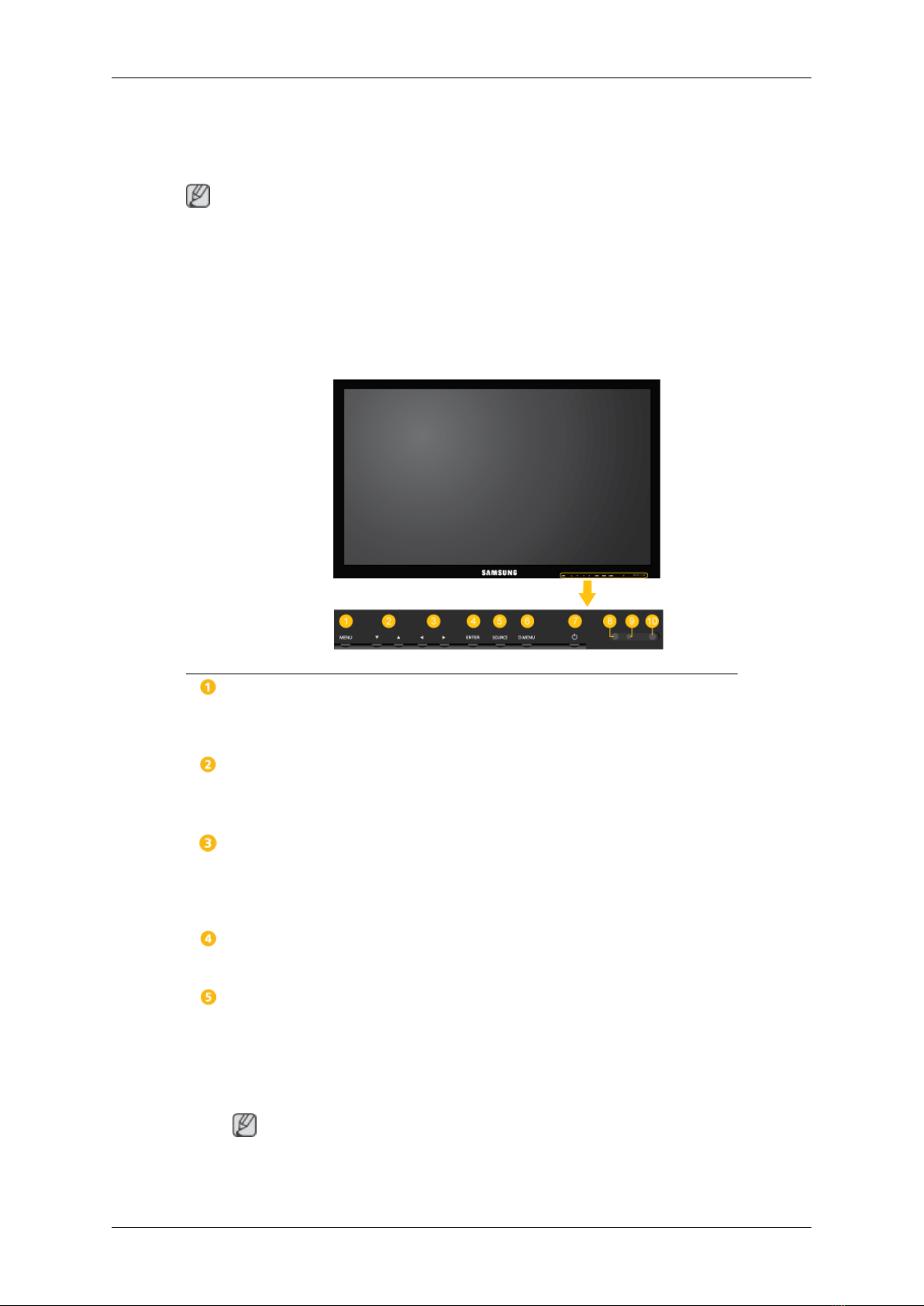

Front
MENU button [MENU]
Opens the on-screen menu and exits from the menu. Also use to exit the
OSD menu or return to the previous menu.
Navigate buttons (Up-Down buttons)
Moves from one menu item to another vertically or adjusts selected menu
values.
Adjust buttons (Left-Right buttons) / Volume buttons
Moves from one menu item to another horizontally or adjusts selected
menu values. When OSD is not on the screen, press the button to adjust
volume.
ENTER button [ENTER]
Activates a highlighted menu item.
SOURCE button [SOURCE]
Switches from PC mode to Video mode. Selects the input source that an
external device is connected to.
[PC] → [DVI] → [AV] → [Component] → [HDMI1] → [HDMI2] →
[DisplayPort] → [MagicInfo] → [TV]
Note
•The [RGB/COMPONENT IN] port is compatible with RGB (PC) and
Component signals.
Introduction

However, the picture may display abnormally if the connected external
input signal is different from the selected video signal.
• A TV tuner box (sold separately) must be connected to use the TV.
D.MENU button
Opens the on-screen D.MENU.
Note
The D.MENU button is activated when a TV tuner is connected and oth-
erwise, the PIP button is enabled.
PIP button
Push the PIP button to turn the PIP screen On / Off.
Power button [ ]
Use this button for turning the LCD Display on and off.
Brightness Sensor
Automatically detects the surrounding brightness.
Power indicator
Shows PowerSaver mode by blinking green
Note
See PowerSaver described in the manual for further information regarding
power saving functions. For energy conservation, turn your LCD Display
OFF when it is not needed or when leaving it unattended for long periods.
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.

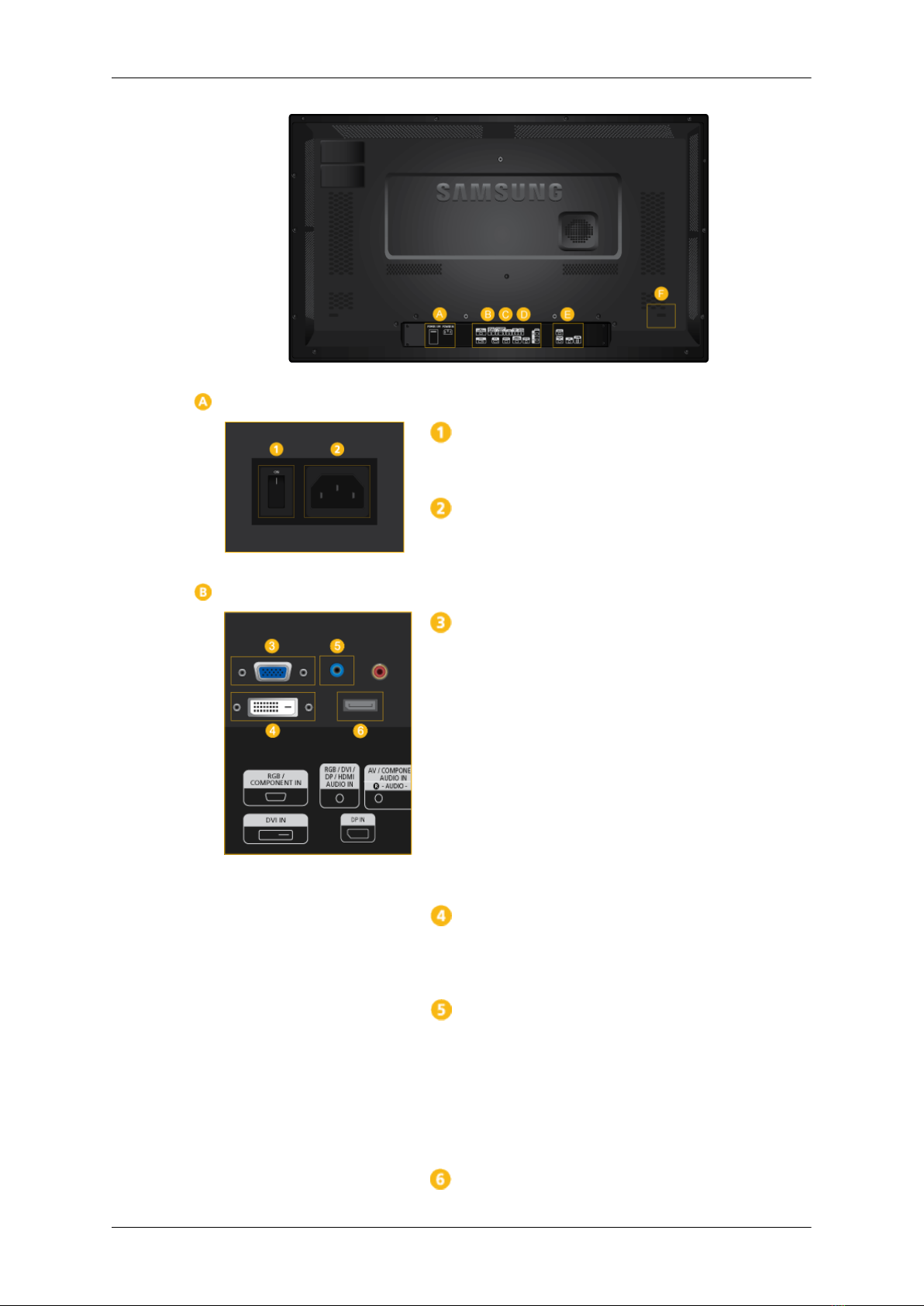

Rear
Note
See the "Connections" section for details about cable connections. The LCD Display's con-
figuration at the back may vary slightly depending on the model.
Introduction

POWER S/W ON [
│ ] / OFF
Switches the LCD Display On/Off.
POWER
The power cord plugs into the LCD Display
and the wall outlet.
RGB/COMPONENT IN (PC/COMPO-
NENT Connection Terminal (Input))
•Connect the [RGB/COMPONENT IN]
port on the monitor to the RGB port on the
PC using the D-SUB cable.
•Connect the [RGB/COMPONENT IN]
port on the monitor to the COMPONENT
port on the external device using the RGB
to COMPONENT cable.
•Connect the [RGB/COMPONENT IN]
port on the monitor to the BNC port on the
PC using the RGB to BNC cable.
DVI IN (PC Video Connection Terminal)
Connect the [DVI IN] port on the monitor to
the DVI port on the PC using the DVI cable.
RGB/DVI/DP/HDMI AUDIO IN (PC/DVI/
DP/HDMI Audio Connection Terminal (In-
put))
Connect the [RGB/DVI/DP/HDMI AUDIO
IN] terminal of the monitor and the speaker
output terminal of your computer's sound
card using a stereo cable (sold separately).
DP IN
Introduction

Receives a signal from the Display port.
Connect a DP cable to [DPIN]on the product
and DP IN on another display.
AV/COMPONENT AUDIO IN [R-AUDIO-
L]
Connect the [AV/COMPONENT AUDIO IN
[R-AUDIO-L]]port on the monitor to the audio
output port on the PC or on the external de-
vice using an audio cable.
AV IN
Connect the [AV IN] terminal of your monitor
to the video output terminal of the external
device using a VIDEO cable.
AUDIO OUT
Connect a headphone or an External speak-
er.
DC OUT
Make sure to use connecting [DC OUT] ter-
minal to the authorized TV-Tuner Box
[SBB_DTC/ZA].
Otherwise, this may result in damage
to the product.

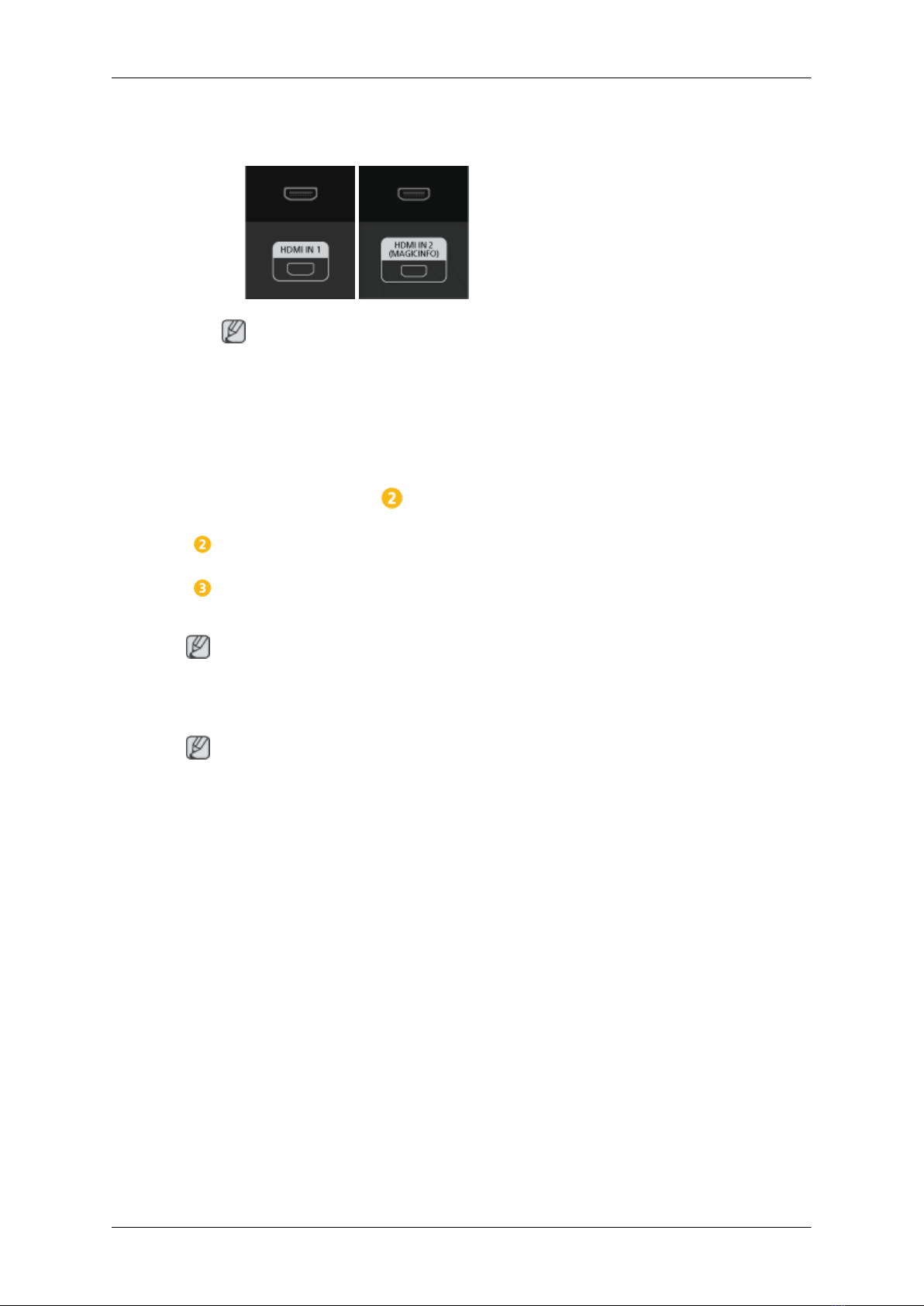

HDMI IN 1
•Connect the [HDMI IN 1] terminal at the
back of your LCD Display to the HDMI
terminal of your digital output device us-
ing a HDMI cable.
• Up to HDMI 1.3 can be supported.
Note
•A normal external device (DVD player or
camcorder, etc.) or a TV tuner box can be
connected to the [HDMI IN 1] terminal.
•To use a TV tuner box, make sure to con-
nect it to the [HDMI IN 1] terminal.
HDMI IN 2 (MAGICINFO)
•Connect the [HDMI IN 2 (MAGICINFO)]
terminal at the back of your LCD Display
Introduction

to the HDMI terminal of your digital output
device using a HDMI cable.
• Up to HDMI 1.3 can be supported.
RJ 45 MDC (MDC PORT)
MDC(Multiple Display Control) Program Port
Connect the LAN cable to [RJ45MDC]on the
product and LAN on the PC. To use an MDC,
the MDC Program must be installed on the
PC.
Note
Go to Multi Control and select RJ45 MDC
as the MDC Connection.
RS232C OUT/IN (RS232C Serial PORT)
MDC(Multiple Display Control) Program Port
Connect a serial cable (cross type) to
[RS232C]on the product and RS232C on the
PC. To use an MDC, the MDC Program must
be installed on the PC.
Note
Go to Multi Control and select RS232C
MDC as the MDC Connection.
RGB OUT
MagicInfo video output port
MAGICINFO OUT
This is the output terminal for the video, au-
dio, and control signals of MagicInfo.
It can be used by connecting it to the [HDMI
IN 2 (MAGICINFO)] terminal using an HDMI
cable.
LAN (LAN Connection Terminal)
Introduction
Note
The MAGICINFO OUT port must be connec-
ted to the [HDMI IN 2 (MAGICINFO)] port.

Connects to a LAN cable to allow Internet or
network access in MagicInfo mode.
USB (USB Connection Terminal)
Keyboard / Mouse, Mass Storage Device
Compatible.
Kensington Lock slot
A Kensington Lock is an anti-theft device that
enables users to lock the product so that they
can safely use it in public locations. Since the
shape and usage of the locking device may
differ depending on the model and the man-
ufacturer, for more information, refer to the
User Manual supplied with the locking device
for more information.
Note
You must purchase the Kensington Lock
separately.
To lock the product, follow these
steps:
1. Wrap the Kensington lock cable around
a large, stationary object such as a desk
or chair.
2. Slide the end of the cable with the lock
attached through the looped end of the
Kensington lock cable.
3. Insert the Kensington Lock into the se-
curity slot ( ) on the back of the dis-
play.
4. Lock the lock ( ).
Note
•These are general instructions. For exact
instructions, see the User Manual sup-
plied with the locking device.
•You can purchase the locking device
from an electronics store, an online shop,
or our service Center.
Note
The power switches of both of the monitor and the network box must be turned on for the
network box to operate normally.
Introduction

Remote Control
Note
The performance of the remote control may be affected by a TV or other electronic device
operating near the LCD Display , causing a malfunction due to interference with the frequen-
cy.
POWER
OFF
Number Buttons
DEL / GUIDE button
+ VOL -
SOURCE
D.MENU
TOOLS
Up-Down Left-Right buttons
INFO
The Color button and the PC/DVI/HDMI/DP
selection button.
TTX/MIX
MTS/DUAL
ENTER/PRE-CH
MUTE
CH/P
TV
MENU
RETURN
EXIT
MagicInfo
POWER Turns the product On/Off.
OFF Turns the product Off.
Number Buttons Used to enter the password during the OSD adjustment or
to use MagicInfo.
Press to change the channel.
DEL / GUIDE button The "-" button is used to select Digital channels.
Electronic Program Guide (EPG) display.
Introduction

Note
This button can only be used in TV mode while a TV tuner
box (sold separately) is connected.
+ VOL - Adjusts the audio volume.
SOURCE Selects a connected external input source or MagicInfo
mode.
Press the button to change the input signal SOURCE.
Changing the SOURCE is only allowed for external devices
that are connected to the LCD Display at the time.
D.MENU DTV menu display
Note
This button can only be used in TV mode while a TV tuner
box (sold separately) is connected.
TOOLS Use to quickly select frequently used functions.
Note
This function does not work for this LCD Display.
Up-Down Left-Right but-
tons
Moves from one menu item to another horizontally, vertically
or adjusts selected menu values.
INFO Current picture information is displayed on the upper left
corner of the screen.
The Color button and the
PC/DVI/HDMI/DP selection
button.
In TV mode, these buttons can be used to configure a list of
channels.
You can select the PC, DVI, HDMI or DisplayPort external
input directly in a mode other than TV mode.
TTX/MIX TV channels provide written information services via tele-
text.
- Teletext Buttons
Note
This function does not work for this LCD Display.
MTS/DUAL MTS-
You can select MTS (Multichannel Television Stereo) mode.
Audio Type MTS/S_Mode Default
FM Stereo Mono Mono Manual
Change
Stereo Mono ↔Stereo
Introduction

SAP Mono ↔SAP Mono
DUAL-
STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM
MONO/NICAM STEREO can be operated depending on the
broadcasting type by using the DUAL button on the remote
control while watching TV.
Note
Enabled when a TV tuner box is connected.
ENTER/PRE-CH This button is used to return to the immediately previous
channel.
Note
Enabled when a TV tuner box is connected.
MUTE Pauses (mutes) the audio output temporarily. This is dis-
played on the lower left corner of the screen. The audio
comes back on if MUTE or - VOL + is pressed in the Mute
mode.
CH/P In TV mode, selects TV channels.
Note
Enabled when a TV tuner box is connected.
TV Allows you to watch an analogue or digital TV.
Note
Enabled when a TV tuner box is connected.
MENU Opens the on-screen menu and exits from the menu or
closes the adjustment menu.
RETURN Returns to the previous menu.
EXIT Exits from the menu screen.
MagicInfo MagicInfo Quick Launch Button.
Introduction

Connections
Connecting a Computer
There are several ways to connect the computer to the monitor. Choose
one from the following options.
Using the D-sub (Analog) connector on the video card.
•Connect the D-sub to the 15-pin, [RGB/COMPONENT IN] port on the
back of your LCD Display and the 15 pin D-sub Port on the computer.
Using the DVI (Digital) connector on the video card.
•Connect the DVI Cable to the [DVI IN] port on the back of your LCD
Display and the DVI port on the computer.
Using the D-sub (Digital) connector on the video card.

• Connect the [HDMI IN 1] / [HDMI IN 2] port on the LCD Display to the
HDMI port on the PC using the HDMI cable.
Note
Select HDMI2 or HDMI1 as an input source when connected to the PC via
an HDMI cable.
To obtain normal picture and audio from the PC, HDMI2 or HDMI1 must
be selected before PC is selected in Edit Name.
To enable audio when DVI Device is selected, be sure to establish the
connection using step ( ).
Connect the Audio cable for your LCD Display to the AUDIO port on the
back of the LCD Display.
Connect the power cord for your LCD Display to the POWER port on the
back of the LCD Display. Turn on the power switch.
Note
Contact a local SAMSUNG Electronics Service Center to buy optional items.
Connecting to Other devices
Note
•AV input devices such as DVD players, VCRs or camcorders as well as your computer
can be connected to the LCD Display. For detailed information on connecting AV input
devices, refer to the contents under Adjusting Your LCD Display.
•The LCD Display 's configuration at the back may vary slightly depending on the LCD
Display model.
Connections

Connecting AV Devices
1. Connect an audio cable to [AV/COMPONENT AUDIO IN [R-AUDIO-L]] on
the product and the audio port on an external device such as a VCR or
DVD player.
2. Connect a video cable to [AV IN] on the product and the video output port
on the external device.
3. Then, start the DVD, VCR or Camcorders with a DVD disc or tape inserted.
4. Press SOURCE on the product or remote control and select "AV".
Connecting to a Camcorder
1. Locate the AV output jacks on the camcorder. They are usually found on
the side or back of the camcorder. Connect a video cable between the
VIDEO OUTPUT jack on the camcorder and the [AV IN] on the LCD Dis-
play .
Connections

2. Connect a set of audio cables between the AUDIO OUTPUT jacks on the
camcorder and the [AV /COMPONENT AUDIO IN [R-AUDIO-L]] on the
LCD Display .
3. Press SOURCE on the product or remote control and select "AV".
4. Then, start the Camcorders with a tape inserted.
Note
The audio-video cables shown here are usually included with a Camcorder.
(If not, check your local electronics store.)
If your camcorder is stereo, you need to connect a set of two cables.
Connecting Using a HDMI Cable
1. Connect an HDMI cable to [HDMI IN 2 (MAGICINFO)] or [HDMI IN 1] on
the product and the HDMI output port on a digital device.
2. Press SOURCE on the product or remote control and select "HDMI1 /
HDMI2"
Note
In HDMI mode, only PCM format audio is supported.
Connections

Connecting Using a DVI to HDMI Cable
Connect a DVI-HDMI cable to [HDMI IN 2 (MAGICINFO)] or [HDMI IN 1]
and the DVI output port on the digital device.
Connect the red and white jacks of an RCA to stereo (for PC) cable to the
same colored audio output terminals of the digital output device, and con-
nect the opposite jack to the [RGB/DVI/DP/HDMI AUDIO IN] terminal of
the LCD Display.
3. Press SOURCE on the product or remote control and select "HDMI1 /
HDMI2"
Connecting a DVD Player

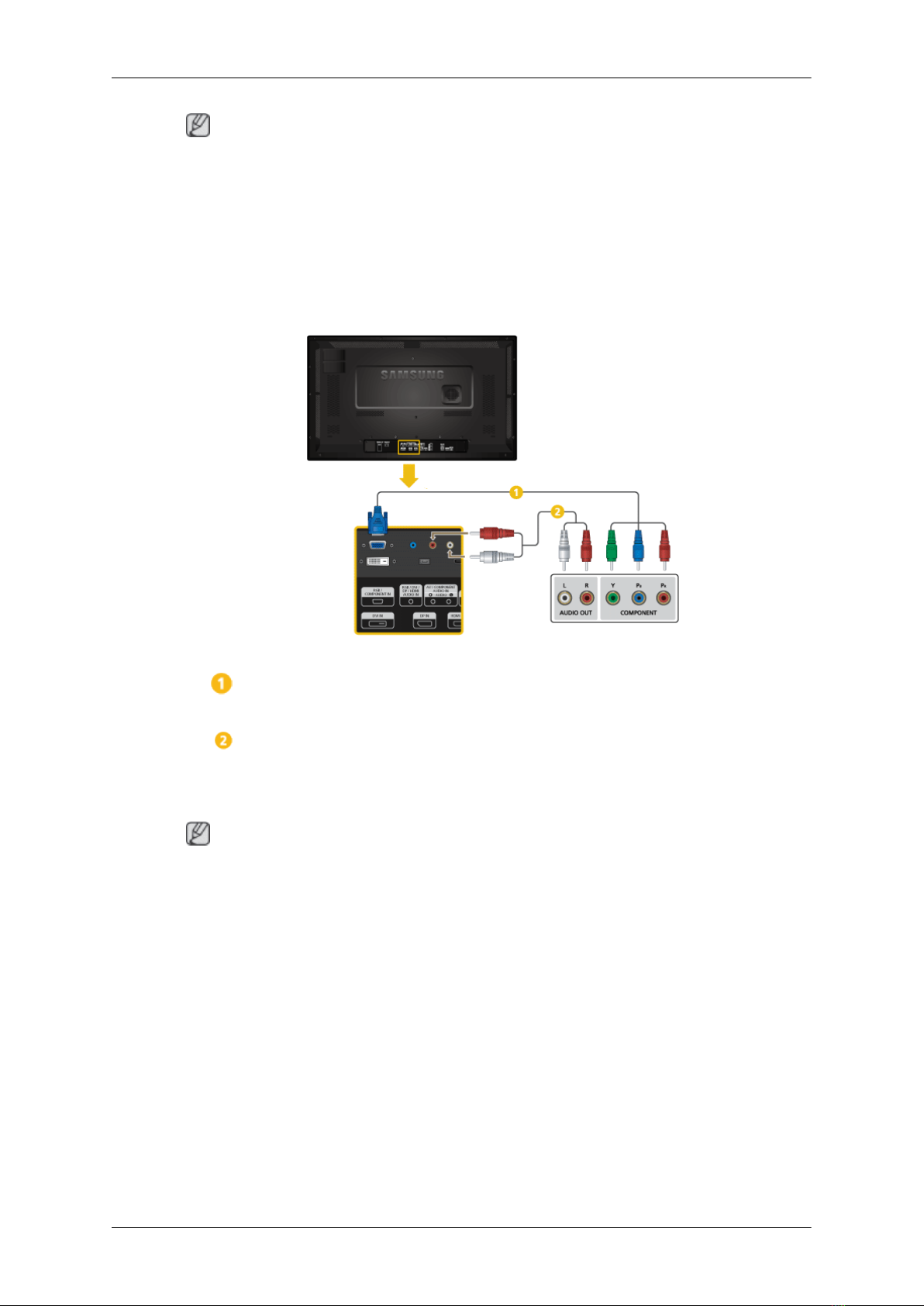

Connect a RGB to Component cable between the [RGB/COMPONENT
IN] port on the LCD Display and the PR, Y, PBjacks on the DVD player.
Connect a set of audio cables between the [AV/COMPONENT AUDIO IN
[R-AUDIO-L]] on the LCD Display and the AUDIO OUT jacks on the DVD
player.
Connections

Note
• Press SOURCE on the product or remote control and select "Component".
• Then, start the DVD Player with a DVD disc inserted.
• A RGB to component cable is optional.
• For an explanation of Component video, consult your DVD manual.
Connecting a DTV Set Top (Cable/Satellite) Box
Connect a RGB to Component cable between the [RGB/COMPONENT
IN] port on the LCD Display and the PR, Y, PBjacks on the Set Top Box.
Connect a set of audio cables between the [AV/COMPONENT AUDIO IN
[R-AUDIO-L]] on the LCD Display and the AUDIO OUT jacks on the Set
Top Box.
Note
• Press SOURCE on the product or remote control and select "Component".
• For an explanation of Component video, see your Set Top Box owner's manual.
Connections

Connecting to an Audio System
1. Connect a set of audio cables between the AUX L, R jacks on the AUDIO
SYSTEM and [AUDIO OUT] on LCD Display.
Connecting to MAGICINFO OUT
Connect the [MAGICINFO OUT] terminal of the network box and the [HDMI IN 2 (MAGICIN-
FO)] terminal of the monitor using the HDMI cable.
Connections

Connecting a LAN Cable
Connect the LAN cable between the [LAN] port on the product and the [LAN] port on your
PC.
Connecting a USB devices
You can connect USB devices such as a mouse or keyboard.
Connections
