Samsung SyncMaster 913BM User manual

Install drivers Install programs
SyncMaster 913BM

Notational
Failure to follow directions noted by this symbol could result in bodily harm or damage to
equipment.
Prohibited Important to read and understand at all times
Do not disassemble Disconnect the plug from the outlet
Do not touch Grounding to prevent an electric shock
Power
When not used for an extended period of time, set your computer to DPMS.
If using a screen saver, set it to the active screen mode.

Do not use a damaged or loose plug.
zThis may cause an electric shock or fire.
Do not pull the plug out by the wire nor touch the plug with wet hands.
zThis may cause an electric shock or fire.
Use only a properly grounded plug and receptacle.
zAn improper ground may cause electric shock or equipment damage.
Insert the power plug firmly so that it does not come loose.
zA bad connection may cause fire.
Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.
zThis may cause an electric shock or fire.
Do not connect too many extension cords or plugs to an outlet.
zThis may cause fire.
Installation
Be sure to contact an authorized service center, when installing your monitor in a
location with the heavy dust, high or low temperatures, high humidity, chemical
substance and where it operates for 24 hours such as the airport, the train
station or etc.
Failure to do so may cause a serious damage to your monitor.
Put your monitor in a location with low humidity and a minimum of dust.
zFailure to do so may cause an electric shock or fire inside the monitor.

Do not drop the monitor when moving it.
zThis may cause damage to the product or human body.
Install the monitor base in a showcase or shelf so that the end of the
base does not protrude from the showcase or shelf.
zDropping the product may cause damage to the product or personal
injury.
Do not place the product on an unstable or small surface area.
zPlace the product on an even, stable surface, as the product may fall
and cause harm to someone walking by, specifically children.
Do not place the product on the floor.
zSomeone, specifically children could trip over it.
Keep any flammable objects such as candles, insecticides or cigarettes
away from the product.
zOtherwise, this may cause a fire.
Keep any heating devices away from the power cable.
zA melted coating may lead to electric shock or fire.
Do not install the product in places with poor ventilation, for instance, a
bookshelf, closet, etc.
zAny increase in internal temperature may cause fire.
Set down the monitor carefully.
zThe monitor could be damaged or broken.
Do not place the monitor face down.
zThe TFT-LCD surface may be damaged.

Installing a wall bracket must be done by a qualified professional.
zInstallation by unqualified personnel may result in injury.
zAlways use the mounting device specified in the owner's manual.
When installing the product, make sure to keep it away from the wall
(more than 10cm/4inch ) for ventilation purposes.
zPoor ventilation may cause an increase in the internal temperature of the
product, resulting in a shortened component life and degraded
performance.
Clean
When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with
a slightly moistened, soft fabric.
Do not spray water or detergent directly on the monitor.
zThis may cause damage, electric shock or fire.
Use the recommended detergent with a smooth cloth.
If the connector between the plug and the pin is dusty or dirty, clean it
properly with a dry cloth.
zA dirty connector may cause an electric shock or fire.
Make sure to unplug the power cord before cleaning the product.
zOtherwise, this may cause electric shock or fire.

Unplug the power cord from the power outlet and wipe the product using
a soft, dry cloth.
zDo not use any chemicals such as wax, benzene, alcohol, thinners,
insecticide, air freshener, lubricant or detergent.
Contact the Service Center or Customer Center for interior cleaning
once a year.
zKeep the product's interior clean. Dust which has accumulated in the
interior over an extended period of time may cause malfunction or fire.
Others
Do not remove cover (or back).
zThis may cause an electric shock or fire.
zRefer servicing to qualified service personnel.
If your monitor does not operate normally - in particular, if there are any
unusual sounds or smells coming from it - unplug it immediately and
contact an authorized dealer or service.
zThis may cause an electric shock or fire.
Keep the product away from places exposed to oil, smoke or moisture;
do not install inside a vehicle.
zThis may cause malfunction, an electric shock or fire.
zEspecially avoid operating the monitor near water or outdoors where it
could be exposed to snow or rain.
If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord. Then contact the Service Center .
zThe monitor may malfunction, causing an electric shock or fire.
Disconnect the plug from the outlet during storms or lightening or if it is
not used for a long period of time.
zFailure to do so may cause an electric shock or fire.
Do not try to move the monitor by pulling only the wire or the signal
cable.
zThis may cause a breakdown, electric shock or fire due to damage to

the cable.
Do not move the monitor right or left by pulling only the wire or the
signal cable.
zThis may cause a breakdown, electric shock or fire due to damage to
the cable.
Do not cover the vents on the monitor cabinet.
zBad ventilation may cause a breakdown or fire.
Do not place water containers, chemical products or small metal objects
on the monitor.
zThis may cause malfunction, an electric shock or fire.
zIf a foreign substance enters the monitor, unplug the power cord and
contact the Service Center.
Keep the product away from combustible chemical sprays or
inflammable substances.
zThis may cause an explosion or fire.
Never insert anything metallic into the monitor openings.
zThis may cause an electric shock, fire or injury.
Do not insert metal objects such as chopsticks, wire and gimlet or
inflammable objects such as paper and match into the vent, headphone
port or AV ports.
zIt may cause a fire or an electric shock. If an alien substances or water
flows into the product, turn the product off, unplug the power connector
from the wall outlet and contact service center.
If you view a fixed screen for an extended period of time, residual image
or blurriness may appear.
zChange the mode to energy save or set a screensaver to moving picture
when you need to be away from the monitor for an extended period of
time.
Adjust the resolution and frequency to the levels appropriate for the
model.
zInappropriate resolution may cause undesirable picture quality.

19inch (48 cm) - 1280 X 1024
Keep the volume at a proper level when you use the headphones.
zExcessively loud volume levels may damage hearing.
Watching the monitor continuously at a too close angle may result in
eyesight damage.
To ease eye strain, take at least a five-minute break after every hour of
using the monitor.
Do not install the product on an unstable, uneven surface or a location
prone to vibrations.
zDropping the product may cause damage to the product or personal
injury. Using the product in a location prone to vibrations may shorten
the lifetime of the product or may catch fire.
When moving the monitor, turn off and unplug the power cord.
Make sure that all cables, including the antenna cable and cables
connecting to other devices, are disconnected before moving the
monitor.
zFailure to disconnect cables may damage it and lead to fire or an electric
shock.
Place the product out of children’s reach, as they could damage it by
hanging onto it.
zA falling product could cause physical damage even death.
When not using the product for an extended time period, keep the
product unplugged.
zOtherwise, this may cause heat emission from the accumulated dirt or
degraded insulation, leading to electric shock or fire.
Do not place children’s favorite objects (or anything else that may be
tempting) on the product.
zChildren may try to climb on the product to retrieve an object. The
product could fall, causing physical damage or even death.

Please make sure the following items are included with your monitor.
If any items are missing, contact your dealer.
Contact a local deale
r
to bu
y
o
p
tional items.
Unpacking
Monitor
Manual
Quick Setup Guide
Warranty Card
(Not available in all
locations)
User's Guide,
Monitor Driver,
Natural Color software,
MagicTune™ software,
Ma
g
icRotation software
Cable
D-Sub Cable Power Cord
A
udio Cable

Sold se
p
aratel
y
DVI Cable
Front
MENU button [ ]
Opens the OSD menu. Also use to exit the OSD menu or return
to the previous menu.
MagicBright button
[]
MagicBright is a new feature providing optimum viewing
environment depending on the contents of the image you are
watching. Currently four different modes are available: Custom,
Text, Internet, and Entertain. Each mode has its own
preconfigured brightness value. You can easily select one of four
settings by simply pressing MagicBright control button.
1) Custom
Although the values are carefully chosen by our engineers,
the pre-configured values may not be comfortable to your
eyes depending on your taste.
If this is the case, adjust the Brightness and Contrast by
using the OSD menu.
2) Text : Normal Brightness
For documentations or works involving heavy text.
3) Internet : Medium Brightness

For working with a mixture of images such as text and
graphics.
4) Entertain : High Brightness
For watching motion pictures such as a DVD or VCD.
>>Click here to see an animation clip
Volume button[ ] When OSD is not on the screen, push the button to adjust
volume.
Adjust buttons [ ] Adjust items in the menu.
Enter button [ ] /
SOURCE button
Activates a highlighted menu item. /
Push the 'Source' and then select the Video signal while the
OSD is off. (When the Source button is pressed to change the
input mode, a message appears on the upper left of the screen
displaying the current mode -- analog or digital input signal.)
Note : If you select the Digital mode, you must connect your
monitor to the graphic card's port using the DVI cable.
AUTO button Use this button for auto adjustment.
Power button [] Use this button to turn the monitor on and off.
Power indicator
This light glows green during normal operation, and blinks green
once as the monitor saves your adjustments.
See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor OFF when it is not needed or when
leaving it unattended for long periods.
Rear
(The configuration at the back of the monitor may vary from product to product.)
POWER port Connect the power cord for your monitor to the power port on the back
of the monitor.
DVI IN port Connect the DVI Cable to the DVI port on the back of your monitor.
RGB IN port Connect the signal cable to the 15-pin, D-sub port on the back of your
monitor.
POWER on/off Switch
(
o
p
tion
)
Use this button for turn the monitor on and off.

Kensington Lock The Kensington lock is a device used to physically fix the system
when using it in a public place. (The locking device has to be
purchased separately. )
For usin
g
a lockin
g
device, contact where
y
ou
p
urchase it.

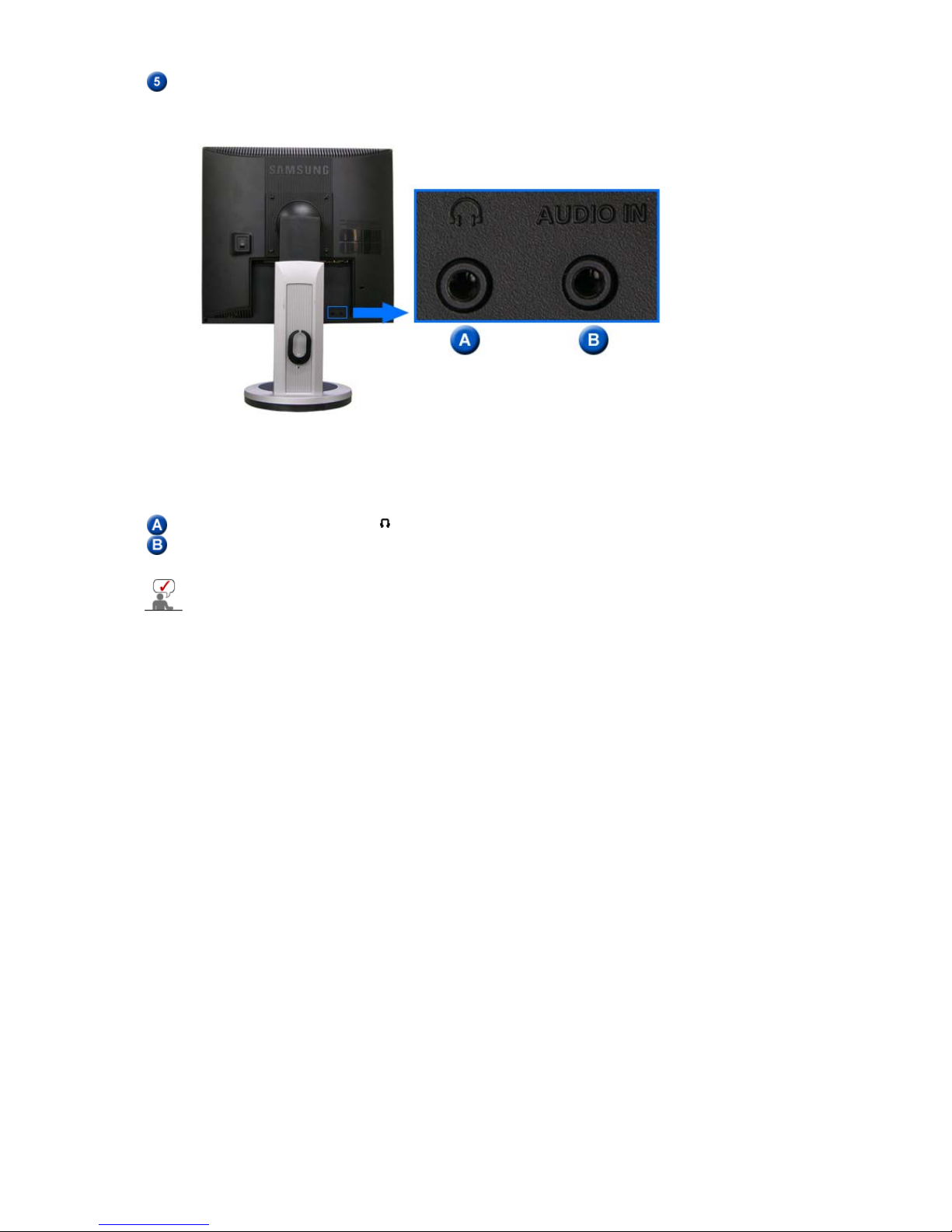

Headphone connection terminal [ ]
AUDIO IN Connect the audio cable for your monitor to the audio port on the
back of your computer.
See Connecting the Monitor for further information regarding cable connections.

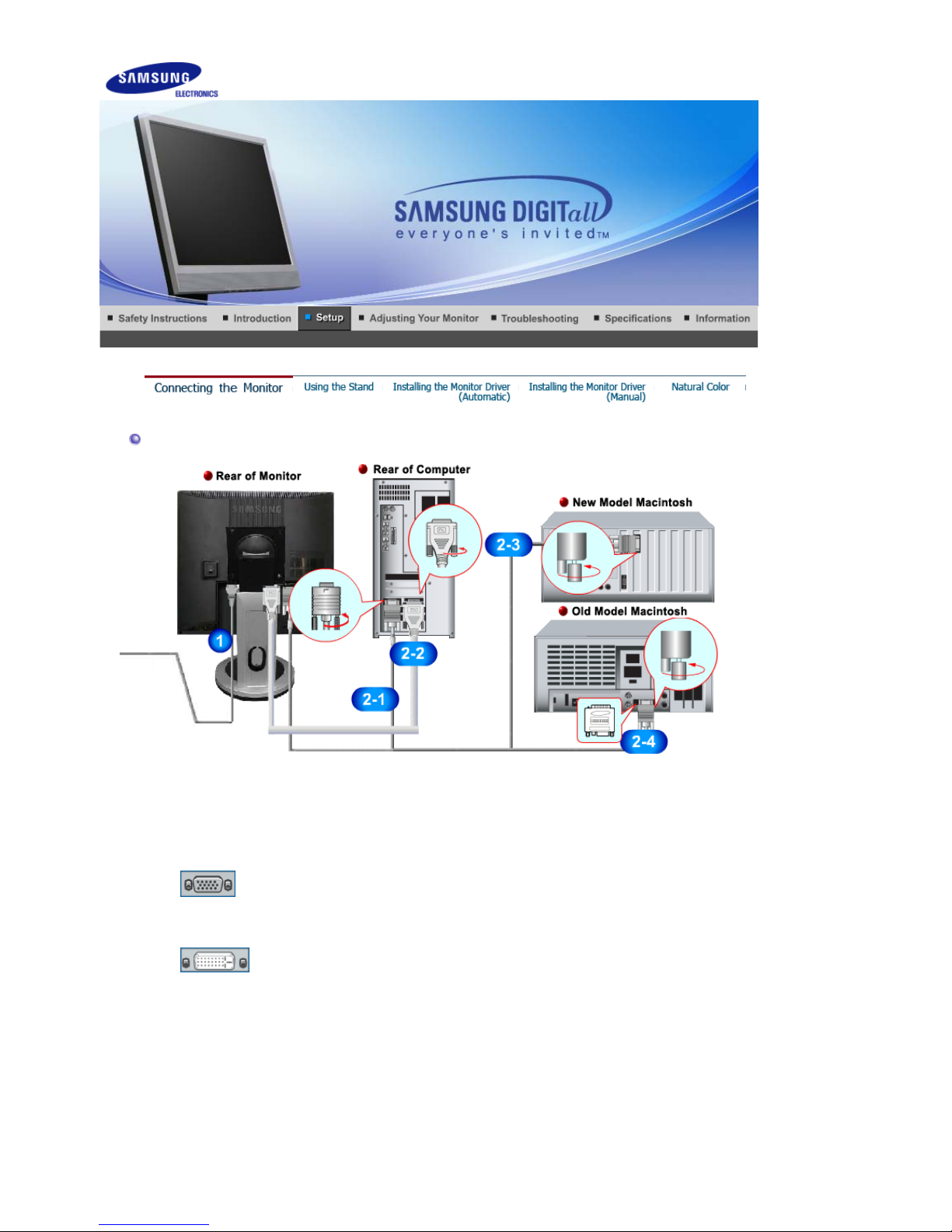

Connecting the Monitor
1. Connect the power cord for your monitor to the power port on the back of the monitor.
Plug the power cord for the monitor into a nearby outlet.
2-1. Using the D-sub (Analog) connector on the video card.
Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.
[ RGB IN ]
2-2. Using the DVI (Digital) connector on the video card.
Connect the DVI Cable to the DVI Port on the back of your Monitor.
[ DVI IN ]
2-3. Connected to a Macintosh.
Connect the monitor to the Macintosh computer using the D-sub connection cable.
2-4. In the case of an old model Macintosh, you need to connect the monitor using a special Mac
adapter.
3. Turn on your computer and monitor. If your monitor displays an image, installation is
complete.

Using the Stand
Pivot Stand / Slidin
g
Stand
A
.Stand Stopper
Attaching a Base
This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

A. Monitor
B. Mounting interface pad
1. Turn off your monitor and unplug its power cord.
2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.
3. Remove four screws and then remove the stand from the LCD monitor.
4. Align the mounting interface pad with the holes in the rear cover mounting Pad and secure it
with four screws that came with the arm-type base, wall mount hanger or other base.
Installing the Monitor Driver (Automatic)
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samsung.com/ (Worldwide)
http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Windows ME
1. Insert CD into the CD-ROM drive.
2. Click "Windows ME Driver".
3. Choose your monitor model in the model list, then click the "OK" button.

4. Click the "Install" button in the "Warning" window.
5. Monitor driver installation is completed.
Windows XP/2000
1. Insert CD into the CD-ROM drive.
2. Click "Windows XP/2000 Driver"
3. Choose your monitor model in the model list, then click the "OK" button.
4. If you can see following message window, then click the "Continue Anyway" button.
Then click "OK" button.
5. Monitor driver installation is completed.
This monitor driver is under certifying MS logo,and this installation don't
damage your system.The certified driver will be posted on Samsung
Monitor momepage
http://www.samsung.com/.

Installing the Monitor Driver (Manual)
Windows XP | Windows 2000 |Windows Me |Windows NT | Linux
When prompted by the operating system for the monitor driver, insert the CD-ROM
included with this monitor. Driver installation is slightly different from one operating
system to another. Follow the directions appropriate for the operating system you
have.
Prepare a blank disk and download the driver program file at the Internet web site shown
here.
zInternet web site : http://www.samsung.com/ (Worldwide)
http://www.samsung.com/monitor (U.S.A)
http://www.sec.co.kr/monitor (Korea)
http://www.samsungmonitor.com.cn/ (China)
Microsoft®Windows®XP Operating System
1. Insert CD into the CD-ROM driver.
2. Click "Start" —> "Control Panel" then click the "Appearance and Themes" Icon.
3. Click "Display" icon and choose the "Settings" tab then click "Advanced..".
4. Click the "Properties" button on the "Monitor" tab and select "Driver" tab.

5. Click "Update Driver.." and select "Install from a list or.." then click "Next" button.
6. Select "Don't search ,I will.." then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver) and choose your monitor model in the
model list and click the "Next" button.
8. If you can see following "Message" window, then click the "Continue Anyway" button. Then
click "OK" button.
This monitor driver is under certified MS logo,and this installation doesn't damage your
system.The certified driver will be posted on Samsung Monitor homepage.
http://www.samsung.com/
9. Click the "Close" button then click "OK" button continually.

10. Monitor driver installation is completed.
Microsoft®Windows®2000 Operating System
When you can see "Digital Signature Not Found" on your monitor, follow these steps.
1. Choose "OK" button on the "Insert disk" window.
2. Click the "Browse" button on the "File Needed" window.
3. Choose A:(D:\Driver) then click the "Open" button and then click "OK" button.
How to install
1. Click "Start" , "Setting" , "Control Panel".
2. Double click the "Display" Icon.
3. Choose the "Settings" tab and then click "Advanced..".
4. Choose "Monitor".
5. Click "Driver" and then click on "Update Driver.." then click on the "Next" button.
6. Choose "Display a list of the known drivers for this device so that I can choose a
specific driver" then click "Next" and then click "Have disk".
7. Click the "Browse" button then choose A:(D:\Driver).
8. Click the "Open" button, then click "OK" button.
9. Choose your monitor model and click the "Next" button then click "Next" button.
10. Click the "Finish" button then the "Close" button.
If you can see the "Digital Signature Not Found" window then click the "Yes"button.
And click the "Finish" button then the "Close" button.
Case1: If the "Properties" button is inactive, it means your monitor is properly configured.
Please stop installation
Case2: If the "Properties" button is active, click the "Properties" button then follow next steps
continually.
Microsoft®Windows®Millennium Operating System
1. Click "Start" , "Setting" , "Control Panel".
2. Double click "Display" icon.
3. Select the "Settings" tab and click "Advanced Properties" button.
4. Select the "Monitor" tab.
5. Click the "Change" button in the "Monitor Type" area.
6. Choose "Specify the location of the driver".
7. Choose "Display a list of all the driver in a specific location.." then click "Next" button.
8. Click the "Have Disk" button
9. Specify A:\(D:\driver) then click "OK" button.
10. Select "Show all devices" and choose the monitor that corresponds to the one you
connected to your computer and click "OK".
11. Continue choosing "Close" button and "OK" button until you close the Display Properties
dialogue box.

Microsoft®Windows®NT Operating System
1. Click Start, Settings, Control Panel, and then double-click Display icon.
2. In Display Registration Information window, click Settings Tab and then click All Display
Modes.
3. Select a mode that you wish to use (Resolution, Number of colors and Vertical frequency)
and then click OK.
4. Click Apply button if you see the screen working normally after clicking Test. If the screen is
not normal, change to a different mode (lower mode of resolution, colors or frequency).
If there is no Mode at All Display Modes, select the level of resolution and vertical
frequency by referring to the Preset Timing Modes in the user guide.
Linux Operating System
To execute X-Window, you need to make the X86Config file, which is a type of system setting file.
1. Press Enter at the first and the second screen after executing the X86Config file.
2. The third screen is for setting your mouse.
3. Set a mouse for your computer.
4. The next screen is for selecting a keyboard.
5. Set a Keyboard for your computer.
6. The next screen is for setting your monitor.
7. First of all, set a horizontal frequency for your monitor. (You can enter the frequency
directly.)
8. Set a vertical frequency for your monitor. (You can enter the frequency directly.)
9. Enter the model name of your monitor. This information will not affect the actual execution
of X-Window.
10. You have finished setting up your monitor.
Execute X-Window after setting other requested hardware.
Natural Color
Natural Colo
r
One of the recent problems in using a computer is that the color of the images printed out by a
printer or other images scanned by a scanner or a digital camera are not the same as those
shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system
developed by Samsung Electronics in association with Korea Electronics &
Telecommunications Research Institute (ETRI).
This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.
