Samsung UH46N-E User manual

User Manual
© Samsung Electronics
Samsung Electronics owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung Electronics is prohibited. Trademarks other than Samsung Electronics are
property of their respective owners.
UH46N-E UM46N-E UH55F-E UM55H-E
The colour and the appearance may differ depending on the product, and the content
in the manual is subject to change without prior notice to improve the performance.
An administration fee may be charged in the following situations:
(a) An engineer is called out at your request, but it is found that the product has no defect
(i.e., where the user manual has not been read).
(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,
where the user manual has not been read).
You will be informed of the administration fee amount before a technician visits.

Table of contents
Before Using the Product
Safety Precautions 5
Safety symbols 5
Electricity and Safety 6
Installation 7
Operation 9
Precautions when handling the panel 11
Cleaning 12
Storage and Maintenance 12
Preparations
Checking the Components 13
Components 13
Parts 14

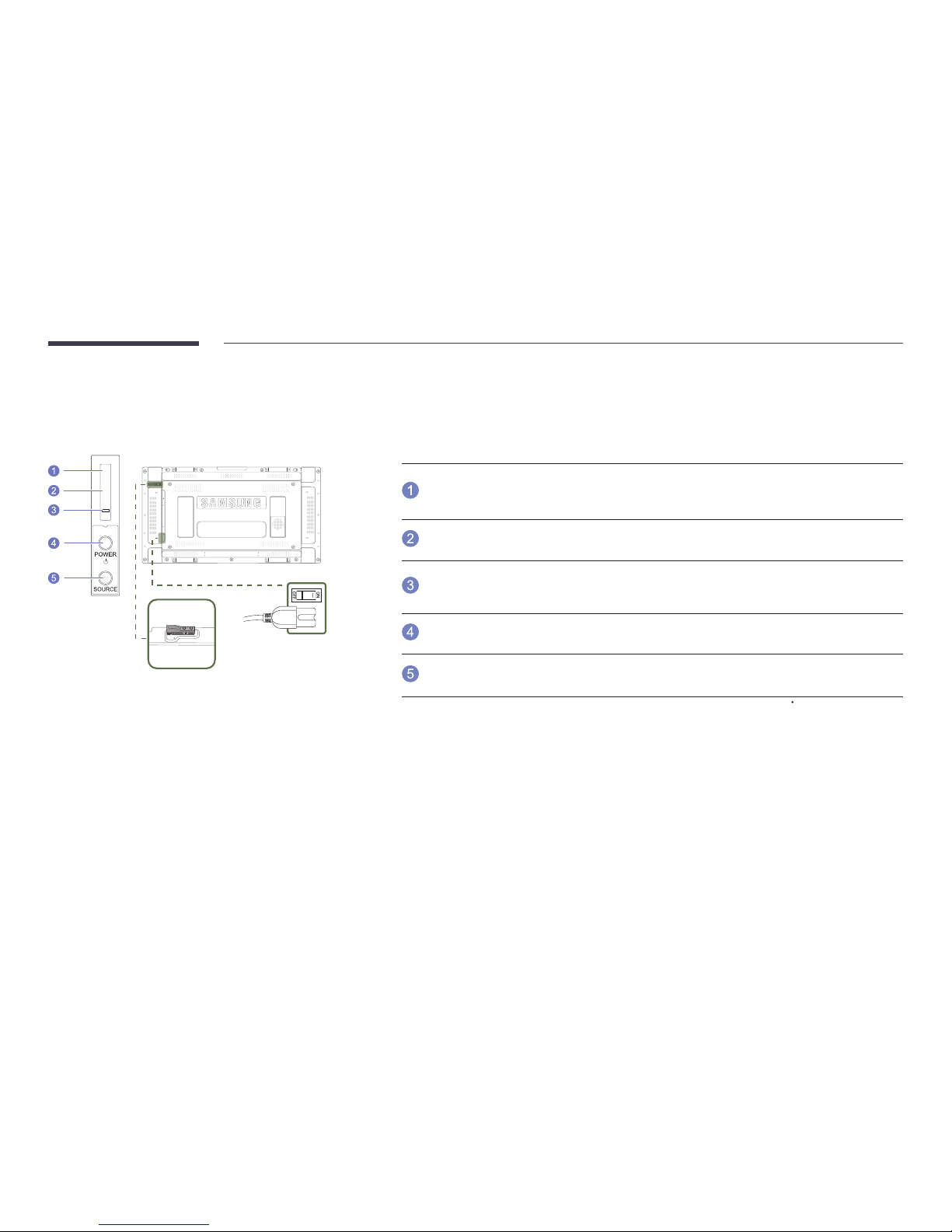

External sensor KIT 14

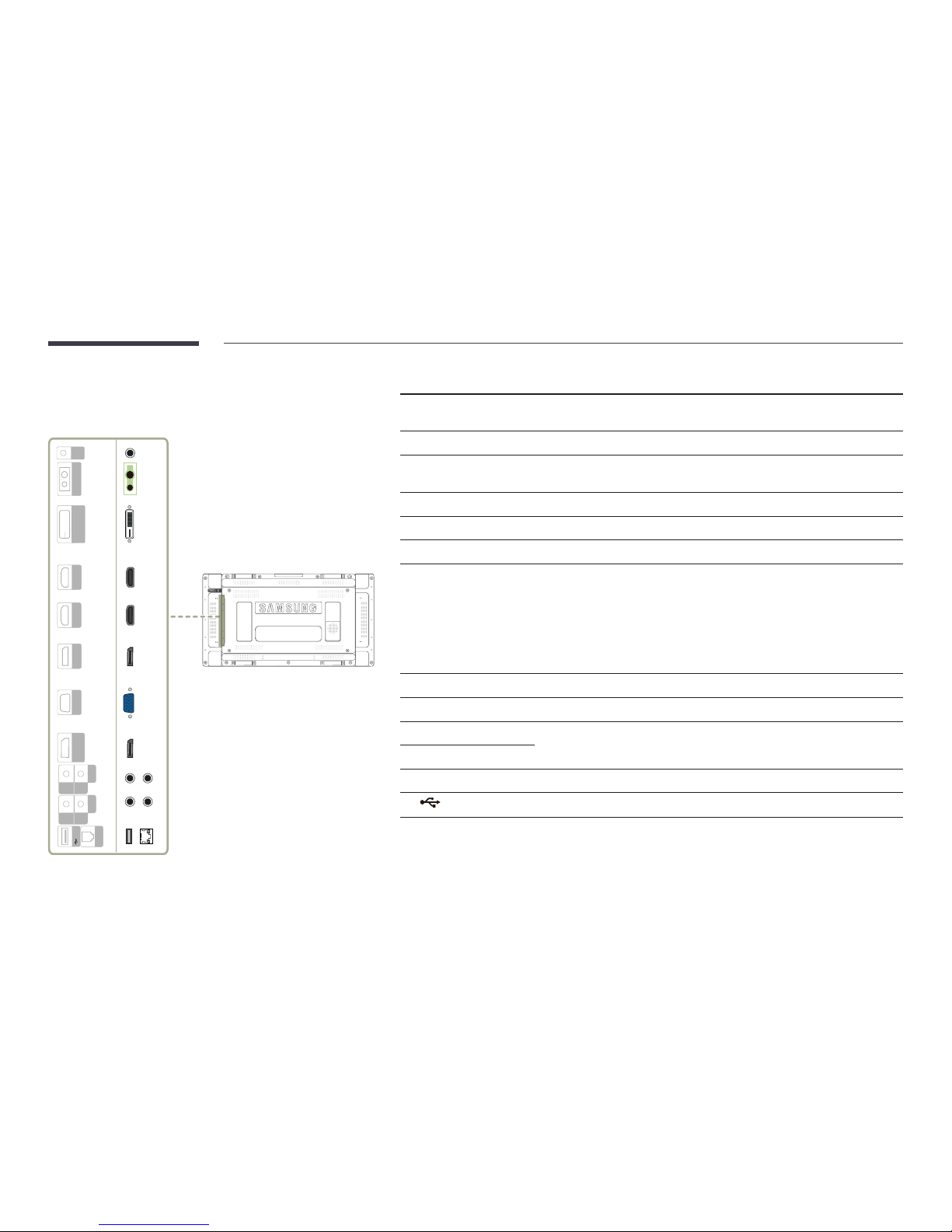

Reverse Side 15

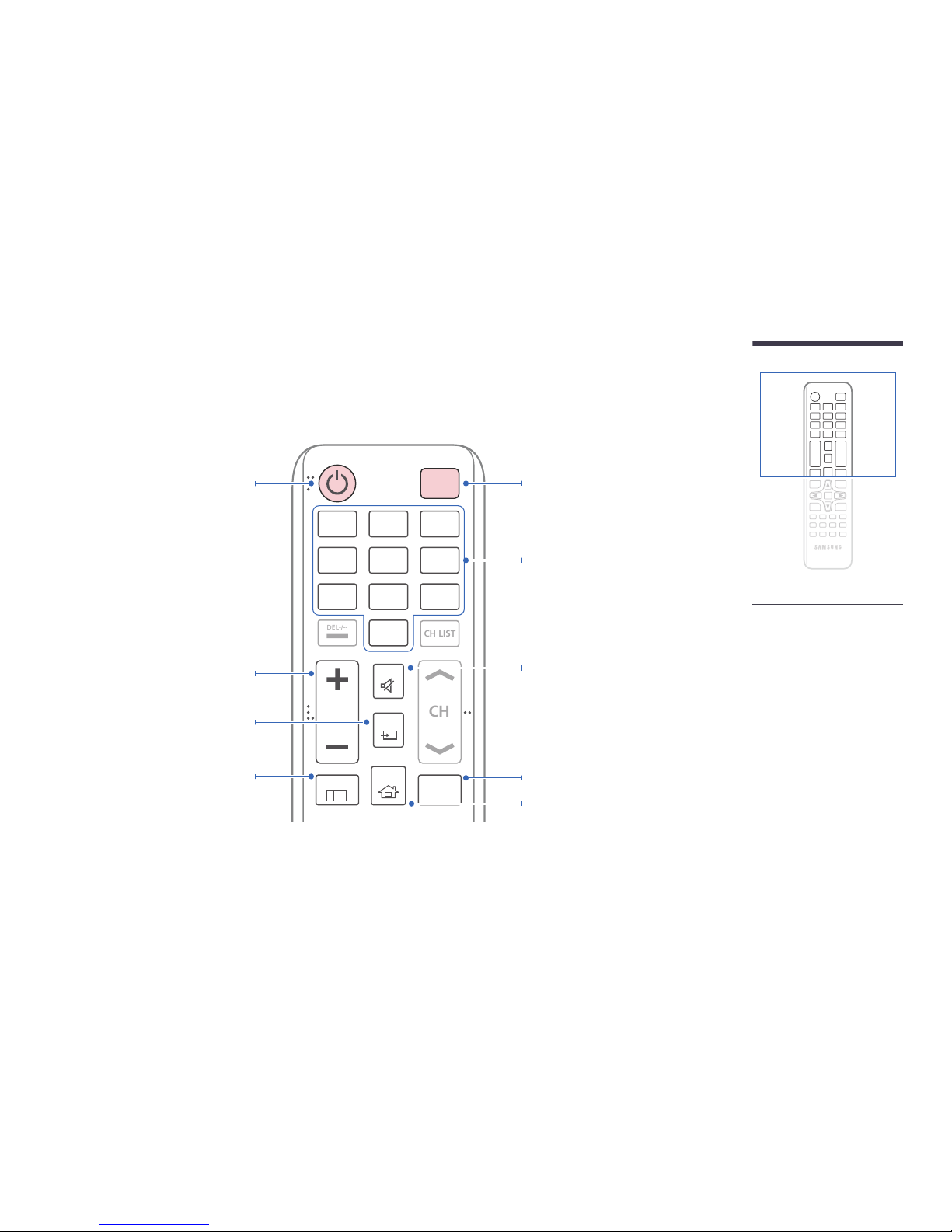

Remote Control 16

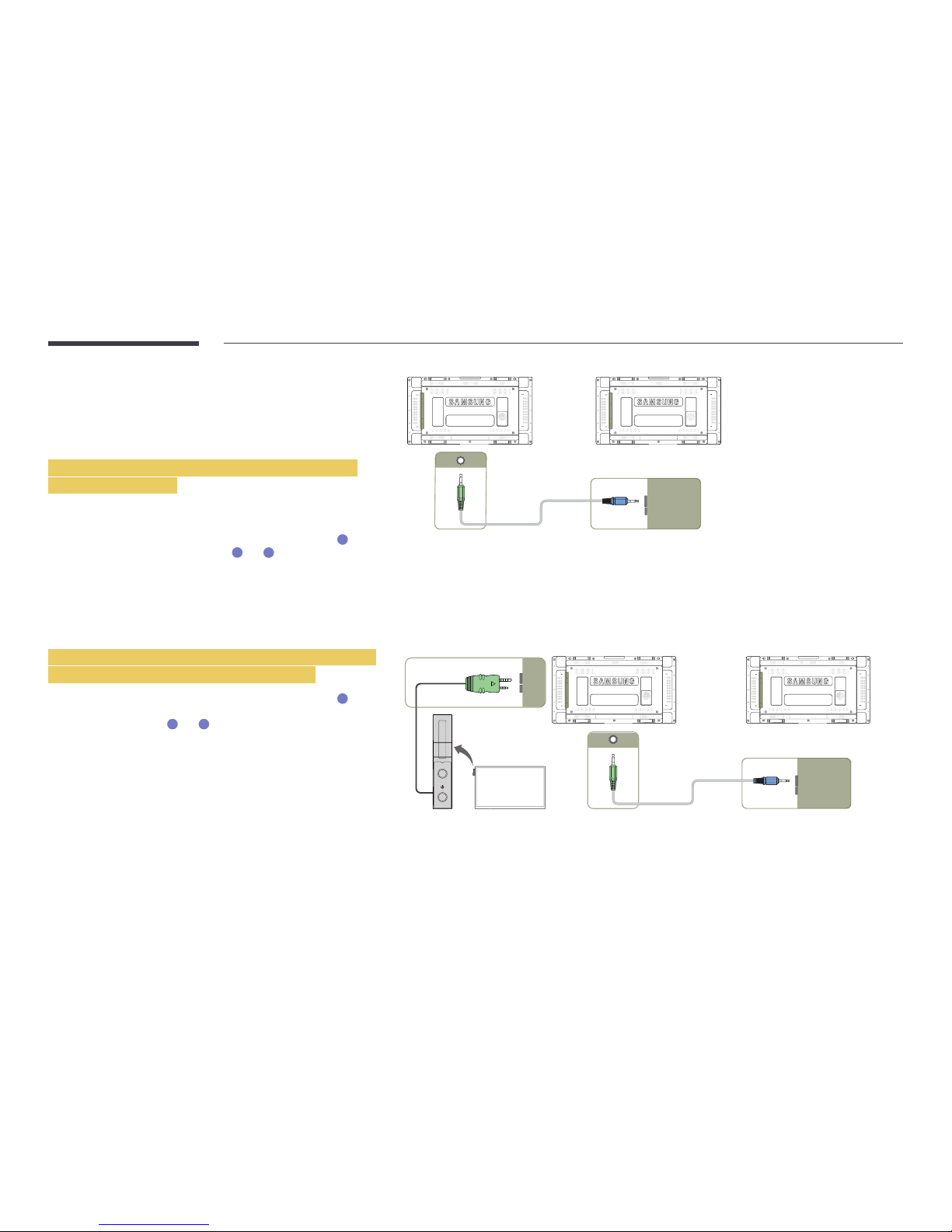

Connection Using an IR Stereo Cable (sold
separately) 18
Before Installing the Product (Installation
Guide) 19
Switching between portrait and landscape 19
Ventilation 19
Installing the Wall Mount 20
Preparing before installing Wall-Mount 20
Installing the Wall Mount 20
Wall Mount Kit Specifications (VESA) 21
Remote Control (RS232C) 22
Cable Connection 22
Connection 25
Control Codes 26
Connecting and Using
a Source Device
Before Connecting 35
Pre-connection Checkpoints 35
Connecting to a PC 35
Connection using the D-SUB cable (Analogue
type) 35
Connection using a DVI cable (Digital type) 36
Connection Using an HDMI-DVI Cable 36
Connection Using an HDMI Cable 37
Connection Using an DP Cable 37
Connecting to a Video Device 38
Connection Using an HDMI-DVI Cable 38
Connection Using an HDMI Cable 39
Connecting to an Audio System 39
Connecting the LAN Cable 40
Connecting the Network box (Sold separately) 41
MagicInfo 41
Changing the Input source 43
Source 43
Using MDC
MDC Programme Installation/Uninstallation 44
Installation 44
Uninstallation 44
Connecting to MDC 45
Using MDC via RS-232C (serial data
communications standards) 45
Using MDC via Ethernet 46
Home feature
Video Wall 48
Video Wall 48
Horizontal x Vertical 48
Screen Position 49
Format 49
Picture Mode 50
On/Off Timer 51
On Timer 51
Off Timer 51
Holiday Management 52
Network Settings 53
MagicInfo Player I 54
ID Settings 55
ID Settings 55
Device ID Auto Set 55
PC Connection Cable 55
2

Table of contents
More settings 56
Screen Adjustment
Picture Mode 57
Backlight / Brightness / Contrast / Sharpness /
Color / Tint (G/R) 58
Color Temperature 58
White Balance 58
Gamma 58
Calibrated Value 58
Picture Options 59
Color Tone 59
HDMI Black Level 59
Dynamic Backlight 59
UHD COLOR 59
Picture Size 60
Picture Size 60
Zoom/Position 60
Resolution 60
Auto Adjustment 61
PC Screen Adjustment 61
Picture Off 61
Reset Picture 61
OnScreen Display
Display Orientation 62
Onscreen Menu Orientation 62
Source Content Orientation 62
Aspect Ratio 62
Screen Protection 63
Pixel Shift 63
Timer 63
Immediate Display 63
Side Gray 63
Message Display 64
Source Info 64
No Signal Message 64
MDC Message 64
Menu Language 64
Reset OnScreen Display 64
System
Setup 65
Time 66
Clock Set 66
DST 66
Sleep Timer 66
Power On Delay 66
MagicInfo I Source 66
Auto Source Switching 67
Auto Source Switching 67
Primary Source Recovery 67
Primary Source 67
Secondary Source 67
Power Control 67
Auto Power On 67
PC Module Power 67
Standby Control 68
Network Standby 68
Power Button 68
Eco Solution 68
Energy Saving 68
Eco Sensor 68
Screen Lamp Schedule 69
No Signal Power Off 69
Auto Power Off 69
Temperature Control 69
Change PIN 69
General 70
Security 70
HDMI Hot Plug 70
Reset System 70
3

Table of contents
Sound Adjustment
HDMI Sound 71
Sound on Video Call 71
Reset Sound 71
Support
Software Update 72
Contact Samsung 72
Go to Home 73
Video Wall 73
Picture Mode 73
On/Off Timer 73
Network Settings 73
MagicInfo Player I 73
ID Settings 73
More settings 73
Reset All 73
Troubleshooting Guide
Requirements Before Contacting Samsung
Customer Service Centre 74
Testing the Product 74
Checking the Resolution and Frequency 74
Check the followings. 75
Q & A 82
Specifications
General 83
Preset Timing Modes 84
Appendix
Responsibility for the Pay Service (Cost to
Customers) 87
Not a product defect 87
A Product damage caused by customer's fault 87
Others 87
Prevention of Afterimage Burn-in 88
What is afterimage burn-in? 88
Recommended prevention practices 88
Licence 89
Terminology 90
4

5
Before Using the Product
Chapter 01
Safety Precautions
The following safety instructions are to ensure your personal safety and prevent property
damage. Please read the following to ensure the proper use of the product.

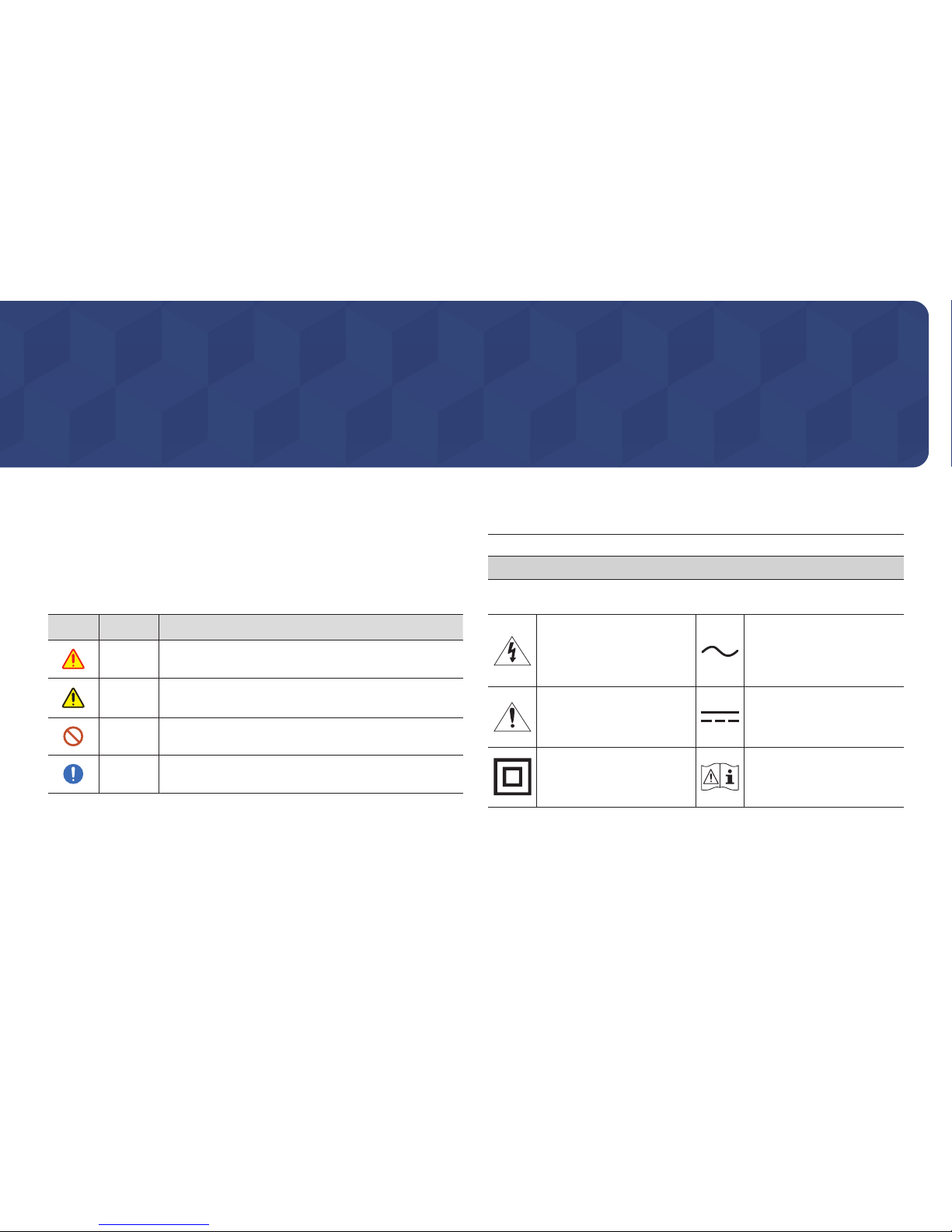

Safety symbols
Symbol Name Meaning
Warning A serious or fatal injury may result if instructions are not followed.
Caution
Personal injury or damage to properties may result if instructions
are not followed.
Prohibition Do NOT attempt.
Instruction Follow directions.
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.
This symbol indicates that high
voltage is present inside. It is
dangerous to make any kind of
contact with any internal part of this
product.
AC voltage: Rated voltage marked
with this symbol is AC voltage.
This symbol indicates that this
product has included important
literature concerning operation and
maintenance.
DC voltage: Rated voltage marked
with this symbol is DC voltage.
Class II product: This symbol
indicates that a safety connection
to electrical earth (ground) is not
required.
Caution. Consult instructions for use:
This symbol instructs the user to
consult the user manual for further
safety related information.

6

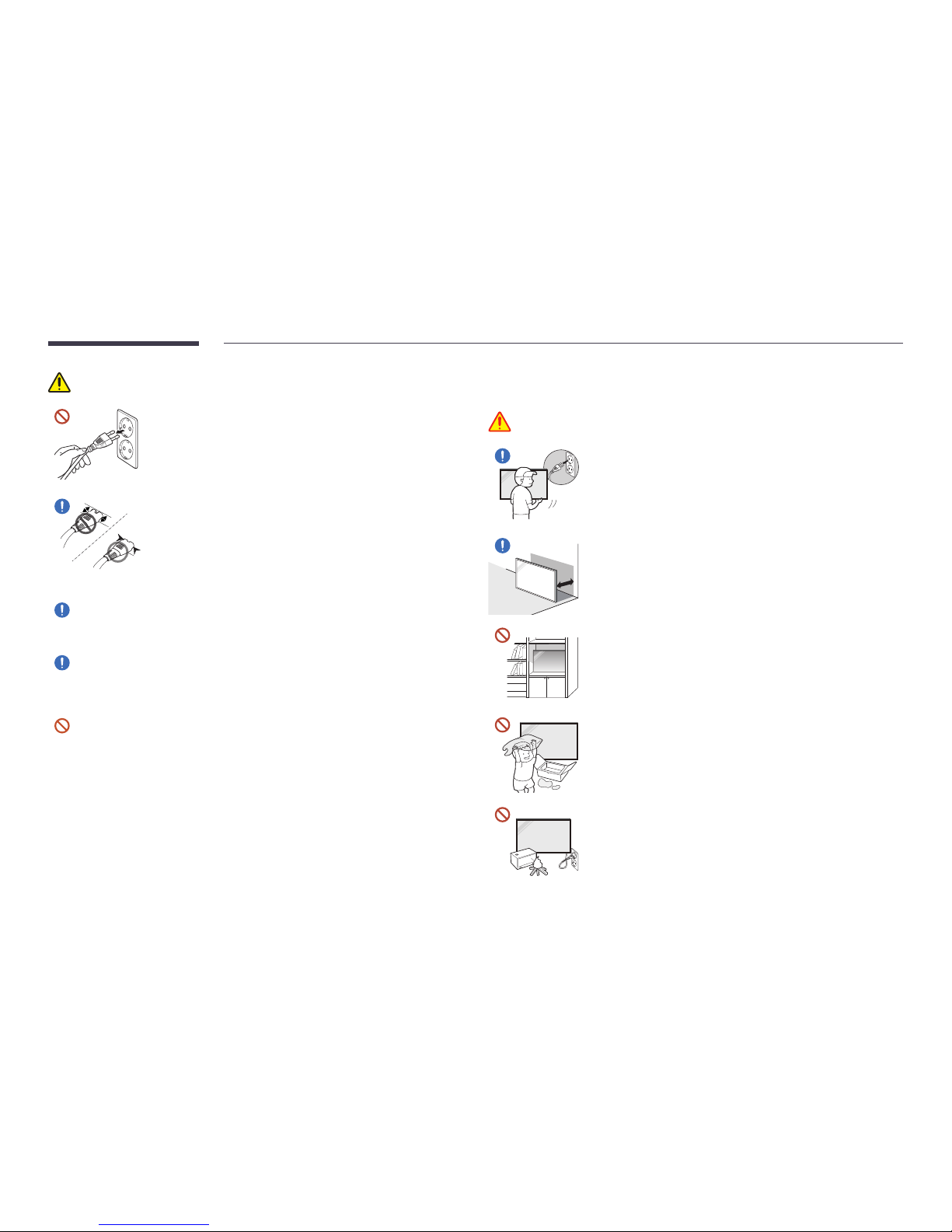

Electricity and Safety
The following images are for reference only. Real-life situations may differ from what is
shown in the images.
Warning
Do not touch the power plug with wet hands.
Otherwise, an electric shock may result.
Do not bend or pull the power cable with force. Be careful not to leave
the power cable under a heavy object.
Product failure, an electric shock or fire may result from a damaged
cable.
Do not connect multiple products to a single power socket.
Overheated power sockets may cause a fire.
Insert the powerplug all the way in so it is not loose.
An unsecure connection may cause a fire.
Clean any dust around the pins of the power plug orthe power socket with a dry cloth.
A fire may result.
Connect the power plug to a grounded power socket. (Except for devices that do not
provide grounding)
An electric shock or injury may result.
Do not use a damaged powerplug or a loose powersocket.
An electric shock or fire may result.

7
Caution
Hold the plug when disconnecting the powercable from the power
socket.
An electric shock or fire may result.
When connecting the powerplug to the port, be sure to connect it
completely.
If the power plug is not completely connected to the port, the plug
may be unexpectedly disconnected, or there is a risk of overheating
due to overcurrent, leading to safety accidents.
Only use the powercable provided with your product by Samsung. Do not use the power
cable with other products.
An electric shock or fire may result.
Keep the power socket where the power cord is connected unobstructed.
When a problem occurs with the product, the power cord must be unplugged to
completely cut off power to the product. The power is not completely cut off by using
only the Power button on the body of the product.
Do not disconnect the power cable while the product is being used.
The product may become damaged by an electric shock.

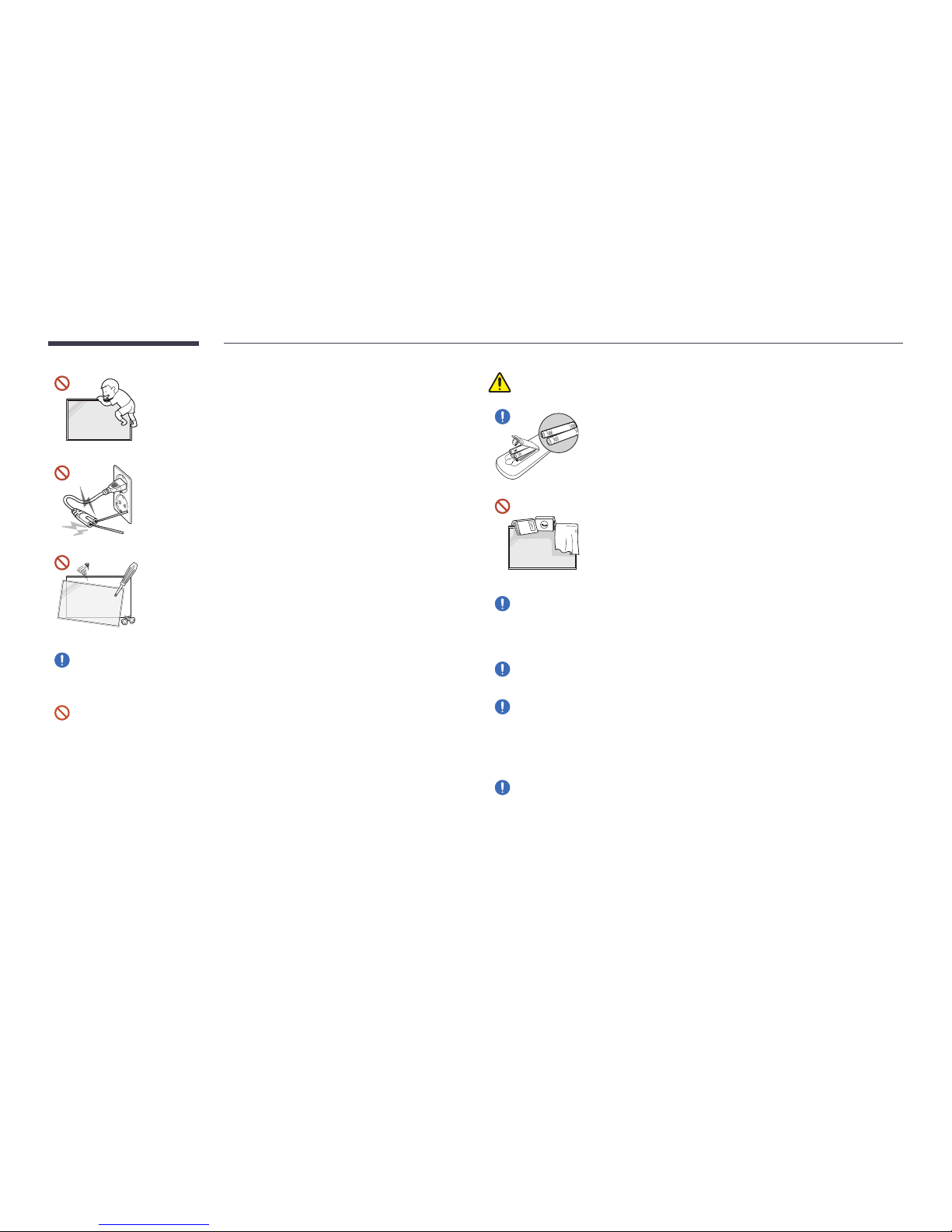

Installation
Warning
Before moving the product, turn off the power switch and disconnect
the powercable and all other connected cables.
Damage to the cable may cause a fire or electric shock.
When installing the product, keep it at a distance from the wall so that it
is well ventilated.
An increased internal temperature may cause a fire.
Do not install the product in a poorlyventilated space such as bookcase
or closet.
An increased internal temperature may cause a fire.
Keep the plastic packaging out of the reach of children.
Children's misuse of the plastic packaging may cause suffocation.
Do not install the power cable (DC power supply) and the product near
head sources.
(Candles, mosquito repellents, cigarettes, sprays, heating devices,
places exposed to direct sunlight, and more)

8
When installing the product, x it rmly so that it does not fall.
If the product is not fixed firmly and a child touches the product while
playing, the product may fall, causing damage to the product or injury
to the child.
Do not install the product in a kitchen or near a kitchen counter.
Edible oil or oil vapor can damage or deform the product.

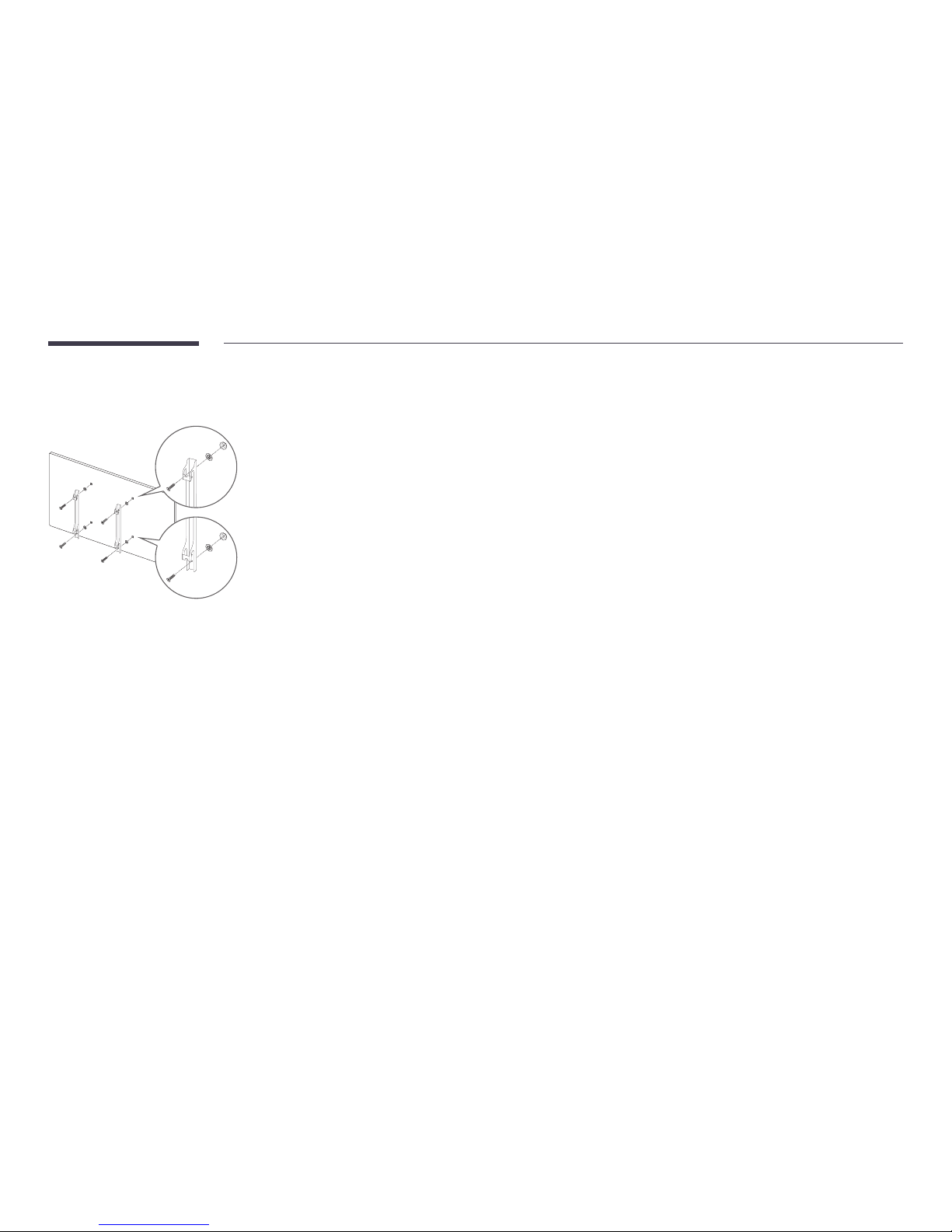

Have a technician install the wall-mount hanger.
Installation by an unqualified person can result in an injury. Only use approved
cabinets.
If the product is installed in an unusual location, the surrounding environment may cause
a serious quality problem. Therefore, be sure to contact Samsung Customer Service
Centre before installation.
(Places where many fine dusts are generated, places where chemicals are used,
places with too high or low temperatures, places with a lot of moisture orwater,
transportation equipment such as vehicles, airports and stations used continuously
for a long time, and more)

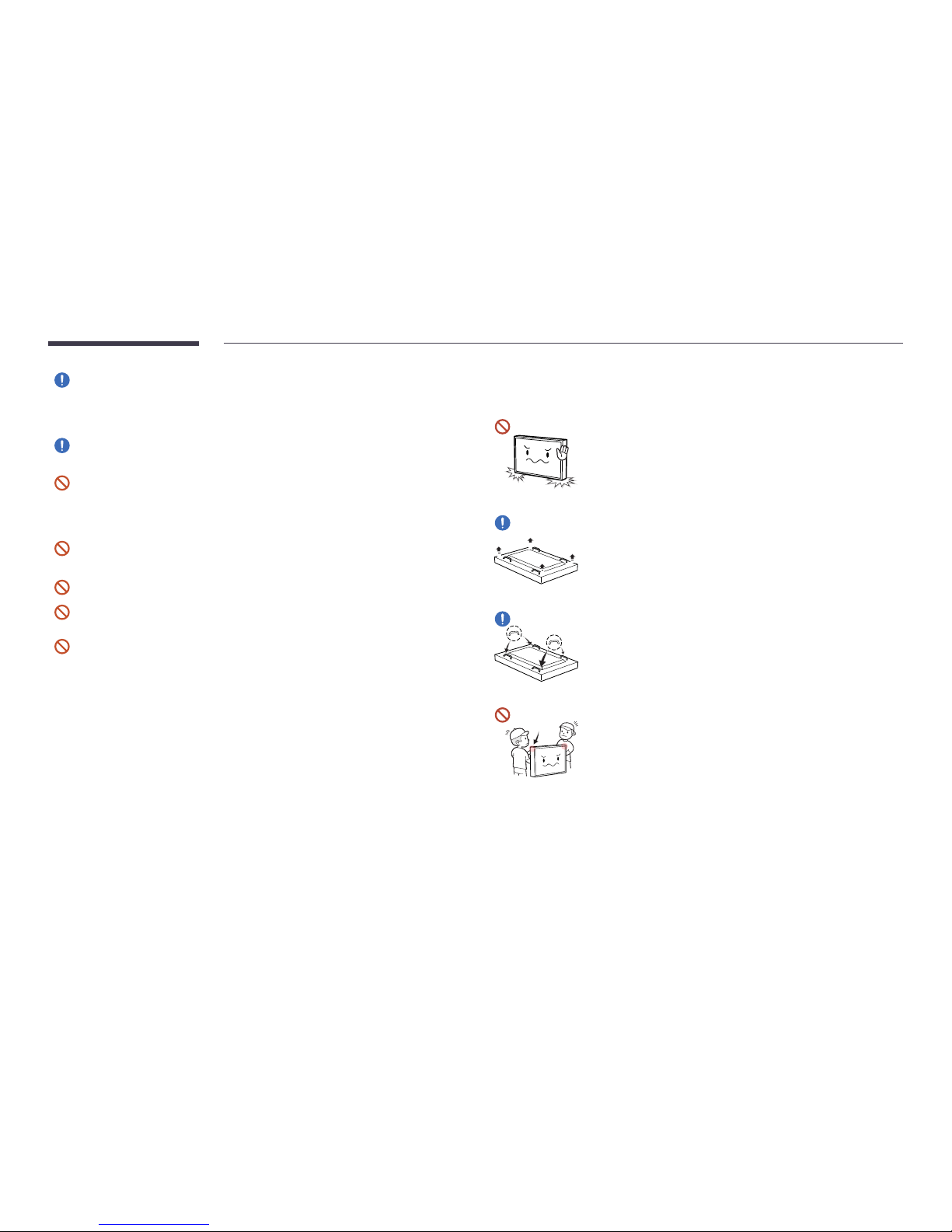

Caution
When lifting and moving the product, do not touch the screen display,
and make sure that at least two people work together.
The product may fall, causing personal injury or product damage.
Do not lay down the product on its front.
The screen may become damaged.
Prolonged exposure to direct sunlight may discolour the surface of the screen display.

9

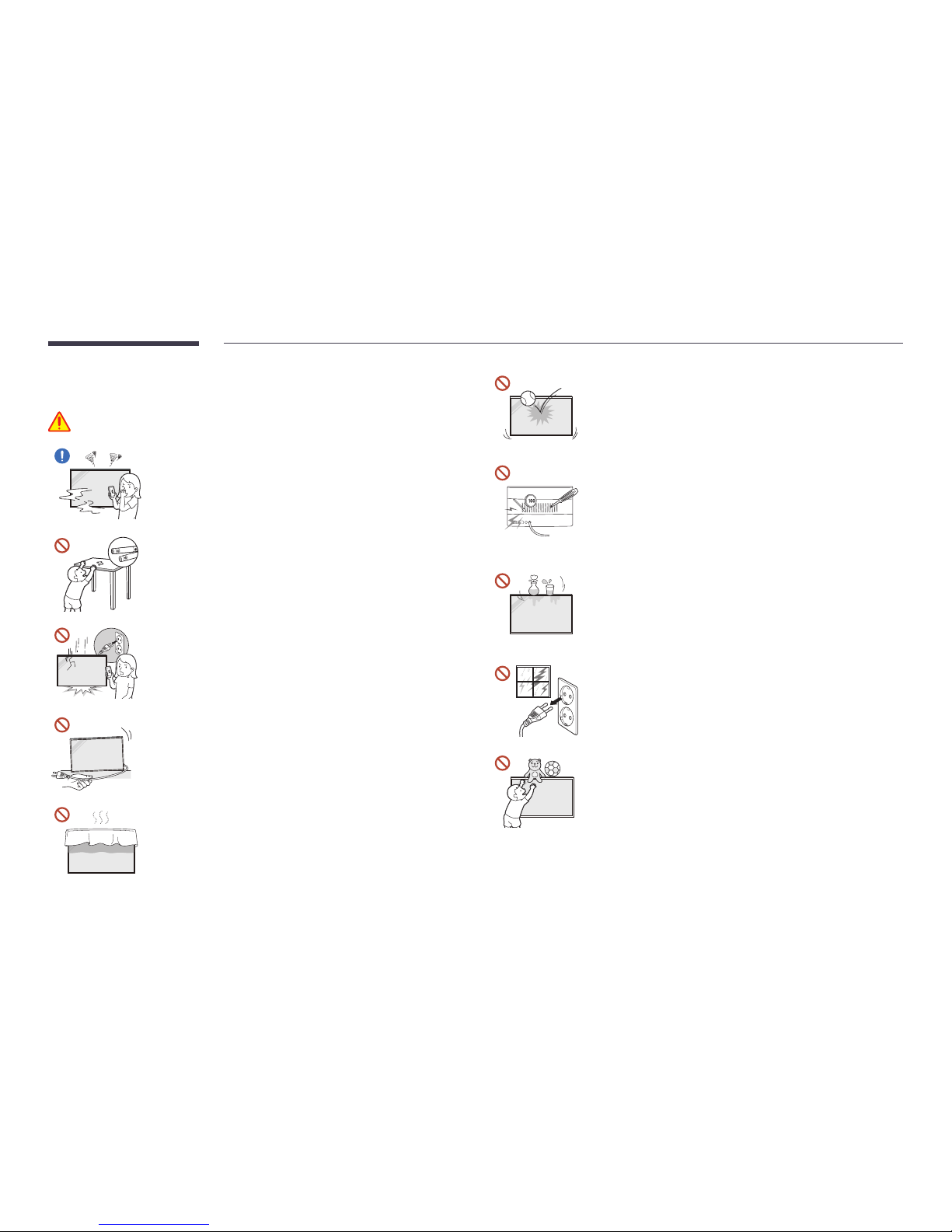

Operation
Warning
If the product generates a strange noise, a burning smell, or smoke,
unplug the powerplug immediately and contact yourSamsung
Customer Service Centre.
An electric shock or fire may result.
Keep the remote control batteries and the small accessories out of the
reach of children. Ensure children do not swallow any of them.
If children have had the battery in their mouths, consult your doctor
immediately.
If the product is dropped or its appearance is damaged, turn off the
powerswitch and disconnect the power cord. Then contact Samsung
Customer Service Centre.
Continued use can result in an electric shock or a fire.
Do not move the product by pulling the power cord or any cable.
Product failure, an electric shock or fire may result from a damaged
cable.
Ensure the vents are not blocked bytablecloths or curtains.
An increased internal temperature may cause a fire.
Do not apply an impact to the product.
The screen display may be damaged.
An electric shock or fire may result.
Do not insert metallic objects (chopsticks, coins, hairpins, etc) or objects
that burn easily (paper, matches, etc) into the product (via the vent or
input/output ports, etc).
If foreign substances enter the product, be sure to power off the
product and disconnect the power cord. Then contact Samsung
Customer Service Centre.
Product failure, an electric shock or fire may result.
Do not place objects containing liquid (vases, pots, bottles, etc) or
metallic objects on top of the product.
If foreign substances such as water enter the product, be sure
to disconnect the power cord. Then contact Samsung Customer
Service Centre.
Product failure, an electric shock or fire may result.
During a lightning or thunderstorm, power off the product and
disconnect the power cord.
An electric shock or fire may result.
Do not leave heavy objects or items that children like (toys, sweets, etc.)
on top of the product.
The product or heavy objects may fall as children try to reach for the
toys or sweets resulting in a serious injury.

10
Do not hang on or climb on the product.
The product may fall, causing personal injury or even death.
Be especially careful that children do not hang on or climb on
the product.
While the power plug is plugged into a power socket, do not insert a
chopstick or other conductor into a remaining power socket. Also, after
disconnecting the powerplug from the power socket, do not touch the
pins of the plug immediately.
Otherwise, an electric shock may result.
There is a high voltage inside the product. Never disassemble, repair or
modify the product yourself.
Contact Samsung Customer Service Centre for repairs.
An electric shock or fire may result.
If a gas leakage is found, do not touch the product orthe power plug, and ventilate the
room immediately.
Sparks can cause an explosion or fire.
Do not use humidiers or stoves around the product.
An electric shock or fire may result.
Caution
Insert each battery so that its polarity (+, –) is correct.
If the polarity is not correct, the battery may rupture or the
internal fluid may leak, causing contamination and damage to the
surroundings, fire, or personal injury.
Do not place heavy objects on the product.
Product failure or personal injury may result.
When you do not use the product for a long time due to vacation or other reason,
disconnect the powercord from the powersocket.
Dust accumulation combined with heat can cause a fire, electric shock or electric
leakage.
Use the product at the recommended resolution and frequency.
Your eyesight may deteriorate.
The batteries (and rechargeable batteries) are not ordinary refuse and must be returned
forrecycling purposes. The customeris responsible for returning the used orrechargeable
batteries for recycling.
The customer can return used or rechargeable batteries to a nearby public recycling
centre or to a store selling the same type of the battery or rechargeable battery.
Rest your eyes for more than 5 minutes forevery1 hourof product use.
Eye fatigue will be relieved.

11
Leaving the screen xed on a stationary image for an extended period of time may cause
afterimage burn-in or defective pixels.
When you do not use the product for a long time, activate power-saving mode or set
the screen saver to moving-picture mode.
Do not use or keep combustible spray or an inammable substance near the product.
An explosion or fire may result.
Use only the specied standardised batteries, and do not use a new battery and a used
battery at the same time.
Otherwise, the batteries may be damaged or cause fire, personal injury or damage due
to a leakage of the internal liquid.
Do not watch the product screen too closely and continuously for a long time.
Your eyesight may deteriorate.
Do not lift or move the product when it is in operation.
Do not touch the screen when the product has been turned on for an extended period of
time as it will become hot.
When using headphones or earphones, do not turn the volume too high oruse them fora
long time.
Damage to your hearing may result.
Precautions when handling the panel
Do not stand the product as shown in the image. The panel is fragile
and can get damaged.
Lay the product down to handle it as shown in the image. (the
packaging can be used).
Ensure you use the handles on the back when moving the product.
15 mm
Do not hold or grasp any area of the product within 15 mm from the
front.

12
Cleaning
Warning
Do not spray water or cleaner directly on the product.
The product’s surface may be damaged, or the markings may
be erased.
An electric shock or fire may result.
Caution
When cleaning, be sure to disconnect the powerplug and wipe gently with a soft and dry
cloth such as superne bers or cotton annels to prevent scratches.
The product's surface may be damaged, or the markings may be erased.
Be sure to use a soft and dry cloth such as superne bers or cotton annels because the
surface of the product and the screen display are vulnerable to scratches.
The product's surface or the screen display can be easily scratched with foreign
substances.
Do not apply chemicals containing alcohol, solvent, orsurfactant such as wax, benzene,
thinner, pesticide, air freshener, lubricant, or cleaner to the product.
The product's exterior may be discoloured or cracked, the surface of the panel may be
peeled off, or the markings may be erased.
Storage and Maintenance
Cleaning the exterior and display
Wipe the surface with a slightly wet, soft cloth, and then wipe with a dry cloth.
1 2 3
Precautions
Do not scratch the screen
with nails or sharp objects.
Scratches may leave marks or
damage the product.
Do not spray water directly
on any part of the product.
Product failure, an electric
shock or fire may result from
water that enters the product.
Due to the characteristics of
high-glossy products, using
a UV humidifier nearby may
create white-coloured stains
on the product.
Removing a sticker attached on the screen may leave residues. Clean the residues before
watching the screen.
Do not strongly press and rub the product. Damage to the product may result.
Do not wipe the screen with chemicals. Product failure may result.
Contact Customer Service Centre if the inside of the product needs cleaning (service fee
will be charged).

13
– Contact the vendor where you
purchased the product if any
components are missing.
– The pictures may look different from
the actual components.
Checking the Components
Components
Components may differ in different locations.
Quick Setup Guide Warranty card
(Not available in some locations) Regulatory guide Power cord
Batteries
(Not available in some locations) Remote Control DP cable RS232C(IN) adapter
Holder-Ring x 4 / Screw x 4
Preparations
Chapter 02

14
Parts
External sensor KIT
The External sensor KIT has a remote-control sensor, a brightness sensor and function keys. If mounting the
display onto a wall, you can move the External sensor KIT to the side of the display.
The colour and shape of parts may differ from what is shown. Specifications are subject to change without notice
to improve quality.
Buttons Description
Remote Control Sensor
Aim the remote control towards this spot on the LCD Display.
Keep the area between the remote sensor and remote control obstacle-
free.
Light sensor
Automatically detects the intensity of ambient light around a selected
display and adjusts the screen brightness.
Power indicator
The power indicatorwill turn off when the product is turned on. It will blink
in power-saving mode.
POWER button Use this button for turning the LCD Display on and off.
SOURCE button
Switches from PC mode to Video mode.
Selects the input source that an external device is connected to.
Use the remote control within 7m to 10m from the sensor on the product at an angle of 30 from the left and right.
Store used batteries out of reach of children and recycle.
Do not use a new and used battery together. Replace both batteries at the same time.
Remove batteries when the remote control is not to be used for an extended period of time.

15
Reverse Side
The colour and shape of parts may differ from what is shown.
Specifications are subject to change without notice to improve quality.
IR
OUT CONTROL IN DP IN
HDMI IN 1 HDMI IN 2
DVI IN
(MAGICINFO) RGB IN USB
DP OUT
(LOOPOUT) IN
OUT
RS232C
IN
OUT
AUDIO RJ45
Port Description
IR OUT
Receives the remote control signal via the external sensor board and outputs the
signal via LOOP OUT.
CONTROL IN
Supplies power to the external sensor board or receives the light sensor signal.
DVI IN (MAGICINFO)
DVI IN: Connects to a source device using a DVI cable or HDMI-DVI cable.
MAGICINFO: To use MagicInfo, make sure to connect the DP-DVI cable.
HDMI IN 1, HDMI IN 2
Connects to a source device using an HDMI cable.
DP IN
Connects to a PC using a DP cable.
RGB IN
Connects to a source device using a D-SUB cable.
DP OUT (LOOPOUT)
Connects to another product using a DP cable.
When connecting monitors through DP Loopout, using the DP cable that came
with the package is recommended.
This port uses an algorithm that is specific to UHD resolution input and
output. The port is not compatible with monitors that have FHD content-
specific DP Loopout ports. Connecting Loopout ports between monitors of
the same model is recommended.
AUDIO IN
Receives sound from a source device via an audio cable.
AUDIO OUT
Outputs sound to an audio device via an audio cable.
RS232C IN
Connects to MDC using an RS232C adapter.
RS232C OUT
RJ45
Connects to MDC using a LAN cable. (10/100 Mbps)
USB
Connect to a USB memory device. (Only for update purpose)

16
– Remote control button functions
may differ for different products.
Remote Control
Using other display devices in the same space as the remote control of this product can cause the other display devices to be inadvertently controlled.
A button without a description in the image below is not supported on the product.
HOME
MENU
POWER
OFF
VOL
CH
MagicInfo
Player I
.QZ
1
ABC
2
DEF
3
GHI
4
JKL
5
MNO
6
SYMBOL
0
PRS
7
TUV
8
WXY
9
MUTE
DEL-/--
SOURCE
CH LIST
Power off the product.
Number buttons
Enter the password in the OSD menu.
Mute the sound.
Unmuting the sound: Press MUTE again or
press the volume control(+ VOL -) button.
Go to Home Launch Button.
Display or hide the onscreen display menu, or
return to the previous menu.
Power on the product.
Adjust the volume.
Change the input source.
Use this hotkey to directly access MagicInfo
Player I.
This hotkey is available when a network box
or PIM (Plug In Module) is connected.

17
TOOLS INFO
SET
UNSET
LOCK
PC
A
DVI
B
HDMI
C
DP
D
EXITRETURN
IR control
Display information about the current input
source.
Move to the upper, lower, left or right menu,
or adjust an option's setting.
Confirm a menu selection.
Exit the current menu.
Manually select a connected input source
from PC, DVI, HDMI, or DisplayPort.
Quickly select frequently used functions.
Return to the previous menu.
It sets safe lock function.
If multiple products are connected through the
Video Wall feature, press the SET button and
enter a product ID using the numberbuttons.
Control the product using the remote control.
Cancel a value that has been set using the
SET button and control all connected products
using the remote control.
– Remote control button functions
may differ for different products.
To place batteries in the remote control

18
Connection Using an IR Stereo Cable (sold
separately)
Make sure to connect the External ambient sensorwhile the product is
powered off. Then, power on the product.
Controlling more than one display product using
your remote control
Connect the IR OUT port on the product to the CONTROL IN port on
the other display product using the dedicated stereo cable.
A command sent from the remote control pointed at product
1
will
be received by both display products
1
and
2
.
The appearance may differ depending on the product.
1 2
IR OUT
CONTROL IN
Controlling more than one display product using an
External ambient sensor (sold separately)
A command sent from the remote control pointed at product
1
(to
which the External ambient sensor is connected) will be received by
both display products
1
and
2
.
The appearance may differ depending on the product.
1 2
IR OUT
CONTROL IN
CONTROL IN
POWER
SOURCE

19
Before Installing the Product (Installation
Guide)
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance
with the installation instructions.
Ensure that an authorised installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
Make sure to install the specified wall mount.
Switching between portrait and landscape
Contact Samsung Customer Service Centre for further details.
To use the product in portrait orientation, rotate it clockwise.
Do not use this model installed on a ceiling, floor, or table.
Ventilation
Installation on a PerpendicularWall
AMinimum 40 mm
B
When installing the product on a perpendicularwall, allow at
least 40 mm of space between the product and wall surface for
ventilation and ensure that the ambient A temperature is kept
 A
B
Installation on an Indented Wall
Contact Samsung Customer Service Centre for further details.
Plane view
AMinimum 40 mm
BMinimum 70 mm
CMinimum 50 mm
DMinimum 50 mm
E
When installing the product on an indented wall,
allow at least the space specified above between
the product and wall forventilation and ensure

B
D
C
D
B
C
E
A

20
Installing the Wall Mount
1
Preparing before installing Wall-Mount
To install a wall-mount from another manufacturer, use the Holder-Ring(
1
).
Installing the Wall Mount
The wall mount kit (sold separately) allows you to mount the product on the wall.
For detailed information on installing the wall mount, see the instructions provided with the wall mount.
We recommend you contact a technician for assistance when installing the wall mount bracket.
Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you select to
install the wall mount on your own.
