Samsung PS50C6500TK User manual

English -4

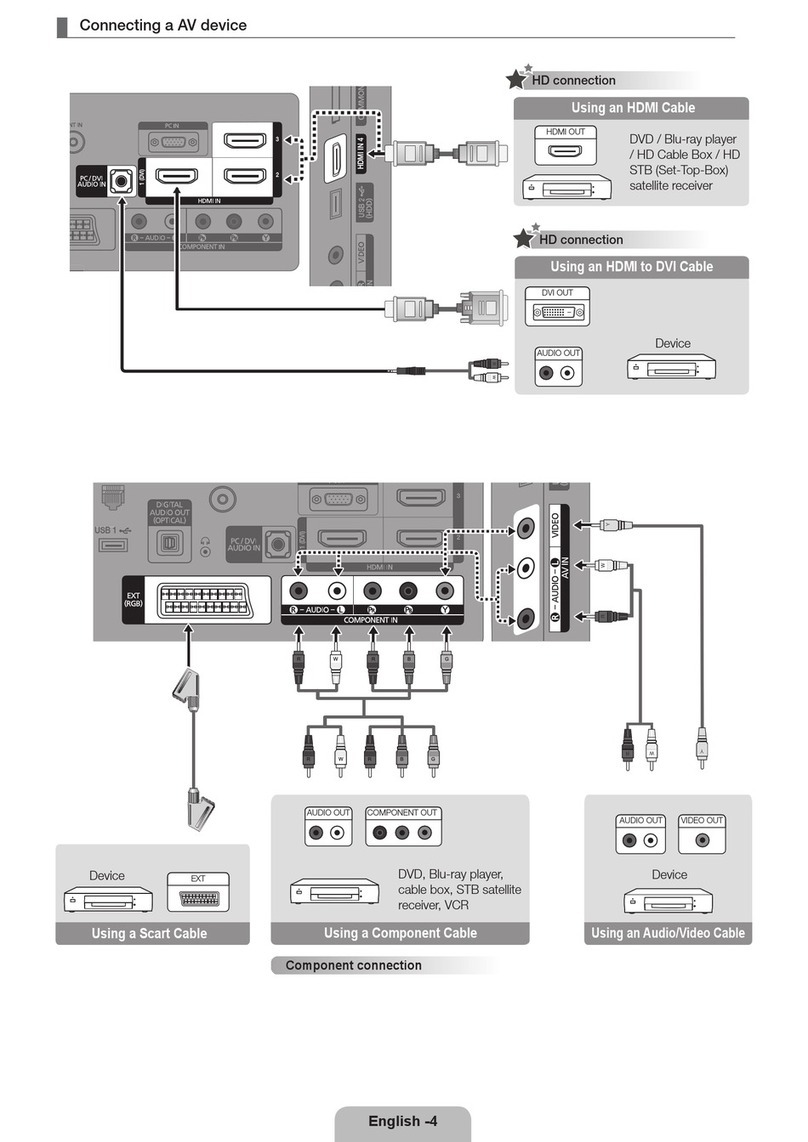

¦¦Connecting¦a¦AV¦device
W
R
Y
WR
W
R
G
B
R
R
B G
Y
W R
HD¦connection
DVD, Blu-ray player,
HD cable box, HD
STB (Set-Top-Box)
satellite receiver, cable
box, satellite receiver
(STB)
Using an HDMI Cable
HDMI OUT
VCR/Device
Using a Scart Cable
EXT
W
R
Y
WR
W R
G
B
R
R
B G
Y
W R
HD¦connection
DVD / Blu-ray player
Using an HDMI to DVI Cable
DVI OUT
AUDIO OUT
Component connection
VCR, DVD,
Blu-ray player,
cable box, STB
satellite receiver
Using a Component Cable
AUDIO OUTCOMPONENT OUT
VCR
AUDIO OUTVIDEO OUT
Using an Audio/Video Cable
[QSG]BN68-02806A-00Eng.indd 1 2010-03-25 오후 2:31:03

¦¦The¦Supplied¦Accessories
yRemote Control & Batteries (AAA x 2)
yOwner’s Instructions
yCleaning Cloth
yBlanking Bracket & Screw (X1) yHolder-Wire stand
yCable Tie yHolder-Wire (3EA) ySCART Adapter
yComponent Adapter yAV Adapter yFerrite Core (2EA) yFerrite Core (2EA)
✎
Ferrite Core: The ferrite cores are used to shield the
cables from interference. When connecting a cable,
open the ferrite core and clip it around the cable near
the plug as shown in the figure.
Distance between the ferrite core and one end
of the cord put into the TV set.
AB
yA : below 50 mm
yB : below 20 mm
See separate guide for installing the stand.
s
s
s
s
s
yStand (1EA) yGuide Stand (1EA) yScrews
Plasma TV
QUICK SETUP GUIDE
English - 1
BN68-02806A-00
(M4 X L12)
5EA (M4 X L12)
5EA (M4 X L10)
[QSG]BN68-02806A-00Eng.indd 2 2010-03-25 오후 2:31:04

¦¦Installing¦the¦Stand
✎ Preset: Place the Guide Stand and Cover Neck onto the stand and fasten it using the screws. Applicable to models
(Depending on the model)
Step¦1.¦ Attach your PDP TV to the stand.
✎ Two or more people should carry the TV.
✎ Make sure to distinguish between the front and back of the stand when assembling them.
✎ To make sure the TV is installed on the stand at a proper level, do not apply excess downward pressure to the upper
left of right sides of the TV.
Step¦2.¦ Fasten two screws at position 1 and then fasten three screw at position 2.
✎ Stand the product up and fasten the screws. If you fasten the screws with the PDP TV placed down, it may lean to
one side.
¦¦Using¦the¦remote¦control¦buttons
¦¦Installing¦Batteries¦in¦the¦Remote¦Control
✎
NOTE
x
Use the remote control within 23 feet from the TV.
x
Bright light may affect the performance of the remote control. Avoid
using nearby special fluorescent light or neon signs.
x
The colour and shape may vary depending on the model.
English - 2
RETURN Button
Return to the previous menu.
ENTER
E / DIRECTION Buttons
Move the cursor and select an
item. Select the currently selected
item. Confirm the setting.
EXIT
Exit the on-screen menu.
MENU Button
Display the main on-screen menu.
CH LIS
T
MUTE
PO
WER
SOU
RCE
P
RE-CH
MENU
T
OO
L
S
RETURN
A
D
P
.SIZ
E
S
UBT
.
D
U
AL
EXIT
I
NF
O
T
TX
/
MI
X
A
B
C
D
INTERNET
@
T
V
MEDIA.
P
CO
NTEN
T
GUID
E
O
N/
O
FF
I
-
II
s
s
ss
s
1
2
Preset Step¦1 Step¦2
ss
s
s
s
Rear
Front
sss
s
s
s
Top View
[QSG]BN68-02806A-00Eng.indd 3 2010-03-25 오후 2:31:05

English - 3
¦¦Plug¦&¦Play
When the TV is initially powered on, basic settings proceed automatically and subsequently.
If you want to reset this feature, press the MENU button to display menu.
You can set the Plug & Play by selecting ‘Setup → Plug & Play’.
On the screen, you can set as follows.
✎ The each step may vary depending on the Antenna source.
ANT OUT
VHF/UHF Antenna
or
Cable
Step 1 Step¦2 Step¦3
Step¦4 Step¦5 Step¦6
Step¦7 Step¦8
Plug & Play
Select the OSD Language.
Menu Language : : English
▲
Nederlands
English
Eesti
▼
U Move E Enter
Plug & Play
Select Country.
Country :
▲
Turkey
United Kingdom
Estonia
▼
U Move E Enter
Plug & Play
Enjoy your TV.
OK
Plug & Play
Select the usage mode.
Store Demo Home Use
Previous U Move E Enter
Plug & Play
Antenna Source : Air ►
Channel Source : Digital & Analogue
Previous Skip U Move E Enter
Serch
Plug & Play
Auto Store in progress.
Channels : 7
15%
Digital 2
TV:2 Radio:0 Data/Other: 0
Analogue 0
E Enter
Stop
Plug & Play
Set the Clock Mode.
Clock Mode : Manual ►
U Move E Enter
Auto
Manual
Plug & Play
How to get the best perfotmance from your new HDTV
1/2
Step 1. Connect the HD Box to the using HDMI or Component
cables.
TV rear view ►
HDMI Cable
HDMI Cable
Previous Skip ► Next
[QSG]BN68-02806A-00Eng.indd 4 2010-03-25 오후 2:31:06
