Samsung FCQ321HTUB User manual

Eeot c F an e
user manual
_the possibilities
Thank youfor purchasing _iaisSamsung product.
Toreceive morecomplete service, pleaseregister
your prouuct at
www.samsung.com/global/register

Enhanced convenience. Better cooking. Easy maintenance. Your new electric range has been designed to
bring you these benefits and more.
Steam Quick cleaning
Thanks to Steam Quick TM, Samsung's unique technology for light-duty cleaning jobs, keeping
your oven spick-and-span is a snap -- no hassle, no odor, no chemicals. Steam Quick TM cleans
the inside of your range with high-temperature steam in just 20 minutes.
Bigger is better
With a capacity of 5.7 cubic feet, your new range is equipped with more space than any of its
competitors inthe U.S. market. This means greater convenience for you when cooking for the
holidays or when entertaining.
A cooktop with 5 burners
Four main burners with one that dial heat up to different pot sizes.
A smaller warming burner in the center of the range top.

Read and follow all instructions before using your oven to prevent the risk of fire, electric shock,
personal injury, or damage when using the range. This guide does not cover all possible conditions
that may occur. Always contact your service agent or manufacturer about problems that you do not
understand.

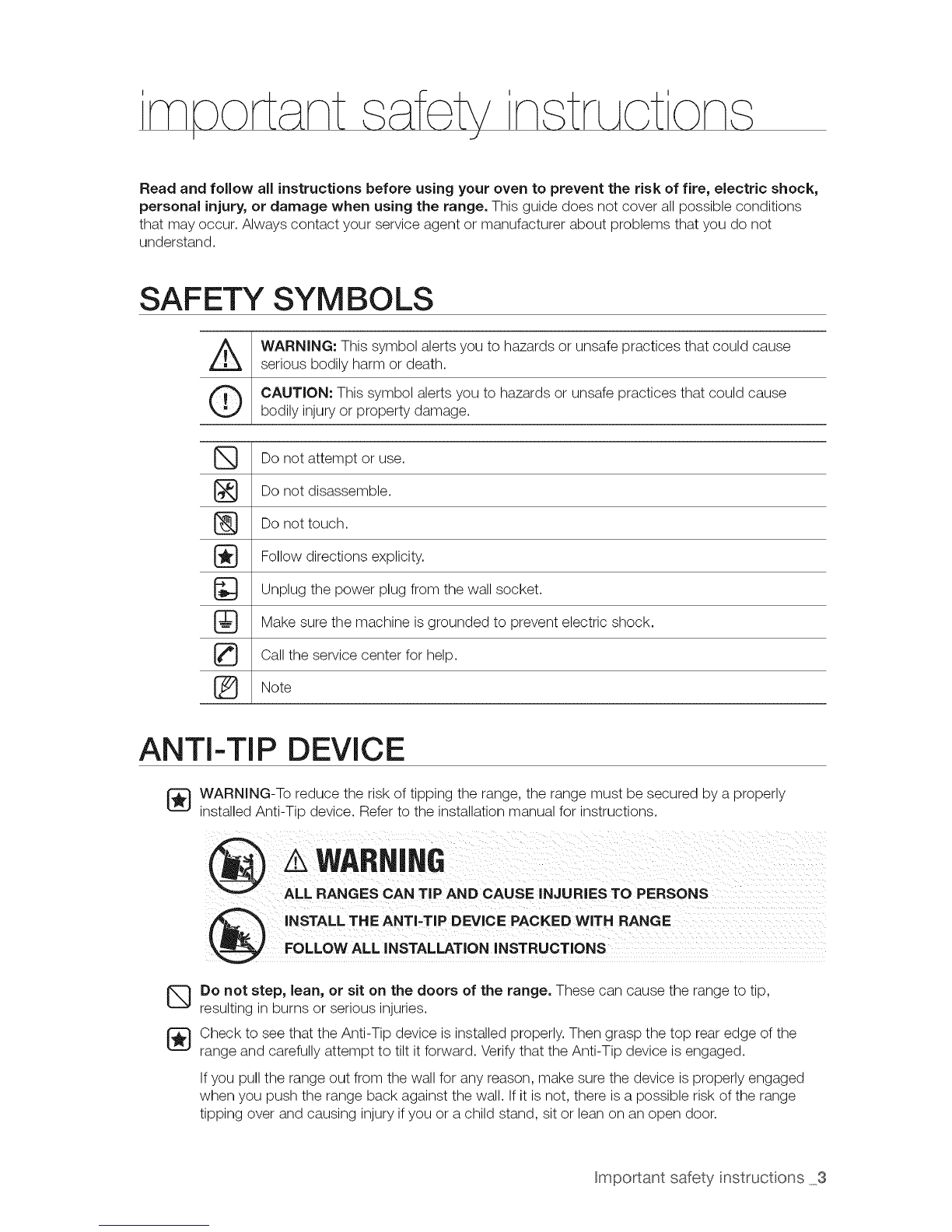

SAFETY SYMBOLS
WARNING: This symbol alerts you to hazards or unsafe practices that could cause
serious bodily harm or death.
CAUTION: This symbol alerts you to hazards or unsafe practices that could cause
bodily injury or property damage.
} Do not attempt or use.
Do not disassemble.
Do not touch.
_ ollow directions explicity.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
;} all the service center for help.
Note
ANTI-TIP DEVICE
_ ARNING-To reduce the risk of tipping the range, the range must be secured by a properly
installed Anti-Tip device. Refer to the installation manual for instructions.
@ ..I.
RANGES CAN TIP AND cAuSE INJURIES T0 PERSONS
INSTALL THE ANTI:TIP DEVICE PACKED WITH RANGE
Do not step, lean, or sit on the doors of the range. These can cause the range to tip,
resulting in burns or serious injuries.
[_ heck to see that the Anti-Tip device is installed properly. Then grasp the top rear edge of the
range and carefully attempt to tilt it forward. Verify that the Anti-Tip device is engaged.
Ifyou pull the range out from the wall for any reason, make sure the device is properly engaged
when you push the range back against the wall. If it is not, there is a possible risk of the range
tipping over and causing injury if you or a child stand, sit or lean on an open door.
Important safety instructions _3

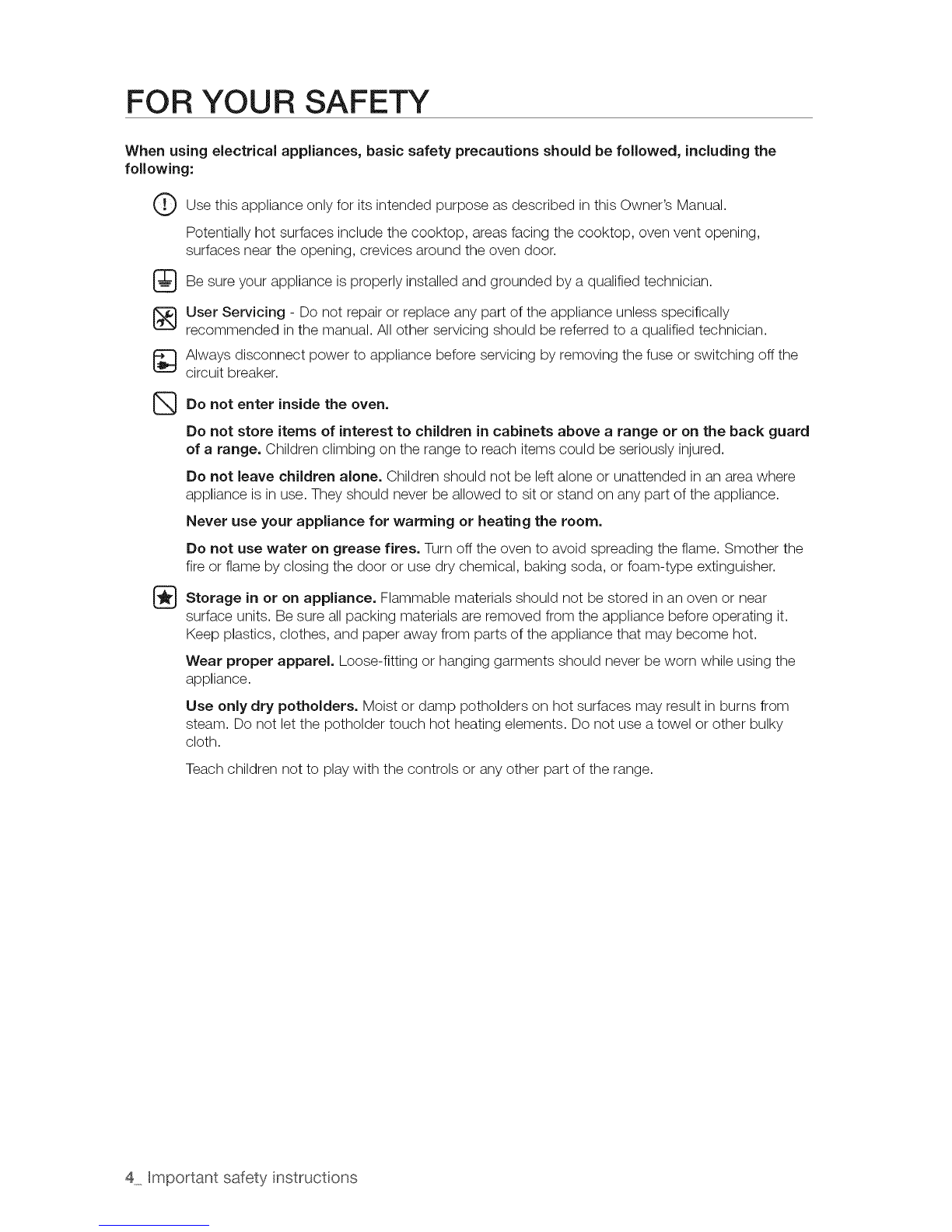

FOR YOUR SAFETY
When using electrical appliances, basic safety precautions should be followed, including the
following:
®
@
[]
®
Use this appliance only for its intended purpose as described in this Owner's Manual.
Potentially hot surfaces include the cooktop, areas facing the cooktop, oven vent opening,
surfaces near the opening, crevices around the oven door.
Be sure your appliance is properly installed and grounded by a qualified technician.
User Servicing - Do not repair or replace any part of the appliance unless specifically
recommended in the manual. All other servicing should be referred to a qualified technician.
Always disconnect power to appliance before servicing by removing the fuse or switching off the
circuit breaker.
Do not enter inside the oven.
Do not store items of interest to children in cabinets above a range or on the back guard
of a range. Children climbing on the range to reach items could be seriously injured.
Do not leave children alone. Children should not be left alone or unattended in an area where
appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Never use your appliance for warming or heating the room.
Do not use water on grease fires. Turn off the oven to avoid spreading the flame. Smother the
fire or flame by closing the door or use dry chemical, baking soda, or foam-type extinguisher.
Storage in or on appliance. Flammable materials should not be stored in an oven or near
surface units. Be sure all packing materials are removed from the appliance before operating it.
Keep plastics, clothes, and paper away from parts of the appliance that may become hot.
Wear proper apparel. Loose-fitting or hanging garments should never be worn while using the
appliance.
Use only dry potholders. Moist or damp potholders on hot surfaces may result in burns from
steam. Do not let the potholder touch hot heating elements. Do not use a towel or other bulky
cloth.
Teach children not to play with the controls or any other part of the range.
4 Hmportant safety instructions

SURFACE COOKING UNITS
QNever leave surface units unattended at high heat settings. Boiloverscause smokingand greasy
spilloversthat may ignite.
Do not lift the cooktop. Liftingthe cooktop can leadto damage and improperoperation of the range.
Do not operate the cooktop when there isno cookware. Ifthe cooktop operates without a cookware,
the control knob will become hot.
Neverusethe glasscooktop surface as a cutting board.
Use care when touching the cooktop. Theglass surfaceof the cooktop will retain heatafterthe controls
havebeenturned off.
Be careful when placing spoons or other stirring utensils on glass cooktop surface when it is in use.
They maybecome hot and could cause burns.
Use proper pan sizes. This appliance isequipped with surface unitsof differentsize. Select utensils
havingflat bottoms largeenoughto coverthe surface unitheating element.The useof undersizedutensils
will exposea portion ofthe heatingelement to directcontact and may result in ignitionof clothing. Proper
relationshipof utensilto burnerwill also improveefficiency.
Glazed cooking utensils. Only certaintypes of glass,glass/ceramic, ceramic,earthenware,or other glazed
utensilsare suitablefor range-top servicewithout breakingdue to the sudden change in temperature.
Utensil handles should be turned inward and not extend over adjacent surface units. To reduce
the riskof burns, ignition offlammable materials,and spillagedue to unintentionalcontact with the utensil,
the handleof autensil shouldbe positioned so that it is turned inward,and does not extend overadjacent
surface units.
Readand follow all instructionsand warningson the cleaningcream labels.
Besureyou know which control knob operates eachsurface unit. Makesureyou turned on the correct
surface unit.
Alwaysturn the surface units off beforeremovingcookware.
When preparingflamingfoods underthe hood, turn the fan on.
Keepan eyeon foods beingfried at highor mediumhigh heatsettings.
8S

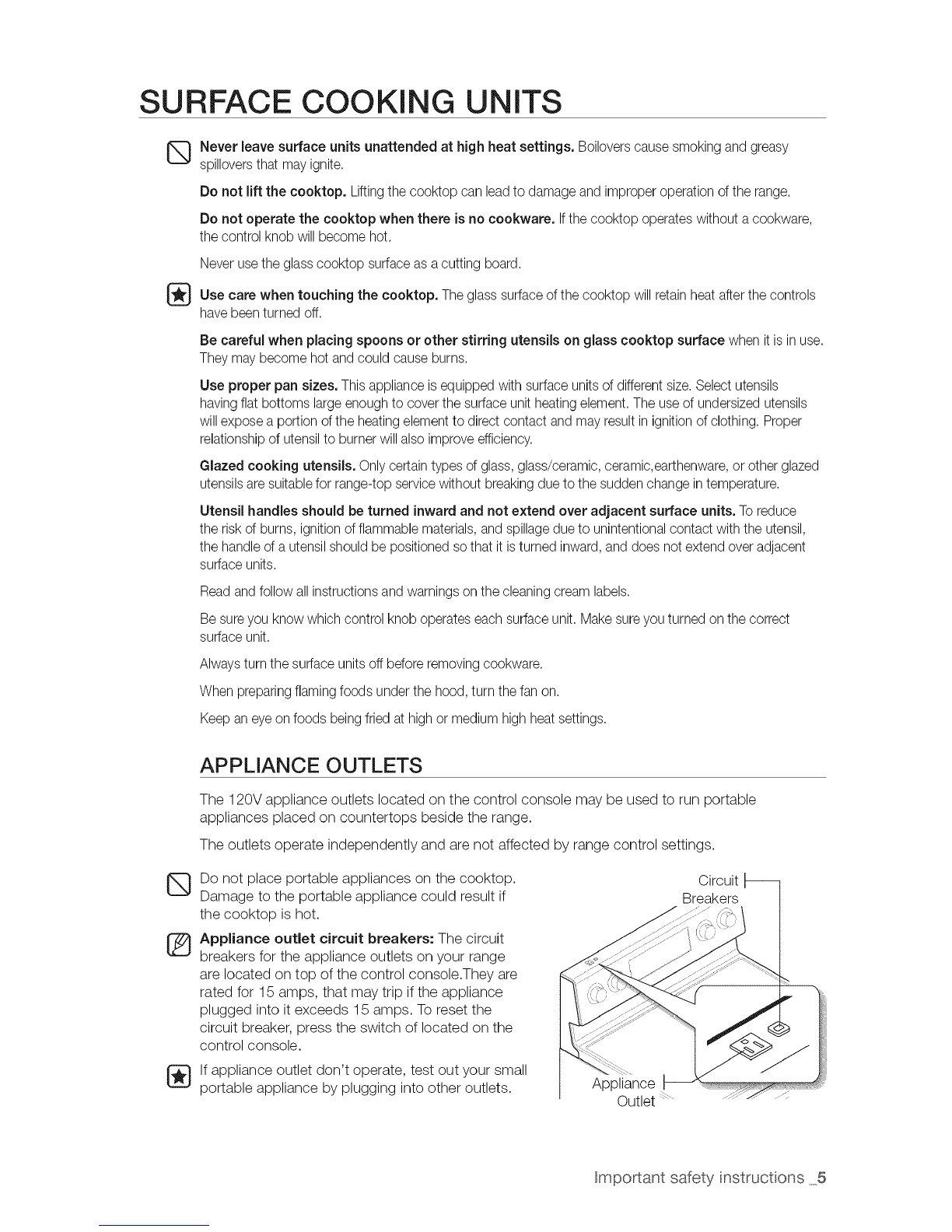

APPLIANCE OUTLETS
The 120V appliance outlets located on the control console may be used to run portable
appliances placed on countertops beside the range.
The outlets operate independently and are not affected by range control settings.
Do not place portable appliances on the cooktop.
Damage to the portable appliance could result if
the cooktop is hot.
Appliance outlet circuit breakers: The circuit
breakers for the appliance outlets on your range
are located on top of the control console.They are
rated for f 5 amps, that may trip if the appliance
plugged into it exceeds 15 amps. To reset the
circuit breaker, press the switch of located on the
control console.
Ifappliance outlet don't operate, test out your small
portable appliance by plugging into other outlets. Appliance
Outlet
Circuit
Breakers
Hmportant safety instructions 5

OVEN
Q
DO NOT TOUCH HEATING ELEMENTS OR iNTERiOR SURFACES OF THE OVEN. Heating
elements may be hot even though they are dark in color. Interior surfaces of an oven become
hot enough to cause burns. During and after use, do not touch or let clothing or other flammable
materials contact heating elements or interior surfaces of oven until they have had sufficient time
to cool. Other surfaces of the appliance may become hot enough to cause burns. Among these
surfaces are oven vent openings and surfaces near these openings, oven doors, and windows of
oven doors.
Do not heat unopened food containers. Build-up of pressure may cause container to burst
and result in injury.
Do not use the oven to dry newspapers. Ifoverheated, they can catch on fire.
Do not use the oven for a storage area. Items stored in an oven can ignite.
Use care when opening door, Let hot air or steam escape before you remove or replace food in
the oven.
Protective liners. Do not use aluminum foil to line the oven bottoms, except as suggested in the
manual. Improper installation of these liners may result in a risk of electric shock or fire.
Keep oven vent ducts unobstructed. The oven vent is located above the right rear surface
unit. this area could become hot during oven use. Never block this vent and never place plastic or
heat-sensitive items on vent
Placement of oven racks. Always place oven racks in the desired location while the oven is
cool. Ifthe rack must be moved while oven is hot, do not let the potholder come in contact with
the hot heating element inthe oven.
Do not allow aluminum foil or meat probe to contact heating elements.
SELF-CLEANING OVENS
Do not clean door gasket. The door gasket is essential for a good seal. Care should be taken
not to rub, damage, or move the gasket.
[_} Never keep pet birds in the kitchen. The health of birds is extremely sensitive to the fumes
released during an oven self-clean cycle. Fumes may be harmful or fatal to birds. Move birds to a
well-ventilated room.
Clean in the self-clean cycle only parts listed in this manual. Before self-clean the oven,
remove the broil pan, rack, utensils, and food.
No commercial oven cleaner or oven liner protective coating of any kind should be used in or
on the outside of the oven. Use only a ceramic cooktop cleaner or the cleaner supplied with this
appliance on the glass cooktop.
Nickel oven shelves should be removed from the oven before beginning the self-cleaning cycle, or
they may discolor.
Ifthe self-clean mode malfunctions, turn the oven off and disconnect the power supply. Have it
serviced by a qualified technician.
6 Hmportant safety instructions

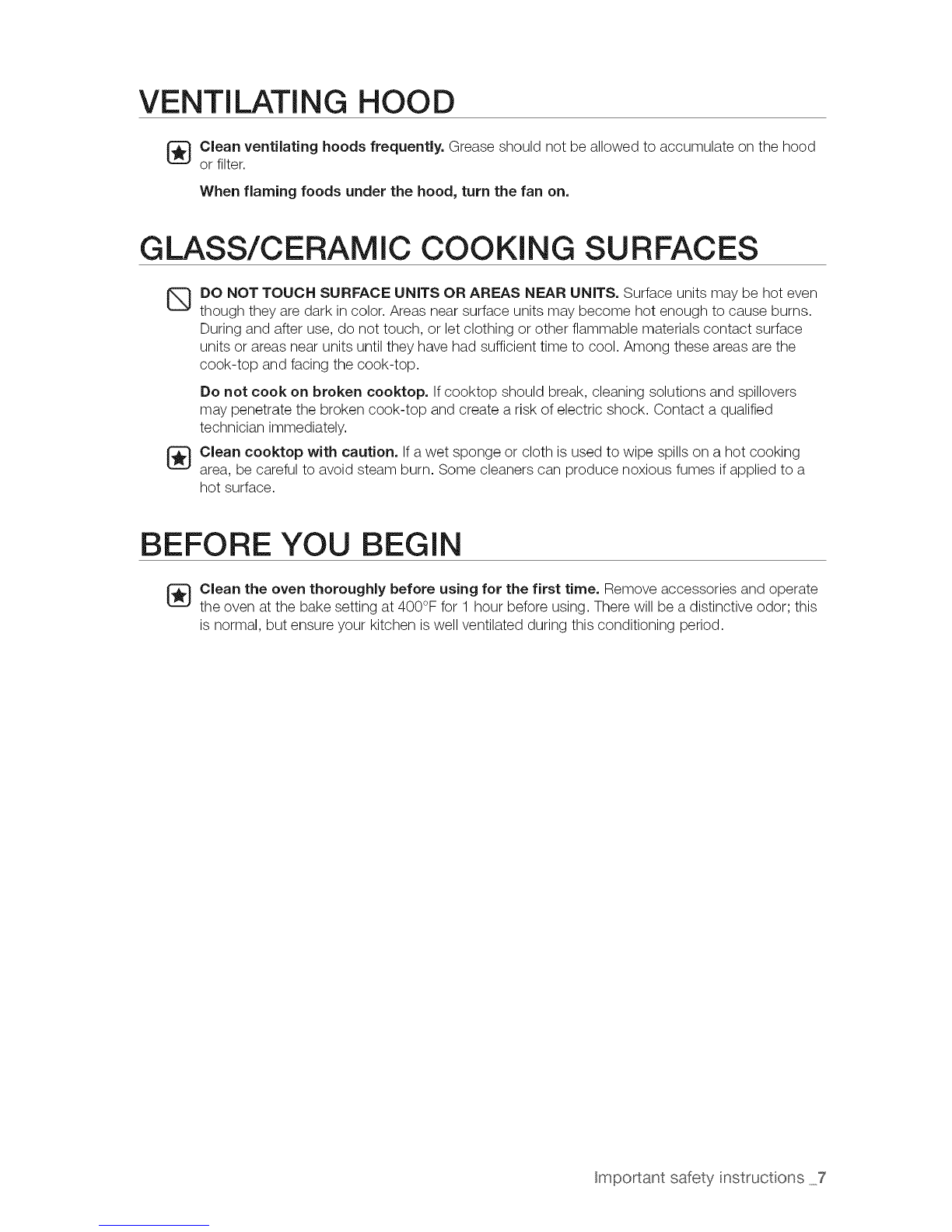

VENTILATING HOOD
[_[_} lean ventilating hoods frequently. Grease should not be allowed to accumulate on the hood
or filter.
When flaming foods under the hood, turn the fan on.
GLASS/CERAMIC COOKING SURFACES
QDO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS. Surface units may be hot even
though they are dark in color. Areas near surface units may become hot enough to cause burns.
During and after use, do not touch, or let clothing or other flammable materials contact surface
units or areas near units until they have had sufficient time to cool. Among these areas are the
cook-top and facing the cook-top.
Do not cook on broken cooktop. If cooktop should break, cleaning solutions and spillovers
may penetrate the broken cook-top and create a risk of electric shock. Contact a qualified
technician immediately.
Clean cooktop with caution. If a wet sponge or cloth is used to wipe spills on a hot cooking
area, be careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a
hot surface.
BEFORE YOU BEGIN
_ Clean the oven thoroughly before using for the first time. Remove accessories and operate
the oven at the bake setting at 400°F for 1 hour before using. There will be a distinctive odor; this
is normal, but ensure your kitchen is well ventilated during this conditioning period.
Hmportant safety instructions 7

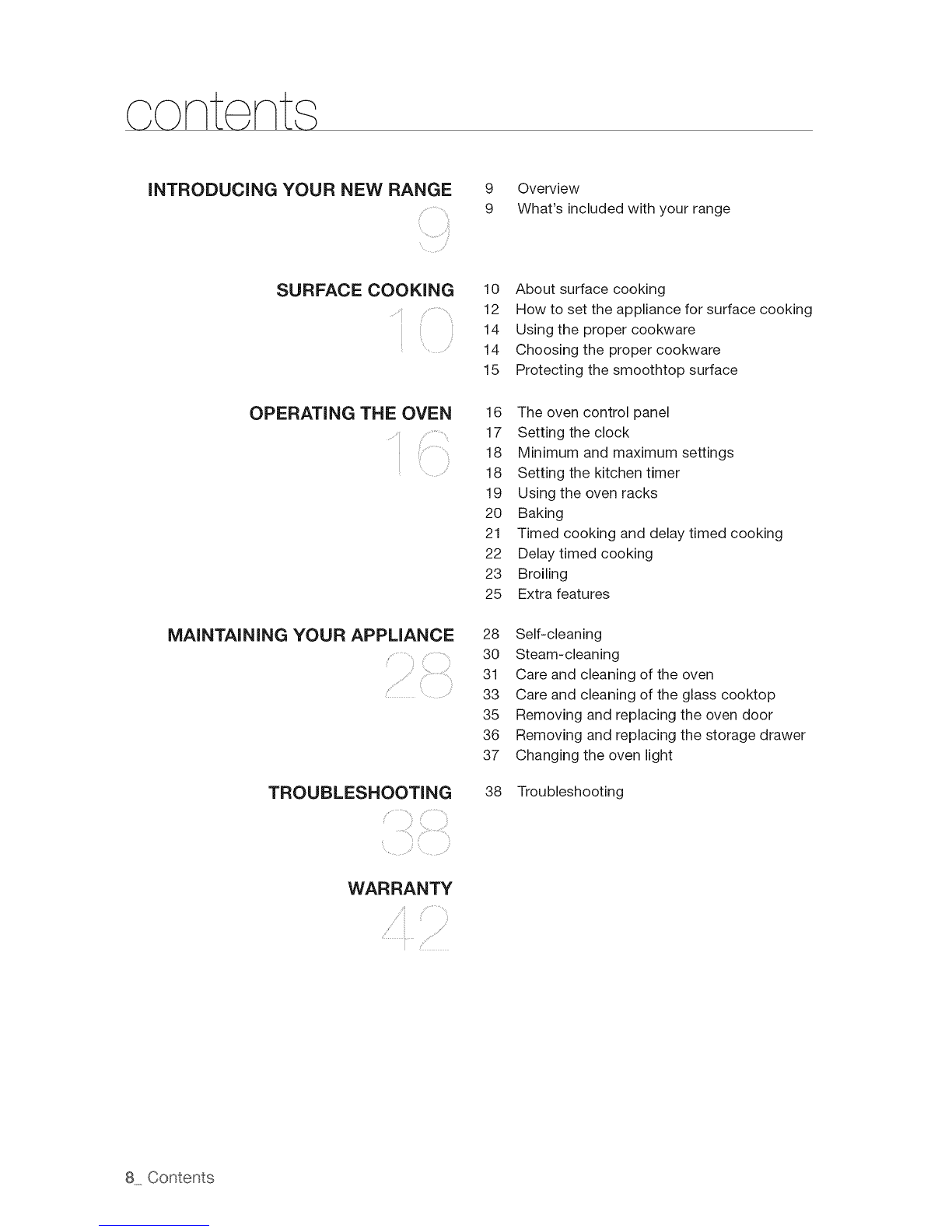

content
INTRODUCING YOUR NEW RANGE
,_illI
SURFACE COOKING
OPERATING THE OVEN
2 ¸
MAINTAINING YOUR APPLIANCE
TROUBLESHOOTING
WARRANTY
9 Overview
9 What's included with your range
10 About surface cooking
12 How to set the appliance for surface cooking
14 Using the proper cookware
14 Choosing the proper cookware

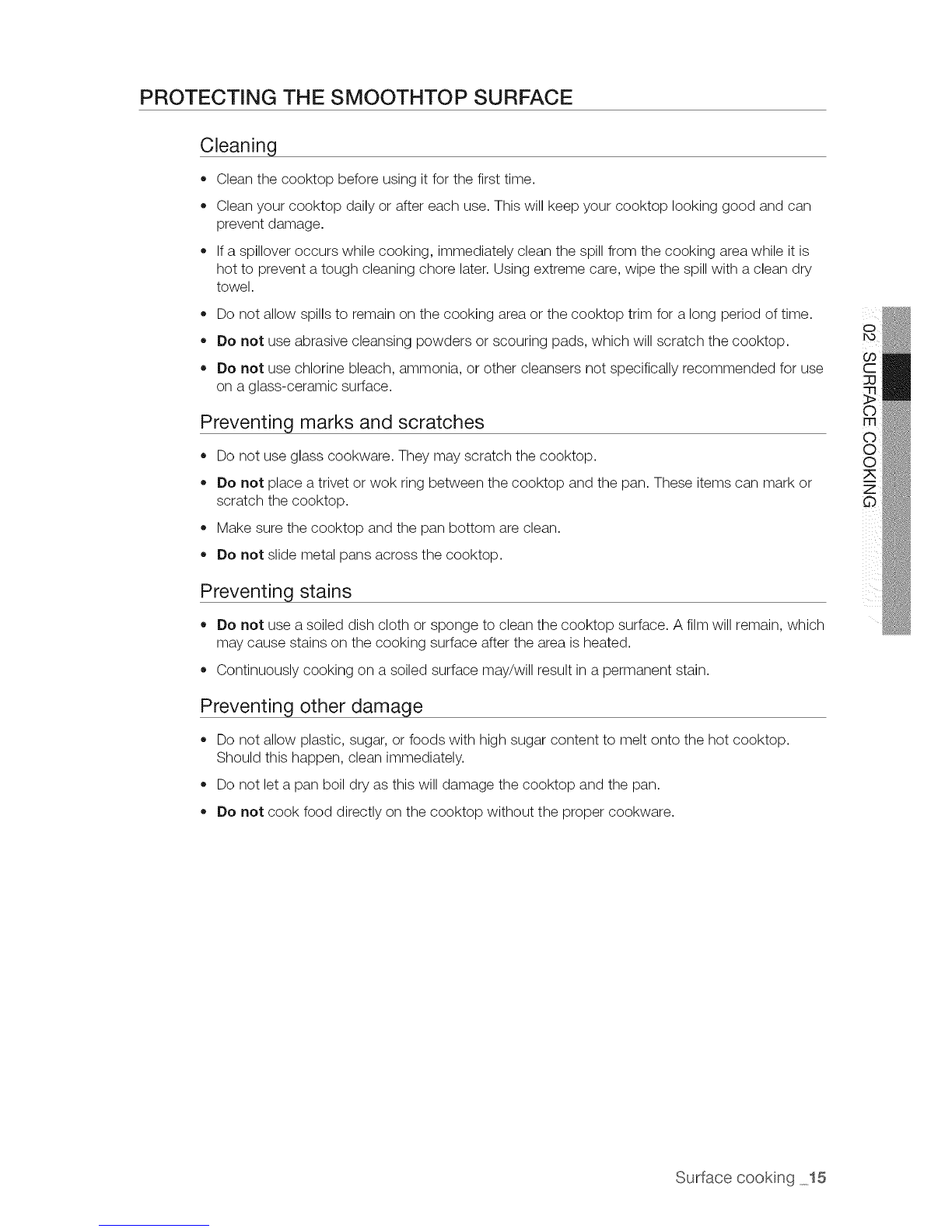

15 Protecting the smoothtop surface
16 The oven control panel

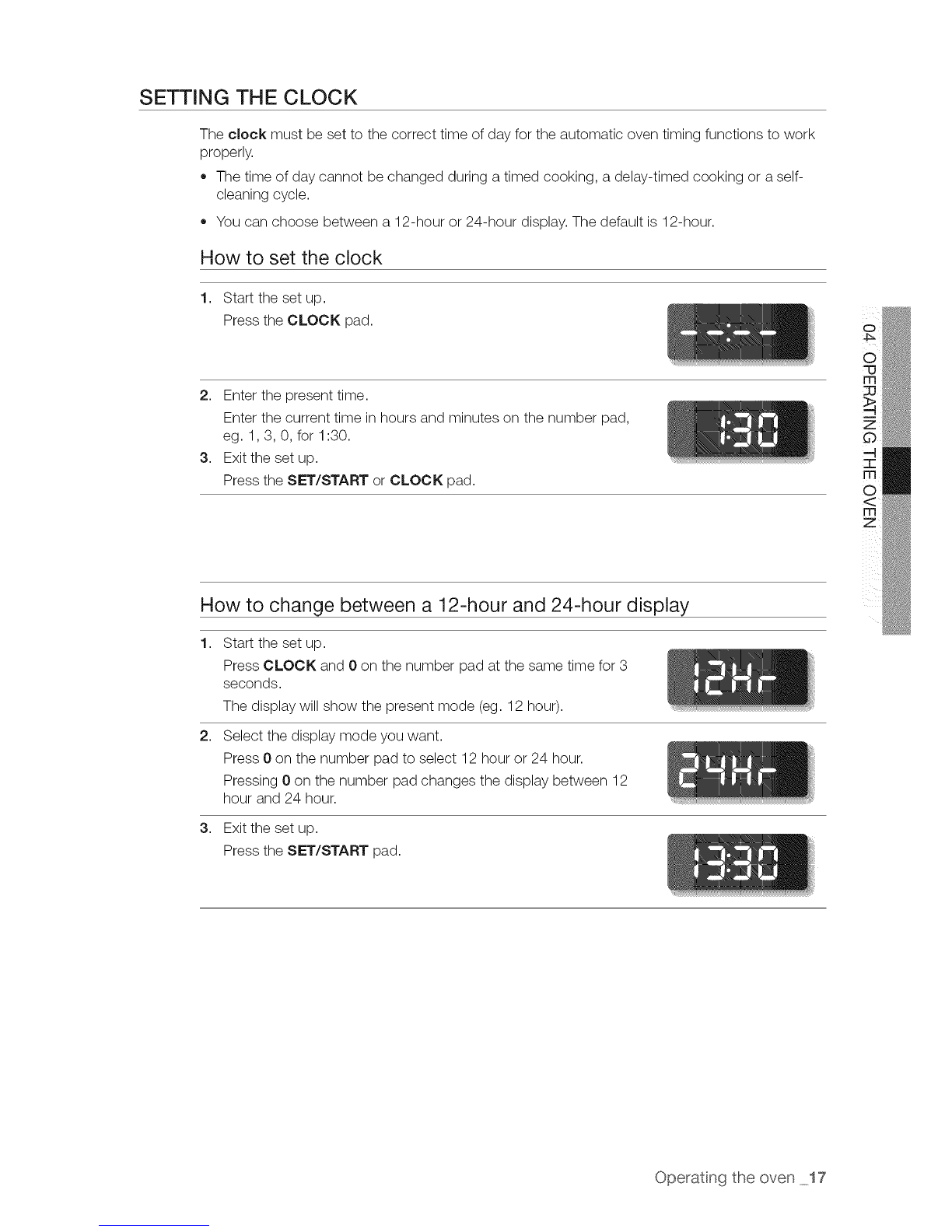

17 Setting the clock
18 Minimum and maximum settings
18 Setting the kitchen timer

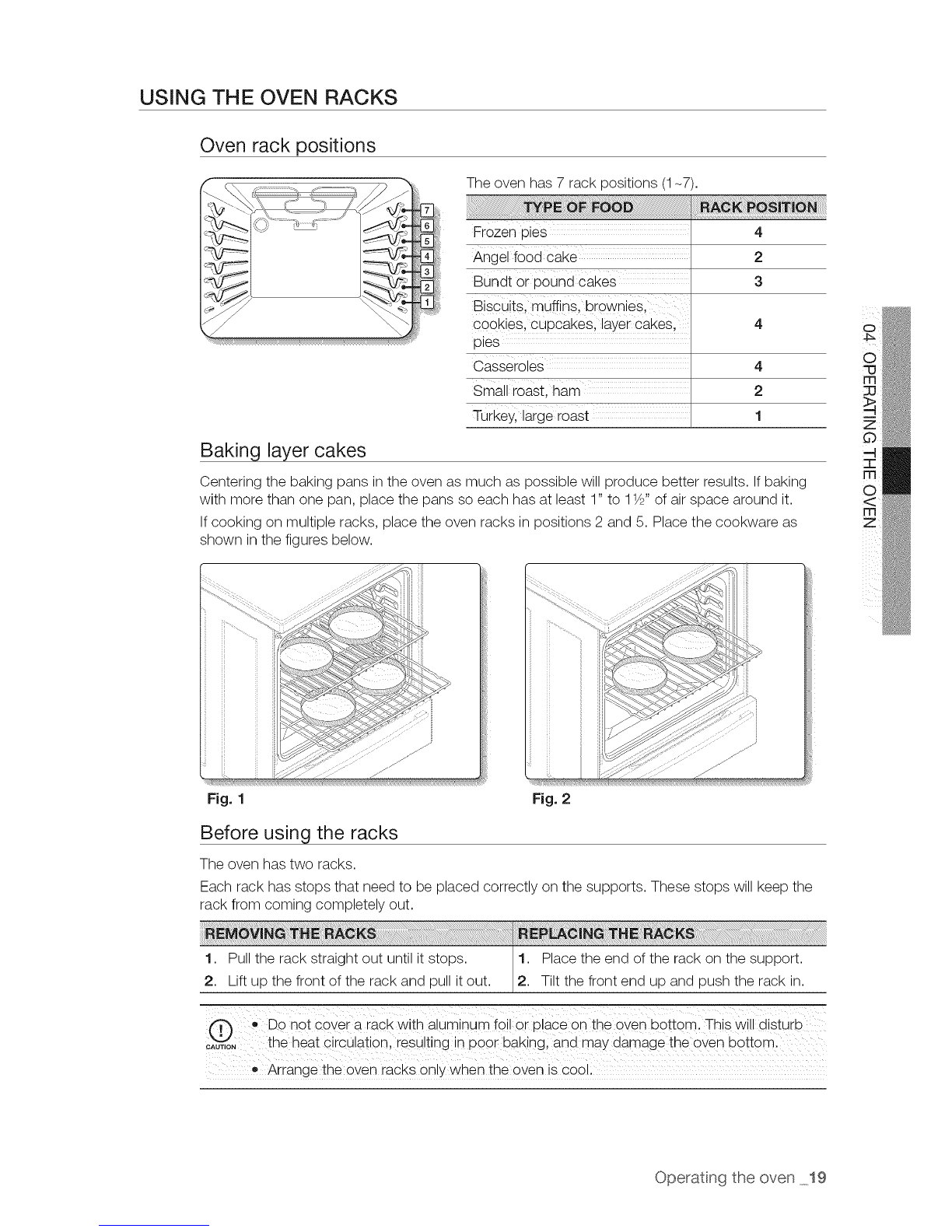

19 Using the oven racks
20 Baking
21 Timed cooking and delay timed cooking
22 Delay timed cooking
23 Broiling
25 Extra features
28 Self-cleaning
30 Steam-cleaning
31 Care and cleaning of the oven
33 Care and cleaning of the glass cooktop
35 Removing and replacing the oven door
36 Removing and replacing the storage drawer
37 Changing the oven light
38 Troubleshooting
8 Contents

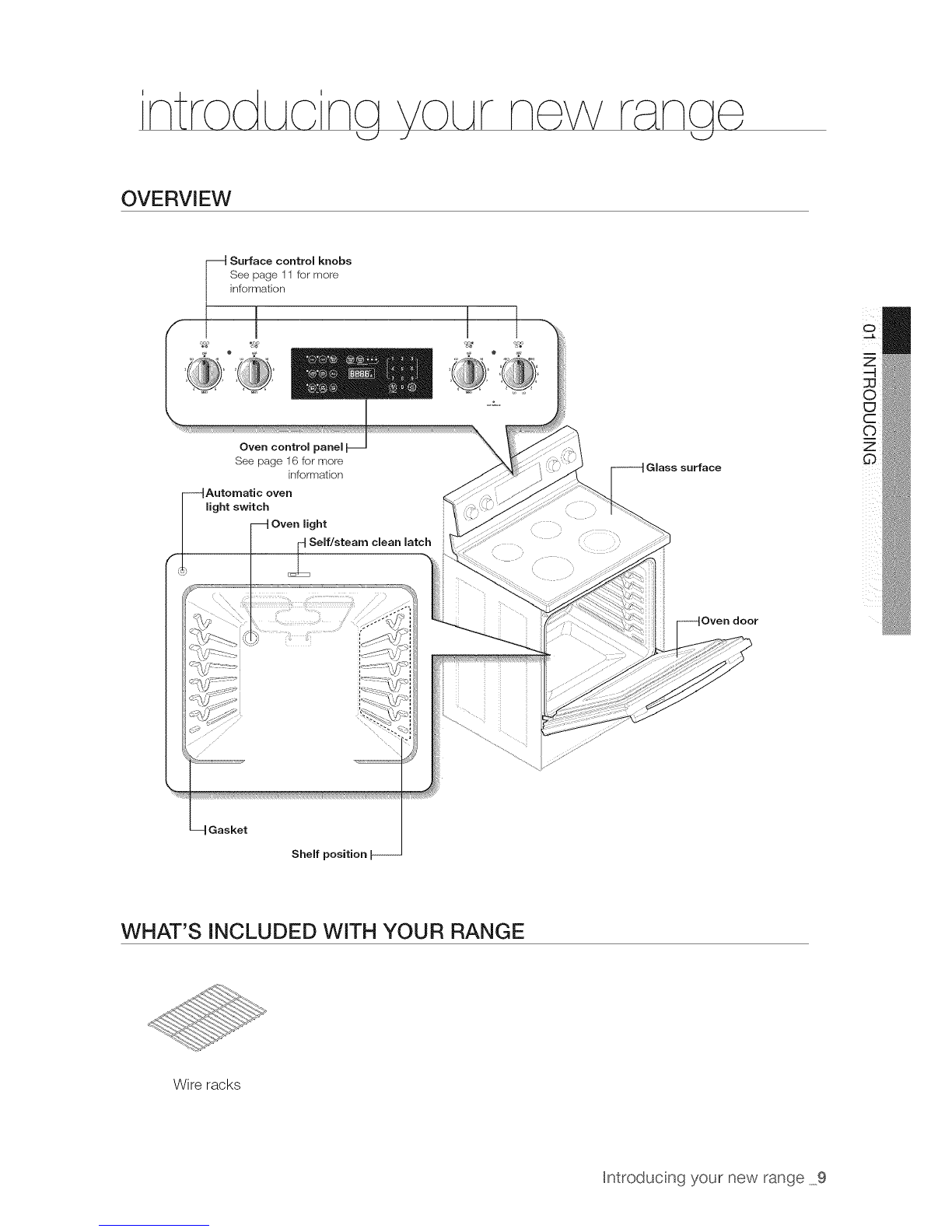

OVERVIEW
Surface control knobs
See page 11 for more
information
Oven control
See page 16 for more
information
Automatic oven
light switch
ISelf/steam clean latch
Glass su_ace
Oven door
Gasket
WHAT'S INCLUDED WITH YOUR RANGE
Wire racks
your new range 9

ABOUT SURFACE COOKING
@
CAUTION
BEFORE COOKING
- Do not use the gass COOK[OD surface as a cutting Doara.....
• Do not olace or store terns that can melt or catch fire on the g_asscooktoD, even
when _t_snot being used.
t Turn the surface units on only after p acing the COOKware.
Do not store heav_ terns above the cooktco surface. The} could fall and damage it.
(b
CAUTION
DURING COOKING
,' Do not place a_urr qum foil or olastic items such as salt and depper shakers, spoon
nodders, or pastic wrappings on the range wnen t _s_nuse. The hot air from the vent
cou_a melt plastics or ignite flammable _tems.
Make sure the correct surface un t is turned on.
® Never cook a_rectly on the glass. Always dse COOKware.
Always place the Dan in the center of the surface unit you are COOKng on.
o Never leave surface units Jnattended while using a nlgn heat setting Boilovers cause
smoKing and greasy spHIovers that may catch on fire.
Turn the surface units off before removing COOKware.
• Do not use plastic wrap to cover food. Plastic ma_ melt onto the surface and be very
difficult to remove.
®
CAUTION
AFTER COOKING
• Do not touch the surface units unt they nave cooled Gown
The surface may oe still be hot and burns may occur if the glass surface istouched
before it has COOledGown sufficiently.
• Immealately clean SDIIIson the COOKingarea to orevent a tough cleaning chore later.
If cabinet storage s provided directly above the cook ng surface, maKe sure that the
items are infrec Jently used and can be safely stored inan area suqected to heat.
Temperatures ma} De unsafe for items such as volatile licJlas. cleaners or aeroso
spra_s.

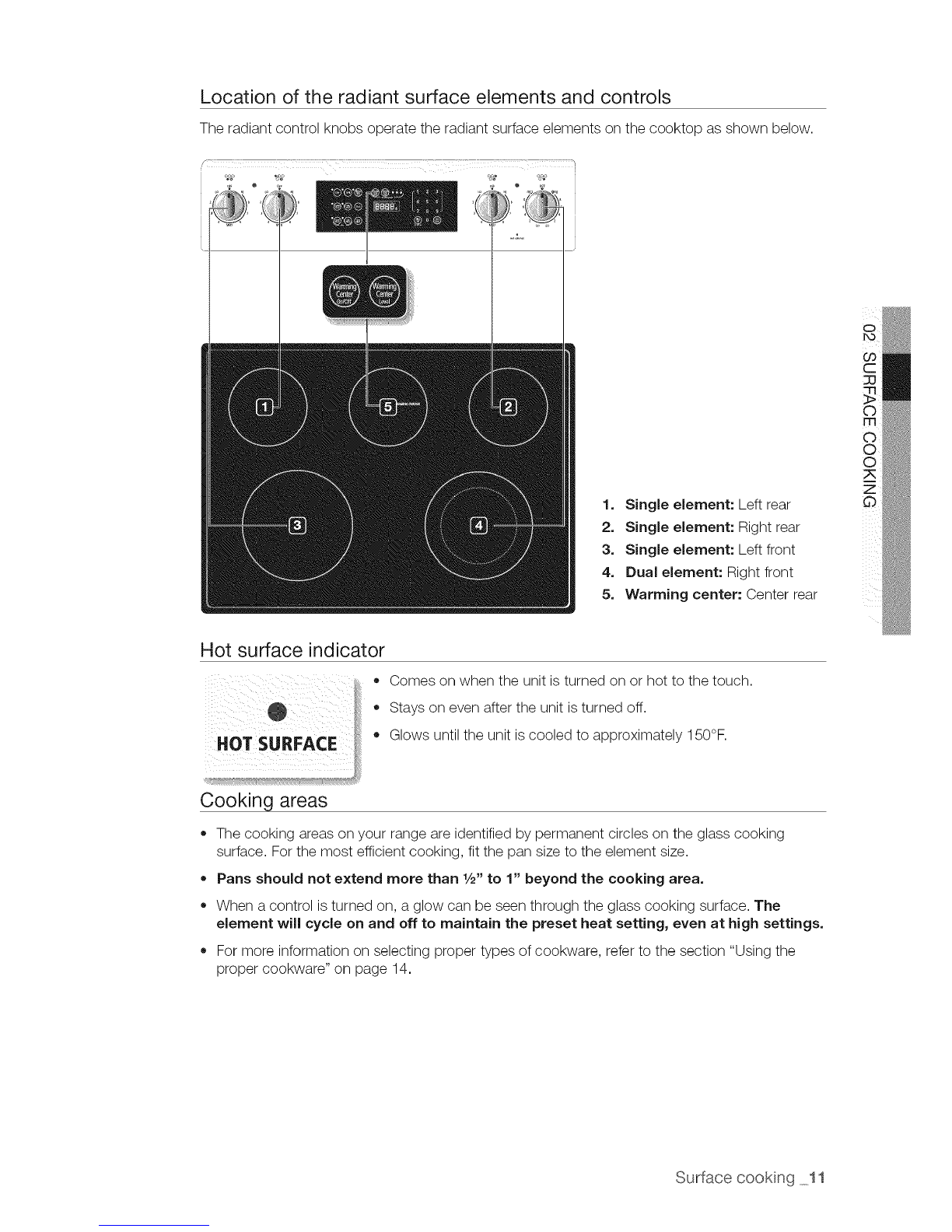

About the radiant surface elements
The temperature rises gradually and evenly. As the temperature rises, the radiant element will glow
red. To maintain the selected setting, the element will cycle on and off. The heating element retains
enough heat to provide a uniform and consistent heat during the off cycle. For efficient cooking,
turn off the element several minutes before cooking is complete. This will allow residual heat to
complete the cooking process.
%Radiant elements have a limiter that allows the element to cycle ON and OFF, even at the HI
setting. This helps to prevent damage to the ceramic cooktop. Cycling at the HI setting is
normal and can occur if the cookware is too small for the radiant element or if the cookware
bottom is not flat.
10 Surface cookng
