Samsung NX58R9311SS/AA User manual

Gas Slide-in Range
User manual
NX58*931***
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 1 2019-05-30  6:11:04

2 English
WARNING: If the information in this manual is not followed exactly,
a re or explosion may result causing property damage, personal
injury, or death.
• DO NOT store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
• WHAT TO DO IF YOU SMELL GAS:
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch.
- DO NOT use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
- If you cannot reach your gas supplier, call the re department.
• Installation and service must be performed by a qualied
installer, service agency, or the gas supplier.
ANTITIP DEVICE
WARNING: To reduce the risk of tipping the range, the range
must be secured by a properly installed Anti-Tip device. AFTER
THE RANGE HAS BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP
DEVICE HAS BEEN PROPERLY INSTALLED AND VERIFY THAT THE
ANTI-TIP DEVICE IS PROPERLY ENGAGED. Refer to the
installation manual for instructions.
a) If the anti-tip device is not installed, a child or adult can tip the
range and be killed.
b) Verify the anti-tip device has been properly installed and engaged
at right rear (or left rear) of the range bottom.
c) If you move the range and then move it back into place, ensure
the anti-tip device is re-engaged at the right or left rear of the
range bottom.
d) Do not operate the range without the anti-tip device in place and
engaged.
e) Failure to do so can result in death or serious burns to children or
adults.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 2 2019-05-30  6:11:04

English 3
Key features
Bigger is better
With a capacity of 5.8 cubic feet, this Samsung gas oven range offers more space
than many other leading brands in the United States and Canadian markets. The
enhanced capacity means a better cooking experience.
A cooktop with 5 burners
A power burenr, a simmer burner, a rapid burner and semi rapid burners provide
exible cooktop heat for a variety of cookware.
Enhanced convenience with easy maintenance
The Samsung gas oven range combines all the benets of 3 separate home
appliances - a gas range, a gas oven, and a storage drawer - to maximize customer
convenience with its careful, stylish design.
WARNING
Do not step, lean, or sit on the oven door of the range. You can cause
the range to tip, resulting in burns or serious injuries.
Conrm that the Anti-Tip device is installed properly. Then, to verify
that the Anti-Tip device is engaged, grasp the top rear edge of the
range and carefully attempt to tilt it forward. The Anti-Tip device
should prevent the range from tilting forward more than a few
inches.
If you pull the range out from the wall for any reason, make sure the
anti-tip device is properly engaged when you push the range back
against the wall. If it is not, there is a risk of the range tipping over
and causing injury if you or a child stand, sit, or lean on an open
door.
Never completely remove the leveling legs. If you remove the
leveling legs, the range will not be secured by the anti-tip device
properly.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 3 2019-05-30  6:11:04

4 English
Contents
Contents
Important safety information 5
Overview 12
Layout 12
What’s included 12
Control panel 13
Before you start 13
Display mode 13
Clock 13
Kitchen timer 14
Oven vent/cooling vent 14
Cooktop 15
Ignition 16
Adjusting low ame settings on cooktop burners 17
Cookware 17
Gas oven 18
Cooking mode 19
Broiling 19
Recipe guide 20
Using the oven racks 21
Cooking options 22
Special features 25
Changing option settings 25
Non-Cooking functions 26
Maintenance 28
Cleaning 28
Replacing the oven light 33
Removing and re-installing the oven door 34
Troubleshooting 36
Checkpoints 36
Information codes 41
Warranty (U.S.A) 41
Warranty (CANADA) 43
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 4 2019-05-30  6:11:04

English 5
Important safety information
Important safety information
Read all instructions before using this appliance
• All electrical and gas equipment with moving parts can be dangerous. Please
read the important safety instructions for this appliance in this manual. The
instructions must be followed to minimize the risk of injury, death, or property
damage.
• Save this manual. Please Do Not Discard.
Symbols used in this manual
WARNING
Hazards or unsafe practices that may result in severe personal injury or death.
CAUTION
Hazards or unsafe practices that may result in electric shock, personal injury, or
property damage.
NOTE
Useful tips and instructions.
These warning icons and symbols are here to prevent injury to you and others.
Please follow them explicitly. After reading this section, keep it in a safe place for
future reference.
California Proposition 65 Warning
WARNING
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Commonwealth of Massachusetts
• This product must be installed by a licensed plumber or gas tter qualied or
licensed by the State of Massachusetts. When using ball-type gas shut-off valves,
you must use the T-handle type. Multiple exible gas lines must not be connected
in series.
General safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Do not touch any part of the range, including
but not limited to, oven burners, surface burners,
or interior surfaces during or immediately after
cooking.
• Know the location of the gas shut-off valve and
how to shut it off.
• Make sure the anti-tip device is properly installed on the range. See the
installation instructions for more information.
• Do not let children near the range. Do not let children go into the range or onto
the range. Do not let children play with the range or any part(s) of the range. Do
not leave children unattended in an area where the range is in use. For children’s
safety, we recommend utilizing the control/door lockout feature.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 5 2019-05-30  6:11:04

6 English
Important safety information
Important safety information
• Remove all packaging materials from the range before operating to prevent
ignition of these materials. Keep all packaging materials out of children’s reach.
Properly dispose the packaging materials after the range is unpacked.
• Do not store any object of interest to children on the cooktop or backguard of the
range. Children climbing on the range to reach items could be killed or seriously
injured.
• Do not operate the range if the range or any part of the range is damaged,
malfunctioning, or missing parts.
• Do not use the range as a space heater. Use the range for cooking only.
• Do not use oven cleaners or oven liners in or around any part of the oven.
• Use only dry pot holders. Pot holders with moisture in them can release steam
and cause burns if they come in contact with hot surfaces. Keep pot holders away
from open ames when lifting cookware. Never use a towel or bulky cloth in
place of a pot holder.
• Do not use the range to heat unopened food containers.
• Do not strike the oven glass.
• When disposing of the range, cut off the power cord and remove the door to
prevent children and animals from getting trapped.
• Unplug or disconnect power before servicing.
• Make sure all meat and poultry is cooked thoroughly. Meat should always be
cooked to an internal temperature of 160 °F (71 °C). Poultry should always be
cooked to an internal temperature of 180 °F (82 °C).
• Do not make any attempt to operate the electric ignition oven during an
electrical power failure.
• Keep the appliance area clear and free of combustible materials, gasoline, and
other ammable vapors and liquids.
• Teach children not to touch or play with the controls or any part of the range.
We recommend you utilize the control / door lockout feature to reduce the risk of
misuse by children.
• Do not lean on the range. You may turn the control knobs accidently.
• Do not stand on top of the appliance or place objects (such as laundry, an oven
cover, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on
the appliance.
- Items, such as a cloth, may get caught in the door.
- This may result in electric shock, re, problems with the product, or injury.
Fire safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Do not store, place, or use ammable or
combustible materials such as paper, plastic,
pot holders, linens, curtains, gasoline or other
ammable vapors or liquids near the range.
• Do not wear loose tting or hanging garments
while using the range.
• To avoid grease buildup, regularly clean the vents.
• Do not let pot holders or other ammable materials touch a heating element. Do
not use a towel or other bulky cloths in place of a pot holder.
• Do not use water on a grease re. To put out a grease re, turn off the heat
source and smother the re with a tight-tting lid or use a multipurpose dry
chemical or foam-type re extinguisher.
• If a grease re should occur in the oven, turn off the oven by pressing the
OVEN OFF pad. Keep the oven door closed until the re goes out. If necessary,
use a multipurpose dry chemical or foam-type re extinguisher.
• Do not heat unopened food containers. The buildup of pressure may cause the
containers to burst and result in injury.
• NEVER use this appliance as a space heater to heat or warm the room. Doing so
may result in carbon monoxide poisoning and overheating of the oven. Do not
use the oven for storage. Paper and other ammable items stored in the oven can
ignite.
• Do not leave items such as paper, cooking utensils or food in the oven when not
in use. Items stored in an oven can ignite.
• Do not put any combustible material or items around the range.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 6 2019-05-30  6:11:05

English 7
Important safety information
Gas safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
If you smell gas:
• Close the valve and do not use the range.
• Do not light a match, candle, or cigarette.
• Do not turn on any gas or electric appliances.
• Do not touch any electrical switches or plug a
power cord into an outlet.
• Do not use any phone in your building.
• Evacuate the room, building, or area of all
occupants.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
re department.
Checking for gas leaks
• Leak testing of the appliance must be conducted according to the manufacturer’s
instructions. Do not use a ame to check for gas leaks. Use a brush to spread a
soapy water mixture around the area you are checking. If there is a gas leak, you
will see small bubbles in the soapy water mixture at the leak point.
Electrical and grounding safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Plug the range into a grounded 3-prong outlet.
• Do not remove the ground prong.
• Do not use an adapter or an extension cord.
• Do not use a damaged power plug, power cord,
or loose power outlet.
• Do not modify the power plug, power cord, or
power outlet in any way.
• Do not put a fuse in a neutral or ground circuit.
• Use a dedicated 120-volt, 60-Hz, 20-amp, AC electrical circuit with a time-delay
fuse or circuit breaker for this range. Do not plug any other appliances into this
circuit.
• Do not connect the ground wire to plastic plumbing lines, gas lines, or hot water
pipes.
• This range must be Earth grounded. In the event of a malfunction or breakdown,
grounding will reduce the risk of electrical shock by providing a path for the
electric current. This range is equipped with a cord having a grounding plug.
The plug must be rmly plugged into an outlet that is properly installed and
grounded in accordance with the local codes and ordinances. If you are unsure
whether your electrical outlet is properly grounded, have it checked by a licensed
electrician.
• The range is supplied with a 3-pronged grounded plug. This cord must be
plugged into a mating, grounded 3-prong outlet that meets all local codes and
ordinances. If codes permit the use of a separate ground wire, we recommend
that a qualied electrician determine the proper path for this ground wire.
• Electrical service to the range must conform to local codes. Barring local codes,
it should meet the latest ANSI/NFPA No. 70 – Latest Revision (for the U.S.) or the
Canadian Electrical Code CSA C22.1 – Latest Revisions.
• It is the personal responsibility of the range owner to provide the correct
electrical service for this range.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 7 2019-05-30  6:11:05

8 English
Important safety information
Important safety information
Installation safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.

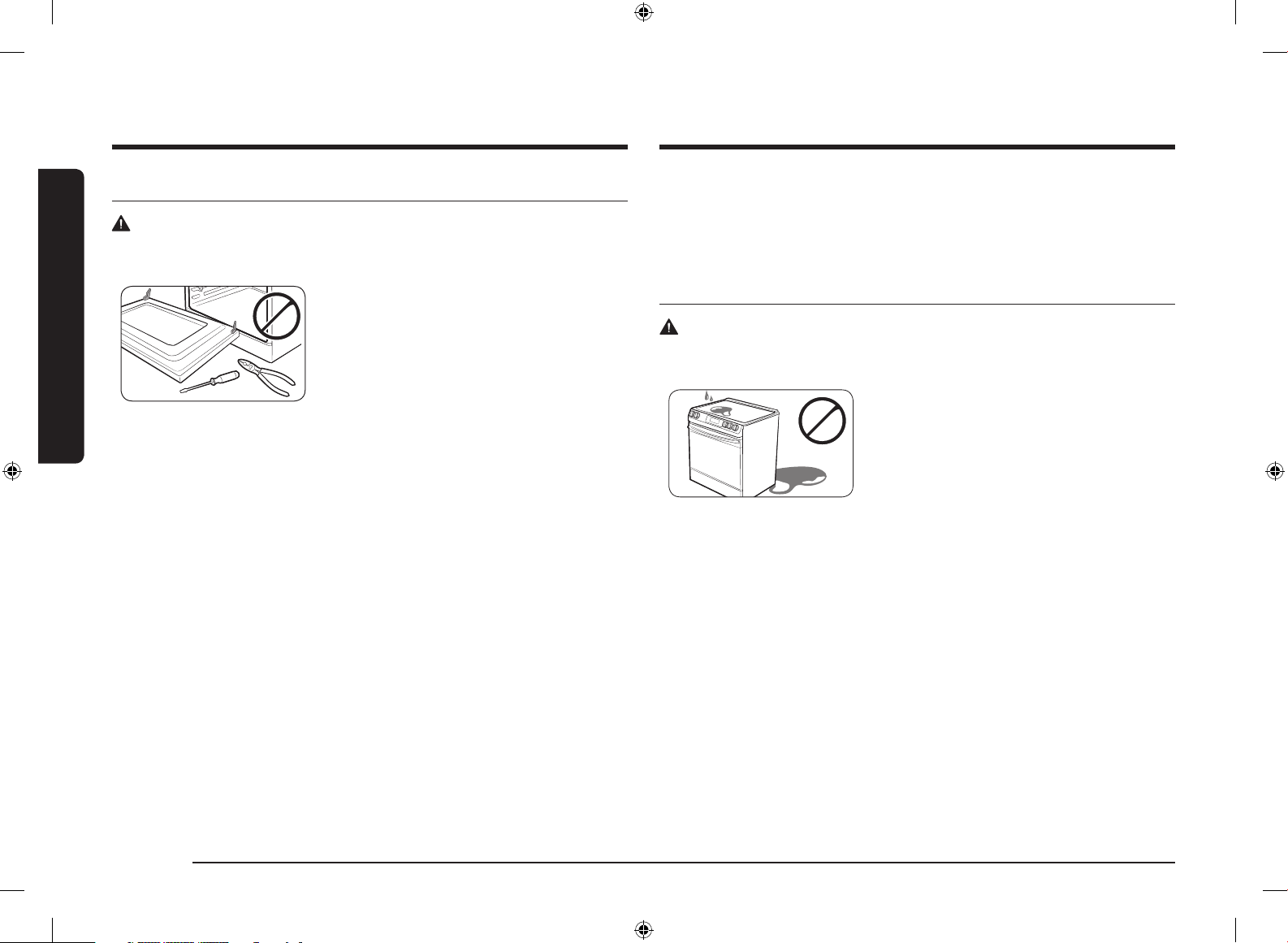

• Have your range installed and properly
grounded by a qualied installer, in accordance
with the installation instructions. Any
adjustment and service should be performed
only by qualied gas range installers or service
technicians.
• Do not attempt to service, modify, or replace your range or any part of your
range unless it is specically recommended in this manual. All other service
should be referred to a qualied technician.
• Always use new exible connectors when installing a gas appliance. Do not use
old exible connectors.
• Make sure the anti-tip device is properly installed on the range. See the
installation instructions for more information.
• Due to the size and weight of the range, have two or more people move the
range.
• Remove all tape and packaging materials.
• Remove all accessories from the cooktop, oven, and/or lower drawer. Grates are
heavy. Use caution when handling them.
• Make sure no parts came loose during shipping. Do not install in an area exposed
to dripping water or outside weather conditions.
• Make sure your range is correctly installed and adjusted by a qualied service
technician or installer for the type of gas (natural or LP) you will use. For your
range to utilize LP gas, the installer must replace the 5 surface burner orices
and 2 oven orices with the provided LP orice set, and reverse the GPR adapter.
These adjustments must be made by a qualied service technician in accordance
with the manufacturer’s instructions and all local, state, provincial. and national
codes and requirements. The qualied organization performing this work
assumes the gas conversion responsibility.
• Installation of this range must conform with local codes or, in the absence of local
codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In
Canada, the Natural Gas and Propane Installation Code, CSA B149.1. This range
has been design-certied by ETL according to ANSI Z21.1, latest edition, and
Canadian Gas Association according to CAN/CGA-1.1, latest edition.
Location safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• This range is for indoor, household use only.
Do not install the range in areas exposed to the
weather and/or water.
• Do not install the range in a place which is
exposed to a strong draft.
• Select a level, well-constructed oor that can
support the range’s weight. Synthetic ooring,
such as linoleum, must withstand 180 °F (82 °C)
temperatures without shrinking, warping, or
discoloring. Do not install the range directly
over interior kitchen carpeting unless a sheet of
¼ inch plywood or a similar insulator is placed
between the range and carpeting.
• Select a location where a grounded, 3-prong outlet is easily accessible.
• If the range is located near a window, do not hang long curtains or paper blinds
on that window.
• For the range to ventilate properly, make sure the range’s vents are not blocked
or covered, and that there is enough clearance at the top, back, sides, and
underneath the range. The vents provide the exhaust outlets necessary for the
range to operate properly with correct combustion and deliver good cooking
results.
• Make sure the wall coverings around the range can withstand heat up to 200 °F
(93 °C) generated by the range.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 8 2019-05-30  6:11:05

English 9
Important safety information
• Cabinet storage above the surface of the range should be avoided. If cabinet
storage above the range is necessary, allow a minimum clearance of 40 inches
(102 cm) between the cooking surface and the bottom of the cabinets or install
a range hood that projects horizontally a minimum of 5 inches (12.7 cm) beyond
the bottom of the cabinets.
• Locate the range out of kitchen trafc paths and drafty locations to prevent poor
air circulation.
• If the range is located near a window, NEVER hang long curtains or paper blinds
on that window. They could blow over the surface burners and ignite, causing a
re hazard.
Cooktop safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Make sure all burners are off when you are not
using the range.
• Do not use aluminium foil to line the grates or
any part of the cooktop. This can cause carbon
monoxide poisoning. Aluminum foil linings may
also trap heat, causing a re hazard. Do not
leave burners unattended on medium or high
heat settings.
• Before igniting the burners, make sure all burner caps are properly in place and
all burners are level.
• Always use the LITE position when igniting the burners and make sure the
burners have ignited. If ignition fails, turn the knob to OFF and wait until the gas
has dissipated.
• When you set a burner to simmer, do not turn the knob quickly. Make sure the
ame stays on.
• Do not place any objects other than cookware on the cooktop.
• This cooktop is designed for use with a wok or wok ring attachment.
• To ame food, you must have a ventilation hood. When you ame food, the hood
must be on.
• Before removing or changing cookware, turn off the burners.
• Remove food and cookware immediately after cooking.
• Before removing any parts of the burner for cleaning, make sure the range is off
and completely cool.
• After cleaning the burner spreader, make sure it is completely dry before re-
assembling.
• Make sure the spark mark on the dual burner spreader is placed beside the
electrode when it is assembled.
• To avoid carbon monoxide poisoning, do not pour water into the cooktop well
while cleaning.
• Select cookware that is designed for range top cooking. Use cookware that is
large enough to cover the burner grates. Adjust the burner ames so that the
ames do not extend beyond the bottom of the cookware.
• To avoid cookware discoloration, deformity, and/or carbon monoxide poisoning,
do not use cookware that is substantially larger than the grate.
• Make sure cookware handles are turned to the side or rear of the cooktop, but
not over other surface burners.
• Stand away from the range while frying.
• Always heat frying oils slowly, and watch as they heat. If you are frying foods at
high heat, carefully watch during the cooking process. If you are going to use a
combination of fats or oils when frying, mix them together before heating.
• Use a deep-fryer thermometer whenever possible. This prevents overheating the
fryer beyond the smoking point.
• Use a minimum amount of oil when shallow pan-frying or deep-frying. Avoid
cooking unthawed food or food with excessive amounts of ice.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 9 2019-05-30  6:11:05

10 English
Important safety information
Important safety information
• Before moving cookware full of fats or oils, make sure it has completely cooled.
• To prevent delayed eruptive boiling, always allow heated liquids to stand at least
20 seconds after you have turned off the burner so that the temperature in the
liquid can stabilize. In the event of scalding, follow these rst aid instructions:
1. Immerse the scalded area in cool or lukewarm water for at least 10 minutes.
2. Do not apply any creams, oils, or lotions.
3. Cover with a clean, dry cloth.
• Place pots in the center of the grate. Do not
place a pot larger than 9” in diameter on the
rear burners. If you place an oversized pot in
the wrong position, it might disrupt necessary
air circulation and make the ame on the burner
sputter and burn inefciently.
• Do not wear loose or hanging garments when using the range. They could ignite
and burn you if they touch a surface burner.
• Never leave plastic items on the cooktop. Hot air from the vent can melt or
ignite plastic items or cause a build up of dangerous pressure in closed plastic
containers. You may get severe burns if you touch the surfaces near the vent
while the oven is operating.
• Do not place portable appliances, or any other object other than cookware on the
cooktop. Damage or re could occur if the cooktop is hot.
• Always make sure foods being fried are thawed and dry. Moisture of any kind
can cause hot fat to bubble up and over the sides of the pan.
• Always make sure the controls are OFF and the grates are cool before you
remove them to prevent any possibility of being burned.
• Do not put any combustible material or items around the range.
• Take care that your hands do not touch the burners when they are on. Turn off
the burners when you change a pan or pot.
• To warm liquid such as sauces, stir it while warming.
Oven safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Do not use the oven for non-cooking purposes
such as drying clothes or storage. Use the oven
for cooking only.
• Make sure the inner portion of the split oven-
rack is in the proper position within the outer
rack.
• Make sure the oven racks are placed on the
same level on each side.
• Do not damage, move, or clean the door gasket.
• Do not spray water on the oven glass while the oven is on or just after you have
turned it off.
• Do not use aluminium foil or foil liners anywhere in the oven. Do not use
aluminium foil or similar material to cover any holes or passages in the oven
bottom or to cover an oven rack. This can cause carbon monoxide poisoning.
Aluminum foil linings may also trap heat, causing a re hazard.
• Stand away from the oven when opening the oven door.
• Keep the oven free from grease buildup.
• When repositioning the oven racks, make sure the oven is completely cool.
• Only use cookware that is recommended for use in gas ovens.
• To avoid damaging the burner control knobs, always bake and/or broil with the
oven door closed.
• Do not broil meat too close to the burner ame. Trim excess fat from meat before
cooking.
• When using cooking or roasting bags in the oven, follow the manufacturer’s
directions.
• NEVER cover any slots, holes, or passages in the oven bottom or cover an entire
rack with material such as aluminum foil. Doing so blocks air ow through the
oven and may cause carbon monoxide poisoning. Aluminum foil linings may also
trap heat, causing a re hazard.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 10 2019-05-30  6:11:06

English 11
Important safety information
Self-cleaning oven safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• The self-cleaning feature operates the oven at
temperatures high enough to burn away food
soils in the oven. The range is extremely hot
during a self-cleaning cycle. Do not touch any
surfaces of the range during a self-cleaning
cycle.
• Keep children away from the oven during a self-
cleaning cycle.
• Before starting a self-cleaning cycle, remove all racks, cookware, and utensils
from the oven. Only porcelain-coated oven racks may be left in the oven.
• Before starting a self-cleaning cycle, wipe grease and food soils from the oven.
• Do not put the lower drawer into the oven cavity when you run a self-cleaning
cycle.
• When opening the door after a self-cleaning cycle, stand away from the oven.
• If the self-cleaning cycle malfunctions, turn off the oven, disconnect the power
supply, and contact a qualied service technician.
Storage drawer safety
WARNING
To reduce the risk of re, electric shock, personal injuries, and/or death, observe
the following precautions.
• Use the drawer for storage only.
• Store only non-ammable items (broiler grid,
broiler pan, cookie sheets, etc.) in the drawer.
• Do not use aluminium foil to line the drawer.
• Do not put the drawer in the oven. Do not put the drawer in the oven during a
self-cleaning cycle.
• Do not leave containers of fat drippings in or near the drawer.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 11 2019-05-30  6:11:06

12 English
Overview
Overview
Layout
01
02
04
06
05
03
09
08
10
07
01 Surface burners 02 Oven vents 03 Touch display
04 Surface burner
knobs (5 pcs)
05 Removable oven
door
06 Storage drawer
07 Broil oven burner 08 Oven light 09 Oven rack system
10 Bake oven burner
What’s included
Surface burner
grates (3) *
Surface burners and
caps (5) *
Flat rack (2) *
NOTE
If you need an accessory marked with an asterisk (*), you can buy it from the
Samsung Contact Center (1-800-SAMSUNG (726-7864)).
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 12 2019-05-30  6:11:06

English 13
Before you start
Control panel
01 1302
03
14
10 1108 0907060504 12
01 Bake: Bake food evenly using the
lower oven burner.
02 Broil: Broil food using the upper
oven burner only.
03 Keep Warm: Keep cooked food
warm at 175 °F (80 °C).
04 Self Clean: Burn off food
residues in the oven at very high
temperatures.
05 Temp.: Change cooking
temperature of the oven.
06 Timer: Activates or deactivates the
timer.
07 Cook Time: Set the cooking time.
08 Delay Start: Set the oven to start at
a certain time.
09 Clock: Set the clock time.
10 Numbers: Use to set the times,
temperature, or presets.
11 Clear: Clear the settings just
inputted.
12 Oven Light: Turn on or Turn off the
oven light.
13 OVEN OFF: Cancel oven operation.
14 START/SET: Start a function or set
the time.
Before you start
You should know about the following features and components before you use
your range for the rst time.
Display mode
Sleep
After 2 minutes of inactivity (or 1 minute when the oven is in standby mode),
the control panel enters Sleep mode. In Sleep mode, the control panel is inactive,
displaying only the time, until it is reactivated by the user.
Clock
You must set the clock correctly to ensure the automatic features work properly.
This product supports two time formats: 12-hour (default) and 24-hour.
To set the clock time
21
34
1. Press the Clock pad.
2. To select AM/PM, press the Clock pad again.
3. Enter the current time using the number pad.
4. Press the START/SET pad to conrm the settings.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 13 2019-05-30  6:11:07

14 English
Before you start
Before you start
To change the time format (12hr/24hr)
4
32
1
1. Press the Broil pad and 4 on the number pad simultaneously.
2. Press 0for the 24-hour format.
3. Press 0again for the 12-hour format.
4. Press the START/SET pad.
NOTE
You can set/change the clock or the kitchen timer before you start a cooking mode
or while most cooking modes are operating. However, you cannot set or change
the time if a time based function is operating (Time Bake, for example) or the
Sabbath option is enabled.
Kitchen timer
The kitchen timer gives you an extra timer you can use to time cooking tasks such
as boiling eggs. It does not, however, start or stop any cooking operation. You can
set the timer from 1 minute to 9 hours and 59 minutes.
1
23
1. Press the Timer pad.
2. Enter a desired time using the number pad.
3. When done, press the START/SET pad.
4. To cancel the Timer settings, press the Timer pad again for 3 seconds.
5. When the set time elapses, the oven beeps and displays the “End” message.
Press the Timer pad for 3 seconds to delete the message.
Oven vent/cooling vent
Cooling vent
The cooling vents are located at the back
of the oven range. Proper air circulation
prevents combustion problems and ensures
good performance.
• Do not block the vent or its surroundings.
• Use caution when placing items near
the vent. Hot steam can cause them to
overheat or melt.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 14 2019-05-30  6:11:07

English 15
Cooktop
Cooktop
STEP 1
Put all ingredients into a cooking container
(pan, pot, etc).
STEP 2
Place the container on a surface burner.
STEP 3
Ignite the surface burner.
Gas burners
LR
LF RF
RR
C
Each burner has a corresponding knob
that lets you to set the ame level from LO
to HI. In addition, each burner knob has a
Lite setting. Turning a knob to Lite ignites
the corresponding burner. The burner
indicators are located above each knob
and show which burner the knob controls.
Each burner is designed for specic cooking
purposes. See the table below.
Position Purpose Food type Characteristics
Right Front (RF)
17,000 BTU
Power heating Boiling food Maximum output
Right Rear (RR)
5,000 BTU
Low simmering Chocolate,
casseroles, sauces
Delicate food that
requires low heat
for a long time
Center (C)
9,500 BTU
General heating/
Griddling
General food/
Pancakes, fried
eggs
General-purpose
cooking
Left Front (LF)
15,000 BTU
Quick heating General General-purpose
cooking
Left Rear (LR)
9,500 BTU
General heating/
Low simmering
General food,
casseroles
General-purpose
cooking
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 15 2019-05-30  6:11:08

16 English
Cooktop
Cooktop
Ignition
CAUTION
2
1
Make sure all surface burners are properly
installed. To light a burner:
1. Push in the control knob, and then turn
it to the Lite position. You will hear a
“clicking” sound indicating the electronic
ignition system is working properly.
2. After the surface burner lights, turn
the control knob to shift it out of the
Lite position and turn off the electronic
ignition system.
3. Turn the control knob to adjust the ame
level.
Manual ignition
If there is a power failure, you can ignite the burner manually. Use caution when
doing this.
1. Hold a long gas grill lighter to the surface burner you want to light.
2. Push in the control knob for that burner, and then turn it to the Lite position.
Turn on the grill lighter to ignite the burner.
3. After the burner is lit, turn the control knob to adjust the ame level.
Flame level
The ames on the burners should always stay under the cookware, and should not
extend beyond the cookware bottom at any time.
WARNING
• Flames larger than the cookware bottom may result in a re or physical injury.
• When you set a burner to simmer, do not turn the burner knob quickly. Watch the
ame to make sure it stays on.
• After turning on a surface burner, make sure that the burner has ignited. Adjust
the level of the ame by turning the burner knob.
• Always turn off the surface burner controls before removing cookware. All
surface burner controls should be turned OFF when you are not cooking.
• Always turn the burners off before you go to sleep or go out.
• If you smell gas, turn off the gas to the range and call a qualied service
technician. NEVER use an open ame to locate a leak.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 16 2019-05-30  6:11:08

English 17
Cooktop
Adjusting low ame settings on cooktop burners
All Cooktop burner ames should be checked at their lowest setting. Use the
following steps to check and adjust the cooktop burner settings.
NOTE
Low setting adjustments should always be made with two or more burners
operating at the same time.
Flat-bladed
screwdriver
Valve Stem
1. Turn on two or more surface burners and
set them between MED and HI.
2. Quickly turn one of the control knobs
counterclockwise to the lowest setting.
The ame should stay lit. if the ame
utters or goes out, adjust the bypass
valve on the control valve for that
burner.
3. Pull the control knob for that burner
straight off.
4. Using a small at-bladed screwdriver,
adjust the bypass valve screw in the
base of the valve stem. Turn the bypass
valve screw counterclockwise to increase
the ame size.
5. Replace the control knob, and then
recheck the low ame setting.
6. Repeat steps 1 thru 5 to check and adjust
the low ame settings on the remaining
surface burners.
Cookware
Requirements
• Flat bottom and straight sides
• Tight-tting lid
• Well-balanced with the handle weighing less than the main portion of the pot or
pan.
Material characteristics
• Aluminum: An excellent heat conductor. Some types of food may cause the
aluminum to darken. However, anodized aluminum cookware resists staining and
pitting.
• Copper: An excellent heat conductor but discolors easily.
• Stainless steel: A slow heat conductor with uneven cooking performance but is
durable, easy to clean, and resists staining.
• Cast-Iron: A poor conductor but retains heat very well.
• Enamelware: Heating characteristics depend on the base material.
• Glass: A slow heat conductor. Use only glass cookware that is specied for range
top cooking or oven use.
6 inches or less
Size limitations
CAUTION
• Do not place a small pan or pot with a
bottom diameter of about 6 inches or less
on the center grate. This cookware may tip
over. Use the rear burners for this small-
sized cookware.
• Do not use an oversized pan. The burner
ames may spread out, causing damage
nearby.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 17 2019-05-30  6:11:08

18 English
Cooktop
Cooktop
• Always make sure cookware handles are turned to the side or rear of the cooktop
and not over other surface burners. This will minimize the chance of burns,
spillovers, and the ignition of ammable materials that can be caused if pots or
pans are bumped accidently.
• When using glass cookware, make sure it is designed for range top cooking.
• Never leave plastic items on the cooktop. Hot air from the vent can melt or
ignite plastic items or cause a build up of dangerous pressure in closed plastic
containers. You may get severe burns if you touch the surfaces near the vent
while the oven is operating.
• Make sure you hold the handle of a wok or a small one-handled pot while
cooking.
Gas oven
STEP 1
Put all ingredients in a heat-safe container.
STEP 2
Select a cooking mode, and then start
preheating.
STEP 3
Place the container on a rack.
STEP 4
Close the door and start cooking.
NOTE
• The cooling fan automatically runs for a certain amount of time after cooking is
complete.
• There can be slight popping sound during oven cooking. This sound may occur
during normal oven burner cycling, when the oven burner ame is extinguished.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 18 2019-05-30  6:11:09

English 19
Gas oven
Cooking mode
• Make sure to close the door before you
start cooking.
• If you leave the door open for 20-
30 seconds while the oven is in baking, or
broiling modes, the oven burner shuts off.
To restart the burner, close the door.
Baking
1
2
3
4
1. Press the Bake pad.
2. If necessary, use the number pad to change the default temperature (350 °F).
You can set the oven to any temperature from 175 °F to 550 °F.
3. Press the START/SET pad.
• The oven preheats until it reaches the temperature you set.
• It beeps six times when it reaches the temperature you set.
• When preheating is complete, place the food in the oven, and then close the
door.
4. When cooking is complete, press the OVEN OFF pad, and then take out the food.
NOTE
To change the temperature during cooking, repeat steps 1 through 3 above.
Broiling
Broiling uses the oven broil burner at the top of the oven to cook and brown
food. Meat or sh must be put on a broiling grid in a broiling pan. Preheating for
5 minutes before broiling is recommended.
Broiling
23
7
1. Put food on a broiling grid in a broiling pan.
2. Press the Broil pad once for Hi temperature broiling or twice for Lo.
3. Press the START/SET pad to start the broiler.
4. Let the oven pre-heat for 5 minutes.
5. Place the pan on the desired rack, and then close the oven door.
6. When one side of the food is browned, turn it over, close the oven door, and
start cooking the other side.
7. When cooking is complete, press the OVEN OFF pad.
NOTE
• Make sure to close the door before you start cooking.
• Use the low temperature setting for poultry or thick cuts of meat to prevent
overbroiling.
• In general, to prevent overbroiling, press the Broil pad to switch from Hi to Lo.
• Use caution when you open the oven door to turn over the food. The air escaping
from the oven will be very hot.
• For information about broiler temperatures, rack settings, and cooking times for
different foods, see "Broiling guide" on page 20.
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 19 2019-05-30  6:11:09

20 English
Gas oven
Gas oven
Recipe guide
Broiling guide
For detailed broiling instructions, see page 19.
NOTE
• This is for reference only.
• Preheating for 5 minutes before broiling is recommended.
• The size, weight, thickness, starting temperature, and your doneness preference
will affect broiling times.
• This guide is based on meats at refrigerator temperature.
• If you cover the meat with aluminum foil after cooking is complete, and then let
it stand covered for 10 minutes, the internal temperature increases by 5-10 °F
degrees.
Food Doneness Size Thickness Broil
setting
Rack
position
Cooking time (Min.)
1st side 2nd side
Hamburgers Medium 9 patties 1" HI 6 5:00 4:00
Beef steak
Medium -
1" HI 5
7:00-
8:00
4:00-
6:00
Medium -
1½" HI 5
12:00-
16:00
11:00-
14:00
Chicken
pieces
Well done 2-2 ½ lbs. ¾"-1" HI 3
18:00-
20:00
12:00-
15:00
Chicken
breasts
Well done 2-3 pcs - HI 4
15:00-
20:00
7:00-
12:00
Pork chops
Well done 1 lb. ½" HI 5
9:00-
11:00
6:00-
9:00
Lamb chops
Medium 10 oz. 1½" HI 4
8:00-
12:00
5:00-
8:00
Well done 10 oz. 1½" HI 4
10:00-
16:00
7:00-
11:00
CAUTION
Make sure to close the door after turning over the food.
Minimum and maximum settings
All the features listed in the table below have minimum and maximum time or
temperature settings. A beep will sound each time a pad on the control panel is
pressed and the entry is accepted. An error tone will sound in the form of a long
beep if the entered temperature or time is below the minimum or above the
maximum setting for the feature.
Feature Temperature (˚F)
Minimum Maximum
Bake 175 550
Broil LO HI
NX58R9311SS_AA_DG68-00905B-00_EN+MES+CFR.indb 20 2019-05-30  6:11:09
