Samsung NE58H9970WS User manual

Eoot_o R_ge
US@r ins.RuB.
the possibilities
Thank jou for purchasing this Samsung product.

d vic
I
WARNING
Q
WARNING = To reduce the risk of tipping the range, the
range must be secured by a properly installed Anti-Tip
device. AFTER THE RANGE HAS BEEN INSTALLED,
CONFIRM THAT THE ANTI=TIP DEVICE HAS BEEN
PROPERLY INSTALLED AND VERIFY THAT THE ANTI=
TIP DEVICE IS PROPERLY ENGAGED. Refer to the
installation manual for instructions.
a) If the anti-tip device is not installed, a child or adult can tip
the range and be killed.
b) Verify the anti-tip device has been properly installed and
engaged at the rear right (or rear left) of the range bottom.
e) If you move the range and then move it back into place,
ensure the anti-tip device is re-engaged at the right or left
rear of the range bottom.
d) Do not operate the range without the anti-tip device in place
and engaged.
e) Failure to do so can result in death or serious burns to
children or adults.
: WARN !NG
Do not step, lean, or sit on the oven door or warming
drawer of the range. You can cause the range to tip,
resulting in burns or serious injuries.
English -2

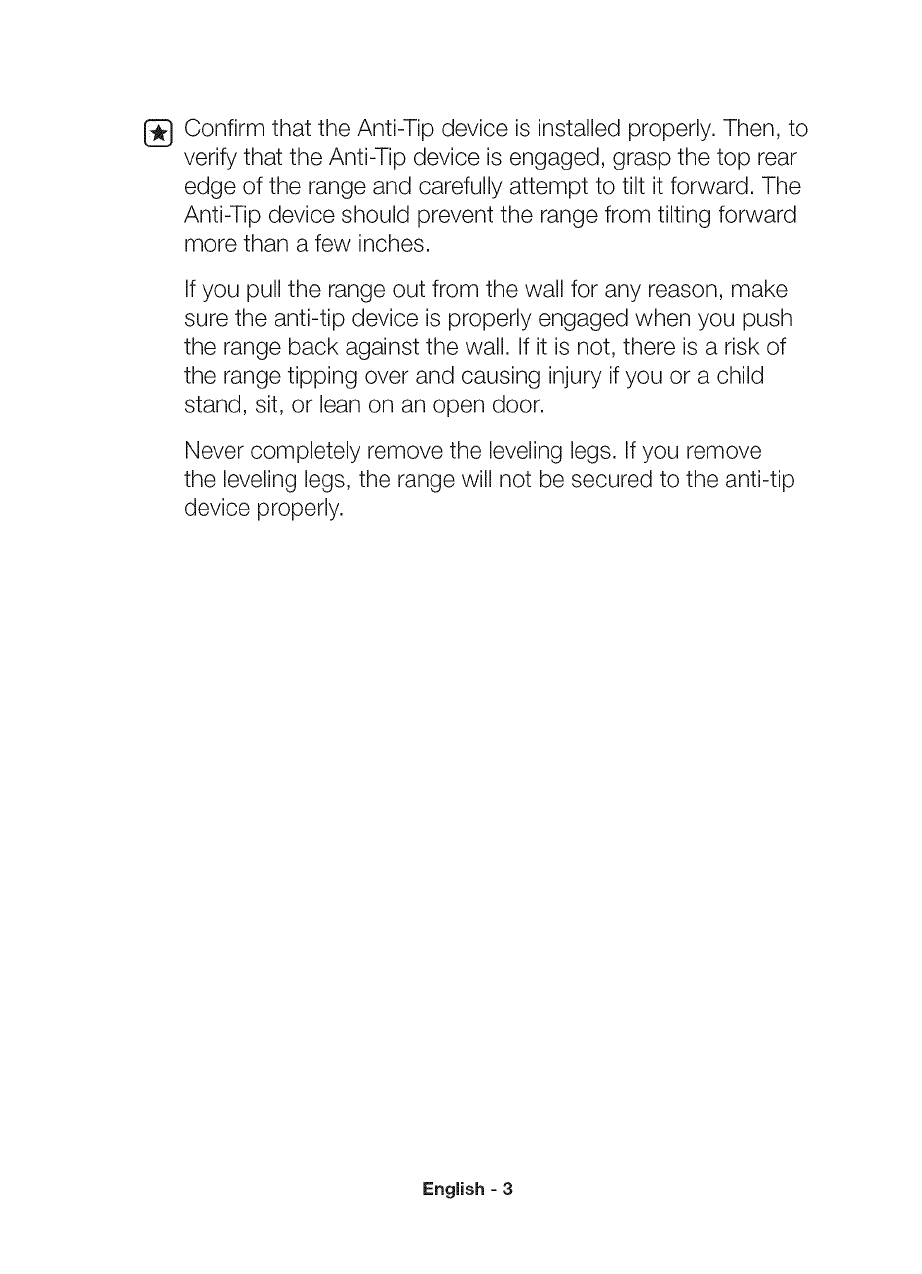

Confirm that the Anti-Tip device is installed properly. Then, to
verify that the Anti-Tip device is engaged, grasp the top rear
edge of the range and carefully attempt to tilt it forward. The
Anti-Tip device should prevent the range from tilting forward
more than a few inches.
If you pull the range out from the wall for any reason, make
sure the anti-tip device is properly engaged when you push
the range back against the wall. If it is not, there is a risk of
the range tipping over and causing injury if you or a child
stand, sit, or lean on an open door.
Never completely remove the leveling legs. If you remove
the leveling legs, the range will not be secured to the anti-tip
device properly.
English -3

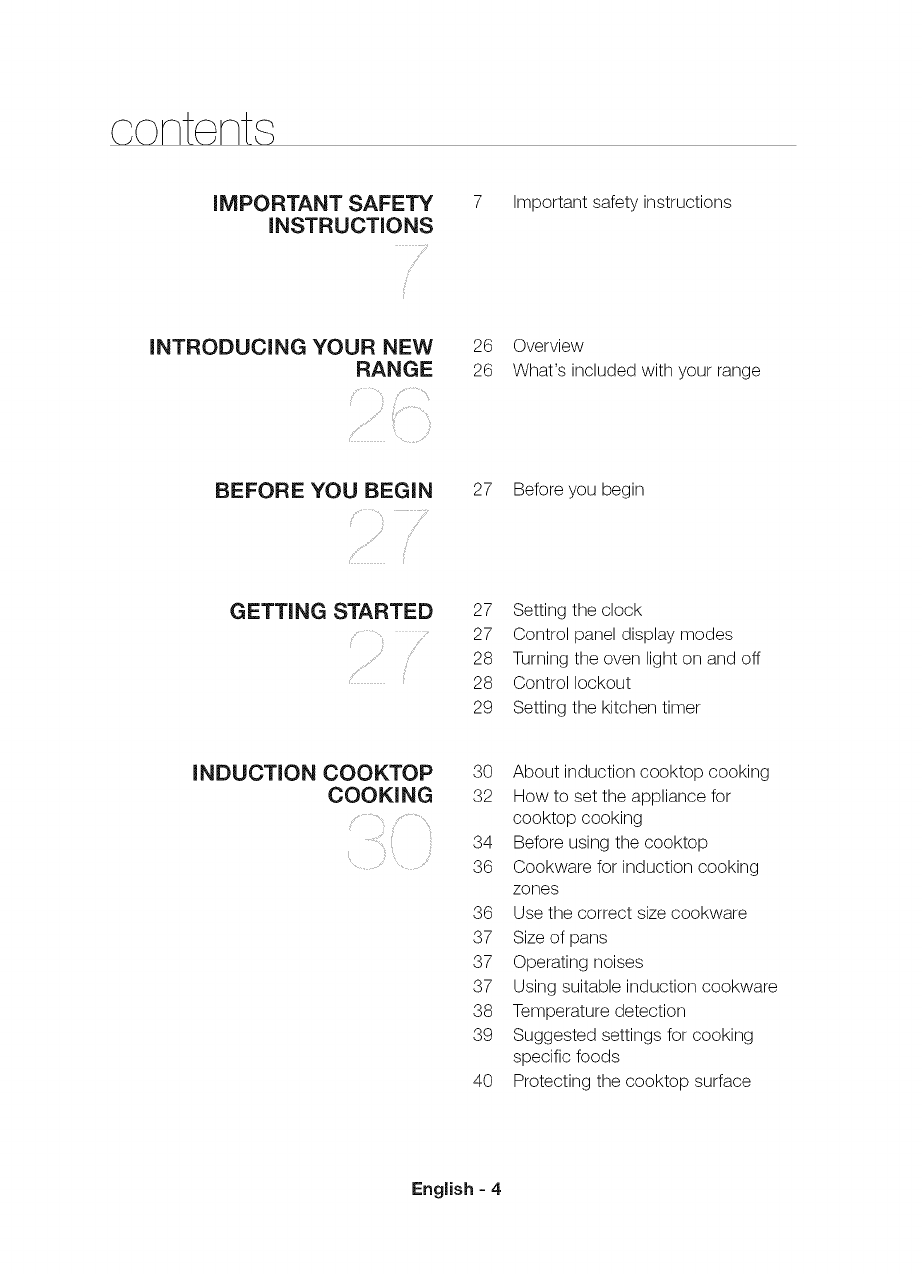

cont nt,s
iMPORTANT SAFETY
iNSTRUCTiONS 7 Important safety instructions
INTRODUCING YOUR NEW
RANGE 26 Overview
26 What's included with your range
_r , , ,
BEFORE YOU BEGIN 27 Before you begin
GETTING STARTED 27 Setting the clock
27 Control panel display modes
28 Turning the oven light on and off
28 Control lockout
29 Setting the kitchen timer
INDUCTION COOKTOP
COOKING 30 About induction cooktop cooking
32 How to set the appliance for
cooktop cooking
34 Before using the cooktop
36 Cookware for induction cooking
zones
36 Use the correct size cookware
37 Size of pans
37 Operating noises
37 Using suitable induction cookware
38 Temperature detection
39 Suggested settings for cooking
specific foods
40 Protecting the cooktop surface
English - 4

cont nt,
OPERATING THE OVEN 41
42
45
46
47
48
49
5O
52
53
54
55
57
58
6O
61
61
65
67
The oven control panel
Using the oven racks
Using the gliding rack
Using the partition
Twin cooking mode temperature
setting ranges
Minimum and maximum settings
Chef baking
Convection baking
Convection roasting
Timed cooking
Dela,' start
Broilinc
Usinc the favorite cook feature
Usinc the healthy cook feature
Usinc the keep warm function
Usinc the bread proof function
Usinc the options function
Usinc the temp probe
Setting the sabbath feature
USING THE WARMING
DRAWER 69 About the warming drawer
69 Turning the warming drawer on or
off
MAINTAINING YOUR
APPLIANCE
s
70 Self-cleaning
73 Steam-cleaning
74 Care and cleaning of the oven
77 Care and cleaning of the glass
cooktop
80 Removing and replacing the oven
door
82 Removing and replacing the
warming drawer
83 Changing the oven light
English - 5

TROUBLESHOOTING s4 Troubleshooting
WARRANTY (U.S.A)
f
/
90 Warranty (U.S.A)
WARRANTY (CANADA}
,_i__ ,,
92 Warranty (CANADA)
English - 6

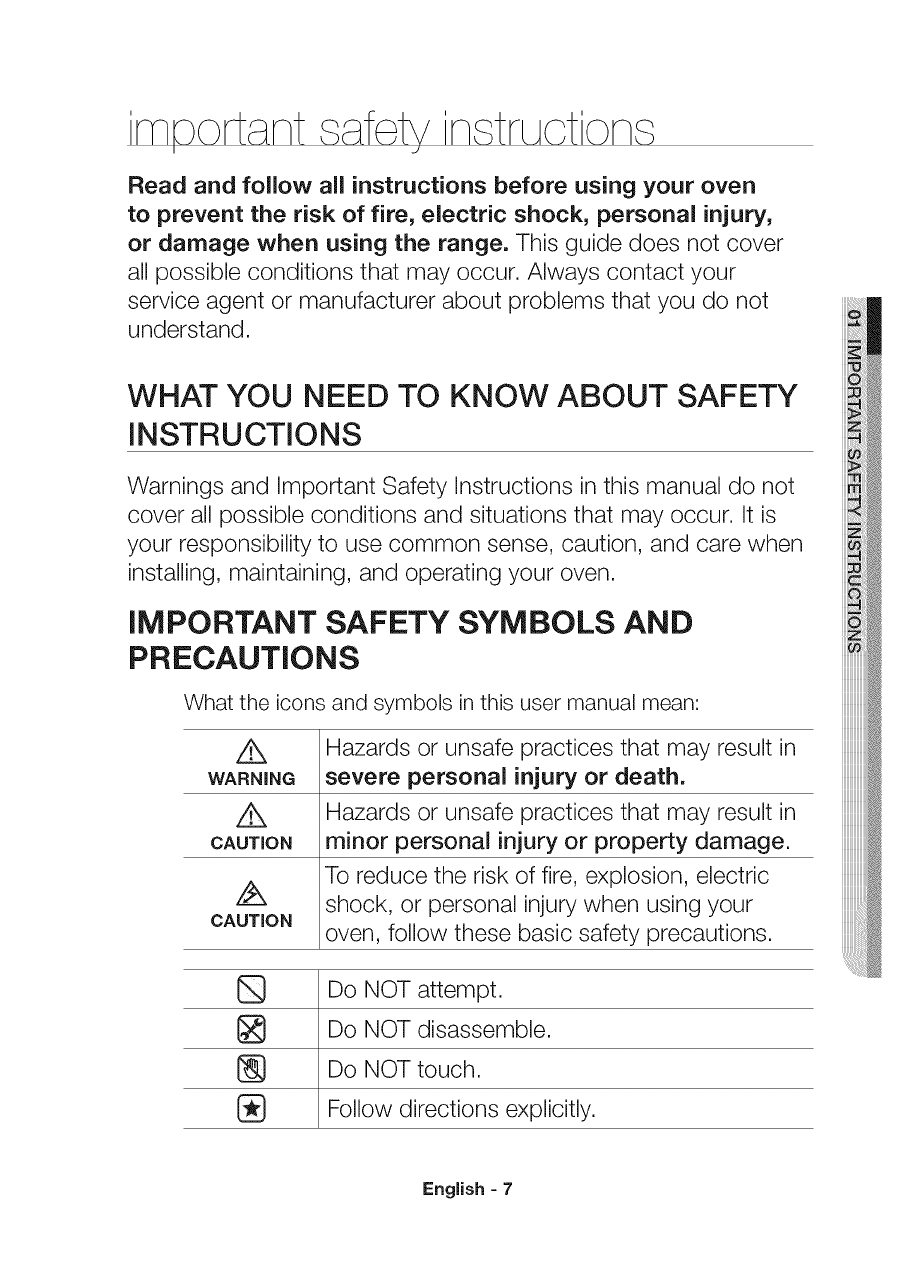

i i
Read and follow all instructions before using your oven
to prevent the risk of fire, electric shock, personal injury,
or damage when using the range. This guide does not cover
all possible conditions that may occur. Always contact your
service agent or manufacturer about problems that you do not
understand.
WHAT YOU NEED TO KNOW ABOUT SAFETY
iNSTRUCTiONS
Warnings and Important Safety Instructions in this manual do not
cover all possible conditions and situations that may occur. It is
your responsibility to use common sense, caution, and care when
installing, maintaining, and operating your oven.
IMPORTANT SAFETY SYMBOLS AND
PRECAUTIONS
What the icons and symbols in this user manual mean:
Hazards or unsafe practices that may result in
WARNING severe personal injury or death.
Z_ Hazards or unsafe practices that may result in
CAUTION minor personal injury or property damage,
To reduce the risk of fire, explosion, electric
/_ shock, or personal injurywhen using your
CAUTION oven, follow these basic safety precautions.
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
_} Follow directions explicitly.
iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
English - 7

Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent
electric shock.
Call the service center for help.
Note
These warning icons and symbols are here to prevent injury to you
and others.
Please follow them explicitly.
After reading this section, keep it in a safe place for future
reference.
FOR YOUR SAFETY
When using electrical appliances, you should follow basic
safety precautions, including the following:
Use this appliance only for its intended purpose as described
....... in this Owner's Manual.
Potentially hot surfaces include the cooktop, areas facing the
cooktop, oven vent opening, surfaces near the opening, and
crevices around the oven door.
[_ Be sure your appliance is properly installed and grounded by
a qualified technician.
User servicing =Do not repair or replace any part of the
appliance unless specifically recommended in the manual. All
other servicing should be referred to a qualified technician.
Always disconnect the power to the appliance before
servicing by removing the fuse or switching off the circuit
breaker.
English - 8

Do not enter the oven.
Do not store items of interest to children in cabinets
above a range or on the back guard of a range, Children
climbing on the range to reach items could be seriously injured.
Do not leave children alone, Never leave children alone or
unattended in an area where this appliance is in use. They
should never be allowed to sit or stand on any part of the
appliance.
Never use your appliance for warming or heating the
rOOm,
Do not use water on grease fires, Turn off the oven to
avoid spreading the flame. Smother the fire or flame by
closing the door or use a dry chemical, baking soda, or
foam-type extinguisher.
Avoid scratching or impacting glass doors, cooktops, or control
panels. Doing so may lead to glass breakage. Do not cook on a
product with broken glass. Shock, fire, or cuts may occur.
If there is a fire in the oven during baking, smother the fire by
closing the oven door and turning the oven off or by using a
multi-purpose dry chemical or foam-type fire extinguisher.
If there is a fire in the oven during self-clean, turn the oven
off and wait for the fire to go out. Do not force the door
open. Introduction of fresh air at self-clean temperatures may
lead to a burst of flame from the oven. Failure to follow this
instruction may result in severe burns.
If the oven is heavily soiled with oil, self clean the oven before
using the oven again. Leaving the oil in place creates a risk of
fire.
Wipe up heavy soil on the oven bottom with a paper tower
or rag before self cleaning. Self cleaning the oven when there
is heavy soil on the oven bottom requires longer cleaning
cycles and produces more smoke.
iiiiiiiiiiiiiii
English =9

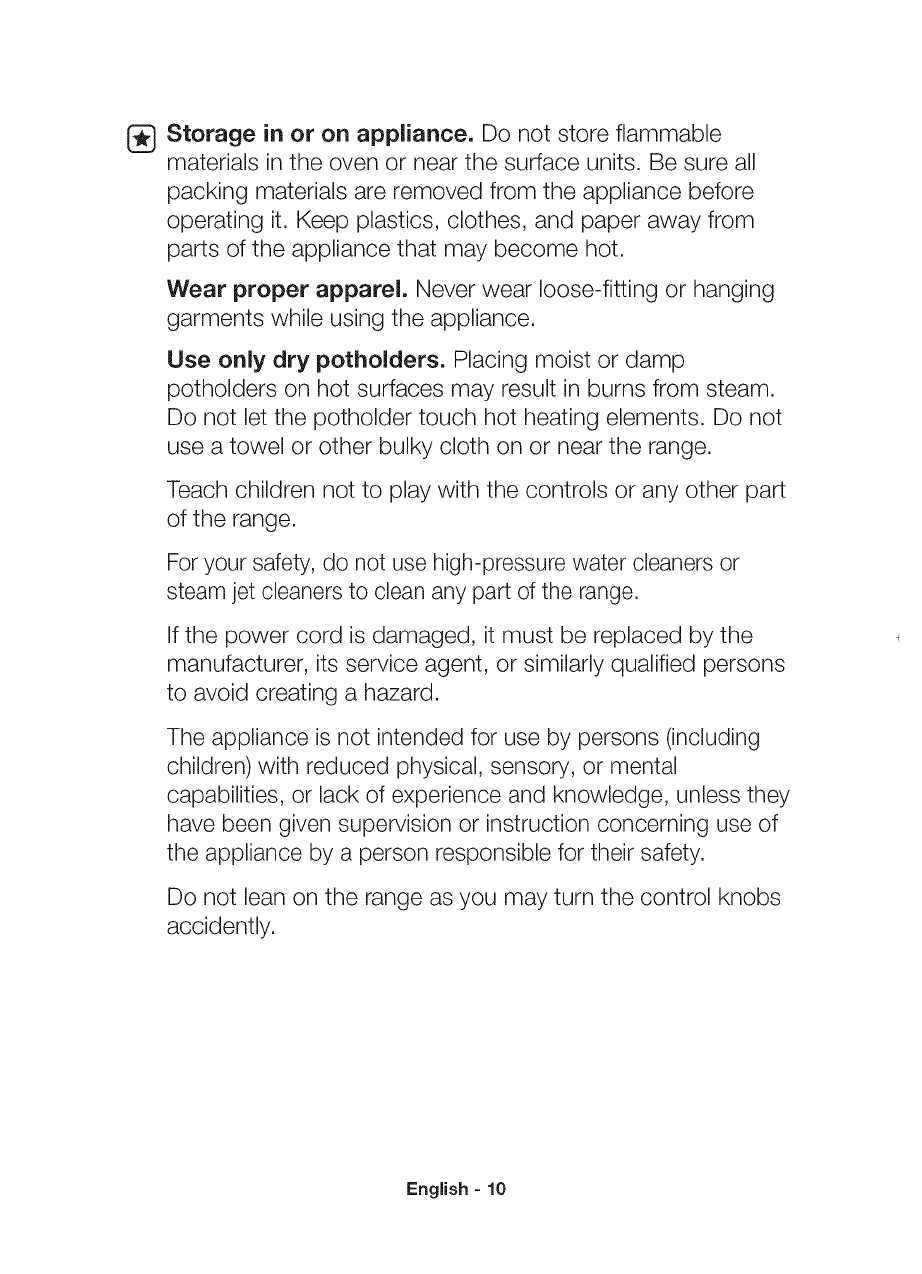

[_ Storage in or on appliance. Do not store flammable
materials in the oven or near the surface units. Be sure all
packing materials are removed from the appliance before
operating it. Keep plastics, clothes, and paper away from
parts of the appliance that may become hot.
Wear proper apparel. Never wear loose-fitting or hanging
garments while using the appliance,
Use only dry potholders. Placing moist or damp
potholders on hot surfaces may result in burns from steam.
Do not let the potholder touch hot heating elements. Do not
use a towel or other bulky cloth on or near the range.
Teach children not to play with the controls or any other part
of the range.
For your safety, do not use high-pressure water cleaners or
steam jet cleaners to clean any part of the range.
If the power cord is damaged, it must be replaced by the
manufacturer, its service agent, or similarly qualified persons
to avoid creating a hazard.
The appliance is not intended for use by persons (including
children) with reduced physical, sensory, or mental
capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Do not lean on the range as you may turn the control knobs
accidently.
English - 10

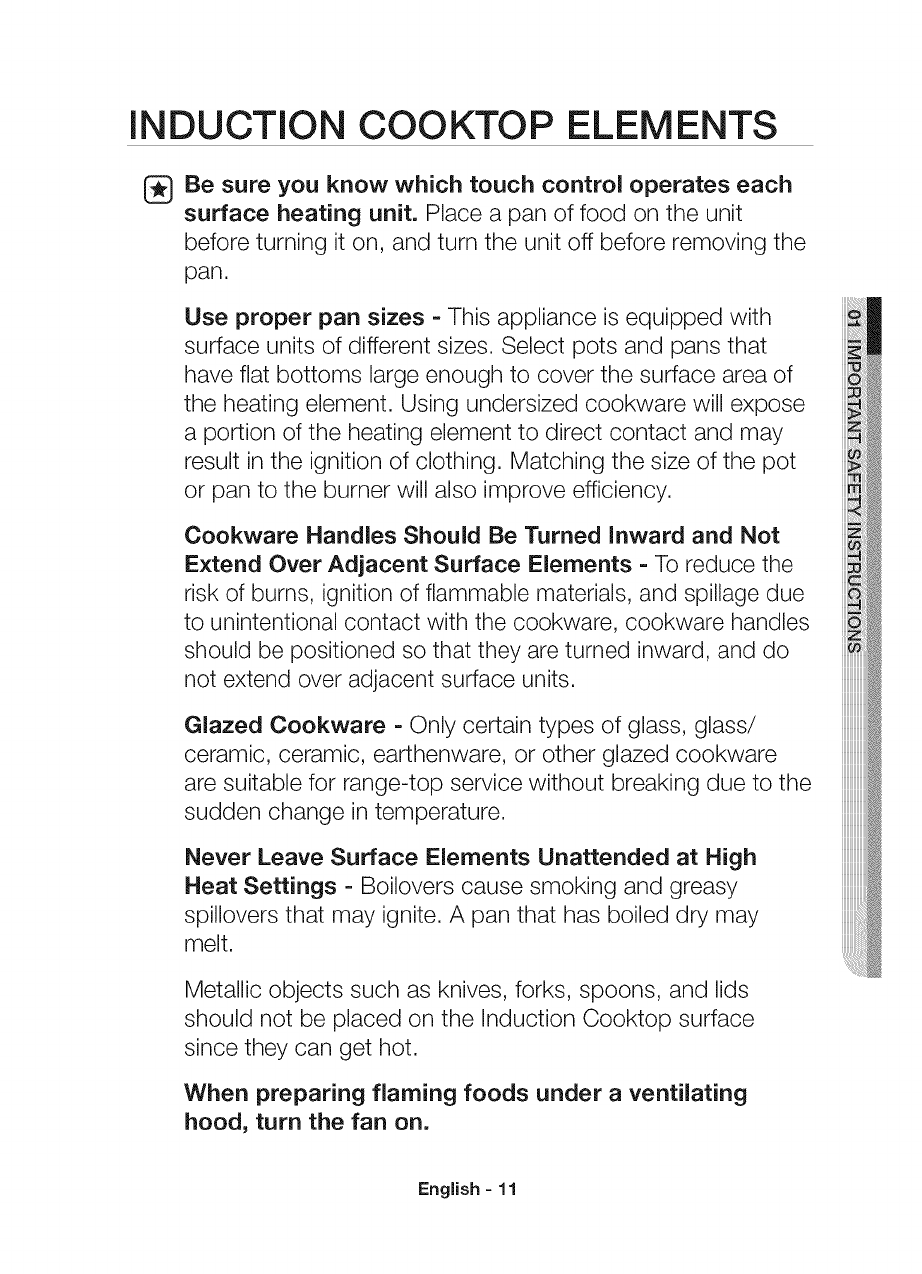

INDUCTION COOKTOP ELEMENTS
Be sure you know which touch control operates each
surface heating unit. Place a pan of food on the unit
before turning it on, and turn the unit off before removing the
pan.
Use proper pan sizes =This appliance is equipped with
surface units of different sizes. Select pots and pans that
have flat bottoms large enough to cover the surface area of
the heating element. Using undersized cookware will expose
a portion of the heating element to direct contact and may
result in the ignition of clothing. Matching the size of the pot
or pan to the burner will also improve efficiency.
Cookware Handles Should Be Turned Inward and Not
Extend Over Adjacent Surface Elements = To reduce the
risk of burns, ignition of flammable materials, and spillage due
to unintentional contact with the cookware, cookware handles
should be positioned so that they are turned inward, and do
not extend over adjacent surface units.
Glazed Cookware = Only certain types of glass, glass/
ceramic, ceramic, earthenware, or other glazed cookware
are suitable for range-top service without breaking due to the
sudden change in temperature.
Never Leave Surface Elements Unattended at High
Heat Settings -Boilovers cause smoking and greasy
spillovers that may ignite. A pan that has boiled dry may
melt.
Metallic objects such as knives, forks, spoons, and lids
should not be placed on the Induction Cooktop surface
since they can get hot.
When preparing flaming foods under a ventilating
hood, turn the fan on.
English = 11

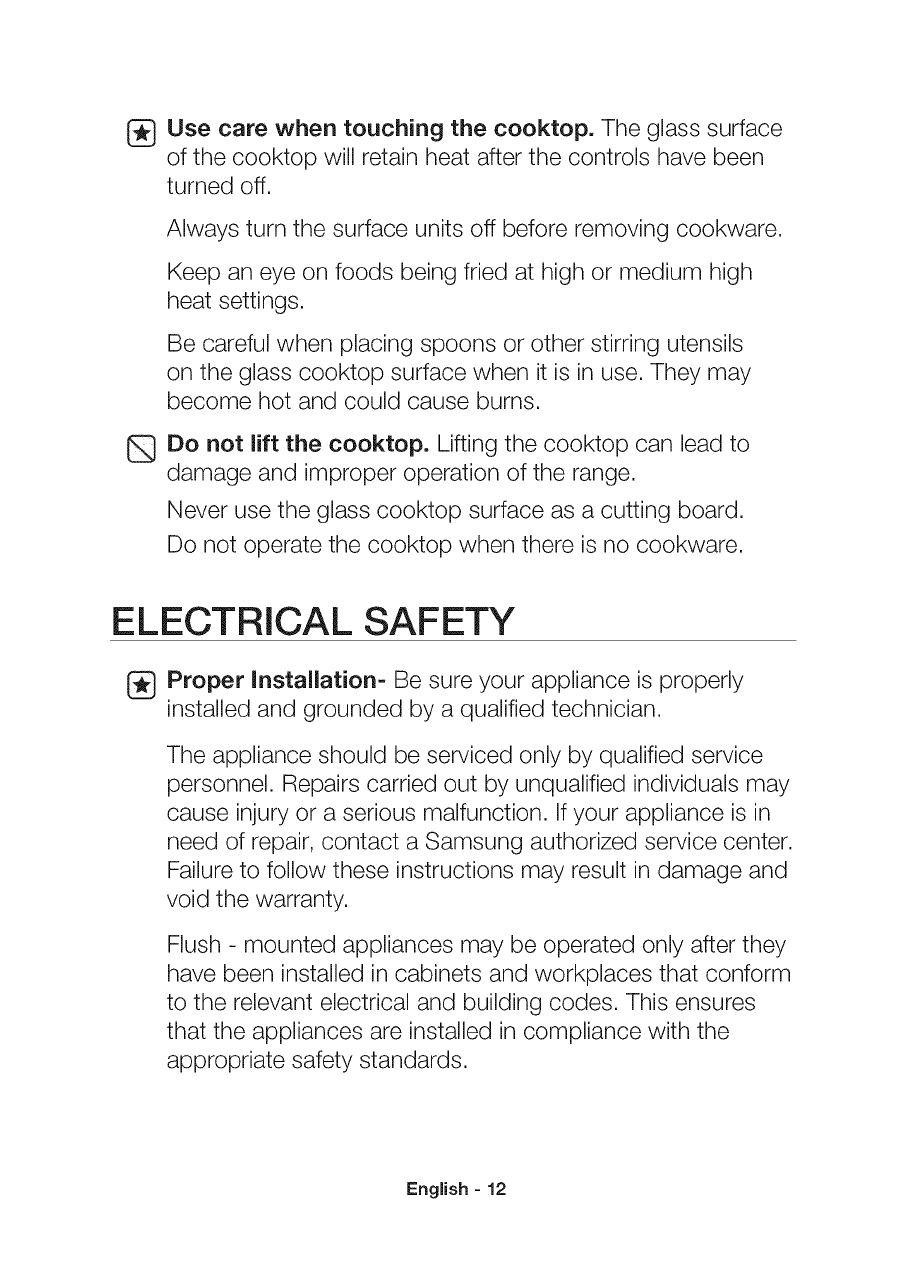

Use care when touching the cooktop. The glass surface
of the cooktop will retain heat after the controls have been
turned off.
Always turn the surface units off before removing cookware.
Keep an eye on foods being fried at high or medium high
heat settings.
Be careful when placing spoons or other stirring utensils
on the glass cooktop surface when it is in use. They may
become hot and could cause burns.
Do not lift the cooktop. Lifting the cooktop can lead to
damage and improper operation of the range,
Never use the glass cooktop surface as a cutting board.
Do not operate the cooktop when there is no cookware.
ELECTRICAL SAFETY
Proper Installation- Be sure your appliance is properly
installed and grounded by a qualified technician,
The appliance should be serviced only by qualified service
personnel. Repairs carried out by unqualified individuals may
cause injury or a serious malfunction, if your appliance is in
need of repair, contact a Samsung authorized service center.
Failure to follow these instructions may result in damage and
void the warranty.
Flush - mounted appliances may be operated only after they
have been installed in cabinets and workpiaces that conform
to the relevant electrical and building codes. This ensures
that the appliances are installed in compliance with the
appropriate safety standards.
English - 12

/k
WARNING
/k
WARNING

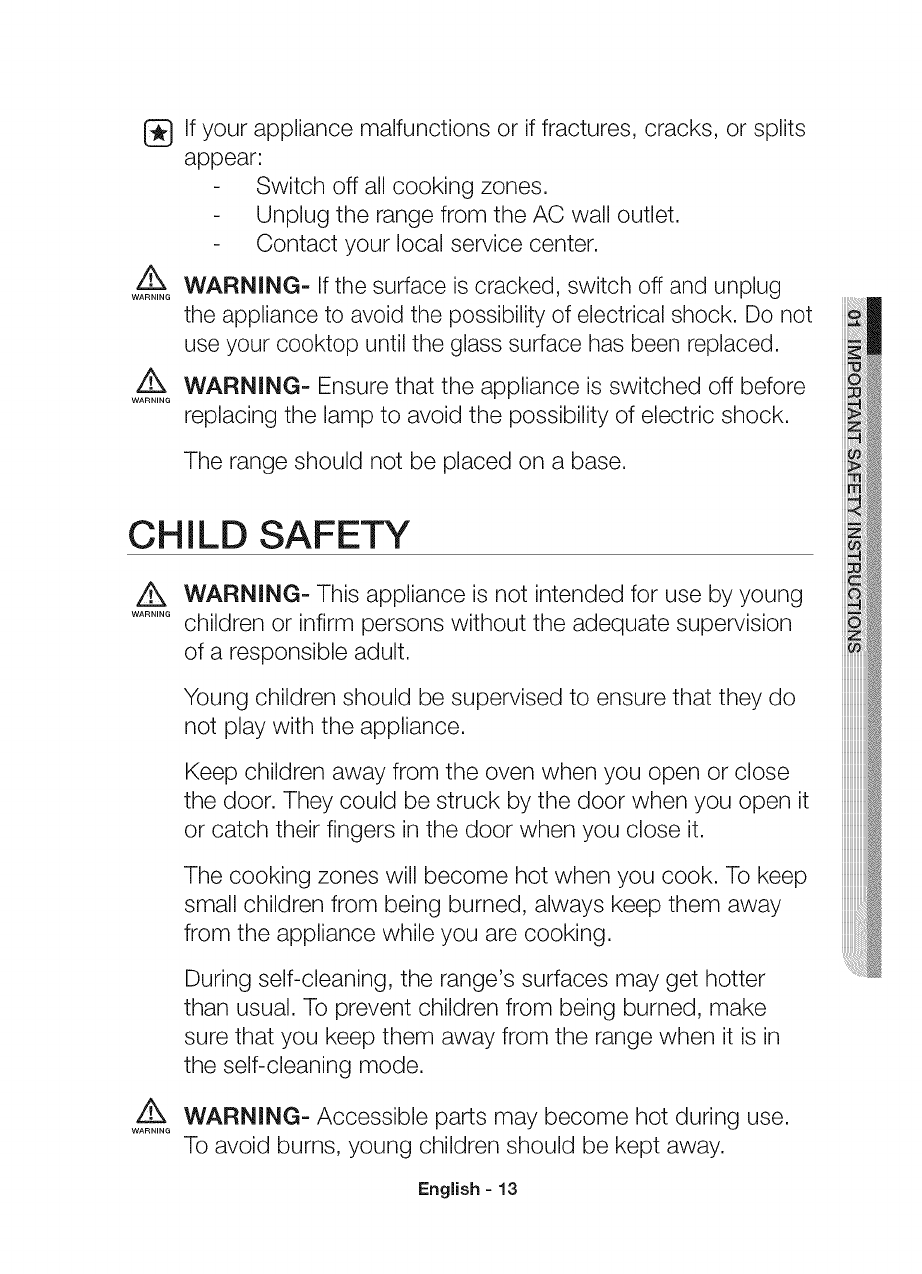

If your appliance malfunctions or if fractures, cracks, or splits
appear:
- Switch off all cooking zones.
- Unplug the range from the AC wall outlet.
- Contact your local service center.
WARNING- If the surface is cracked, switch off and unplug
the appliance to avoid the possibility of electrical shock. Do not
use your cooktop until the glass surface has been replaced.
WARNING- Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
The range should not be placed on a base.
CHILD SAFETY
WARNING
WARNING
WARNING- This appliance is not intended for use by young
children or infirm persons without the adequate supervision
of a responsible adult.
Young children should be supervised to ensure that they do
not play with the appliance.
Keep children away from the oven when you open or close
the door. They could be struck by the door when you open it
or catch their fingers in the door when you close it.
The cooking zones will become hot when you cook. To keep
small children from being burned, always keep them away
from the appliance while you are cooking.
During self-cleaning, the range's surfaces may get hotter
than usual. To prevent children from being burned, make
sure that you keep them away from the range when it is in
the self-cleaning mode.
WARNING- Accessible parts may become hot during use.
To avoid burns, young children should be kept away.
English - 13
iiiiiiiiiiiiiii
iiiiiiiiiiiiiii

OVEN
QDO NOT TOUCH THE HEATING ELEMENTS OR
INTERIOR SURFACES OF THE OVEN. Heating elements
may be hot even though they are dark in color. Interior
surfaces of an oven become hot enough to cause burns.
During and after use, do not touch or let clothing or other
flammable materials contact the heating elements or interior
surfaces of the oven until they have had sufficient time to
cool. Other surfaces of the appliance may become hot
enough to cause burns. Among these surfaces are oven vent
openings and surfaces near these openings, the oven door,
and the window of the oven door.
Do not heat unopened food containers. The build-up
of pressure may cause the container to burst and result in
injury.
Do not use the oven to dry newspapers. Ifoverheated,
newspapers can catch fire.
Do not use the oven for a storage area. Items stored in
an oven can ignite.
Use care when opening the door. Let hot air or steam
escape before you remove food from or put food into the
oven.
Protective liners. Do not use aluminum foil to line the oven
bottoms, except as suggested in the manual. Improper
installation of these liners may result in a risk of electric
shock or fire.
English - 14

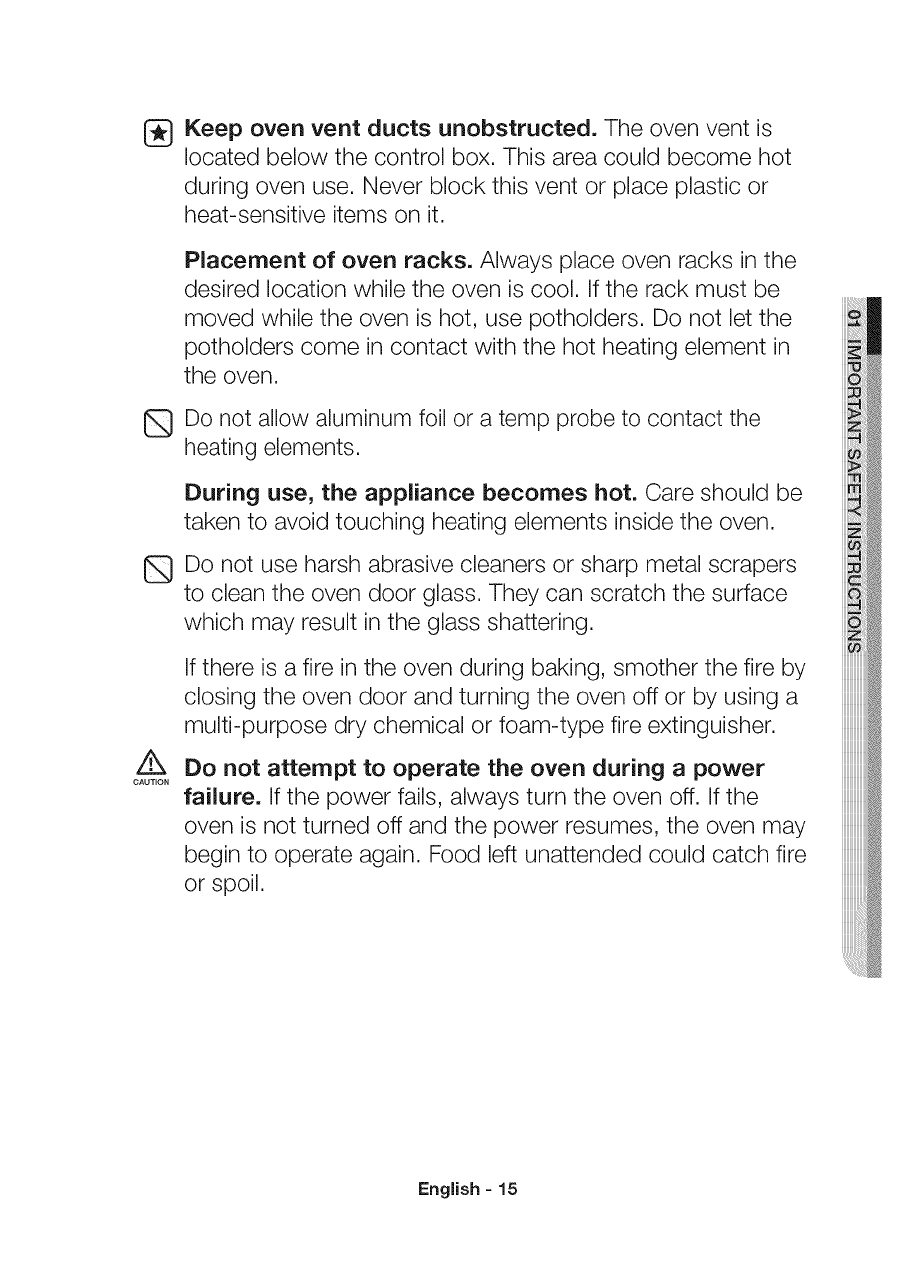

Keep oven vent ducts unobstructed. The oven vent is
located below the control box. This area could become hot
during oven use. Never block this vent or place plastic or
heat-sensitive items on it.
Placement of oven racks. Always place oven racks in the
desired location while the oven is cool. Ifthe rack must be
moved while the oven is hot, use potholders. Do not let the
potholders come in contact with the hot heating element in
the oven.
Do not allow aluminum foil or a temp probe to contact the
heating elements.
G
CAUTION
During use, the appliance becomes hot. Care should be
taken to avoid touching heating elements inside the oven.
Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass. They can scratch the surface
which may result in the glass shattering.
If there is a fire in the oven during baking, smother the fire by
closing the oven door and turning the oven off or by using a
multi-purpose dry chemical or foam-type fire extinguisher.
Do not attempt to operate the oven during a power
failure. Ifthe power fails, always turn the oven off. If the
oven is not turned off and the power resumes, the oven may
begin to operate again. Food left unattended could catch fire
or spoil.
iiiiiiiiiiiiiii
iiiiiiiiiiiiiii
English - 15

WARMING DRAWER
Q
®
DO NOT TOUCH THE HEATING ELEMENT OR THE
INTERIOR SURFACE OF THE DRAWER. These surfaces
may be hot enough to burn.
REMEMBER: The inside surface of the drawer may be hot
when you open the drawer.
The purpose of the warming drawer is to hold hot
cooked foods at serving temperature. Always start with
hot food. Cold food cannot be heated or cooked in the
warming drawer.
Use care when opening the drawer. Open the drawer
a crack and let hot air or steam escape before removing or
replacing food. Hot air or steam which escapes can cause
burns to hands, face, and/or eyes.
(_ Do not use the drawer to dry newspapers. If overheated,
newspapers can catch fire.
Do not use aluminum foil to line the drawer. Foil is an
excellent heat insulator and wiii trap heat beneath it. This will
upset the performance of the drawer and could damage the
interior finish.
Do not leave paper products, plastics, canned food, or
combustible materials in the drawer.
Never leave jars or cans of fat drippings in or near your
drawer,
Do not warm food in the drawer for more than three hours.
English - 16

SELF-CLEANING OVENS
G
®
Do not clean the door gasket. The door gasket is
essential for a good seal. Care should be taken not to rub,
damage, or move the gasket.
Never keep pet birds in the kitchen. Birds are extremely
sensitive to the fumes released during an oven self-clean
cycle. Fumes may be harmful or fatal to birds. Move birds to
a well-ventilated room.
Clean only the parts listed in this manual in the self=
clean cycle. Before self-cleaning the oven, remove the
partition, rack, utensils, and food.
Before operating the self-clean cycle, wipe grease and food
soils from the oven. Excess grease may ignite, leading to
smoke damage to your home.
Do not use any commercial oven cleaner or oven liner
protective coating of any kind in or on the outside of the
oven. Use only a ceramic cooktop cleaner.
Remove the nickel oven shelves from the oven before you
begin the self-cleaning cycle or they may discolor.
If the self-clean mode malfunctions, turn the oven off and
disconnect the power supply. Have it serviced by a qualified
technician.
Excess spillage must be removed before cleaning.
VENTILATING HOOD
Clean ventilating hoods frequently. Do not let grease
accumulate on the hood or filter.
When flaming foods under the hood, turn the fan on.
English - 17

GLASS/CERAMIC
SURFACES COOKING
GDO NOT TOUCH SURFACE UNITS OR AREAS NEAR
THE UNITS.
Surface units may be hot even though they are dark in color.
Areas near surface units may become hot enough to cause
burns. During and after use, do not touch, or let clothing or
other flammable materials contact the surface units or areas
near the units until they have had sufficient time to cool.
Among these areas are the cook-top and the facing of the
cook-top.
Do not cook on a broken cooktop. If the cooktop should
break, cleaning solutions and spillovers may penetrate the
broken cook-top and create a risk of electric shock. Contact
a qualified technician immediately.
Clean the cooktop with caution, if you use a wet sponge
or cloth to wipe up spills on a hot cooking area, be careful
to avoid steam burns. Some cleaners can produce noxious
fumes if applied to a hot surface.
w CRITICAL INSTALLATIONWARNINGS
This appliance must be installed by a qualified technician or
service company.
Failing to have a qualified technician install the range may result
in electric shock, fire, an explosion, problems with the product,
or injury.
Unpack the oven. remove all packaging material and examine the
oven for any damage such as dents on the interior or exterior of
the oven, broken door latches, cracks in the door, or a door that
is not lined up correctly. Ifthere is any damage, do not install or
operate the oven and notify your dealer immediately.
English - 18

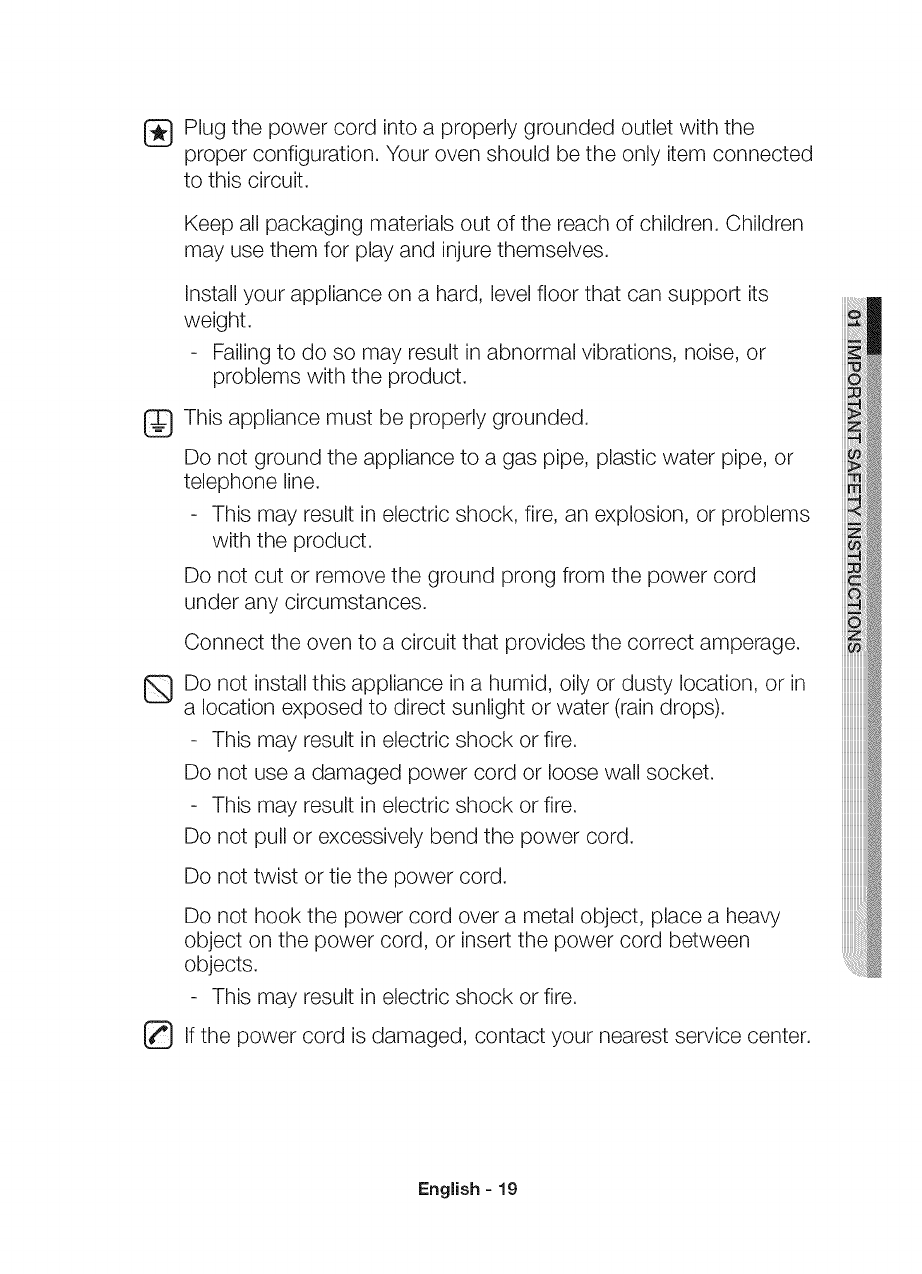

Plug the power cord into a properly grounded outlet with the
proper configuration. Your oven should be the only item connected
to this circuit.
Keep all packaging materials out of the reach of children. Children
may use them for play and injure themselves.
Install your appliance on a hard, level floor that can support its
weight.
- Failing to do so may result in abnormal vibrations, noise, or
problems with the product.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or
telephone line.
- This may result in electric shock, fire, an explosion, or problems
with the product.
Do not cut or remove the ground prong from the power cord
under any circumstances.
Connect the oven to a circuit that provides the correct amperage.
Do not install this appliance in a humid, oily or dusty location, or in
a location exposed to direct sunlight or water (rain drops).
- This may result in electric shock or fire.
Do not use a damaged power cord or loose wall socket.
- This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy
object on the power cord, or insert the power cord between
objects.
- This may result in electric shock or fire.
If the power cord is damaged, contact your nearest service center.
iiiiiiiiiiiiiii
English - 19

CAUTION CRiTiCAL USAGEWARNINGS
If the appliance is flooded by any liquid, please contact your
nearest service center. Failing to do so may result in electric shock
or fire.
If the appliance produces a strange noise, a burning smell, or
smoke, unplug the power plug immediately and contact your
nearest service center.
Failing to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.),
ventilate the area immediately. Do not touch the power cord. Do
not touch the appliance.
A spark can cause an explosion or fire.
Take care not to contact the oven door, heating elements, or any
of the other hot parts with your body while cooking or just after
cooking.
Failing to do so may result in burns.
If materials inside the oven should ignite, keep the oven door
closed, turn the oven off, and disconnect the power cord, or
shut off power at the fuse or circuit breaker panel. If the door is
opened, the fire may spread.
Always observe safety precautions when using your oven. Never
try to repair the oven on your own - there is dangerous voltage
inside. If the oven needs to be repaired, contact an authorized
service center near you.
If you use the appliance when it is contaminated by foreign
substances such as food waste, it may result in a problem with
the appliance.
Take care when removing the wrapping from food taken out of the
appliance.
If the food is hot, hot steam may be emitted abruptly when you
remove the wrapping and this may result in burns.
English -20
