Features of your new Refrigerator
KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient
features.
• Twin Cooling System
The Refrigerator and Freezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
The Cool Select pantryTM is a full-width drawer with adjustable temperature control.
The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.
The wide freezer drawer also provides enough space for 2~3 turkeys.
The Secure Auto Close feature will automatically close a door that is slightly open.
The Ice maker can dispense cubed or crushed ice.
A helpful beeper alerts you if door is ajar.
The Tilting pocket can be used to store up to a 16” pizza.
The upper drawer in the freezer comes out automatically as you just open the freezer door.
Freezer door can be opened with less effort.
Energy star labeled this product could save your energy costs.
For easy future reference, write the model and
serial number down which can be found on the left
side of the refrigerator.
Model #
Serial #
2_ Features
DA68-01812E.indb 2 2010.10.14 3:52:38 PM
Safety Information
Before using your new Samsung French Door Refrigerator, please read this manual thoroughly to
ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers.
Because the following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual. If you have any question, contact
us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean :
WARNING Hazards or unsafe practices that may result in severepersonalinjuryordeath.
CAUTION
Hazards or unsafe practices that may result in minorpersonalinjuryorproperty
damage.
CAUTION
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
Thesewarningsignsareheretopreventinjurytoyouandothers.
Pleasefollowthemexplicitly
Keepthismanualinasafeplaceforfuturereference.
SEVERE WARNING SIGNS
•
Large appliances draw a lot of power. Powering more than one appliance or machine from a single power source
could cause overheating and cause a fire.
• A damaged power plug may overheat and cause a re.
• Water could get into the interior machine parts and cause electric shock.
• Aerosols used near the Refrigerator may cause an explosion or re.
Safety Information _3
DA68-01812E.indb 3 2010.10.14 3:52:38 PM
• Placing heavy articles on the power cord create the risk of explosion or fire.
• It may cause electric shock.
• If it spills, it may cause fire or electric shock.
• Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
• Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.
• You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for
help from a qualified service technician.
• When the interior or exterior LED lamp has gone out, please contact your service agents.
• Changing the light while the Refrigerator is plugged in may cause electric shock.
• The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
• Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V~120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
Safety Information
4_ Safety Information
DA68-01812E.indb 4 2010.10.14 3:52:38 PM
CAUTION SIGNS
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
• When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
• There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
• Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
• A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified service
personnel.
• When you open or close the door, the articles may fall and cause personal injury and /or damage to
surrounding objects.
• Products that require exact temperature controls should not be stored in the Refrigerator.
• Skin may stick to the surface and you may get frostbite.
• Any sharp edges may cause personal injury.
Safety Information _5
CAUTION
DA68-01812E.indb 5 2010.10.14 3:52:38 PM
• It may cause personal injury and/or material damage.
• Over time, deterioration in the power cord insulation may cause fire.
• A Dirty power plug can increase the risk of fire.
Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.
• Any changes or modifications performed by a 3rd party on this finished appliance is not covered under
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
Before you throw away your old Refrigerator or Freezer, make sure that you;
• Take off the doors.
• Leave all shelves in places so that children may not easily climb inside and shut the door while they are
inside.
This appliance is not intended for use by small children or infirm persons without capable, adult
supervision. Small children should be supervised when using the appliance.
Safety Information
6_ Safety Information
CAUTION
DA68-01812E.indb 6 2010.10.14 3:52:38 PM
Contents _7
Contents
SETTINGUPYOURFRENCH
DOORREFRIGERATOR
08
08 Getting ready to install the refrigerator
09 Removing the refrigerator doors
11 Disassemble the freezer drawer
12 Reattaching the refrigerator doors
14 Assemble the freezer drawer
15 Adjusting the doors
15 Adjusting the support for extension shelf
16 Making minor adjustments between doors
17 Adjusting the freezer drawer level
18 Checking the water dispenser line
19 Installing the water line
OPERATINGYOURSAMSUNG
FRENCHDOORREFRIGERATOR
21
21 Using the control panel
22 Using the digital display
23 Controlling the temperature
24 Using the ice and cold water dispenser
26 Parts and Features(RF267)
27 Parts and Features(RF26X)
28 Storing food
29 Using the Cool Select Pantry™
29 Using the tilting pocket
30 Removing the refrigerator accessories
31 Using the doors
32 Removing the freezer accessories
33 Cleaning the refrigerator
34 Changing the interior lights
35 Changing the water filter
TROUBLESHOOTING
40
40 Troubleshooting
WARRANTY
41
41 Warranty
DA68-01812E.indb 7 2010.10.14 3:52:39 PM
Setting up your French Door Refrigerator
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.
SelectingthebestlocationfortheRefrigerator
• A
location with easy access to the water supply.
• A
location without direct exposure to sunlight.
• A
location with level (or nearly level) flooring.
• A
location with enough space for the Refrigerator doors to open easily.
•
Allow sufficient space to the right, left, back and top for air circulation.
If the Refrigerator does not have enough space, the internal cooling
system may not work properly.
•
Please ensure that appliance can be moved freely in the event of
maintenance & service.
If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When you install
the refrigerator next to a fixed wall, minimum clearance is 3 ¾” (95mm) between the refrigerator and wall to allow
the door to swing open.
8_ Setting Up
•
Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
•
DonotinstalltheRefrigeratorwherethetemperaturewillgobelow50ºF(10ºC).
ControlLever
To prevent floor damage be sure the front levelling legs are
in the up position (above the floor). Refer to ‘Levelling the
refrigerator’ in the manual.
To protect the finish of the flooring, place the protection
sheet such as packing carton under the refrigerator.
When installing, servicing or cleaning behind the refrigerator,
be sure to pull the unit straight out and push back in straight
after finishing.
CAUTION
Model Depth
“A”
Width
“B”
Height
“C”
Overall
Height “D”
Depth
“E”
RF267
RF26X
28 ⅞”
(734mm)
35 ⅞”
(912mm)
68 ⅞”
(1750mm)
70 ⅛”
(1780mm)
35 ⅞”
(912mm)
B
A
CED
B
A
CED
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
DA68-01812E.indb 8 2010.10.14 3:52:46 PM
Setting Up _9
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of
the appliance. By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the
Refrigerator. Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly chilled
and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can store food
and drinks in the Refrigerator after the temperature is sufficiently cool.
If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.
1. With the door opened, remove the Top Table cap
(1
) with a Flat head screwdriver, and close the
door.
Remove the 3 screws holding down the Top Table
and remove the Top Table( 2
).
2
1
Philips screwdriver 10mm Socket Wrench Allen wrench(3/16”)
Flat-blade screwdriver Pliers

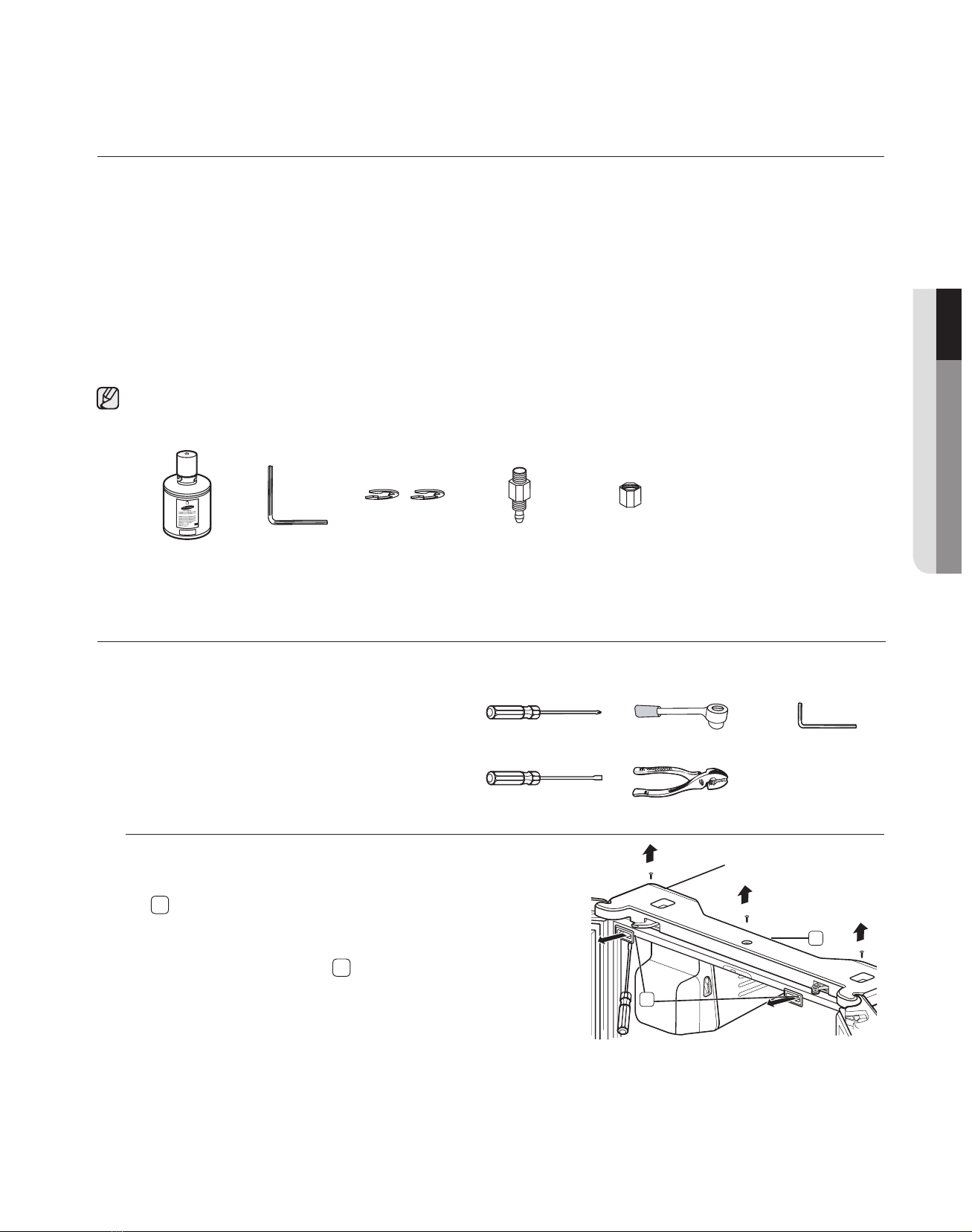

Check the accessory list below.
01
Water filter
(DA29-00003B)
Hex wrench
(DA80-00002C)
Fastener
(DA60-00143B)
Compressin fitting
(DA62-00305A)
Compression nut
(DA74-00070B)
DA68-01812E.indb 9 2010.10.14 3:52:48 PM
10_ setting up
Setting up your French Door Refrigerator

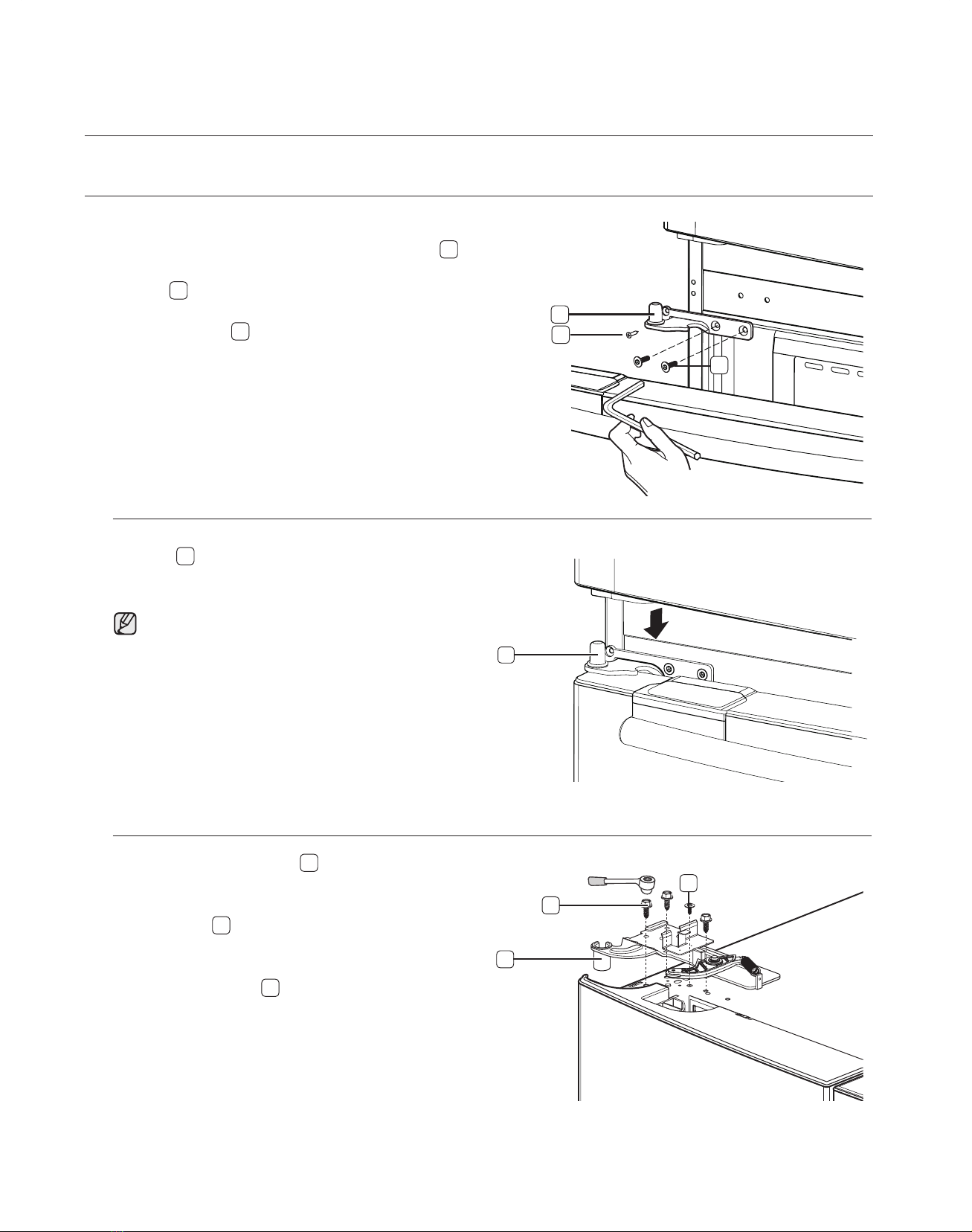

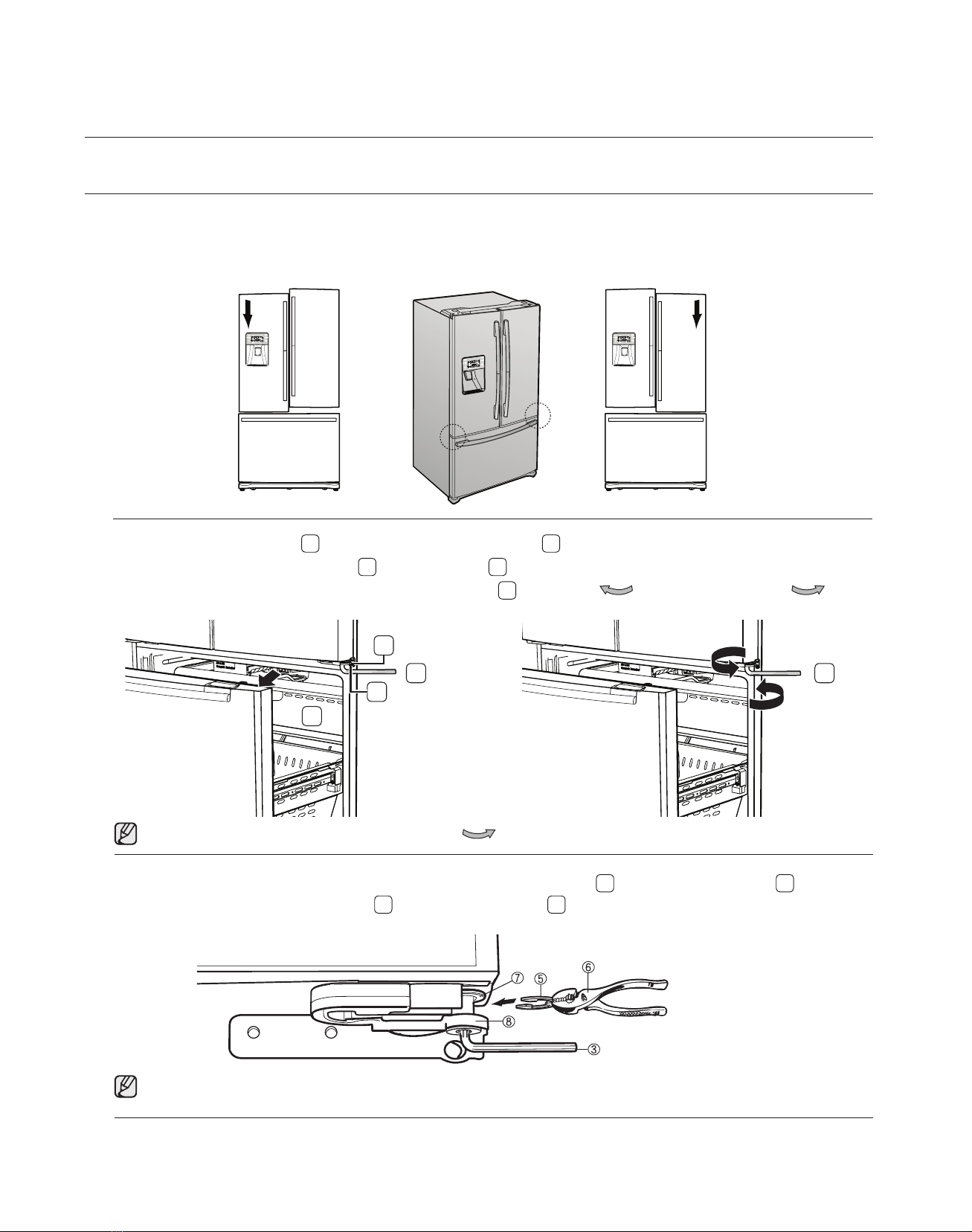

3. Remove the three hex head bolts( 7) attached
to the upper left and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver, remove the ground
screw( 8) attached to the upper left and right door
hinges.
Remove the upper left and right door hinges( 9).
4. Lift the door straight up to remove.
5. With a Philips head screwdriver, remove the two
screws( 10 ) attached to the lower left and right
door hinges.
With an Allen Wrench(3/16”), remove the two hex
head bolts( 11 ) attached to the lower left and right
door hinges.
Remove the lower left and right door hinges( 12 ).
7
8
9
10
12
11

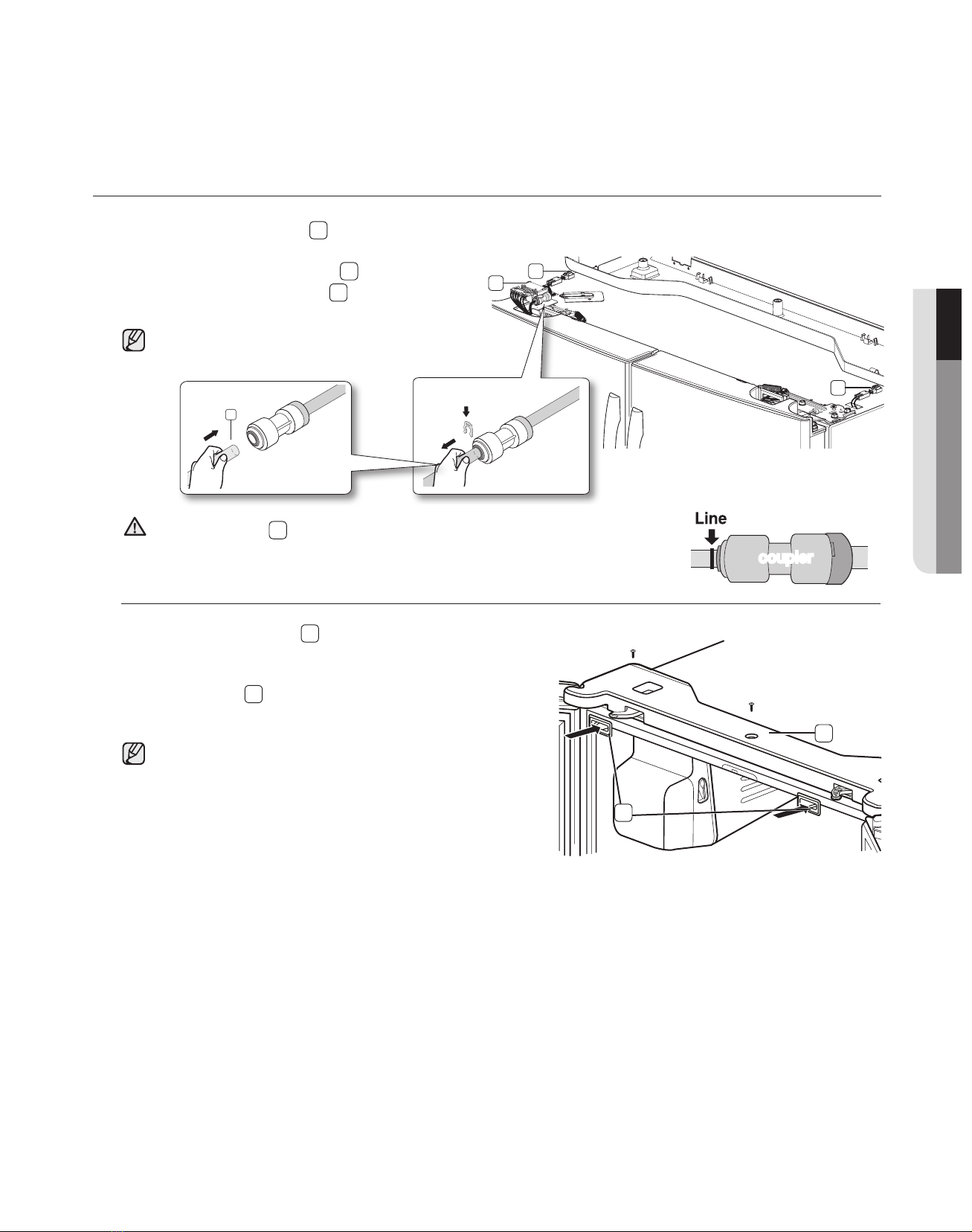

2. Disconnect two connectors ( 3) at
each side of the top cap and the one
connector( 4) on left side door . Remove
the tube ( 5) with pressing the dark gray
color part ( 6) of the water line coupler. 3
4
5
6
Dispenser
Door Tube
Cabinet
Tube
Dispenser
Door Tube
Cabinet
Tube
Red Clip
(1/4”)
Red Clip
(1/4”)
If a red clip is on the coupler, it must be removed
before removing the tube.
3
CAUTION
DA68-01812E.indb 10 2010.10.14 3:52:51 PM
setting up _11

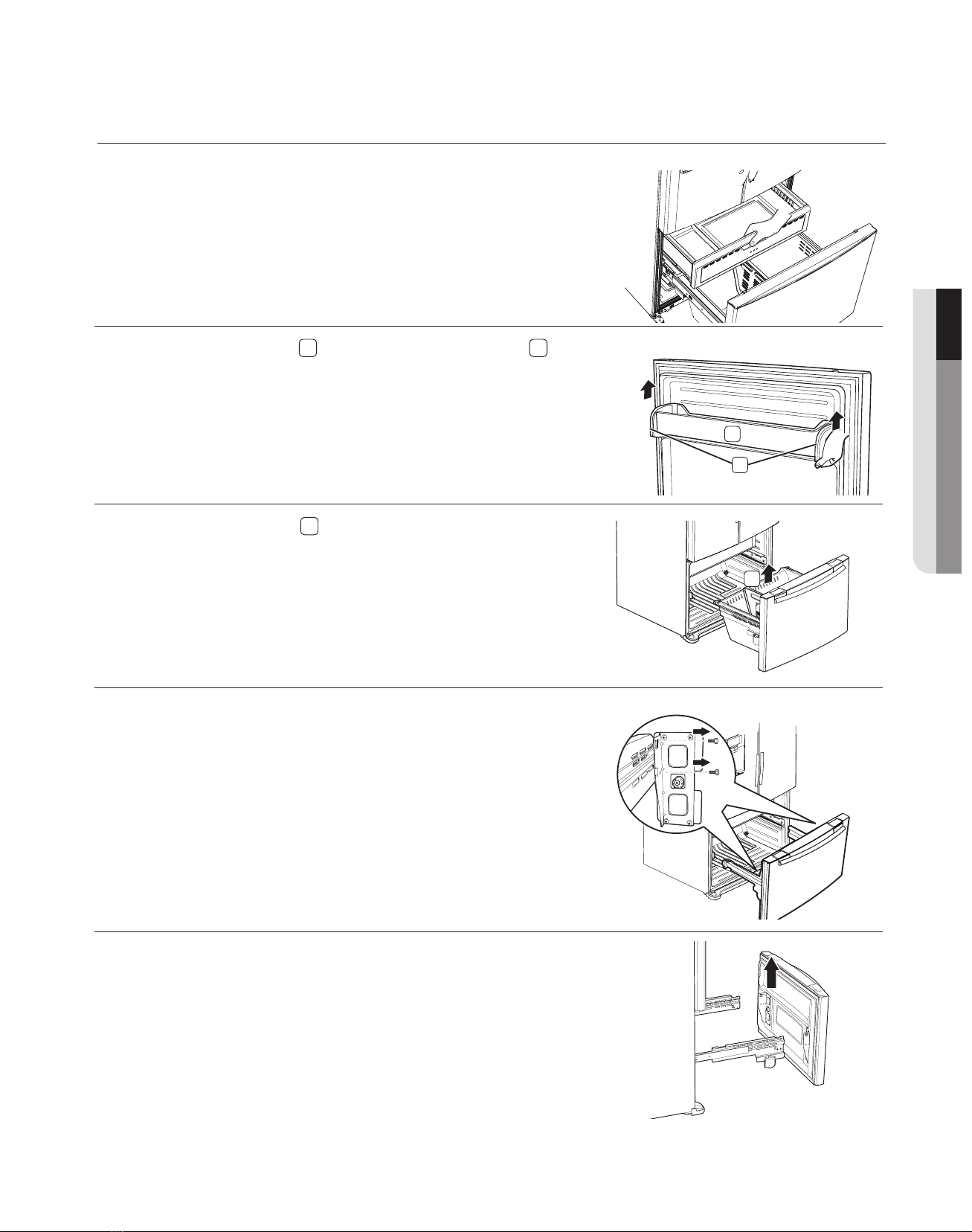

4. Remove four 10mm hex-head bolts from both sides.
5. Lift the freezer door up from the rails.
2. Remove the tilting pocket( 1
) by pulling on both brackets( 2
)
upward at the same time.
3. Take out the lower basket( 3
) by lifting the basket up from
rail system.
1. Take out the upper drawer by lifting it up.
1
2
3
Slot
Slot
01
DA68-01812E.indb 11 2010.10.14 3:52:56 PM
12_ Setting Up
Setting up your French Door Refrigerator
1. Reattach the lower left and right door hinges( 12).
With a Philips head screwdriver, insert and tighten a
screw( 10) into the lower left and right door hinges.
With a Allen Wrench(3/16”), insert and tighten the two
hex head bolts( 11) into the lower left and right door
hinges.
2. Place the hole in the bottom of the door over the lower
hinge( 12
).
Be careful not to miss the hinge cap because it can
be easily taken off.
3. Insert the upper hinges(
9
) into the holes at the top
of the doors.
With a Wrench(10mm), insert and tighten the 3 hex
head bolts(
7
) into the upper left and right door
hinges.
With a Philips head screwdriver, insert and tighten
the ground screw(
8
) into the upper left and right
door hinges.
9
7
8
12
10
11
12
DA68-01812E.indb 12 2010.10.14 3:52:57 PM
Setting Up _13
01
5. Position the Top Table( 2) in place.
With a Philips head screwdriver, insert and tighten the 3
screws into the Top Table. With the door opened, reinsert the
Top Table cap( 1
) and close the doors.
When reattaching the top table, make sure that the
wires are not pressed or damaged by the top table.
2
1
4. Connect the water line ( 5) and then insert a
clip on the coupler with pulling tube.
Connect the one connector( 4) on left side
door and two connectors ( 3) at each side
of the top cap.
3
4
Dispenser
Door Tube
Cabinet
Tube
Dispenser
Door Tube
Cabinet
Tube
Red Clip
(1/4”)
Red Clip
(1/4”)
The clip is enveloped inside of the top cap.
Dispenser
Door Tube
Cabinet
Tube
Dispenser
Door Tube
Cabinet
Tube
Red Clip
(1/4”)
Red Clip
(1/4”)
5
3
The water line ( 5) must be fully inserted to the marked line to prevent
water leakage from the dispenser.
CAUTION
DA68-01812E.indb 13 2010.10.14 3:52:59 PM
14_ Setting Up
2. Hang the freezer door front onto open slots on the sides.
3. Tighten four 10mm hex-head screws completely.
4. With the drawer pulled out fully, insert the lower basket ( 6
) into
the rail system.
5. Hook the ends of the tilting pocket ( 7
) into both brackets ( 8
),
and push down until they lock into place.
6. Insert the upper drawer.
Setting up your French Door Refrigerator
1. Pull out the rails to the full length on each side of the cabinet evenly.
7
8
Slot
Slot
Slot
Slot
6
Slot
Slot
DA68-01812E.indb 14 2010.10.14 3:53:3 PM
Setting Up _15
01
Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can
make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
Insert a flat-blade screwdriver into a notch on the left control lever, turn it clockwise or counter-clockwise
to level the left door.
Insert a flat-blade screwdriver into a notch on the right control lever, turn it clockwise or counter-clockwise
to level the right door.
We do not recommend making small adjustments with the control lever. Instead, refer to the next page for the
best way to make minor adjustments to the doors.
ControlLever
Screwdriver
ControlLever
1
2
1. Remove the extension shelf.
2. Press the 1hook and lower
down the 2movable supporter.
3. Hang the extension shelf at the
lower position.
DA68-01812E.indb 15 2010.10.14 3:53:5 PM
Setting up your French Door Refrigerator
Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
16_ Setting Up
1. If you open the drawer ( 1
), you can see the lower hinge ( 2
).
2. Insert the supplied hex wrench ( 3
) into the shaft ( 4
) of the lower hinge.
3. Please adjust the height by turning the hex wrench ( 3
) clockwise( ) or counter-clockwise( ).
when you turn the hex wrench counter-clockwise( ), the door will move up.
1. After adjusting the doors, please insert the supplied fastener-ring ( 5
) using a pair of pliers ( 6
) in the
gap between the hinge-grommet ( 7
) and the lower hinge( 8
). The number of fastener-rings you’ll need
to insert depends on the gap.
Two fastener-rings are enclosed with the refrigerator.
The thickness of each fastener-ring is 0.04 inch.
When the left
door is lower
than the right
door.
When the left
door is higher
than the right
door.
Adjustment
part
Adjustment
part
3
1
3
4
2
DA68-01812E.indb 16 2010.10.14 3:53:7 PM
Setting Up _17
01
1. Locate the height-adjuster ( 1
) in the freezer drawer.
Unscrew the four Phillips screws ( 2
) slightly to loosen the door.
2. Loosen the controller screw( 3
) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
Freezer Drawer
Adjustment part
12
3
Example) The slope is about 2mm (0.08inch) as shown below.
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
Slope
Reference
plane
DA68-01812E.indb 17 2010.10.14 3:53:10 PM
Setting up your French Door Refrigerator
A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20~125 psi (pound per square inch) is
required.
Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
18_ Setting Up
Water line installation kits are available at extra cost from your dealer. We recommend using a water supply kit that
contains copper tubing.
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply with water filter, turn on water supply and Flush 3 gallons through filter
before use (flush approximately 6 minutes)
1Coldwaterline
2Pipeclamp
3Waterlineinstallationkit
4Shutoffvalve
DA68-01812E.indb 18 2010.10.14 3:53:11 PM
Setting Up _19
01
Do not use without the molded end(Bulb) of the plastic tubing Ⓑ.
There are several items that you need to purchase to complete this connection. You
may find these items sold as a kit at your local hardware store.
Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4“ of the plastic tubing to make sure you get a snug,
leak-free connection.
1/4” compression nut
plastic tubing copper tubing
ferrule
1. Remove the water filter cover( 1
)
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don’t
use the filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months in
the future. For example, if you install the water filter in
March, put the “SEP” sticker on the filter to remind you
to replace it in September. That way you’ll know when
it is time to replace the filter. Normally, a filter life is
about 6 months.
2 3
Sticker
(month indicator)
1

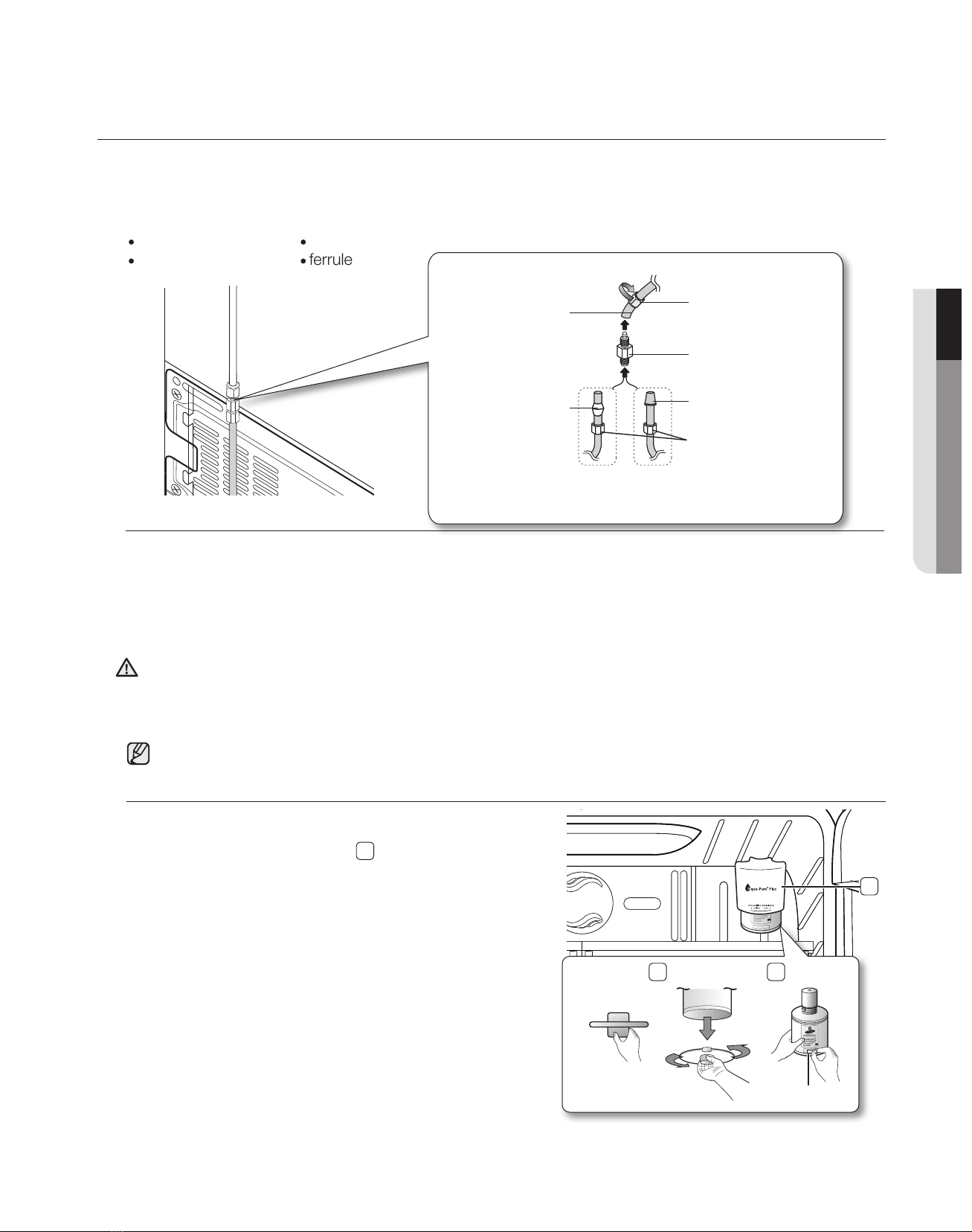

1. Slip the compression nut Ⓐthrough the supplied plastic tubing Ⓐ.
2. Tighten the compression nut Ⓐonto the 1/4” compression fitting.
- If you are using copper tubing, slip the compression nut Ⓑ(not included) and ferrule (not included) on
copper tubing (not included) as shown.
- If you are using plastic tubing Ⓑ, insert the molded end(Bulb) of the plastic tubing Ⓑinto the
compression fitting.
3. Tighten the compression nut Ⓑonto the compression fitting. Do not over-tighten the compression nut Ⓑ.
4. Turn water on and check for any leakage.
CAUTION
Plastic tubing Ⓐ
(Supplied)
Ferrule
(Not supplied)
Compression nut
(1/4”) (Supplied) Ⓐ
Compression fitting
(Supplied)
Bulb
Compression nut Ⓑ
(1/4”) (Not supplied)
or Ⓑ
(Not supplied) (Not supplied)
DA68-01812E.indb 19 2010.10.14 3:53:20 PM
20_ Setting Up
The pressure of the water supply coming out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to
the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):
• Check to see whether the sediment lter in the reverse osmosis system is blocked. Replace the lter if
necessary.
• Allow the storage tank on the reverse osmosis system to rell after heavy usage.
• If your refrigerator has a water lter, it may further reduce the water pressure when used in conjunction
with a reverse osmosis system. Remove the water filter.
If you have questions about your water pressure, call a licensed, qualified plumber.
4. Remove the filter cap and insert the filter into the filter
housing.
5. Slowly turn the water filter 90º clockwise to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated. Remember, do not over-
tighten.
You should remove the right side upper glass shelf before installing water filters.
1. Turn ON the main water supply & turn OFF the valve to the water supply line.
2. Run water through the dispenser until the water runs clear (approx. 6-7
minutes). This will clean the water supply system and remove air from the lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming
from the water filter.
Be sure to flush the dispenser thoroughly, otherwise water may drip from the dispenser.
This means that there is still air in the line.
Setting up your French Door Refrigerator
Turn until the
labels are aligned.
Separation
of red cap.
Cover filter.
4 5
DA68-01812E.indb 20 2010.10.14 3:53:31 PM
Other manuals for RF267AEBP
3
This manual suits for next models
9
Table of contents
Other Samsung Refrigerator manuals
Samsung
Samsung SR-61KTC User manual
Samsung
Samsung RS2530BSH User manual
Samsung
Samsung Refrigerator User manual
Samsung
Samsung RSE8KPPS1/XEP Safety guide
Samsung
Samsung RF48A40 Series User manual
Samsung
Samsung RS25H50 SERIES User manual
Samsung
Samsung RF4289HA User manual
Samsung
Samsung RL55VQBRS Premium 2m Fridge Freezer User manual
Samsung
Samsung RFG298AABP Instruction Manual
Samsung
Samsung RF30HBEDBSR User manual
Samsung
Samsung RF26DE-Series User manual
Samsung
Samsung RM255 series User manual
Samsung
Samsung SRG-058 Use and care manual
Samsung
Samsung RSG5D series User manual
Samsung
Samsung RF4289HBRS User manual
Samsung
Samsung RF23HTED User manual
Samsung
Samsung rf30hdedtsr User manual
Samsung
Samsung RSG5F series User manual
Samsung
Samsung RFG293 User manual
Samsung
Samsung RF261BIAESR User manual
Popular Refrigerator manuals by other brands
Defy
Defy C300 instruction manual
Miele
Miele K 8767 S ed OPERATING AND INSTALLATION Manual
GE
GE PFCS1NFY - Profile 20.8 cu. Ft Dimensions and installation information
Bush
Bush M5085UCL instruction manual
Fulgor Milano
Fulgor Milano FRSI 400 FEX Installation, use and maintenance instructions
Frigidaire
Frigidaire FRS26ZPH Factory parts catalog
