Samsung RF26XAEPN/XAA User manual

user manual
the possibilities
Thank you for purchasing your Samsung product.
To receive more complete service,
please register your product at
www. samsu ng.com/reg ister

KEY FEATURES OF YOUR NEW REFRIGERATOR
Your Samsung French Door Refrigerator comes equipped with various innovative storage and energy-efficient
features.
,, Twin Cooling System
The Refrigerator ancrFreezer have separate evaporators. Due to this independent cooling system,
the Freezer and Refrigerator cool more efficiently.
Additionally, this separate air flow system prevents food odor of one compartment from seeping into
other compartments.
,, Cool Select Pantry_ TM (RF267)
The Cool Select pantry lM is a full-width drawer with adjustable temperature control.
,, Bigger & Wider Space
The wide shelf area and pantry provide enough space for larger items like a pizza box, etc.
The wide freezer drawer also provides enough space for 2-8 turkeys.
,, Secure Auto Close
The Secure Auto Close feature will automatically close a door that is slightly open.
,, Compact Ice Maker
The Ice maker can dispense cubed or crushed ice.
,, Digital Display and Temperature Control
,, Water Filtration System
,, Door Alarm
A helpful beeper alerts you if door is ajar.
,, Tilting Pocket
The TiltTng pocket can be used to store up to a 16" pizza.
,, Auto Pull Out Drawer
The upper drawer in the freezer comes out automatically as you just open the freezer door.
,, Easy Handle
Freezer door can be opened with less effort.
,, Energy Star
Energy star labeled this product could save your energy costs.
For easy future reference, write the model and
serial number down which can be found on the left
side of the refrigerator.
Model #
Serial #
2 Features

S f ty fornq

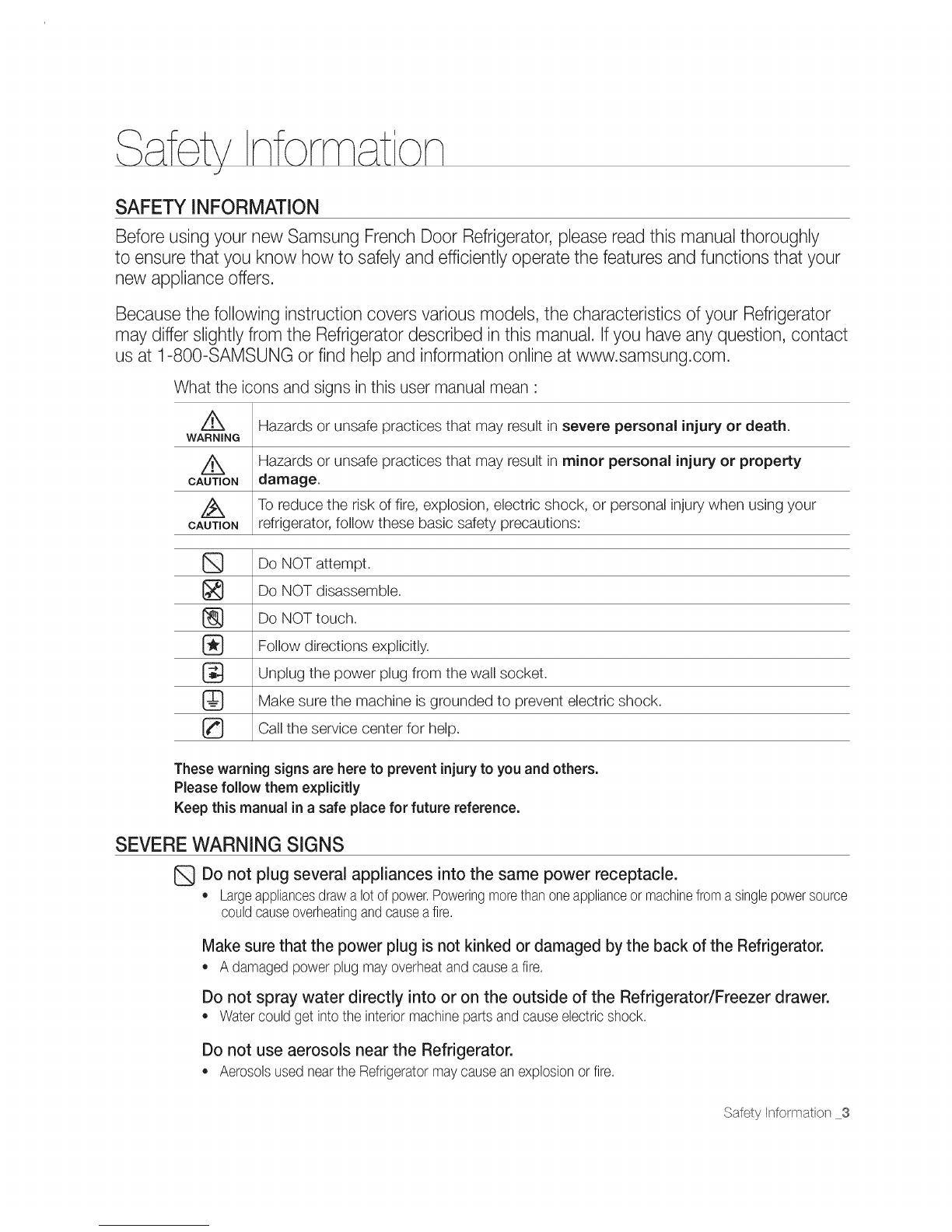

SAFETY INFORMATION
Before using your new Samsung French Door Refrigerator, please readthis manual thoroughly
to ensure that you know how to safely and efficiently operate the features and functions that your
new appliance offers.
Becausethe following instruction covers various models, the characteristics of your Refrigerator
may differ slightly from the Refrigerator described in this manual. Ifyou have any question, contact
us at 1-800-SAMSUNG or find help and information online at www.samsung.com.
What the icons and signs in this user manual mean '
Z_ Hazards or unsafe practices that may result in severe personal injury or death.
WARNING
Hazards or unsafe practices that may result in minor personal injury or property
CAUTION damage.
To reduce the risk of fire, explosion, electric shock, or personal injury when using your
CAUTION refrigerator, follow these basic safety precautions:
Do NOT attempt.
Do NOT disassemble.
[_) Do NOT touch.
Follow directions explicitly.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the service center for help.
These warning signs are here to prevent injury to you and others.
Please follow them explicitly
Keep this manual in a safe place for future reference.
SEVEREWARNING SIGNS
Do not plug several appliances into the same power receptacle.
• Large appliances draw a lot of power. Powering morethan one appliance or machine from a single power source
could cause overheating and cause a fire.
Make sure that the power plug is not kinked or damaged by the back of the Refrigerator.
A damaged power plug may overheat and cause a fire.
Do not spray water directly into or on the outside of the Refrigerator/Freezer drawer.
Water could get into the interior machine parts and cause electric shock.
Do not use aerosols near the Refrigerator.
Aerosols used near the Refrigerator may cause an explosion or fire.
Safety Inforrration 3

Safe nforrnat on
J
Do not put undue stress on the power cord or place heavy articles on it.
• Placing heavy articles on the power cord create the risk of explosion or fire.
Do not insert the power plug with wet hands.
It may cause electric shock.
Do not put a container filled with water on the Refrigerator.
If it spills, it may cause fire or electric shock.
Do not install the Refrigerator in a damp place or water closed places.
Wet and/or deteriorated insulation of the internal electrical parts may cause electric shock or fire.
Do not store volatile, flammable or high evaporating substances in the refrigerator.
Storing benzene, thinner, alcohol, ether, LP gas, dryice, and other such products may cause explosions.
@Do not disassemble or repair the Refrigerator by yourself.
You run the risk of fire, appliance malfunctions and/or personal injury. Call your nearest service center for
help from a qualified service technician.
Unplug the Refrigerator before changing the interior light.
Changing the light while the Refrigerator is plugged in may cause electric shock.
If you wish to dispose of the Refrigerator, remove the doors and seals before throwing
it away.
The doors(and their seals) can entrap a child if they climb into the Refrigerator.
Make sure that the doors are off, and ensure that no one is suffocated by being locked inside.
%The Refrigerator must be safely grounded
Always make sure that you have grounded the Refrigerator before attempting to investigate or repair any
part of the appliance. Power leakages can cause severe electric shock.
Never use gas pipes, telephone lines or other potential lightning attractors as an
electrical ground.
Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an
extension cord to power the Refrigerator, use only a 3-wire extension cord that has a 3-blade ground
plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extention
cord should be AC 115V-120V, 10A, or more. Additionally, if a grounding adapter is used, make sure the
receptacle box is also fully grounded.
4 Safety Inforrration

CAUTION SIGNS
Use good judgment when filling the Refrigerator with food and drinks.
• In an overfull Refrigerator, heavy, fragile, bulky or breakable items may fall out and cause personal injury
and/or damage to surrounding objects.
Do not put bottles or glass containers in the Freezer drawer.
When the contents freeze and then expand, the glass may break and cause personal injury or leave
dangerous glass shards in the Freezer.
If the electrical wall socket is loose, do not insert the power plug.
There is a risk of electric shock or fire. Have the plug looked at by a licensed electrician.
Never unplug your Refrigerator by pulling on the power cord.
Always grip the power cord firmly and pull straight out from the outlet. Yanking or pulling on the power
cord may cause a short-circuit, fire and/or electric shock.
A damaged power cord must be replaced by the manufacturer, a certified service agent or qualified
service personnel.
Do not store articles on the top of the appliance.
When you open or close the door, the articles may fall and cause personal injury and/or damage to
surrounding objects.
Do not store pharmaceutical products, scientific materials and temperature-sensitive
products in the refrigerator.
Products that require exact temperature controls should not be stored in the Refrigerator.
Z_ Do not allow children to climb, stand or hang on shelves and handles of the
cAunONRefrigerator.They could damage the Refrigerator and seriously injure themselves.
Do not sit on the freezer door. The door may break.
Do not allow children to climb into the freezer basket.
If you notice a chemical or burning plastic smell or see smoke, unplug the Refrigerator
immediately and contact your Samsung Electronics Service Center.
®After your Refrigerator is in operation, do not touch the cold surfaces in the Freezer
compartment. Particularly when hands are damp or wet, skin may adhere to these
extremely cold surfaces.
Skin may stick to the surface and you may get frostbite.
Do not put your hands under the appliance.
• Any sharp edges may cause personal injury.
Safety Info_rration 5

Never put fingers or other objects into the water dispenser hole or ice chute.
• It may cause personal injury and/or material damage.
If the Refrigerator will not be used for a long period of time (for example, over several
months), unplug the power from the wall.
Over time, deterioration in the power cord insulation may cause fire.
Do not use a wet or damp cloth when cleaning the plug.
Remove any dust or foreign matter from the power plug pins.
A Dirty power plug can increase the risk of fire.
If the Refrigerator is disconnected from the power supply, you should wait for at least
five minutes before plugging it back in.
Do not place the equipment directly in sunlight.
The appliance must be positioned for easy access to power source.
If the power cord is damaged, it must be replaced by the manufacturer, a certified
service agent or qualified service personnel.
If you have a long vacation planned, empty the Refrigerator and turn it off.
Wipe excess moisture from the inside and leave the doors open to keep odor and mold from developing.
Service Warranty and Modification
Any changes or modifications performed by a 3rd party on this finished appliance is not covered under
Samsung warranty service, nor can Samsung be responsible for safety issues that result from 3rd party
modifications.
A Children can get trapped inside Refrigerators.
cAuT_°NBeforeyou throw away your old Refrigerator or Freezer,make sure that you;
Take off the doors.
Leave all shelves in places so that children may not easily climb inside and shut the door while they are
inside.
This applianceisnot intendedfor useby smallchildrenor infirmpersonswithout capable,adult
supervision.Smallchildrenshouldbesupervisedwhenusingthe appliance.
6 Safety Inforrration

Content
SETTING UP YOUR FRENCH
DOOR REFRIGERATOR
OPERATING YOUR SAMSUNG
FRENCH DOOR REFRIGERATOR
_f
TROUBLESHOOTING
08 Getting ready to install the refrigerator
09 Removing the refrigerator doors
11 Disassemble the freezer drawer
12 Reattaching the refrigerator doors
14 Assemble the freezer drawer
15 Adjusting the doors
15 Adjusting the support for extension shelf
16 Making minor adjustments between doors
17 Adjusting the freezer drawer level
18 Checking the water dispenser line
19 Installing the water line
21 Using the control panel
22 Using the digital display
23 Controlling the temperature
24 Using the ice and cold water dispenser
26 Parts and Features(RF267)
27 Parts and Features(RF26X)
28 Storing food
29 Using the Cool Select Pantry TM
29 Using the tilting pocket
30 Removing the refrigerator accessories
31 Using the doors
32 Removing the freezer accessories
33 Cleaning the refrigerator
34 Changing the interior lights
35 Changing the water filter
40 Troubleshooting
..............i I
WIRING DIAGRAM 41 Wiring diagram
WARRANTY 42 Warranty
Z/fi ''

GETTING READY TO INSTALL THE REFRIGERATOR
Congratulations on your purchase of the Samsung French Door Refrigerator. We hope you enjoy the state-of-art
features and efficiencies that this new appliance offers.
Selecting the best location for the Refrigerator
• A location with easy access to the water supply.
• A location without direct exposure to sunlight.
A location with level (or nearly level) flooring.
A location with enough space for the Refrigerator doors to open easily.
Allow sufficient space for air circulation of the internal cooling system.
If the Refrigerator does not have enough space, the internal cooling
system may not work properly.
If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When you install
the refrigerator next to a fixed wall, minimum clearance is 3 3A" (95mm) between the refrigerator and wall to allow
the door to swing open.
First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways
(both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of Samsung French Door Refrigerator.
Model
RF267
RF26X 35_3A,,
(90.8cm)
Height
68_5A7,
(174.40m)
Overall
Height "D"
69_3A7'
(177.40m)
Depth
"E77
®Allow clearance to the right, left, back and top when installing. This will help reduce power
consumption and keep your energy bills lower.
•Do not install the Refrigerator where the temperature will go below 50 °F (10 °C).
When moving your refrigerator
To prevent floor damage be sure the front levelling legs are
in the up position (above the floor). Refer to 'Levelling the
refrigerator' in the manual.
To protect the finish of the flooring, place the protection
sheet such as packing carton under the refrigerator. Screwdriver
Z_ When installing, servicing or cleaning behind the refrigerator,
CAUTIONbe sure to pull the unit straight out and push back in straight
after finishing.
8 Settng Up

SETTING UP THE REFRIGERATOR
Now that you have your new Refrigerator installed in place, you are ready to set up and enjoy the features and functions of
the appliance. By completing the following steps, your Refrigerator should be fully operational.
1. Place the Refrigerator in an appropriate location with reasonable clearance between the wall and the
Refrigerator. Refer to installation instructions in this manual.
2. Once the Refrigerator is plugged in, make sure the interior light comes on when you open the doors.
3. Set the Temperature control to the coldest temperature and wait for an hour. The Freezer will get slightly chilled
and the motor will run smoothly.
4. After powering the Refrigerator, it will take a few hours to reach the appropriate temperature. You can store
food and drinks in the Refrigerator after the temperature is sufficiently cool.
[_ Check the accessory list below.
Waterfilter Hexwrench Fastener
(DA29-00003B) (DA80-00002C) (DA60-00143B) Compressinfitting Compressionnut (DA62-00305A) (DA74-00070B)
REMOVING THE REFRIGERATOR DOORS
If the Refrigerator is too large to pass through your doorway easily, you can remove the refrigerator doors.
Tools you will need
Philips screwdriver
Flat-blade screwdriver
10mm Socket Wrench
Pliers
Allen wrench(3/16")
Disassemble the Refrigerator doors
1. With the door opened, remove the Top Table cap
((_) with a Flat head screwdriver, and close the
door.
Remove the 3 screws holding down the Top Table
and remove the Top Table((_).
?
?
?
Settng Up 9

2. Disconnect two connectors ({_}) at
each side of the top cap and the one
connector(@) on left side door. Remove
the tube (l_}) with pressing the dark gray
color part (_}) of the water line coupler.
Z_ If a red clip is on the coupler, it must be removed
CAUTIONbefore removing the tube.
3. Remove the three hex head bolts(_}) attached
to the upper left and right door hinges with a
Wrench(10mm).
With a Philips head screwdriver, remove the ground
screw(G ) attached to the upper left and right door
hinges.
Remove the upper left and right door hinges(G ).
%
4. Lift the door straight up to remove.
5. With a Philips head screwdriver, remove the two
screws(_) attached to the lower left and right
door hinges.
With an Allen Wrench(3/16"), remove the two hex
head bolts([_}) attached to the lower left and right
door hinges.
Remove the lower left and right door hinges([_).
@
10 settng up

DISASSEMBLE THE FREEZER DRAWER
1. Take out the upper drawer by lifting it up.
\
2. Remove the tilting pocket(_}) by pulling on both brackets(_})
upward at the same time.
3. Take out the lower basket(G ) by lifting the basket up from
rail system.
4. Remove four 10mm hex-head bolts from both sides.
5. Lift the freezer door up from the rails.
se,1:tr_gup 11

REATTACHING THE REFRIGERATOR DOORS
Assemble the Refrigerator doors
1. Reattach the lower left and right door hinges(@).
With a Philips head screwdriver, insert and tighten a
screw([_) into the lower left and right door hinges.
With a Allen Wrench(3/16"), insert and tighten the two
hex head bolts((_}) into the lower left and right door
hinges.
2. Place the hole in the bottom of the door over the lower
hinge(@).
Be careful not to miss the hinge cap because it can
be easily taken off. @
3. Insert the upper hinges((_L}) into the holes at the top
of the doors.
With a Wrench(10mm), insert and tighten the 3 hex
head bolts((_) into the upper left and right door
hinges.
With a Philips head screwdriver, insert and tighten
the ground screw((_) into the upper left and right
door hinges.
®
12 Setting Up

REATTACHING THE REFRIGERATOR DOORS
4. Connect the water line ({_) and then insert a
clip on the coupler with pulling tube.
Connect the one connector(@) on left side
door and two connectors (_) at each side
of the top cap.
_The clip is enveloped inside of the top cap.
Z_ The water line (l_) must be fully inserted to the marked line to prevent
CAUTIONwater leakage from the dispenser.
5. Position the Top Table({_)) in place.
With a Philips head screwdriver, insert and tighten the 3
screws into the Top Table. With the door opened, reinsert
the Top Table cap([_) and close the doors.
[_ When reattaching the top table, make sure that the
wires are not pressed or damaged by the top table.
Setti_g Up 13

ASSEMBLE THE FREEZER DRAWER
1. Pull out the rails to the full length on each side of the cabinet evenly.
2. Hang the freezer door front onto open slots on the sides.
3. Tighten four lOmm hex-head screws completely.
4. With the drawer pulled out fully, insert the lower basket (_}) into
the rail system.
5. Hook the ends of the tilting pocket (_) into both brackets (_),
and push down until they lock into place.
6. Insert the upper drawer.
14 Setting Up

ADJUSTING THE DOORS
Now that the doors are back on the Refrigerator, you want to make sure the Refrigerator is level so that you can
make final adjustments. If the Refrigerator is not level, it will not be possible to get the doors perfectly even.
When the Left door is lower than the Right door.
Insert a flat-blade screwdriver into a notch on the left control lever, turn it clockwise or counter-clockwise
to level the left door.
Control Lever
Screwdriver
When the Left door is higher than the Right door.
Insert a flat-blade screwdriver into a notch on the right control lever, turn it clockwise or counter-clockwise
to level the right door.
Control Lever
Screwdriver
_We do not recommend making small adjustments with the control lever, Instead, refer to the next page for the
best way to make minor adjustments to the doors,
ADJUSTING THE SUPPORT FOR EXTENSION SHELF(RF26X)
1. Remove the extension shelf.
2. Press the [_} hook and lower
down the _3_movable supporter.
3. Hang the extension shelf at the
lower position.
Settisg Up 15

MAKING MINOR ADJUSTMENTS BETWEEN DOORS
Remember a level Refrigerator is necessary for getting the doors perfectly even. If you need help, review the
previous section on leveling the Refrigerator.
When the left
door is lower
than the right
door.
!
Adju,_ Adjustment
part
!When the left
door ishigher
than the right
door.
1. If you open the drawer ([_), you can see the lower hinge ({_).
2. Insert the supplied hex wrench (_}) into the shaft ((_}}) of the lower hinge.
3. Please adjust the height by turning the hex wrench (_}) clockwise( ) or counter-clockwise( ).
%
_when you turn the hex wrench counter-clockwise( ), the door will move up.
1. After adjusting the doors, please insert the supplied fastener-ring (_) using a pair of pliers ((_}) in the
gap between the hinge-grommet ({_) and the lower hinge(_}). The number of fastener-rings you'll need
to insert depends on the gap.
_Two fastener-rings are enclosed with the refrigerator.
The thickness of each fastener-ring is 0.04 inch.
16 Setting Up

ADJUSTING THE FREEZER DRAWER LEVEL
Adjustment part
FreezerDrawer
1. Locate the height-adjuster (_) in the freezer drawer.
Unscrew the four Phillips screws (_) slightly to loosen the door.
2. Loosen the controller screw(_}) with a Phillips
screwdriver.
3. Find the best level to align the door slope.
J
@Example) The slope is about 2mm (0.08inch) as shown below.
Slope __
Reference __
plane
- Rotate the Height Adjuster to +2.0 to reduce the door
slope.
Setti_g Up 17

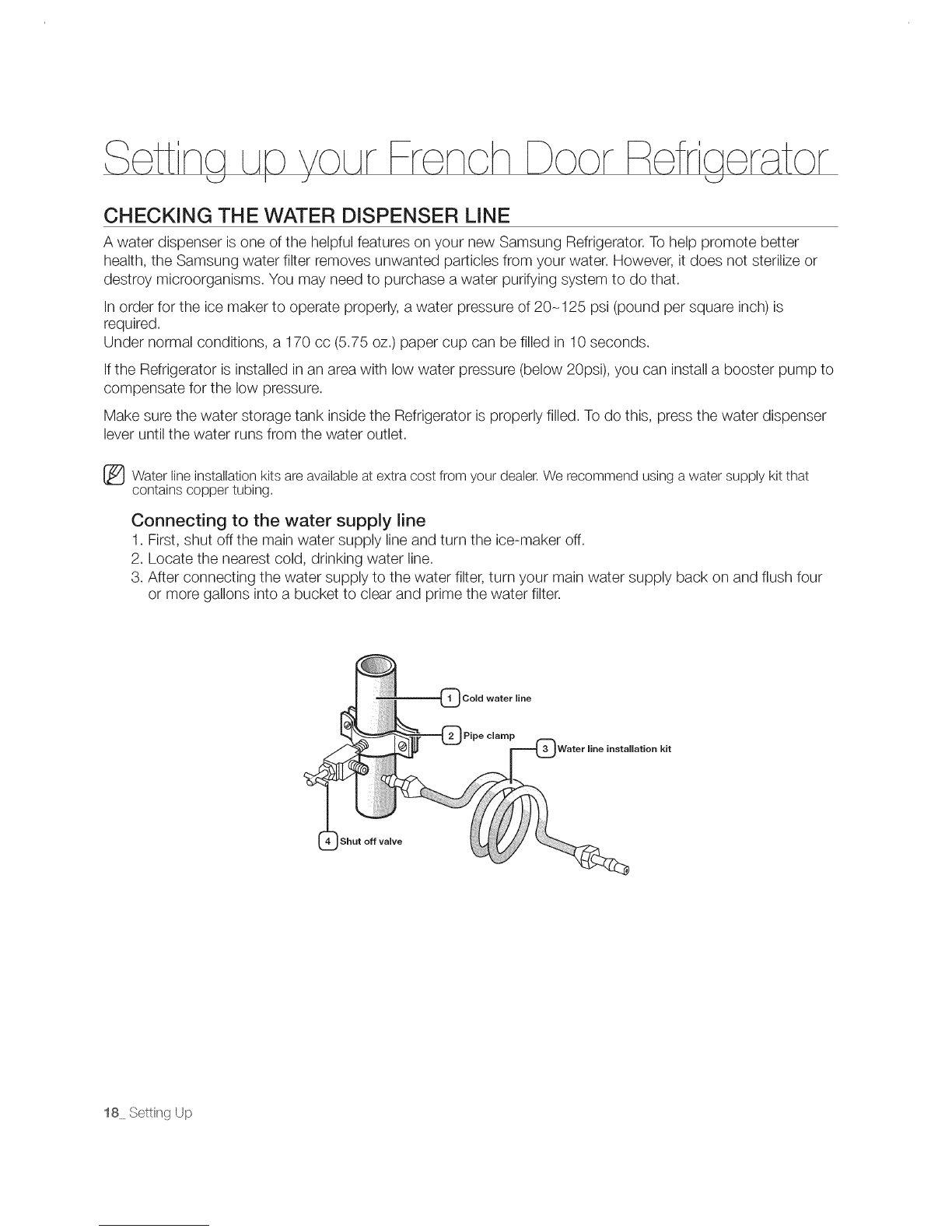

CHECKING THE WATER DISPENSER LINE
A water dispenser is one of the helpful features on your new Samsung Refrigerator. To help promote better
health, the Samsung water filter removes unwanted particles from your water. However, it does not sterilize or
destroy microorganisms. You may need to purchase a water purifying system to do that.
In order for the ice maker to operate properly, a water pressure of 20-125 psi (pound per square inch) is
required.
Under normal conditions, a 170 cc (5.75 oz.) paper cup can be filled in 10 seconds.
If the Refrigerator is installed in an area with low water pressure (below 20psi), you can install a booster pump to
compensate for the low pressure.
Make sure the water storage tank inside the Refrigerator is properly filled. To do this, press the water dispenser
lever until the water runs from the water outlet.
_ Water line installation kits are available at extra cost from your dealer. We recommend using a water supply kit that
contains copper tubing.
Connecting to the water supply line
1. First, shut off the main water supply line and turn the ice-maker off.
2. Locate the nearest cold, drinking water line.
3. After connecting the water supply to the water filter, turn your main water supply back on and flush four
or more gallons into a bucket to clear and prime the water filter.
Cold water line
1ii pipec,amp
_Water line installation kit
18 Setting Up

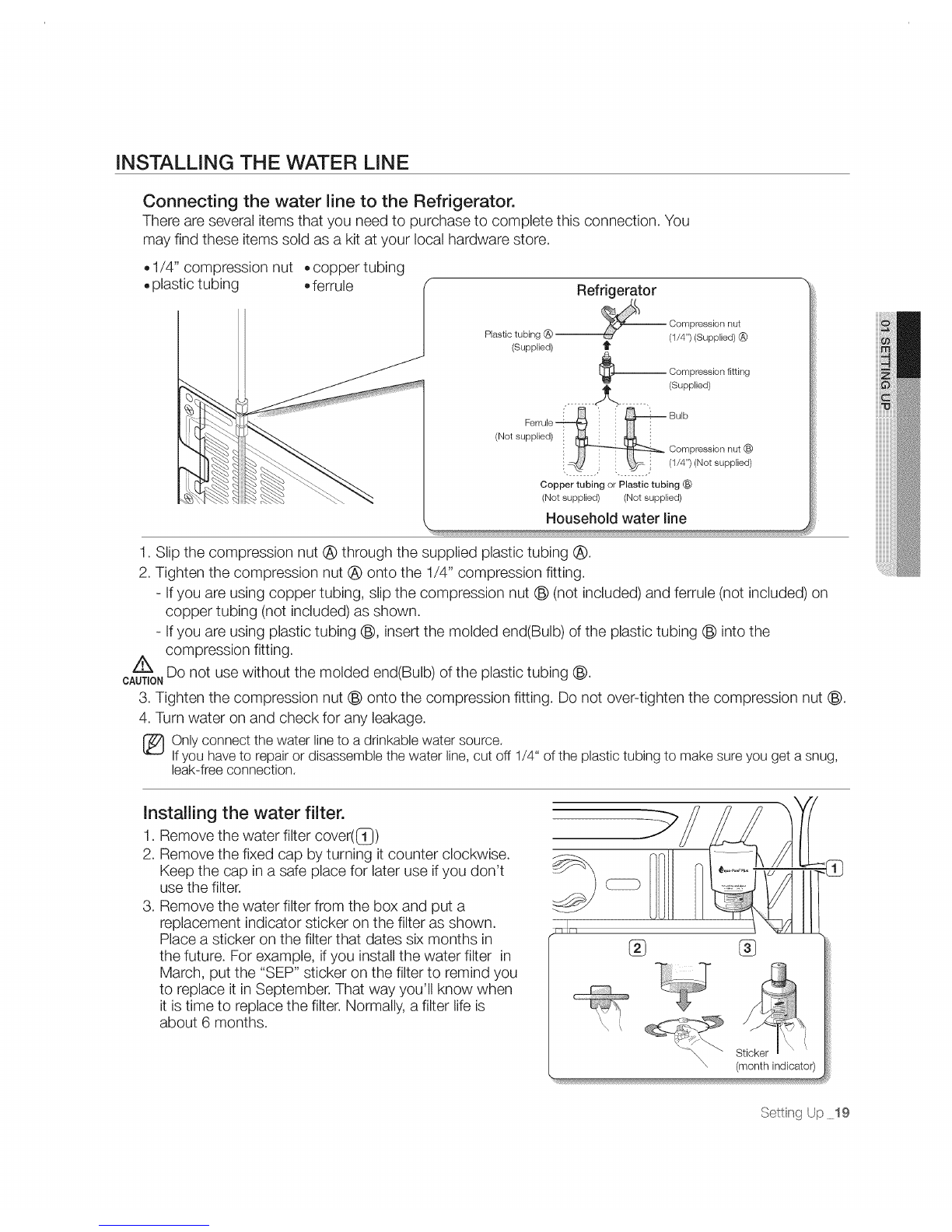

INSTALLING THE WATER LINE
Connecting the water line to the Refrigerator.
There are several items that you need to purchase to complete this connection. You
may find these items sold as a kit at your local hardware store.
o1/4" compression nut
, plastic tubing , copper tubing ferrule Refrigerator
Compression nut
Plastic tubing (_) (1/4") (Supplied) @
(Supplied) t
Compression fitting
(Supplied)
: _ '! [ _ Bulb
Ferrule_ i i H i
(Not supplied) i _ ; , __ i Compression nut (_
(1/4") (Not supplied)
Copper tubing or Plastic tubing (_
(Not supplied) (Not supplied)
Household water line
1. Slip the compression nut @ through the supplied plastic tubing @.
2. Tighten the compression nut @ onto the 1/4" compression fitting.
- If you are using copper tubing, slip the compression nut _ (not included) and ferrule (not included) on
copper tubing (not included) as shown.
-If you are using plastic tubing (_, insert the molded end(Bulb) of the plastic tubing (_ into the
compression fitting.
CAUTION'_ DO not use without the molded end(Bulb) of the plastic tubing (_.
3. Tighten the compression nut (_ onto the compression fitting. Do not over-tighten the compression nut (_.
4. Turn water on and check for any leakage.
[_} Only connect the water line to a drinkable water source.
If you have to repair or disassemble the water line, cut off 1/4" of the plastic tubing to make sure you get a snug,
leak-free connection.
Installing the water filter.
1. Remove the water filter cover((_)
2. Remove the fixed cap by turning it counter clockwise.
Keep the cap in a safe place for later use if you don't
use the filter.
3. Remove the water filter from the box and put a
replacement indicator sticker on the filter as shown.
Place a sticker on the filter that dates six months in
the future. For example, if you install the water filter in
March, put the "SEP" sticker on the filter to remind you
to replace it in September. That way you'll know when
it is time to replace the filter. Normally, a filter life is
about 6 months.
% %
Sticker
(month indicator)
Setti-_g Up 19

4. Remove the filter cap and insert the filter into the filter
housing.
5. Slowly turn the water filter 90 ° clockwise to align with the
printing mark on the cover, locking the filter in position.
Make sure to align the water filter label mark with center of
cover filter printing as illustrated. Remember, do not over-
tighten. i Jlj
.....Separation
of red cap,
Turn until the
labels are aligned,
(_You should remove the right side upper glass shelf before installing water filters.
®
Removing any residual matter inside the water supply line after
installing the water filter.
1. Turn ON the main water supply & turn OFF the valve to the water supply line.
2. Run water through the dispenser until the water runs clear (approx. 6-7
minutes). This will clean the water supply system and remove air from the lines.
3. Additional flushing may be required in some households.
4. Open the Refrigerator door and make sure there are no water leaks coming
from the water filter.
Be sure to flush the dispenser thoroughly, otherwise water may drip from the dispenser.
This means that there is still air in the line.
®iii/
Reverse Osmosis Water Supply
IMPORTANT •The pressure of the water supply coming out of a reverse osmosis system going to the
water inlet valve of the refrigerator needs to be between 35 and 120 psi (241 and 827 kPa).
If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to
the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa.)
If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):
,, Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if
necessary.
,, Allow the storage tank on the reverse osmosis system to refill after heavy usage.
,, If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction
with a reverse osmosis system. Remove the water filter.
If you have questions about your water pressure, call a licensed, qualified plumber.
20 Setti-_g Up
