Samsung RH56J69 Series User manual

Refrigerator
User manual
RH56J69*
Free Standing Appliance
DA68-03176S-01.indb 1 2015. 5. 16. �� 9:09

2 English
Contents
Contents
Contents
Safety information 3
Important safety symbols 4
Severe warning signs for transportation and site 5
Severe warning signs for installation 6
Caution signs for installation 8
Severe warning signs for using 9
Caution signs for using 12
Caution signs for cleaning and maintenance 13
Severe warning signs for disposal 14
Additional tips for proper usage 15
Setting up 18

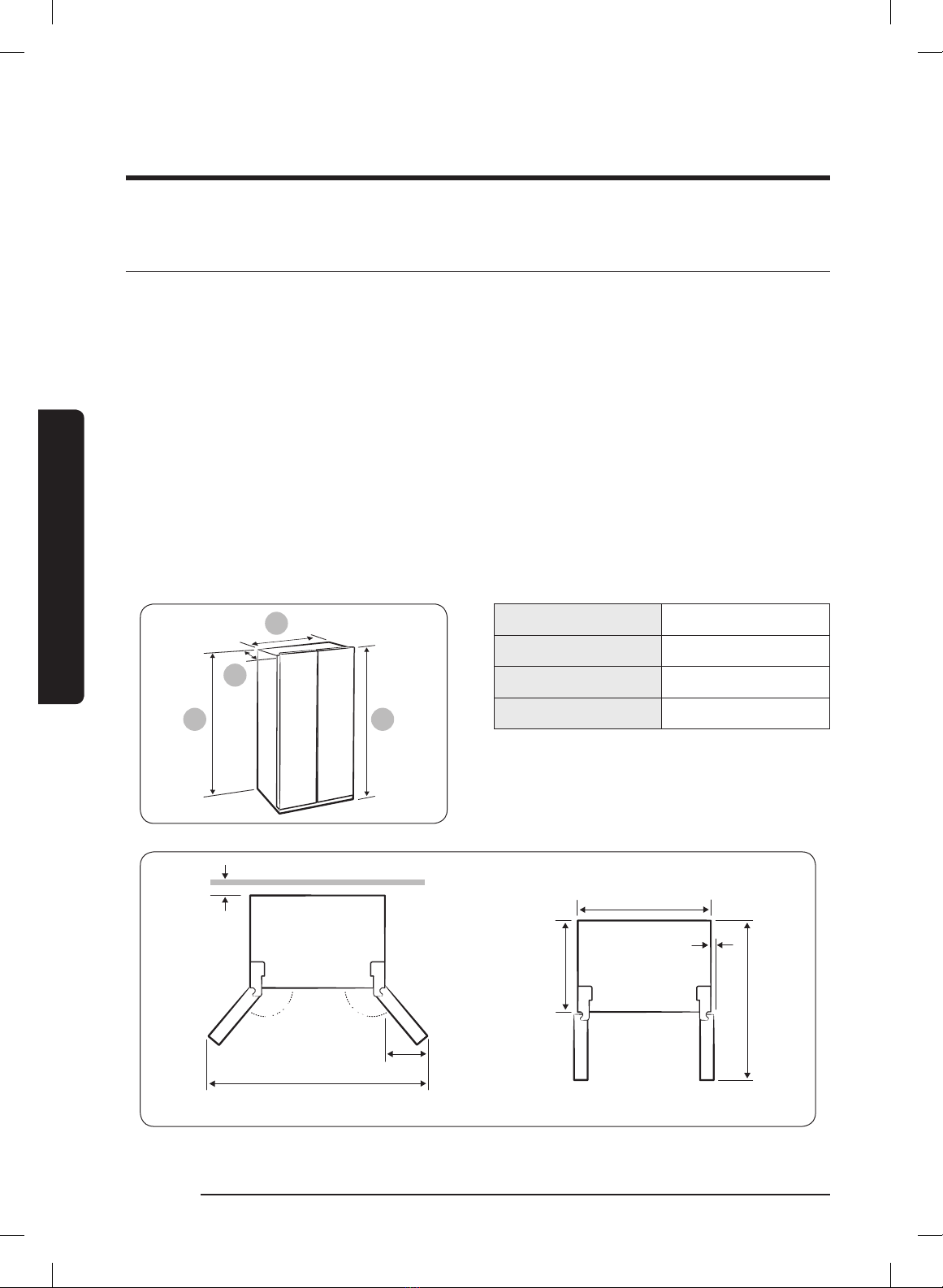

Getting ready to install the refrigerator 18

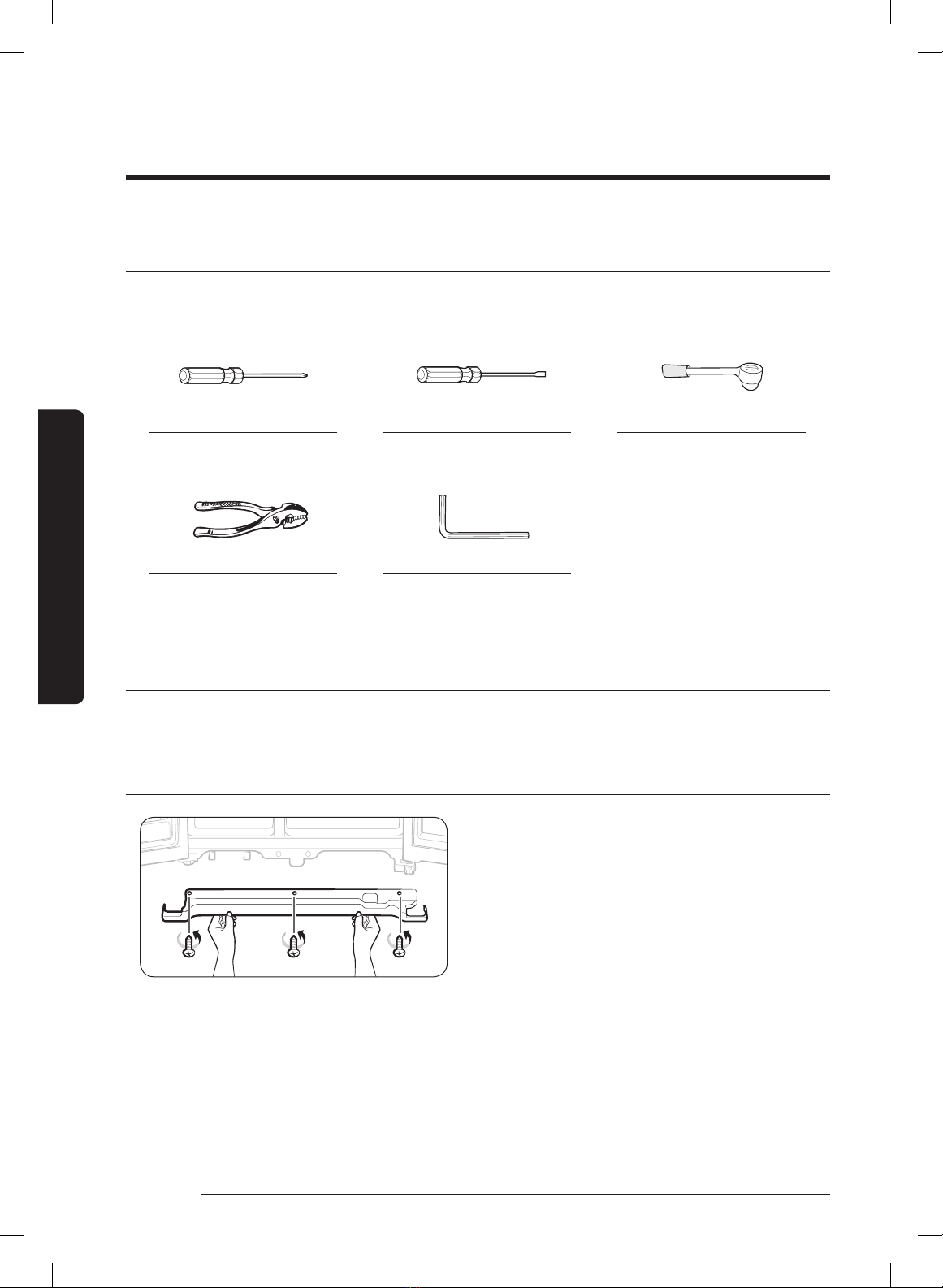

Required tools 20
Removing the refrigerator doors 20
Reattaching the refrigerator doors 25
Levelling the refrigerator 28
Checking the water dispenser line (optional) 31
Using the ice maker 31
Installing the water dispenser line (for exterior model) 34
Operating 38
Initial settings 38
Controlling the temperature 40
Using the ice and cold water dispenser 41
Parts and features 42
Removing the freezer accessories 44
Removing the fridge accessories 46
Cleaning the refrigerator 47
Replacing the interior light 47
Changing the water lter 47
Troubleshooting 50
DA68-03176S-01.indb 2 2015. 5. 16. �� 9:09

English 3
Safety information
Safety information
• Before operating the appliance, please read this manual thoroughly and
retain it at a safe place near the appliance for your future reference.
• Use this appliance only for its intended purpose as described in
this instruction manual. This appliance is not intended for use by
persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Warnings and Important Safety Instructions in this manual do not cover
all possible conditions and situations that may occur.
It is your responsibility to use common sense, caution, and care when
installing, maintaining, and operating your appliance.
• Because these following operating instructions cover various models,
the characteristics of your refrigerator may differ slightly from those
described in this manual and not all warning signs may be applicable. If
you have any questions or concerns, contact your nearest service center
or nd help and information online at www.samsung.com.
DA68-03176S-01.indb 3 2015. 5. 16. �� 9:09

4 English
Safety information
Safety information
Important safety symbols
WARNING
Hazards or unsafe practices that may result in severe personal injury or
death.
CAUTION
Hazards or unsafe practices that may result in minor personal injury or
property damage.
NOTE
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric shock.
Call the contact center for help.
These warning signs are here to prevent injury to you and others.
Please follow them carefully.
After reading this section, keep it in a safe place for future reference.
CE Notice
This product has been determined to be in compliance with the Low
Voltage Directive (2006/95/EC), the Electromagnetic Compatibility
Directive (2004/108/EC), RoHS Directive (2011/65/EU), Commission
Delegated Regulation (EU) No 1060/2010 and the Eco-Design
Directive(2009/125/EC) implemented by Regulation (EC) No 643/2009 of
the European Union. (For products sold in European Countries only)
DA68-03176S-01.indb 4 2015. 5. 16. �� 9:09

English 5
Safety information
Severe warning signs for transportation and site
WARNING
• When transporting and installing the appliance, care should be taken
to ensure that no parts of the refrigerating circuit are damaged.
- Refrigerant leaking from the pipe work could ignite or cause an eye
injury.
If a leak is detected, avoid any naked ames or potential sources of
ignition and air the room in which the appliance is standing for several
minutes.
• In order to avoid the creation of a ammable gas-air mixture if a leak
in the refrigerating circuit occurs, the size of the room in which the
appliance may be sited depends on the amount of refrigerant used.
• Never start up an appliance showing any signs of damage.
If in doubt, consult your dealer. The room where the refrigerator will be
sited must be 1 m³ in size for every 8 g of R-600a refrigerant inside the
appliance.
The amount of refrigerant in your particular appliance is shown on the
identication plate inside the appliance.
DA68-03176S-01.indb 5 2015. 5. 16. �� 9:09

6 English
Safety information
Safety information
Severe warning signs for installation
WARNING
• Do not install the refrigerator in a damp place or place where it may
come in contact with water.
- Deteriorated insulation of electrical parts may cause an electric shock or
re.
• Do not place this refrigerator in direct sunlight or expose to the heat
from stoves, room heaters or other appliance.
• Do not plug several appliances into the same multiple power board.
The refrigerator should always be plugged into its own individual
electrical which has a voltage rating that matched the rating plate.
- This provides the best performance and also prevents overloading
house wiring circuits, which could cause a re hazard from overheated
wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock of re.
• Do not use a cord that shows cracks or abrasion damage along its length
or at either end.
• Do not bend the power cord excessively or place heavy articles on it.
• Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an explosion or re.
DA68-03176S-01.indb 6 2015. 5. 16. �� 9:09

English 7
Safety information
• This refrigerator must be properly installed and located in accordance
with the manual before it is used.
• Connect the power plug in proper position with the cord hanging down.
- If you connect the power plug upside down, wire can get cut off and
cause re or electric shock.
• Make sure that the power plug is not squashed or damaged by the back
of the refrigerator.
• When moving the refrigerator, be careful not to roll over or damage the
power cord.
- This constitutes a re hazard.
• The appliance must be positioned so that the plug is accessible after
installation.
• The refrigerator must be grounded.
- You must ground the refrigerator to prevent any power leakages or
electric shocks caused by current leakage from the refrigerator.
• Never use gas pipes, telephone lines or other potential lightening rods
as ground.
- Improper use of the ground plug can result in electric shock.
• If the power cord is damaged, have it replaced immediately by the
manufacturer or its service agent.
• The fuse on the refrigerator must be changed by a qualied technician
or service company.
- Failing to do so may result in electric shock or personal injury.
DA68-03176S-01.indb 7 2015. 5. 16. �� 9:09

8 English
Safety information
Safety information
Caution signs for installation
CAUTION
• Keep ventilation opening in the appliance enclosure or mounting
structure clear of obstruction.

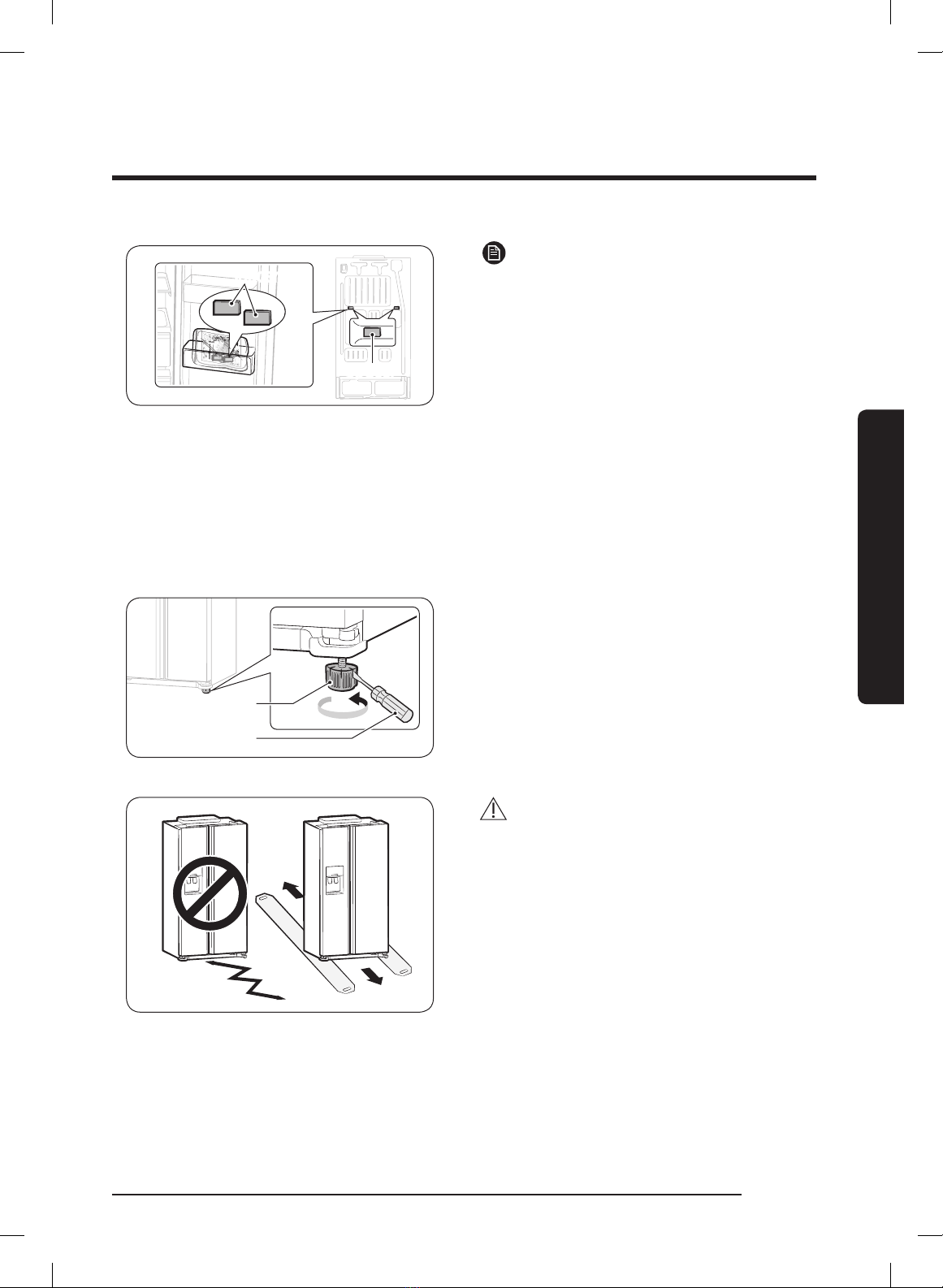

• Allow the appliance to stand for
2 hours after installation.
- When installing the refrigerator,
make sure both legs contact the
oor for secure installation.
Legs are located at the bottom
back of each door.
Insert a athead screwdriver
and turn it in the direction of the
arrow until it is level.
- Always balance the load on each
door.
- Overload on any one door may
fell the refrigerator, causing
physical injury.
DA68-03176S-01.indb 8 2015. 5. 16. �� 9:09

English 9
Safety information
Severe warning signs for using
WARNING
• Do not insert the power plug with wet hands.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall and cause
personal injury and/or material damage.
• Do not put items lled with water on the refrigerator.
- If spilled, there is a risk of re or electric shock.
• Do not let children hang on the door.
- Failure to do so may cause serious personal injury.
• Do not leave the doors of the refrigerator open while the refrigerator is
unattended and do not let children enter inside of the refrigerator.
- There is a risk of children entrapment and serious personal injury because of
low temperature.
• Never put ngers or other objects into the dispenser hole.
- Failure to do so may cause personal injury or material damage.
• Do not store volatile or ammable substances such as benzene, thinner,
alcohol, ether or LP gas in the refrigerator.
- The storage of any of such products may cause explosions.
DA68-03176S-01.indb 9 2015. 5. 16. �� 9:09

10 English
Safety information
Safety information
• Do not store low temperature-sensitive pharmaceuticals products,
scientic materials or other low temperature-sensitive products in
the refrigerator.
- Products that require strict temperature controls must not be stored in
the refrigerator.
• Do not place or use electrical appliance inside the refrigerator, unless
they are of a type recommended by the manufacturer.
• Do not use a hair dryer to dry the inside of the refrigerator. Do not place
a lighted candle in the refrigerator for removing bad odors.
- This may result in electric shock or re.
• Do not touch the inside walls of the freezer or products stored in the
freezer with wet hands.
- This may cause frostbite.
• Do not use mechanical devices or any other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• This product is intended only for the storage of food in a domestic
environment.
• Bottles should be stored tightly together so that they do not fall out.
• If a gas leak is detected, avoid any naked ames or potential sources of
ignition and air the room in which the appliance is standing for several
minutes.
• Use only the LED Lamps provided by manufacturer or service agents.
• Children should be supervised to ensure that they do not play with and/
or climb into the appliance.
• Do not disassemble or repair the refrigerator by yourself.
- You run risk of causing a re, malfunction and/or personal injury.
In case of malfunction, please contact your service agents.
DA68-03176S-01.indb 10 2015. 5. 16. �� 9:09

English 11
Safety information
• If the appliance generates a strange noise, a burning or smell or
smoke, unplug the power plug immediately and contact your nearest
service center.
- Failing to do so may result in electric or re hazards. Keep ventilation
opening in the appliance enclosure or mounting structure clear of
obstruction.
• If you experience difculty when changing the light, contact service
agents.
• If the products equipped with LED Lamp, do not disassemble Lamp
Cover and LED Lamp by yourself.
- Please contact your service agents.
• If any dust or water is in refrigerator, pull out power plug and contact
your Samsung Electronics service center.
- There is a risk of re.
DA68-03176S-01.indb 11 2015. 5. 16. �� 9:09

12 English
Safety information
Safety information
Caution signs for using
CAUTION
• To get best performance of product,
- Do not place foods too closely in front of the vents at the rear of the
appliance as it can obstruct free air circulation in the refrigerator
compartment.
- Wrap the food up properly or place it in airtight containers before put it
into the refrigerator.
• Do not place carbonated or zzy drinks in the freezer compartment.
Do not put bottles or glass containers in the freezer.
- When the contents freeze, the glass may break and cause personal
injury and property damage.
• Do not change the functionality of or modify the refrigerator.
- Changes or modications may result in personal injury and/or property
damage.
Any changes or modications performed by a 3 rd party on this
completed appliance is neither covered under Samsung warranty
service, nor is Samsung responsible for safety issues and damages that
result from 3 rd party modications.
• Do not block air holes.
- If the air holes are blocked, especially with a plastic bag, the refrigerator
can be over cooled. If this cooling period lasts too long, the water lter
may break and cause water leakage.
- Do not put any newly introduced food for freezing near to already food.
• Please observe maximum storage times and expiry dates of frozen
goods.
• Fill water tank, ice tray, water cubes only with potable water.
• Use only the ice maker provided with the refrigerator.
• The water supply to this refrigerator must only be installed/connected
by a suitably qualied person and connect to a potable water supply
only.
DA68-03176S-01.indb 12 2015. 5. 16. �� 9:09

English 13
Safety information
• In order to operate the ice maker properly, water pressure of 138 ~
862 kPa (19.9 ~ 125.1 psi) is required.
Caution signs for cleaning and maintenance
CAUTION
• Do not directly spray water inside or outside the refrigerator.
- There is a risk of re or electric shock.
• Do not spray inammable gas near the refrigerator.
- There is a risk of explosion or re.
• Do not spray cleaning products directly on the display.
- Printed letters on the display may come off.
• Remove any foreign matter or dust from the power plug pins.
But do not use a wet or damp cloth when cleaning the plug, remove any
foreign material or dust from the power plug pins.
- Otherwise there is a risk of re or electric shock.
• Never put ngers or other objects into the dispenser hole and ice chute.
- It may cause personal injury or material damage.
• Unplug the refrigerator before cleaning and performing maintenance.
DA68-03176S-01.indb 13 2015. 5. 16. �� 9:09

14 English
Safety information
Safety information
Severe warning signs for disposal
WARNING
• Ensure that none of the pipes on the back of the appliance are
damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of the appliance or the rating
label inside the refrigerator to see which refrigerant is used for your
refrigerator.
When this product contains ammable gas (Refrigerant R-600a),
contact your local authority in regard to safe disposal of this product.
Cyclopentane is used as a insulation blowing gas.
The gases in insulation material require special disposal procedure.
Please contact your local authorities in regard to the environmentally
safe disposal of this product.
Ensure that none of the pipes on the back of the appliances are
damaged prior to disposal.
The pipes shall be broke in the open space.
• If the appliance contains iso-butane refrigerant (R-600a), a natural
gas with high environmental compatibility that is, however, also
combustible.
When transporting and installing the appliance, care should be taken to
ensure that no parts of the refrigerating circuit are damaged.
• When disposing of this product or other refrigerators, remove the door/
door seals, door latch so that small children or animals cannot become
trapped inside.
Leave the shelves in place so that children may not easily climb inside.
Children should be supervised to ensure that they do not play with the
old appliance.
• Please dispose of the packaging material for this product in an
environmentally friendly manner.
DA68-03176S-01.indb 14 2015. 5. 16. �� 9:09

English 15
Safety information
Additional tips for proper usage
NOTE
• In the event of a power failure, call the local ofce of your Electricity
Company and ask how long it is going to last.
- Most power failures that are corrected within an hour or two will not
affect your refrigerator temperatures. However, you should minimize
the number of door openings while the power is off.
- Should the power failure last more than 2 hours, remove all ice in the Ice
Bucket.
- Should the power failure last more than 24 hours, remove all frozen
food.
• If keys are provided with the refrigerator, the keys should be kept out of
the reach of children and not in vicinity of the appliance.
• The appliance might not operate consistently (possibility of temperature
becoming too warm in refrigerator) when sited for an extended period
of time below the cold end of the range of temperature for which the
refrigerating appliance is designed.
• Do not store food which spoils easily at low temperature, such as
bananas, melons.
• Your appliance is frost free, which means there is no need to manually
defrost your appliance, as this will be carried out automatically.
• Temperature rising during the defrost can comply with ISO requirement.
But if you want to prevent an undue rise in the temperature of the
frozen food while defrosting the appliance, please wrap the frozen food
in several layers of newspaper.
• Any increase in temperature of frozen food during defrosting can
shorten its storage life.
• The temperature of two star section (sections) or compartment
(compartments) which have two star symbol ( ) is slightly higher
than other freezer compartment (compartments).
The two star section (sections) or compartment (compartments) is (are)
based on the instruction and/or the condition as delivered.
DA68-03176S-01.indb 15 2015. 5. 16. �� 9:09

16 English
Safety information
Safety information
Saving energy tips
- Install the appliance in a cool, dry room with adequate ventilation.
Ensure that it is not exposed to direct sunlight and never put it near a
direct source of heat (radiator, for example).
- Never block any vents or grilles on the appliance.
- Allow warm food to cool down before placing it in the appliance.
- Put frozen food in the refrigerator to thaw.
You can then use the low temperatures of the frozen products to cool
food in the refrigerator.
- Do not keep the door of the appliance open for too long when putting
food in or taking food out.
The shorter time for which the door is open, the less ice will form in the
freezer.
- Clean the rear of the refrigerator regularly. Dust increases energy
consumption.
- Do not set temperature colder than necessary.
- Ensure sufcient air exhaust at the refrigerator base and at the back
wall of the refrigerator.
Do not cover air vent openings.
- Allow clearance to the right, left, back and top when installing.
This will help reduce power consumption and keep your energy bills
lower.
- For the most efcient use of energy, please keep the all inner
ttings such as baskets, drawers, shelves on the position supplied by
manufacturer.
DA68-03176S-01.indb 16 2015. 5. 16. �� 9:09

English 17
Safety information
This appliance is intended to be used in household and similar applications
such as
- staff kitchen areas in shops, ofces and other working environments;
- farm houses and by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
DA68-03176S-01.indb 17 2015. 5. 16. �� 9:09

18 English
Setting up
Setting up
Getting ready to install the refrigerator
Congratulations on the purchase of your Samsung Side-By-Side Refrigerator.
We hope you will enjoy the many state-of-the-art features and efciencies that this new
appliance has to offer.
Selecting the best location for the refrigerator
• Select a location with easy access to the water supply.
• Select a location without direct exposure to sunlight.
• Select a location with level (or nearly level) ooring.
• Select a location with enough space for the refrigerator doors to open easily.
• Overall space required in use. Refer to drawing and dimension as below.
• Please ensure that appliance can be moved freely in the event of maintenance &
service.
B
A
CD
Depth “A” 708 mm
Width “B” 912 mm
Height “C” 1775 mm
Overall Height “D” 1794 mm
at least
50 mm
160° 160°
1160 mm
600 mm
1724 mm
912 mm
456 mm
31 mm
DA68-03176S-01.indb 18 2015. 5. 16. �� 9:09

English 19
Setting up
Spacer
Spacer
NOTE
Spacer(gray block) installation
For better performance, please certainly
x the spacer on the rear of unit when
installing the refrigerator. It is improving
refrigerator performance.
Assembly method
Take out packed spacer from the lowest guard of the fridge.
Check assembly location at the rear of Refrigerator like picture.
Locate spacer assembly location and put spacer on the rear plate of Refrigerator.
When moving your refrigerator
Leg
Screw Driver
To prevent oor damage be sure the front
levelling legs are in the up position (above
the oor).
Refer to ‘Levelling the refrigerator’ in the
manual (at page 28).
To protect the nish of the ooring, place
the protection sheet such as packing
carton under the refrigerator.
CAUTION
When installing, servicing or cleaning
behind the refrigerator, be sure to pull the
unit straight out and push back in straight
after nishing.
DA68-03176S-01.indb 19 2015. 5. 16. �� 9:09

20 English
Setting up
Setting up
Required tools
Required Tools (Not provided)
Philips screwdriver (+) Flat-blade screw driver (-) Socket wrench 10 mm
Pliers Allen wrench 5 mm
Removing the refrigerator doors
If your entrance won’t allow the refrigerator to pass easily through it, you can remove the
doors.
Removing the front leg cover
First, open both the freezer and
refrigerator doors, and then take off the
front leg cover by removing the three
screws counter-clockwise.
DA68-03176S-01.indb 20 2015. 5. 16. �� 9:09
