Samsung RR11K User manual

Refrigerator
User manual
RR11K
Free Standing Appliance
OneDoor_RR11K_EN.indd 1 2016-07-14  11:05:08

Content
English2
Contents
Safety information 3
Important safety symbols and precautions 5
Severe warning signs for installation 6
Severe warning signs for using 8
Caution signs for installation 11
Caution signs for using 11
Caution signs for cleaning and maintenance 12
Severe warning signs for disposal 13
This appliance is intended to be used in household and similar applications such as 14
Instructions about the WEEE 15
Installation 16
Refrigerator at a glance 16

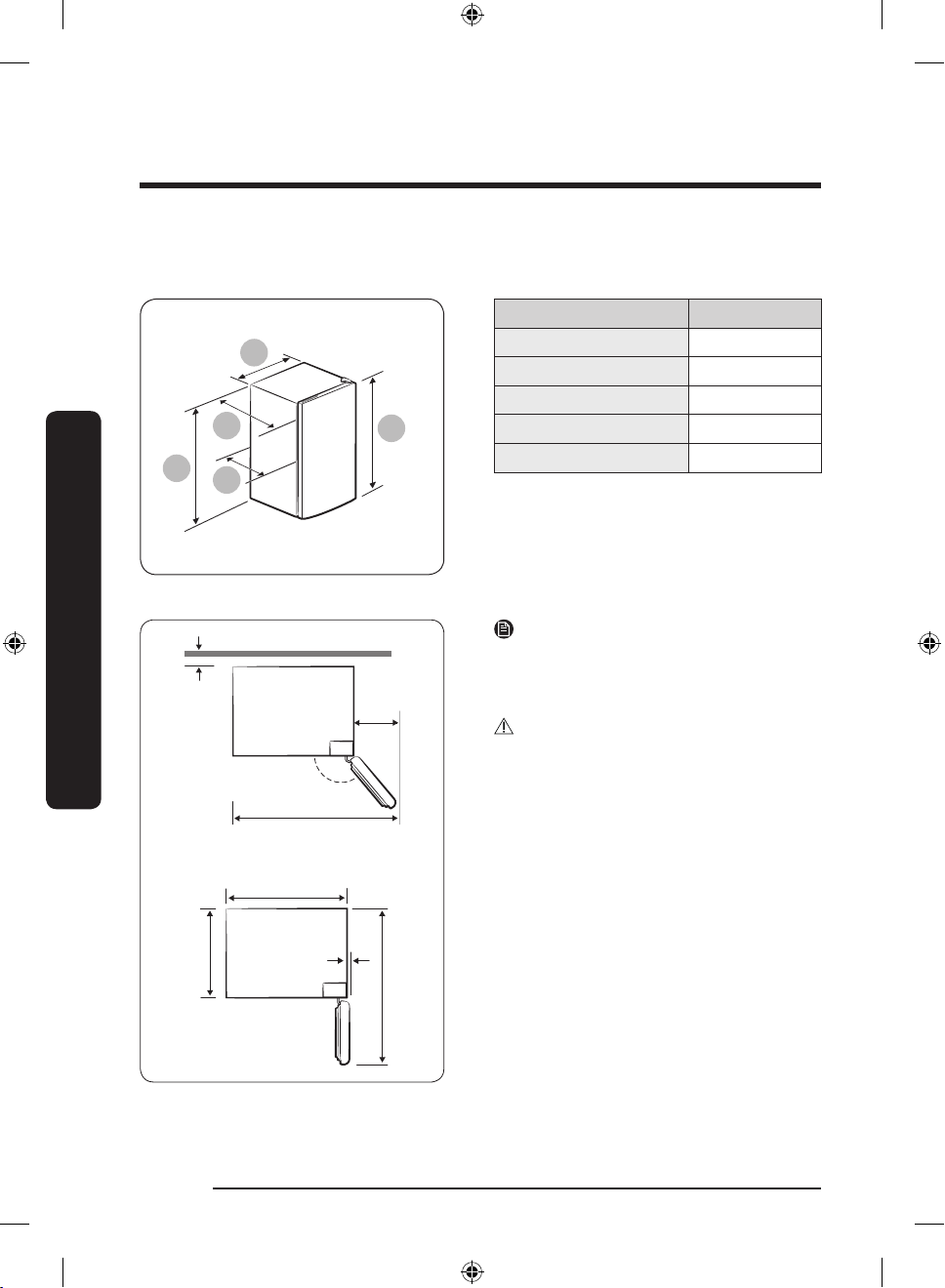

Step-by-step installation 17
Operations 21
Adjusting the temperature control 21
Special features 22
Maintenance 23
Handle and care 23
Cleaning 24
Troubleshooting 25
OneDoor_RR11K_EN.indd 2 2016-07-14  11:05:08

Safety information
English 3
Safety information
• Before operating the appliance, please read this manual
thoroughly and retain it for your reference.
• Use this appliance only for its intended purpose as
described in this instruction manual.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
• Warnings and Important Safety Instructions in this manual
do not cover all possible conditions and situations that
may occur.
It is your responsibility to use common sense, caution,
and care when installing, maintaining, and operating your
appliance.
OneDoor_RR11K_EN.indd 3 2016-07-14  11:05:08

Safety information
Safety information
English4
• Because these following operating instructions cover
various models, the characteristics of your refrigerator
may differ slightly from those described in this manual
and not all warning signs may be applicable.
If you have any questions or concerns, contact your
nearest service center or nd help and information online
at www.samsung.com.
• R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of the appliance or
the rating label inside the fridge to see which refrigerant is
used for your refrigerator.
When this product contains ammable gas (Refrigerant
R-600a), contact your local authority in regard to safe
disposal of this product.
• It is hazardous for anyone other than an Authorised
Service Person to service this appliance.
• Do not drink the liquid which is inside the cool pack
although it is not toxic to human body.
OneDoor_RR11K_EN.indd 4 2016-07-14  11:05:08

Safety information
English 5
Important safety symbols and precautions
WARNING
Hazards or unsafe practices that may result in severe
personal injury or death.
CAUTION
Hazards or unsafe practices that may result in minor personal
injury or property damage.
NOTE
Do NOT attempt.
Do NOT disassemble.
Do NOT touch.
Follow directions carefully.
Unplug the power plug from the wall socket.
Make sure the machine is grounded to prevent electric
shock.
Call the contact center for help.
These warning signs are here to prevent injury to you and
others.
Please follow them carefully.
After reading this section, keep it in a safe place for future
reference.
OneDoor_RR11K_EN.indd 5 2016-07-14  11:05:09

Safety information
Safety information
English6
Severe warning signs for installation
WARNING
Do not plug several appliances into the same multiple
power board.
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matched the rating plate.
- This provides the best performance and also prevents
overloading house wiring circuits, which could cause a
re hazard from overheated wires.
• If the wall socket is loose, do not insert the power plug.
- There is a risk of electric shock or re.
• Do not use a cord that shows cracks or abrasion damage
along its length or at either end.
• Do not bend the power cord excessively or place heavy
articles on it.
• Do not use aerosols near the refrigerator.
- Aerosols used near the refrigerator may cause an
explosion or re.
• Connect the power plug in proper position with the cord
hanging down.
- If you connect the power plug upside down, wire can
get cut off and cause re or electric shock.
• Make sure that the power plug is not squashed or
damaged by the back of the refrigerator.
OneDoor_RR11K_EN.indd 6 2016-07-14  11:05:09

Safety information
English 7
• When moving the refrigerator, be careful not to roll over
or damage the power cord.
- This constitutes a re hazard.
• This appliance should be positioned in such a way that it is
accessible to the power plug.
- Failing to do so may result in an electric shock or re
due to electric leakage.
This appliance must be properly grounded.
• Do not ground the appliance to a gas pipe, plastic water
pipe, or telephone line.
- You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage
from the refrigerator.
- This may result in an electric shock, re, explosion, or
problems with the product.
- Never plug the power cord into a socket that is
not grounded correctly and make sure that it is in
accordance with local and national codes.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• The fuse on the refrigerator must be changed by a
qualied technician or service company.
- Failing to do so may result in an electric shock or
personal injury.
OneDoor_RR11K_EN.indd 7 2016-07-14  11:05:09

Safety information
Safety information
English8
Severe warning signs for using
WARNING
Do not touch the power plug with wet hands.
- This may result in an electric shock.
• Do not store articles on the top of the appliance.
- When you open or close the door, the articles may fall
and cause a personal injury and/or material damage.
• Do not put a container lled with water on the
refrigerator.
- If spilled, there is a risk of re or electric shock.
• Children should be supervised to ensure that they do not
play with the appliance.
• Keep ngers out of “pinch point” areas : clearances
between the doors and cabinet are necessarily small. Be
careful when you open the doors when children are in the
area.
• Do not let children hang on the door. If not, a serious
injury may occur.
• There is a Risk of children entrapment.
Do not let children enter inside the refrigerator.
• Do not keep volatile or inammable objects or substances
(benzene, thinner, propane gas, alcohol, ether, LP gas and
other such products etc.) in the refrigerator.
- This refrigerator is for storing food only.
- This may result in re or explosion.
OneDoor_RR11K_EN.indd 8 2016-07-14  11:05:09

Safety information
English 9
• Do not place or use electrical appliance inside the
refrigerator, unless they are of a type recommended by
the manufacturer.
• Do not use a hair dryer to dry the inside of the
refrigerator. Do not place a lighted candle in the
refrigerator for removing bad odours.
- This may result in an electric shock or re.
• Do not touch the inside walls of the freezer or products
stored in the freezer with wet hands.
- This may cause frostbite.
• Do not use mechanical devices or any other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Fill the water tank, ice tray, water cubes only with potable
water.
This product is intended only for the storage of food in a
domestic environment.
• Bottles should be stored tightly together so that they do
not fall out.
• Do not insert hands, feet or metal objects (such as
chopsticks, etc.) into the bottom or the back of the
refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
OneDoor_RR11K_EN.indd 9 2016-07-14  11:05:09

Safety information
Safety information
English10
Safety information
Do not attempt to repair, disassemble, or modify the
appliance yourself.
- Do not use any fuse (such as cooper, steel wire, etc.)
other than the standard fuse.
- When repairing or reinstalling the appliance is required,
contact your nearest service center.
- Failing to do so may result in an electric shock, re,
problems with the product, or injury.
If the appliance generates a strange noise, a burning or
smell or smoke, unplug the power plug immediately and
contact your nearest service center.
- Failing to do so may result in an electric or re hazards.
• Pull the power plug out of the socket before changing the
interior lamps of the refrigerator.
- Otherwise, there is a risk of electric shock.
• If any dust or water is in the refrigerator, pull out power
plug and contact your Samsung Electronics service center.
- Otherwise there is a risk of re.
OneDoor_RR11K_EN.indd 10 2016-07-14  11:05:09

Safety information
English 11
Safety information
Caution signs for installation
CAUTION
Keep ventilation opening in the appliance enclosure or
mounting structure clear of obstruction.
• The installation or any service of this appliance is
recommended by a qualied technician or service
company.
- Failing to do so may result in an electric shock, re,
explosion, problems with the product, or injury.
Caution signs for using
CAUTION
Do not place glass or bottles or carbonated beverages into
the freezer.
- The container may freeze and break, and this may
result in injury.
• There is no need to disconnect the refrigerator from the
power supply if you will be away for less than three
weeks.
But, remove all the food if you are going away for the
three weeks or more. Unplug the refrigerator and clean it,
rinse and dry.
OneDoor_RR11K_EN.indd 11 2016-07-14  11:05:09

Safety information
Safety information
English12
Caution signs for cleaning and maintenance
CAUTION
Do not clean the appliance by spraying water directly onto
it.
• Do not use benzene, thinner, or Clorox, Chloride for
cleaning.
- They may damage the surface of the appliance and may
cause a re.
• Do not spray inammable gas near the refrigerator.
- There is a risk of explosion or re.
• Remove all foreign substances such as dust or water from
the power plug terminals and contact points using a dry
cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Failing to do so may result in an electric shock or re.
• Before cleaning or performing maintenance, unplug the
appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
• If the key is provided with refrigerator, the keys should be
kept out of the reach of children and not be in the vicinity
of the appliance.
OneDoor_RR11K_EN.indd 12 2016-07-14  11:05:09

Safety information
English 13
Severe warning signs for disposal
WARNING
Leave the shelves in place so that children may not easily
climb inside.
• Ensure that none of the pipes on the back of the appliance
are damaged prior to disposal.
• R-600a or R-134a is used as a refrigerant.
Check the compressor label on the rear of the appliance
or the rating label inside the refrigerator to see which
refrigerant is used for your refrigerator.
When this product contains ammable gas (Refrigerant
R-600a), contact your local authority in regard to safe
disposal of this product. Cyclopentane is used as an
insulation blowing gas.
The gases in insulation material require special disposal
procedure.
Please contact your local authorities in regard to the
environmentally safe disposal of this product.
Ensure that none of the pipes on the back of the
appliances are damaged prior to disposal.
Pipes shall be broken in the open space.
• When disposing of this or other refrigerator/s, remove
the door/door seals, door latch so that children or animals
cannot become trapped inside.
OneDoor_RR11K_EN.indd 13 2016-07-14  11:05:09

Safety information
Safety information
English14
Children should be supervised to ensure that they do not
enter and play with the appliance.
- If trapped inside, the child may become injury and
suffocate to death.
• Please dispose of the packaging material for this product
in an environmentally friendly manner.
This appliance is intended to be used in household
and similar applications such as
• staff kitchen areas in shops, ofces and other working
environments;
• farm houses and by clients in hotels, motels and other
residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.
OneDoor_RR11K_EN.indd 14 2016-07-14  11:05:09

Safety information
English 15
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable)
should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased
this product, or their local government ofce, for details of where and
how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
OneDoor_RR11K_EN.indd 15 2016-07-14  11:05:09

Installation
English16
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and
to prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
Refrigerator at a glance
NOTE
The actual image and provided component parts of the refrigerator may differ, depending
on the model and the country.
01
02
03
04
05
01 Ice making compartment
(Super Freeze Zone)
02 Chiller compartment
03 Shelf
04 Vegetable box
05 Refrigerator guard
* applicable models only
To secure more room for storage in the refrigerator compartment
To get more space, you can remove cool pack(s) which can be removed without aid of a
tool. It does not affect thermal and mechanical characteristics.
A declared storage volume is calculated with cool pack(s) removed.
• These optional accessories do not affect thermal and mechanical performance.
• A declared storage volume of the freezer is based on the nonexistence of those optional
accessories.
• For best energy efciency, make sure all of shelves, drawers, and baskets are placed in
their original position.
OneDoor_RR11K_EN.indd 16 2016-07-14  11:05:09

Installation
English 17
Step-by-step installation
STEP 1 Select a site
Site requirements:
• Solid, level surface without carpeting or ooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for opening and closing the door
• Away from a heat source
• Room for maintenance and servicing
Effective temperature range
The refrigerator is designed to operate normally in the temperature range specied by its
class rating.
Class Symbol
Ambient Temperature range (°C)
IEC 62552 (ISO
15502) ISO 8561
Extended Temperate SN +10 to +32 +10 to +32
Temperate N+16 to +32 +16 to +32
Subtropical ST +16 to +38 +18 to +38
Tropical T+16 to +43 +18 to +43
NOTE
The cooling performance and power consumption of the refrigerator may be affected by
the ambient temperature, the door-opening frequency, and the location of the refrigerator.
We recommend adjusting the temperature settings as appropriate.
OneDoor_RR11K_EN.indd 17 2016-07-14  11:05:09

Installation
Installation
English18
Clearance
See the pictures and table below for space requirements for installation.
B
A
C
D
E
RR11K
Depth “A” 445
Width “B” 470
Height “C” 850
Overall Height “D” 860
Depth “E” 500
(unit: mm)
50 mm
135°
786 mm
320 mm
934 mm
445 mm
470 mm
15 mm
NOTE
Each measurement based on the design
dimension, so it may differ depending on
the measuring method.
CAUTION
Please tie up the extra length of the power
cord at the back of the refrigerator so as
not to be touched on the oor preventing
the power cord from being crushed by the
rollers upon relocation.
OneDoor_RR11K_EN.indd 18 2016-07-14  11:05:10

Installation
English 19
STEP 2 Flooring
• The surface to install the refrigerator
must support a fully loaded refrigerator.
• To protect the oor, put a large piece
of cardboard on each leg of the
refrigerator.
• Once the refrigerator is in its nal
position, do not move it unless
necessary to protect the oor.
If you have to, use a thick paper or cloth
such as old carpets along the movement
path.
STEP 3 Adjust the levelling feet
Level the refrigerator by manually
adjusting the levelling feet.
Turn the levelling feet clockwise to lower
the position, or turn counter clockwise to
raise.
For safety reasons, adjust the front side a
little higher than the rear side.
STEP 4 Initial settings
By completing the following steps, the refrigerator should be fully functioning.
1. Plug the power cord into the wall socket to turn the refrigerator on.
2. Open the door, and check if the interior light lights up.
3. Set the temperature to the coldest, and wait for about an hour.
4. Remove the 4 shipping caps from the shelf, which are attached for safe transportation.
5. Wait until the refrigerator reaches the set temperature.
Now the refrigerator is ready for use.
OneDoor_RR11K_EN.indd 19 2016-07-14  11:05:10

Installation
Installation
English20
STEP 5 Final check
When installation is complete, conrm that:
• The refrigerator is plugged into an electrical outlet and grounded properly.
• The refrigerator is installed on a at, level surface with a reasonable clearance from the
wall or the cabinet.
• The refrigerator is level and is sitting rmly on the oor.
• The door opens and closes freely, and the interior light turns on automatically when
you open the door.
OneDoor_RR11K_EN.indd 20 2016-07-14  11:05:10
