Samsung RS2533SW Safety guide

Write the modeland serial number here:
Model#
Serial#
Findthese numbers on a label of the
refrigeratorcabinetat the lefthand-side wall.
SIDEBYSIDE
REFRIGERATOR
RS2533SW
RS2555SW
RS2555SL
RS2577SW
RS2577SL
OWNER'SMANUALANDINSTALLATION
CONTENTS
SAFETY WARNING SIGNS ...............................................................2
OPERATING INSTRUCTIONS ........................................................4
SETTINGUPTHE REFRIGERATOR........................................................4
MAJORFEATURES.....................................................................................4
CONTROLPANEL.......................................................................................5
DIGITAL PANEL..........................................................................................6
TEMPERATURECONTROL ......................................................................7
ICEand COLDWATERDISPENSER.........................................................7
SHELVESandBINS.....................................................................................8
FOODSTORAGEGUIDE...........................................................................9
CoolSelectZoneTMDrawerGUIDE.............................................................11
REMOVINGTHE FREEZERACCESSORIES.........................................13
REMOVINGTHE REFRIGERATORACCESSORIES............................13
BEVERAGESTATION(RS2577)..............................................................14
CLEANINGTHEACCESSORIES.............................................................14
CHANGINGTHE INTERIORLIGHT.........................................................15
WATERFILTER..........................................................................................16
DOORS.......................................................................................................16
INSTALLATION INSTRUCTIONS ................................................17
INSTALLATIONOFTHE REFRIGERATOR............................................17
REMOVINGTHE REFRIGERATORDOORS.........................................18
REATTACHINGTHE REFRIGERATORDOORS....................................21
ADJUSTINGTHECLEARANCEBETWEENTHE DOORS....................24
CHECKINGTHE WATERDISPENSERLINE..........................................26
INSTALLINGTHEWATERDISPENSERLINE........................................26
TROUBLESHOOTING...............................................................................30
CONSUMER SUPPORT ....................................................................31
WARRANTY...............................................................................................31
In the US.for questions about features,
operation/performance, parts, accesories or service, call:
1-800-726-7864 (1-800-SAMSUNG), FAX:[phone]
www.samsungusa.com
DA68-00500T REV(0.1)

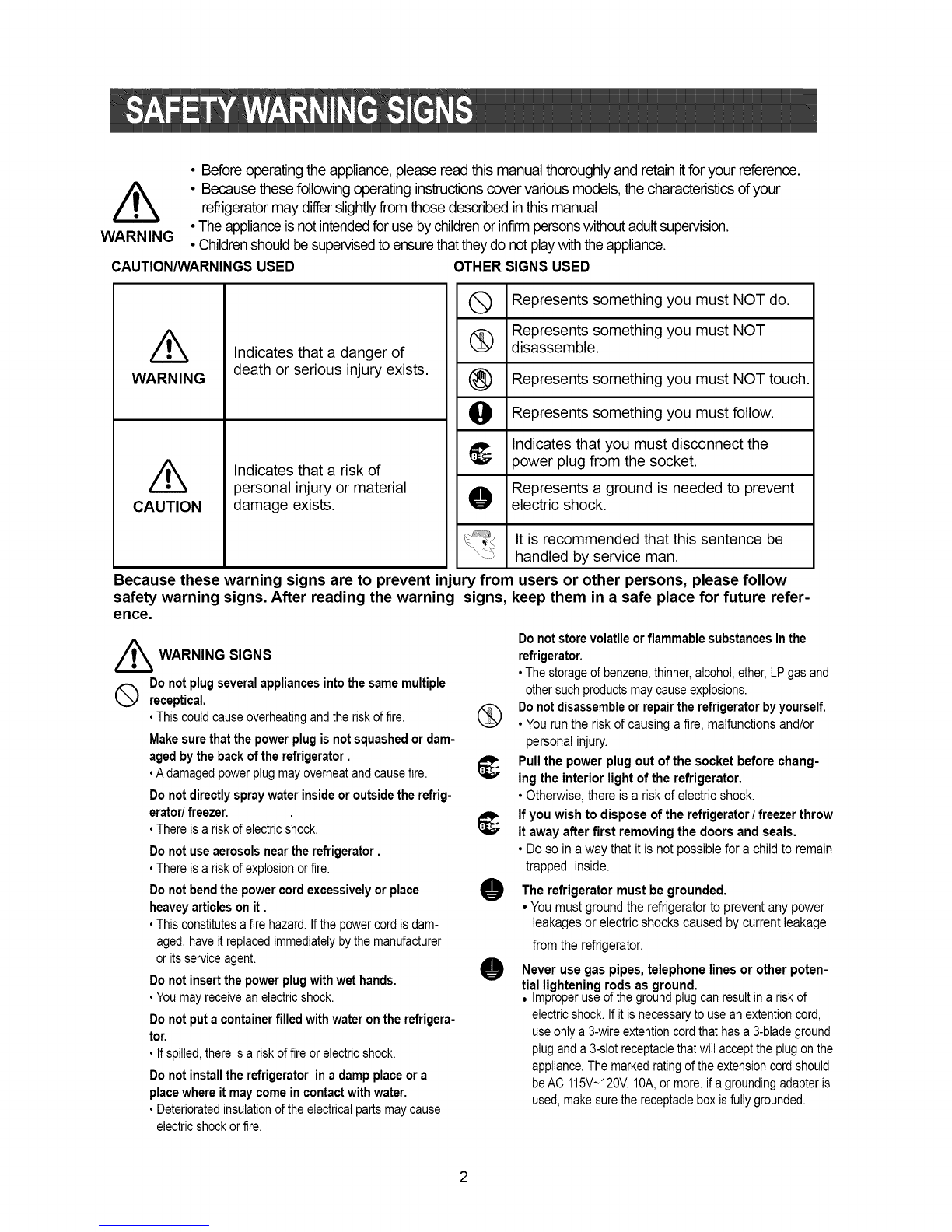

•Beforeoperating theappliance, please read this manualthoroughly and retainitforyour reference.
//_ • Because these following operatinginstructionscover various models,the characteristicsofyourrefrigeratormay differslightlyfrom those described in this manual
• Theapplianceisnotintendedforuseby childrenor infirmpersonswithoutadultsupervision.
WARNING • Childrenshouldbe supervisedto ensurethattheydo notplaywiththeappliance.
CAUTION/WARNINGSUSED OTHERSIGNS USED
/k
WARNING
/k
CAUTION
Indicates that a danger of
death or serious injury exists.
Indicates that a risk of
personal injury or material
damage exists.
Q Represents something you must NOT do.
Represents something you must NOT
disassemble.
Represents something you must NOT touch.
O Represents something you must follow.
i_ Indicates that you must disconnect the
power plug from the socket.
Represents a ground is needed to prevent
O electric shock.
It is recommended that this sentence be
handled by service man.
Because these warning signs are to prevent injury from users or other persons, please follow
safety warning signs. After reading the warning signs, keep them in a safe place for future refer-
ence.
//_ WARNING SIGNS
Donotplugseveralappliancesintothesame multiple
Qreceptical.
•Thiscouldcauseoverheatingandthe risk offire.
Makesurethatthepowerplugis notsquashedor dam-
agedby thebackof the refrigerator.
•A damagedpowerplug mayoverheatandcausefire.
Donotdirectlyspraywaterinside oroutsidetherefrig-
erator/freezer.
•Thereisa riskofelectricshock.
Donotuseaerosolsneartherefrigerator.
•Thereisa riskdexplosionorfire.
Donotbendthe powercordexcessivelyor place
heaveyarticlesonit.
•Thisconstitutesa firehazard.If the powercordisdam-
aged,haveit replacedimmediatelyby the manufacturer
or itsserviceagent.
Donot insertthepowerplugwithwethands.
•Youmayreceivean electricshock.
Donotput a containerfilledwithwaterontherefrigera-
tor.
• Ifspilled,thereis arisk offireor electricshock.
Donot installthe refrigeratorin a dampplaceor a
placewhere itmaycomeincontactwithwater.
• Deterioratedinsulationofthe electricalpartsmaycause
electricshockor fire.
Donotstorevolatileorflammablesubstancesinthe
refrigerator.
•Thestorageof benzene,thinner,alcohol,ether,LPgasand
othersuchproductsmaycauseexplosions.
Donotdisassembleor repairtherefrigeratorbyyourself.
•You run the riskof causinga fire, malfunctionsand/or
personalinjury.
Pullthe power plug outof the socketbefore chang-
ing the interiorlightof the refrigerator.
• Otherwise,there is a risk of electric shock.
Ifyou wishto dispose of the refrigerator/freezerthrow
it awayafter first removing the doors and seals.
• Do so in a way that it isnot possiblefor a childto remain
trapped inside.
O
O
The refrigerator must be grounded.
• You must groundthe refrigeratorto preventany power
leakagesor electricshockscaused by currentleakage
from the refrigerator.
Never use gas pipes, telephonelines or other poten-
tial lightening rods as ground.
• Improperuseof thegroundplug canresultin ariskof
electricshock.If itis necessaryto usean extentioncord,
useonlya 3-wireextentioncordthat hasa 3-bladeground
pluganda 3-slotreceptaclethatwill acceptthe plugonthe
appliance.Themarkedratingof theextensioncordshould
beAC 115V~120V,10A,or more.ifagroundingadapteris
used,makesurethe receptaclebox isfullygrounded.
2

//_ CAUTION SIGNS
Qo not overfill the refrigeratorwith food.
•When you open the door, an item mayfall out andcause
personalinjury or material damage.
Donot putbottlesorglass containersinthe freezer.
•When the contentsfreeze, the glassmay breakand
cause personalinjury.
Ifthe wall socket is loose, do notinsertthe power
plug.
•There is a riskof electric shock or fire.
QDonotdisconnectthe powercord bypullingon it.
•Damageto thecordmaycausea short-circuit,fire
and/orelectricshock.
•If the powercordisdamaged,itmust bereplacedby
the manufacturer,acertifiedserviceagentor qualified
servicepersonnel.
Do not store articles on the top of the appliance.
•Whenyouopenor closethedoor,thearticlesmayfall
andcausepersonalinjuryand/ormaterialdamage.
Do not store pharmaceuticals products, scientific
materialsand temperature-sensitive products in
the refrigerator.
•Productsthat requirestricttemperaturecontrolsmust
not bestoredin therefrigerator.
Do not let childrenhang on the door. If not, aseri-
ous injury may occur.
If you sense pharmaceuticals smells or smoke, pull
out the power plug immediatelyand contactyour
SAMSUNGElectronics service center.
®Donottouchtheinsidewallsofthefreezeror
productsstoredin thefreezerwithwet hands.
•It may causefrostbite.
Do not insert your hands into the bottom area
underthe appliance.
•Anysharpedgesmaycausepersonalinjury.
Neverput fingers or other objects into the
dispenser hole and ice chute. It may causeper-
sonalinjuryor materialdamage
@
f
Donotusea wet ordampclothwhen cleaning
the plug.Removeanyforeign matteror dustfrom
the powerplugpins.
•Otherwisethereisa riskoffire.
• Ifthe refrigeratorisdisconnectedfromthe power
supply,you shouldwaitforat leastfive minutes
beforepluggingitback.
_, Ifthe refrigeratorisnotto be usedfor along
periodoftime,pullout thepowerplug.
• Deteriorationin theinsulationmaycausefire.

Once you have performedthe followingsteps,your refrigeratorshould befully operational.Ifnot, check
the powersupply and electricitysource. Ifyou haveany questions,contactyour 8AMSUNG
service center.
Placethe refigeratorin an appropriateloca-
tion with reasonableclearancebetweenthe
wall and the refigerator.
(referto installationinstructionsin this man-
nal)
When the refrigerator is plugged in,
the interior light should come on when
you open the doors.
Setthe temperaturecontrolto the coldest
temperatureandwait for an hour.The
freezershould getslightlychilled andthe
motor shouldrun smoothly.
Oncethe refrigeratortemperatureissuffi-
cientlylow, youcan storefood in the
refrigerator.After startingthe refrigerator,it
takesa few hoursto reachthe appropriate
temperature.
Twin Cooling System
• The refrigerator and the freezer have two evaporators. Given this
independent system, the freezer and the refrigerator are cooled
individually as required and are, therefore, more efficient. Food odor
from the refrigerator does not affect food in the freezer due to sepa-
rate of air flow circulation.
Multi-Flow System
• Cool air circulates through multiple vents on every shelf level. This
provides even distribution of cooling inside cabinets to keep your
food fresh longer.
Xtra Space TM
• Vertical room next to the ice maker in the freezer provides space
for pizza etc.
Door Alarm
• A beeper reminds if you the door is left open.
Xtra Fresh TM
• Optimized humidity control keeps vegetables & fruits fresh.
Deodorizer
• Reusable twin deodorizers keep the refrigerator air fresh and
odor free.
CoolSelect ZoneTM Drawer(RS2555, RS2577)
• User can select Quick Cool, Thaw, or Soft Freeze to quickly chill
items, thaw items, or keep meat and cheeses fresh longer. Select
Cool or Chill to control the temperature of the drawer.
4

RS2533
PowerFreeze SAMSUNG PowerCool
Child Lock
Ice Watel
RS2555, RS2577
FREEZER TEME BUTTON
Toset the freezer temperature, press
the button repeatedly tochange the set
temperaturein sequence between
8°Fand -14°F.
POWER FREEZERBUTTON
peeds up the freezing process in
the freezer,
ICETYPE BUTTON
Use this button to choose Cubed or
Crushed Iceor Iceoff.
I FRIDGE TEMP. BUTTON
Toset the fridge temperature, pressthe button
repeatedlyto change the settemperature in
sequencebetween 34°F and 46°F.
POWER COOL BUTTON I
[ Speeds up thecoo ng process nthe refrigerator I
CHILD LOCK BUTTON
When thisbutton is pressedfor3 sec., the Power
Freeze, PowerCool, Freezer Temp.and Fridge
Temp.are locked andcan not be modified.The
Waterand Ice dispensersare not lockedthey can
stillbe used. _J
iiiiiiiiiiiiiiiiiiiii_,

RS2533
or
RS2555,RS2577
Freezer Temp. indicates the current freezer temperature.
Fridge Temp. indicates the current refrigerator temperature.
Quick Cool, Thaw, and Select show the status of the CoolSelect ZoneTM Drawer
• This light is on when you press the Power Freeze button.
l-,ower I-reeze Press this button to quickly return the freezer to the set temperature.
r_ • if you need much ice, you can get ice faster.
• Press the button again to cancel the Power Freezer mode.
Power Cool •This light is on when you press the Power Cool button.
I _ Press the button to quickly return the refrigerator to the set temperature.
! • Press the button again to cancel the Power Cool mode.
"er • "_
This light indicates the recyclable twin deodorizers are in operation.
_•Recycle the,honeycomb cartridge once or twice a year (see "Cleaning the
Accessories secuon)
ICrushed Ice and Ice M
e,
\ I /IceType Press the Ice Type button in seqence to choose
_.,___'/ _13/ " ICE " Cubed Ice, Crushed Ice or Ice Off to stop making ice.
_ OFF •
/ __ _ _ Bright icon indicates the ice type is currently chosen.
/Cu_e_ Crushed Ice Off
• When the green light changes to orange, it is time to replace the water filter.
If indicator is red, quick replacement is strongly recommended.
• When the water filer is replaced, reset the indicator by pressing the Ice Type
button and the Child Lock buttons simultaneously for 3 seconds.
• To turn off this indicator off, press the Ice Type and Child Lock buttons simulta-
neously for 5 seconds.
6

Freezer
• Thefreezer temperaturecan be set between
8°F and -14°F.
• Press the Freezer Temp. button repeatedly untilthe
desiredset temperatureisshown inthe temperature
display.
• The temperaturedisplay changes in sequence
between8°F and -14°F.Whenthe display reaches
8°F,it returnsto -14°F.
• After five seconds, thedisplay revertsto the actual
freezer temperature.Theunitwill thenwork to adjust
to the newdesiredtemperature.
Refrigerator
• The refrigeratortemperaturecan be set between
46°F and 34°F.
• Pressthe Fridge Temp.button repeatedlyuntilthe
desiredtemperatureis shown inthe temperaturedis-
play.
• The temperaturedisplay changesin sequenceand
reverts inthe sameway asthe freezer.
/k
WARNING
• Whenice cream isstored above 4°F in freezer,it may melt.
• Thetemperaturedthefreezer orthe refrigeratorrisesfromfrequent openings,when sweeping
and from warm food.This may causethe digitaldisplay to blink. Thedigitaldisplay will stop
blinkingwhen thefreezer and refrigeratorreturnto the normaltemperature.
Ice Dispenser
The icemakerproduces10 cubesatonceand about
120cubesa day automatically.Thisquantitymay beinflu-
encedbyfactorssuchasthefreezertemperature,Power
Freezefunctionandthenumberddooropenings.When
yourrefrigeratorispluggedin,theCubedicemodeis
automaticallyselected.
Pressthe IceType button to selectthe type of ice:
\ i/
•Cubed ice :_: '_ _ •
//1\ \For Cubed ice
i
• Crushed ice _/-_ _ •
/=\
For Crushed ice
• No ice \_ _ :_::• No ice
// \\
For ice off
(_ If the Ice remains in the Ice bucket, the
NOTE cubed ice is obtained.
Push the ice dispenser lever with a cup.
• Place a cup in line with the dispenser lever the
dispenser to prevent the ice from jumping out.
Water Dispenser
The capacityof thewater tank isapproximely0.3gal.
Cold Water
• Push the water dispenser lever with a cup.
•If you have just installed the refrigerator,throw
away the first six glassfuls of water to flush out
impurities in the water supply system.
/k
CAUTION
If you have a long vacation or business trip
and won't use the water or ice dispensers,
close the water valve. Otherwise, leakage
of water may occur.
iiiiiiiiiiiiiiiiiiiii_.
Never put fingers or any other objects in the
NOTE dispenser opening. It may cause injury.

Freezer
RS2533Model
Xtra SpaceTM
DoorBin --
Ice Maker-
Light
Ice Chute
Glass Shelf --
WireShelf
LightSwitch --
Tilt Pockets
'_ Wire Drawers
Front Leg Cover
E
z
RS2577Model
with CoolSelectZoneTM
Refrigerator
RS2555Model
with CoolSelectZoneTM
Water Filter
Light(upper)
Spill-proofglass Shelf
Light Switch
FoldableShelf(RS2577)
Twin Deodorizer
Egg Container
CoolSelectZoneTM Drawer
( ChilledBin for RS2533)
Vegetable& Fruit Drawers
-- Dairy Compartment
-- Wine Rack(RS2577)
-- Gallon DoorBin
-- BeverageStation(RS2577)
-- Lights (lower)(RS2555,2577)
Door BinTopLips
-- Gallon DoorBins
8

FROZEN FOOD STORAGE IN FREEZER
Xtra SpaceTM
•Can be usedfor frozenfoods such aspizza, pasta,burri tos,
and fajitas.
• Inorder to prevent odor penetrationto the ice,storedfood
should bewrapped securely.
...... TemperedGlass Shelf( Wire Shelf)
• Can be usedto store all typesof frozenfood.
Door Bin(Tilt Pocket)
• Can be usedfor small packagesof frozen food.
PlasticsDrawer(Wire Drawer)
• Can be usedto store meatanddry foods.Storedfood should
be wrappedsecurely usingfoil or other suitablewrapping
materialsor containers.
...... Icechute
WARNING
DOnot putyourfingers,hands or anYotherinsuitable objects inthe ChUteor ice'maker buckeL
Asthis may resultin personal injuryormaterial damagel

CHILLED FOOD STORAGE IN REFRIGERATOR
iiii 8.............
TemperedSpill ProofGlassShelf
•Can be usedto store all types of chilledfood.
• Safeand hardto break resistant.
• Circular markson the glass surfaceare a normalphenomenon.
Chilled Binor CoolSelectZoneTM Drawer
• Helpsto preserve thetaste offood and prolongsits freshness.Use
tostore cheese,meat,poultry,fish or anyotherfoods used quickly.
Fruit & VegetableDrawer(Upperand Lower)
• Isused to storefruits and vegetables.
• This draweris airtight.Optimizedhumiditycontrol designhelpsto
preservethefreshness of thestored vegetablesand fruits.
iiiiii............
DairyCompartment
• Can be usedto store butter,margarineand cheese.
Gallon Door Bins
• Can be usedto store foods in small packages,such asmilk and
yogurt.
BeverageStation(R82577)
• Can be usedto store the frequentlyuseditems, such as canned
beverages andsnacks and allows access tothese itemswithout
openingthe refrigeratordoor.
(_ Bottlesshould be stored tightly together so that they do not fall out.
NOTE
13
iiiiit4
Egg Container
• Put eggsin the containerand placethem on the shelf.
Wine Rack(R82577)
• Placeyour winebottle on the rack to maintaintheir taste.
WARNING • If you have a long vacation planned, you must decide to empty the refrigerator and turn it off. Wipe excess moisture from the inside and leave the doors open. Otherwise, odor and mold may develop.
10

"Select" Button (RS2555, RS2577)
iiiiiil_......... SoftFreeze
2
• When "Soft Freeze" ischosen,the temperatureon the
digtalpanel displays23°F(-5°C)regardlessof theset
temperaturedthe refrigerator.
• "Soft-Freeze"temperaturehelpskeep meatsand fishes
fresh longer.
• Cancut meat easily withoutdrips.
Chill
• When "Chill"is chosen,thetemperaturedtheCoolSe-
lectZoneTM Draweris kept at 30°F(-1°C)regardlessd
the set refrigeratortemperature.
• "Chill"temperaturehelpskeep meat or fish fresh longer.
Cool
• When"coor' ischosen,the temperaturewill be the
same asthe set temperatureofthe refrigerator.Thedigi-
tal panelshowsthe same temperatureasthat dthe dis-
playpanel.
• For"Cool,"the CoolSelectZoneTM Drawer allowsextra
refrigeratorspace.
.............................:'7 _" _ck Cool
\t.Soft
-_)Freeze
z'_\Ohil I
_ _Select
11

"Quick Cool" Button
NOTE
NOTE
• Youcan usethe Quick Coolfeaturewith the CoolSelectZoneTM.
• "QuickCool" allows 1~3 cannedbeveragesto coolwithin 60 min.
• Tocancelthis option, pressthe "Quick Cool"button again.
CoolSelectZoneTM returnsto the previoustemperature.
• When"Quick Cool"ends, it returnsto the "Cool"temperatureset-
ting.
Dependingon the beverages,the cool-downtime may vary.
• For"Quick Cool"option,food stored in the CoolSelectZoneTM
Drawershouldbe removed.
\_ck Cool
_o Soft
Freeze
Ohill
el
Select
"Thaw" Button
• Drips loss andquality deteriorationof meatsreducesthe fresh-
ness dfoods.
• After "Thaw"is selected,warmand coldair is alternatelysup-
plied intothe CoolSelectZoneTM Drawer.
• Dependingon theweight dmeat,thawing time can be selected
for 4 hrs, 6 hrs, 10 hrs, and 12 hrs sequentially.
• When"Thaw"ends, CoolSelectZoneTM displayreturns to "chill"
condition.
• Tocancelthis option, press anybutton except"Thaw".
• Theapproximatethawingtime of meat and fish are shown
below.(Basedon linch thickness)
ckCool
N
_ Soft
Freeze
, Chill
b Cool
_ Select
Thaw Time 4 hours 6 hours 10hours 12hours
Weight 0.8Ib 1.3Ib 1.7Ib 2.2Ib
NOTE
Dependingon the size andthickness of meatand fish, thethawing time may vary.
TM
The aboveweight representsthe totalweight offood in the CoolSelectZone Drawer.
Ex)The total thawingtime for 1.3lb frozen beefand 0.8 lb frozen chickenwill be 10hours.
NOTE • With the "Thaw"option, foodstored in the CoolSelectZoneTM Drawershouldbe removed.
12

GlassShelf
• Pulltheshelfoutasfaras
itgoes.Thenliftitupand
removeit.
Door Bin
• Holdthedoor binwith both
hands andthen lift itup.
Plastic Drawer(WireDrawer)
• Removethe drawerby
pulling itout and liftingit up Ib ........................:..fill
slightly. /
Ice Maker Bucket
......• Removethe bucketby lifting up and pulling out.
5Front Leg Cover
• Open the freezer and refriger-
ator doors, removethree
screws and detach the cover.
• Toreassemblethe cover leg
front, putit back to original
position and tightenthe threescrews.
• Do not useexcessiveforcewhen
NOTE removingthe cover.It may cause an
injury.
1Spill ProofGlassShelf
• Pullthe shelfout asfar as itwill go. Thenlift it up and remove itsoftly.
iiii!i!i2_........
Vegetable& Fruit Drawer
• Removethe drawer byholding the handle,pullingthe drawerout and lifting itup smoothly..
• Removethe optimizedhumiditycontrol cover bypulling ittowards you.
.......Gallon Door Bin
• Holdthe binwith bothhands and remove itby lifting it up.
......Wine Rack
• Itis attachedto the cabinetwall. Toremovewine rack,slidethe
wine rack inthe direction dthe arrow asshown.
• Simply take the rackout dthetabs.
L_=-I •Beforeremovingthefreezerandrefrigeratoraccessories,pleasemovethestoredfoodstootherspace.
NOTE
13

ToopentheBeverageStationTM,holdthe BeverageStationTMdoorhandleand pullit downward.
• TheBeverageStationTMisconvenient
andreducesenergyconsumption,
becauseyoudo notneedtoopen
therefrigeratordoortoaccessstored
beveragesandsnacks.
• It isrecommendedthatyouusethe
BeverageStationTMforstoringmost
frequentlyneededfoods
WARNING
• The door of the Beverage StationTM should never be removed.The Beverage StationTM cannotfunction if its door
is missing.
• When closing the BeverageStationTM door, be careful not to put your hands or fingers aroundthe doorframe
where they can be caught orinjured.
• When you use the open door as atray,do not place heavyobjectson it. Do notallow childrento
hang on the door because there is a riskof personalinjury or materialdamage.
• When you open the beveragestationtMdoor,be careful not tohit childrenhead.
Interior
• Cleanthe accessorieswith a milddetergent,then wipeout with a drycloth.
• After washingthe accessories,make surethat they aredry before usingthem again.
Exterior
• Wipethe digitalpanel and display panelwith a cleancloth.
• Thedoors and handlesshouldbe cleanedwith a mild detergentand cloth. Drythem with a
clean cloth.
• Theexterior partdrefrigeratorshouldbe polishedonce or twice a year.
Rear
• Use a vacuum cleanerto removedust once or twice a year.
Iceand water dispenser(R82555, R82577)
• Use a damp cloth to cleanthe iceand water dispenser.Then wipe itout with a dry cloth.
• Tokeepdrainage grid dry,do not touch ice andwater dispenser.
BeverageStationTM(R82577)
• Use a damp cloth to cleanthe BeverageStationTM.Thenwipe itout with a dry cloth.
Rubberdoor seals
• Ifthe rubberdoor seals are dirty,the doorwill not close properly,The refrigeratorwill not be
able to functionefficiently.Cleanthe doorswith a milddetergentand damp cloth.Thenwipe
with a dry cloth.
//_ • Donot spraythe refrigeratorwith water.It may cause a death by an electricshock.
• Donot cleanit with benzene,thinneror cardetergent.It maycause a fire.
WARNING
14

TwinDeodorizer
• Removethecoverwith afiat bladescrewdriverasshown.
• Takeoutthecartridgefromthecoverandsoakitin cleanandwarmwater
atleastthan4 hrs.Completelydryoutthecartridgewith sunlightforat least8hrsin
anopenarea.
• Repeatthisprocessonceor twicea year. idge
• If itisdriedin a confinedarea,odor maybespreadtothatarea.
NOTE • Keepthechildrenawayfromyellowwater,they maydrinkwater.
Before changing the interior light, unplug the refrigeratorfrom the power supply. If you
have difficulty in changing the light, contact your service center.
WARNING
INTERIORLIGHTIN THE REFRIGERATOR.
Upper
Pull outthe screwcap (_ and
removethe screw. Pushthe lamp cover inthe directionof the arrows. _ ............
After changingthe bulb,
reattachthe lightcover
and screw it in again.
Lower (RS2555,RS2577)
1.............Pull outthe screwcap and
removethe screw. Takethe lampcoveroutin iiiii_............
thedircotion of thearrows. After changingthe bulb,
reattachthe lightcover
and screw it again.
15

INTERIORLIGHTIN THE FREEZER.
NOTE
The freezer light is located in the bottom of the auger motor case.
Use a screwdriver to remove
the lightcover ((_). :2, Change the bulb with a new
one (@) Reattach the light cover
To replace freezer and refrigerator light bulbs (Bulb size E14, 30 watts), please contact
ADDRESS : SAMSUNG ELECTRONICS AMERICA, INC.
SERVICE DIVISION
400 VALLEY ROAD, SUITE 201, MT. ARLINGTON, NJ 07856
TELEPHONE : 1-800-SAMSUNG FAX : [phone]
Light bulb part no: 4713-001145
The water "Filter Indicator" light
• "Filter Indicator" light lets you know when it is time change your water filter cartridge. The light
will change from green to orange. This tells you that it is almost time to change the current cartridge.
It is recommended that you replace the cartridge when the light changes to red.
(see "Install the water filter" section for more informmation)
Using the dispenser without the water filter
•You can not use the water and ice dispenser without a water filter cartridge because the water line
blocks at water supply.
Ordering replacement filters
•To order more water filter cartridges, call 1-800-SAMSUNG and ask for accessory Part # DA29-
00003A or contact your authorized Samsung dealer.
The refrigerator doors have a special door opening and closing feature to make sure that the doors
close all the way and are securely sealed.
When opening the door, it will only open so far. After reaching a certain point, it will remain open.
When the door is partially open, it will close automatically.
16

Checking the Dimensions of your Entrance Door
Check the dimensions of your entrance door to determine whether the refrigerator can pass
through it.
Model RS2533, RS2555, RS2577
Capacity (Cu. Ft)
Width
Dimension
(inch)
Case Height
Depth
without Hinge
with Hinge
with door
withoutdoor
25.2
36
69
70
35
29
Selecting the Location for the Refrigerator
•Select a location with easy access to the water supply.
• Select a location with enough space for the refrigerator.
• Select a location without direct exposure to sunlight.
• Before disassembl ng the freezer door: the Water supply !ine needs to be disconnected;
aT (if not the water supply line can be damage&)
NOTE • See ,Separating the water supply line from the refrigerator" on the next page,
Allow sufficientspaceto circulatethe air at the internalcooling system.
• Whenrefrigeratorhas notenough space,the internalcoolingsystemmay not work correctly.
1 inch 1
0.1 inch
1 inch
@
NOTE Allow clearancetothe right, left, backand top when installingtherefrigerator.
This has the advantageof reducingpower consumption.
17

When you can remave the doors if, you can remove the doors.
Removing the Front Leg Cover
Open the freezer and refrigerator doors, and then take off the front leg cover by turning the
three screws counter-clockwise.
FRONT LEGCOVER
/
_ tj _. SCREW
L_
Separating the Water Supply Line from the Refrigerator
1) Remove the screw from clamp (®).
2) Remove the water tube by pressing the coupler (@) and pulling the water tube (qb)away.
NOTE Donotcutthewatertubebutseparateitfromthecoupler.
18

NOTE •Liftthedoorstraightup. •Becarefulnottopinchthewatertubingandwireharnessonthedoor.
•Placedoorsonaprotectedsurface.
Removing the Freezer Door
1) With the door closed, remove the upper hinge cover (qb)using a screwdriver, and then disconnect
the wires (@).
i
2) Remove bolts (®) and ground screw (®) counter-clockwise, and take off the upper hinge (®) along
the arrow (®). Take care when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (@)by
carefully lifting the door (®).
®
4) Remove the lower hinge (®) from the bracket
lower hinge (®) by lifting the lower hinge (®) in
the direction of the arrow.
19

Removing the Refrigerator Door
1) With the door closed, remove the upper hinge cover (qb)using a screwdriver, and then disconnect
the wires (@).
I
2) Remove bolts (®) and ground screw (@)counter-clockwise, and take off the upper hinge (®) in the
direction of the arrow (®). Take care when removing the door to ensure that it does not fall on you.
3) Remove the door from the lower hinge (@) by
lifting the door (®). 4) Remove the lower hinge (®) from the bracket lower hinge (®) by lifting the lower hinge (®) in
the direction of the arrow.
\\\\\\
J
--®
2O
