Samsung srt3100b User manual

Refrigerator
User manual
Free Standing Appliance
Untitled-2 1 2021-02-25  10:50:23

English2
Contents
Contents
Safety information 3
What you need to know about the safety instructions 3
Important safety symbols and precautions: 5
Important safety precautions 6
How to minimize the energy consumption 8
This appliance is intended to be used in household and similar applications such as 9
Additional tips for proper usage 9
Instructions about the WEEE 10
Severe warnings 11
Installation and Usage cautions 17
Installation 20
Refrigerator at a glance 20
Step-by-step installation 23
Operations 26
Feature panel 26
Special features 28
Maintenance 31
Handle and care 31
Cleaning 32
Replacement 32
Troubleshooting 33
General 33
Do you hear abnormal sounds from the refrigerator? 35
Untitled-2 2 2021-02-25  10:50:23

English 3
Safety information
Before using your new Samsung Refrigerator, please read this
manual thoroughly to ensure that you know how to operate
the features and functions that your new appliance offers
safely and efciently.
What you need to know about the safety
instructions
• Warnings and Important Safety Instructions in this
manual do not cover all possible conditions and situations
that may occur. It is your responsibility to use common
sense, caution, and care when installing, maintaining, and
operating your appliance.
• Because these following operating instructions cover
various models, the characteristics of your refrigerator
may differ slightly from those described in this manual and
not all warning signs may be applicable. If you have any
questions or concerns, contact your nearest service center
or nd help and information online at www.samsung.com.
• R-600a or R-134a is used as a refrigerant. Check the
compressor label on the rear of the appliance or the rating
label inside the fridge to see which refrigerant is used for
your appliance. When this product contains ammable gas
(Refrigerant R-600a), contact your local authority in regard
to safe disposal of this product.
• In order to avoid the creation of a ammable gas-air
mixture if a leak in the refrigerating circuit occurs, the size
of the room in which the appliance may be sited depends
on the amount of refrigerant used.
Safety information
Untitled-2 3 2021-02-25  10:50:23

Safety information
English4
Safety information
• Never start up an appliance showing any signs of damage.
If in doubt, consult your dealer. The room must be 1 m3
in size for every 8 g of R-600a refrigerant inside the
appliance. The amount of refrigerant in your particular
appliance.
• Refrigerant squirting out of the pipes could ignite or cause
an eye injury. When refrigerant leaks from the pipe, avoid
from the product and ventilate the room immediately.
-
Untitled-2 4
• It is hazardous for anyone other than an Authorised
Service Person to service this appliance. In Queensland
– the authorized Service Person MUST hold a Gas Work
Authorisation or Licence for hydrocarbon refrigerants, to
carry out Servicing or repairs which involve the removal of
covers. (For Australia only)

English 5
Safety information
Important safety symbols and precautions:
Please follow all safety instructions in this manual. This
manual uses the following safety symbols.
WARNING
Hazards or unsafe practices that may result in severe personal
injury, property damage, and/or death.
CAUTION
Hazards or unsafe practices that may result in severe personal
injury and/or property damage.
NOTE
Useful information that helps users understand or benet
from the refrigerator.
These warning signs are here to prevent injury to you and
others.
Please follow them carefully.
After reading this section, keep it in a safe place for future
reference.
Untitled-2 5 2021-02-25  10:50:23

Safety information
English6
Safety information
Important safety precautions
Warning; Risk of re / ammable materials
WARNING
• When positioning the appliance, ensure the supply cord is
not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• Fill with potable water only.
• Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
• Do not use mechanical devices or any other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory, or
mental capabilities, or those who lack experience and
knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person
responsible for their safety.
Untitled-2 6 2021-02-25  10:50:23

English 7
Safety information
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision. Children
aged from 3 to 8 years are allowed to load and unload
refrigerating appliances.
• If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
• The socket must be easily accessible so that the appliance
can be quickly disconnected from the supply in an
emergency.
- It must be outside the area of the rear of the appliance.
• Do not store explosive substances such as aerosol cans
with a ammable propellant in this appliance.
• If the product is equipped with LED lamps, do not
disassemble the Lamp Covers and LED lamps yourself.
- Contact a Samsung service center.
- Use only the LED Lamps provided by the manufacturer
or its service agents.
• For the most efcient use of energy, please keep the all
inner ttings such as baskets, drawers, shelves on the
position supplied by manufacturer.
• To get the best energy efciency of this product, please
leave all shelves, drawers and baskets on their original
position.
Untitled-2 7 2021-02-25  10:50:23

Safety information
English8
Safety information
How to minimize the energy consumption
• Install the appliance in a cool, dry room with adequate
ventilation.
• Ensure that it is not exposed to direct sunlight and never
put it near a direct source of heat (radiator, for example).
- Not to block any vents or grilles is recommended for
energy efciency.
- Allow warm food to cool down before placing it in the
appliance.
- Put frozen food in the refrigerator to thaw. You can
then use the low temperatures of the frozen products to
cool food in the refrigerator.
- Do not keep the door of the appliance open for too long
when putting food in or taking food out.
- The shorter time for which the door is open, the less ice
will form in the freezer.
- Clean the rear of the refrigerator regularly. Dust
increases energy consumption.
- Do not set temperature colder than necessary.
- Ensure sufcient air exhaust at the refrigerator base
and at the back wall of the refrigerator. Do not cover air
vent openings.
- Allow clearance to the right, left, back and top when
installing. This will help reduce power consumption and
keep your energy bills lower.
• We recommend the value of clearance to be :
- Right, left, and back side: more than 50 mm
- Top side: more than 100 mm
Untitled-2 8 2021-02-25  10:50:23

English 9
Safety information
This appliance is intended to be used in household
and similar applications such as
- staff kitchen areas in shops, ofces and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
Additional tips for proper usage
• In the event of a power failure, call the local ofce of your
electric company and ask how long the failure is going to
last.
- Most power failures that are corrected in an hour or two
will not affect your refrigerator temperatures. However,
you should minimize the number of door openings
while the power is off.
- Should the power failure last more than 24 hours,
remove and discard all frozen food.
• The refrigerator might not operate consistently (frozen
contents can thaw or temperatures can become too
warm in the frozen food compartment) if sited for an
extended period of time in a location where ambient air
temperatures are constantly above the temperatures for
which the appliance is designed.
• In case of particular foods, keeping it under refrigeration
can have a bad effect on preservation due to its properties.
Untitled-2 9 2021-02-25  10:50:23

Safety information
English10
Safety information
• Temperature rise during defrosting complies with ISO
requirements. If you want to prevent an undue rise in the
temperature of frozen food while the appliance defrosts,
wrap the frozen food in several layers of newspaper.
• Do not re-freeze frozen foods that have thawed
completely.
• The temperature of two star section (sections) or
compartment (compartments) which have two star symbol
( ) is slightly higher than other freezer compartment
(compartments). The two star section (sections) or
compartment (compartments) is (are) based on the
instruction and/or the condition as delivered.
Instructions about the WEEE
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories or literature indicates that the
product and its electronic accessories (e.g. charger, headset, USB cable)
should not be disposed of with other household waste at the end of their
working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate these items
from other types of waste and recycle them responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased
this product, or their local government ofce, for details of where and
how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for
disposal.
Untitled-2 10 2021-02-25  10:50:23

English 11
Safety information
Severe warnings
WARNING
• Connect the power plug in the proper position with the
cord hanging down.
• Do not insert the power plug into a wall socket with wet
hands.
• If the wall socket is loose, do not insert the power plug.
Plug the power plug into the wall socket rmly.
• Never unplug your refrigerator by pulling on the power
cord. Always grip the plug rmly and pull straight out from
the outlet.
• Do not bend the power cord excessively or place heavy
objects on it.
• The appliance must be positioned so that the plug is
accessible after installation.
• Do not plug several appliances and the refrigerator into
the same multiple power strip. The refrigerator should
always be plugged into its own individual electrical outlet
which has a voltage rating that matches the voltage listed
on the refrigerator’s rating plate.
• This provides the best performance and also prevents
overloading of house wiring circuits, which could overheat
the wires and cause a re hazard.
- Failing to do so may result in an electric shock or re
due to electric leakage.
• If the refrigerator emits a burning smell or smoke, unplug
the refrigerator immediately and contact a Samsung
service center.
- Failing to do so may result in an electric or re hazards.
Untitled-2 11 2021-02-25  10:50:23

Safety information
English12
Safety information
• Do not spray water directly on the inside or outside of the
refrigerator.
- There is a risk of re or electric shock.
• Do not use benzene, thinner, or Clorox (bleach) to clean the
refrigerator.
- There is a risk of re or electric shock.
• If large amounts of dust or water enter the refrigerator,
disconnect the power plug and contact a Samsung
Electronics service center.
- Otherwise there is a risk of re.
• You must ground the refrigerator to prevent any power
leakages or electric shocks caused by current leakage from
the refrigerator.
- Current leakage may result in an electric shock, re,
explosion, or problems with the product.
- Never use gas pipes, telephone lines, or other potential
lightning attractors as an electrical ground.
• This refrigerator is for storing food only.
- Do not store pharmaceutical products, scientic
materials, or temperature sensitive products, ammable
objects in the refrigerator.(benzene, thinner, propane
gas, alcohol, ether, LP gas, Ginseng and other such
products)
• Fill the water tank and ice cube trays with potable water
only (tap water, mineral water, or puried water).
- Do not ll the tank with tea, juice, or a sports drink.
They can damage the refrigerator.
Untitled-2 12 2021-02-25  10:50:23

English 13
Safety information
• Children should be supervised to ensure that they do not
play with the appliance.
- Keep ngers out of “pinch point” areas. Clearances
between the doors and cabinet are necessarily small. Be
careful when you open the doors if children are in the
area.
• Keep all packaging materials well out of the reach of
children, as packaging materials can be dangerous to
children.
- If a child places a bag over his or her head, the child
could suffocate.
• Do not let children go inside the refrigerator.
- It can cause death from suffocation by entrapment or
personal injury.
• Do not let children hang on the door or door bins. A
serious injury may occur.
• Do not let children step on a drawer.
- The drawer may break and cause them to slip.
• Do not install this appliance in a humid, oily or dusty
location, or in a location exposed to direct sunlight or to
water (rain drops).
- Deteriorated insulation on electrical parts may cause an
electric shock or re.
• Do not install this appliance in a location where gas may
leak.
- This may result in an electric shock or re.
• Do not install this appliance near a heater or ammable
material.
Untitled-2 13 2021-02-25  10:50:23

Safety information
English14
Safety information
• If your refrigerator needs to be repaired or reinstalled,
contact your nearest Samsung service center.
- Failing to do so may result in an electric shock, re,
problems with the product, or injury.
- Unauthorized modications can cause safety problems.
To reverse an unauthorized modication, we will charge
the full cost of parts and labor.
- If the interior or exterior LED lamp has gone out,
contact your nearest Samsung service center.
• Do not insert hands, feet, or metal objects (such as
chopsticks, etc.) into the bottom or the back of the
refrigerator.
- This may result in an electric shock or injury.
- Any sharp edges may cause a personal injury.
• Do not stand on top of the appliance or place objects (such
as laundry, lighted candles, lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance. This may
result in an electric shock, re, problems with the product,
or injury. Do not put a container lled with water on the
appliance.
- If spilled, there is a risk of re or electric shock.
• Do not overll the refrigerator with food.
- When you open the door, an item may fall out and
cause personal injury or material damage.
• Do not place or use electrical appliances inside
the refrigerator/freezer, unless they are of a type
recommended by the manufacturer.
Untitled-2 14 2021-02-25  10:50:24

English 15
Safety information
• Do not use a hair dryer to dry the inside of the refrigerator.
Do not place a lighted candle in the refrigerator to remove
bad odors.
- This may result in an electric shock or re.
• Do not put a fridge shelf into the refrigerator upside down.
The shelf stopper will not work.
- The glass shelf could fall and cause personal injury.
• Bottles should be stored tightly together so that they do
not fall over or out.
• Do not touch the inside walls of the freezer or products
stored in the freezer with wet hands.
- This may cause frostbite.
• Ensure that none of the pipes on the back of the
refrigerator are damaged prior to disposal.
• If a gas leak is detected, avoid any naked ames or
potential sources of ignition, and air the room in which the
appliance is standing for several minutes.
- Do not touch the appliance or power cord.
- Do not use a ventilating fan.
- A spark may result in an explosion or re.
• Never stare directly at the UV LED lamp for long periods of
time.
- This may result in eye strain due to the ultraviolet rays.
• This product contains R-600a, a ammable gas, which
is used as the refrigerant. Contact your local authorities
regarding safe disposal of this product.
• This refrigerator must be properly located and installed in
accordance with the instructions in this manual before you
use it.
• Use only the Ice tray provided with the refrigerator.
Untitled-2 15 2021-02-25  10:50:24

Safety information
English16
Safety information
• When moving the refrigerator, be careful not to roll over or
damage the power cord.
- This may result in an electric shock or re.
• When transporting and installing the appliance, care should
be taken to ensure that no parts of the refrigerating circuit
are damaged.
- Refrigerant leaking from the pipe work could ignite
or cause an eye injury. If a leak is detected, avoid any
naked ames or potential sources of ignition and air
the room in which the appliance is standing for several
minutes.
- This appliance contains a small amount of isobutane
refrigerant (R-600a), a natural gas with high
environmental compatibility that is, however, also
ammable.
• Cyclopentane is used in the insulation. The gases in the
insulation material require a special disposal procedure.
Please contact your local authorities in regard to the
environmentally safe disposal of this product.
• When disposing of this refrigerator, remove the door/
door seals and door latch so that small children or
animals cannot become trapped inside. Children should
be supervised to ensure that they do not play with the
appliance.
- If trapped inside, the child could be injured or suffocate
to death.
• If you won’t be using the refrigerator for a very long
period of time, (3 weeks or more) empty the refrigerator,
unplug it, wipe excess moisture from the inside walls, and
leave the doors open to prevent odors and mold.
Untitled-2 16 2021-02-25  10:50:24

English 17
Safety information
Installation and Usage cautions
CAUTION
• Allow sufcient space around the refrigerator and install it
on a at surface.
- Keep the ventilation space in the appliance enclosure or
mounting structure clear of obstructions.
• It is strongly recommended you have a qualied technician
or service company install the refrigerator.
- Failing to do so may result in an electric shock, re,
explosion, problems with the product, or injury.
• Service Warranty and Modication.
- Any changes or modications performed by a 3rd
party on this nished appliance are not covered
under Samsung warranty service, nor is Samsung
responsible for safety issues that result from 3rd party
modications.
• Before cleaning or performing maintenance, unplug the
appliance from the wall socket.
- Failing to do so may result in an electric shock or re.
• Do not clean glass shelves or covers with warm water
when they are cold. Glass shelves and covers may break if
exposed to sudden temperature changes or impacts such
as bumping or dropping.
Untitled-2 17 2021-02-25  10:50:24

Safety information
English18
Safety information
• Do not keep vegetable oil in your refrigerator’s door bins.
The oil can solidify, making it foul-tasting and difcult to
use. In addition, the open container can leak and the leaked
oil can cause the door bin to crack. After opening an oil
container, it is best to keep the container in a cool and
shaded place such as a cupboard or pantry.
- Examples of vegetable oil: olive oil, corn oil, grape-seed
oil, etc.
• Do not put glass containers or bottles or carbonated
beverages into the freezer.
- The container may freeze and break, and this may
result in injury.
• Do not re-freeze frozen foods that have thawed
completely.
• Do not strike or apply excessive force to any glass surface.
- Broken glass may result in a personal injury and/or
property damage.
• If the refrigerator is disconnected from the power supply,
you should wait for at least ve minutes before plugging it
back in.
• Please dispose of the packaging material from this product
in an environmentally friendly manner.
• Do not store ammable stuff nearby the refrigerator.
• Do not install the applliance nearby the voltage stabilizer.
• Do not use a candle on top of the appliance when a
blackout.
• Do not use a hooking power by direct tapping from the
electric line.
Untitled-2 18 2021-02-25  10:50:24

English 19
Safety information
• Do not install this appliance in a humid, oily or dusty
location, in a location exposed to direct sunlight and water
(rain drops)
- Deteriorated insulation on electrical parts may cause an
electric shock or re.

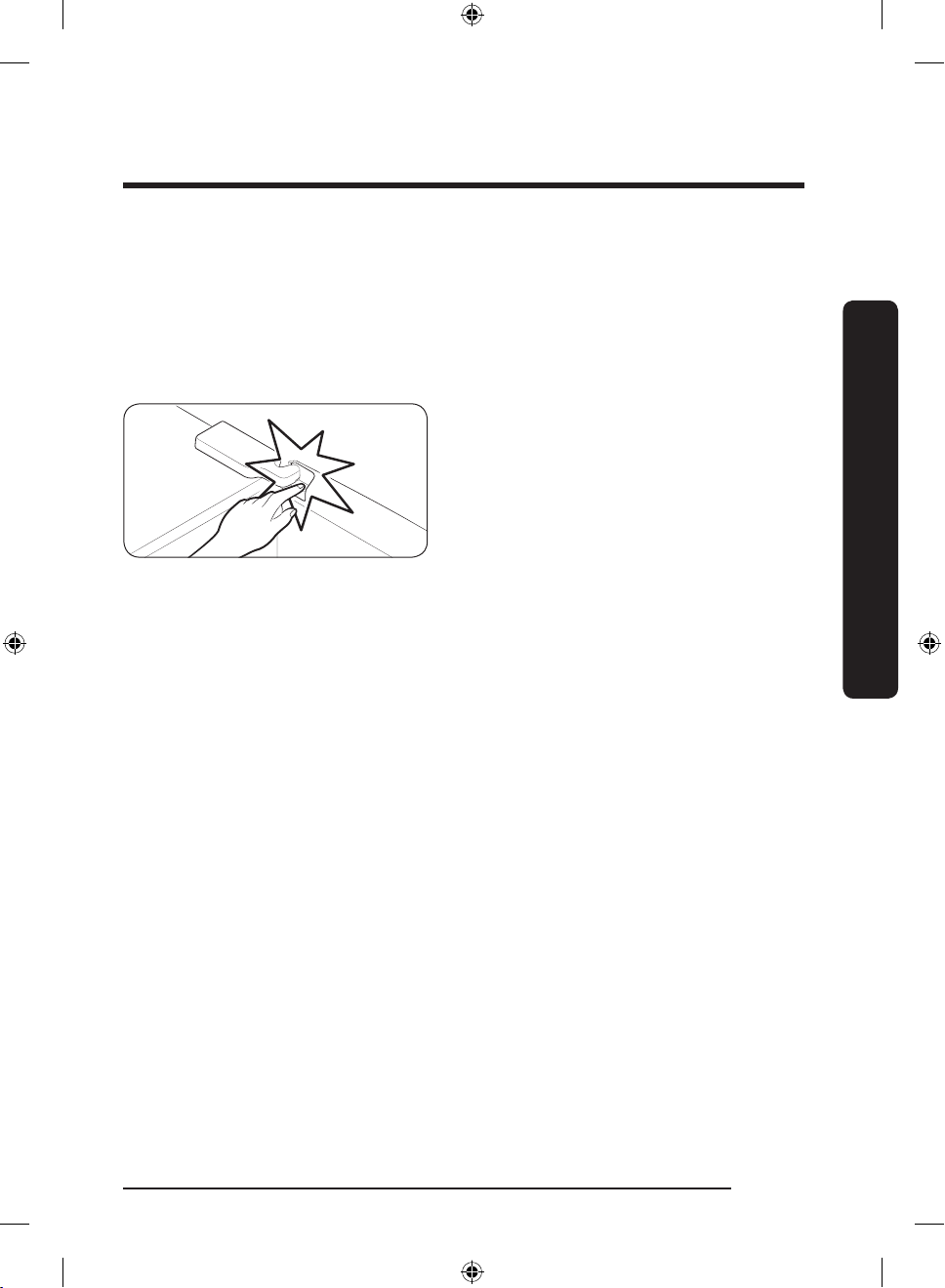

• Be careful that your
ngers are not caught in.
Untitled-2 19 2021-02-25  10:50:24

English20
Installation
Follow these instructions carefully to ensure a proper installation of this refrigerator and to
prevent accidents before using it.
WARNING
• Use the refrigerator only for its intended purpose as described in this manual.
• Any servicing must be performed by a qualied technician.
• Dispose of the product packaging material in compliance with the local regulations.
Refrigerator at a glance
NOTE
The actual image and provided component parts of the refrigerator may differ, depending
on the model and the country.
09
10
11
12
01
02
03
05
04
06
07
08
01 Shelf Fre *
02 Ice Maker *
03 Fresh Room *
04 Egg bin
05 Slide Shelf
06 Deodorizer *
07 Movable VEG Box *
08 Vegetable Drawer *
09 Freezer bin
10 Water Tank *
11 Multi Storage Basket *
12 Bottle bin
* applicable models only
Installation
Untitled-2 20 2021-02-25  10:50:24
