Samsung iPolis SNB-3000P User manual

NETWORK CAMERA
User Manual SNB-3000(P)

2_ overview
overview
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a
risk of electric shock is present within this unit.
This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance
to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/
wall in accordance with the installation instructions.
If this power supply is used at 24V ac, a suitable plug adapter should be
used.
The camera is to be only connected to PoE networks without routing to
the outside plant.
WARNING
Be sure to use only the standard adapter that is specified in the
specification sheet.
Using any other ada pter could cause fire, electrical shock, or damage to
the product.
Incorrectly connecting the power supply or replacing battery may cause
explosion, fire, electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the
capacity may cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure
connection may cause fire.
y
y
y
y
1.
2.
3.
4.

English _3
●OVERVIEW
When installing the camera, fasten it securely and firmly. The fall of
camera may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts,
etc.) or containers filled with water on top of the camera. Doing so may
cause personal injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may
cause fire or electric shock.
If any unusual smells or smoke come from the unit, stop using the
product. In such case, immediately disconnect the power source and
contact the service center. Continued use in such a condition may cause
fire or electric shock.
If this product fails to operate normally, contact the nearest service
center. Never disassemble or modify this product in any way. (SAMSUNG
is not liable for problems caused by unauthorized modifications or
attempted repair.)
When cleaning, do not spray water directly onto parts of the product.
Doing so may cause fire or electric shock
Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome
due to temperature difference between internal and external of the dome
camera.
If you install this product in a low-temp area such as inside a cold store,
you must seal up the wiring pipe with silicon, so that the external air can
not flow inside the housing.
Otherwise, external high, humid air may flow inside the housing, pooling
moisture or vapor inside the product due to a difference between internal
and external temperature.
5.
6.
7.
8.
9.
10.
11.
12.

overview
4_ overview
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep
away from a location subject to excessive vibration or magnetic
interference.
Do not install in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or
electric shock.
If you want to relocate the already installed product, be sure to turn off
the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm.
Neglecting to do so may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such
as sun, as this may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily
operable at any time.
When using the camera outdoors, moisture may occur inside the camera
due to temperature difference between indoors and outdoors. For this
reason, it is recommended to install the camera indoors. For outdoor
use, use the camera with built-in fan and heater.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

English _5
●OVERVIEW
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that
may cause undesired operation.
CAUTION
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the
Canadian Interference.-Causing Equipment Regulations of
ICES-003.

overview
6_ overview
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
2
6Important Safety Instructions
9Product Features
9Precautions – Installation and
Use
9Recommended PC Specifications
10 What’s Included
11 At a Glance
INSTALLATION &
CONNECTION
14
14 Mounting the lens
15 Inserting/Removing an SD
Memory Card
16 Memory Card Information (not
included)

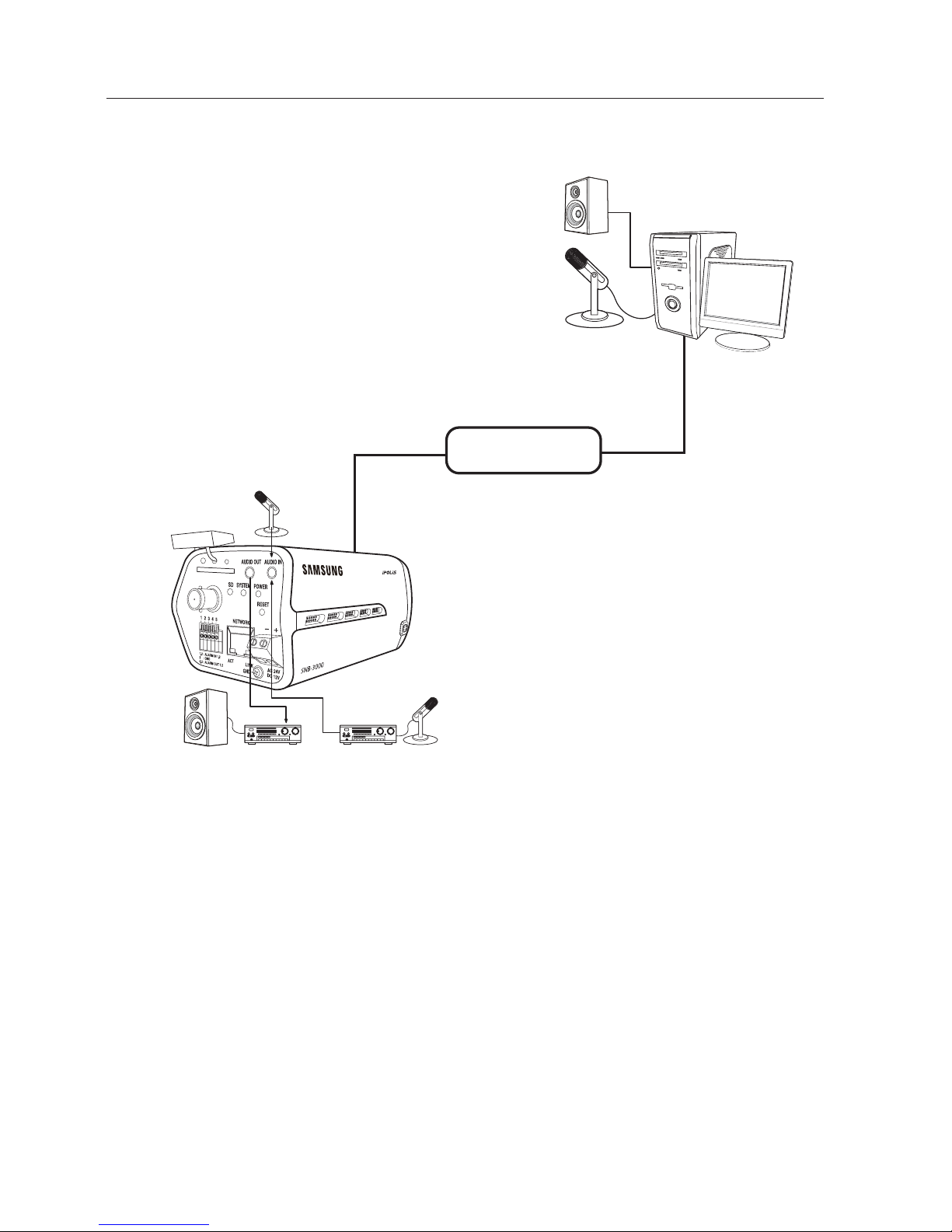

18 Connecting with other Device
CAMERA SETUP
22
22 How to use the menu key
23 Main Menu
23 Profile
24 Camera Setup
28 Privacy Zone
29 Others
30 System Info
NETWORK CONNECTION
AND SETUP
31
31 Connecting the Camera to an
Broadband Router with the
xDSL/Cable Modem
32 Connecting the Camera to an
Broadband Router with Local
Area Networking
33 Connecting the Camera Directly
to a DHCP-Based xDSL/Cable
Modem
34 Connecting the Camera Directly
to Local Area Networking
35 IP Address Setup
36 Static IP Setup
39 Dynamic IP Setup
40 Port Range Forward (Port
Mapping) Setup
41 Connecting to the Camera From
a Shared Local PC
41 Connecting to the Camera From
a Remote PC via the Internet

overview
8_ overview
WEB VIEWER
42
42 Connecting to the Camera
43 Login
44 Installing ActiveX
45 Using the Live Screen
46 Backup
49 Using the SD Search Viewer
Screen
SETUP SCREEN
50
50 Accessing the Setup Screen
50 Default Setup
55 System Setup
58 Overlay Setup
59 Event Setup
68 Network Setup
APPENDIX
69
69 Profile
70 Terminology
72 Specifications
76 Frame Rate (NTSC)
82 Frame Rate (PAL)
88 Troubleshooting
90 GPL/LGPL Software License

English _9
●OVERVIEW
PRODUCT FEATURES
Support various communication protocols
Supports TCP/IP, UDP, RTP/RTSP, SMTP for email, and FTP protocols as well as various
internet protocols such as ARP, HTTP, HTTPS and DHCP.
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Automatic Local IP Setup
Even a network novice can install it with minimum operations.
Alarm
If an alarm sensor is connected and it detects a motion, a message is sent to the
registered address via FTP/email (SMTP) or stored in the SD memory card, or an alarm
will signal to the alarm out terminal.
Intelligent Video Analysis (the event rule and the motion rectangle box are displayed
only in the MJPEG Live screen.)
If an event rule is defined for the video analysis and it detects a motion in the configured
rule area, a message is sent to the registered address via FTP/email (SMTP) or stored in
the SD memory card, or an alarm will signal to the alarm out terminal.
ONVIF (Spec 1.01) Compliance
This product supports ONVIF Core Spec. 1. 01.
For more information, refer to www.onvif.org.
PRECAUTIONS – INSTALLATION AND USE

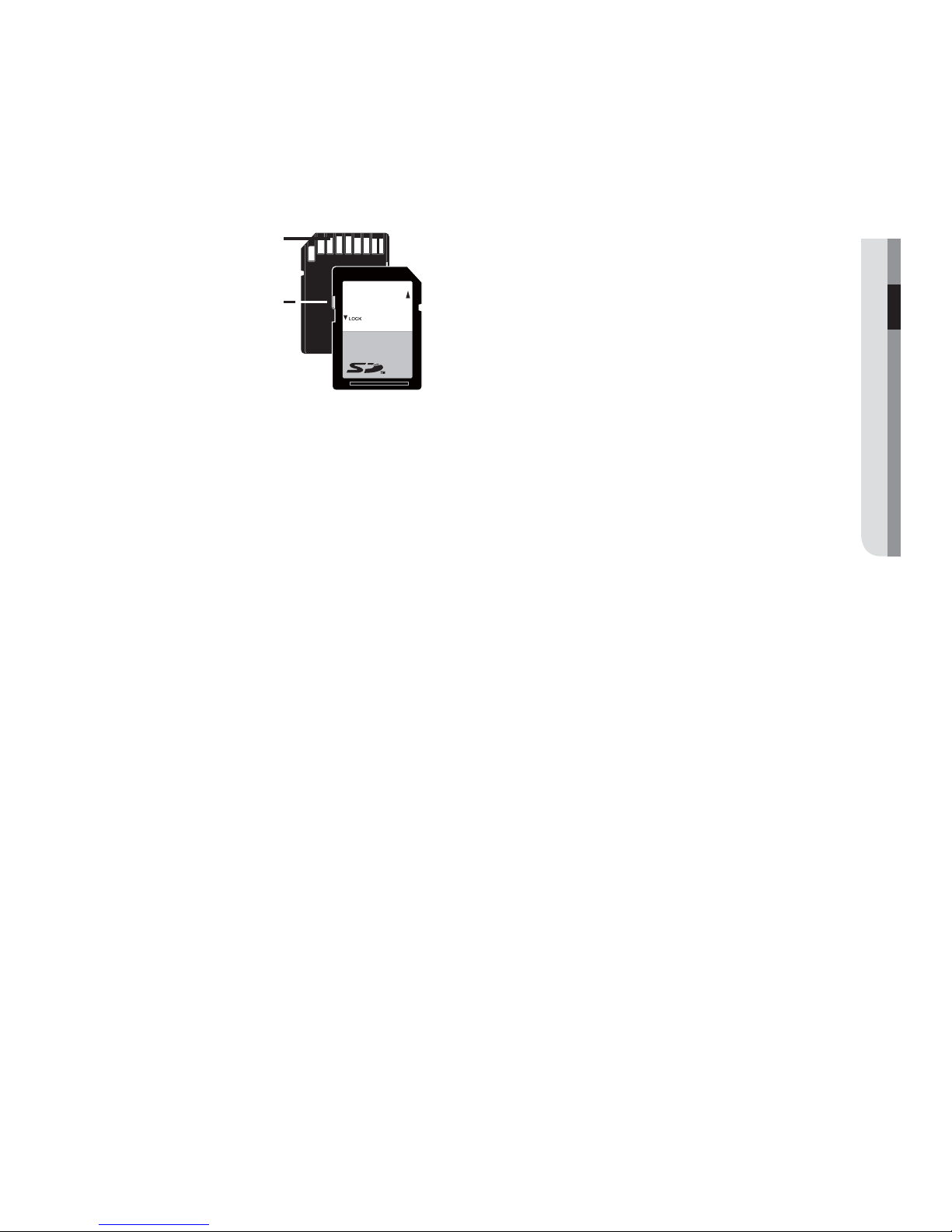

Do not bend or drop the SD memory card.
Do not store or use the SD memory card in a high temperature, high humidity or dusty
place.
Be careful not to apply foreign substances on the terminals of SD memory card.
In case of cleaning terminals, wipe gently with a soft cloth.
Before ejecting the SD memory card, release the checkbox <SD Card Record> in
<Alarm image> and press [Apply] button. (page 61)
If SD memory card have reached its lifespan, no data will be saved.
In this case, purchase a new one and replace the SD memory card.
RECOMMENDED PC SPECIFICATIONS
CPU : Pentium4 / 2.4GHz or higher
Operating System : Windows XP(Service Pack2, Service Pack3) / Windows Vista / Windows 7
Resolution : 1024X768 pixels or higher
RAM : 512MB or higher
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y

overview
10_ overview
Web Browser : Internet Explorer 6.0 or higher
Video Card : Radeon, Nvidia
Video Memory: 128MB
DirectX 8.1 or higher
Compatible Broadband Routers
Linksys / D-Link / Netgear
Compatible PoE Switches
Linksys SRW224G4P / D-Link DES-1316 / SMC SMCPWR-INJ3

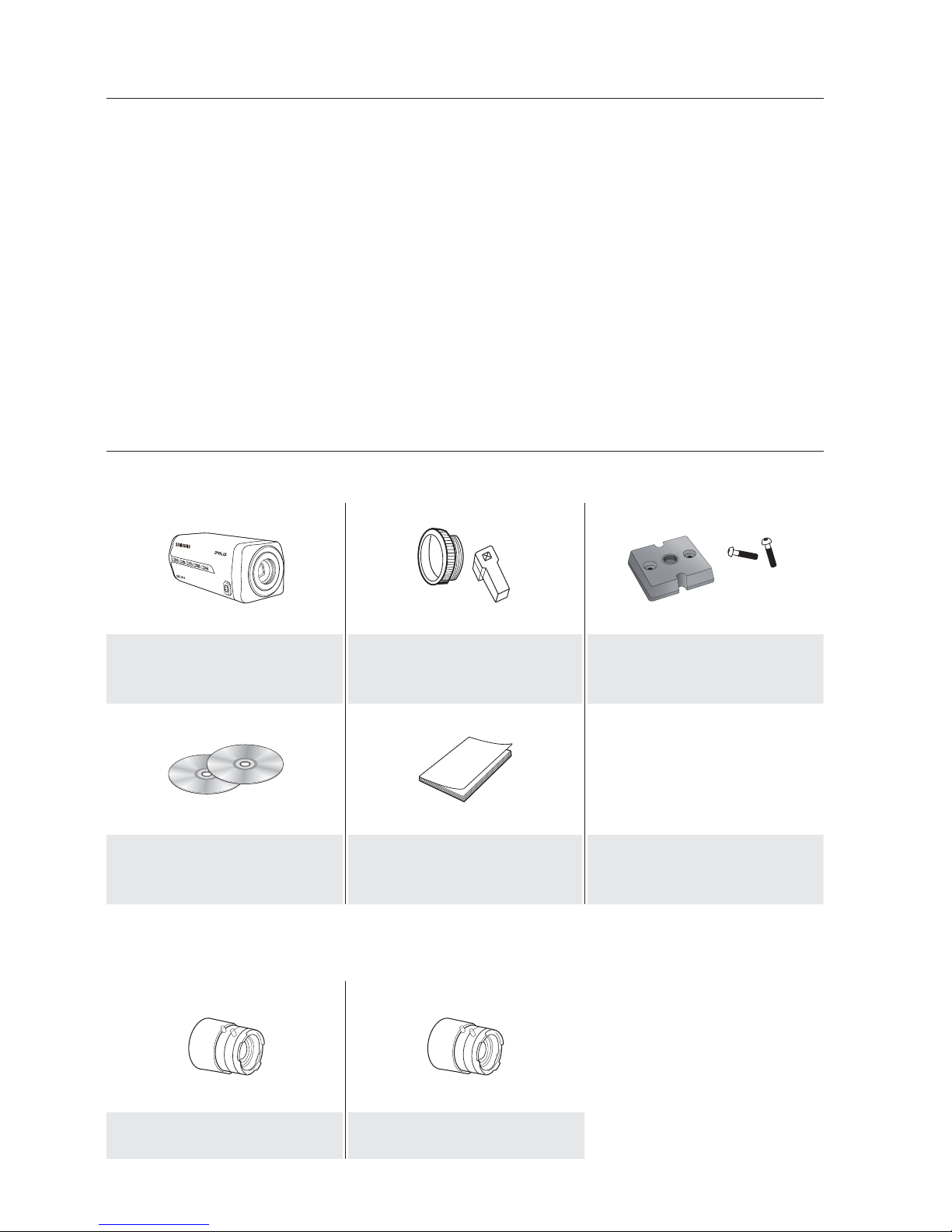

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Camera C Mount Adapter
Auto Iris Lens Connector
Camera Holder (Mount)
& Screws (2EA)
User Manual,
Installer S/W CD, CMS S/W DVD Quick Guide
Lens Options
CS Lens C Lens
y
y
y
y
y
y

English _11
●OVERVIEW
AT A GLANCE

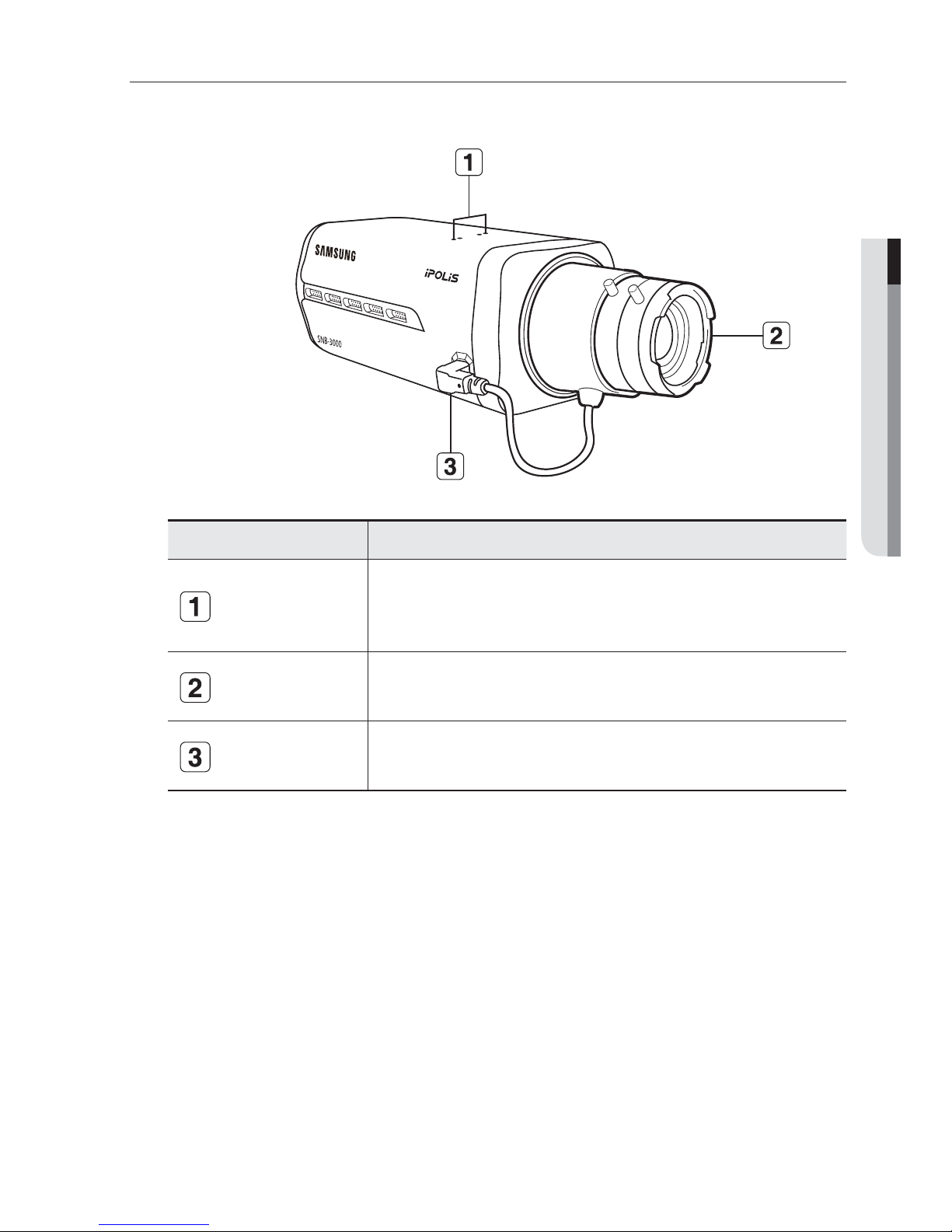

Front Side
Item Description
Camera Holder
(Mount) Holes
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
Auto Iris Lens
(Optional)
Installed on the lens adaptor.
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.
M

overview
12_ overview

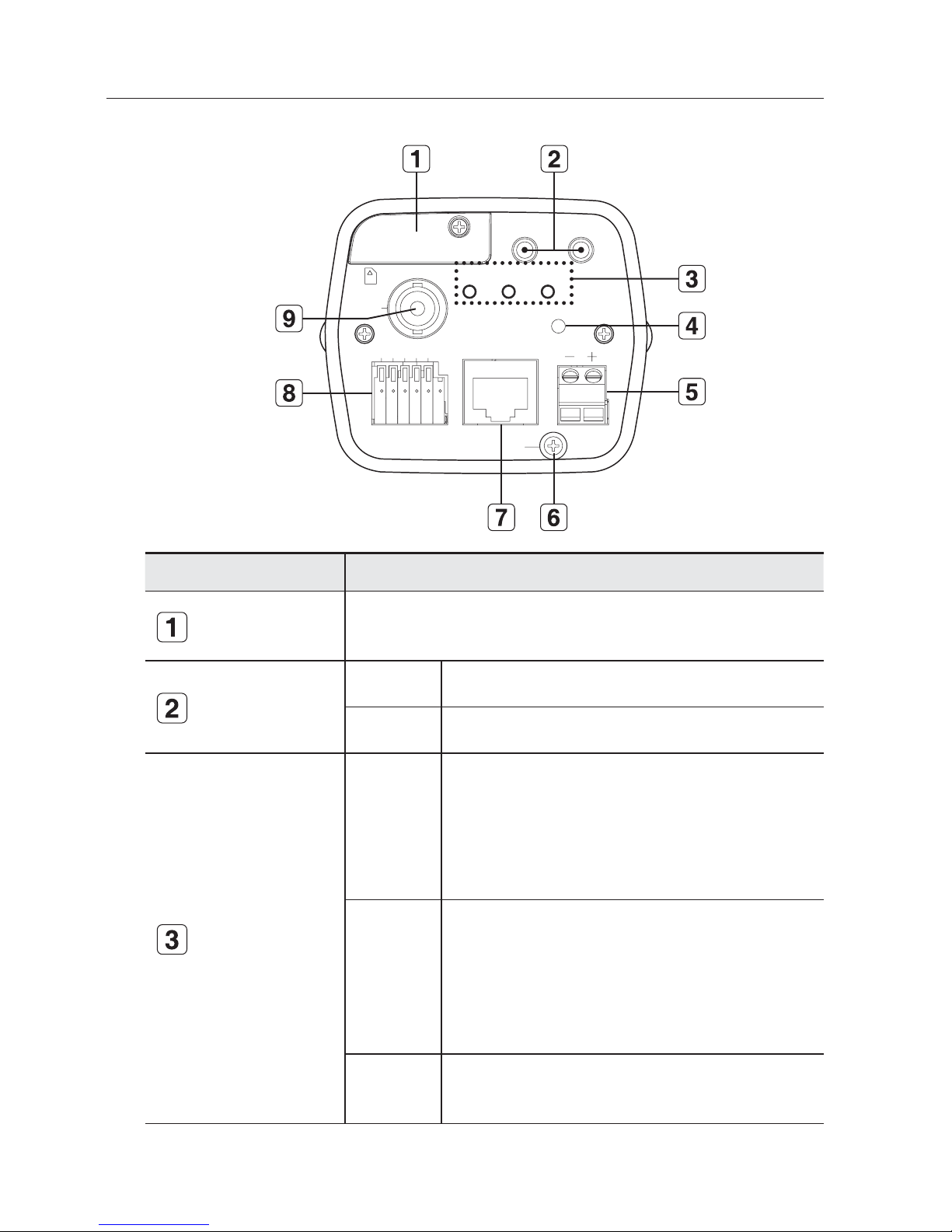

Rear Side
Item Description
SD Memory Card
Compartment Compartment for the SD memory card.
Audio Out terminal
AUDIO OUT Terminal for audio output.
AUDIO IN Terminal for audio input.
System, Power
Indicators
SD
ON: A memory card is inserted and operates normally.
Flashing: Failed to record, insufficient space, or inserted
abnormally.
OFF: Camera is off, camera is restarting, or memory card
not in place.
SYSTEM
ON:
The camera is turned on and connected to the network
properly.
Blinking: During DDNS setup, or in case of setup failure, or
in a state of unstable network connection
OFF: When the system is rebooting, or turned off
POWER ON: While the power is on
OFF: If the power is off
SD CARD
AUDIO OUT
VIDEO
1 2 3 4 5
SD SYSTEM POWER
RESET
NETWORK
ACT LINK
GND
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2
AC 24V
DC 12V
AUDIO IN

English _13
●OVERVIEW
Reset Button Resets the camera settings to the default. Press and hold it for about 3
seconds to turn off the system indicator and restart the system.
Power Port Used to plug the power cable.
GND Used for earth-grounding.
Network Port Used to connect to the Network cable.
I/O Port
ALARM IN
1,2 Used to connect the alarm input signal.
GND Used for earth-grounding.
ALARM OUT
1,2 Used to connect the alarm output signal.
Video Out Port Video signal output port connected to the monitor.

14_ installation & connection
installation & connection
MOUNTING THE LENS
Disconnect the power before proceeding.
Mounting the CS lens
Turn the optional CS lens clockwise to insert it.
Mounting the C lens
Turn the C mount adaptor clockwise to insert it and do the same with the C lens.
CS Lens
C Lens

English _15
●INSTALLATION & CONNECTION
Connecting the Auto Iris Lens connector
Insert the lens connector into the corresponding hole of the camera.
Focusing
Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.
INSERTING/REMOVING AN SD MEMORY CARD
Inserting an SD Memory Card
Push the SD memory card in the direction of the arrow shown in the diagram.
Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the
SD memory card.
J

installation & connection
16_ installation & connection
Removing an SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.
Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the
slot when released.
Before ejecting the SD memory card, release the checkbox <SD Card Record> in <Alarm
image> and press [Apply] button. (page 61)
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
Your camera supports SD memory cards.
Note that supported memory card capacity is up to 2GB.
For your camera, we recommend you use a memory card from the following manufacturers:
SDHC/SD Memory Card: Panasonic, Sandisk, Toshiba
Your camera supports 128MB to 16GB (SD Card : 2GB) of memory card capacity.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
To ensure proper recording of video data, we recommend you use a memory card that
supports at least read/write speed 10Mbps and Class 6.
J


English _17
●INSTALLATION & CONNECTION
Memory Card Use
SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.
Memory Card Components
❖
SDHC
Lock Switch
Contacts

installation & connection
18_ installation & connection
CONNECTING WITH OTHER DEVICE
Connecting to the monitor
Connect the [VIDEO] port of the camera to the video input port of the monitor.
Network Connection
Connect the Network cable to the local network or to the Internet.
Power Supply
Use the screwdriver to connect each line of the power cable to the corresponding port of
the camera.
Be careful not to reverse the polarity when you connect the power cable.
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
J
SD CARD
AUDIO OUT
VIDEO
1 2 3 4 5
SD SYSTEM POWER
RESET
NETWORK
ACT LINK
GND
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2
AC 24V
DC 12V
AUDIO IN
Monitor
Network
Power

English _19
●INSTALLATION & CONNECTION
Connecting to Audio Input/Output
Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT
port of the amplifier that the microphone is connected to.
Direct Mic Connection : Set Audio Input Gain high (10). (Refer to page 51)
Line Out Connection : Set Audio Input Gain low (1). (Refer to page 51)
Connect the AUDIO OUT port of the camera with the LINE IN port of the speaker.
1.
y
y
2.
MicrophonePre-AmpSpeaker
LINE-IN
Pre-Amp
Microphone
LINE-OUT

installation & connection
20_ installation & connection
Audio I/O Block Diagram
Audio Codec
G.711 PCM. μ-law 64kbps 8kHz sampling
Full duplex Audio
Audio in
Used for mono signal line input (Max.2.4 Vpp)
Audio out
Used for mono signal line output (Max.2.4 Vpp)
Line out impedance
600
y
y
y
y
y
Speaker Pre-Amp
Microphone
PC
Pre-Amp
Microphone
Network
