Samsung SNV-6013 User manual

NETWORK CAMERA
User Manual SNV-6013

Copyright
©2014Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The CVBS out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommended safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
10 Recommended PC Specifications
10 Recommended Micro SD/
SDHC/SDXC Memory Card
Specifications
11 NAS recommended specs
11 What’s Included
13 At a Glance
INSTALLATION &
CONNECTION
15
15 Installation
19 Inserting/Removing a Micro SD
Memory Card
20 Memory Card Information
(Not Included)
21 Connecting with other Device
NETWORK CONNECTION
AND SETUP
22
22 Connecting the Camera Directly
to Local Area Networking
23 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
24 Connecting the Camera Directly
to a PPPoE Modem
25 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
26 Buttons used in IP Installer
27 Static IP Setup
31 Dynamic IP Setup
32 Port Range Forward (Port Mapping)
Setup
34 Connecting to the Camera from a
Shared Local PC
34 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
52
52 Setup
52 Video Setup
68 Network Setup
79 Event Setup
98 System Setup
APPENDIX
107
107 Specification
112 Product Overview
113 Troubleshooting
115 Open Source Announcement
WEB VIEWER
35
35 Connecting to the Camera
37 Password setting
37 Login
38 Installing Silverlight Runtime
41 Installing STW WebViewer Plugin
43 Using the Live Screen
45 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
• Dustproof/Waterproof (IP66)
The dustproof and waterproof design makes you feel at ease when installing the product
outdoors or exposing it to rain.
• Full HD Video Quality
• Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
• Alarm
When an event occurs, the related image is sent to the email address registered by a user
to the FTP server or saved in a micro SD card or the NAS.
• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
• Tampering Detection
Detects tempering attempts on video monitoring.
• Motion Detection
Detects motion from the camera’s video input.
• Intelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
• Face Detection
Detects faces from the camera’s video input.
• Smart codec
A clearer version of image of the area set by a user is transmitted.
• Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
• ONVIF Compliance
This product supports ONVIF Profile-S.
For more information, refer to www.onvif.org.

overview
10_ overview
RECOMMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.4 GHz or higher (for using 1920x1080 30 fps)
Intel Core i7 2.8 GHz or higher (for using 1920x1080 60 fps)
Web Plug-in is optimized to SSE 4.1 Instruction Set.
•Resolution : 1280X1024 pixels or higher (32 bit color)
•RAM : 2GB or higher
•Supported OS : Windows XP / VISTA / 7 / 8, MAC OS X 10.7
•Supported Browser : Microsoft Internet Explorer (Ver. 7~10),
Mozilla Firefox (Ver. 9~19), Google Chrome (Ver. 15~25),
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7)
Windows 8 is supported only in the Desktop mode.
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
For IPv6 connection, Window 7 or higher is recommended.
For Mac OS X, only the Safari browser is supported.
•Video Memory : 256MB or higher
J
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.

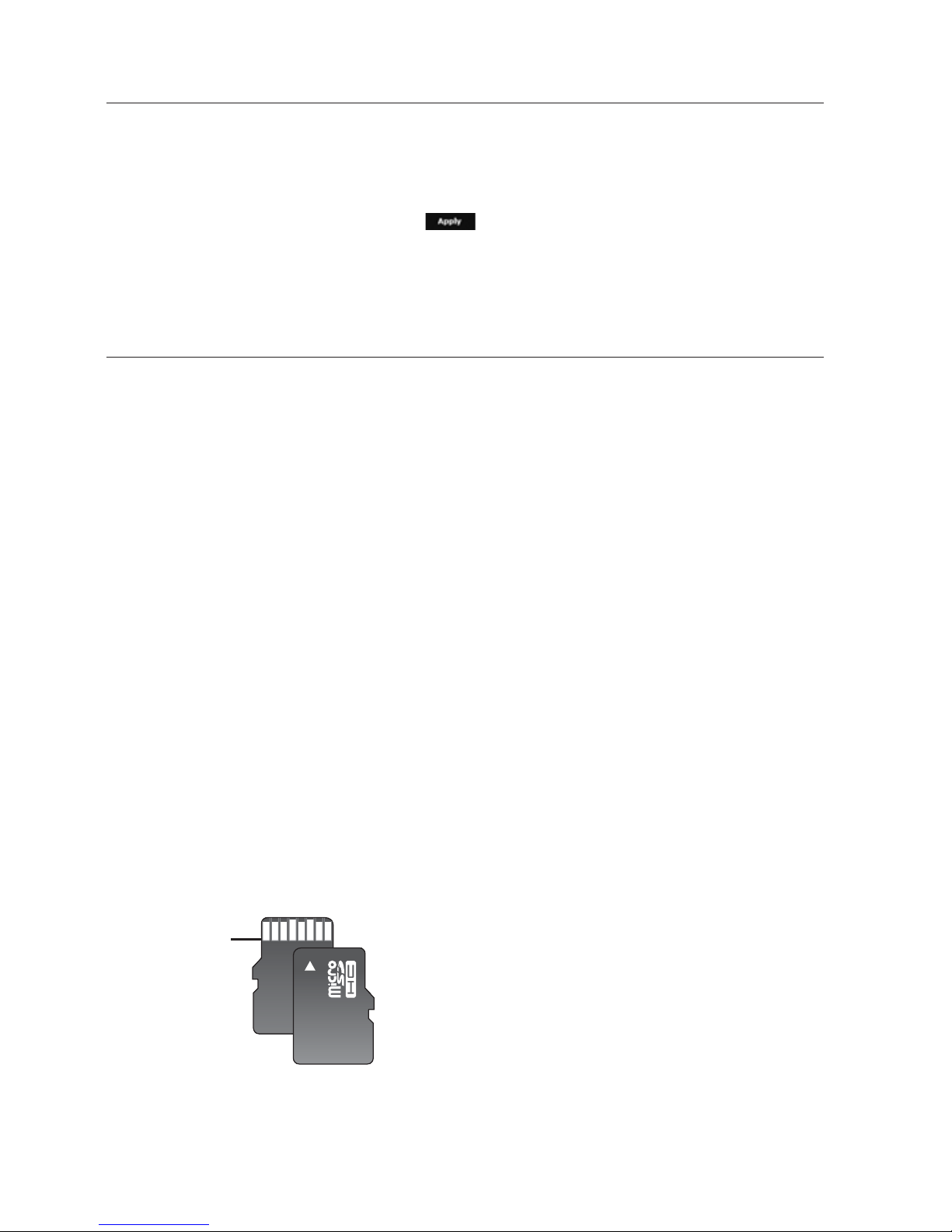

RECOMMENDED MICRO SD/SDHC/SDXC MEMORY CARD
SPECIFICATIONS
•4GB ~ 64GB
•For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
•For the framerate below 30 fps, it is recommended to use the specification memory card
of Class 6 or higher.
•For the framerate over 31 fps, it is recommended to use the specification memory card of
Class 10 UHS or higher.

English _11
●OVERVIEW

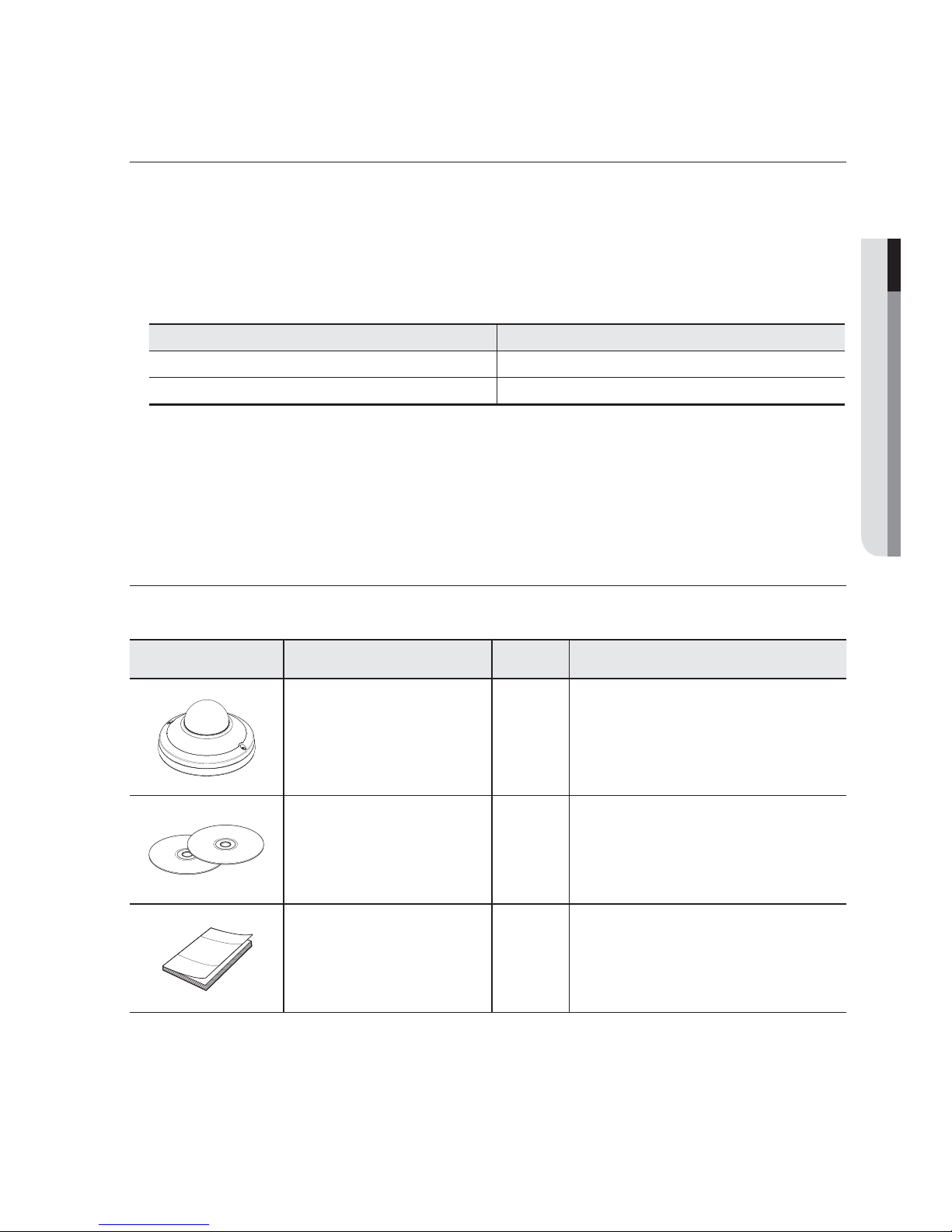

NAS RECOMMENDED SPECS
•Recommended capacity : 200GB or higher is recommended.
•Simultaneous access : One unit of NAS can accept a maximum of sixteen camera
accesses.
•For this camera, you are recommended to use a NAS with the following manufacturer’s
specs.
Recommended products Available sizes
Netgear NAS A maximum of 16 cameras can access simultaneously.
Synology NAS A maximum of 16 cameras can access simultaneously.
J
When you use Netgear’s NAS equipment, do not allocate the capacity for use.
If you use NAS equipment for purposes other than video saving, the number of accessible
cameras may be reduced.
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description
Camera 1
Instruction book,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide
(Optional) 1

overview
12_ overview
Appearance Item Name Quantity Description
Warranty card
(Optional) 1
Cable for the testing monitor 1 Used to test the camera connection to a
portable display device
20 mm CABLE Hole
5.5 mm 2 Holes
케이블 구멍
Template 1 Product installation guide
Drill bit 1 For dome cover disassembly, assembly or
camera installation.
L Wrench 1 For dome cover disassembly, assembly or
camera installation.
Tapping Screw 2Used for installation on the
wall or ceiling
Plastic Anchor 2
For fixing a screw,
Inserted in a hole
(reinforced anchoring force)
Machine Screws 2
Used for assembling the dome case when
installing the product on the pipe, wall
mount, etc. or blocking a hole.

English _13
●OVERVIEW
AT A GLANCE
Appearance
Item Description

Dome cover Case cover used to protect the lens and the main unit.
b
PoE Connector Connects to the network and supplies power through Ethernet cable.

b

overview
14_ overview
Inside
Item Description

Lens Lens for the camera.
b
Reset Button
The button restores all camera settings to the factory default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
c
Video Out Port Analog video output port. (for installation)

Micro SD Memory
Card Compartment Compartment for the Micro SD memory card.

Power indicators POWER ON : While the power is on
OFF : If the power is off

Camera fixing hole Hole used for securing the camera onto a ceiling.

b
c



English _15
●INSTALLATION & CONNECTION
installation & connection
INSTALLATION
J
This camera is waterproof and in compliance with the IP66 spec, but the jack connected to the
external cable is not. You are recommended to install this product below the edge of eaves to
prevent the cable from being externally exposed.
Precautions before installation
Ensure you read out the following instructions before installing the camera:
•Select an installation site that can hold at least 5 times the camera’s weight.
•Stuck-in or peeled-off cables can cause damage to the product or a fire.
•For safety purposes, keep anyone else away from the installation site.
And put aside personal belongings from the site, just in case.
Disassembling
1. Using the L-wrench or drill bit provided, loosen
2 screws by turning them counterclockwise and
separate the dome cover.
Note that it is not necessary to loosen the screws completely.

installation & connection
16_ installation & connection
Installation
1. Using the template provided as an
accessory, drill a hole(diameter 6mm, min
depth of 45mm) for screw installation and
firmly insert the plastic anchor provided as
an accessory.
2. Fit the bottom hole to the anchor hole and
insert and fix the taping screw (M4xL40).
3. Connect and arrange the necessary cables
lest that they should be damaged or twisted
while installing the camera.
4.
Adjust the lens in a desired direction by
referring to the “Adjusting the monitoring
direction for the camera” section. (page 17)
5. Close the dome cover.
To ensure waterproofing, tight up the fixing bolts using the L-wrench and drill bit.

English _17
●INSTALLATION & CONNECTION

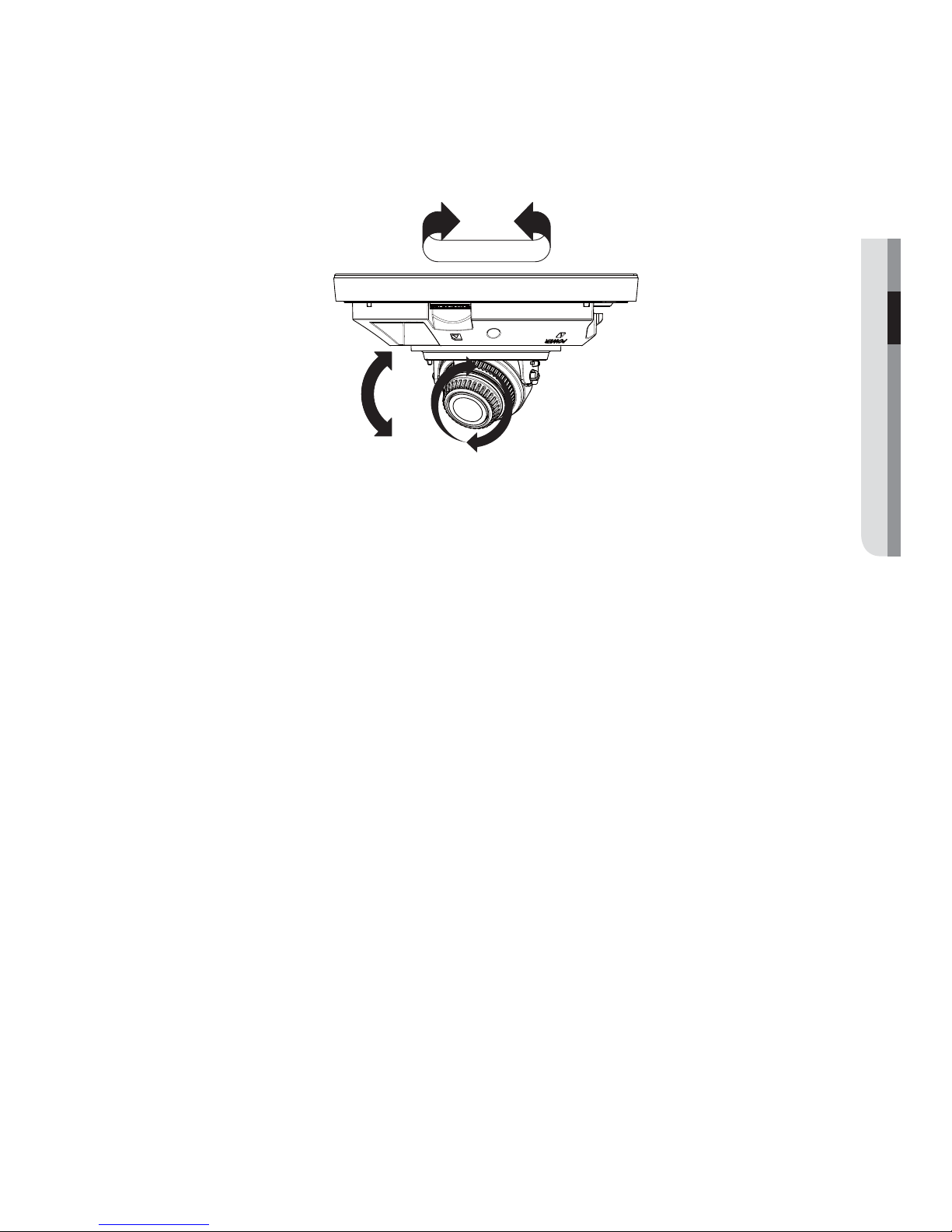

Adjusting the monitoring direction for the camera
Adjusting the monitoring direction
You can adjust the camera direction only when the camera is fixed on the ceiling.
Where, rotating the camera unit to the left or right is called Pan, adjusting the tilt is called
Tilt, and turning the lens on its axis is called Rotation.
- The effective range of pan is a total of 355 degrees.
- The effective range of rotation is a total of 355 degrees.
- The effective range of tilt is a total of 59 degrees.
Methods of adjustment
1. After installing the camera, adjust the panning angle in consideration of the
monitoring direction.
2. Set the horizontal angle so that the image is not reversed.
3. Adjust the tilt angle so that the camera faces toward the monitoring object.
Pan
Tilt
Lens rotation

installation & connection
18_ installation & connection
Outdoor installation
When you install the camera outdoors, it should be waterproofed with waterproof butyl
rubber tape (which can be purchased in stores) so that water does not leak from the gap of
the cable connected in the outdoor area.

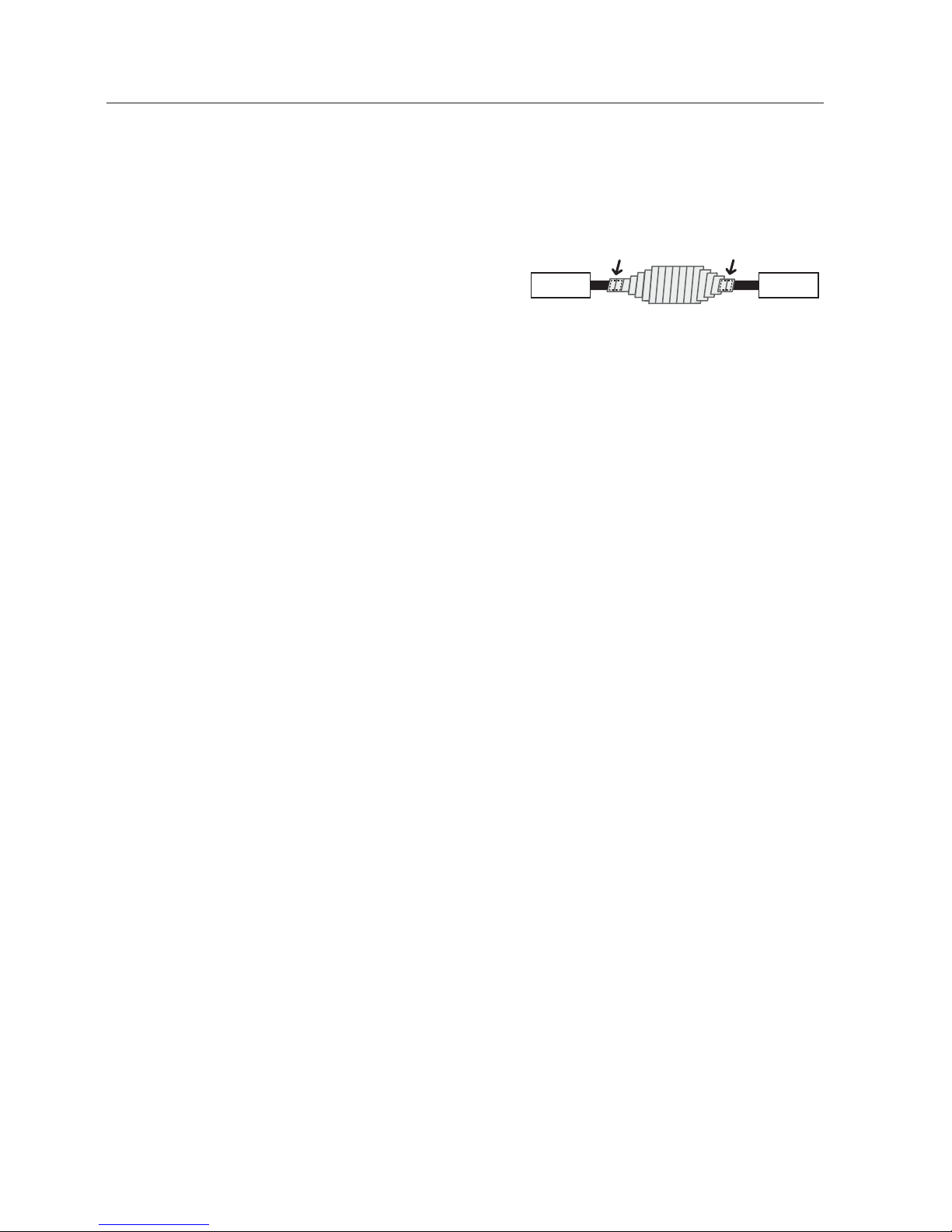

1. Connect the PoE cable.
2. Wrap the black cable jacket (Area A) and the
cable connection area with waterproof (butyl
rubber) tape so that more than half of the butyl rubber tape is overlapped.
J
If the cable jacket is not waterproofed properly, then it can directly cause leakage. Make sure to
protect the cable with a dense layer of taping.
Waterproof butyl tape is made of butyl rubber that can be stretched to twice its normal length.
Camera System
AA

English _19
●INSTALLATION & CONNECTION
INSERTING/REMOVING A MICRO SD MEMORY CARD
J
Disconnect the power cable from the camera before inserting the Micro SD memory card.
Do not insert the Micro SD memory card while it’s upside down by force.
Otherwise, it may damage the Micro SD memory card.
Inserting a Micro SD Memory Card
Push the Micro SD memory card in the direction of the arrow shown in the diagram.
Removing a Micro SD Memory Card
Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.

installation & connection
20_ installation & connection
J
Pressing too hard on the Micro SD memory card can cause the card to shoot out uncontrollably
from the slot when released.
Before removing your Micro SD memory card, turn off the camera or go to <Storage>, turn the
device off, and press the [Apply ( )] button. (Page 80)
If you turn off the camera or remove the Micro SD memory card that contains data from the
product, the data may be lost or damaged.
MEMORY CARD INFORMATION (NOT INCLUDED)
What is a memory card?
The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.
Selecting a memory card that’s suitable for you
Your camera supports Micro SD/SDHC/SDXC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.
For your camera, we recommend you use a memory card from the following
manufacturers:
Micro SD/SDHC/SDXC Memory Card : Sandisk, Transcend
Memory cards of 4GB ~ 64GB is recommended for using with this camera.
Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
For the framerate below 30 fps, it is recommended to use the specification memory card of
Class 6 or higher.
For the framerate over 31 fps, it is recommended to use the specification memory card of
Class 10 UHS or higher.
Memory Card Components
Micro SD/SDHC/SDXC
Contacts
