Samsung iPolis SND-3082 User manual

NETWORK CAMERA
User Manual SND-3082/
SND-3082F/SNV-3082

Copyright
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Class construction
An apparatus with CLASS construction shall be connected to a MAINS
socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected. And please call
a repair man in your location.
When used outside of the U.S., it may be used HAR code with fittings of
an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.

overview
6_ overview
Please read the following recommend safety precautions carefully.
Do not place this apparatus on an uneven surface.
Do not install on a surface where it is exposed to direct sunlight, near
heating equipment or heavy cold area.
Do not place this apparatus near conductive material.
Do not attempt to service this apparatus yourself.
Do not place a glass of water on the product.
Do not install near any magnetic sources.
Do not block any ventilation openings.
Do not place heavy items on the product.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
Reference : In case of providing information for helping of product’s usages
Notice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
10 What’s Included
12 At a Glance (SND-3082)

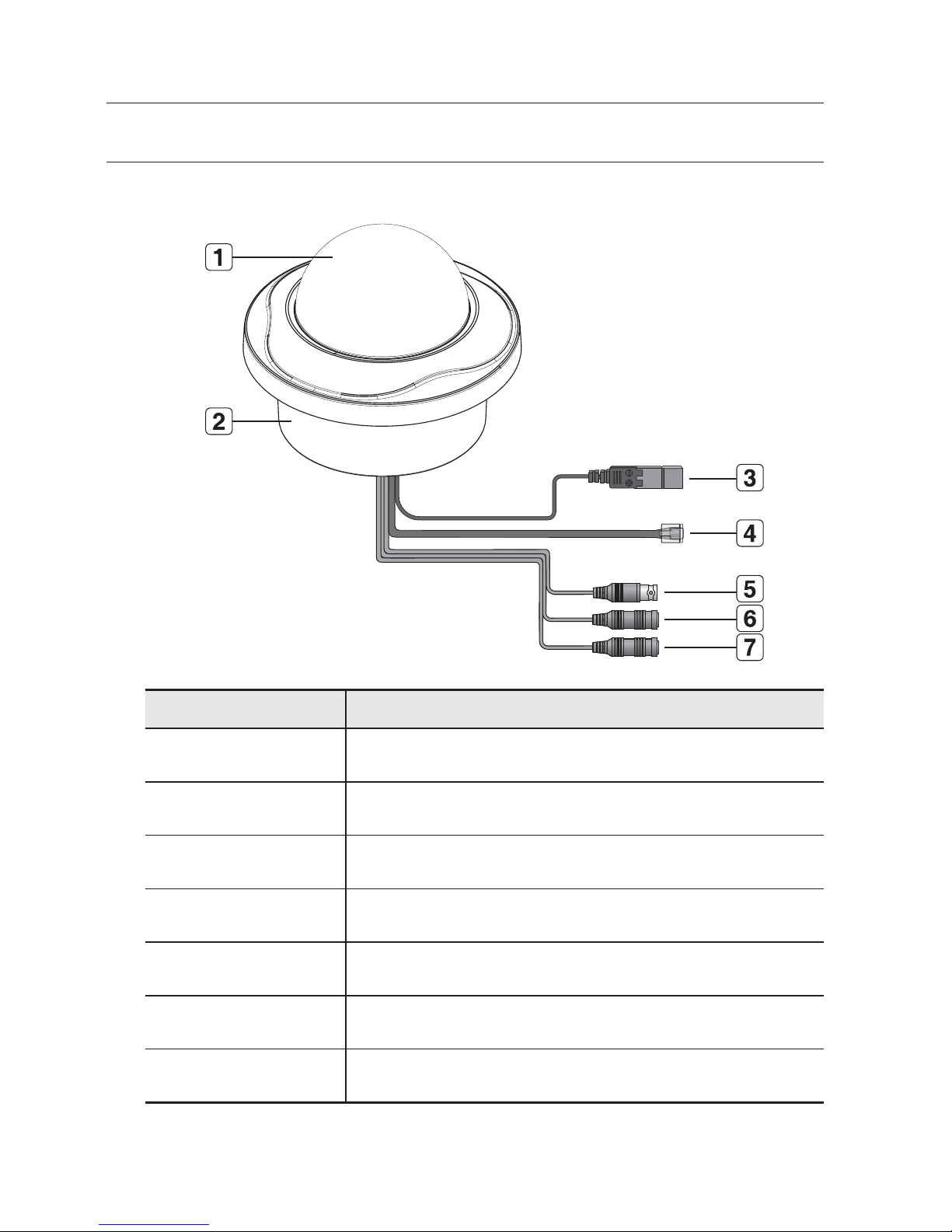

16 At a Glance (SND-3082F)
19 At a Glance (SNV-3082)
INSTALLATION &
CONNECTION
22
22 Installation (SND-3082)
24 Installation (SND-3082F)
25 Installation (SNV-3082)
30 Inserting/Removing aSD Memory
Card
33 Memory Card Information
(Not Included)
34 Connecting with other Device
NETWORK CONNECTION
AND SETUP
38
38 Connecting the Camera Directly
to Local Area Networking
39 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
40 Connecting the Camera Directly
to a PPPoE Modem
41 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
42 Buttons used in IP Installer
43 Static IP Setup
47 Dynamic IP Setup
48 Port Range Forward (Port Mapping)
Setup
50 Connecting to the Camera from a
Shared Local PC
50 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
62
62 Setup
62 Audio & Video Setup
71 Network Setup
78 Event Setup
85 System Setup
APPENDIX
90
90 Specification
94 Product Overview
98 Troubleshooting
100 Open Source Announcement
101 License
104 GPL/LGPL Software License
WEB VIEWER
51
51 Connecting to the Camera
52 Login
53 Installing ActiveX
54 Installing Silverlight Runtime
56 Using the Live Screen
59 Search and play by event
60 Search and play by time

English _9
●OVERVIEW
PRODUCT FEATURES
• Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
• Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
• Alarm
If an event occurs, the event-related video will be transferred to the email specified by the
user, or saved to the SD memory.
• Video Motion Detection
Detects a motion from the video before triggering an event.
• Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
• ONVIF Compliance
This product supports ONVIF.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
•CPU : Intel(R) Core(TM)2 2.4 GHz or higher
•Operating System : Windows XP, VISTA, 7
Mac OS
•Resolution : 1280X1024 pixels or higher
•RAM : 2GB or higher
•Web Browser : Internet Explorer 7.0 or Higher, Firefox 3.0 or Higher,
Chrome 8.0 or Higher, Safari 4.0 or Higher
Neither a beta test version unlike the version released in the company website nor the developer version will
be supported.
It is recommended to connect to IPv6 in Windows 7.
•Video Memory : 256MB or higher
J
If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.

overview
10_ overview
RECOMENDED SD/SDHC MEMORY CARD
SPECIFICATIONS
•2GB ~ 32GB
•To ensure proper recording of video data, it is recommended you use a memory card that
supports at least read/write speed 10Mbps and Class 6.

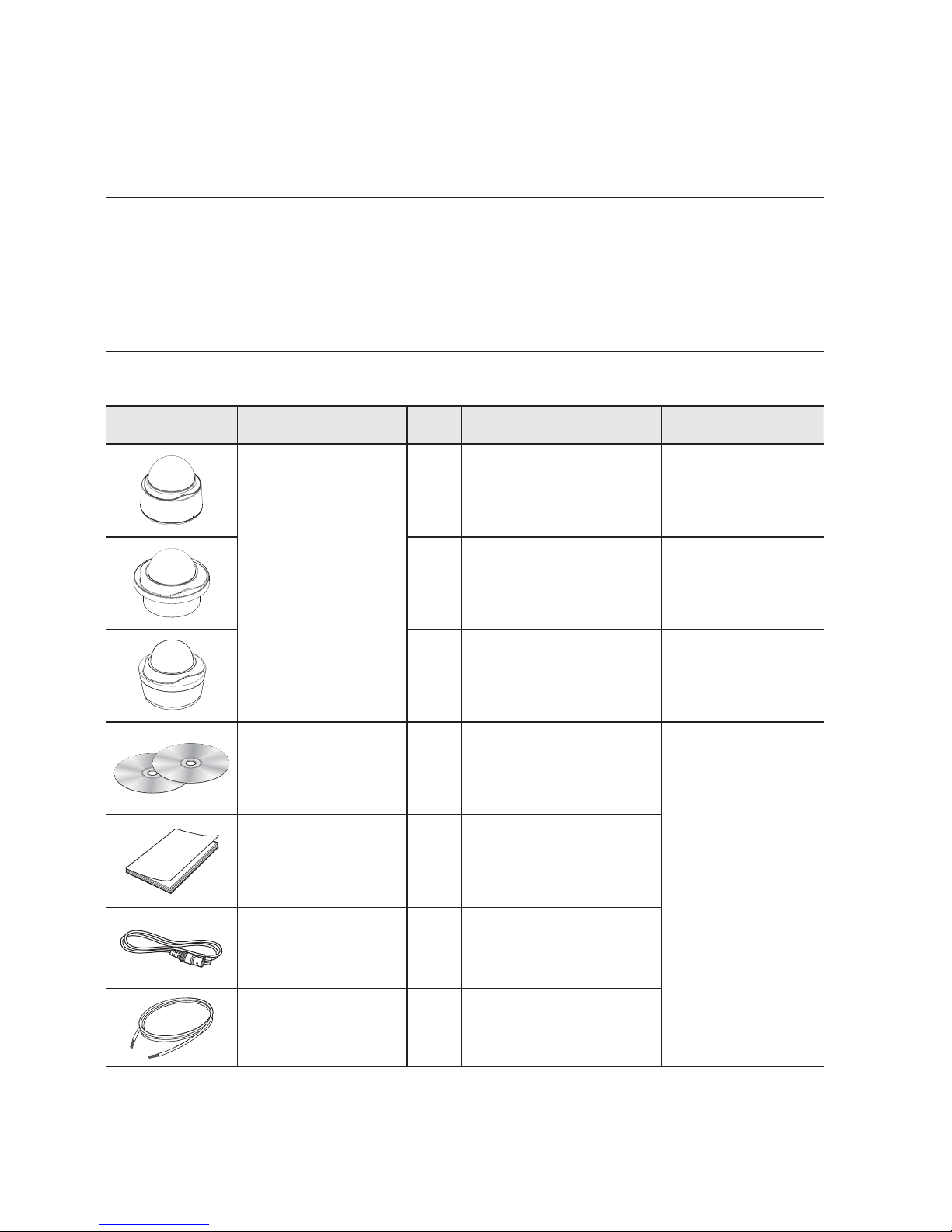

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera
1SND-3082
1SND-3082F
1SNV-3082
User Manual,
Installer S/W CD,
CMS S/W DVD
2
SND-3082
SND-3082F
SNV-3082
Quick Guide 1
Cable for the testing
monitor 1
Used to test the camera
connection to a portable display
device
Alarm Cable 1 Used to connect to Alarm I/O

English _11
●OVERVIEW
Appearance Item Name Quantity Description Model Name
Iron Screw 3 Used for fixing to an iron plate SND-3082
SND-3082F
Template 1 Product installation guide
SND-3082F
SNV-3082
Jack Modular 1 LAN cable gender
Dustproof Plate 1 Preventing dust inflow SND-3082
Tapping Screw 1 Used to fix the safety bracket
SND-3082F
Bracket Safety 1 Safety Bracket
ASSY-Tapping Screw 4
Used for installation on the wall or
ceiling
SNV-3082
L Wrench 1
Used to remove/fix the dome
cover
Plastic Anchor 4
For fixing a screw, Inserted in
a hole (reinforced anchoring
force)
Machine Screws 4
Used for assembling the dome
case when installing the product
on the pipe, wall mount, etc. or
blocking a hole.

overview
12_ overview

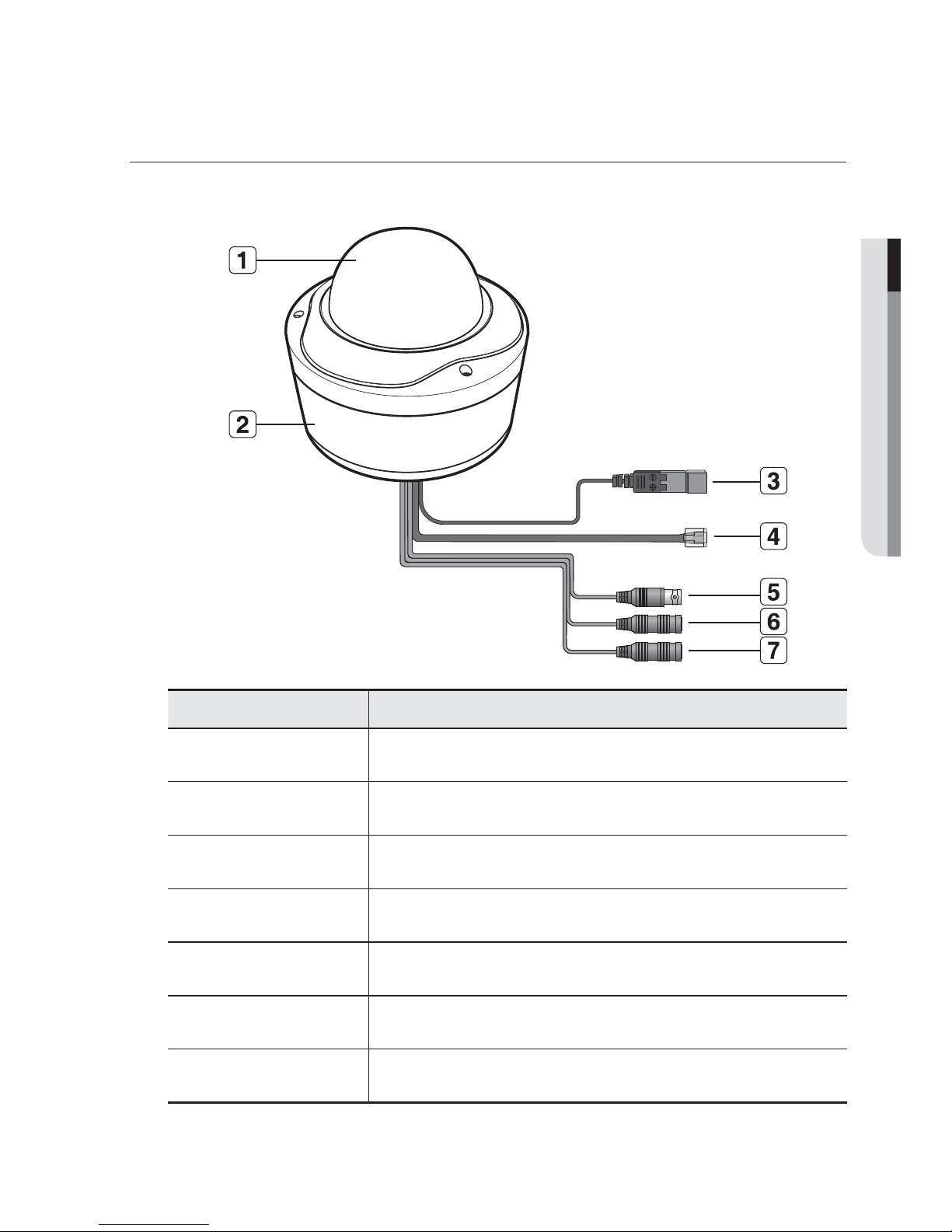

AT A GLANCE (SND-3082)
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Network Port Used to connect a PoE or Ethernet cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

English _13
●OVERVIEW

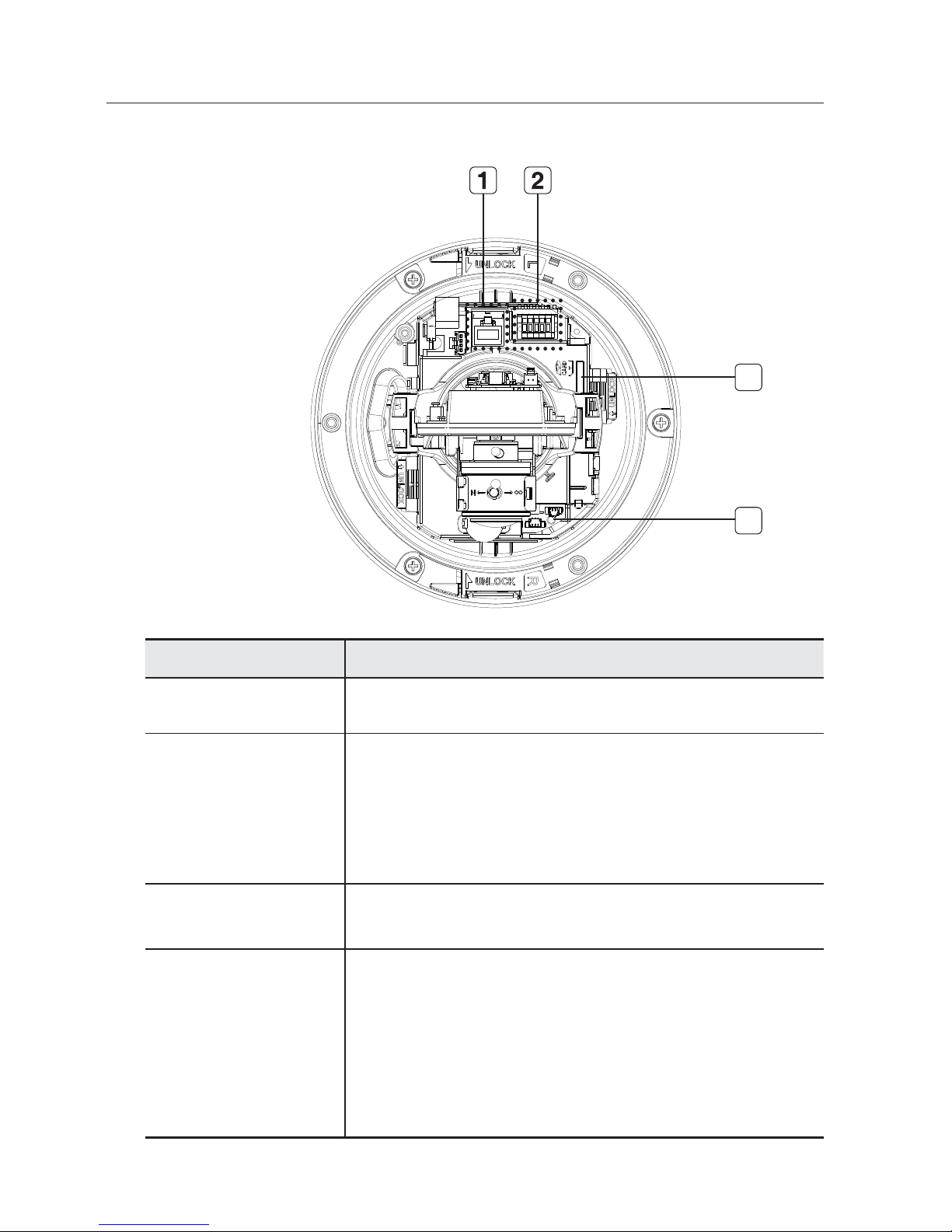

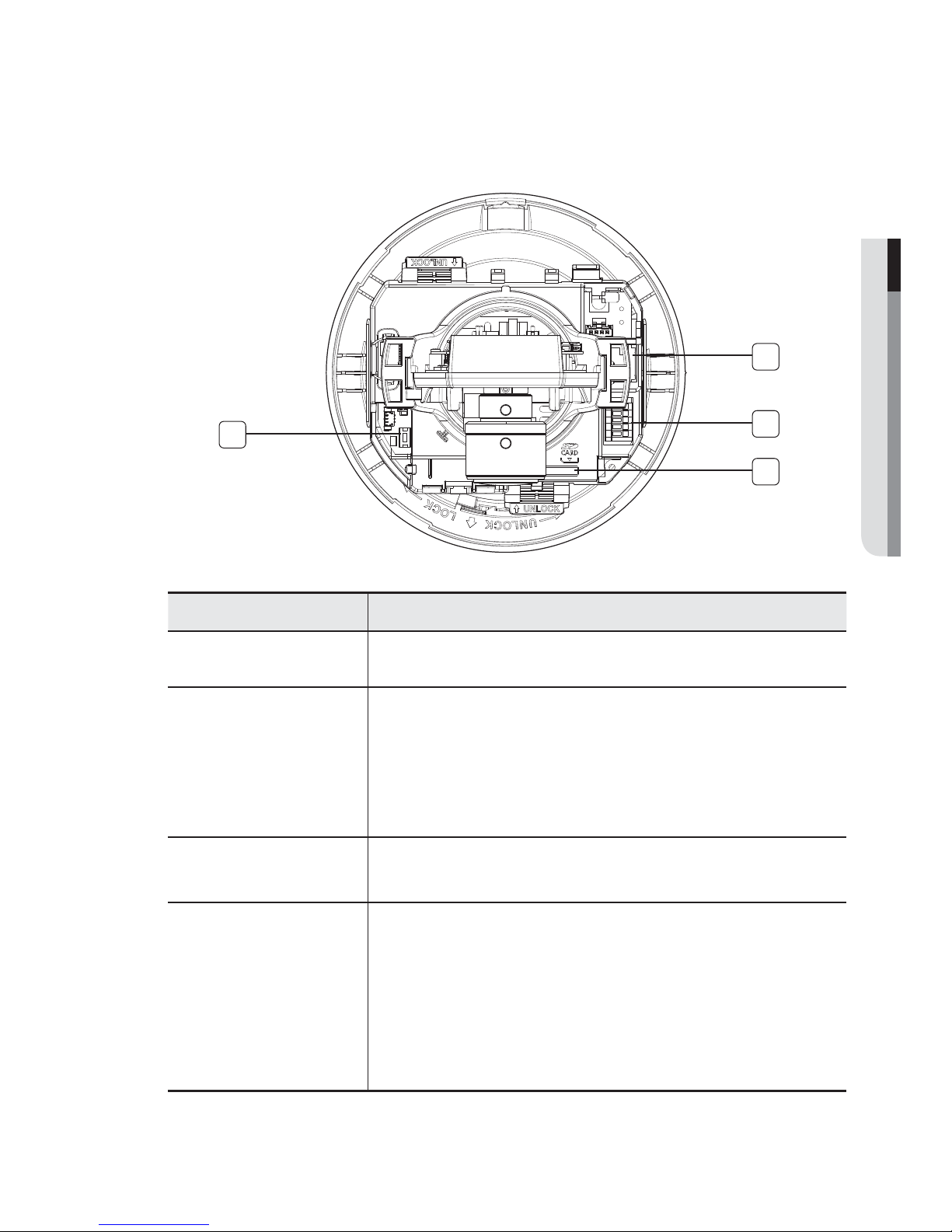

Inside
Item Description

Network Port Used to connect a PoE or Ethernet cable.
b
Alarm In / Out
terminals
Alarm in/out terminals can be configured as follows:
- ALARM IN : Used to connect the alarm input signal.
- ALARM OUT : Used to connect the alarm output signal.
- ALARM COM : Common port where the alarm output signal is connected.
- GND : Used for earth-grounding.
c
SD Memory Card
Compartment Compartment for the SD memory card.

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3
2
1
4

overview
14_ overview

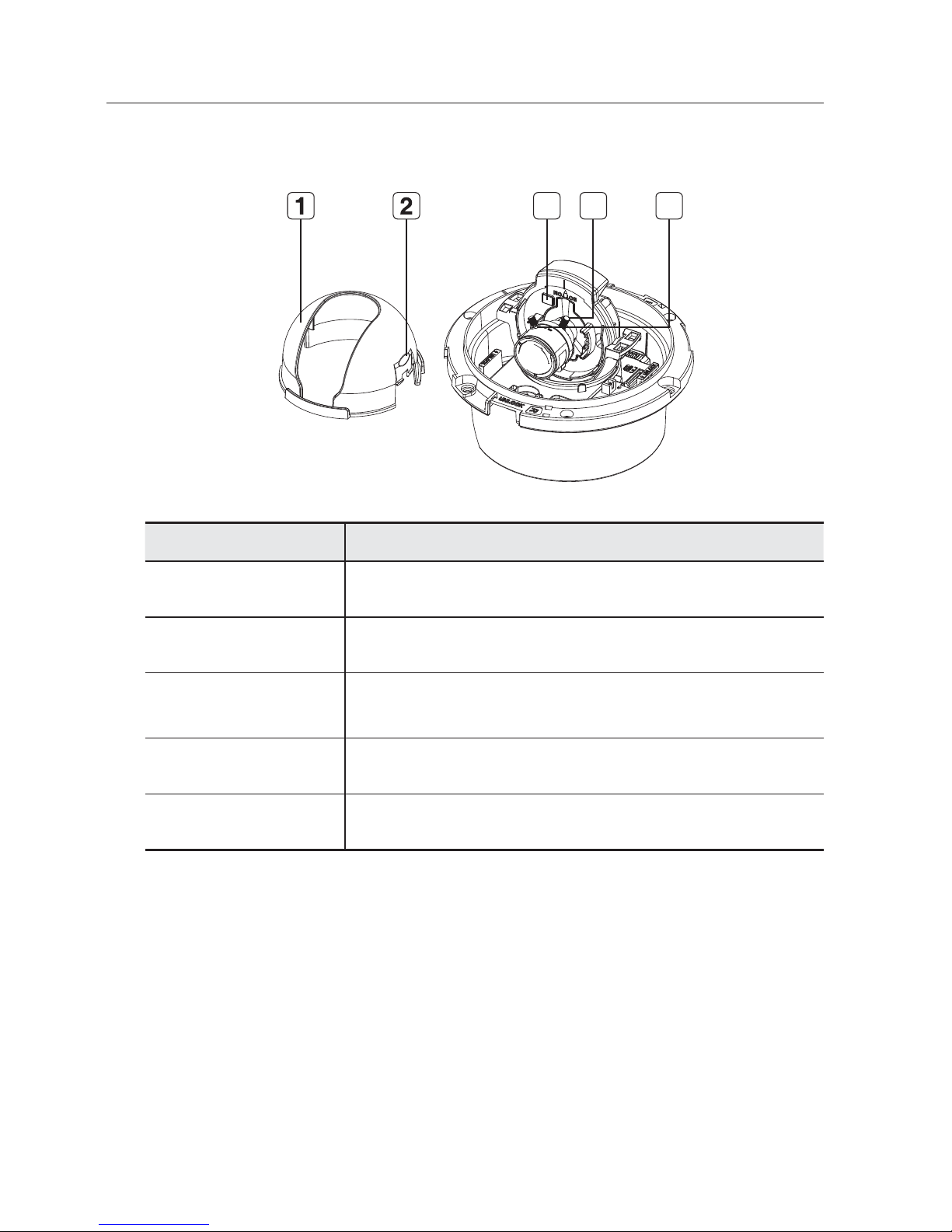

Components
4 5 6
Lens
1
2
3
9
7
8

English _15
●OVERVIEW
Item Description

Inner Cover Cover used to protect the main unit.
b
Wing-Side Hook Tap on either end to remove the inner cover.
c
Monitor Out The Test Monitor Cable is connected to a portable displayer and used for
testing the camera.

Zoom Lever Used to adjust or fix the zoom factor of the lens.

Focus Lever Turn it to the left or right to adjust the focus; turn it clockwise to fix the focus.

Tilt Screw Used to adjust or fix the tilt of the lens.

Bracket Used to install the camera on the wall or ceiling with the screws.

Wiring Cover
If you drill a hole in the wiring cover for wiring, remove
the cover and attach the provided dustproof plate to it,
and arrange the cables through the plate.
The dust-proof plate is to prevent outside dust from
inflow to the wiring compartment.

Release Lock
If you want to remove the bracket from the main unit or remove the camera
from the bracket, push this out and turn the main unit in the <UNLOCK>
direction.

overview
16_ overview
AT A GLANCE (SND-3082F)
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Network Port Used to connect a PoE or Ethernet cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

English _17
●OVERVIEW
Inside
Item Description

Network Port Used to connect a PoE or Ethernet cable.
b
Alarm In / Out
terminals
Alarm in/out terminals can be configured as follows:
- ALARM IN : Used to connect the alarm input signal.
- ALARM OUT : Used to connect the alarm output signal.
- ALARM COM : Common port where the alarm output signal is connected.
- GND : Used for earth-grounding.
c
SD Memory Card
Compartment Compartment for the SD memory card.

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3
4

overview
18_ overview
Components
Item Description

Inner Cover Cover used to protect the main unit.
b
Wing-Side Hook Tap on either end to remove the inner cover.
c
Monitor Out The Test Monitor Cable is connected to a portable displayer and used for
testing the camera.

Zoom Lever Used to adjust or fix the zoom factor of the lens.

Focus Lever Turn it to the left or right to adjust the focus; turn it clockwise to fix the focus.
4 53

English _19
●OVERVIEW
AT A GLANCE (SNV-3082)
Appearance
Item Description

Top cover Case cover used to protect the lens and the main unit.
b
Camera Case Covers the lens and camera body.
c
Power Port Used to plug the power cable.

Network Port Used to connect a PoE or Ethernet cable.

Video Out Port Analog video output port. (for installation)

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

overview
20_ overview
Inside
Item Description

Network Port Used to connect a PoE or Ethernet cable.
b
Alarm In / Out
terminals
Alarm in/out terminals can be configured as follows:
- ALARM IN : Used to connect the alarm input signal.
- ALARM OUT : Used to connect the alarm output signal.
- ALARM COM : Common port where the alarm output signal is connected.
- GND : Used for earth-grounding.
c
SD Memory Card
Compartment Compartment for the SD memory card.

Reset Button
Resets the camera settings to the default.
Press and hold for about 5 seconds to reboot the system.
JIf you reset the camera, the network settings will be adjusted so that
DHCP can be enabled. If there is no DHCP server in the network, you
must run the IP Installer program to change the basic network settings
such as IP address, Subnet mask, Gateway, etc., before you can
connect to the network.
3
4
