Samsung SCC-C6433(P) User manual

User’s Guide
SCC-C6433(P)/C6435(P)
SmartDome Camera
ENG RUS POL

2
3
This symbol indicates that dangerous
voltage consisting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this unit.
WARNING
• To reduce the risk of re or electric shock, do
not expose this appliance to rain or moisture.
•WARNING
1. Be sure to use only the standard adapter
that is specied in the specication sheet.
Using any other adapter could cause re,
electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or
replacing battery may cause explosion, re,
electric shock, or damage to the product.
3. Do not connect multiple cameras to a single
adapter. Exceeding the capacity may cause
abnormal heat generation or re.
4. Securely plug the power cord into the
power receptacle. Insecure connection
may cause re.
5. When installing the camera, fasten it
securely and rmly. A falling camera may
cause personal injury.
6. Do not place conductive objects (e.g.
screwdrivers, coins, metal things, etc.) or
containers lled with water on top of the
camera. Doing so may cause personal injury
due to re, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or
sooty locations. Doing so may cause re
or electric shock.
8. If any unusual smells or smoke come
from the unit, stop using the product. In
such case, immediately disconnect the
power source and contact the service
centre. Continued use
in such a condition may cause re or
electric shock.
Safety Precautions
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN

2
ENG
3
9. If this product fails to operate normally,
contact the nearest service centre. Never
disassemble or modify this product
in any way. (SAMSUNG is not liable
for problems caused by unauthorized
modications or attempted repair.)
10. When cleaning, do not spray water
directly onto parts of the product. Doing
so may cause re or electric shock.
CAUTION
1. Do not drop objects on the product or
apply strong shock to it. Keep away from
a location subject to excessive vibration
or magnetic interference.
2. Do not install in a location subject to
high temperature (over 122°F), low
temperature (below 14°F), or high
humidity. Doing so may cause re or
electric shock.
3. If you want to relocate the already
installed product, be sure to turn off the
power and then move or reinstall it.
4. Remove the power plug from the outlet
when then there is a lightning.
Neglecting to do so may cause re or
damage to the product.
5. Keep out of direct sunlight and heat
radiation sources. It may cause re.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards
extremely bright objects such as sun,
as this may damage the CCD image
sensor.
8. Apparatus shall not be exposed to
dripping or splashing and no objects
lled with liquids, such as vases, shall be
placed on the apparatus.
9. The Mains plug is used as a disconnect device
and shall stay readily operable at any time.

4
5
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources
such as radiators, heat registers, or
other apparatus (including ampliers)
that produce heat.
9. Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other. A grounding
type plug has two blades and a third
grounding prong. The wide blade or the
third prong is provided for your safety.
If the provided plug does not t into
your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being
walked on or pinched particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
11. Only use attachments/accessories
specied by the manufacturer.
12. Use only with cart, stand, tripod, bracket,
or table specied by the manufacturer, or
sold with the apparatus.
13. Unplug this apparatus. When a cart is
used, use caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
14. Refer all servicing to qualied service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus,
the apparatus has been exposed to rain
or moisture, does not operate normally,
or been dropped.

4
ENG
5
Overview ........................................................................................... 8
About this guide ............................................................................8
Product overview...........................................................................8
Main features .................................................................................8
Components...................................................................................8
CHECKING COMPONENTS IN THE PACKAGE.......................8
NAMES OF EACH PART ...........................................................9
Installation ..................................................................................... 10
Before installation .......................................................................10
THINGS TO KEEP IN MIND DURING INSTALLATION AND USE .....10
Initial settings ..............................................................................10
CAMERA ADDRESS SETUP...................................................10
SETTING COMMUNICATION PROTOCOL............................. 11
BAUD RATE SETTING ............................................................12
SETTING RS-422A/RS-485 TERMINATION ...........................13
Adapter cable connection...........................................................15
Cable connection.........................................................................16
Installation precautions ..............................................................19
Separately sold products for installation..................................19
Installing the camera...................................................................24
Camera Setup................................................................................ 28
Camera set ...................................................................................32
CAMERA ID .............................................................................32
V-SYNC....................................................................................32
DAY/NIGHT..............................................................................33
MOTION DET...........................................................................36
ZOOM SPEED .........................................................................39
Contents

6
7
DIGITAL ZOOM........................................................................39
DISPLAY ZOOM.......................................................................40
DISPLAY P/T............................................................................41
EXIT .........................................................................................41
Video set ......................................................................................42
IRIS ..........................................................................................42
ALC ..........................................................................................42
SHUTTER ................................................................................45
AGC..........................................................................................46
MOTION...................................................................................47
WHITE BAL..............................................................................48
FOCUS MODE.........................................................................49
SPECIAL ..................................................................................50
EXIT .........................................................................................52
Preset ...........................................................................................53
Zone set........................................................................................55
PRIVACY ZONE.......................................................................55
ZONE DIR SET ........................................................................56
ZONE AREA SET.....................................................................57
Auto set ........................................................................................60
AUTO PAN ...............................................................................60
PATTERN .................................................................................62
SCAN .......................................................................................63
AUTO PLAY..............................................................................64
Alarm set ......................................................................................65
ALARM PRIORITY SET...........................................................66
ALARM IN SET ........................................................................66
ALARM OUT SET ....................................................................66

6
ENG
7
AUTO SET ...............................................................................66
AUX OUT CONTROL...............................................................66
Other set ......................................................................................67
PROPORTIONAL P/T ..............................................................67
TURBO P/T ..............................................................................67
AUTO CAL ...............................................................................67
D-FLIP......................................................................................68
CAM RESET ............................................................................68
LANGUAGE .............................................................................68
PASSWORD.............................................................................69
RS-485 .....................................................................................70
Clock set ......................................................................................70
System info ..................................................................................71
Shortcut keys...............................................................................72
Product Specications............................................................... 75

8
9
Overview
❚About this guide
This user guide includes basic instructions for
the product. It is recommended that all users
read this guide before use.
This guide is divided as follows:

“Overview” introduces the user guide and product
related information.

“Installation” explains how to set and install the
product.
 “Camera Setup” presents the structure of the
Setup menu for the SCC-C6435(P)/6433(P)
including a detailed explanation of the functions
performed in each submenu.
 “Product Speci cations” provides the
specications of the product.
❚Product overview
This camera is a zoom lens built in smart
dome camera which provides you with the
best monitoring function in connection with
CCTV at banks or companies. This camera is
a high quality surveillance camera using x32
zoom lens and digital zoom IC, it can catch
clear images up to 510 times.
This camera uses an Alarm function for alert
situations and moving camera in the direction
you want, ZOOM-IN and ZOOM-OUT
functions can be remote controlled.
Note
SCC-C6433(P) does not support for WDR function.
❚Main features

Power: DC 12V/AC 24V

Special functions

WDR to cover the full screen irregardless of its
brightness

DAY/NIGHT to improve the sensitivity by
automatic conversion into the black and white
mode at night or in the environment with low
illumination

White Balance to control the brightness to the
illumination

Backlight Compensation under spotlight or
utmost bright illumination

Auto Focus to automatically adjust the focus
to the subject movement

Privacy zone to hide a specic area for
personal privacy

PAN/TILT for precise control at high speed
❚Components
CHECKING COMPONENTS IN THE PACKAGE
Please check your camera and accessories
are included in the package. Those
components are as shown below:
SCC-C6435(P)/C6433(P) Camera Holder Adapter
User’s Guide Screws

8
ENG
9
NAMES OF EACH PART
Your camera has the following components:
1. Camera Holder Adapter
2. Camera Body
3. Zoom Lens
4. Cover-dome
5. Alarm Output: N/O, COM, N/C, AO-2, AO-1, GND
6. Alarm Input (1~8): AI-8, AI-7, AI-6, AI-5,GND, AI-4, AI-3, AI-2, AI-1, GND
7. RS-485: TXD+, TXD-, RXD+, RXD-
8. Power Input: 24V, EARTH, 24V
9. Video Output

10
11
❚Before installation
THINGS TO KEEP IN MIND DURING INSTALLATION AND USE
• Do not disassemble the camera on your own.
• Always be careful when handling the camera. Do not strike the camera by your sts or shake
it. Please be careful not to be careless when storing and operating it.
• Do not place or operate the camera in any wet environment such as rain or wet surfaces.
• Do not clean the camera with rough sandpaper. Please always use a dry cloth when cleaning it.
• Put the camera in a cool area free from direct sunlight. Otherwise, the camera may be damaged.
❚Initial setting
CAMERA ADDRESS SETUP

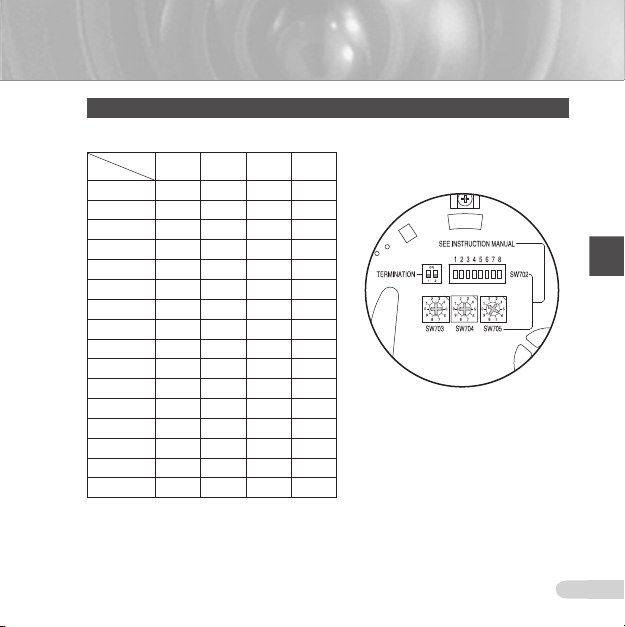

Use SW703, SW704, or SW705 for Camera Address setup. You may allocate up to 255
addresses by using SW703 to set the 3rd digit, SW704 the 2nd digit, and SW705 the 1st digit.
EX) In case of Camera Address 1, see the following gure for setup.
Installation
SW703 SW704 SW705

10
ENG
11
SETTING COMMUNICATION PROTOCOL
Use number 1~4 PIN of SW702 to set communication Protocol.
A : SAMSUNG HALF
B : SAMSUNG FULL
PIN
Comp PIN1 PIN2 PIN3 PIN4
A OFF OFF OFF OFF
BON OFF OFF OFF
COFF ON OFF OFF
DON ON OFF OFF
EOFF OFF ON OFF
F ON OFF ON OFF
G OFF ON ON OFF
H ON ON ON OFF
IOFF OFF OFF ON
JON OFF OFF ON
K OFF ON OFF ON
L ON ON OFF ON
M OFF OFF ON ON
N ON OFF ON ON
O OFF ON ON ON
P ON ON ON ON
<Bottom View of Camera Holder>
X100 X10 X1

12
13

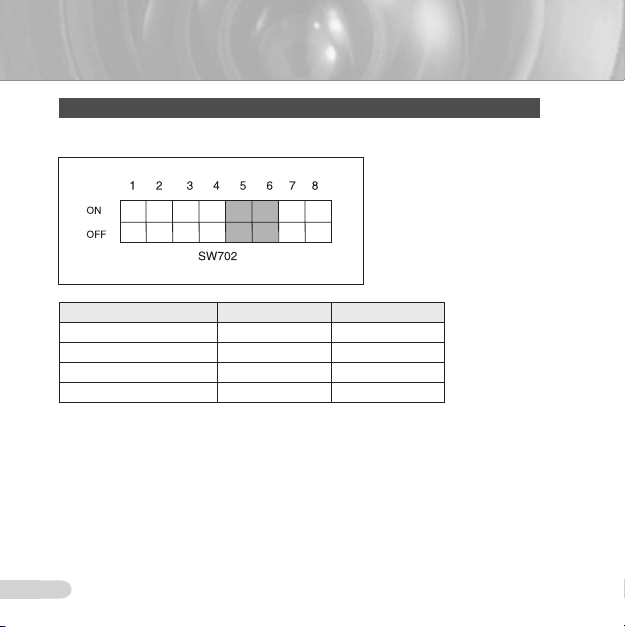

BAUD RATE SETTING
Use PIN 5 and 6 of SW702.
The factory default setting is set to 9600BPS.
BAUD RATE PIN 5 PIN 6
4800 BPS ON ON
9600 BPS OFF ON
19200 BPS ON OFF
38400 BPS OFF OFF

12
ENG
13
SETTING RS-422A/RS-485 TERMINATION
As it is shown in the structure map, when Controller and RS-422A/RS-485 is connected,
it should be terminated according to the Cable feature of impedance on the each end of the
transmitting line to transfer the signals in long distance by controlling the reection of the signals
to the lowest.
Termination: using numbers 1 and 2 PIN, turn to ON and it will be terminated.
<RS-485 Half Duplex Organization>
Controller
Division n < 32 Termination
SW1-ON
CAM n CAM n-1 CAM 2CAM 1
TX+(DATA+)
TX-(DATA-)
RX- RX+RX+ RX- RX+ RX- RX+ RX-

14
15
Note
A communication error may occur if you connect multiple cameras that are assigned the same address
in the network.
Controller
CAM 1
<RS-422A/RS-485 Full Duplex Organization>
CAM 2 CAM n-1 CAM n
Division
n < 32 Division
SW1-ON
SW2-ON

14
ENG
15

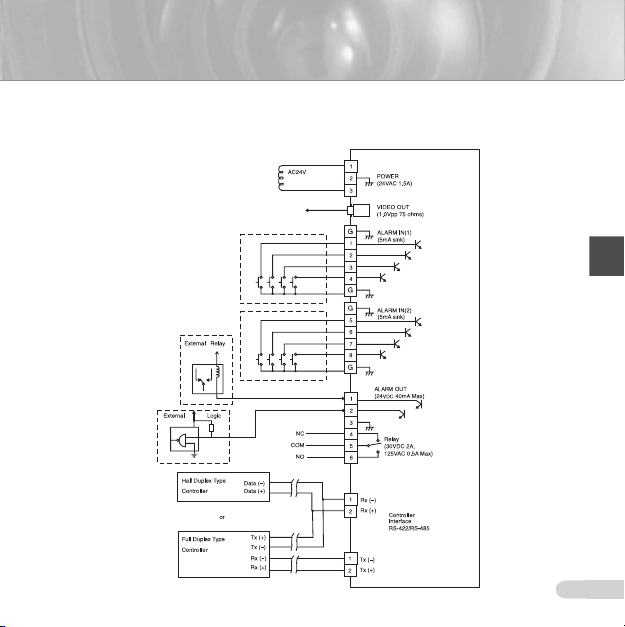

❚Adapter cable connection
SCC-C6435 Adapter Board

16
17
❚Cable connection
1. First, connect one end of the BNC video cable connector to the Video Output Terminal
(VIDEO OUT).
2. Then, connect the other end of the connector to the Video Input Terminal of the monitor.
IN
OUT
Video terminal on the
rear of monitor
BNC Cable

16
ENG
17

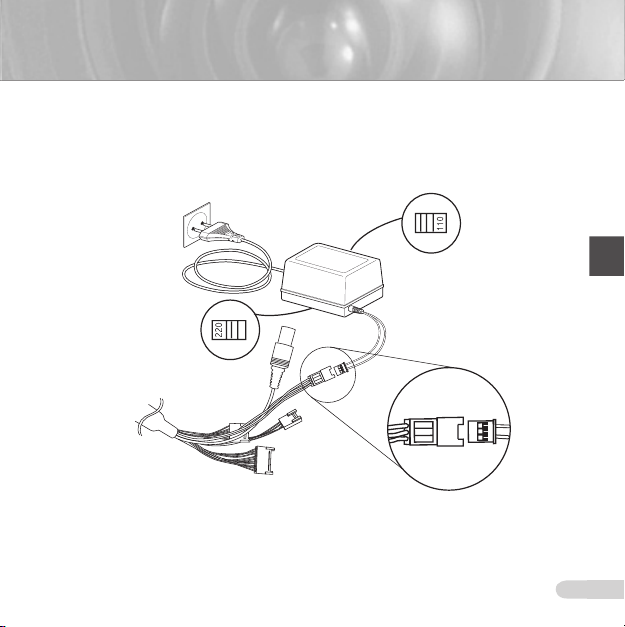

3. Connect the Power Adapter to the Power Cable of the camera.
4. Adjust the switch on the Power Adapter to the proper voltage. Then, connect the Power
Adapter's plug to the Power Connector.
7


)
5
3
"
&
7


7
&"35)
7
Power Selection Switch
under the Power Adaptor
Power Selection Switch
under the Power Adaptor

18
19
5. Connect the Remote Control Terminal of the camera and the external Controller.
59%
59%
39%
39%
Adapter Cable
Controller

18
ENG
19

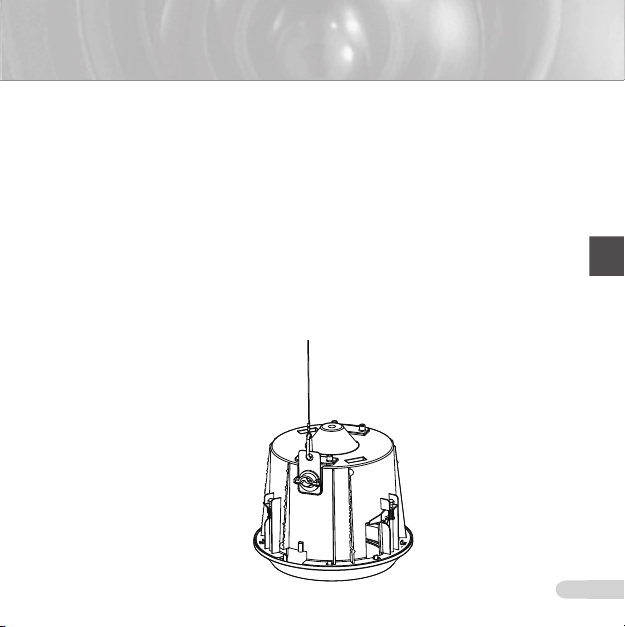

❚Installation precautions
1. Make sure that the installation site can sufciently support a minimum of four times the net
weight of the SCC-C6435(P)/6433(P) SmartDome camera and other accessories.
2. Install in an area where the space above the ceiling board is over 18 cm (7 in.) high.
3. Use the supplied screws to fasten the camera to the bracket assembly.
4. Keep persons away from the installation area, as there is a risk of falling objects.
Also, move valuables to a safe location before installation.
❚Separately sold products for installation
Depending on the installation site, it may be convenient to use one of the following products.
1. CEILING MOUNT BRACKET (SADT-101EC)
This bracket is used for installing the SmartDome camera in the plenum above the drop
ceiling.

20
21

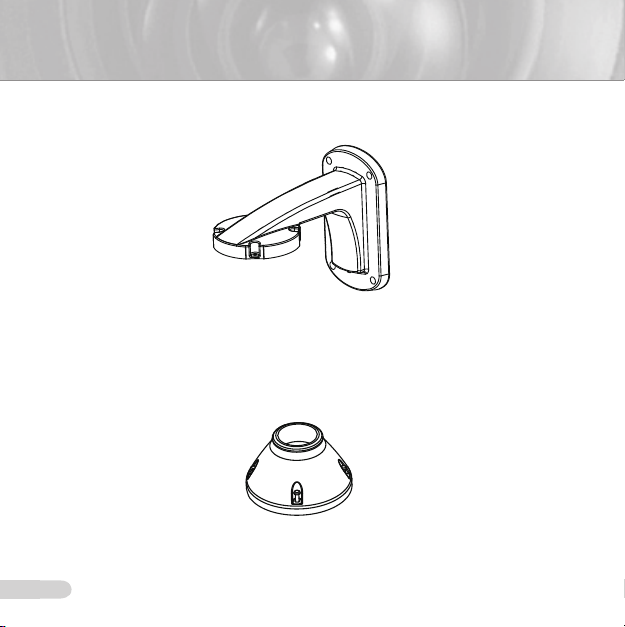

2. WALL MOUNT ADAPTOR (SADT-104WM)
This adaptor is used for installing the SmartDome camera on an indoor wall.
3. HANGING MOUNT ADAPTOR (SADT-100HM)
This adaptor is used for installing the SmartDome camera to an outdoor wall or a ceiling and
used with CEILING MOUNT ADAPTOR(SADT-100CM).
