Samsung SNB-2000P User manual

NETWORK CAMERA
User Manual SNB-2000(P)

2_ overview
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol indicates that dangerous voltage consisting a
risk of electric shock is present within this unit.
This symbol indicates that there are important
operating and maintenance instructions in the literature
accompanying this unit.
WARNING
To reduce the risk of fire or electric shock, do not expose this appliance
to rain or moisture.
To prevent injury, this apparatus must be securely attached to the floor/
wall in accordance with the installation instructions.
If this power supply is used at 24V ac, a suitable plug adapter should be
used.
The camera is to be only connected to PoE networks without routing to
the outside plant.
WARNING
Be sure to use only the standard adapter that is specified in the
specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to
the product.
Incorrectly connecting the power supply or replacing battery may cause
explosion, fire, electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the
capacity may cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure
connection may cause fire.
y
y
y
y
1.
2.
3.
4.
overview

English _3
●OVERVIEW
When installing the camera, fasten it securely and firmly. The fall of
camera may cause personal injury.
Do not place conductive objects (e.g. screwdrivers, coins, metal parts,
etc.) or containers filled with water on top of the camera. Doing so may
cause personal injury due to fire, electric shock, or falling objects.
Do not install the unit in humid, dusty, or sooty locations. Doing so may
cause fire or electric shock.
If any unusual smells or smoke come from the unit, stop using the
product. In such case, immediately disconnect the power source and
contact the service center. Continued use in such a condition may
cause fire or electric shock.
If this product fails to operate normally, contact the nearest service
center. Never disassemble or modify this product in any way.
(SAMSUNG is not liable for problems caused by unauthorized
modifications or attempted repair.)
When cleaning, do not spray water directly onto parts of the product.
Doing so may cause fire or electric shock
Do not expose the product to the direct airflow from an air conditioner.
Otherwise, it may cause moisture condensation inside the Clear Dome
due to temperature difference between internal and external of the
dome camera.
If you install this product in a low-temp area such as inside a cold store,
you must seal up the wiring pipe with silicon, so that the external air can
not flow inside the housing.
Otherwise, external high, humid air may flow inside the housing, pooling
moisture or vapor inside the product due to a difference between
internal and external temperature.
5.
6.
7.
8.
9.
10.
11.
12.

overview
4_ overview
CAUTION
Do not drop objects on the product or apply strong blows to it. Keep
away from a location subject to excessive vibration or magnetic
interference.
Do not install in a location subject to high temperature (over 50°C), low
temperature (below -10°C), or high humidity. Doing so may cause fire or
electric shock.
If you want to relocate the already installed product, be sure to turn off
the power and then move or reinstall it.
Remove the power plug from the outlet when there is a lighting storm.
Neglecting to do so may cause fire or damage to the product.
Keep out of direct sunlight and heat radiation sources. It may cause fire.
Install it in a place with good ventilation.
Avoid aiming the camera directly towards extremely bright objects such
as sun, as this may damage the CCD image sensor.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus.
The Mains plug is used as a disconnect device and shall stay readily
operable at any time.
When using the camera outdoors, moisture may occur inside the
camera due to temperature difference between indoors and outdoors.
For this reason, it is recommended to install the camera indoors. For
outdoor use, use the camera with built-in fan and heater.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

English _5
●OVERVIEW
FCC STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that
may cause undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to part 15 of FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area
is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the
Canadian Interference.-Causing Equipment Regulations of
ICES-003.

overview
6_ overview
IMPORTANT SAFETY INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
Unplug this apparatus during lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
2
6Important Safety Instructions
9Product Features
9Recommended PC Specifications
10 What’s Included
11 At a Glance
INSTALLATION &
CONNECTION
13
13 Mounting the lens
15 Connecting with other Device
CAMERA SETUP
17
17 How to use the Keyboard Controller
18 Main Menu
18 Profile
19 Camera Setup
23 Privacy Zone
24 Others
25 System Info
NETWORK CONNECTION
AND SETUP
26
26 Connecting the Camera to an
Broadband Router with the
xDSL/cable Modem
27 Connecting the Camera to an
Broadband Router with Local
Area Networking
28 Connecting the Camera Directly to
a DHCP-based xDSL/cable Modem
29 Connecting the Camera Directly
to Local Area Networking
30 IP Address Setup
31 Static IP Setup
34 Dynamic IP Setup
35 Port Range Forward (Port
Mapping) Setup
35 Connecting to the camera from a
shared local PC
36 Connecting to the camera from a
remote PC via the Internet

overview
8_ overview
WEB VIEWER
37
37 Connecting to the camera
38 Login
39 Installing ActiveX
40 Using the Live Screen
41 Backup
SETUP SCREEN
43
43 Accessing the Setup screen
44 Default Setup
48 System Setup
51 Overlay Setup
52 Event Setup
58 Network Setup
APPENDIX
59
59 Profile
60 Terminology
61 Specifications
65 Frame Rate (NTSC)
71 Frame Rate (PAL)
77 Troubleshooting
79 GPL/LGPL Software License

English _9
●OVERVIEW
PRODUCT FEATURES
Support various communication protocols
Supports TCP/IP, UDP, RTP/RTSP, SMTP for email, and FTP protocols as well as various
internet protocols such as ARP, HTTP, HTTPS and DHCP.
Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
Automatic Local IP Setup
Even a network novice can install it with minimum operations.
Alarm
If the camera equipped with an alarm sensor senses any motion, it will send a notification
to a user FTP/email account (SMTP) or send the corresponding signal to the Alarm Out
terminal.
Motion Detection
If the camera with a specified motion area detects a motion in that area, it will send a
notification to a user FTP/email account (SMTP) or send the corresponding signal to the Alarm
Out terminal.
ONVIF (Spec 1.01) Compliance
This product supports ONVIF Core Spec. 1. 01.
For more information, refer to www.onvif.org.
RECOMMENDED PC SPECIFICATIONS
CPU : Pentium4 / 2.4GHz or higher
Operating System : Windows XP(Service Pack2, Service Pack3) / Windows Vista / Windows 7
Resolution : 1024X768 pixels or higher
RAM : 512MB or higher
Web Browser : Internet Explorer 6.0 or higher
Video Card : Radeon, Nvidia
Video Memory : 128MB
DirectX 8.1 or higher
Compatible Broadband Router
Linksys
D-Link
Netgear
Compatible PoE Switches
Linksys SRW224G4P
D-Link DES-1316
SMC SMCPWR-INJ3
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y
y

overview
10_ overview
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Camera C Mount Adapter
Auto Iris Lens Connector
Camera Holder (Mount)
& Screws (2EA)
User Manual,
Installer S/W CD,CMS S/W DVD Quick Guide
Lens Options
CS Lens C Lens

English _11
●OVERVIEW
AT A GLANCE

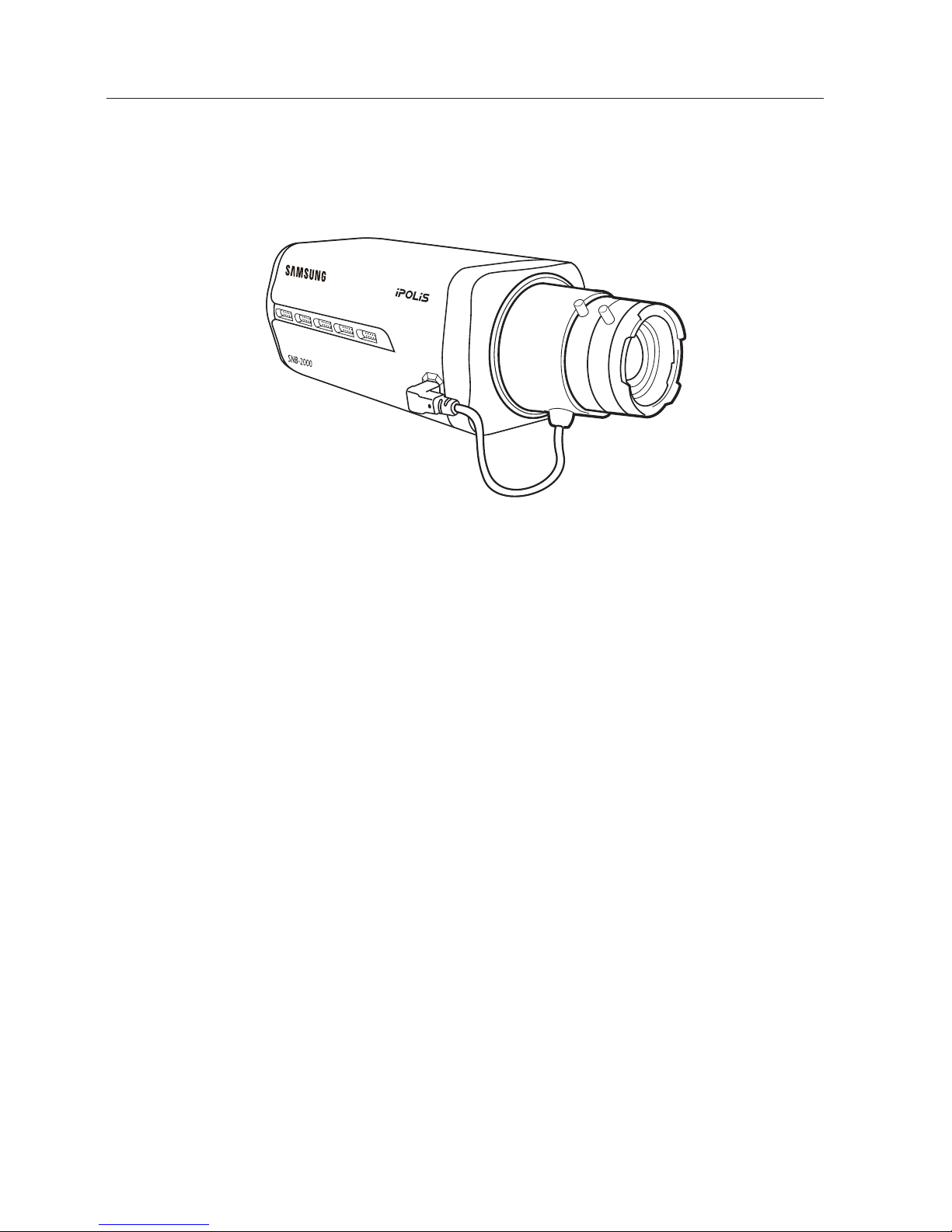

Front Side
Item Description
Camera Holder
(Mount) Holes
Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.
Auto Iris Lens
(Optional)
Installed on the lens adaptor.
Auto Iris Lens
Connector Used to supply power and output signal to control the iris of the lens.
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
ethanol.
M

overview
12_ overview

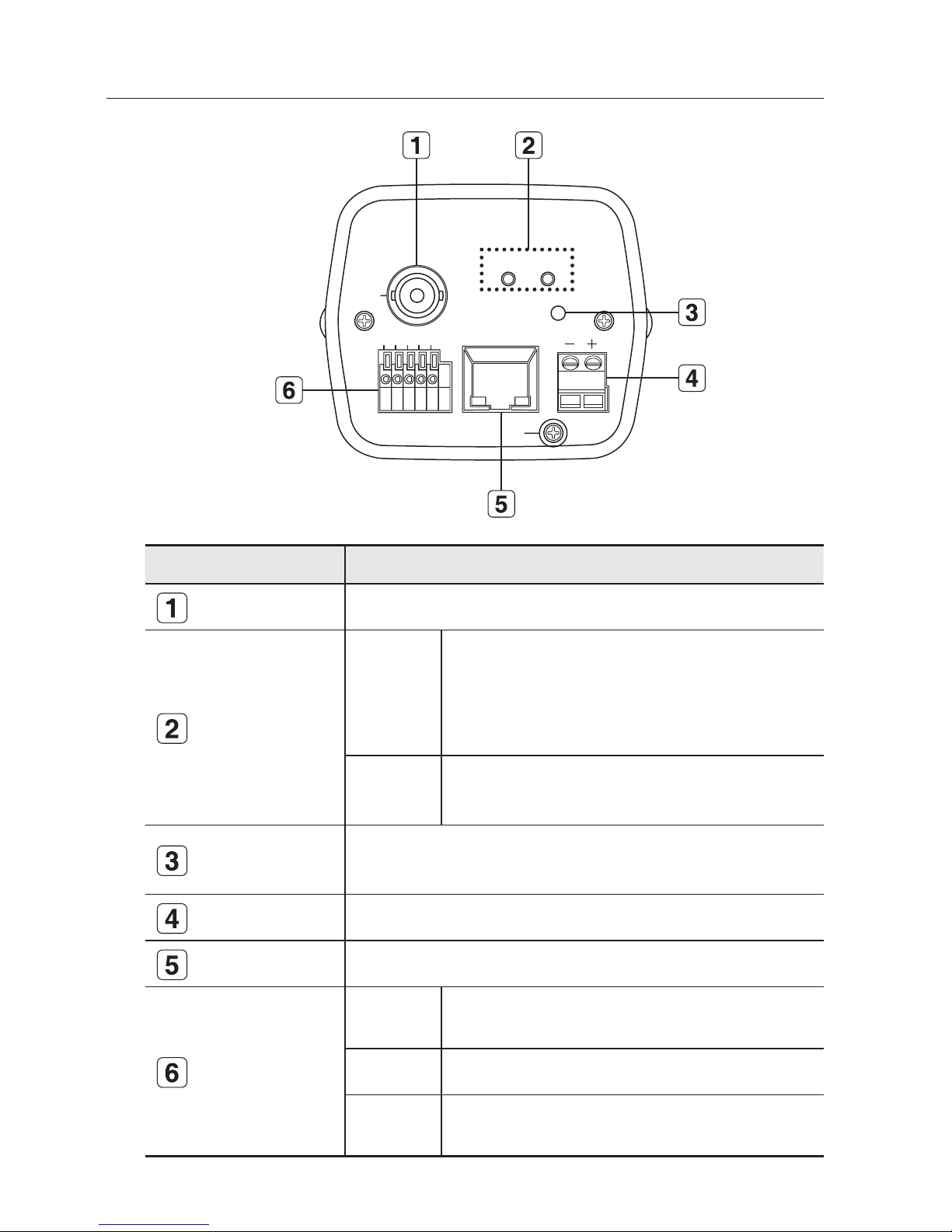

Rear Side
Item Description
Video Out Port Video signal output port connected to the monitor.
System, Power
Indicators
SYSTEM
ON: The camera is turned on and connected to the network
properly.
Blinking: During DDNS setup, or in case of setup failure, or
in a state of unstable network connection
OFF: When the system is rebooting, or turned off
POWER ON: While the power is on
OFF: If the power is off
Reset Button Resets the camera settings to the default. Press and hold it for about 3
seconds to turn off the system indicator and restart the system.
Power Port Used to plug the power cable.
Network Port Used to connect to the Network cable.
I/O Port
ALARM IN
1,2 Used to connect the alarm input signal.
GND Used for earth-grounding.
ALARM OUT
1,2 Used to connect the alarm output signal.
SYSTEM POWER
RESET
NETWORK
GND
1 2 3 4 5
VIDEO
AC 24V
LINK ACT
DC 12V
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

English _13
●INSTALLATION & CONNECTION
installation & connection
MOUNTING THE LENS
Disconnect the power before proceeding.
Mounting the CS lens
Turn the optional CS lens clockwise to insert it.
Mounting the C lens
Turn the C mount adaptor clockwise to insert it and do the same with the C lens.
CS Lens
C Lens

installation & connection
14_ installation & connection
Connecting the Auto Iris Lens connector
Insert the lens connector into the corresponding hole of the camera.
Focusing
Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.

English _15
●INSTALLATION & CONNECTION
CONNECTING WITH OTHER DEVICE
Connecting to the monitor
Connect the [VIDEO] port of the camera to the video input port of the monitor.
Network Connection
Connect the Network cable to the local network or to the Internet.
Power Supply
Use the screwdriver to connect each line of the power cable to the corresponding port of
the camera.
Be careful not to reverse the polarity when you connect the power cable.
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
J
Monitor
Network
Power
SYSTEM POWER
RESET
NETWORK
GND
1 2 3 4 5
VIDEO
AC 24V
LINK ACT
DC 12V
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

installation & connection
16_ installation & connection
Connecting to the I/O port box
Connect the Alarm I/O signal to the corresponding port of the rear port box.
ALARM IN 1, 2 : Used to connect the alarm input signal.
GND : Used for earth-grounding.
ALARM OUT 1, 2 : Used to connect the alarm output signal.
Alarm I/O Wiring Diagram
y
y
y
1
ALARM IN 1
ALARM OUT 1
ALARM OUT 2
ALARM IN 2
GND
2
3
4
5
External Relay
External Relay
SYSTEM POWER
RESET
NETWORK
GND
1 2 3 4 5
VIDEO
AC 24V
LINK ACT
DC 12V
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2
1 2 3 4 5
1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

English _17
●CAMERA SETUP
camera setup
You can configure the camera settings using the Web Viewer.
For accessing the Web Viewer, refer to "Network Connection and Setup". (page 26)
HOW TO USE THE KEYBOARD CONTROLLER
Follow the steps below if you run the Web Viewer for setting the menus.
Launch the Web Viewer.
From the [Camera OSD] menu in the left
pane, click [Menu].
The <MAIN MENU> screen appears.
Click the Up/Down (
▲▼
) buttons to move to a
desired item.
Click the four direction (
▲▼◄ ►
) buttons to navigate through the menu items.
To change the value of a selected item, click the Left/Right (
◄ ►
) buttons.
Click [ ].
Your changes will be applied.
: Exits the menu setup screen.
Before exiting the setup screen, select [SAVE] to save your settings, or [QUIT] to
cancel them.
: Saves your settings and returns to the previous screen.
: Use this icon if you want to save your settings after you specified the mask area and
privacy area, etc.
Once you saved your settings, the changes remain intact even if you select [QUIT] on
exit.
: Use this icon if you want to delete a mask, or privacy area, etc.
Once you deleted your settings, the deletions remain valid even if you select [QUIT] on
exit.
: This arrow appears next to a menu that contains sub items.
For the items with the "*" mark on the right, You can get help from "Terminology". (page 60)
M
1.
2.
3.
4.
5.
6.

18_ camera setup
camera setup
MAIN MENU
You can configure the camera settings to your preference.
PROFILE
You can select a mode that is appropriate to the
camera installation environment.
CAMERA SET
Configure the camera functions and settings.
PRIVACY ZONE
You can configure the privacy settings.
OTHER SET
You can configure more settings including
FACTORY DEFAULTS.
SYSTEM INFO
Shows the camera version and type.
PROFILE
You can select one from the pre-determined modes as appropriate to your specific camera installation
environment.
Your selection on each item in PROFILE will affect all other settings of the camera. For the setting,
refer to "PROFILE". (page 59)
For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 17)
STANDARD
Automatically optimizes the camera settings to
the normal environment.
ITS
This setting enables you to analyze the traffic
situation and take the traffic information at a glance.
BACKLIGHT
This setting enables you to view a sharp background
and objects even in a severe backlight scene.
DAY/NIGHT
Automatically optimizes the camera settings to the day and night scene.
GAMING
This automatically configures the settings so that you can work in a stable illumination
condition as indoors.
BANK
Automatically optimizes the camera settings to the bank environment.
CUSTOM
Your change to any of the PROFILE settings will switch the display to CUSTOM.
y
y
y
y
y
y
y
y
y
y
y
y
◄
PROFILE ►
*
*
STANDARD
STANDARD
ITS
ITS
BACKLIGHT
BACKLIGHT
DAY/NIGHT
DAY/NIGHT
GAMING
GAMING
BANK
BANK
CUSTOM
CUSTOM
**
**
MAIN MENU
MAIN MENU
**
**
PROFILE
CAMERA SET
CAMERA SET
PRIVACY ZONE
PRIVACY ZONE
OTHER SET
OTHER SET
SYSTEM INFO
SYSTEM INFO

English _19
●CAMERA SETUP
CAMERA SETUP
You can configure the general settings of the camera module.
Use the four direction (
▲▼◄ ►
) buttons to select a desired item.
CAMERA ID
Provide the ID and position for a camera that displays on the screen.
For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 17)
Select <CAMERA SET> - <CAMERA ID>.
Use the four direction (
▲▼◄ ►
) buttons to
select a desired character.
In the lower input box of the screen, the
selected character will be entered.
You can enter up to 54 characters including letters,
numbers and special characters.
When done, continue to select <LOCATION>
to specify the display position of the camera ID.
IRIS
You can set the iris to control the intensity of radiation entering to the camera.
For selecting and saving each menu item, refer to "How to use the keyboard controller". (page 17)
Select <CAMERA SET> - <IRIS>.
Use the left/right (
◄ ►
) buttons to select either
<ALC> or <ELC>.
ALC : Controls the luminance automatically.
LENS : Select a lens to use.
ELC : Controls the level electronically.
LEVEL : Select an overall brightness level.
BACKLIGHT : Specify an area to compensate
for the backlight.
With <AREA> set to <USER>, you can specify the position and size.
If the iris is set to <ALC>, fixing the iris is your priority when you adjust AE and the shutter speed.
1.
2.

3.
1.
2.
y
-
y
-
-
M
CAMERA ID
CAMERA ID
A
BCDEFGHIJKLMNOPQRSTUVWXYZO
BCDEFGHIJKLMNOPQRSTUVWXYZO
123456789
123456789
: ?
: ?
_
_
+
+
*()/
*()/
SP►► ◄◄ SP LOCATION
SP►► ◄◄ SP LOCATION
-
- - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - -
- - - - - - - - - - - - - - - - - - - - - - - - -
ALC
ALC
LENS
DC
LEVEL
LEVEL
[
[
00
00
]
]
----
----
I
I
----
----
BACKLIGHT OFF
BACKLIGHT OFF

20_ camera setup
camera setup
MOTION
You can specify a level of AGC for controlling the
camera motion.
Select F.FAST if you want to monitor a very fast
moving object in a low contrast scene, and S.SLOW
if monitoring a very slow moving, inanimate object in
the same condition.
As long as DAY/NIGHT is set to AUTO, the
<MOTION> menu is not available.
DNR
Reduces the noise on the screen.
This is useful, especially for a noisy screen.
Set it to <USER>, you can specify the level.
SHUTTER
The SHUTTER menu is used to set the fixed fast
electronic shutter or auto fast electronic shutter.
SENS-UP
If the brightness of the video signal is too low, the
Slow Shutter function will be activated.
Slow Shutter can collect the individual max frame rate to adjust the setting.
FLICKERLESS
If set to <ON>, the shutter speed will be fixed to 1/100 second. This will prevent possible
screen distortion due to a mismatch between the vertical sync frequency and the blinking
frequency of the lighting.
If IRIS is set to ELC / SHUTTER to AUTO, FIX, EXT mode / SENSE UP to FIX / AGC to FIX, the <DIS> menu
will be disabled.
XDR
This will correct a brightness difference between different scenes for the optimal visibility.
The higher the value is, the higher the correction level is.
DIS
Automatically compensates for the flicker on the screen.
If set to <ON>, the image will be enlarged with digital zoom as much area as
compensated.
If you set DIS to ON, the compensation area will be enlarged as set in the digital zoom factor.
If you set the digital zoom factor to greater than the enlarged zoom factor for the compensation, the DIS
function will be deactivated.



◄
CAMERA SET ►
CAMERA ID ON
CAMERA ID ON
IRIS ALC
IRIS ALC
MOTION (F.FAST)
MOTION (F.FAST)
---
---
DNR MID
DNR MID
SHUTTER OFF
SHUTTER OFF
SENS-UP AUTO X4
SENS-UP AUTO X4
FLICKERLESS OFF
FLICKERLESS OFF
XDR MID
XDR MID
DIS OFF
DIS OFF
DAY/NIGHT
AUTO
WHITE BAL
WHITE BAL
DIGITAL ZOOM OFF
DIGITAL ZOOM OFF
DETAIL
DETAIL
[
[
2
2
]
]
AGC COLOR SUP MID
AGC COLOR SUP MID
POSI/NEGA +
POSI/NEGA +
PIP OFF
PIP OFF
