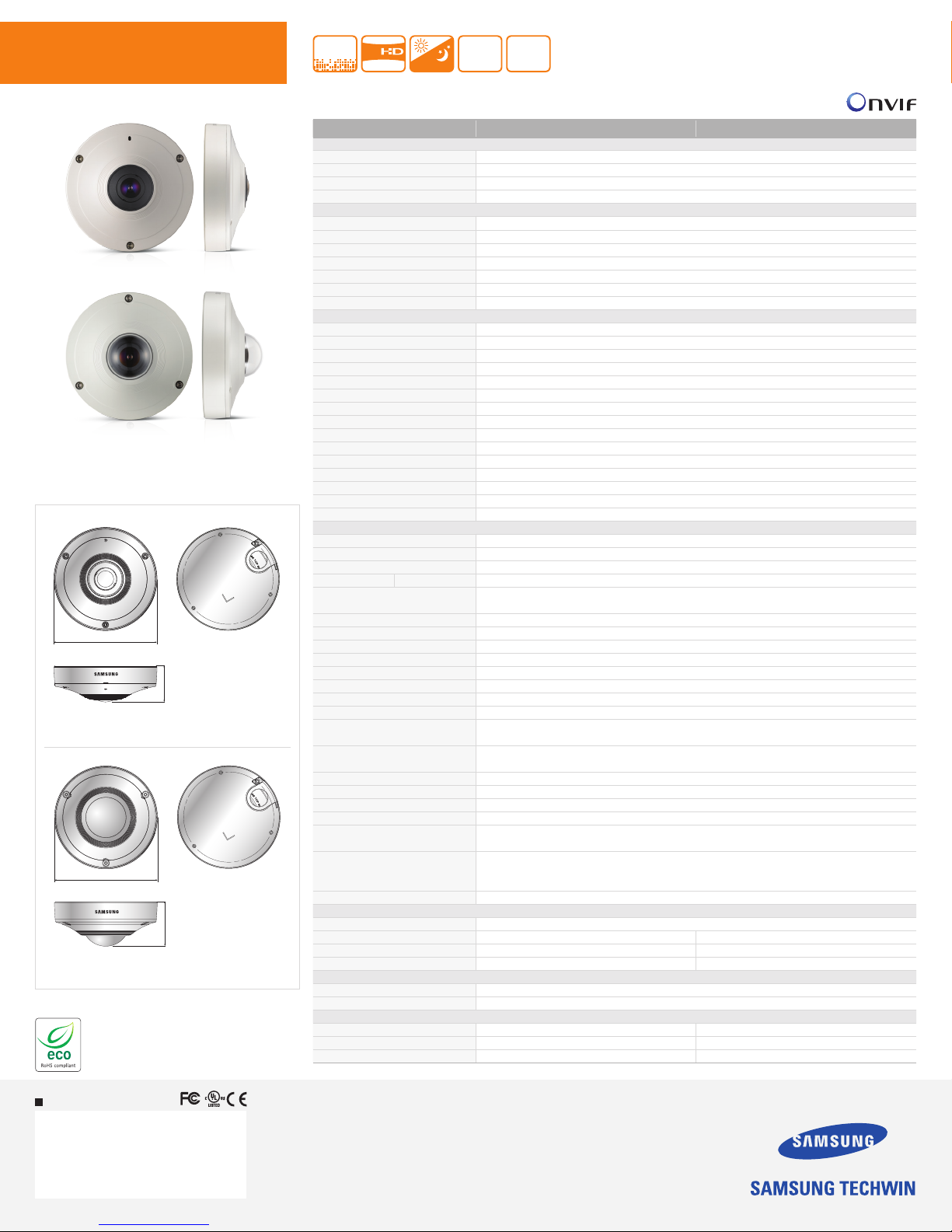

Samsung SNF-7010 User manual

www.samsung-security.com
FIRST EDITION 09-2013
The SNF-7010/7010V features our most advanced technology with 3 megapixel
high-definition 360-degree images. This camera's fisheye lens creates an
omnidirectional surveillance device and allows multiple viewing modes. Defined
motion detection zones can create events for capture to the on-board SDXC storage
or transmission to central monitoring software.
• 360° fisheye, Single panorama, Double panorama, Quad,
User selectable region, Single rectangle, 1 original,
3 megapixels, 1080p 20fps
• Digital PTZ, Bi-directional audio
• SDXC support
• IP66, IK10 and EN50155 certifications (SNF-7010V)

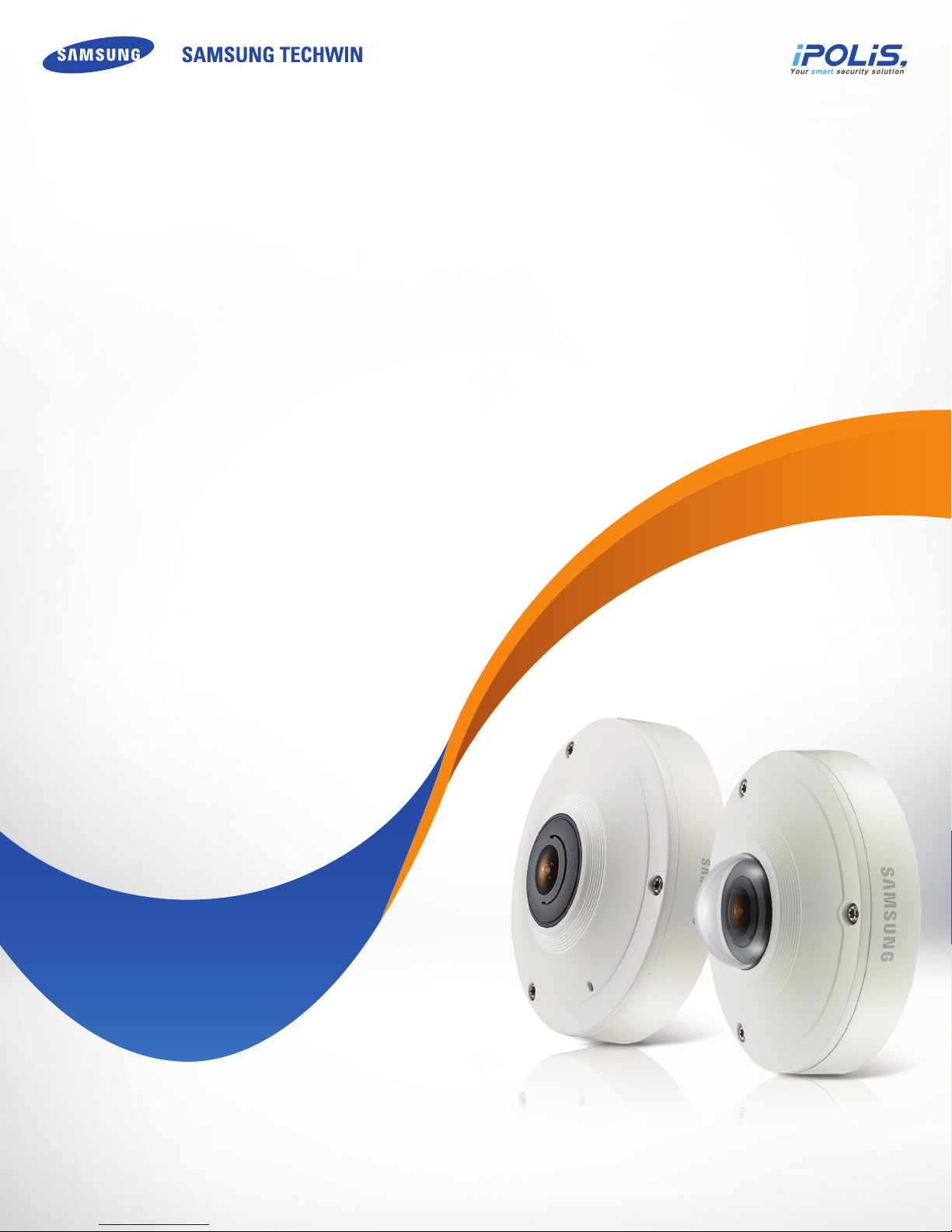

The Complete 360
SNF-7010/7010V
360 Degree Fisheye Camera

I.E-1309
DISTRIBUTED BY
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
360 Degree Fisheye Camera
SNF-7010/7010V
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]
3M
E-D&N
PoEWDR
Full
1080p
Specifications
SNF-7010 SNF-7010V
VIDEO
Imaging Device 1/2.8" 3M PS CMOS
Total Pixel 3megapixel
Scanning System Progressive
Min. Illumination 1.3Lux
LENS
Focal length 1.05mm
Max. Aperture ratio F2.8
Angular Field of View H : 180° / V : 170° / D : 180°
Min. Object Distance 0.3m
Lens Type Fixed focal
Mount Type Board-in type
Lens Angle Adjustment Rotation : 0°~ 355°
OPERATIONAL
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (Electrical) / Color / B/W
Backlight compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)
Digital Noise Reduction SSNRIII (2D+3D noise filter) (Off / On)
Defog Off / On
Motion Detection Off / On (4ea 4points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Min / Max / Flicker off / 50Hz / 60Hz / (1s~ 1/12,000s)
Intelligent Video Analytics Audio detection, Tampering
Alarm I/O Input 1ea / Output 1ea
Alarm Triggers Motion detection, Network disconnection
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264, MJPEG
Max. Framerate (Raw) 3M 20fps
Dewarping Client Smart Viewer
Viewing Composition Camera : 360° fisheye / Client : single panorama, Double panorama, Quad, User selectable region,
Single rectangle, 1 original, 3 rectangle, 1 panorama + 2 rectangle
Digital PTZ Digital PTZ
Video Quality Adjustment H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 6 profiles)
Audio I/O Built-in microphone, mic in/out
Audio Compression Format G.711 u-law, G.726 (16Kbps, 24Kbps, 32Kbps, 40Kbps)
Audio Communication Bi-directional
IP IPv4, IPv6
Protocol TTCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP,
IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Encryption TLS 1.0, SSL VPN, Video data encryption
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Memory Slot SD/SDHC/SDXC memory slot
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Denish, Portuguese,
Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian
Web Viewer
Supported OS : Windows XP / VISTA / 7, MAC OS X 10.7 or higher (32bit and 64bit OS)
Supported Browser : Internet Explorer 7.0 or higher, Firefox 9.0 or higher, Chrome 15.0 or higher,
Safari 5.1 or Higher, 64bit OS (32bit Web Browser)
Central Management Software Smart Viewer
ENVIRONMENTAL
Operating Temperature / Humidity PoE : -10°C ~ +55°C (-34°F ~ +140°F) / ~ 90% RH
Ingress Protection N/A 1P66 grade
Vandal Resistance N/A IK10
Railway Certificate N/A EN50155
ELECTRICAL
Input Voltage / Current PoE (IEEE802.3af, Class1)
Power Consumption Max. 6.5W
MECHANICAL
Demensions (W x H) Ø128.8 x 45.0mm (Ø5.07" x 1.77") Ø128.8 x 55.7mm (Ø5.07" x 2.19")
Color / Material Ivory / Aluminum (PC) Ivory / Aluminum
Weight 480g (1.06 lb) 610g (1.34 lb)
Dimensions
Unit : mm (inch)
45.0 (1.77")
Ø128.8 (5.07")
55.7 (2.19")
Ø128.8 (5.07")
Ø128.8 (5.07")
Ø128.8 (5.07")
45.0 (1.77")55.7 (2.19")
SNF-7010
SNF-7010
SNF-7010V
SNF-7010V
