NETWORK CAMERA
User Manual SNP-6200/SNP-6200H

Copyright
©2013 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall
be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no
formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own
responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password
after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible
for the user.
Network Camera
User Manual

English _3
●OVERVIEW
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong are provided for
your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when unused for
long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
overview

overview
4_ overview
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC
OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS
ON THE EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that no objects
filled with liquids, such as vases, shall be placed on the apparatus.
To prevent injury, this apparatus must be securely attached to the Wall/ceiling
in accordance with the installation instructions.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of “dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.

English _5
●OVERVIEW
Battery
Batteries(battery pack or batteries installed) shall not be exposed to excessive
heat such as sunshine, fire or the like.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
These servicing instructions are for use by qualified service personnel only.
To reduce the risk of electric shock do not perform any servicing other than
that contained in the operating instructions unless you are qualified to do so.
The BNC Out terminal of the product is provided for easier installation, and is
not recommended for monitoring purposes.
If you keep the BNC cable connected, a risk of lightening may cause damage
or malfunction to the product.
Please use the input power with just one camera and other devices must not
be connected.
The ITE is to be connected only to PoE networks without routing to the
outside plant.

overview
6_ overview
Please read the following recommend safety precautions carefully.
yDo not place this apparatus on an uneven surface.
yDo not place this apparatus near conductive material.
yDo not attempt to service this apparatus yourself.
yDo not install near any magnetic sources.
yDo not block any ventilation openings.
yDo not place heavy items on the product.
yDo not expose the camera to radioactivity.
User’s Manual is a guidance book for how to use the products.
The meaning of the symbols are shown below.
yReference : In case of providing information for helping of product’s usages
yNotice : If there’s any possibility to occur any damages for the goods and
human caused by not following the instruction
Please read this manual for the safety before using of goods and keep it in
the safe place.

English _7
●OVERVIEW
CONTENTS
OVERVIEW
3
3Important Safety Instructions
9Product Features
9Recomended PC Specifications
10 Recomended SD/SDHC Memory
Card Specifications
10 What’s Included
12 At a Glance (SNP-6200)
15 At a Glance (SNP-6200H)
INSTALLATION &
CONNECTION
17
19 DIP Switch Setting (SNP-6200H)
29 Installation
42 Inserting/Removing a SD Memory
Card
43 Memory Card Information (Not
Included)
NETWORK CONNECTION
AND SETUP
44
44 Connecting the Camera Directly
to Local Area Networking
45 Connecting the Camera Directly
to a DHCP Based DSL/Cable
Modem
46 Connecting the Camera Directly
to a PPPoE Modem
47 Connecting the Camera to a
Broadband Router with the
PPPoE/Cable Modem
48 Buttons used in IP Installer
49 Static IP Setup
53 Dynamic IP Setup
54 Port Range Forward (Port
Mapping) Setup
56 Connecting to the Camera from a
Shared Local PC
56 Connecting to the Camera from a
Remote PC via the Internet

overview
8_ overview
SETUP SCREEN
71
71 Setup
71 Audio & Video Setup
90 Network Setup
99 Event Setup
112 System Setup
APPENDIX
118
118 Specification
122 Product Overview
124 Troubleshooting
126 Open source license notification
on the product
WEB VIEWER
57
57 Connecting to the Camera
58 Login
59 Installing ActiveX
60 Installing Silverlight Runtime
62 Using the Live Screen
66 Playing the recorded video

English _9
●OVERVIEW
PRODUCT FEATURES
•Full HD Video Quality
•Multi-Streaming
This network camera can display videos in different resolutions and qualities
simultaneously using different CODECs.
•Web Browser-based Monitoring
Using the Internet web browser to display the image in a local network environment.
•Alarm
If an event occurs, the event-related video will be transferred to the FTP/email specified
by the user or saved to the SD memory, or the event signal will be sent to the Alarm Out
port.
•Motion Detection
Detects motion from the camera’s video input.
•Intelligent Video Analysis
Analyzes video to detect logical events of specified conditions from the camera’s video
input.
•Auto Detection of Disconnected Network
Detects network disconnection before triggering an event.
•ONVIF Compliance
This product supports ONVIF.
For more information, refer to www.onvif.org.
RECOMENDED PC SPECIFICATIONS
•CPU : Intel Core 2 Duo 2.6GHz or higher
•Operating System : Microsoft Windows 7/VISTA/XP SP3, Apple MAC OS
•Resolution : 1280X1024 pixels or higher
•RAM : 2GB or higher
•Web Browser :
Firefox, Google Chrome, *Apple Safari, Windows Internet Explorer 9.0(32bit)
/8.0(32bit)/7.0(32bit)
`Neither a beta test version unlike the version released in th.e company website nor the developer version will
be supported.
`It is recommended to connect to IPv6 in Windows 7.
`For Mac OSX, only the Safari browser is supported.

overview
10_ overview
•Video Memory : 256MB or higher
J
`If the driver of the video graphic adapter is not installed properly or is not the latest version, the
video may not be played properly.
`For a multi-monitoring system involving at least 2 monitors, the playback performance can be
deteriorated depending on the system.
`It is advisable to use Intel Core 2 Duo 2.93GHz or higher in a multi-browser environment.
RECOMENDED SD/SDHC MEMORY CARD SPECIFICATIONS
•4GB ~ 32GB
•For your camera, we recommend you use a memory card from the following
manufacturers:
SD/SDHC Memory Card : Sandisk, Transcend
•It is recommended to use memory cards of at least class 6 speed.
WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Appearance Item Name Quantity Description Model Name
Camera 1
SNP-6200/SNP-6200H
User Manual,
Installer S/W CD,
CMS S/W DVD
2
Quick Guide 1

English _11
●OVERVIEW
Appearance Item Name Quantity Description Model Name
Warranty card 1
SNP-6200/SNP-6200H
BNC cable 1
Used to test the camera
connection to a portable display
device
Installation base 1If installing it indoors or in a
ceiling housing
SNP-6200
Tapping Screw 3Used for installation on the wall
or ceiling
Template 1Product installation guide
Hexagon screw 3Used for attaching the
installation base to the camera
SNP-6200H
L Wrench 1
Used for fixing the installation
base after attaching it to the
camera
Installation base 1Bracket for mounting outdoors

overview
12_ overview

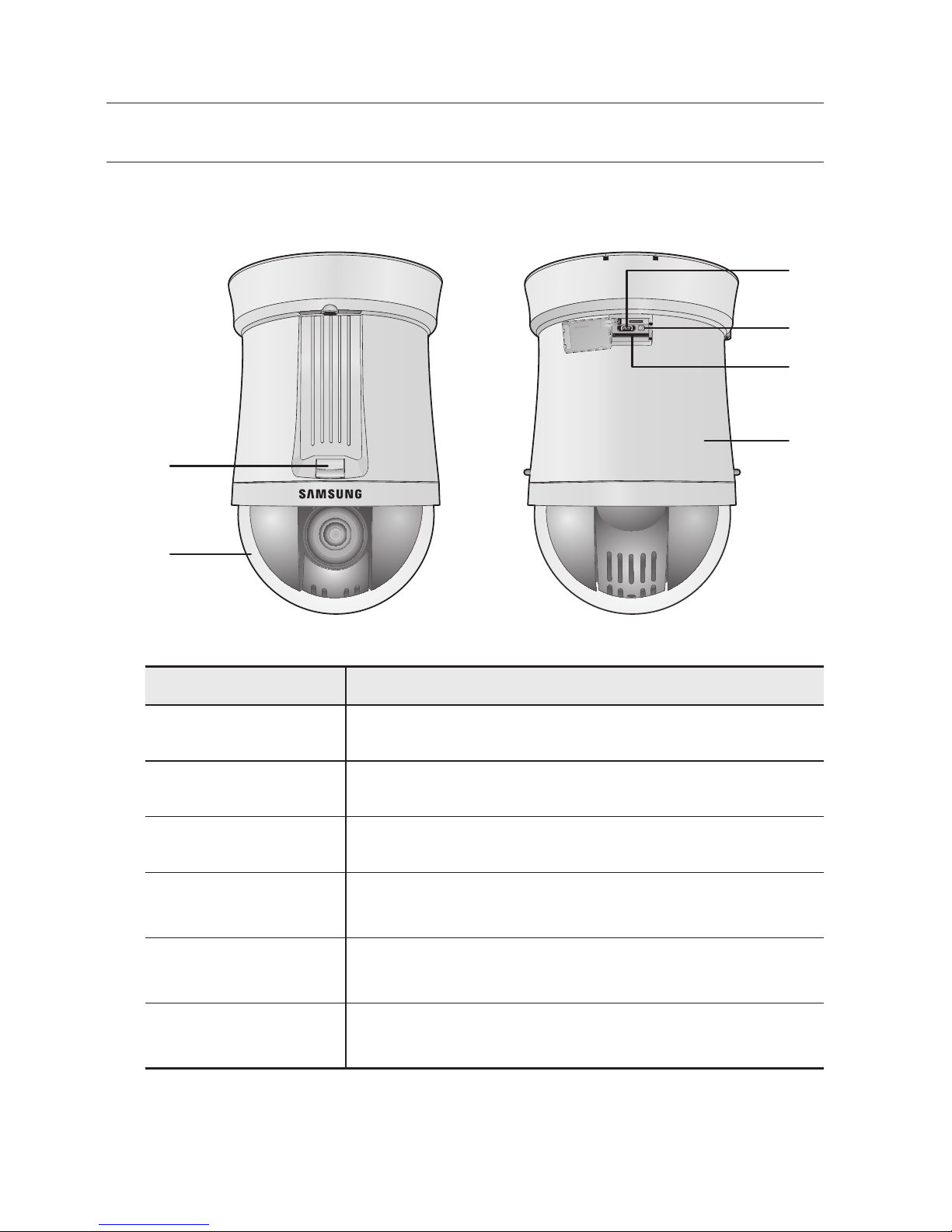

AT A GLANCE (SNP-6200)
Appearance
Item Description
a
Unlock button Used if installing the camera in the installation base.
b
Dome Cover Dome cover for the lens and unit protection.
c
Main unit Protect the internal PTZ mechanism from the direct sunlight.
d
SD Memory Card
Compartment Compartment for the SD memory card.
e
Reset Button Pressing and holding this button for about 5 seconds will reset all camera
settings to the factory default.
f
After Service Port
(A/S port) This is for the repair purpose only that is not available for the user.
a
b
c
e
d
f

English _13
●OVERVIEW
Bottom View of Installation
Base
Item Description
a
Communications
Setup Switch Set the transfer rate and protocols.
b
ID Setup Switch Specify the camera ID.
c
Safety cable hook Cable hook that is designed for preventing an accidental fall of the product.
d
Communications
and AUX Ports Used for RS-485 communications.
e
Network
Connections Used to connect a PoE+ or LAN cable.
f
Audio Input Port Used to connect the audio input cable. (Mono jack plug is not supported.)
Inner View of Installation Base
NO
SW1
SW2
a
b
c
2N.C
2N.0
COM2
1N.C
1N.0
COM1
GND
IN4
IN3
GND
IN2
IN1
Alarm
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
AXICOM IMO3 5VDC AXICOM IMO3 5VDC AXICOM IMO3 5VDC
Video Out
AUDIO_OUTAUDIO_IN
Power
AC 22~26V
Alarm2 ONAlarm1 ON
D+ D- TXD+
TXD-
GND
A.COM
A.NO
h
i
fd g
j
e

overview
14_ overview
Item Description
g
Audio Output Port Used to connect the audio output cable. (Mono jack plug is not supported.)
h
Alarm I/O Port Used to connect the alarm I/O cable.
i
Power Port Used to connect the power.
j
Video Out Port Analog video output port. (for installation)

English _15
●OVERVIEW
AT A GLANCE (SNP-6200H)
Appearance
Item Description
a
Main unit Protects the internal PTZ mechanism from the direct sunlight, rain or
external impact.
b
Dome Cover Dome cover for the lens and unit protection.
c
Safety cable hook Cable hook that is designed for preventing an accidental fall of the product.
c
a
b

overview
16_ overview
Bottom View of Installation
Base
Item Description
a
Communications
Setup Switch Set the transfer rate and protocols.
b
ID Setup Switch Specify the camera ID.
c
Communications
and AUX Ports Used for RS-485 communications.
d
Audio Input Port Used to connect the audio input cable. (Mono jack plug is not supported.)
e
Audio Output Port Used to connect the audio output cable. (Mono jack plug is not supported.)
f
Network
Connections Used to connect a PoE+ or LAN cable.
g
Video Out Port Analog video output port. (for installation)
h
Power Port Used to connect the power.
i
Alarm I/O Port Used to connect the alarm I/O cable.
Inner View of Installation Base
ba
2N.C
2N.0
COM2
1N.C
1N.0
COM1
GND
IN4
IN3
GND
IN2
IN1
Alarm
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
AXICOM IMO3 5VDC AXICOM IMO3 5VDC AXICOM IMO3 5VDC
Video Out
AUDIO_OUTAUDIO_IN
Power
AC 22~26V
Alarm2 ONAlarm1 ON
D+ D- TXD+
TXD-
GND
A.COM
A.NO
fg i
c d e
h

English _17
●INSTALLATION & CONNECTION
`Camera Wiring Interface Board
For the camera wiring, please refer to the picture below.
installation & connection
2N.C
2N.0
COM2
1N.C
1N.0
COM1
GND
IN4
IN3
GND
IN2
IN1
Alarm
IN1 IN2 GND IN3 IN4 GND 1C0M 1.N0 1.NC 2C0M 2.N0 2.NC
AXICOM IMO3 5VDC AXICOM IMO3 5VDC AXICOM IMO3 5VDC
Video Out
AUDIO_OUTAUDIO_IN
Power
AC 22~26V
Alarm2 ONAlarm1 ON
D+ D- TXD+
TXD-
GND
A.COM
A.NO
D+ D- TX+ TX- GND COM N.O
Video
Output
Communications and AUX
Refer to Control Signal
Connection Diagram
Power Supply
AC24V 2.5A
Alarm
ETHERNET
Audio IN
Alarm output
Alarm Input
Power Input
AUX Output
Ground
Audio OUT

installation & connection
18_ installation & connection
Control Signal Connection
• RS-485 Communications
D+
D-
TXD+
TXD-
Camera Controller
• RS-422 Communications
D+
D-
TXD+
TXD-
TX+
TX-
RXD+
RXD-
Camera Controller
J
`The maximum power capacity of the alarm and AUX outputs is 30VDC/2A, 125VAC/0.5A, and
250VAC/0.25A.
`When connecting alarm input and output cables, be sure to connect one cable to each terminal
respectively.
`To connect products over the camera’s capacity, please use an additional relay device.
`Connecting the power connector and GND incorrectly to the NC/NO and COM ports can cause a
short circuit which may lead to fire and damage the camera.

English _19
●INSTALLATION & CONNECTION
DIP SWITCH SETTING (SNP-6200H)
How to set up Protocols and ID DIP Switches
You can control various settings of the camera system using the Communication and ID
DIP switches. Before installing the product, please set up the DIP switches according to the
installation environment.
1. Set the switches according to your installation environment. For more detailed setup
information, please refer to the chart on the next page.
2. The camera may malfunction if the switches are not fully turned On/Off; please
double check the switches before finishing setup.
Communication Protocol DIP Switch Settings (SW2)
ON
OFF
SW2
ON
Communication Protocol
DIP Switch (SW2)
Camera ID DIP Switch (SW1)

installation & connection
20_ installation & connection
SW2 Pin No. Purpose
1~4 Protocol Settings
5~6 Baud Rate Settings
7Transfer Method (RS-485/422) Settings
8Response Mode Settings
9RESERVED
10~11 Termination Settings
12 RESERVED
•Protocol Settings
Select a communication protocol for the camera.
No. Protocol SW2-#1 SW2-#2 SW2-#3 SW2-#4
1Samsung(Default) OFF OFF OFF OFF
2Pelco-D OFF OFF OFF ON
3Pelco-P OFF OFF ON OFF
4Samsung Elec. OFF OFF ON ON
5Panasonic OFF ON OFF OFF
6Vicon OFF ON OFF ON
7Honeywell OFF ON ON OFF
8AD OFF ON ON ON
9GE ON OFF OFF OFF
10 BOSCH ON OFF OFF ON
11 Reserved ON OFF ON OFF
12 Reserved ON OFF ON ON
13 Reserved ON ON OFF OFF
14 Reserved ON ON OFF ON
15 Reserved ON ON ON OFF
16 Reserved ON ON ON ON
