SAFETY INFORMATION
SAFETY WARNINGS
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN.
This symbol indicates that high voltage is
present inside. It is dangerous to make any
kind of contact with any internal part of this
product.
This symbol indicates that this product has
included important literature concerning
operation and maintenance.
Class II product : This symbol indicates that it does not require a safety connection to electrical
earth (ground).
AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC
voltage.
DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC
voltage.
Caution, Consult Instructions for use : This symbol instructs the user to consult the user
manual for further safety related information.
WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
• This apparatus shall always be connected to a AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the
mains plug shall be readily operable.
CAUTION
• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on
the apparatus.
• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the
power plug must be easily and readily accessible at all times.

· 2 · English
PRECAUTIONS
1. Ensure that the AC power supply in your house complies with the power requirements listed on the identification
sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with
enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not covered. Do not place the
unit on amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn
off the unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long
period of time.
2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage
the unit.
3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the unit
to malfunction.
4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong
magnetic or electric fields. Disconnect the power cable from the AC supply if the unit malfunctions. Your product is
not intended for industrial use. It is for personal use only. Condensation may occur if your product has been stored
in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours until the unit has reached
room temperature before using.
5. The batteries used with this product contain chemicals that are harmful to the environment.
Do not dispose of batteries in the general household trash. Do not dispose of batteries in a fire. Do not short circuit,
disassemble, or overheat the batteries. There is a danger of explosion if the battery is incorrectly replaced. Replace
only with the same or equivalent type.
WARNING, DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD,
The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is
swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries
away from children. If the battery compartment does not close securely, stop using the product and keep it away from
children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate
medical attention.

· 3 · English
UNPACKING
Main Unit Subwoofer Remote Control / Battery
Micro USB to USB adapter
Cable Optical Cable
cThe package also includes wall
mounting hardware. See page 8.
CONNECTING ELECTRICAL POWER
Use the following accessories to connect the Soundbar to electrical power.
cFor more information about the power supply and power consumption, refer to the label attached to the
product. (Label : Bottom of main unit)
Main Unit Subwoofer
Power Cord AC/DC Adapter Power Cord AC/DC Adapter
DC 19V
DC 19V
AC/DC Adapter
DC 19V
(Power Jack) DC 19V
(Power Jack)
AC/DC Adapter
cMake sure to rest the AC/DC Adapters flat on a table or the floor. If you place an AC/DC Adapter so that it is
hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter
and cause the Adapter to malfunction.
Top

· 4 · English
CONNECTING THE SUBWOOFER TO THE MAIN UNIT
You can enjoy rich bass tones and better sound quality by linking the subwoofer to the main unit.
Main Unit
Subwoofer
The main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are
turned on. When auto-connection is complete, the blue indicator on the rear of the subwoofer stops blinking and
glows blue continuously. The subwoofer's LED indicator modes are listed below:
󱂓blue
Auto-connection is complete.
󱂔blue
blinking
Auto-connection is not complete.
󱂕blue
is not lit
a. Is the power cord plugged into the outlet? If not, connect the power plug to the outlet.
b. If the power cord is plugged in correctly, check the main unit. If your main unit is off (in standby
mode), the subwoofer will also be in standby mode and the blue LED won't be lit.
cIf the indicator on the rear of the subwoofer does not glow continuously in blue, the subwoofer has not
connected. If this occurs, follow the directions below to connect the subwoofer manually.
cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.
1. Plug the power cords of the main unit and subwoofer into an AC wall outlet.
2. Press the ID SET button on the rear of the subwoofer with a small, pointed object for 5 seconds.
cThe LINK indicator (Blue LED) on the subwoofer blinks quickly.
3. Press the button on your remote control for 5 seconds while the main unit is turned OFF.
4. The ID SET message appears on the display of the main unit for a short period of time, and then disappears.
ID SET

· 5 · English
5. While the subwoofer's indicator is blinking blue, press the button on your remote control or on the right
side of the main unit to turn on the main unit.
6. The connection is complete if the indicator on the rear of the subwoofer stops blinking and glows
continuously.
cIf the connection process fails, the blue indicator will flash continuously. Go back to Step 2 and start again.
Expand to true wireless surround sound by connecting the Samsung Wireless Rear
Speaker Kit (SWA-8000S) to your Soundbar. (Sold separately)
cFor further information, refer to the Web Manual.
CONNECTING TO YOUR TV
You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.
cImportant: Before you begin, put the battery into the remote. See page 12 for instructions.
Method 1. Connecting with a Cable
DIGITALAUDIO IN
(OPTICAL)
USB (5V 0.5A)
AUX IN
DC 19V
OPTICAL OUT
DIGITAL AUDIO IN
(OPTICAL)
Optical Cable
Bottom of main unit
Check the DIGITAL AUDIO IN (OPTICAL)
port of the main unit. Check the OPTICAL OUT
port of your TV.
1. Connect the DIGITAL AUDIO IN (OPTICAL) jack on the Soundbar to the OPTICAL OUT jack of the TV with
a digital optical cable.
2. Press the button on the right side of the Soundbar or the SOURCE button on the remote control to
select the D.IN mode.
D.IN
cIf you have connected the main unit to a TV with a digital optical cable, you can set Auto Power Link to ON
and have the Soundbar turn on automatically when you turn the TV on.
cThis function is only available when the Soundbar is in the D.IN mode.

· 6 · English
Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)
1. Turn on your Samsung TV and the Soundbar.
2. Select TV mode in your Soundbar display by pressing the button on the right side of the Soundbar or
the SOURCE button on your remote control. (Modes are displayed in the following order: D.IN →AUX →BT
→TV →USB.)
3. When the connection message shown below appears on the TV screen, select <Yes> with your TV remote
control.
Samsung Audio Device detected.
Do you want to hear TV sound
through this device?
Device Name: [Samsung] Sound...
Yes No
Select <Yes> with your TV remote control.
4. The Soundbar outputs TV sound.
cIf the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select Add
New Device, and set Add New Device to ON. Then, try again.
cIf your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the volume
with the Soundbar's remote or the TV's remote. You can also have the Soundbar turn on and off automatically
when you turn the TV on or off by setting the Bluetooth POWER On function to On. See page 12.
cThe TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since
2012.
cIf you want to disconnect the existing connection to your TV and establish a new connection to another TV,
press the &button on your remote control for more than 5 seconds.
cIn the TV SoundConnect mode, the Soundbar cannot be paired or connected to another Bluetooth device.
cDo not place electronic devices or metallic objects on top of the product.
e.g., Wired/wireless router, set-top box, or modem.
cPlacing the product on the floor may degrade wireless network performance, depending on the floor material.

· 7 · English
CONNECTING TO AN EXTERNAL DEVICE
Optical Cable
You can enjoy sound from separate external devices such as a BD player/game console/set-top box, etc. by
connecting them to your Soundbar.
DIGITALAUDIO IN
(OPTICAL)
USB (5V 0.5A)
AUX IN
DC 19V
DIGITAL AUDIO IN
(OPTICAL)
OPTICAL OUT
Bottom of Soundbar
External Device
Optical Cable
1. Connect an Optical Cable as shown in the picture above.
2. Press the button on the right side of your Soundbar or the SOURCE button on your remote control to
select D.IN mode.
3. The Soundbar shows D.IN on its display and outputs sound from the connected device.
USB
You can play music files located on USB storage devices through the Soundbar.
DIGITALAUDIO IN
(OPTICAL)
USB(5V 0.5A)
AUXIN
DC19V
USB (5V 0.5A)
Display
USB port
Micro USB to USB
adapter
1. Connect a Micro USB to USB adapter with a male USB 2.0 Micro USB plug (Type B) on one end and a
standard female 2.0 USB jack (Type A) on the other end to the micro USB jack on your Soundbar.
2. Connect your USB device to the female end of the adapter cable.
3. Press the button on the main unit’s right side or the SOURCE button on the remote control to select the
USB mode.
4. USB appears on the display screen.
• The Soundbar connection to the USB device is complete.
• The Soundbar automatically turns off (Auto Power Off) if no USB device has been connected for more
than 5 minutes.

· 8 · English
INSTALLING THE WALL
MOUNT
You can use the wall mount bracket to mount this unit
on a wall.
Installation Precautions
• Install on a vertical wall only.
• For the installation, avoid a location with high
temperature or humidity, or a wall that cannot
sustain the weight of the set.
• Check the strength of the wall. If the wall is not
strong enough to support the unit, reinforce the
wall or install the unit on a different wall that can
support the unit's weight.
• Purchase and use the fixing screws or anchors
appropriate for the kind of wall you have (plaster
board, iron board, wood, etc.). If possible, fix the
support screws into wall studs.
• Purchase wall mounting screws according to the
type and thickness of the wall you will mount the
Soundbar on.
- Diameter: M5
- Length: 35 mm or longer recommended.
• Connect cables from the unit to external devices
before you install it on the wall.
• Make sure the unit is turned off and unplugged
before you install it. Otherwise, it may cause an
electric shock.
Accessories for Wall-mounting
(Wall Mount L) (Wall Mount R)
Bracket-Wall Mount (2 EA)
Holder-Screw (2 EA) Screw (2 EA)
Wall Mount Guide

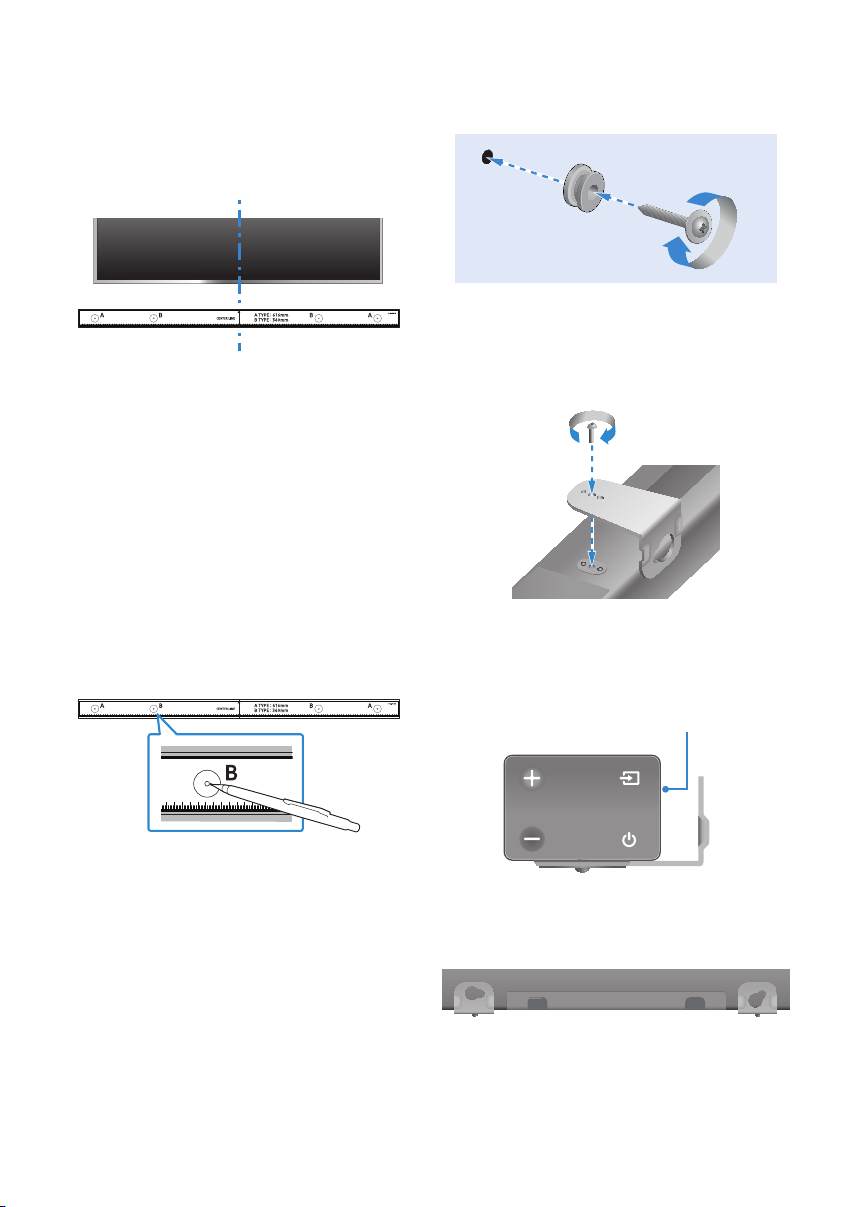

1. Place the Wall Mount Guide against the wall
surface.
• The Wall Mount Guide must be level.
• If your TV is mounted on the wall, install the
Soundbar at least 5 cm below the TV.
5 cm or more

· 9 · English
2. Align the Wall Mount Guide's Centre Line with the
centre of your TV (if you are mounting the
Soundbar below your TV), and then fix the Wall
Mount Guide to the wall using tape.
cIf you are not mounting below a TV, place the
Centre Line in the centre of the installation area.
Centre Line
3. Push a pen tip or sharpened pencil tip through the
centre of the B-TYPE images on each end of the
Guide to mark the holes for the supporting
screws, and then remove the Wall Mount Guide.
4. Using an appropriately sized drill bit, drill a hole in
the wall at each marking.
cIf the markings do not correspond to the
positions of studs, make sure you insert
appropriate anchors or mollies into the holes
before you insert the support screws. If you use
anchors or mollies, make sure the holes you drill
are large enough for the anchors or mollies you
use.
5. Push a screw (not supplied) through each
Holder-Screw, and then screw each screw
firmly into a support screw hole.
6. Use the two Screws (M4 x L14) to attach both
Bracket-Wall Mount L and Rto the Soundbar's
bottom. For a proper fit, make sure to align the
bumps on the Soundbar to the holes on the
brackets.
• When assembling, make sure the hanger part
of the Bracket-Wall Mounts are located behind
the rear of the Soundbar. See the illustration
below.
Rear of Soundbar
Right end of Soundbar
• The left and right mounts are different shapes.
Make sure to position them correctly.
Wall Mount LWall Mount R

· 10 · English
7. Install the Soundbar with the attached Bracket-
Wall Mount by hanging the Bracket-Wall Mount
on the Holder-Screws on the wall.
• Slightly tilt the Soundbar to insert both
Holder-Screw heads into Bracket-Wall
Mount holes. Push the Soundbar in the
direction of the arrow to make sure both sides
are firmly fixed.
DETACHING THE SOUNDBAR
FROM THE WALL
1. To separate the Soundbar from the wall, push it in
the direction of the arrow, tilt it up slightly, and
then pull it away from the wall as shown.
cDo not hang onto the installed unit and avoid
striking or dropping the unit.
cSecure the unit firmly to the wall so that it does
not fall off. If the unit falls off, it may cause an
injury or damage the product.
cWhen the unit is installed on a wall, please make
sure that children do not pull any of the
connecting cables, as this may cause it to fall.
cFor the optimal performance of a wall mount
installation, install the speaker system at least
5 cm below the TV, if the TV is mounted on the
wall.
cFor your safety, if you do not mount the unit on
the wall, install it on a secure, flat surface where it
is unlikely to fall.

· 11 · English

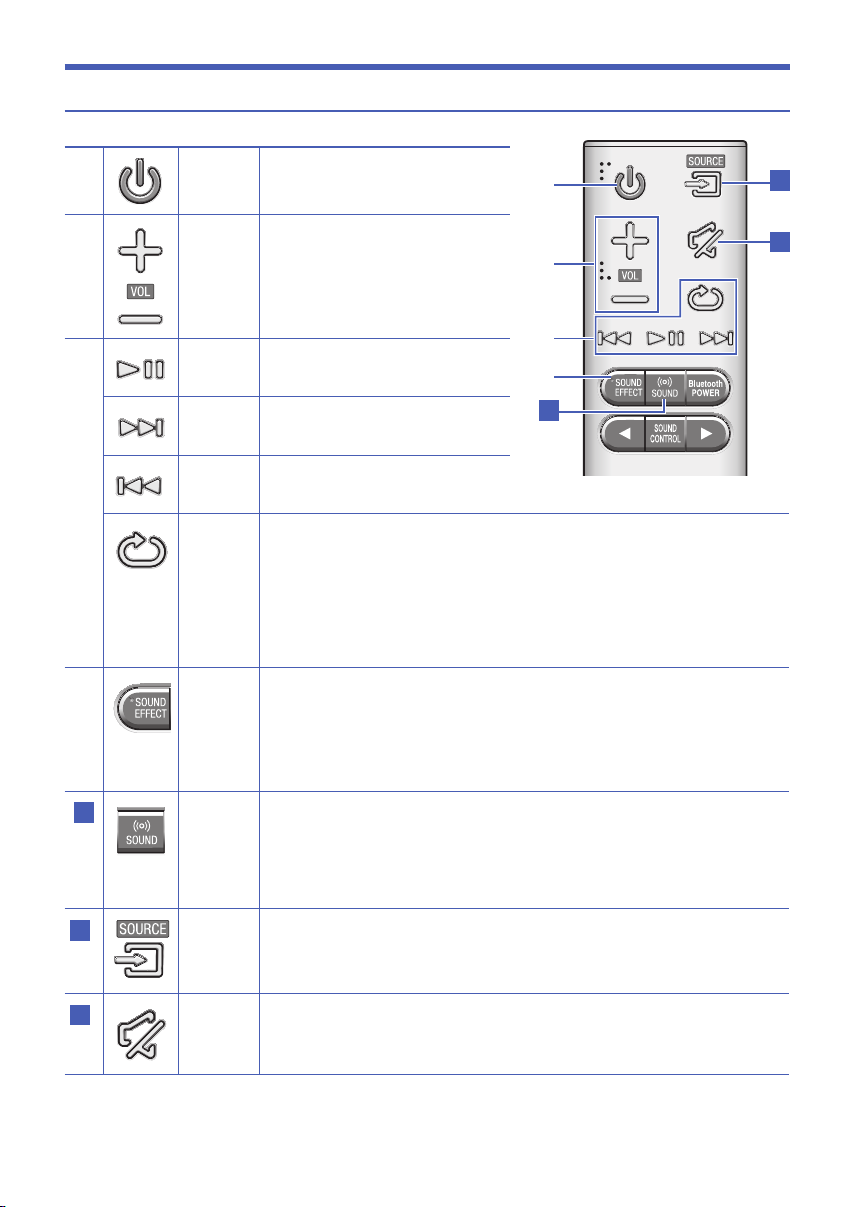

REMOTE CONTROL
󱂓
Power Turns the Soundbar on and off.
󱂔Volume Adjusts the volume level of the unit.
󱂕Play /
Pause
Plays and pauses a file.
Skip
Forward
Selects the next file.
Skip
Back
Selects the previous file.
Repeat Press to set the Repeat function during music playback from a USB device.
• OFF-REPEAT : Cancels Repeat Playback.
• TRACK-REPEAT : Plays a track repeatedly.
• ALL-REPEAT : Plays all tracks repeatedly.
• RANDOM-REPEAT : Plays tracks in random order repeatedly. (A track that
has already been played may be played again.)
󱂖SOUND
EFFECT
You can select from 6 sound modes: STANDARD, MUSIC, CLEAR VOICE, SPORTS,
MOVIE, and NIGHT MODE.
cNIGHT MODE
When changing a channel or music source, the volume difference between
different music input sources is automatically adjusted to be suitable for listening.
5
SURROUND
SOUND
The Surround Sound function adds depth and a sense of space to sound.
Each time you press this button, ON-SURROUND SOUND and OFF-
SURROUND SOUND alternate.
Each time you press and hold this button for 5 seconds, ON-TV REMOTE and
OFF-TV REMOTE alternate.
6SOURCE Press to select a source connected to the Soundbar.
7Mute Sets the volume temporarily to 0.
Press again to cancel.
󱂓
󱂔
󱂕
󱂖
5
6
7

· 12 · English

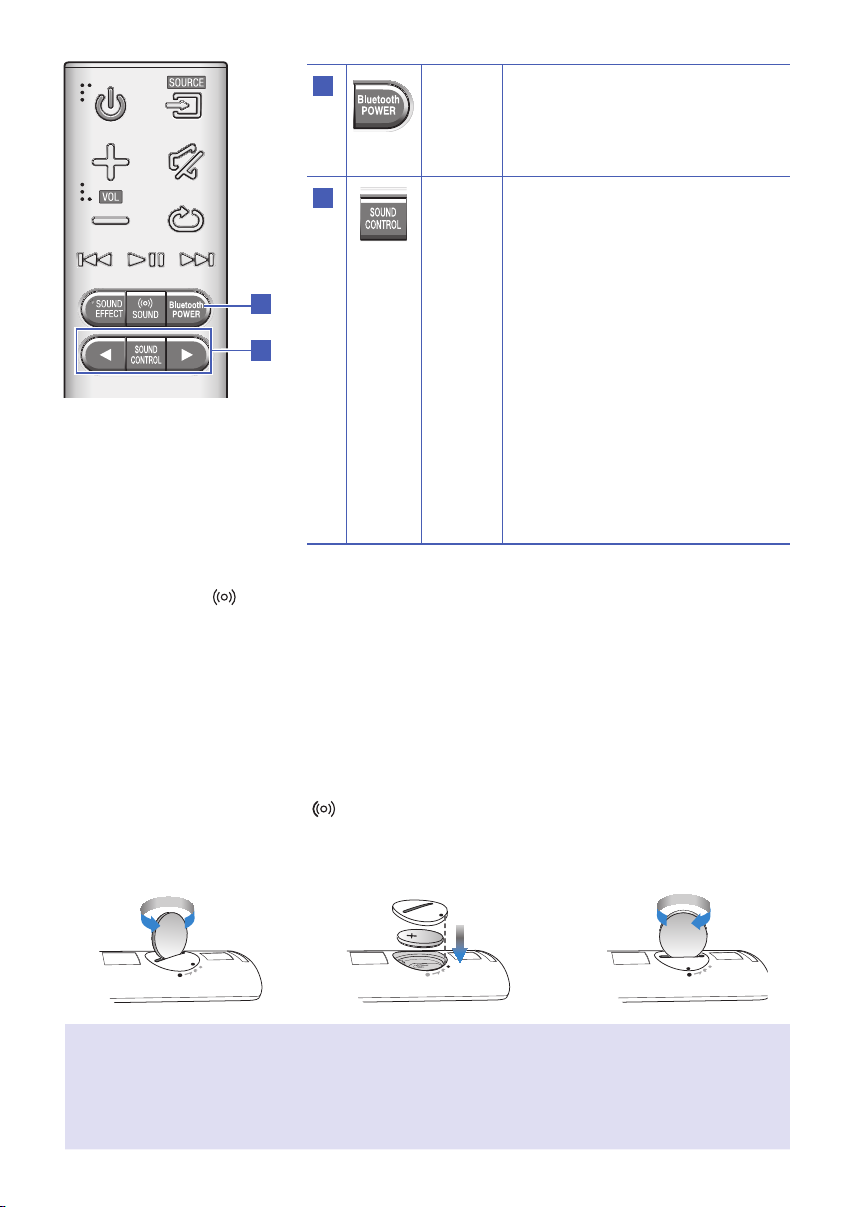

Installing the Battery in the Remote Control
1. Use a suitable coin to turn
the remote control's battery
cover counterclockwise to
remove it as shown in the
figure above.
2. Insert a 3V lithium battery. Keep the
positive (+) pole facing up when
inserting the battery. Put the battery
cover on, and then align the '●'
marks side by side as shown in the
figure above.
3. Use a suitable coin to turn
the remote control battery
cover clockwise as far as it
will go to fix it in place.
8
Bluetooth
POWER
Press to turn the Bluetooth POWER On
function on and off. When the Bluetooth
POWER On function is on,
ON - BLUETOOTH POWER appears in
the Soundbar’s display.
9
SOUND
CONTROL
You can select from TREBLE, BASS,
SUBWOOFER LEVEL, or AUDIO SYNC.
• Press to select TREBLE, BASS,
SUBWOOFER LEVEL, or AUDIO
SYNC.
Then, use the , buttons to adjust the
Treble or Bass volume from -6 ~ +6,
SUBWOOFER LEVEL volume from -12,
-6 ~ +6.
• If the video and audio between the TV
and your Soundbar are not
synchronized, select the AUDIO SYNC
in Sound Control, and then set audio
delay between 0~300 milliseconds by
using the , buttons.
• Each time you press and hold this 
button, ON-POWER LINK and
OFF-POWER LINK alternate.
8
9
Controlling the Soundbar using Your TV Remote Control
1. Press and hold the SOUND button for more than 5 seconds while the Soundbar is turned on.
2. "ON - TV REMOTE" appears on the Soundbar's display.
3. In the TV's menu, set the TV speaker to external speaker.
cTV menus differ by manufacturer and model. Refer to the TV's user manual for further information.
cOnly the VOL +/- and MUTE buttons will be available to control the Soundbar.
cThis function is not available when the Soundbar is in the TV SoundConnect mode.
cManufacturers supporting this function:
• VIZIO, LG, Sony, Sharp, PHILIPS, PANASONIC, TOSHIBA, GRUNDIG, Hisense, RCA
• This function may not be compatible with your TV's remote depending on the remote control's
manufacturer.
cTo turn off this function, press the SOUND button for 5 seconds. "OFF - TV REMOTE" appears on the
Soundbar's display.

· 13 · English
TROUBLESHOOTING
Before seeking assistance, check the following.
The unit will not turn on.
Is the power cord plugged into the outlet?
Connect the power plug to the outlet.
A function does not work when the button is
pressed.
Is there static electricity in the air?
Disconnect the power plug and connect it again.
Sound is not produced.
Is the Mute function on?
 Press the (Mute) button to cancel the function.
Is the volume set to minimum?
Adjust the Volume.
The remote control does not work.
Are the batteries drained?
Replace with new batteries.
Is the distance between the remote control and main
unit too far?
Move closer to the unit.
The TV SoundConnect (TV pairing) failed.
Does your TV support TV SoundConnect?
TV SoundConnect is supported by some
Samsung TVs released from 2012 on. Check
your TV to see if it supports TV SoundConnect.
Is your TV firmware the latest version?
Update your TV with the latest firmware.
Does an error occur when connecting?
Contact the Samsung Call Centre.
Reset the TV mode and connect again.
Press and hold the &button for 5 seconds to
reset the TV SoundConnect connection.
The blue indicator on the rear of the subwoofer
is not lit and the subwoofer is not producing
sound.
Is the main unit power on?
Check the power cord. If the power cord is
plugged in correctly, check the main unit. If your
main unit is off (in standby mode), the subwoofer
will also be in standby mode and the blue LED
won't be lit.
Your subwoofer may not be connected to the main
unit of the product.
Try to connect your subwoofer again.
LICENSE
Manufactured under license from Dolby
Laboratories. Dolby, Dolby Audio, Pro Logic, and
the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, DTS in combination with
the Symbol, and DTS 2.0 Channel are registered
trademarks or trademarks of DTS, Inc. in the United
States and/or other countries. © DTS, Inc. All Rights
Reserved.

· 14 · English
OPEN SOURCE LICENCE NOTICE
To send inquiries and requests regarding open sources, contact Samsung via Email ([email protected]).
IMPORTANT NOTE ABOUT SERVICE
• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product
appearance.
• An administration fee may be charged if either
a. an engineer is called out at your request and there is no defect with the product (i.e. where the user manual
has not been read).
b. you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has
not been read).
• You will be informed of the administration fee amount before a technician visits.
SPECIFICATIONS
GENERAL
USB 5V / 0.5A
Weight Main Unit 1.5 Kg
Subwoofer (PS-WK360) 2.9 Kg
Dimensions
(W x H x D)
Main Unit 907.5 x 53.5 x 70.5 mm
Subwoofer (PS-WK360) 155.0 x 300.0 x 293.0 mm
Operating Temperature Range +5°C to +35°C
Operating Humidity Range 10 % to 75 %
AMPLIFIER
Rated Output
Power
Main Unit 35 W/CH x 2, 6 ohm, THD=10%, 1 kHz
Subwoofer (PS-WK360) 60 W, 3 ohm, THD=10%, 100 Hz
S/N Ratio (Analog Input) 65 dB
Separation (1kHz) 65 dB
Supported play formats
(DTS 2.0 sound is played in DTS format.)
LPCM 2ch, Dolby Audio™ (supporting
Dolby® Digital), DTS
• Distortion, and usable sensitivity are based on measurements using AES (Audio Engineering Society)
guidelines.
• Nominal specification
– Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
– Weight and dimensions are approximate.
– For more information about the power supply and power consumption, refer to the label attached to the
product.

Manual do Utilizador
HW-K360
* A concepção e as especificações estão sujeitas a alteração sem aviso prévio.
Para obter mais informações, consulte o manual da Web.
Manual da Web: www.Samsung.com →Suporte →
Pesquisa por nome de produto →HW-K360

· 1 · Português
INFORMAÇÕES DE SEGURANÇA
AVISOS DE SEGURANÇA
PARA REDUZIR O RISCO DE CHOQUE ELÉCTRICO, NÃO RETIRE A TAMPA (OU PARTE POSTERIOR).
NÃO EXISTEM PEÇAS PASSÍVEIS DE REPARAÇÃO PELO UTILIZADOR NO INTERIOR DO PRODUTO.
QUALQUER REPARAÇÃO DEVE SER EFECTUADA POR PESSOAL TÉCNICO QUALIFICADO.
CUIDADO
RISCO DE CHOQUE
ELÉCTRICO.NÃO ABRIR.
Este símbolo indica a presença de alta tensão
no interior do produto.
É perigoso estabelecer qualquer tipo de
contacto com as peças existentes no interior
do produto.
Este símbolo indica a existência de
documentação importante relativa ao
funcionamento e manutenção deste produto
(fornecida com o mesmo).
Produto de classe II: Este símbolo indica que não é necessária uma ligação eléctrica de
segurança à terra.
Tensão CA: Este símbolo indica que a tensão nominal é CA.
Tensão CC: Este símbolo indica que a tensão nominal é CC.
Cuidado, consulte as instruções de utilização: Este símbolo aconselha o utilizador a consultar
o manual do utilizador quanto a informações de segurança.
AVISO: Para reduzir o risco de fogo ou choque eléctrico, não exponha este equipamento à chuva ou humidade.
CUIDADO: PARA EVITAR CHOQUES ELÉCTRICOS, INTRODUZA TOTALMENTE A FICHA NA TOMADA.
• Este equipamento deve sempre ser ligado a uma tomada de CA com ligação à terra.
• Para desligar o aparelho da corrente eléctrica, é necessário retirar a ficha da tomada; como tal, o acesso à
ficha tem de estar completamente desimpedido.
CUIDADO
• Não exponha este aparelho a gotejamento nem a salpicos. Não coloque objectos com líquidos, tais como
vasos, em cima do aparelho.
• Para desligar completamente o aparelho, tem de desligar o cabo de alimentação da tomada de parede. Por
este motivo, o cabo de alimentação tem de estar sempre facilmente acessível.

· 2 · Português
CUIDADOS A TER
1. Certifique-se de que a fonte de alimentação de CA em sua casa está em conformidade com os requisitos de
alimentação indicados no autocolante de identificação, situado na parte de trás do produto. Instale o produto na
horizontal, sobre uma base adequada (mobiliário), com espaço suficiente para permitir a ventilação (7 a 10 cm).
Certifique-se de que os orifícios de ventilação não estão tapados. Não coloque a unidade sobre amplificadores ou
sobre outro tipo de equipamento que possa aquecer. Esta unidade foi concebida para uma utilização contínua.
Para desligar completamente a unidade, desligue a ficha CA da tomada de parede. Desligue a unidade quando
não tencionar utilizá-la durante muito tempo.
2. Durante trovoadas, desligue a ficha de alimentação da tomada de CA. Os picos de tensão durante uma trovoada
podem danificar a unidade.
3. Não exponha a unidade à luz solar directa nem a outras fontes de calor. A unidade poderá sobreaquecer e ficar
danificada.
4. Proteja o produto da humidade (por exemplo, vasos), do excesso de calor (por exemplo, uma lareira) e de
equipamento que produza fortes campos magnéticos ou eléctricos. Desligue o cabo de alimentação da tomada
de CA em caso de avaria da unidade. O produto não se destina a utilização industrial. Este produto destina-se a
ser utilizado apenas para fins pessoais. Pode ocorrer condensação caso o produto tenha sido armazenado em
condições de baixas temperaturas. Se transportar a unidade no Inverno, aguarde aproximadamente 2 horas para
que a unidade fique à temperatura ambiente, antes de utilizar.
5. As pilhas utilizadas neste produto contêm químicos nocivos para o ambiente.
Não deite as pilhas no lixo doméstico. Não queime as baterias. Não provoque curto-circuito, não desmonte nem
sobreaqueça as pilhas. Existe o perigo de explosão se a pilha for incorrectamente substituída. Utilize apenas o
mesmo tipo de pilhas ou um equivalente.
AVISO, NÃO INGERIR A PILHA, PERIGO DE QUEIMADURAS QUÍMICAS,
O controlo remoto fornecido com este produto contém uma pilha tipo "botão”. Se a pilha for ingerida, pode causar
queimaduras internas graves em apenas 2 horas, podendo causar a morte. Mantenha as pilhas novas e usadas longe
do alcance das crianças. Se o compartimento da pilha não fechar correctamente, interrompa a utilização do produto e
mantenha o produto afastado do alcance das crianças. Se suspeitar que as pilhas podem ter sido engolidas ou
colocadas noutra parte do corpo, procure imediatamente assistência médica.

· 3 · Português
DESEMBALAR
Unidade principal Subwoofer Controlo remoto/ Pilhas
Cabo adaptador micro USB
para USB Cabo óptico
cA embalagem também inclui os
componentes para montagem na
parede. Consulte a página 8.
LIGAÇÃO À CORRENTE ELÉCTRICA
Utilize os acessórios seguintes para ligar o Soundbar à corrente eléctrica.
cPara obter mais informação sobre a fonte de alimentação e o consumo de energia, consulte a etiqueta no
produto. (Etiqueta : Base da unidade principal)
Unidade principal Subwoofer
Cabo de alimentação Transformador de CA Cabo de alimentação Transformador de CA
DC 19V
DC 19V
Transformador de
CA
DC 19V
(Tomada de
alimentação) DC 19V
(Tomada de
alimentação)
Transformador de
CA
cCertifique-se de que coloca os transformadores na horizontal sobre uma mesa ou no chão. Se colocar o
transformador de CA suspenso com o cabo de CA virado para cima, água ou outras substâncias poderão
entrar no adaptador causando a avaria do mesmo.
Superior

· 4 · Português
LIGAR O SUBWOOFER À UNIDADE PRINCIPAL
Pode desfrutar de tons de baixo ricos e melhor qualidade de som ligando o subwoofer à unidade principal.
Unidade principal
Subwoofer
l
U
A unidade principal e o subwoofer devem estabelecer ligação (sem fios) automaticamente quando a unidade principal
e o subwoofer são ligados. Quando a ligação automática é concluída, o indicador azul na parte posterior do
subwoofer deixa de estar intermitente e permanece aceso. Os modos do indicador LED do subwoofer são indicados
abaixo:
󱂓
azul A ligação automática está concluída.
󱂔
azul
intermitente
A ligação automática não está concluída.
󱂕
azul
apagado
a. O cabo de alimentação está ligado à tomada? Se não estiver, ligue a ficha de alimentação à
tomada.
b. Se o cabo de alimentação estiver ligado correctamente, verifique a unidade principal. Se a
unidade principal estiver desligada (em modo de espera), o subwoofer também estará em
modo de espera e o LED azul não estará acesso.
cSe o indicador no painel posterior do subwoofer não estiver acesso com a cor azul, o subwoofer não ligou. Se for
este o caso, siga as instruções abaixo para ligar o subwoofer manualmente.
cImportante: Antes de começar, coloque a pilha no controlo remoto. Consulte a página 12 para obter instruções.
1. Ligue os cabos de alimentação da unidade principal e do subwoofer a uma tomada.
2. Prima o botão ID SET (CONJUNTO ID) no painel posterior do subwoofer com um objecto pontiagudo durante 5
segundos.
cO indicador LINK (LED azul) no subwoofer fica intermitente rápido.
3. Prima o botão no controlo remoto durante 5 segundos enquanto a unidade principal se desliga.
4. A mensagem ID SET é apresentada no ecrã da unidade principal durante algum tempo e depois desaparece.
ID SET
