Samsung MM-B3 User manual

MICRO COMPONENT
SYSTEM
MM-B3
SERVICE Manual
MICRO COMPONENT SYSTEM CONTENTS
EQ
Down Mute Counter
Reset
Repeat
A B
Tuning Mode REC/Pause CD Sync. Up
S.Bass
Volume
Power
Sound
Push Eject
CD
AUX
TUNER
TAPE
Band
Push Open
1. Alignment and Adjustments
2. Exploded Views and Parts List
3. Electrical Parts List

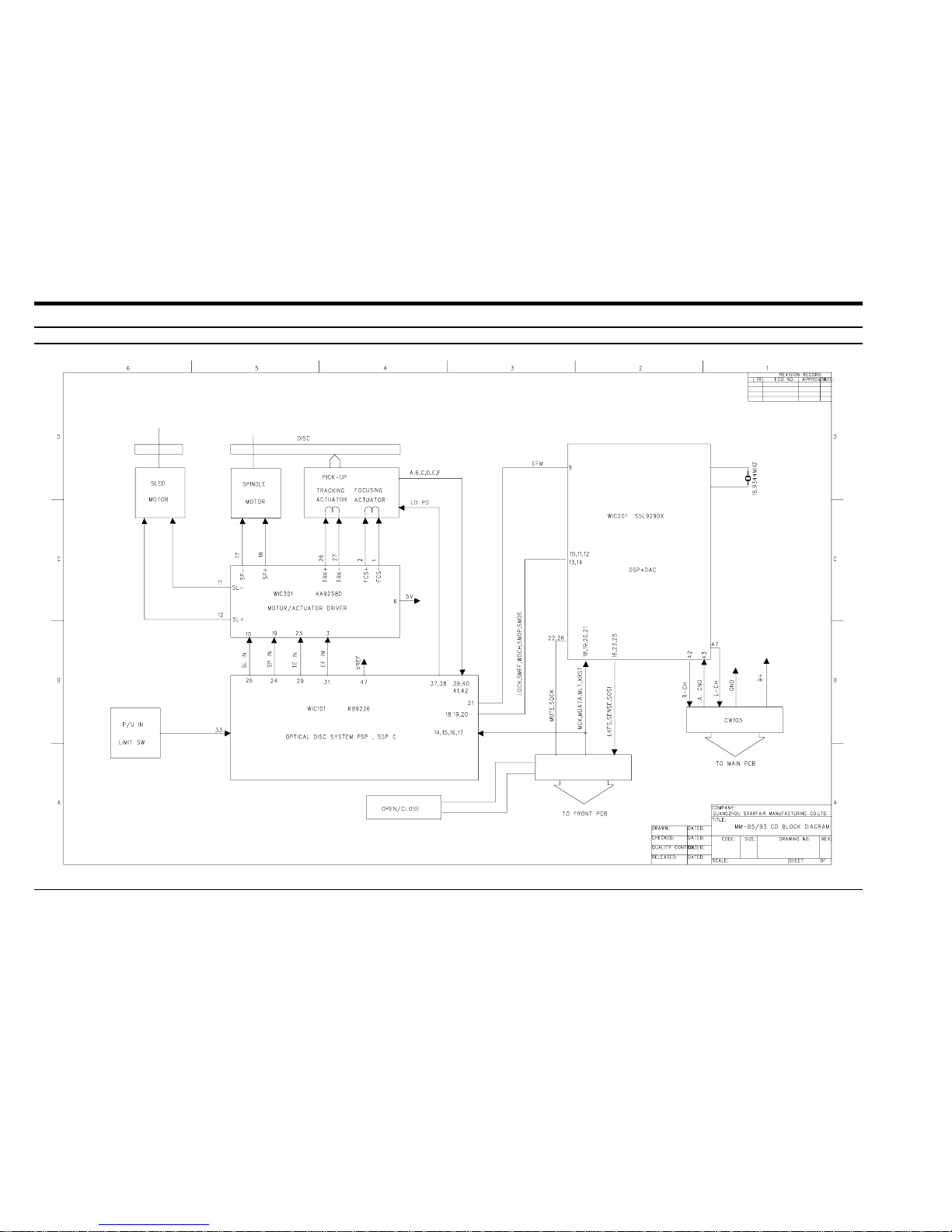

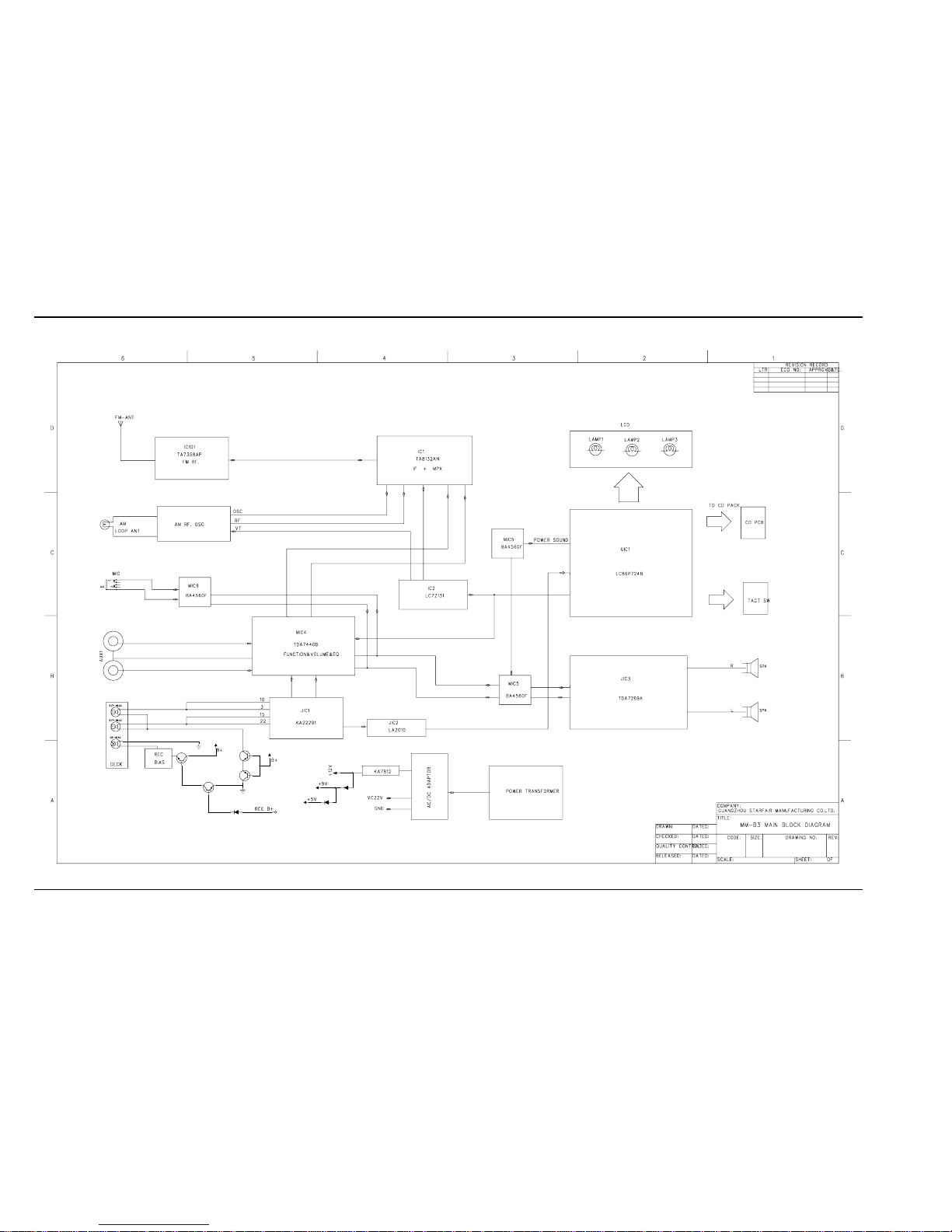

4. Block Diagrams
5. PCB Diagrams
6.Wiring Diagram
7. Schematic Diagrams
- Confidential -

ELECTRONICS
© Samsung Electronics Co.,Ltd. JAN. 2003
Printed in Korea
Code no. AH68-01225C

1-1Samsung Electronics
1. Alignment and Adjustments

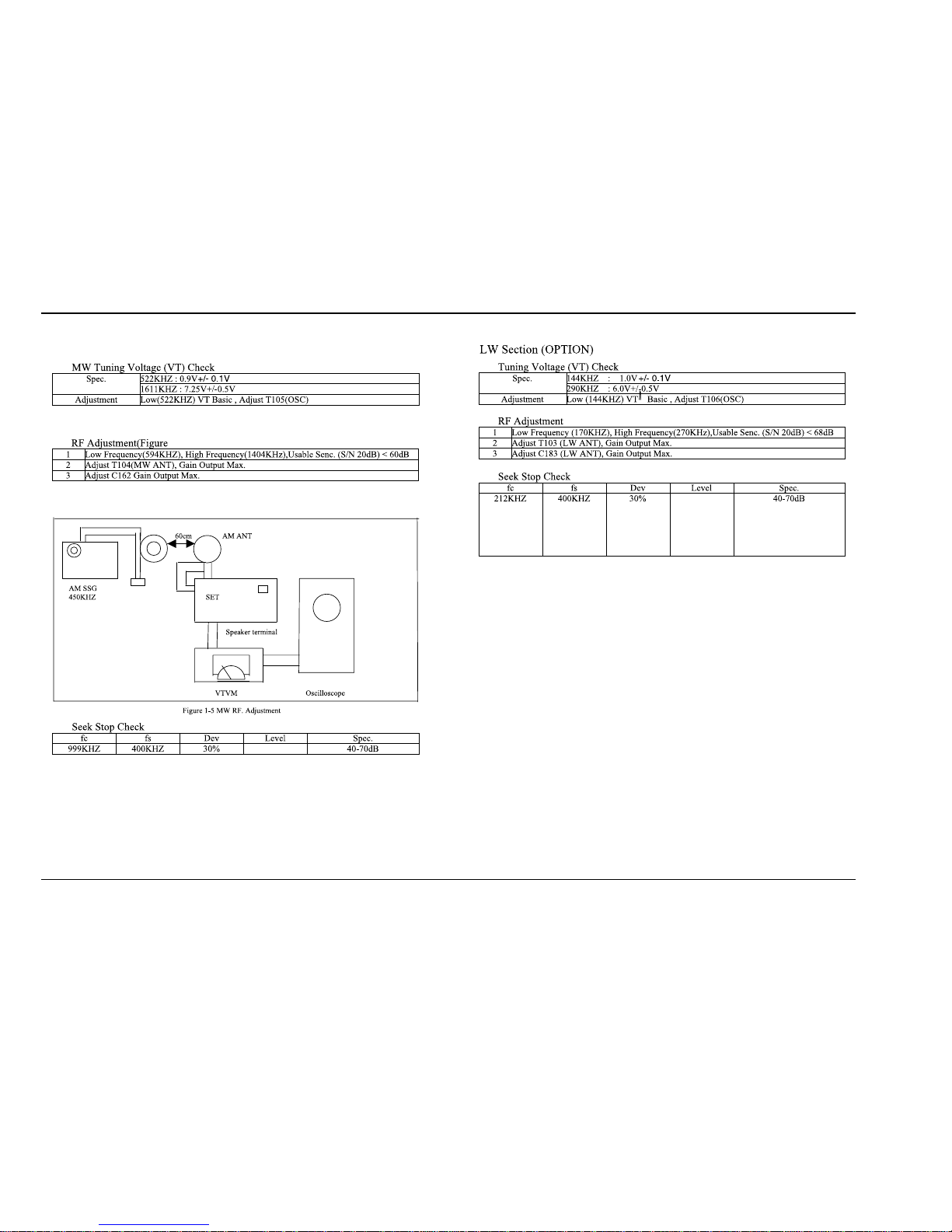

1-1.Tuner

Alignment and Adjustments
1-2 Samsung Electronics

Alignment and Adjustments
1-3Samsung Electronics

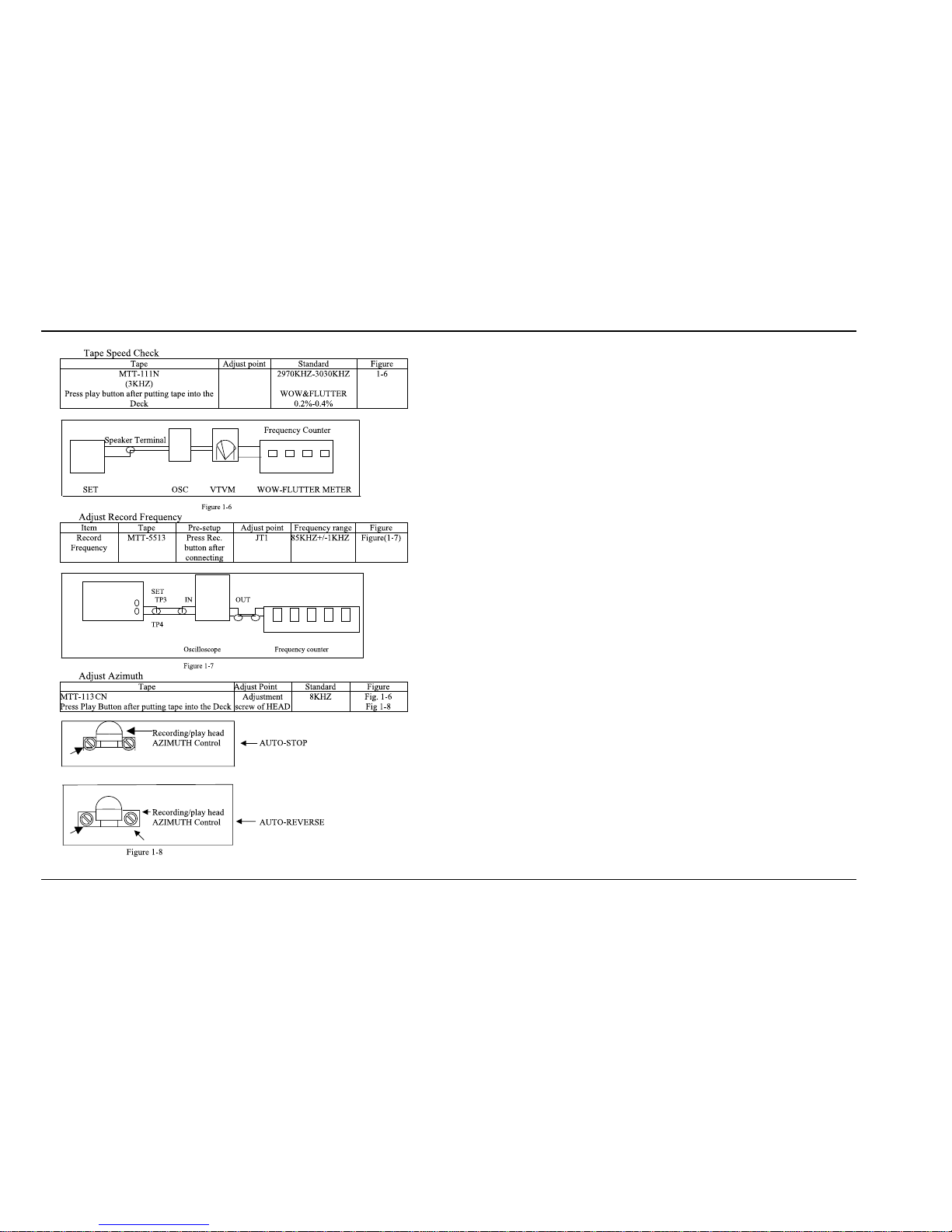

1-2. Cassette Deck

Samsung Electronics 2-1
2.Exploded Views and Parts List
2-1-1 Cassette Deck (Auto Reverse : OPTION)
2
4
5
7
8
10
9
6
1
3
No. Code No. Description Specification Remarks
AH59-01087A DECK -CASSETTE CMAL1Z230A DC 12V
1 AH81-00543A R/P HEAD ASS’Y HADKH5655A F513-853
2 AH81-00733A MAIN BELT MAIN BELT
3 AH81-00543C F/R BELT FF19S-31 FF19S-31
4 AH81-00543D SOLENOID F765-292 F765-292
5 AH81-00543E ROLLER PINCH BLK R F514-129 F514-129
6 AH81-00543F ROLLER PINCH BLK L F514-130 F514-130
7 AH81-00734A MOTOR CCM09-120L-1-2
8 AH81-00543H REEL SENSOR SG-107F3;KODENSHI
9 AH81-00543J LEAF S/W - WHITE SPLFF
10 AH81-00543K LEAF S/W - BLK SPLFE1

2-2 Samsung Electronics
2-1-2 Cassette Deck (Auto Stop : OPTION)
No. Code No. Description Specification Remarks
AH59-01086A DECK-CASSETTE CMAL5Z217A DC12V
1 AH81-00732A A/S-R/P HEAD ASS’Y HASVH5503B,,R/P HE
2 AH81-00733A A/S-MAIN BELT MAIN BELT
3 AH81-00543C A/S-F/R BELT FF19S-31,FF19S-31,F/R BELT,
4 AH81-00543D A/S-SOLENOID F765-292,F765-292,SOLENOID,
5 AH81-00543E A/S-ROLLER PINCH BLK R F514-129,F514-129
6 AH81-00734A A/S-MOTOR CCM09-120L-1-2
7 AH81-00543H A/S-REEL SENSOR SG-107F3;KODENSHI,-,REEL
8 AH81-00543J A/S-LEAF S/W-WHITE SPLFF,-,LEAF S/W-WHIT
9 AH81-00543K A/S-LEAF S/W-BLK SPLFF1,-,LEAF S/W-BLK

Samsung Electronics 2-3

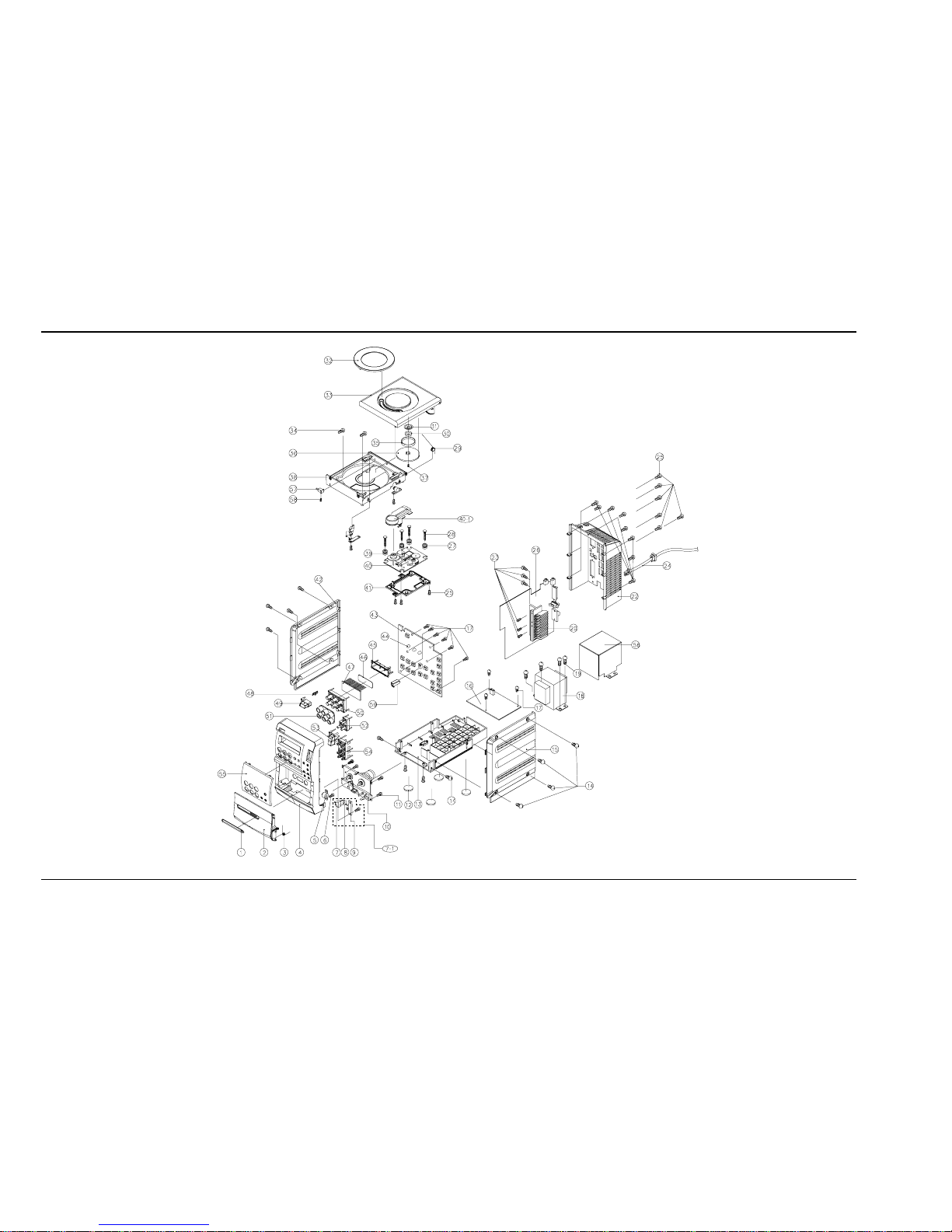

2-2 Total Exploded View and Parts List

2-4 Samsung Electronics
* Parts List
1 AH81-00552X LENS CASS 0101-46546-00 PMMA W/S.S 1
2 AH81-00553E CASS DOOR 0101-46532-00 ABS MOLD.COL.SPY 1
3 AH81-00911R CASS DOOR SPRING 0102-44000-00 SWIC-F 1
4 AH81-00555F CABINET FRONT 0101-46527-00 HIPS MOLD.COL.SPY 1
5 AH61-80030A DAMPER ASS’Y 0101-46178-00 ASS’Y 2
7-1 AH95-50001A LATCH ASS’Y HOOK + HOOK SPRING 1
7 AH81-00384T HOOK 0101-45627-00 ABS MOLD.BLK 2
8 AH81-00385J HOOK SPRING 0102-43847-00 Dia.0.3mm MUSIC WIRE 2
9 AH81-00384U HOOK BRACKET 0101-45628-00 ABS MOLD.BLK 2
10 AH59-01086A CASS DECK CMAL5Z217A (AUTO-STOP) 1
12 AH81-00551C RUBBER FOOT 0109-40485-00 Dia9.6x2.5mm 4
13 AH81-00556D CABINET BOTTOM 0101-46476-00 HIPS MOLD.COL 1
15 AH81-00557J CABINET SIDE R 0101-46478-00 HIPS MOLD.COL.DARK GREY HDG-2269R 1
20 AH81-00911F HEAT SINK 0102-43999-00 ALUMINIUM 1
22 AH81-00558E CABINET REAR 0101-46471-00 HIPS MOLD.COL.SPY 1
27 AH81-00454D VIBR. PROOF RUBBER 0109-40360-01 RED COLOR (3-910-095-01) 2
29 AH81-00551Z CD DOOR SPRING 0102-44053-00 SWIC-F 1
30 AH81-00398H MAGNET FORCE 0110-40867-00 Dia.30x17.9x5mmTHK 1
31 AH81-00384Y CHUCKING PLATE (A) 0102-31274-00 DIA. 40mm 0.6mmTHK MILD STEEL 1
32 AH81-00552Y LENS CD DOOR 0101-46545-00 PMMA MOLD.COL 1
33 AH81-00559P CD DOOR 0101-46529-01 ABS MOLD.COL.SPY,EXPORT 1
35 AH81-00384S CHUCKING RING 0101-45620-00 ABS MOLD.BLACK 1
36 AH81-00384R CHUCKING PLATE(B) 0101-32546-02 Dia.70mm-ABS+FIBRE-GLASS(20%) 1
38 AH81-00560E CD CHASSIS 0101-46473-00 HIPS MOLD.COL 1
39 AH81-00454E VIBR. PROOF RUBBER 0109-40361-01 GREEN COLOR (3-910-095-11) 2
40 AH81-00568R CD MECHA 0115-6MML4-00,B31TG6U,CMS-P31) 1
40-1 AH61-20529A CAP PICK-UP ABS BLACK, RCD-390 1
41 AH81-00554D CD MECH HOLDER 0101-46474-00 HIPS MOLD.COL 1
42 AH81-00557K CABINET SIDE L 0101-46477-00 HIPS MOLD.COL.DARK GREY HDG-2269R 1
45 AH81-00911S LCD HOLDER 0101-46541-00 HIPS MOLD.COL 1
46 AH81-00911D LCD SHEET 0103-43953-00 PVC 1
47 AH81-00905J LCD DISPLAY 0347-40144-40 76x27x1.1mm 38 PIN(B5/B3) 1
48 AH81-00922A LENS POWER 0101-46544-00 PMMA MOLD.COL.SPY 1
49 AH81-00561R KNOB POWER 0101-46537-00 ABS MOLD.COL.SPY 1
50 AH81-00561M KNOB FUNCTION 1 0101-46538-00 ABS MOLD.COL.SPY 1
51 AH81-00561Q KNOB FUNCTION DECO 0101-46543-00 MOLD.PMMA W/PLATING 1
52 AH81-00561N KNOB FUNCTION 2 0101-46539-00 ABS MOLD.COL.SPY 1
53 AH81-00561S KNOB VOLUME 0101-46542-00 MOLD PMMA W/PLATING 1
54 AH81-00561P KNOB FUNCTION 3 0101-46540-00 ABS MOLD.COL.SPY 1
47 AH81-00552Z LENS LCD 0101-46547-00 PMMA MOLD 1
57 AH81-00551V QUICK ACTION SWITCH 0323-60208-01 LS-323-0 (1P2T) 1
59 AH81-00554E REMOTE HOLDER 0101-46550-00 ABS MOLD.COL 1
No. Code No. Description Specification Q’TY

Samsung Electronics 2-5
2-3 CD DECK Exploded View and Parts list
1
910
3
4
2
8
7
11
6
5
No. Code No. Description Specification Remarks
AH81-00568R CD MECHA P31TG6U(CMS-P31)
1 AH81-00635A CHASSIS-DECK(M) AJ70-00601E
2 AH81-00635D COVER-GEAR AJ66-00601G
3 AH81-00635B GEAR(A) AJ66-00601D
4 AH81-00635E GEAR(B) AJ66-00601B
5 AH81-00635F GEAR(C) AJ66-00601F
6 AH81-00635G SHAFT-PU AJ70-00601A
7 AH81-00635H TURN-TABLE(T) AJ72-00602A
8 AH81-00635J SOH-AA AJ75-00601F
9 AH81-00635K MOTOR-SPINDLE AJ31-00601C
10 AH81-00635C MOTOR-FEED AJ31-00601A
11 AH81-00635L SCREW-PH AJ60-00601D

2-6 Samsung Electronics
2-4 SPEAKER Exploded View and Parts list
* CAUTION : When the disassembly, take extreme care not to demage the SPEAKER.

**** MM-B3 Parts List ****
AH38-10001A WIRE-LEAD;1007#22,1500MM
AH42-20001Q ANT LOOP;-,KS980214-01,18.5uH,CONNECTOR
AH59-01086A DECK-CASSETTE;CMAL5Z217A,MM-B3,-,-,DC12V
AH81-00579E A/S PART-SPEAKER SYSTEM ASS’Y;MM-B3 (EXP
AH81-00569G A/S PART-SPEAKER L ASS’Y;MM-B3,PS B3H,
AH81-00570G A/S PART-SPEAKER R ASS’Y;MM-B3,PS B3H,
AH59-00043F REMOCON-ASSY;-,-,-,22KEY,MQ-N4,-
AH81-00610K A/S PART-TRANS POWER;0326-46600-71,230V,
AH81-00616W A/S PART-AC CORD;MM-L2,0349-30005-94,KKJ
AH81-00905M A/S PART-CD PACK ASS’Y;0001-0MMB5-04,GIH
AH81-00551P A/S PART- CDP ASS’Y;0001-0MML4-06,CD-COM
ZD301 0403-000344 DIODE-ZENER;UZ3.9B,3.9V,3.7-4.1V,500mW,D
Q302 0501-000010 TR-SMALL SIGNAL;KSC1008,NPN,800mW,TO-92,
Q101 0501-000314 TR-SMALL SIGNAL;KSA812,PNP,150mW,SOT-23,
Q301 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
WIC201 0904-001524 IC-DSP;5L9290,-,QFP,48P,472MIL,16.934
WIC301 1003-000179 IC-MOTOR DRIVER;KA9258D,SOP,28P,-,SINGLE
WIC101 1204-001799 IC-ASP;KB9226,LQFP,48P,393MIL,PLASTIC
R804 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R803 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R802 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R801 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JW10 2001-000456 R-CARBON;2.2ohm,5%,1/4W,AA,TP,2.4x6.4mm
R301 2001-001096 R-CARBON(S);2.2ohm,5%,1/2W,AA,TP,2.4x6.4
J30 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J29 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J28 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J27 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J31 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J32 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J33 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J34 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J19 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J20 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J21 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J22 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J26 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J25 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J24 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J23 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J5 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J4 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J3 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J2 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J6 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J7 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J8 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J9 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J17 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J1 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J10 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J11 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J12 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J16 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J15 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J14 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J13 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
R507R 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R507L 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R271 2007-000074 R-CHIP;100ohm,5%,1/16W,DA,TP,1608
R213 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R212 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R211 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R210 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R209 2007-000078 R-CHIP;1Kohm,5%,1/16W,DA,TP,1608
R110 2007-000092 R-CHIP;15Kohm,5%,1/16W,DA,TP,1608
R116 2007-000093 R-CHIP;20Kohm,5%,1/16W,DA,TP,1608
R200 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R129 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R123 2007-000097 R-CHIP;47Kohm,5%,1/16W,DA,TP,1608
R139 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R126 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R104 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R101 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R102 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R103 2007-000098 R-CHIP;56Kohm,5%,1/16W,DA,TP,1608
R114 2007-000100 R-CHIP;68Kohm,5%,1/16W,DA,TP,1608
R128A 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R127 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R120 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R119 2007-000101 R-CHIP;82Kohm,5%,1/16W,DA,TP,1608
R506R 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R506L 2007-000102 R-CHIP;100Kohm,5%,1/16W,DA,TP,1608
R125 2007-000103 R-CHIP;120Kohm,5%,1/16W,DA,TP,1608
R124 2007-000103 R-CHIP;120Kohm,5%,1/16W,DA,TP,1608
R118 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R202 2007-000109 R-CHIP;1Mohm,5%,1/16W,DA,TP,1608
R128 2007-000129 R-CHIP;27Kohm,5%,1/16W,DA,TP,1608
R113 2007-000132 R-CHIP;180Kohm,5%,1/16W,DA,TP,1608
R133 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R132 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R207 2007-000309 R-CHIP;10ohm,5%,1/16W,DA,TP,1608
R121 2007-000455 R-CHIP;18Kohm,1%,1/16W,DA,TP,1608
R115 2007-001179 R-CHIP;8.2Kohm,5%,1/16W,DA,TP,1608
R112 2007-001196 R-CHIP;820Kohm,5%,1/16W,DA,TP,1608
R107 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012
R108 2007-001216 R-CHIP;82OHM,5%,1/10W,DA,TP,2012
C503R 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C503L 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C209 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C117 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C102 2203-000048 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,1608
C121 2203-000140 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,1608
C211 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C205 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C204 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C132A 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C115 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C129 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C130 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C131 2203-000178 C-CERAMIC,CHIP;100nF,+80-20%,25V,Y5V,TP,
C218 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C304 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C305 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C505 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C216 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C103 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C134 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C207 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C213 2203-000257 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,1608
C113 2203-000280 C-CERAMIC,CHIP;0.01NF,0.5PF,50V,C0G,TP,1
C126 2203-000491 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,1608
C139 2203-000592 C-CERAMIC,CHIP;0.22NF,5%,50V,C0G,TP,1608
C104 2203-000667 C-CERAMIC,CHIP;27nF,10%,16V,X7R,TP,1608,
C201 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C202 2203-000681 C-CERAMIC,CHIP;0.027NF,5%,50V,C0G,TP,160
C118 2203-000800 C-CERAMIC,CHIP;33nF,10%,25V,X7R,TP,1608
C116 2203-000800 C-CERAMIC,CHIP;33nF,10%,25V,X7R,TP,1608
C208 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C127A 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C126A 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C125 2203-000851 C-CERAMIC,CHIP;0.039NF,5%,50V,C0G,TP,160
C114 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C111 2203-001103 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,1608
C245 2203-001140 C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C109 2203-001140 C-CERAMIC,CHIP;68nF,10%,16V,X7R,TP,1608,
C110 2203-001402 C-CERAMIC,CHIP;220nF,+80-20%,16V,Y5V,TP,
C112 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C203 2203-001652 C-CERAMIC,CHIP;470nF,+80-20%,16V,Y5V,TP,
C127 2203-005194 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,1608
C123 2401-000459 C-AL;10uF,20%,35V,GP,TP,5.5x7mm,5mm
C301 2401-001355 C-AL;470uF,20%,10V,GP,TP,8x11.5mm,5
C108A 2401-001511 C-AL;47uF,20%,16V,GP,6*7,5MM,TP
C108 2401-001511 C-AL;47uF,20%,16V,GP,6*7,5MM,TP
C215 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C217 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C219 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C303 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C307 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C212 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C101 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C107 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C132 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C133 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C206 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C501R 2401-001917 C-AL;1uF,20%,50V,GP,TP,4x7mm,5mm
C501L 2401-001917 C-AL;1uF,20%,50V,GP,TP,4x7mm,5mm
C114A 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
L300 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
X201 2802-000210 RESONATOR-CERAMIC;16.93MHz,0.5%,BK,10.0x
3409-001078 SWITCH-LEAF;16Vdc,500mA,10gf,SPST
P-CDP AH81-00568K A/S PART-PCB-CD MAIN BOARD;0320-MML44-00
CW105 AH81-00568L A/S PART-CONNECTOR-HEADER;0321-10137-GO,
CW106 AH81-00568M A/S PART-CONNECTOR-HEADER;0321-08012-80,
CW101 AH81-00568N A/S PART-CONNECTOR-HEADER;0321-16021-EO,
AH81-00568P A/S PART-CONNECTOR-CABLE;0321-16085-EO,-
AH81-00568R A/S PART-CD MECHA;0115-6MML4-00,-,P31TG6
AH81-00635J A/S PART-SOH-AA;MM-L2/L4,AJ75-00601F,-,-
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 3-1
3. Electrical Parts List
*S.N.A. : Service Not Available

AH81-00905P A/S PART-MAIN PCB ASS’Y;MM-B3 EUROPE,-,-
VD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
VD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
VD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD6 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD7 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD11 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD10 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD8 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD5 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD4 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD21 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD20 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
TD19 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
RD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
JD9 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD7 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD6 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD29 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD28 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD27 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD26 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD25 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
AD13 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D101 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D113 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D112 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D111 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D110 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D102 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D104 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D106 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D109 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
ZD101 0403-000352 DIODE-ZENER;UZ4.7BM,4.7V,4.4-5.0V,500mW,
ZD102 0403-000354 DIODE-ZENER;UZ5.1B,5.1V,4.8-5.4V,500mW,D
ZD103 0403-000361 DIODE-ZENER;UZ6.2BSB,6.2V,5.99-6.24V,500
D107 0405-000140 DIODE-VARACTOR;SVC321SP,-15V,-100nA,TO-9
D108 0405-000140 DIODE-VARACTOR;SVC321SP,-15V,-100nA,TO-9
VQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
AQ11 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
AQ3 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
VQ6 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
VQ4 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
Q104 0502-000303 TR-POWER;KSD882,NPN,1W,TO-126,TP,160-32
AQ4 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
AQ5 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
JQ11 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
AQ16 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
AQ12 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
AQ14 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
AQ15 0504-000121 TR-DIGITAL;KSR1007,NPN,300MW,22K/47K,TO-
QQ2 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
QQ4 0504-000122 TR-DIGITAL;KSR1009Y,NPN,300mW,4.7K,TO-92
JQ7 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
AQ9 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
VQ3 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
VQ5 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
MIC8 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
MIC5 1201-000163 IC-OP AMP;4560,SOP,8P,173MIL,DUAL,100V/m
JIC1 1201-000358 IC-PREAMP;22291,DIP,24P,-,DUAL,-,PLASTIC
AIC2 1203-000242 IC-POSI.FIXED REG.;7812,TO-220,3P,-,PLAS
MIC4 1204-001465 IC-VOLUME/TONE CONT.;TDA7440D,SOP,28,18.
AR30 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
JRR8 2001-000005 R-CARBON;390ohm,5%,1/8W,AA,TP,1.8x3.2mm
R119 2001-000008 R-CARBON;15Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR37 2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR31 2001-000017 R-CARBON;4.7ohm,5%,1/4W,AA,TP,2.4x6.4mm
AR21 2001-000017 R-CARBON;4.7ohm,5%,1/4W,AA,TP,2.4x6.4mm
AR20 2001-000017 R-CARBON;4.7ohm,5%,1/4W,AA,TP,2.4x6.4mm
HR2 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm
HR4 2001-000027 R-CARBON;100ohm,5%,1/4W,AA,TP,2.4x6.4mm
R109 2001-000032 R-CARBON;180ohm,5%,1/4W,AA,TP,2.4x6.4mm
JR28 2001-000105 R-CARBON;1.5Kohm,5%,1/4W,AA,TP,2.4x6.4m
R118 2001-000211 R-CARBON;1OHM,5%,1/4W,AA,TP,2.4X6.4MM
VR49 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR22 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR21 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR7 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR50 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR36 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
R148 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR60 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR23 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR40 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR38 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
R136 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R128 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R127 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R117 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R140 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R142 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R147 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R198 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
QRL9 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR21 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR26 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR30 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR61 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
QR12 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
QR11 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRR10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRL10 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR53 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR20 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R152 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
R113 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
R107 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
R106 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
R103 2001-000302 R-CARBON;10ohm,5%,1/8W,AA,TP,1.8x3.2mm
R104 2001-000325 R-CARBON;120ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR55 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
TR54 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR50 2001-000331 R-CARBON;12Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R108 2001-000356 R-CARBON;150Kohm,5%,1/8W,AA,TP,1.8x3.2m
JRR3 2001-000397 R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2M
JRR13 2001-000397 R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2M
JRL3 2001-000397 R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2M
JRL13 2001-000397 R-CARBON;180KOHM,5%,1/8W,AA,TP,1.8X3.2M
JRR17 2001-000411 R-CARBON;18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRL17 2001-000411 R-CARBON;18Kohm,5%,1/8W,AA,TP,1.8x3.2mm
RJL2 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRR16 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRL19 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JRL16 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR8 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR32 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR31 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR5 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR46 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R135 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R134 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R132 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
R100 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR49 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
CR1 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
CR2 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR60 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR15 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
JR1 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR48 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR47 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR48 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR2 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
CR3 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
CR4 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR1 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
QRR7 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR29 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
QRR2 2001-000522 R-CARBON,22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R115 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR34 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR32 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR25 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR5 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR53 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR58 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
JR63 2001-000525 R-CARBON;22ohm,5%,1/4W,AA,TP,2.4x6.4mm
R101 2001-000527 R-CARBON;22ohm,5%,1/8W,AA,TP,1.8x3.2mm
JRR6 2001-000527 R-CARBON;22ohm,5%,1/8W,AA,TP,1.8x3.2mm
JRL6 2001-000527 R-CARBON;22ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR24 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R123 2001-000595 R-CARBON;3.3MOHM,5%,1/8W,AA,TP,1.8X3.2M
R122 2001-000595 R-CARBON;3.3MOHM,5%,1/8W,AA,TP,1.8X3.2M
QRR6 2001-000595 R-CARBON;3.3MOHM,5%,1/8W,AA,TP,1.8X3.2M
R110 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
CR6 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
CR5 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR17 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR16 2001-000660 R-CARBON;33Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R141 2001-000666 R-CARBON;33ohm,5%,1/8W,AA,TP,1.8x3.2mm
R121 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JRR11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
JRL11 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
QRL4 2001-000773 R-CARBON;470Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR15 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR14 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm
R124 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R120 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R105 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R102 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR54 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
AR6 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
3-2 Samsung Electronics

AR9 2001-000786 R-CARBON;47Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R112 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1.8X3.2MM
VR35 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR33 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR29 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
R116 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
R190 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR6 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR4 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR45 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
AR46 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
JRR4 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
JRL4 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
AR25 2001-000890 R-CARBON;6.8Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR41 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR39 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
JR37 2001-000938 R-CARBON;68ohm,5%,1/8W,AA,TP,1.8x3.2mm
TR58 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
TR57 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
R199 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
QRR1 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
QRL1 2001-000977 R-CARBON;8.2KOHM,5%,1/8W,AA,TP,1.8x3.2m
AR2 2003-000629 R-METAL OXIDE(S);3.3ohm,5%,2W,AA,TP,4x12
VJ1 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J76 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J127 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J125 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
QRR10 2007-000032 R-CHIP;390KOHM,5%,1/10W,DA,TP,2012
QRL10 2007-000032 R-CHIP;390KOHM,5%,1/10W,DA,TP,2012
QRR4 2007-000068 R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
JR24 2007-000068 R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
J120 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J121 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J177 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J75 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J111 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J113 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J114 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J117 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
VR34 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR27 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR16 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR11 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR32 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR8 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR9 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR31 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR13 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR14 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR26 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
JR57 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
JR58 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
JR59 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
AR61 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
AR62 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR44 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR58 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR7 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR30 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
OR1 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR18 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR19 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
QRR5 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
QRL5 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
JRR12 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
JRL12 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
VR57 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
VR3 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
VR42 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
VR23 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
VR15 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
VR10 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
QRL7 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012
AR18 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
QRL6 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
JRR9 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
JRL9 2007-000686 R-CHIP;3.3KOHM,5%,1/10W,DA,TP,2012
JRL8 2007-000822 R-CHIP;390OHM,5%,1/10W,DA,TP,2012
AR29 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
AR11 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
VR25 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
VR17 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
VR12 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
JR19 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
QRL8 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
QRR8 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
VR4 2007-001071 R-CHIP;6.8KOHM,5%,1/10W,DA,TP,2012
VR55 2007-001654 R-CHIP;10MOHM,1%,1/10W,DA,TP,2012
C152 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C150 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C147 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C146 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C145 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C152 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C150 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C147 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C146 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C145 2201-000146 C-CERAMIC,DISC;0.1NF,5%,50V,SL,TP,5X3.5M
C115 2201-000163 C-CERAMIC,DISC;10NF,+80-20%,50V,Y5V,TP,7
C105 2201-000198 C-CERAMIC,DISC;0.01NF,0.5PF,50V,SL,TP,4X
VC9 2201-000247 C-CERAMIC,DISC;0.015NF,5%,50V,C0G,TP,5X3
VC10 2201-000247 C-CERAMIC,DISC;0.015NF,5%,50V,C0G,TP,5X3
HC3 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
HC2 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C155 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C153 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C128 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C106 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C103 2201-000282 C-CERAMIC,DISC;1NF,+80-20%,50V,Y5V,TP,5X
C117 2201-000368 C-CERAMIC,DISC;0.22NF,10%,50V,SL,TP,6.5X
QC16 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
JCR4 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
JC19 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
C164 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
C119 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
C109 2201-000381 C-CERAMIC,DISC;22nF,+80%,50V,-,,8x4mm,-
VC8 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3
VC7 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3
C104 2201-000426 C-CERAMIC,DISC;0.027NF,5%,50V,SL,TP,5X3M
C116 2201-000487 C-CERAMIC,DISC;33pF,5%,50V,SL,TP,5x3,5m
C166 2201-000499 C-CERAMIC,DISC;0.39NF,5%,50V,SL,TP,8.5X3
C154 2201-000499 C-CERAMIC,DISC;0.39NF,5%,50V,SL,TP,8.5X3
C123 2201-000499 C-CERAMIC,DISC;0.39NF,5%,50V,SL,TP,8.5X3
C102 2201-000504 C-CERAMIC,DISC;0.039NF,5%,50V,SL,TP,5X3M
C111 2201-000506 C-CERAMIC,DISC;0.003NF,0.25PF,50V,C0G,-,
AC5 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
AC42 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
AC3 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
AC2 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
AC1 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
JC24 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m
C169 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m
C144 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m
C131 2201-000565 C-CERAMIC,DISC;47nF,+80-20%,-,,-,12.5x4m
C122 2201-000646 C-CERAMIC,DISC;68NF,+80-20%,50V,Y5V,TP,8
C112 2201-000659 C-CERAMIC,DISC;6pF,0.5pF,50V,SL,-,5x3mm,
QCL6 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C173 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C160 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C158 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C107 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C121 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
C157 2201-000913 C-CERAMIC,DISC;100NF,+80-20%,50V,Y5V,TP,
JCR13 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
TC60 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
TC61 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
TC64 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
CC2 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
C108 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
C120 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
C181 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
CC1 2201-000915 C-CERAMIC,DISC;0.1NF,10%,1KV,Y5P,TP,6X5M
VC3 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
VC16 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
VC14 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
JCR3 2203-000239 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
JCR2 2203-000239 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
JCL2 2203-000239 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
JCL13 2203-000239 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
JC72 2203-000239 C-CERAMIC,CHIP;0.1NF,5%,50V,C0G,TP,2012
JCR16 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
JCL4 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
AC8 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
AC12 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
QC12 2203-000595 C-CERAMIC,CHIP;0.22NF,5%,50V,C0G,TP,2012
QC11 2203-000595 C-CERAMIC,CHIP;0.22NF,5%,50V,C0G,TP,2012
VC11 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
VC4 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
JC74 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
JC50 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
JC23 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
QCR14 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
QCL14 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
JC53 2203-000979 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
JCR5 2203-001551 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012
VC20 2203-005194 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,1608
JCL5 2301-000365 C-FILM,PEF;1.5nF,10%,50V,TP,5.5x7x2.8mm,
JCR15 2301-000370 C-FILM,PEF;1.8nF,10%,50V,TP,5.5x12x3mm,-
JCL15 2301-000370 C-FILM,PEF;1.8nF,10%,50V,TP,5.5x12x3mm,-
AC14 2301-000387 C-FILM,PEF;150nF,10%,50V,TP,12.5x15x7.5,
AC13 2301-000387 C-FILM,PEF;150nF,10%,50V,TP,12.5x15x7.5,
JC26 2301-000390 C-FILM,PEF;15nF,10%,50V,TP,7x12x3.5mm,-
JC27 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,-
C142 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,-
C141 2301-000404 C-FILM,PEF;2.2nF,10%,50V,TP,5.5x12x3mm,-
C456 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,-
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 3-3

C406 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,-
C351 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,-
C301 2301-000407 C-FILM,PEF;2.7nF,10%,50V,TP,5.5x12x3mm,-
JC34 2301-000422 C-FILM,PEF;3.3nF,10%,50V,TP,5.5x7x3mm,-
QCL8 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm
QCR8 2301-000454 C-FILM,PEF;5.6nF,10%,50V,TP,6x12x3,3.5mm
JC30 2301-001188 C-FILM,PPF;10nF,5%,100VDC,BK,14x7.5x12.5
C140 2301-001188 C-FILM,PPF;10nF,5%,100VDC,BK,14x7.5x12.5
C139 2301-001188 C-FILM,PPF;10nF,5%,100VDC,BK,14x7.5x12.5
C170 2302-000235 C-FILM,PSF;470pF,5%,50V,BK,6x11.5,2.5mm
VC1 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
QCR10 2401-000416 C-AL;10uF,20%,16V,GP,TP,5x11,5
C29 2401-000416 C-AL;10uF,20%,16V,GP,TP,5x11,5
C133 2401-000416 C-AL;10uF,20%,16V,GP,TP,5x11,5
C132 2401-000416 C-AL;10uF,20%,16V,GP,TP,5x11,5
C124 2401-000416 C-AL;10uF,20%,16V,GP,TP,5x11,5
JC29 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
JCL7 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
JCR7 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
QCL15 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
QCR15 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
JC22 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
AC10 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
AC11 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
AC26 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
AC36 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
JC16 2401-000588 C-AL;1uF,20%,50V,GP,TP,3x5,2.5
JC54 2401-000759 C-AL;220nF,20%,50V,GP,TP,5x11mm,5mm
VC5 2401-000759 C-AL;220nF,20%,50V,GP,TP,5x11mm,5mm
QC10 2401-000830 C-AL;220uF,20%,25V,GP,TP,8x11.5,5
RC1 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm
JCL3 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm
JC73 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm
JC18 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm
AC29 2401-000907 C-AL;22uF,20%,16V,GP,TP,5x11mm,5mm
JCR12 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
JCR10 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
JCL12 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
JCL10 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
JC21 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
VC6 2401-001238 C-AL;4.7uF,20%,25V,GP,3*5,2.5MM,TP
C156 2401-001324 C-AL;470nF,20%,50V,GP,3*5,2.5MM,TP
JC55 2401-001324 C-AL;470nF,20%,50V,GP,3*5,2.5MM,TP
AC7 2401-001364 C-AL;470uF,20%,16V,GP,TP,10x12.5,5
JC31 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
JC58 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
JCL11 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
JCR11 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
TC24 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
AC27 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
AC40 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
AC41 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
C143 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
JC28 2401-001502 C-AL;47uF,20%,16V,GP,TP,6.3x5,2.5
AC16 2401-001886 C-AL;1000uF,20%,35V,GP,BK,16x25mm,5
AC15 2401-001886 C-AL;1000uF,20%,35V,GP,BK,16x25mm,5
VC2 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
VC15 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
VC13 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
JC57 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
CC3 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C151 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C114 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
C1 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
QCR9 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
QCL9 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
C353 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
C303 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
C130 2401-001952 C-AL;4.7uF,20%,50V,GP,TP,5x7mm,5mm
QCL4 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
QCL5 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
QCR1 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
QCL3 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
QCL2 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
QCL1 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
JC56 2401-002180 C-AL;2.2uF,20%,50V,GP,TP,5x11mm,5mm
AC20 2401-002258 C-AL;4700uF,20%,50V,GP,-,22x40mm,5m
VL1 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
VL2 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm
L107 2703-000116 INDUCTOR-SMD;100uH,10%,2.5x3.2x2.5mm
L106 2703-000116 INDUCTOR-SMD;100uH,10%,2.5x3.2x2.5mm
HL2 2703-000116 INDUCTOR-SMD;100uH,10%,2.5x3.2x2.5mm
HL1 2703-000116 INDUCTOR-SMD;100uH,10%,2.5x3.2x2.5mm
X105 2801-000734 CRYSTAL-UNIT;7.2MHz,50ppm,28-AAM,12pF,30
VX1 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5
VX2 2802-000181 RESONATOR-CERAMIC;6MHz,0.3%,BK,9.0x4.0x7
X104 2802-000215 RESONATOR-CERAMIC;19KHz,+-38Hz,-,7.0x3.5
X103 2903-000106 FILTER-CERAMIC;BP,10.7MHz+-25KHz,280KHz+
X101 2903-000106 FILTER-CERAMIC;BP,10.7MHz+-25KHz,280KHz+
SW813 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW814 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW815 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW816 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW817 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW818 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW819 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW811 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW801 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW802 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW803 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW804 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW807 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW808 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW810 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
AUX1 3722-000377 JACK-PIN;4P/2C,3.5mm,SN,BLK,#16~22
RIC1 AC14-12001G IC;KA78L05,T,-
JIC2 AH14-10002H IC;LA2010,,
IC2 AH14-10007G IC;LC72131,DIP,STICK PLL
T102 AH26-10001E TRANS RF;KS940228-09,-,-,7.6X12.0,-,450
JT1 AH26-10003C TRANS TRAP-COIL;PCHNS-5371EQJ,BIAS-TRAP,
AL4 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AL3 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AL2 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
AL1 AH27-90001A COIL-SPRING;-,2.2UH,-,-,-,SPRING,-,-,-,-
QQR1 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
QQL1 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
QQ3 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
JQ4 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
VQ2 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
Q105 AH81-00383H A/S PART-TR-SMALL;0329-9014C-17,SS9014C,
Q103 AH81-00383H A/S PART-TR-SMALL;0329-9014C-17,SS9014C,
AS20 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD8 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD2 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD12 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD1 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD10 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
AD11 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD8 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD7 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD5 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD4 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
JACK1 AH81-00384J A/S PART-JACK-PHONE;0322-10147-00,-,EJS-
AJ1 AH81-00384K A/S PART-JACK-PHONE;0322-10160-00,EJS-3-
IC AH81-00444H A/S PART-IC-1CHIP TUNER;0330-8132N-01,TA
IC101 AH81-00444K A/S PART-IC-FM FRONT END;0330-7358A-01,T
Q102 AH81-00444T A/S PART-TR-SMALL;0329-1417G-00,2SC1417G
JQ5 AH81-00444U A/S PART-TR-SMALL;0329-8050B-00,8050B,-,
D103 AH81-00445A A/S PART-DIODE-VARICAP;0344-3V101-03,1SV
D105 AH81-00445A A/S PART-DIODE-VARICAP;0344-3V101-03,1SV
T101 AH81-00445H A/S PART-TRANS-IF;0331-07968-05,OA-81796
L102 AH81-00445N A/S PART-COIL-SPRING;0332-20026-03,3.5T
X101 AH81-00445R A/S PART-BPF-COIL;0342-12135-16,A-258A(T
L101 AH81-00456X A/S PART-COIL-SPRING;0332-20015-00,2.5T
VCW1 AH81-00549D A/S PART-CONNECTOR-HEADER;0321-02024-10,
PJ1 AH81-00549E A/S PART-CONNECTOR-HEADER;0321-06309-80,
FWC1 AH81-00549F A/S PART-CONNECTOR-HEADER;0321-11009-80,
FWC2 AH81-00549F A/S PART-CONNECTOR-HEADER;0321-11009-80,
FM ANT JACK AH81-00549L A/S PART-JACK-TERMINAL ANT;0322-H0001-00
JIC3 AH81-00549M A/S PART-IC-POWER AMP;0330-7269A-06,TDA7
AQ1 AH81-00549P A/S PART-TR-POWER;0329-B1370-21,2SB1370/
X102 AH81-00549R A/S PART-FILTER-CERAMIC;0342-2450B-19,SF
TCF1 AH81-00549R A/S PART-FILTER-CERAMIC;0342-2450B-19,SF
F/PCB TO M/PCB AH81-00549W A/S PART-CONNECTOR-ASS’Y;0321-11050-835,
LED1 AH81-00549Z A/S PART-LED;0346-20080-00,3MM,RED,LN28R
LAMP1 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
LAMP2 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
LAMP3 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
REM1 AH81-00568B A/S PART-MODULE-REMOCON;0372-M28RK-00,GP
MWR1 AH81-00616A A/S PART-CONNECTOR-HEADER;MM-L2,0321-080
Q101 AH81-00616E A/S PART-TR;MM-L2,0329-9015C-17,SS9015C,
Q105 AH81-00616E A/S PART-TR;MM-L2,0329-9015C-17,SS9015C,
T103 AH81-00616H A/S PART-TRANS-IF,7MM;MM-L2,0332-10387-0
T105 AH81-00616J A/S PART-TRANS-IF,7MM;MM-L2,0332-10388-0
MJ3 AH81-00616M A/S PART-CONNECTOR-HEADER;MM-L2,0321-020
JCW2 AH81-00616X A/S PART-CONNECTOR ASS’Y;MM-L2,0321-0825
UIC1 AH81-00905A A/S PART-MASK-ROM;-,LC867248-ACB1,-,-,-,
U1 AH81-00905J A/S PART-LCD DISPLAY;0347-40144-40,92292
MAIN TO DECK AH81-00911E A/S PART-CONN WIRE;0321-06280-837A,6P,28
AH81-00911F A/S PART-HEAT SINK;0102-43999-00,90X45X2
AH81-00911G A/S PART-MAIN BOARD;0320-MMB31-00,225X20
MAIN TO P/PCB AH81-00911H A/S PART-CONN.;0321-05190-120,5PINS L=19
AH81-00911L A/S PART-CABLE-FLAT;0321-09160-G0,9P,160
AH81-00911M A/S PART-CONTROL BOARD;0320-MMB33-00,135
AH81-00911N A/S PART-CONN.;0321-01505-00,1505MML UL1
F/PCB TO CD SW AH81-00911P A/S PART-CONN.;0321-02250-120B,2PINS L=2
AH81-00911Q A/S PART-FFC CABLE;0321-10300-G0,10PINS
AH81-00911S A/S PART-LCD HOLDER;0101-46541-00,HIPS M
AH81-00905Q A/S PART-FRONT PCB ASS’Y;MM-B3 EUROPE,-,
VD3 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
VD2 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
VD1 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
VQ1 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
VQ6 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
VQ4 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
3-4 Samsung Electronics

VQ5 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
VQ3 0504-001003 TR-DIGITAL;KSR2003,PNP,300MW,22K/22K,TO-
VR37 2001-000010 R-CARBON;68Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR49 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR22 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR21 2001-000241 R-CARBON;1.5Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR50 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR36 2001-000273 R-CARBON;100Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR38 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR40 2001-000281 R-CARBON;100ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR53 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR20 2001-000290 R-CARBON;10Kohm,5%,1/8W,AA,TP,1.8x3.2mm
VR46 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR5 2001-000449 R-CARBON;2.2Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR48 2001-000472 R-CARBON;2.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR2 2001-000508 R-CARBON;220Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR1 2001-000515 R-CARBON;220ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR24 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR35 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR33 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR29 2001-000802 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2m
VR6 2001-000857 R-CARBON;560ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR41 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
VR39 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm
VJ1 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J76 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J127 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J125 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J120 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J121 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J177 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J75 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J111 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J113 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J114 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
J117 2007-000070 R-CHIP;0ohm,5%,1/16W,DA,TP,1608
VR34 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR27 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR16 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR11 2007-000082 R-CHIP;3.3Kohm,5%,1/16W,DA,TP,1608
VR32 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR8 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR9 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR31 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR13 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR14 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR26 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012
VR7 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR58 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR44 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR30 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR19 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR18 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
OR1 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
VR57 2007-000477 R-CHIP;1MOHM,5%,1/10W,DA,TP,2012
VR3 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
VR42 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
VR23 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
VR15 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
VR10 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
VR12 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
VR17 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
VR25 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
VR4 2007-001071 R-CHIP;6.8KOHM,5%,1/10W,DA,TP,2012
VR55 2007-001654 R-CHIP;10MOHM,1%,1/10W,DA,TP,2012
VC10 2201-000247 C-CERAMIC,DISC;0.015NF,5%,50V,C0G,TP,5X3
VC9 2201-000247 C-CERAMIC,DISC;0.015NF,5%,50V,C0G,TP,5X3
VC8 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3
VC7 2201-000389 C-CERAMIC,DISC;0.022NF,5%,50V,C0G,TP,5X3
VC3 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
VC16 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
VC14 2201-000929 C-CERAMIC,DISC;22NF,+80-20%,500V,Y5V,TP,
VC4 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
VC11 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
VC20 2203-005194 C-CERAMIC,CHIP;220pF,10%,50V,X7R,TP,1608
VC1 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
VC5 2401-000759 C-AL;220nF,20%,50V,GP,TP,5x11mm,5mm
VC6 2401-001238 C-AL;4.7uF,20%,25V,GP,3*5,2.5MM,TP
VC2 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
VC15 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
VC13 2401-001893 C-AL;100uF,20%,16V,GP,6*7,5MM,TP
VL1 2701-000111 INDUCTOR-AXIAL;100uH,10%,2.5x3.4mm
VL2 2701-000298 INDUCTOR-AXIAL;470uH,10%,4.2x9.8mm
VX1 2801-001394 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAY,12.5
VX2 2802-000181 RESONATOR-CERAMIC;6MHz,0.3%,BK,9.0x4.0x7
SW813 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW814 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW815 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW816 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW817 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW818 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW819 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW811 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW801 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW802 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW803 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW804 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW807 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW808 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
SW810 3404-000165 SWITCH-TACT;12V,50mA,160gf,6x6mm,SPST
VQ2 AH81-00383G A/S PART-TR-SMALL;0329-9012H-17,SS9012H,
VD8 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD7 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD5 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VD4 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
VCW1 AH81-00549D A/S PART-CONNECTOR-HEADER;0321-02024-10,
F/PCB TO M/PCB AH81-00549W A/S PART-CONNECTOR-ASS’Y;0321-11050-835,
LED1 AH81-00549Z A/S PART-LED;0346-20080-00,3MM,RED,LN28R
LAMP1 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
LAMP2 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
LAMP3 AH81-00551F A/S PART-CAP LAMP;0109-40486-00,SILCON R
REM1 AH81-00568B A/S PART-MODULE-REMOCON;0372-M28RK-00,GP
UIC1 AH81-00905A A/S PART-MASK-ROM;-,LC867248-ACB1,-,-,-,
U1 AH81-00905J A/S PART-LCD DISPLAY;0347-40144-40,92292
AH81-00911M A/S PART-CONTROL BOARD;0320-MMB33-00,135
F/PCB TO CD SW AH81-00911P A/S PART-CONN.;0321-02250-120B,2PINS L=2
AH81-00911Q A/S PART-FFC CABLE;0321-10300-G0,10PINS
AH81-00905W A/S PART-POWER PCB ASS’Y;0001-0MMB3-02A,
D4 0402-000157 DIODE-RECTIFIER;1N5402,200V,3A,DO-201AD,
D3 0402-000157 DIODE-RECTIFIER;1N5402,200V,3A,DO-201AD,
D2 0402-000157 DIODE-RECTIFIER;1N5402,200V,3A,DO-201AD,
D1 0402-000157 DIODE-RECTIFIER;1N5402,200V,3A,DO-201AD,
D7 0403-000393 DIODE-ZENER;UZP5.1B,5.1V,4.8-5.4V,1W,DO-
R4 2001-000047 R-CARBON;2.2Kohm,5%,1/4W,AA,TP,2.4x6.4m
R1 2001-000522 R-CARBON;22Kohm,5%,1/8W,AA,TP,1.8x3.2mm
R5 2001-000588 R-CARBON;3.3Kohm,5%,1/4W,AA,TP,2.4x6.4m
R2 2001-000591 R-CARBON;3.3Kohm,5%,1/8W,AA,TP,1.8x3.2m
R3 2001-000734 R-CARBON;4.7Kohm,5%,1/8W,AA,TP,1.8x3.2m
C10 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
C11 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
C9 2201-000546 C-CERAMIC,DISC;4.7nF,20%,400V,Y5U,BK,16x
C2 2401-000475 C-AL;10uF,20%,50V,GP,TP,5x11mm,5mm
C1 2401-001022 C-AL;3.3UF,20%,50V,GP,TP,5X11,5
C7 2401-001912 C-AL;1uF,20%,50V,GP,5*11,5mm,TP
C12 2401-002592 C-AL;2200uF,20%,50V,GP,TP,18x35.5,7
F1 3601-000263 FUSE-CARTRIDGE;250V,3.15A,TIME-LAG,GLASS
F3 3601-000304 FUSE-CARTRIDGE;250V,630mA,TIME-LAG,GLASS
3602-000147 FUSE-CLIP;250V,7.5A,30mohm
Q1 AH81-00383H A/S PART-TR-SMALL;0329-9014C-17,SS9014C,
D5 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
D7 AH81-00383K A/S PART-DIODE-RECTIFIER;0344-14004-08,I
CN3 AH81-00568G A/S PART-CONNECTOR-HEADER;0321-05132-10,
CN2 AH81-00568Y A/S PART-CONNECTOR-HEADER AC~;0321-03050
AH81-00905L A/S PART-POWER PCB;0320-MMB53-00,75X70X1
Location no. Code no. Description & Specifiation Remarks Location no. Code no. Description & Specifiation Remarks
Samsung Electronics 3-5

Samsung Electronics 4-1
4. Block Diagram
4-1 CD Part

4-2 Samsung Electronics
4-2 MAIN

Samsung Electronics 5-1
5. Printed Circuit Board Diagram
5-1 CD Part

5-2 Samsung Electronics
5-2-1 MAIN (TOP VIEW)
