Samsung SM-T705Y User manual

www.samsung.com
User Manual
SM-T705Y
English. 06/2014. Rev.1.0

2
Table of Contents
Read me first
Getting started
7 Package contents
8 Device layout
10 Using the SIM or USIM card and
battery
11 Charging the battery
13 Using a memory card
15 Turning the device on and off
16 Locking and unlocking the screen
Basics
17 Using the touch screen
21 Home screen layout
24 Notifications and quick setting panels
28 Opening apps
28 Installing or uninstalling apps
30 Entering text
32 Screen capture
33 My Files
35 Power saving feature
37 Viewing help information
Network connectivity
38 Mobile data
38 Wi-Fi
40 Download booster
40 Tethering and Mobile hotspot
42 Internet
Motions & usability features
45 Motions
48 Multi window
53 Toolbox
53 Increasing touch screen sensitivity
Personalising
54 Managing the Home and Apps screens
60 Setting wallpaper and ringtones
61 Changing the screen lock method
62 Finger Scanner
65 Private mode
66 Multiple users
68 Transferring data from your previous
device
69 Setting up accounts

Table of Contents
3
Useful apps and features
109 Kids Mode
112 S Finder
113 S Planner
116 S Voice
117 Calculator
118 Clock
119 WatchON
122 WebEx
134 Businessweek+
135 Dropbox
136 Evernote
137 Flipboard
138 Hancom Office Viewer
143 NYTimes
144 Google apps
Connecting with other
devices
146 Bluetooth
148 Wi-Fi Direct
150 Quick Connect
152 SideSync 3.0
159 Remote PC
164 Screen Mirroring
166 Mobile printing
Phone
73 Receiving calls
74 Options during calls
Contacts
77 Adding contacts
78 Managing contacts
Messages & email
81 Messages
84 Email
Camera
87 Basic shooting
90 Shooting modes
94 Camera settings
Gallery
96 Viewing photos or videos
98 Editing photos or videos
103 Gallery settings
Multimedia
104 Music
107 Video

Table of Contents
4
215 Setting tap and hold delay options
215 Interaction control
216 Answering or ending calls
216 Using single tap mode
216 Managing accessibility settings
217 Using other useful features
Troubleshooting
Device & data manager
167 Upgrading the device
168 Transferring files between the device
and a computer
169 Backing up and restoring data
170 Performing a data reset
Settings
171 About Settings
171 Connections
176 Device
182 General
189 Applications
Accessibility
197 About Accessibility
198 Using the Home button to open
accessibility menus
198 Voice feedback (TalkBack)
209 Changing the font size
209 Magnifying the screen
209 Setting notification reminders
210 Reversing the display colours
210 Colour adjustment
211 Setting flash notification
211 Turning off all sounds
211 Caption settings
212 Adjusting the sound balance
212 Mono audio
213 Assistant menu

5
Read me first
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider, or
device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services depending on your data plan. For
large data transfers, it is recommended to use the Wi-Fi feature.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.

Read me first
6
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information

7
Getting started
Package contents
Check the product box for the following items:
•
Device
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Malfunctions caused by using
unapproved accessories are not covered by the warranty service.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.

Getting started
8
Device layout
Microphone
Touch screen
Recent apps button
Speaker
Multipurpose jack
Proximity/Light sensor
Home button
Back button
Power button
Volume button
IrLED
Memory card slot
SIM card slot
Front camera
Rear camera
GPS antenna
Flash
Headset jack
Push clip
Push clip
Speaker
Main antenna

Getting started
9
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Do not use a screen protector. This causes sensor malfunctions.
•
Do not allow water to contact the touch screen. The touch screen may malfunction
in humid conditions or when exposed to water.
Buttons
Button Function
Power
•
Press and hold to turn the device on or off.
•
Press to turn on or lock the screen.
Recent apps
•
Tap to open the list of recent apps.
•
Tap and hold to access additional options for the current
screen.
Home
•
Press to turn on the screen while the screen is locked.
•
Press to return to the Home screen.
•
Press twice to launch S Voice .
•
Press and hold to launch Google .
Back
•
Tap to return to the previous screen.
Volume
•
Press to adjust the device volume.

Getting started
10
Using the SIM or USIM card and battery
Installing the SIM or USIM card
Insert the SIM or USIM card provided by the mobile telephone service provider.
•
Only microSIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
more information about service availability, contact your service provider.
1 Open the cover of the SIM card slot.
2 Insert the SIM or USIM card with the gold-coloured contacts facing downwards.
3 Push the SIM or USIM card into the slot until it locks in place.
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
4 Close the cover of the SIM card slot.

Getting started
11
Removing the SIM or USIM card
1 Open the cover of the SIM card slot.
2 Push the SIM or USIM card until it disengages from the device, and then pull it out.
3 Close the cover of the SIM card slot.
Charging the battery
Use the charger to charge the battery before using it for the first time.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on
immediately when the charger is connected. Allow a depleted battery to charge for
a few minutes before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection
to another device, the battery will drain quickly. To avoid disconnecting from the
network or losing power during a data transfer, always use these apps after fully
charging the battery.

Getting started
12
Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into
the multipurpose jack.
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
The device can be used while it is charging, but it may take longer to fully charge
the battery.
•
If the device receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the device.
•
While charging, the device may heat up. This is normal and should not affect the
device’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.
After fully charging, disconnect the device from the charger. First unplug the charger from the
device, and then unplug it from the electric socket.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.

Getting started
13
Reducing the battery consumption
Your device provides options that help you save the battery power. By customising these
options and deactivating features in the background, you can use the device longer between
charges:
•
When you are not using the device, switch to sleep mode by pressing the Power button.
•
Close unnecessary apps using the task manager.
•
Deactivate the Bluetooth feature.
•
Deactivate the Wi-Fi feature.
•
Deactivate auto-syncing of apps.
•
Decrease the screen timeout.
•
Decrease the screen brightness.
Using a memory card
Installing a memory card
Your device accepts memory cards with maximum capacities of 128 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
My Files
→
SD card folder.
1 Open the cover of the memory card slot.
2 Insert a memory card with the gold-coloured contacts facing downwards.

Getting started
14
3 Push the memory card into the slot until it locks in place.
4 Close the cover of the memory card slot.
Removing the memory card
Before removing the memory card, first unmount it for safe removal. On the Home screen, tap
→
Settings
→
General
→
Storage
→
Unmount SD card .
1 Open the cover of the memory card slot.
2 Push the memory card until it disengages from the device, and then pull it out.
3 Close the cover of the memory card slot.
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or can damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.

Getting started
15
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
→
Settings
→
General
→
Storage
→
Format SD card
→
Format SD card
→
Erase everything .
Before formatting the memory card, remember to make backup copies of all
important data stored in the device. The manufacturer’s warranty does not cover loss
of data resulting from user actions.
Turning the device on and off
Press and hold the Power button for a few seconds to turn on the device.
When you turn on your device for the first time or after performing a data reset, follow the on-
screen instructions to set up your device.
To turn off the device, press and hold the Power button, and then tap
Power off .
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.

Getting started
16
Locking and unlocking the screen
Pressing the Power button turns off the screen and locks it. Also, the screen turns off and
automatically locks if the device is not used for a specified period.
To unlock the screen, press the Power button or the Home button and flick your finger in any
direction within the unlock screen area.
You can change the unlock code to unlock the screen. Refer to Changing the screen lock
method for more information.

17
Basics
Using the touch screen
•
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
•
To avoid damaging the touch screen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The device may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touch screen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touch screen when you do not use the
device.
•
It is recommended to use fingers when you use the touch screen.
Tapping
To open an app, to select a menu item, to press an on-screen button, or to enter a character
using the keyboard on the screen, tap it with a finger.

Basics
18

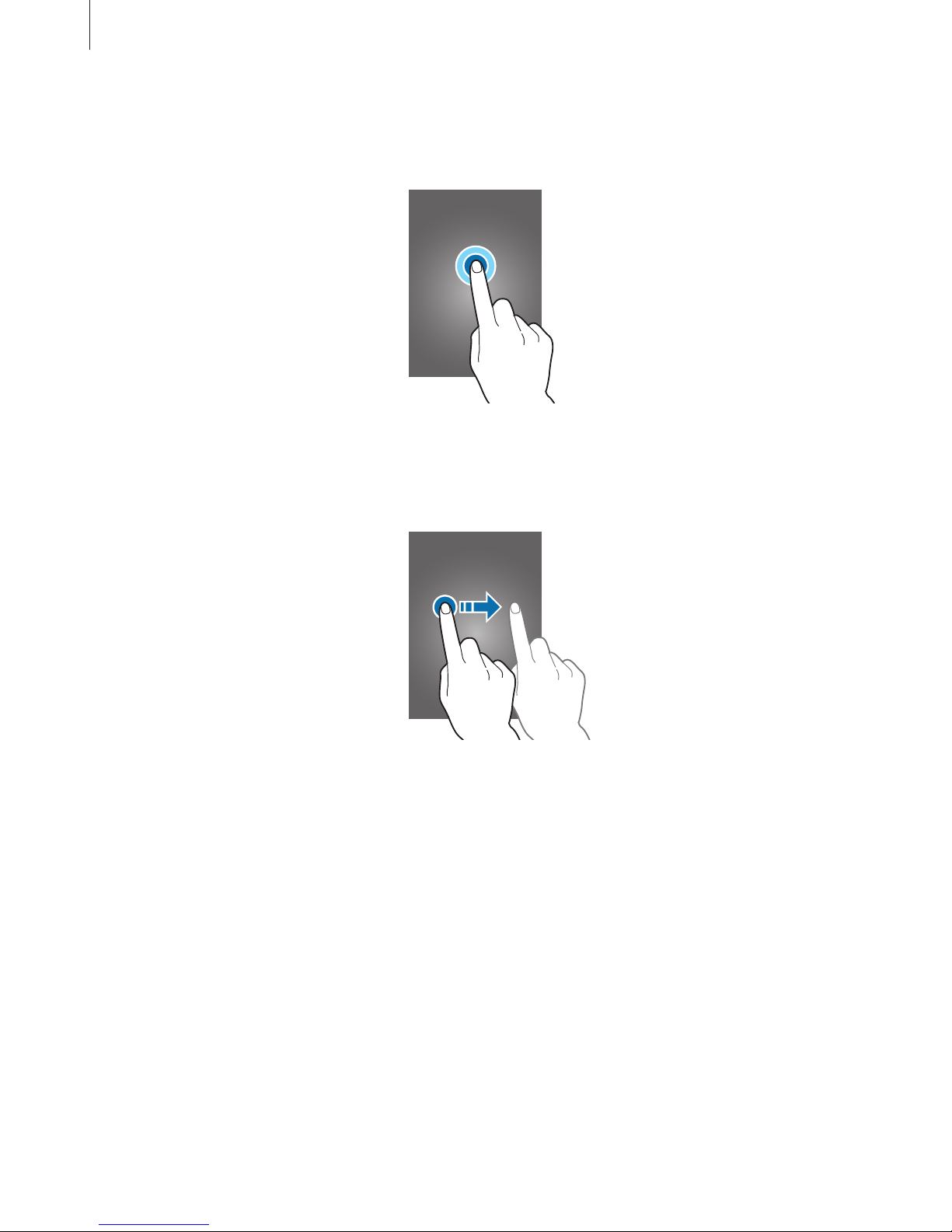

Tapping and holding
Tap and hold an item or the screen for more than 2 seconds to access available options.
Dragging
To move an item, tap and hold it and drag it to the target position.

Basics
19
Double-tapping
Double-tap on a webpage or image to zoom in. Double-tap again to return.
Flicking
Flick left or right on the Home screen or the Apps screen to see another panel. Flick up or
down to scroll through a webpage or a list of items, such as contacts.

Basics
20

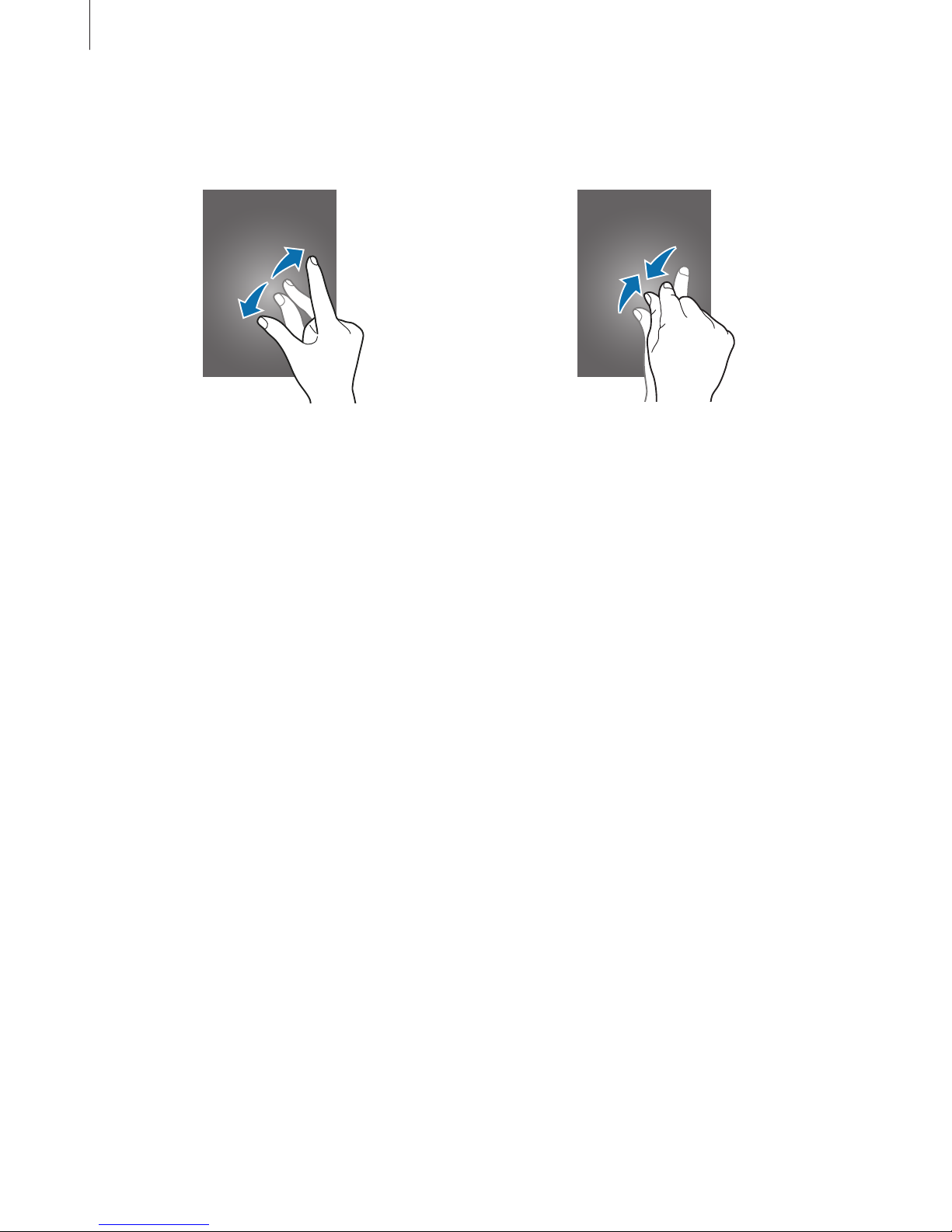

Spreading and pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
